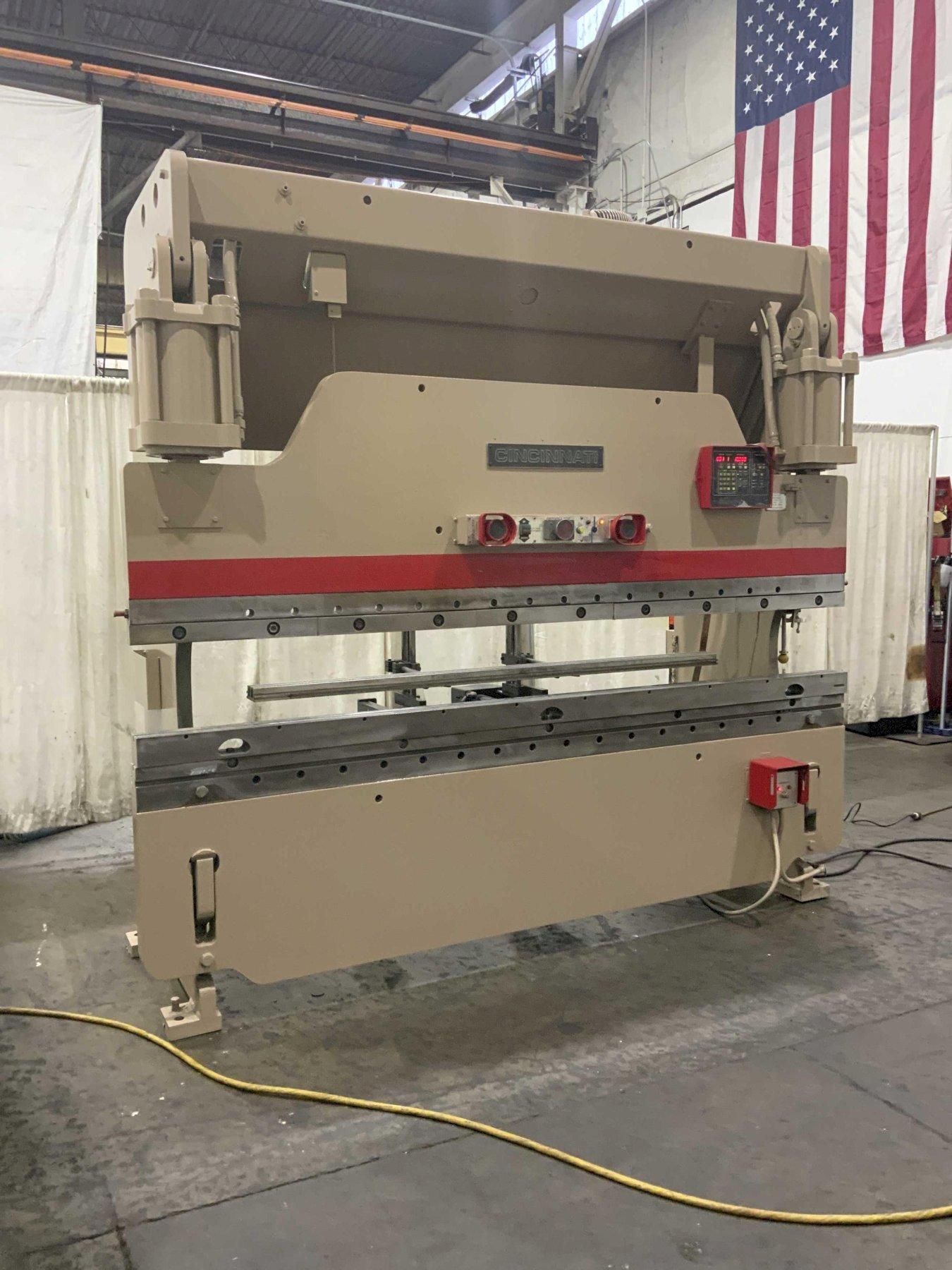

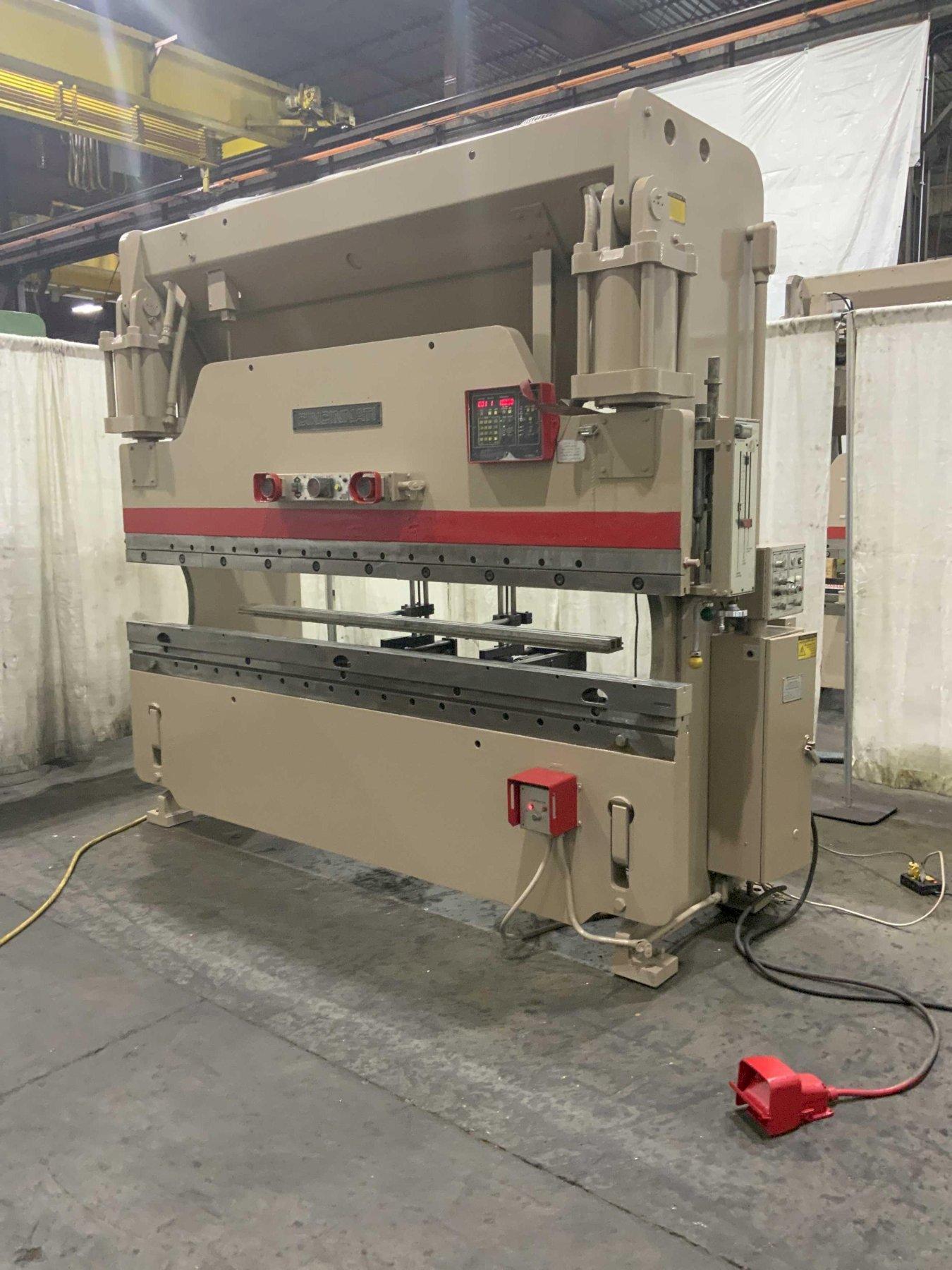

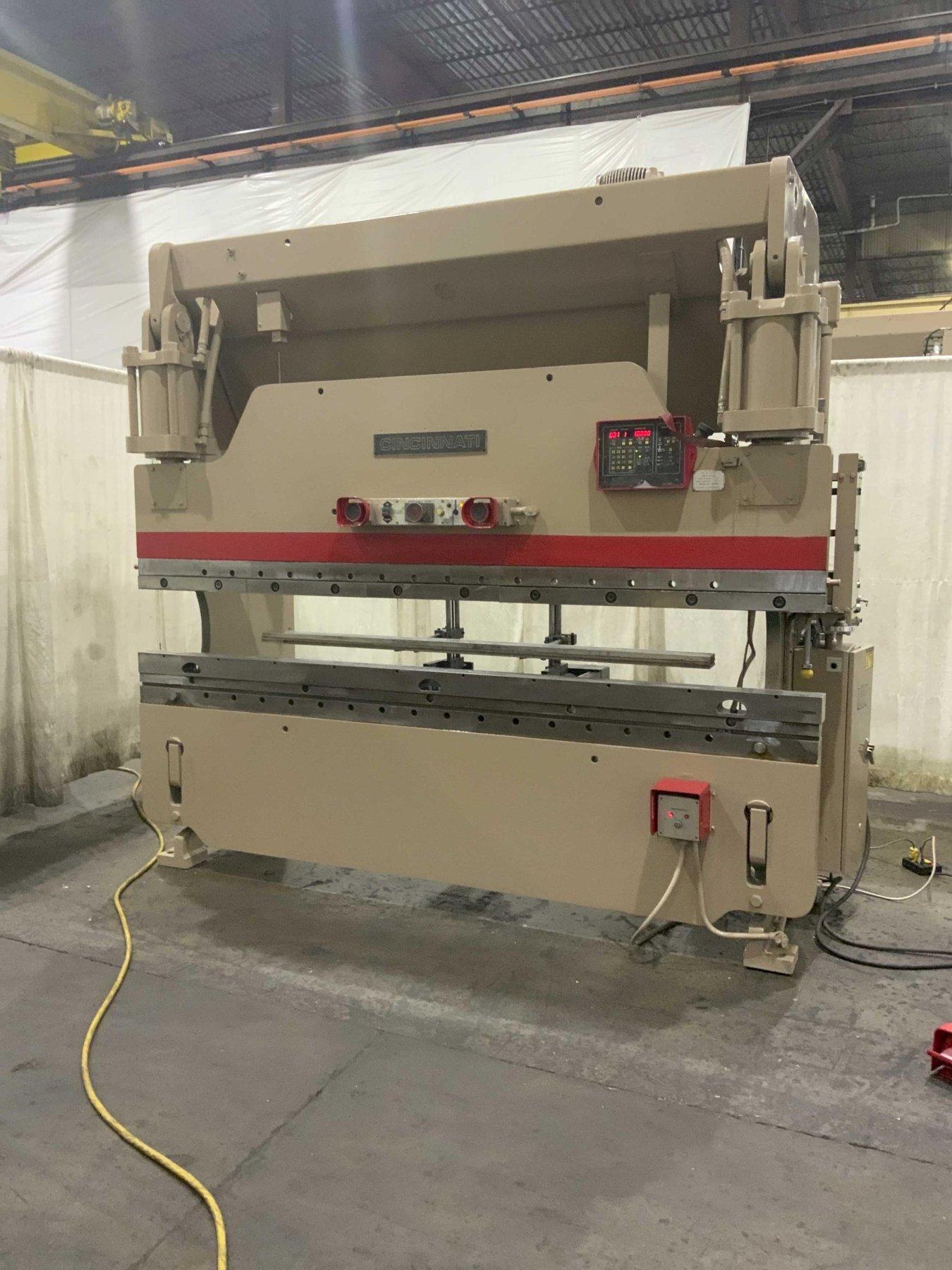

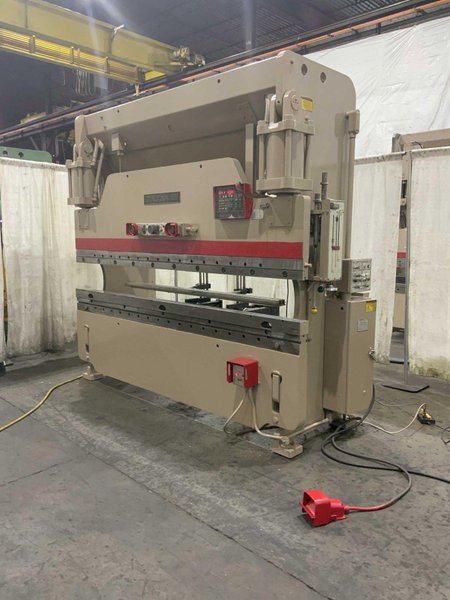

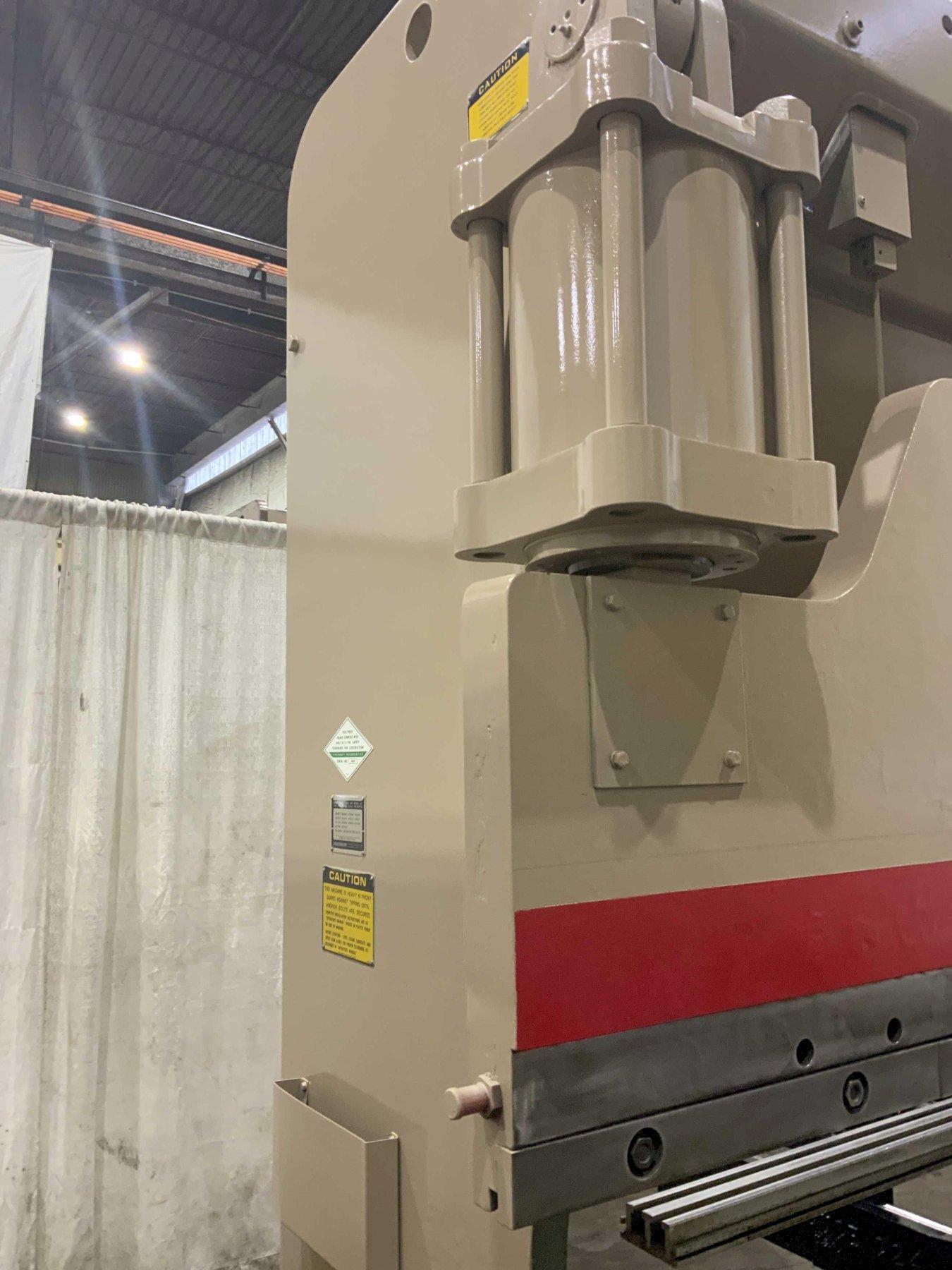

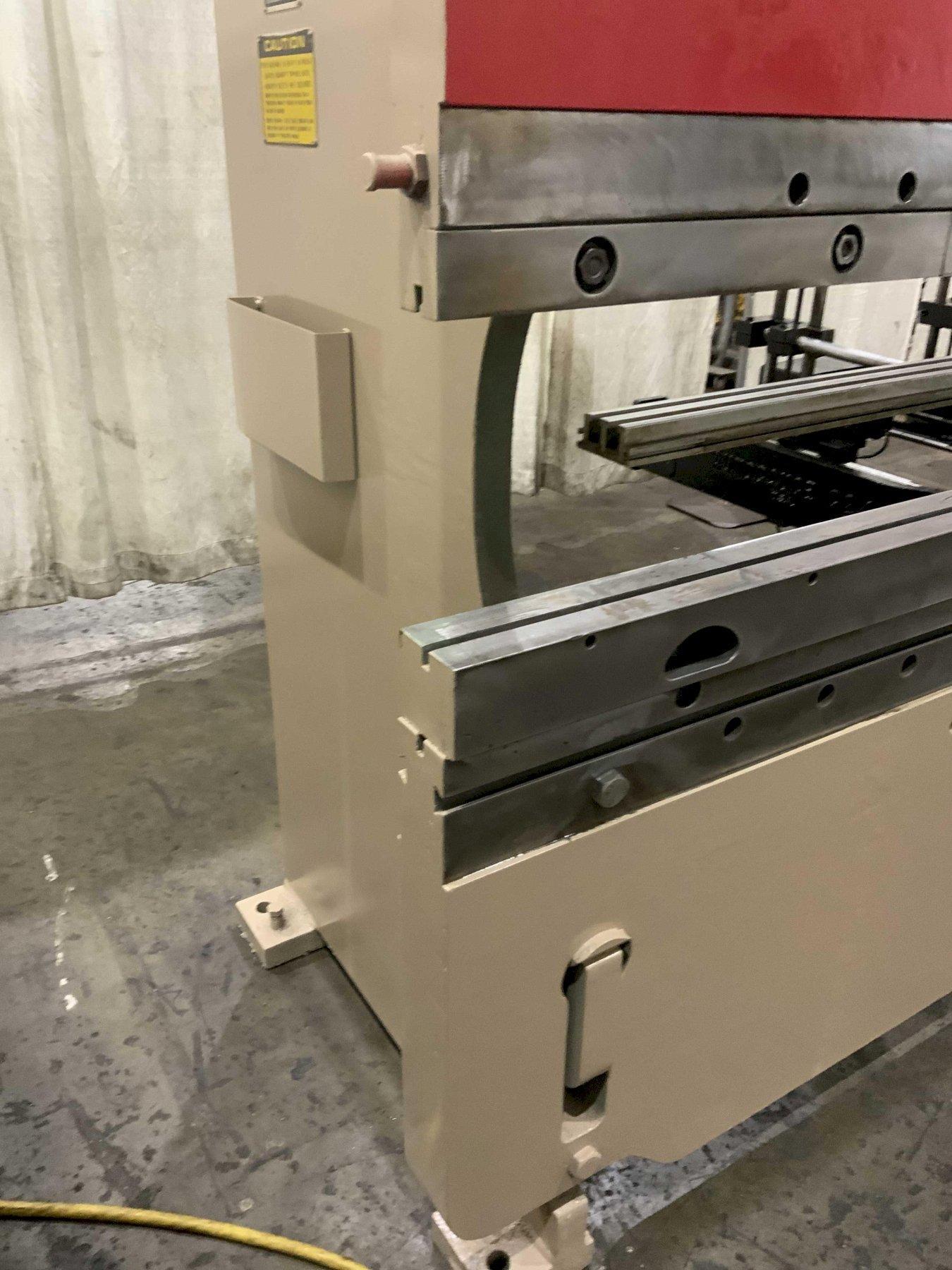

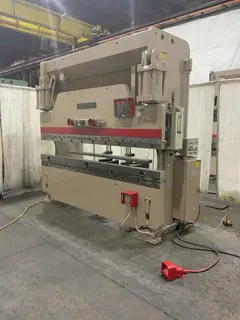

135-TON X 10' CINCINNATI HYDRAULIC PRESS BRAKE STROKE: STOCK #80580
Brand
Category
Type
Model
135X8
Stock #
80580
Year
Not specified
Condition
Not specified
Location
Not specified
|

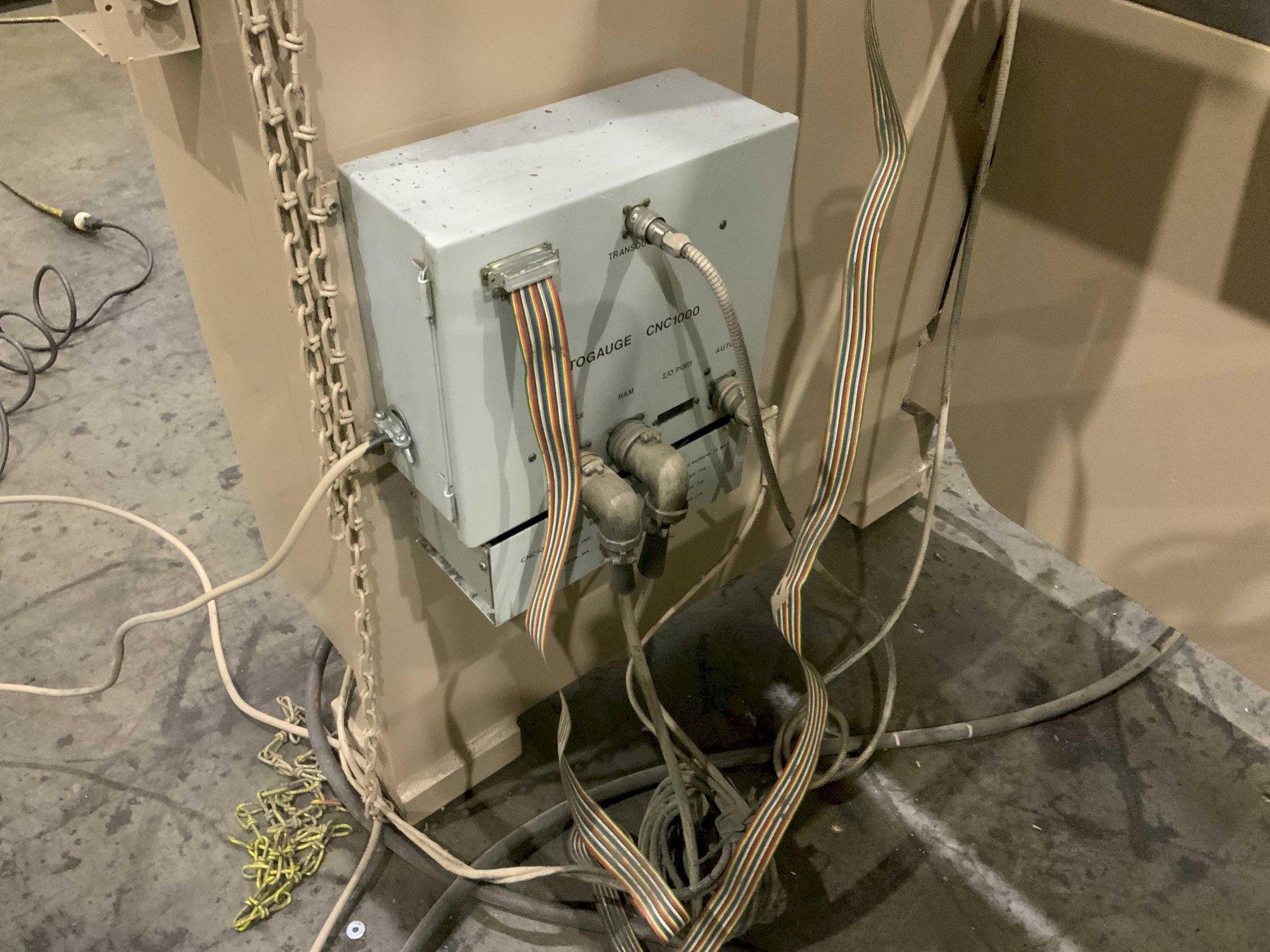

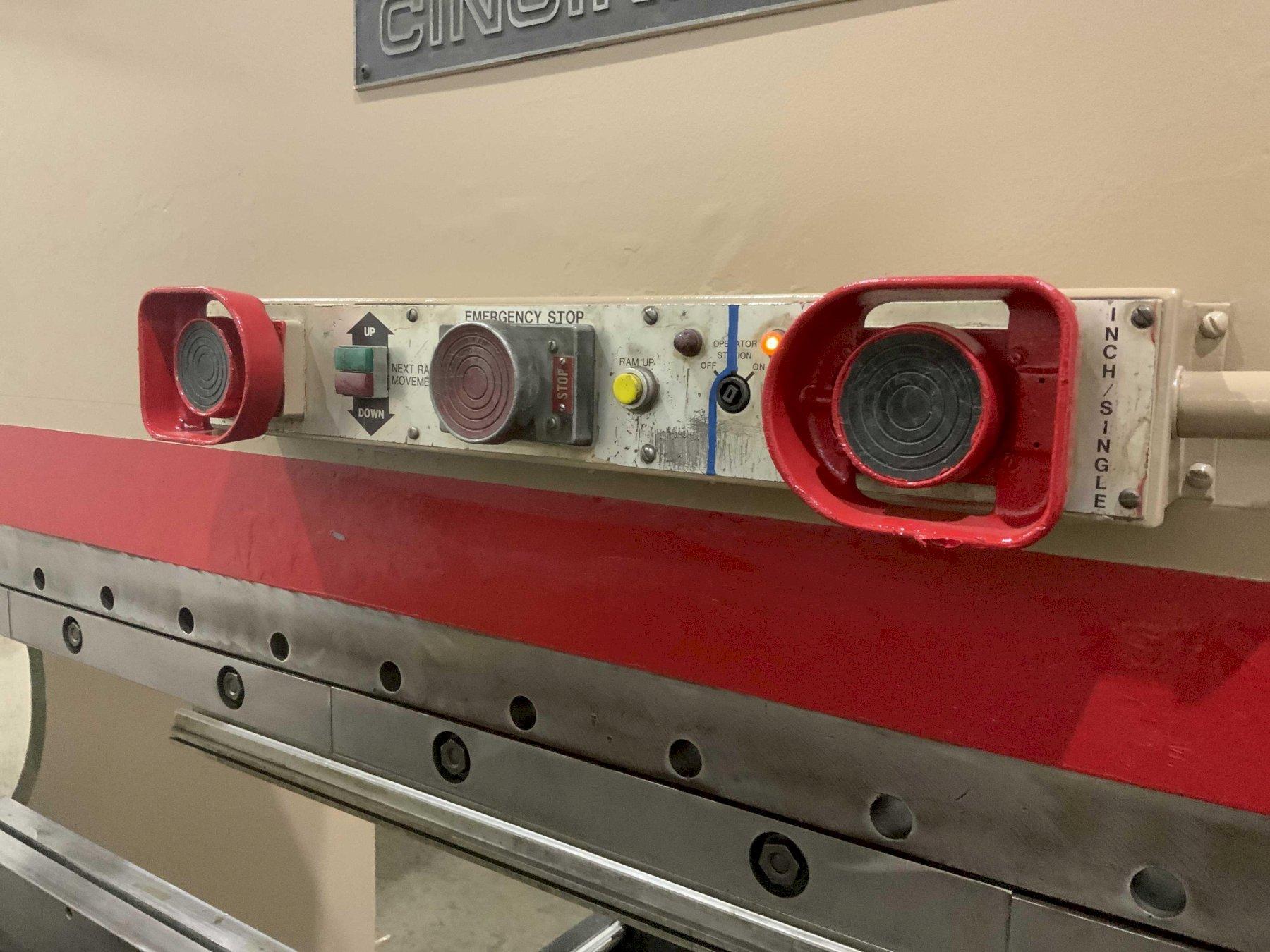

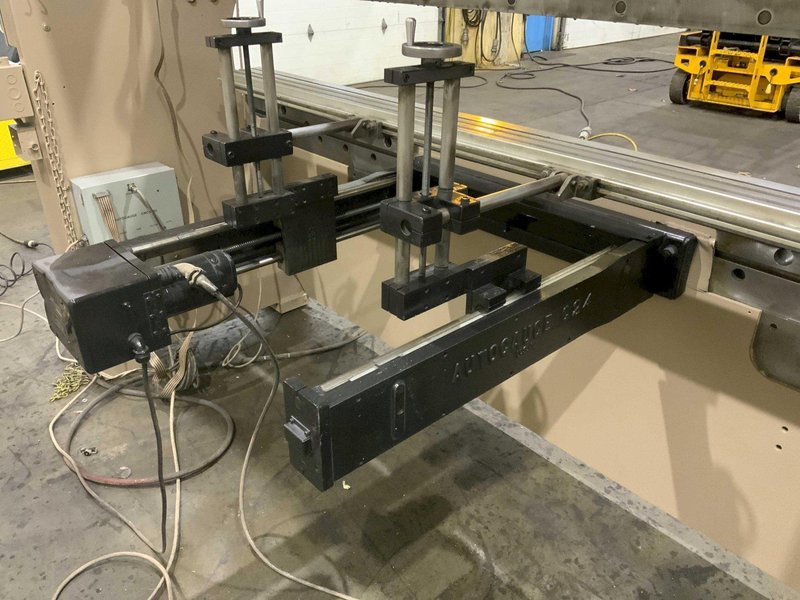

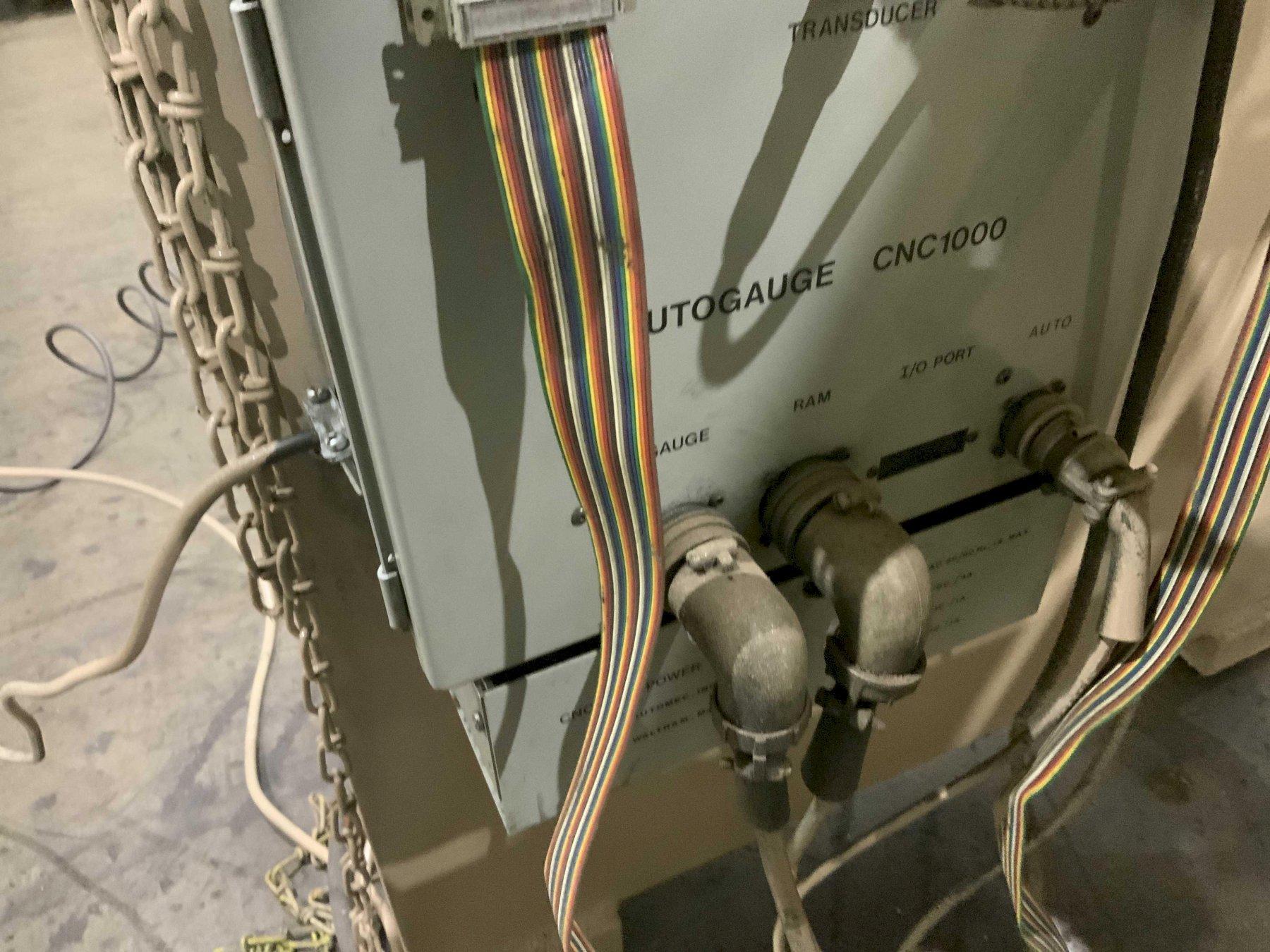

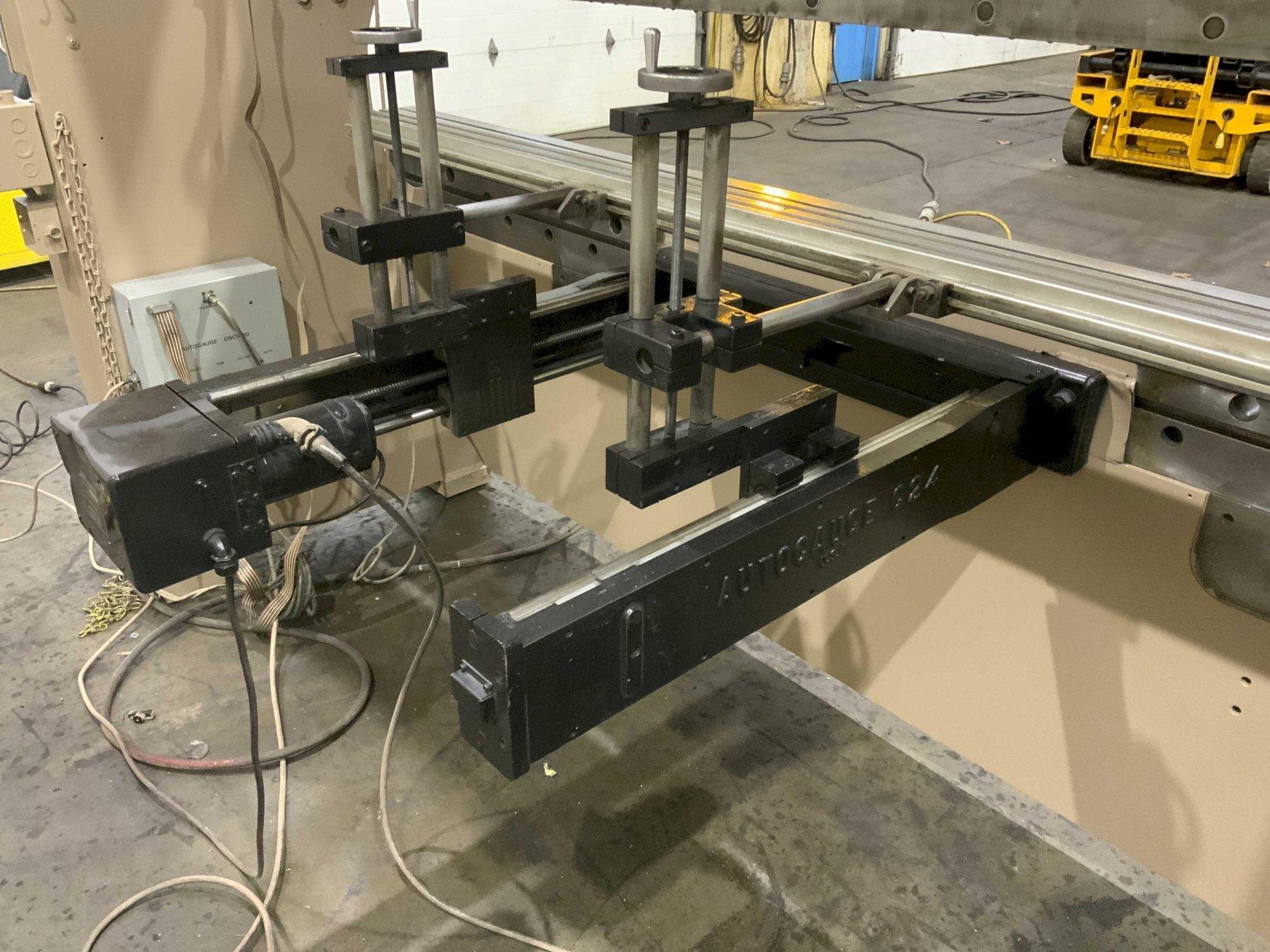

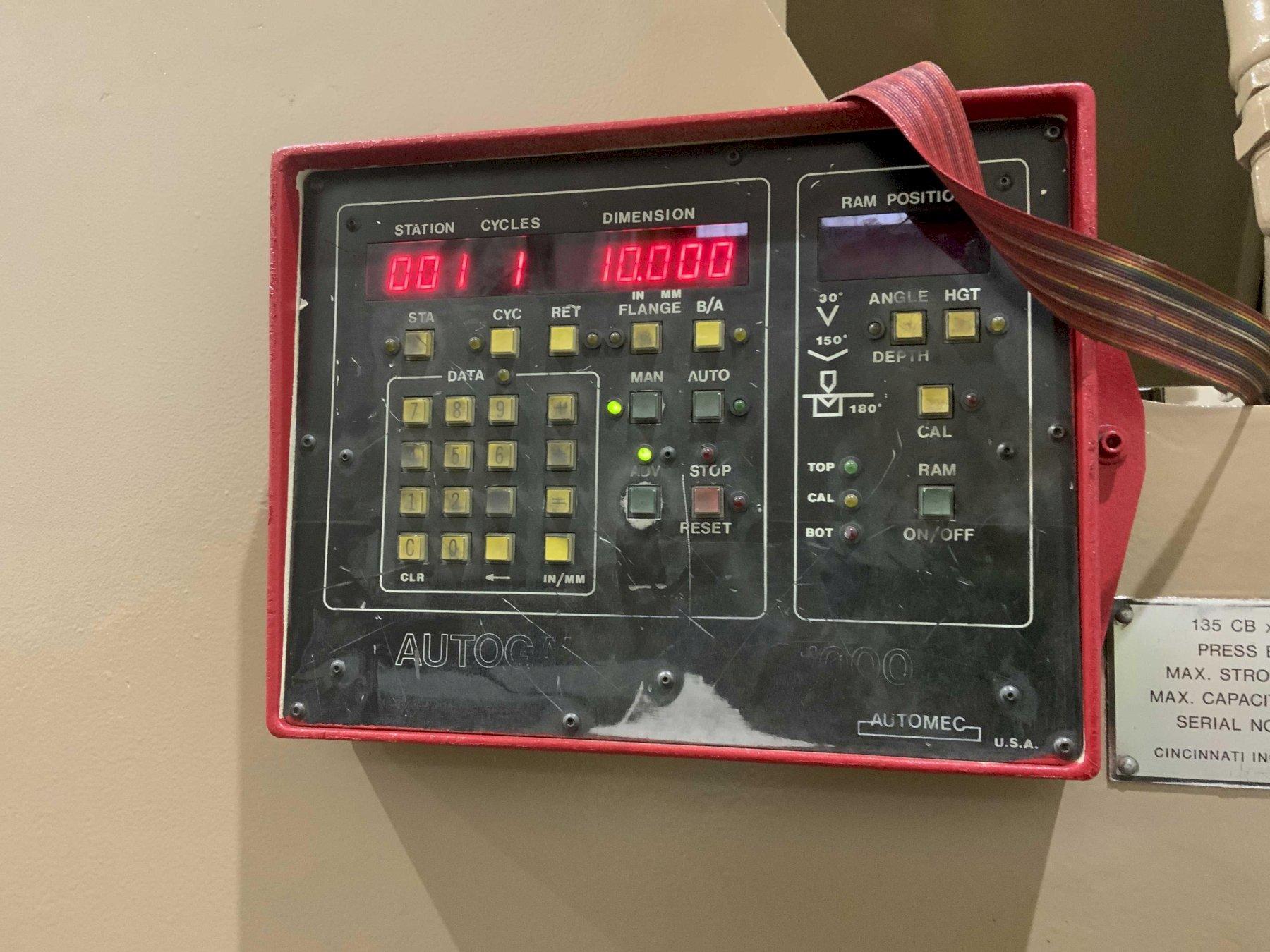

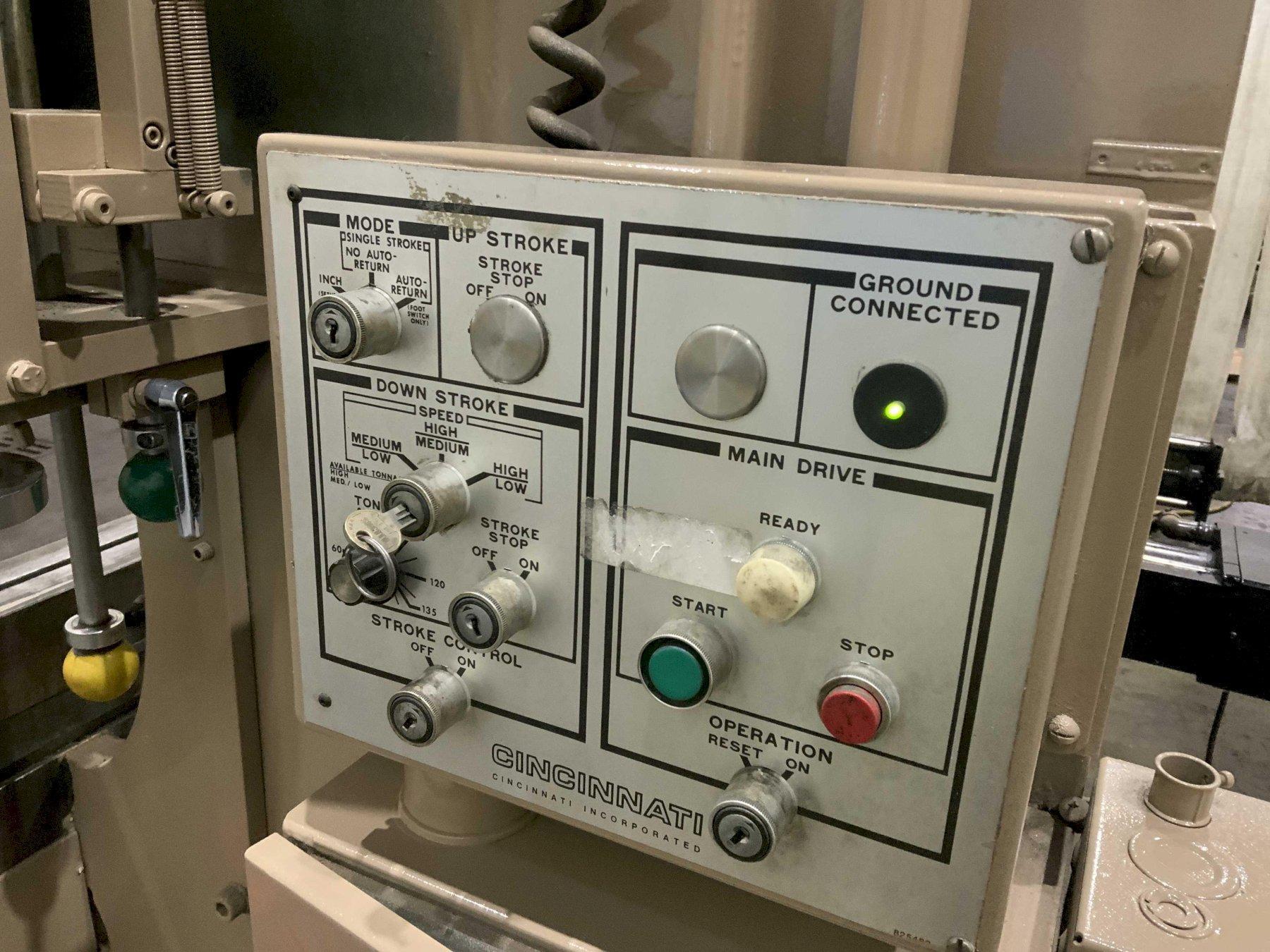

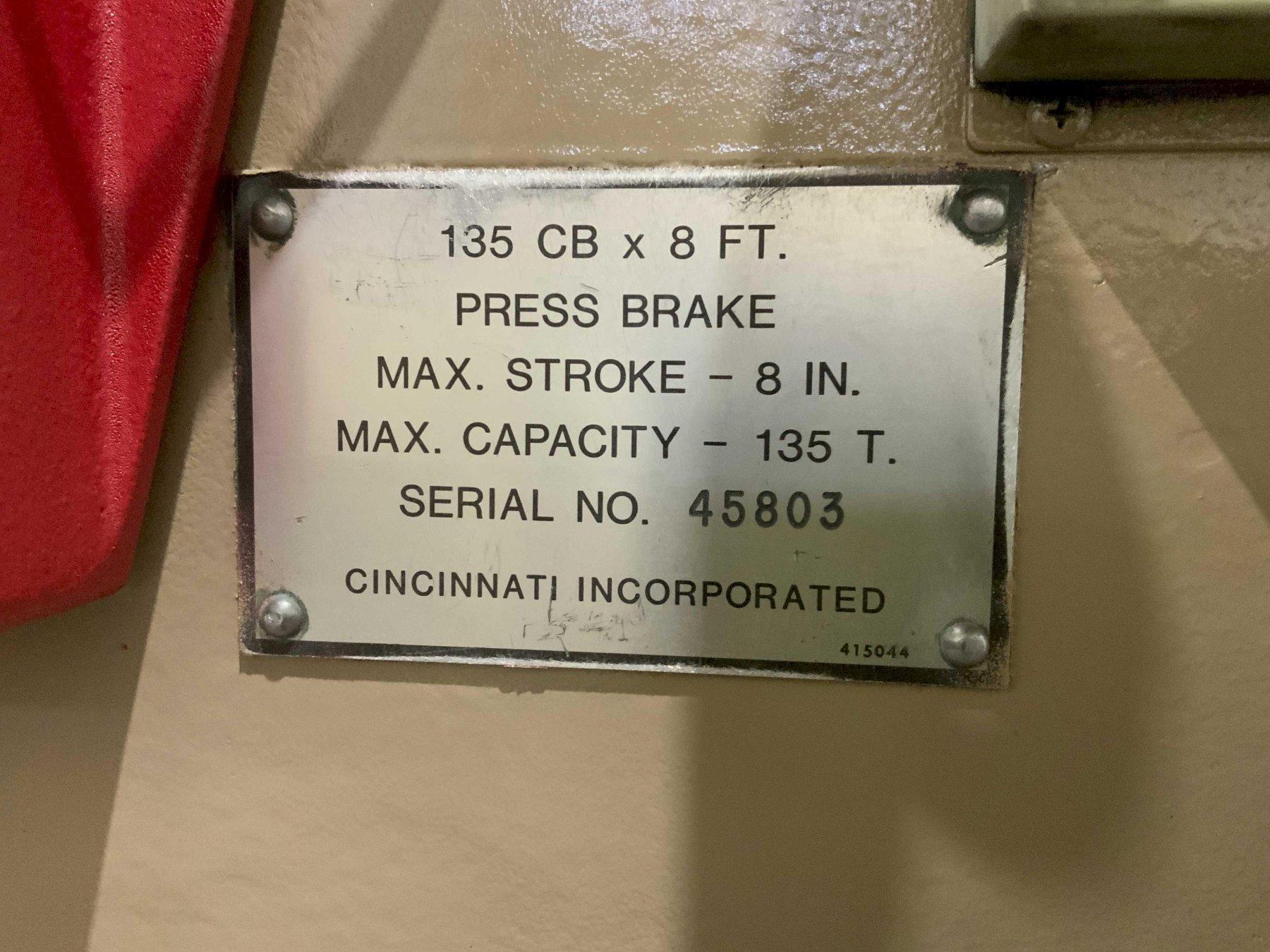

SERIAL .............................. 45803 MODEL ............................... 135CB X 8 YEAR NEW ............................ 1990 OVERALL LENGTH OF BED ............... 120" (10') DISTANCE BETWEEN HOUSINGS ........... 102" (8'6) STROKE .............................. 8" MAXIMUM DAYLIGHT .................... 15" MINIMUM DAYLIGHT .................... 7" THROAT .............................. 7" RAM SPEED RAPID ADVANCE ............. 136 IPM RAM SPEED MEDIUM ADVANCE ............ 65 IPM RAM SPEED LOW ADVANCE (PRESSING) .... 16 IPM RAM SPEED RETURN .................... 122 IPM RAM MILLED AND DRILLED FOR ANGELS ... YES BED MILLED AND DRILLED FOR ANGLES ... YES CNC BACK GAUGE ...................... AUTOMEC 1000 FLOOR STANDING ...................... YES PALM BUTTONS ........................ YES MAIN MOTOR .......................... 25 HORSEPOWER |
