Breton - Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC

Brand
BRETON
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC
Stock #
A.12 16067
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

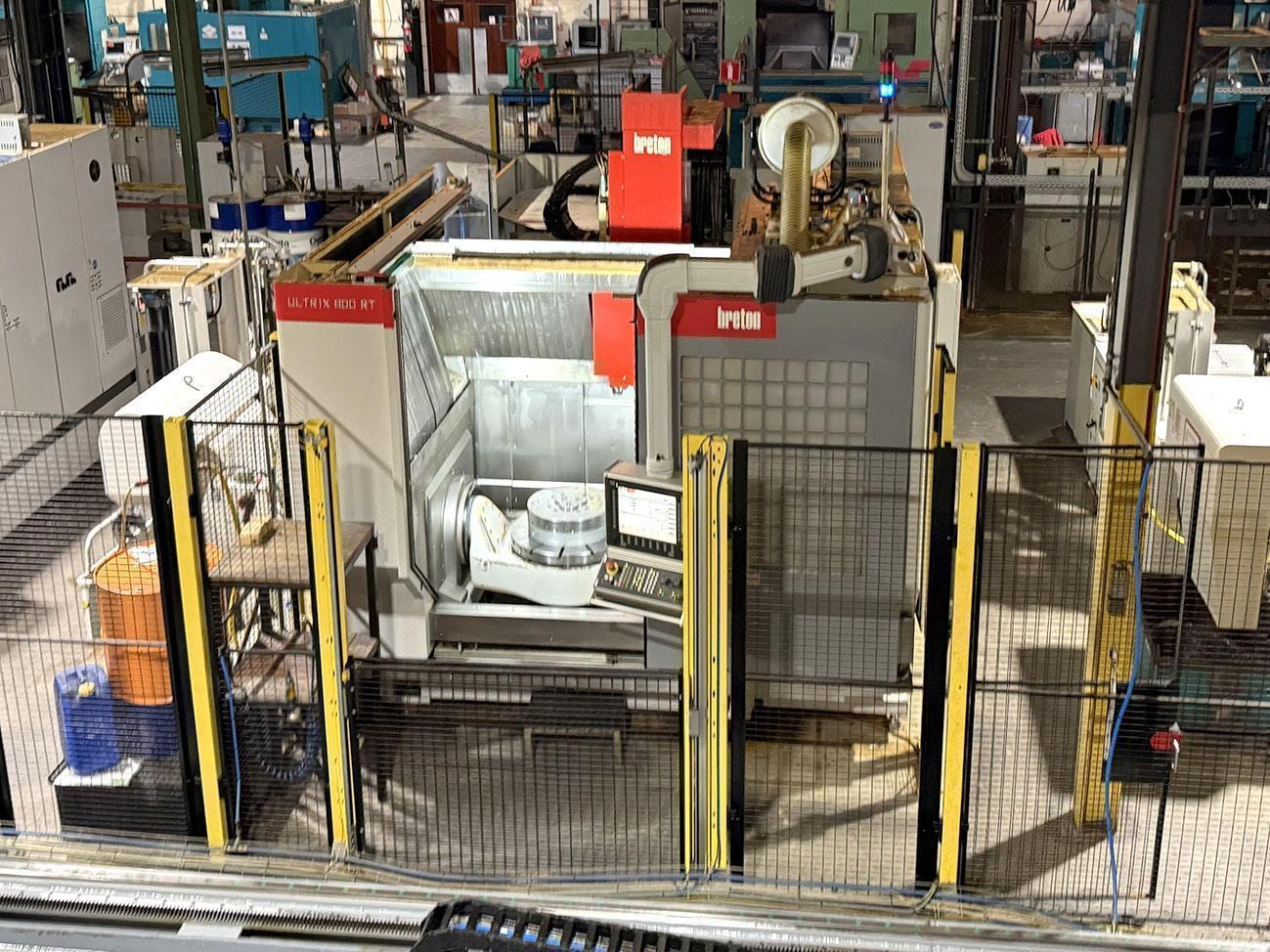

Located in Deinze, Belgium

Technical information

  • Chuck dia. 700 mm
  • Max turningdia -- passage 1100 mm
  • Power on the spindle 40/30 kW

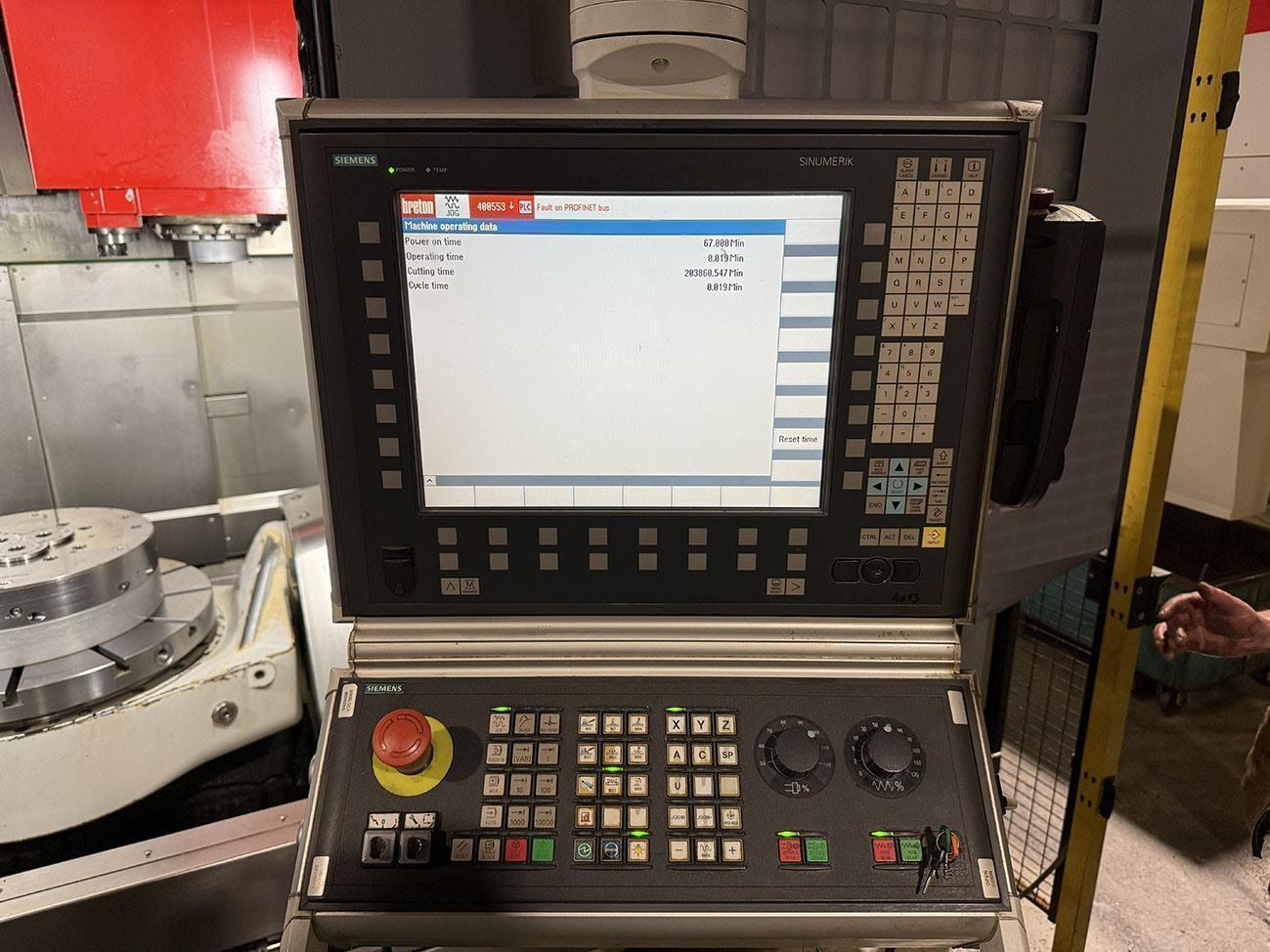

  • Command Siemens 840D Solution Line
  • Long 4655 mm
  • Wide 5890 mm
  • Height 3415 mm
  • Weight 17 ton
  • Turret yes
  • Qty Tools 150 positions
  • Coolant pump yes

Additional info

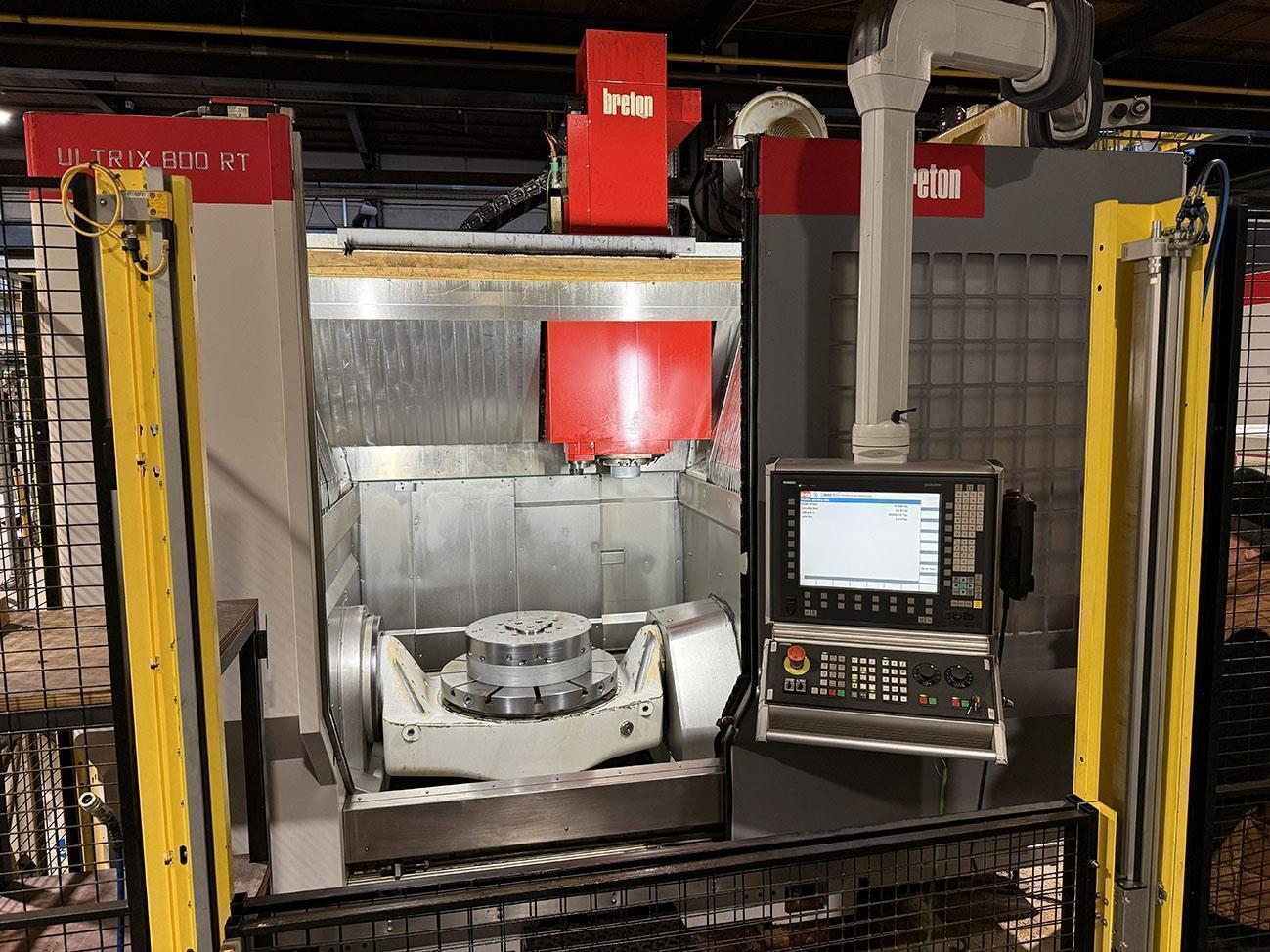

  • Type: Ultrix 800 RT

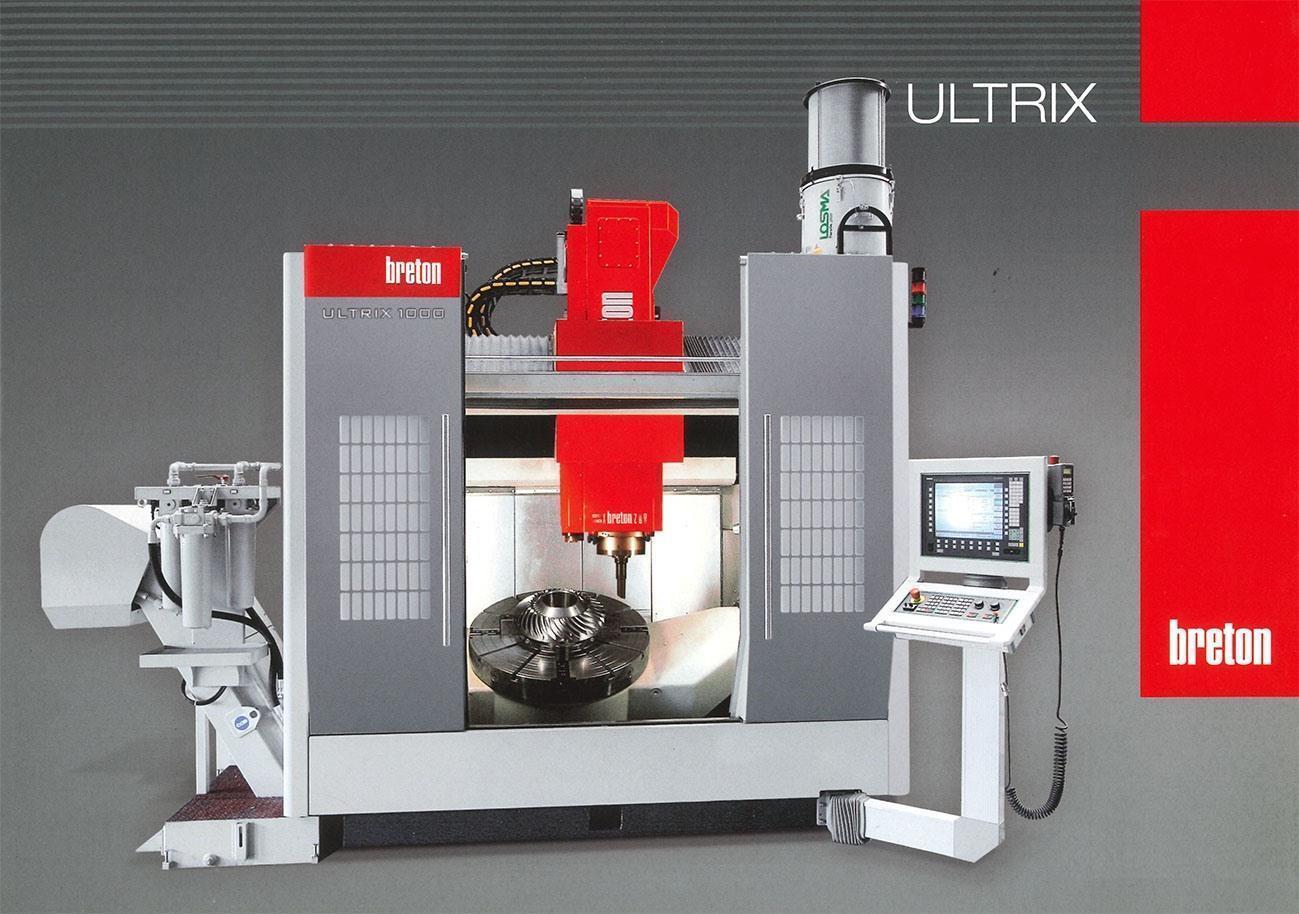

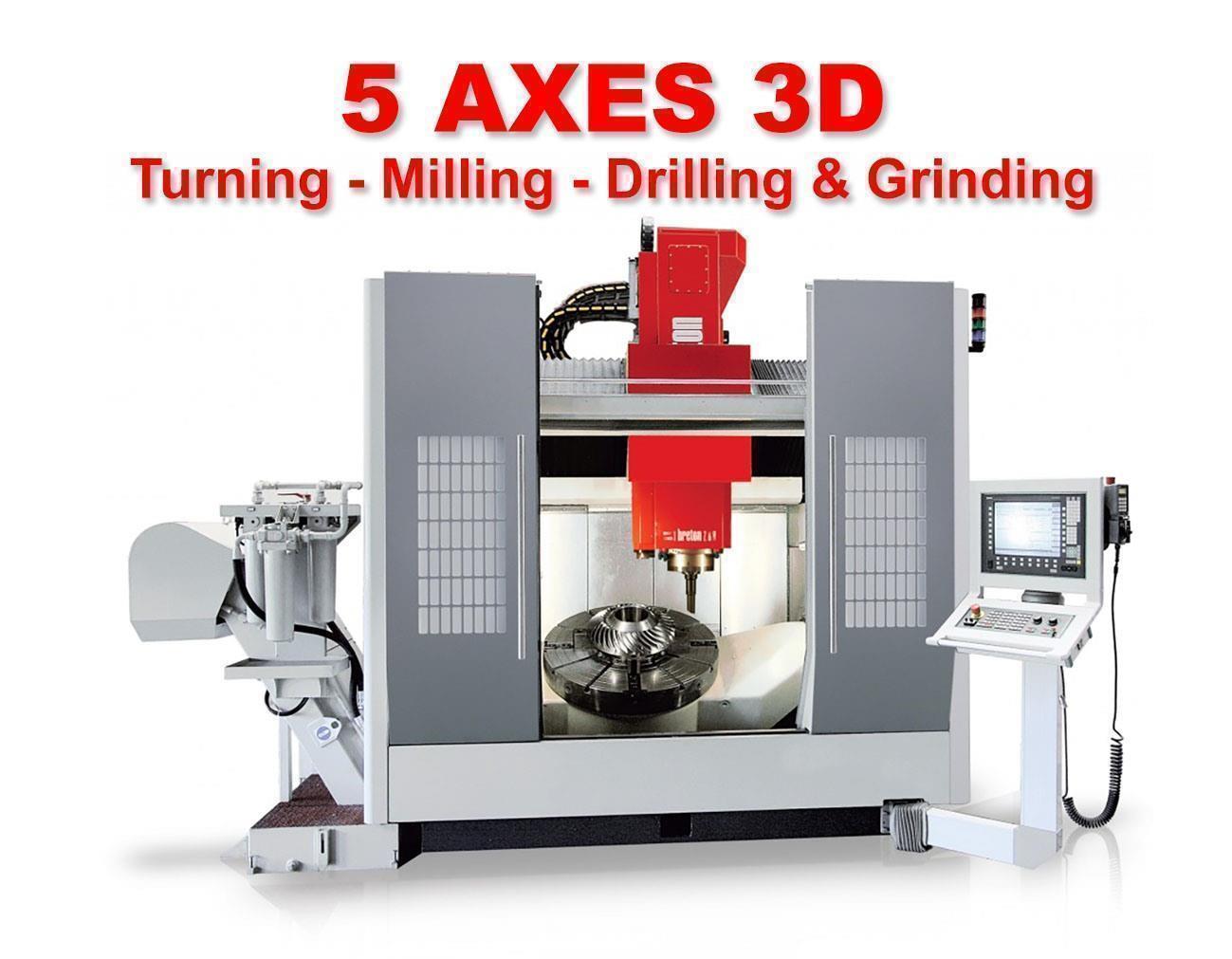

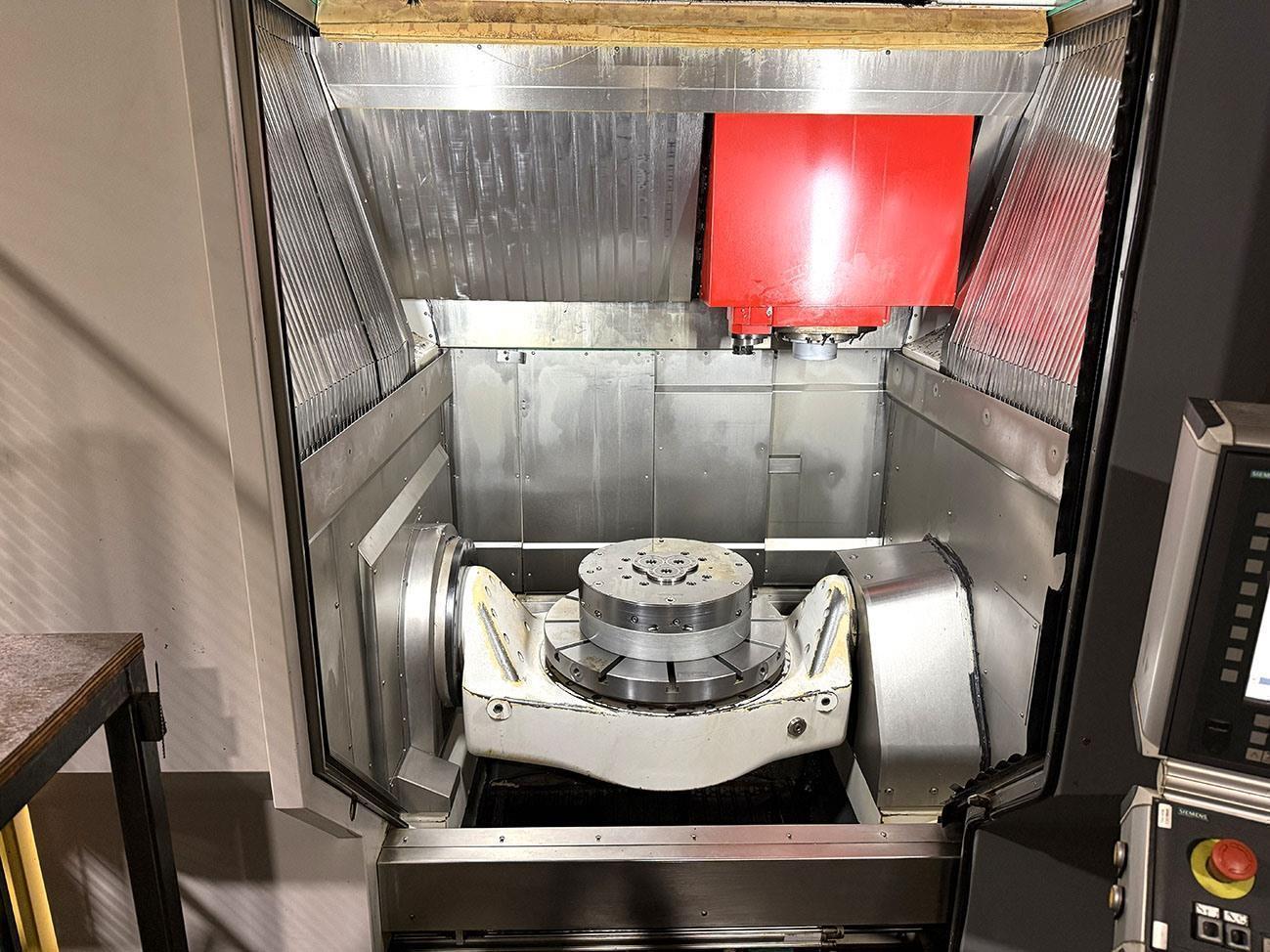

    The Ultrix 800 RT is a multifunction machining center with 5 interpolated axes and a moving gantry design for high-speed milling, turning, grinding, drilling, tapping, finishing, deburring and roughing of complex parts.

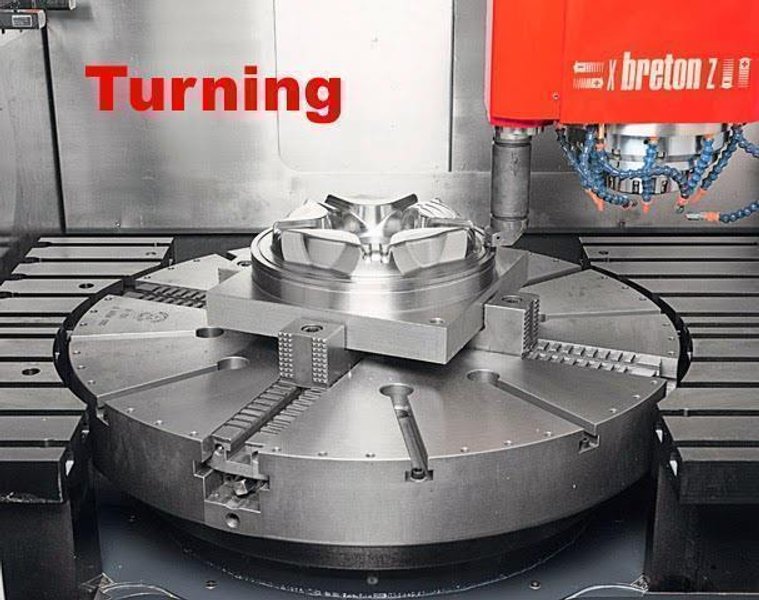

    When used for turning > vertical lathe:
    - Swivel range: 1100 mm
    - maximum weight of the workpiece: 700 kg
    - 40/30 kW on the table
    - Maximum torque on the table: 1500 Nm
    - Maximum speed of the table: 800 rpm!!
    - hydraulic clamping on table

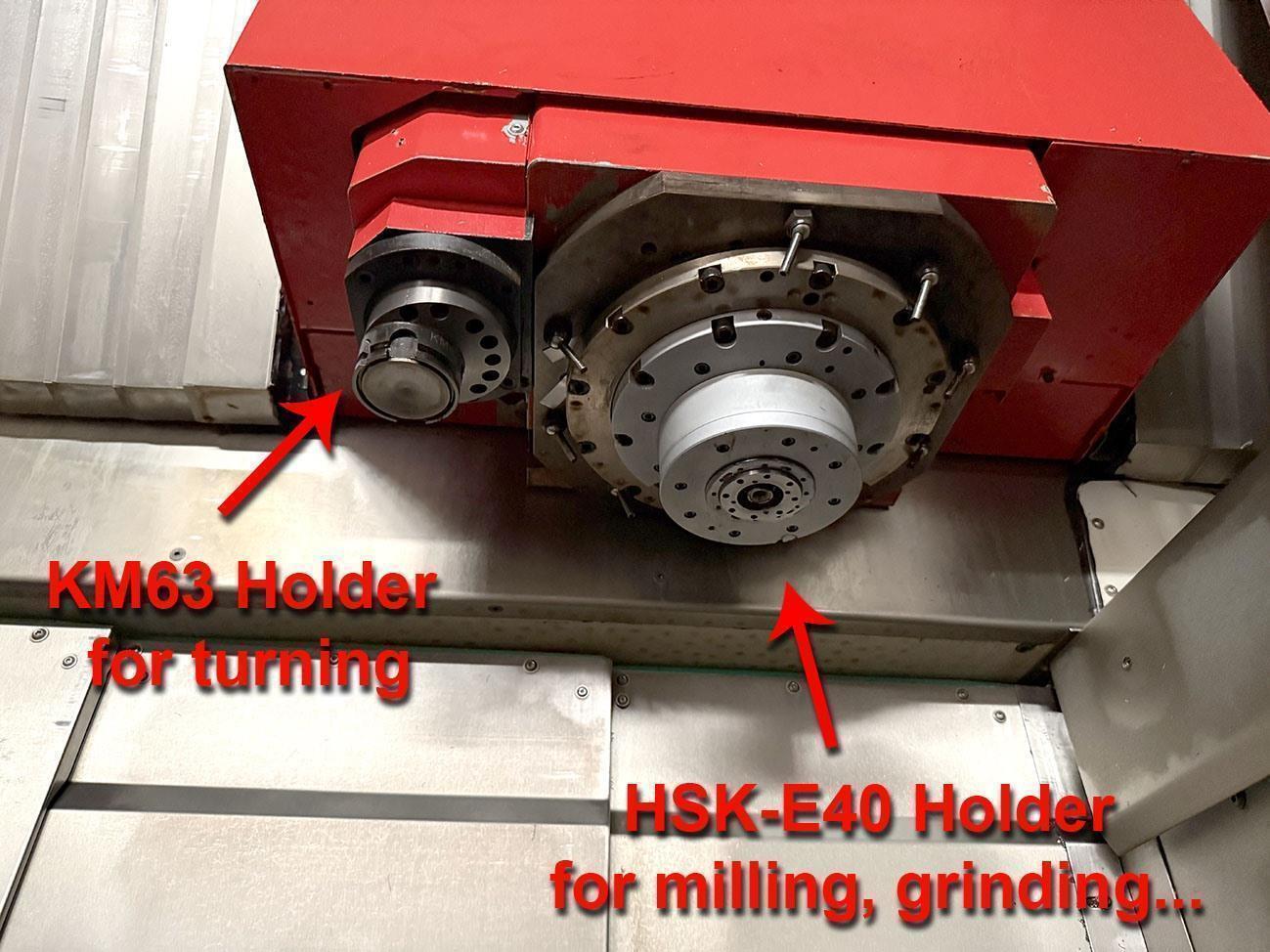

    - tool taper for turning: KM63

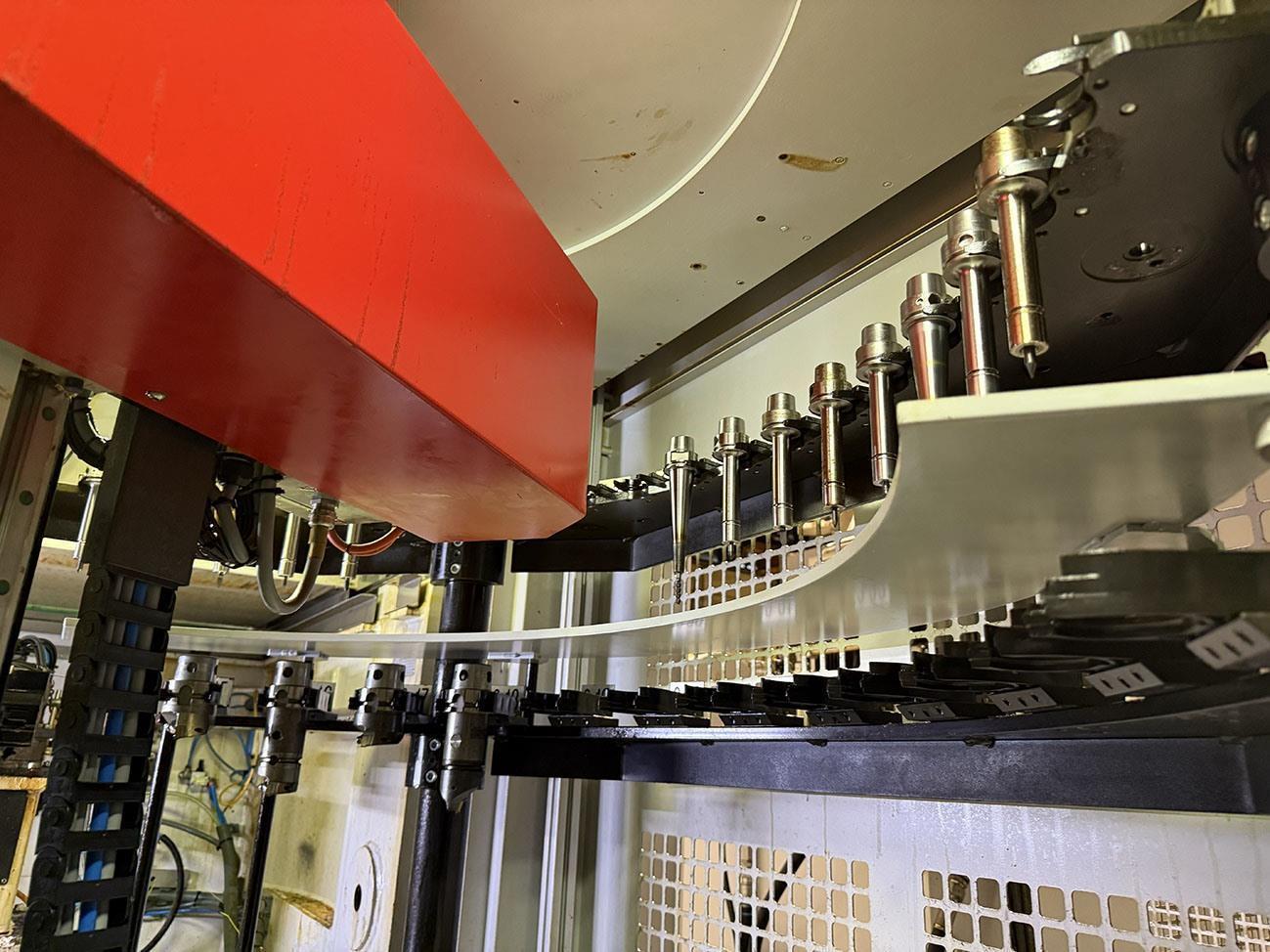

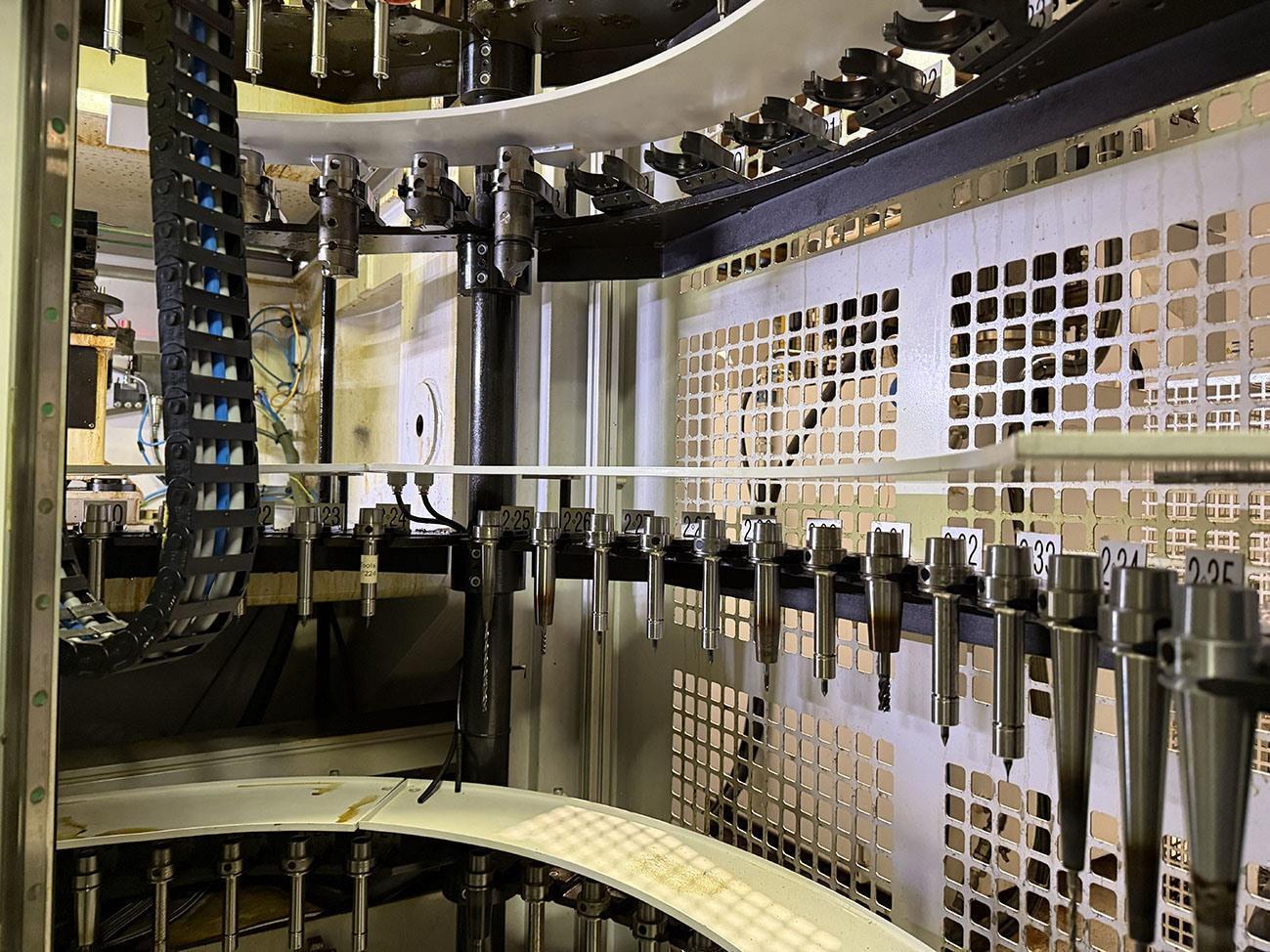

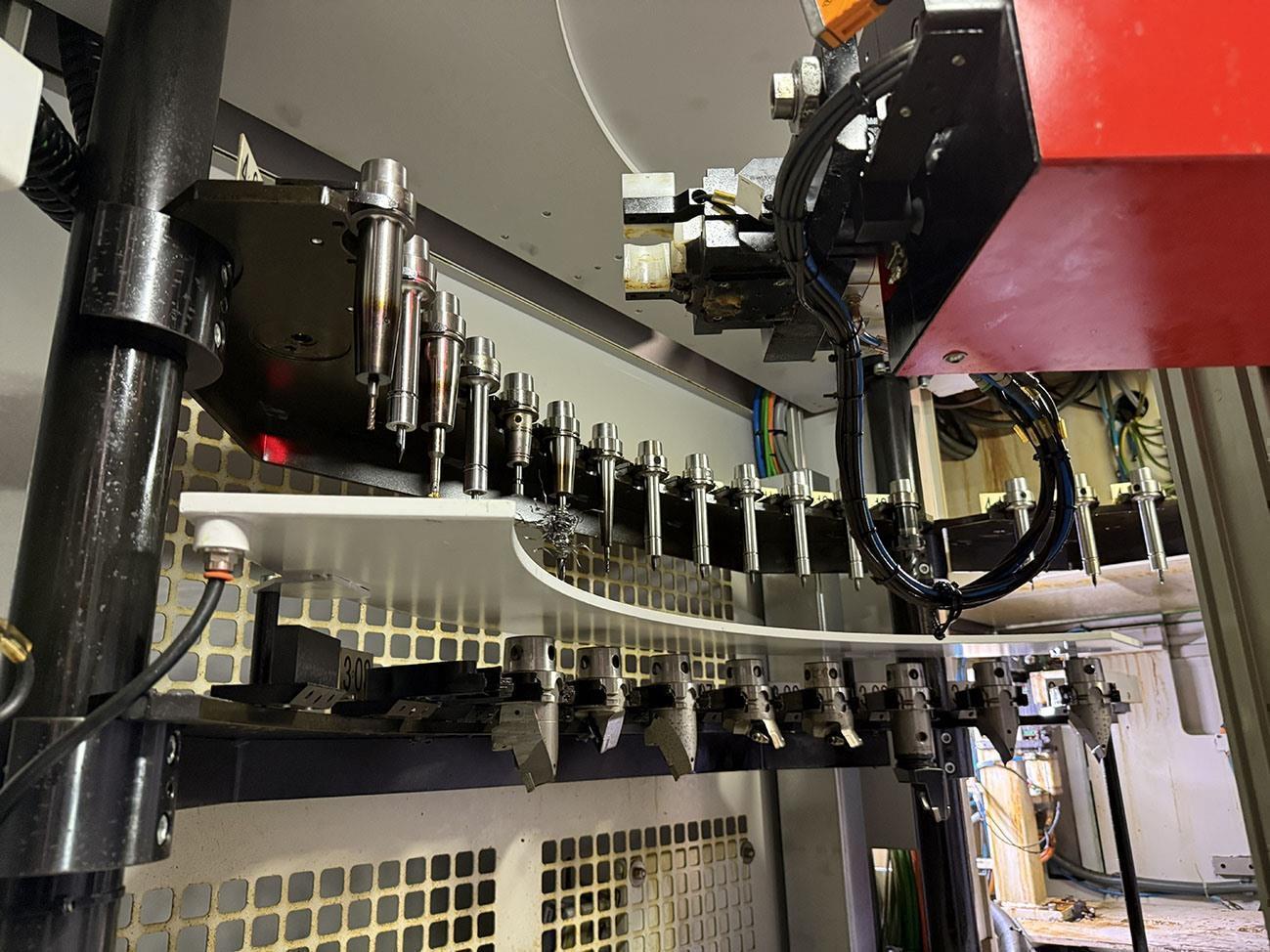

    - Tool changer with 150 positions, of which 24 for turning.

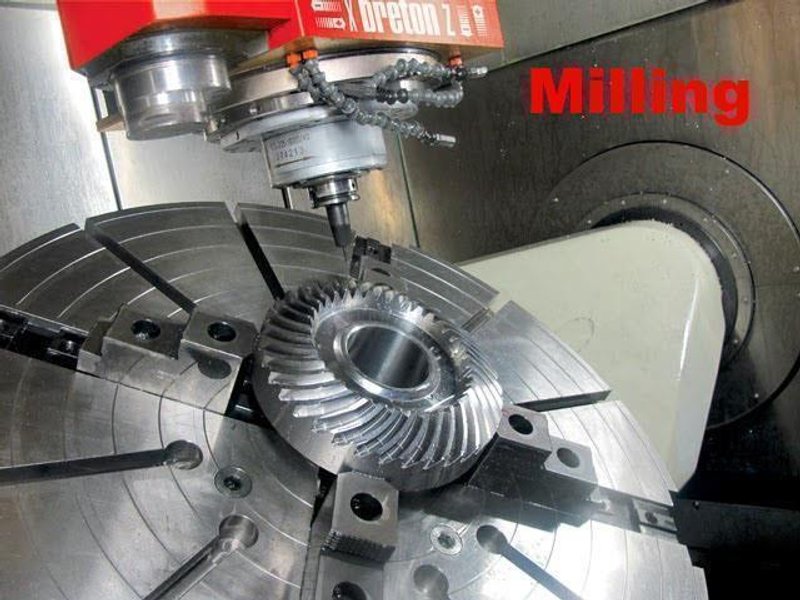

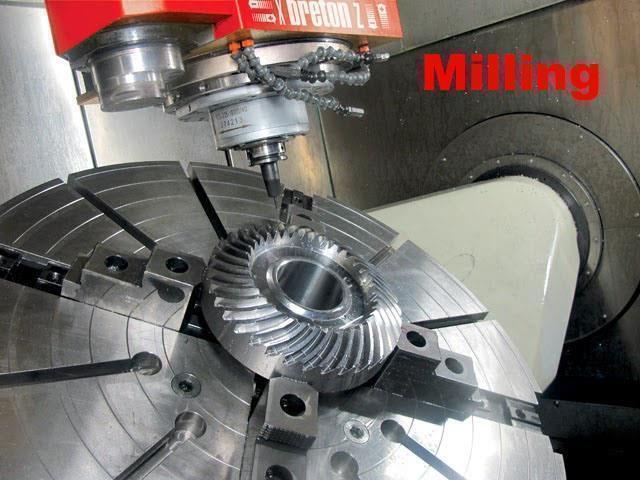

    When used for milling, grinding, drilling, ... > machining center:
    - X-axis: 800 mm
    - Y-axis: 900 mm
    - Z-axis: 600 mm
    - A-axis: -30° / 110°
    - C-axis: continuous
    - maximum weight of the workpiece: 700 kg
    - 55/40 kW on the spindle
    - maximum torque on the spindle: 18/16 Nm
    - maximum 40,000 revolutions per minute
    - tool taper for milling: HSK-E40

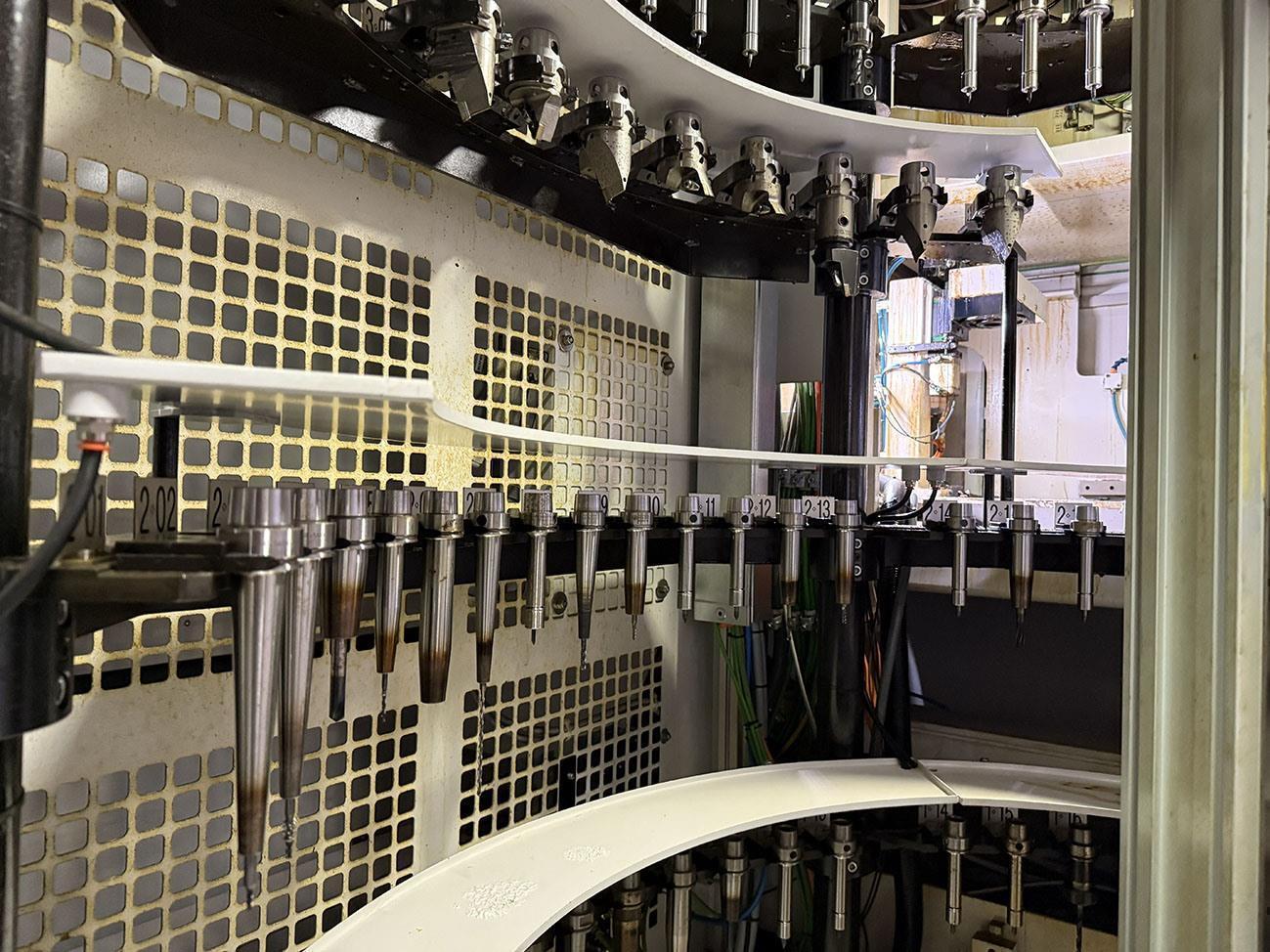

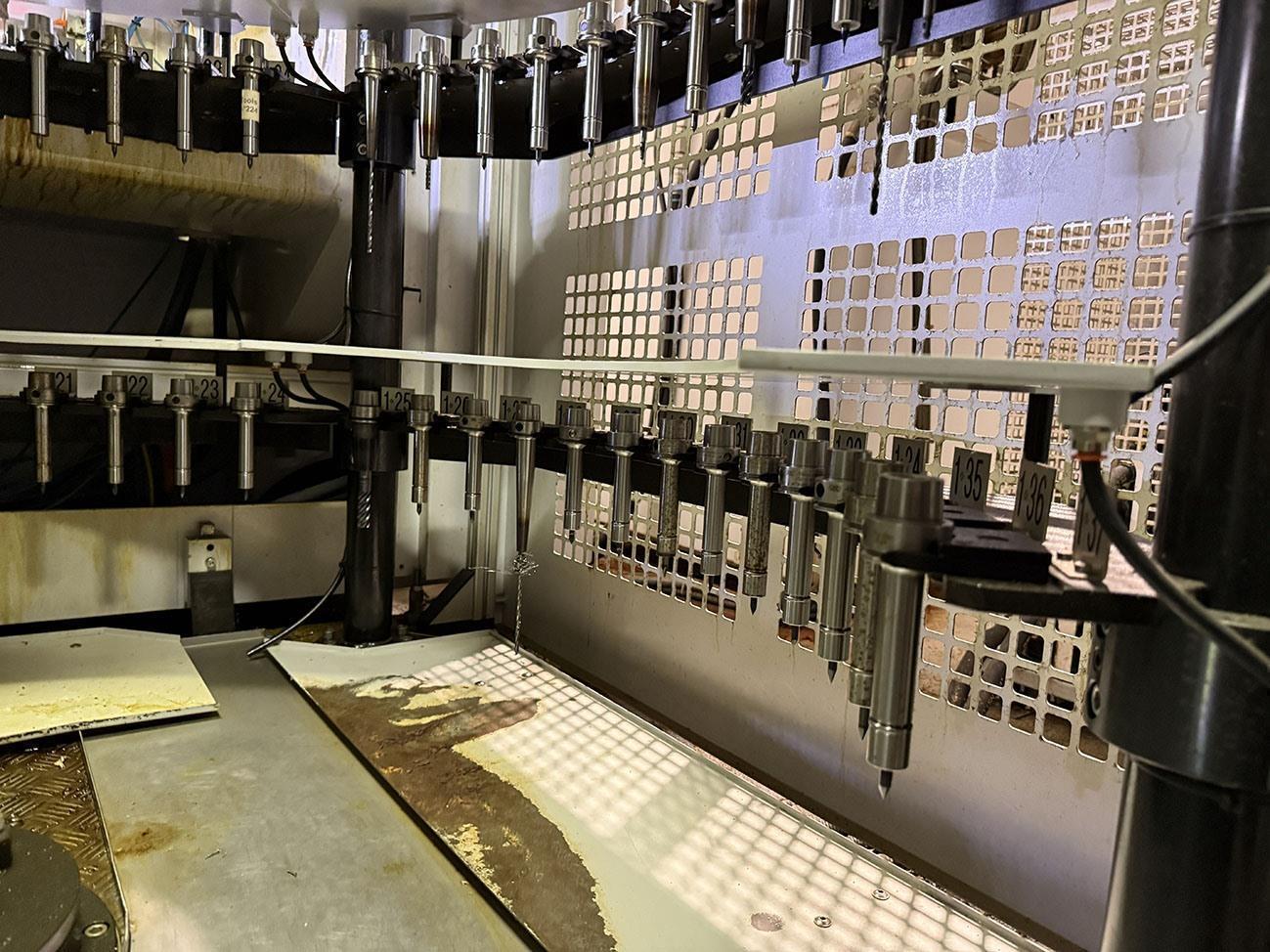

    - Tool changer with 150 positions and 126 tool positions for milling, grinding and drilling

    List of options mounted on the machine:
    1 - High-speed spindle with 40,000 rpm
    2 - table diameter 700 mm with hydraulic clamping

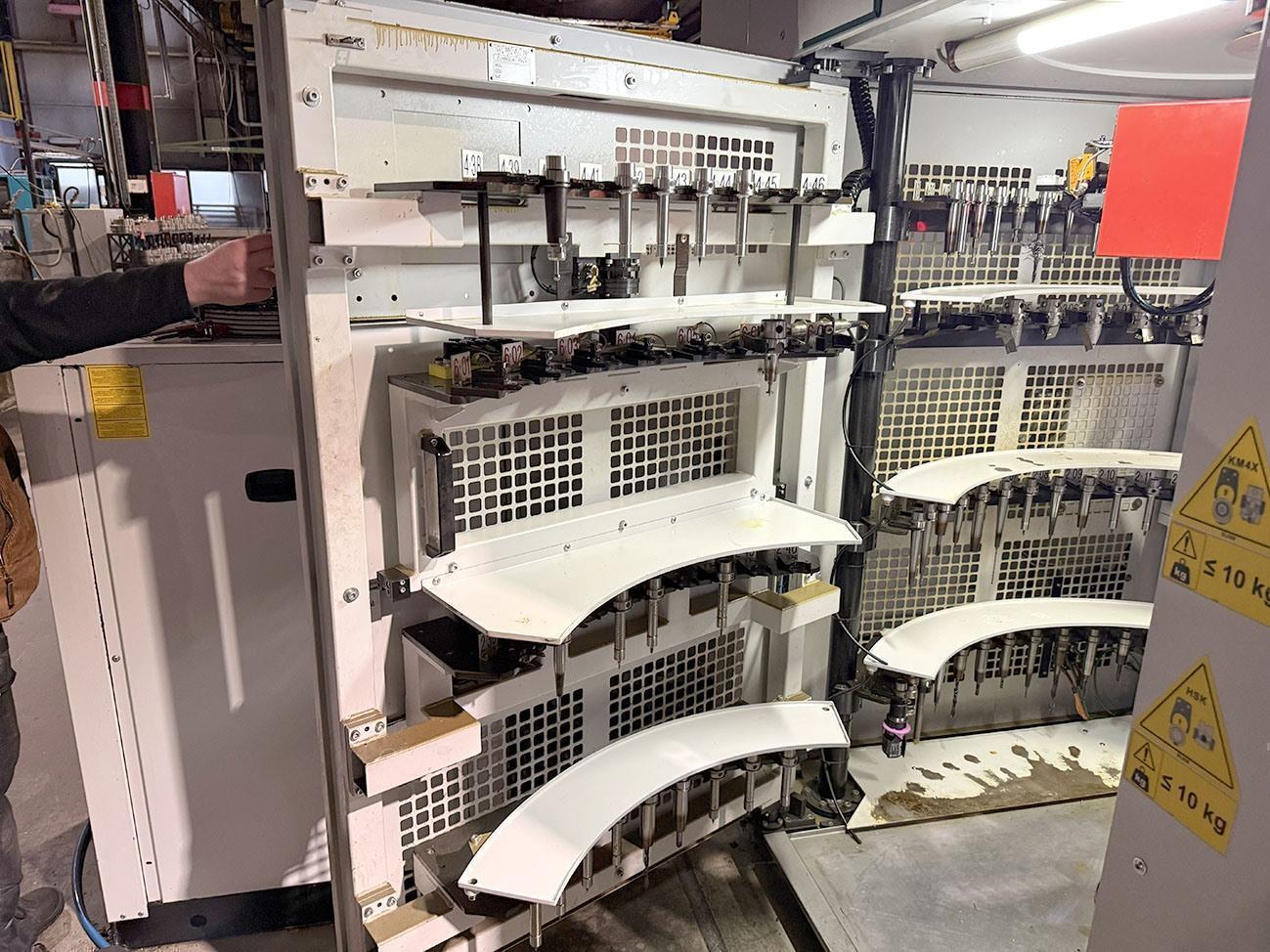

    3-150-position tool changer
    4 - chip conveyor belt
    5 - cooling system with recovery
    6 - coolant temperature control
    7 - high pressure cooling (40 to 70 bar) door spindle
    8 - smoke extraction system
    9 - Chip collection box

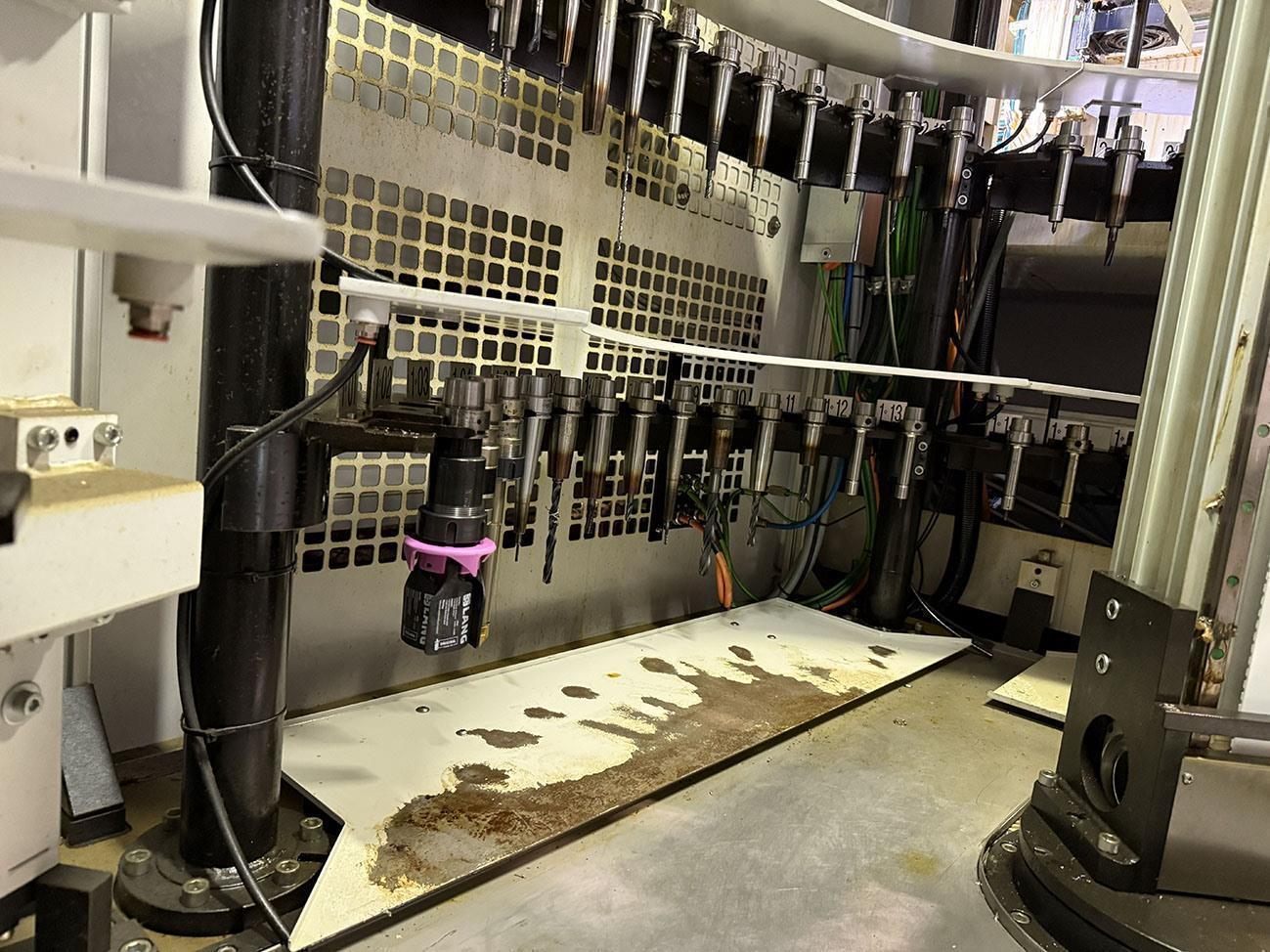

    10 - Presetting System and Tool Integrity: Laser and Mechanical Probe for Measuring Instruments
    11 - Renishaw probe
