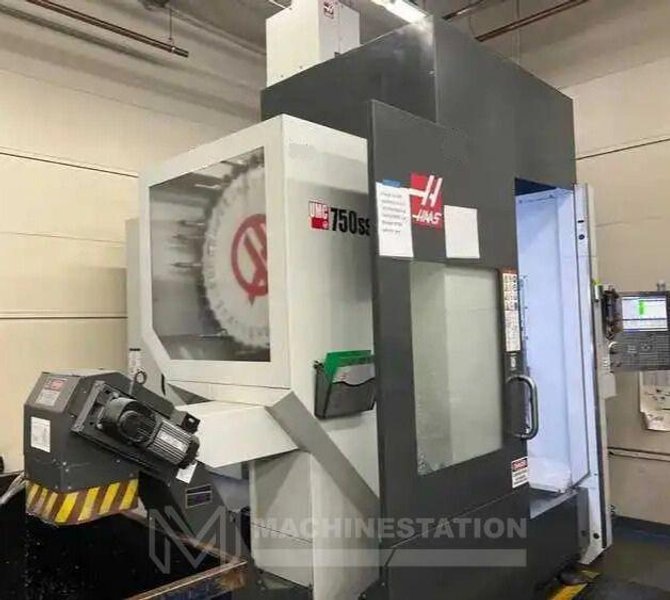

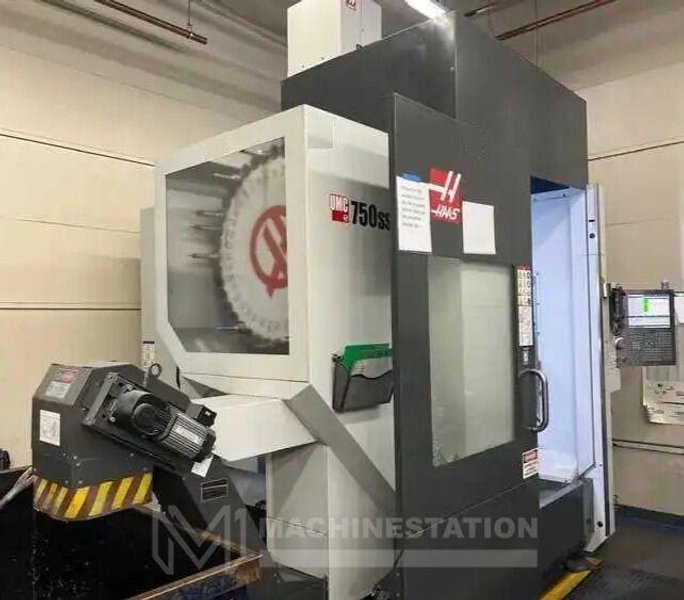

Haas UMC-750SS 5-Axis CNC Universal Machining Center – 15,000 RPM, 40 ATC, TSC, HSM Mill

Haas UMC-750SS 5-Axis CNC Universal Machining Center – 15,000 RPM, 40 ATC, TSC, HSM Mill

Name: Used HAAS Haas UMC-750SS For Sale 115110
Brand: HAAS
SKU: 115110
Availability: PreOrder

Brand

HAAS

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	UMC-750SS
Year:	2017
Condition:	Used – Good

Features:

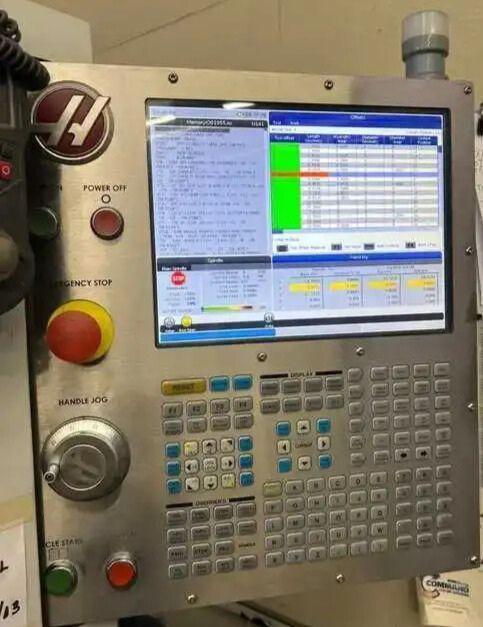

Haas CNC Control
Haas Trunnion Table
15,000 RPM High Speed Spindle (Upgraded $15,995 Approx. value Included)
40 Station Super Speed Automatic Tool Changer (Upgraded $11,995 Approx. value Included)
Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included)
High Speed Machining
Renishaw Probing System (Probe Needed)
Tool Presetter
30 HP High Torque Spindle
Remote Jog Handle
Rigid Tapping
Programmable Coolant Nozzle (Upgraded $2,395 value Included)
Enclosure Exhaust System (Upgraded $2,195 value Included)
1 GB Memory
Media Display M-Code
Ethernet
Haas Connect
Second Home Position

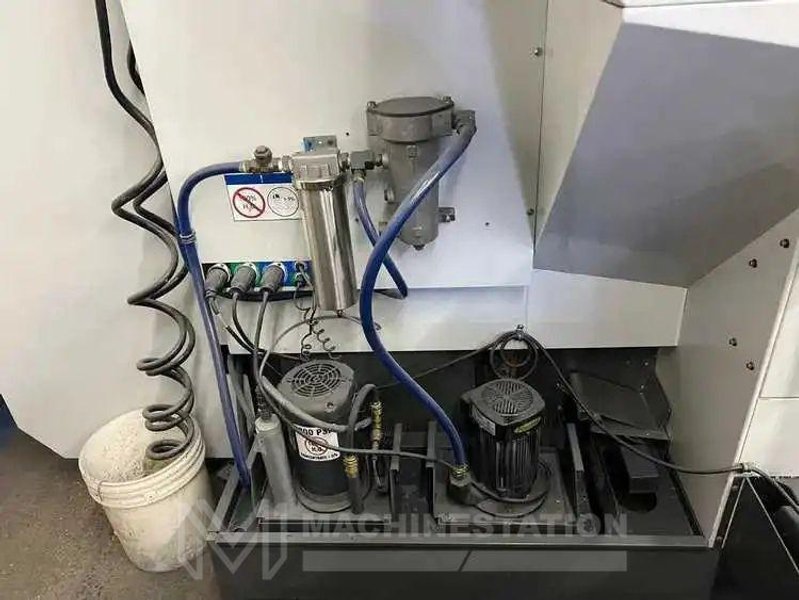

Coolant Tank

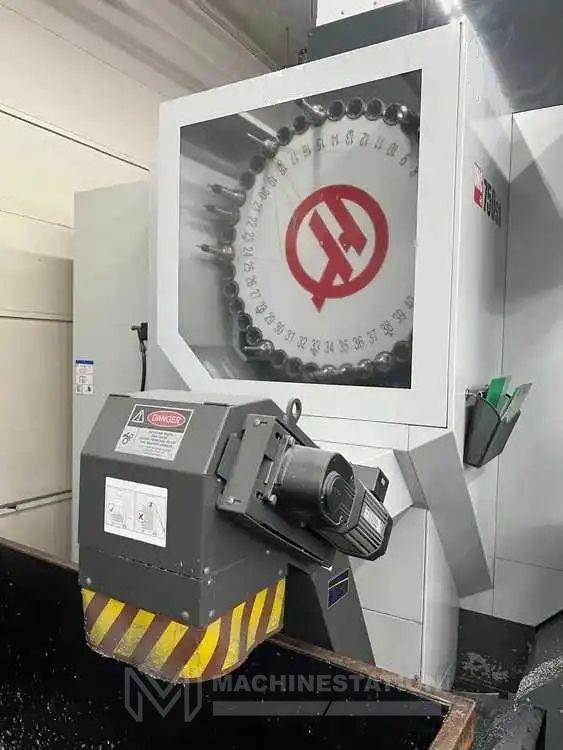

Belt-Type Chip Conveyor (Upgraded $7,995 value Included)

Travels:

X-Axis: 30″
Y Axis: 20″
Z Axis: 20″
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

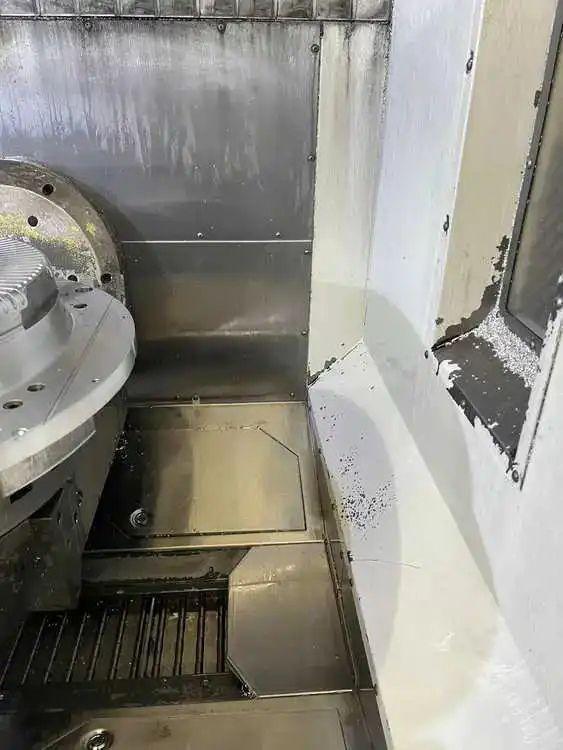

Trunnion Table:

Platter Diameter: 19.70″
Max Weight on Platter: 660 lbs
T-Slot Width: 0.626″ to 0.630″
Number of Std T-Slots: 7

Spindle:

Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 30 HP

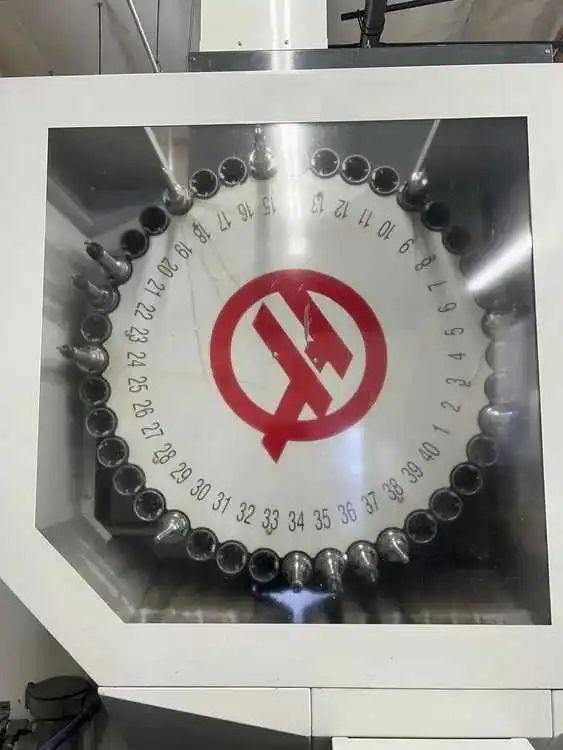

Automatic Tool Changer:

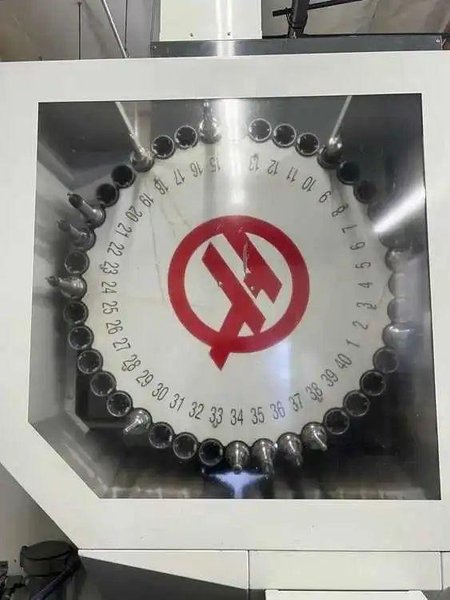

Capacity: 40 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 12″
Tool-to-Tool Changing Time: 1.8 Seconds

General:

Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 168″ x 92.5″ x 110″ High
Weight: 14,250 lbs.
