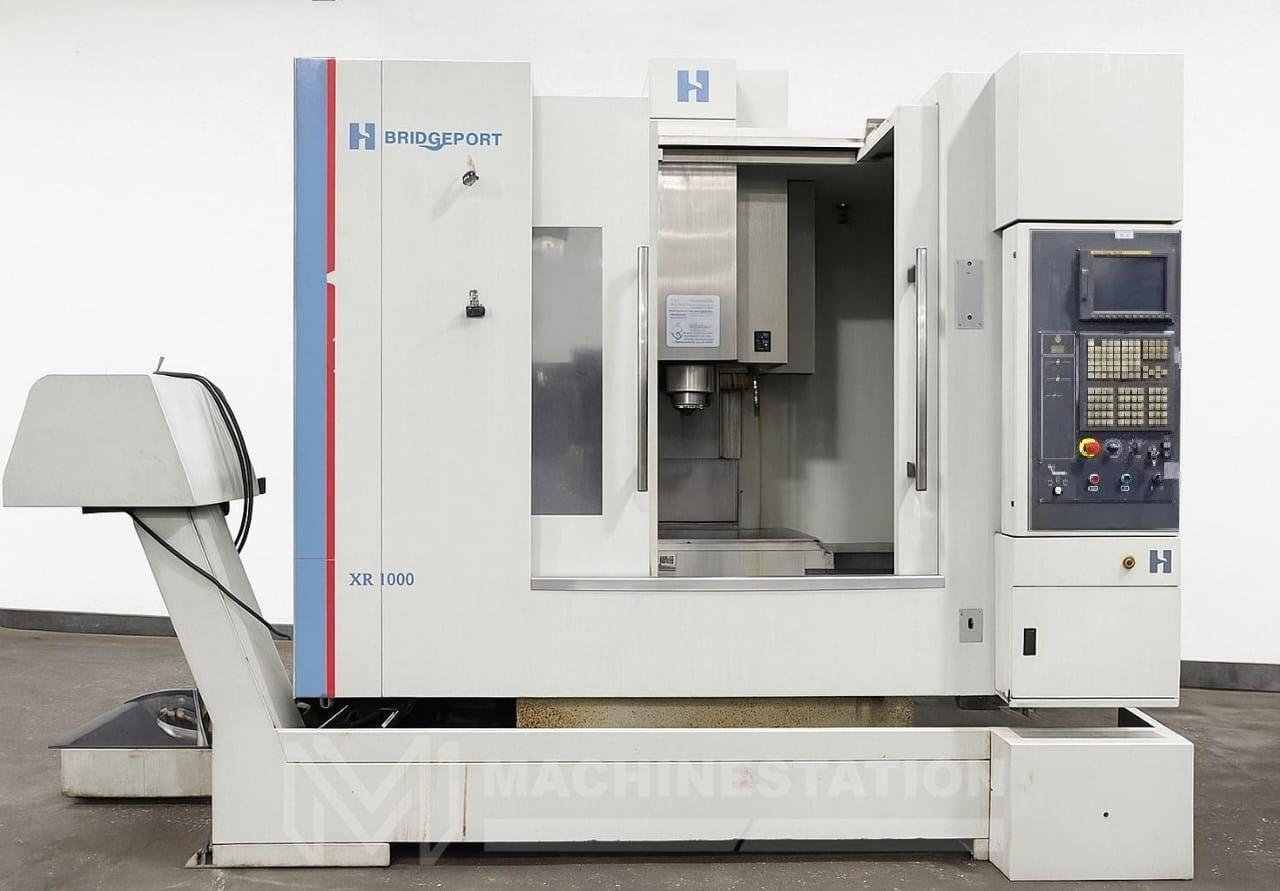

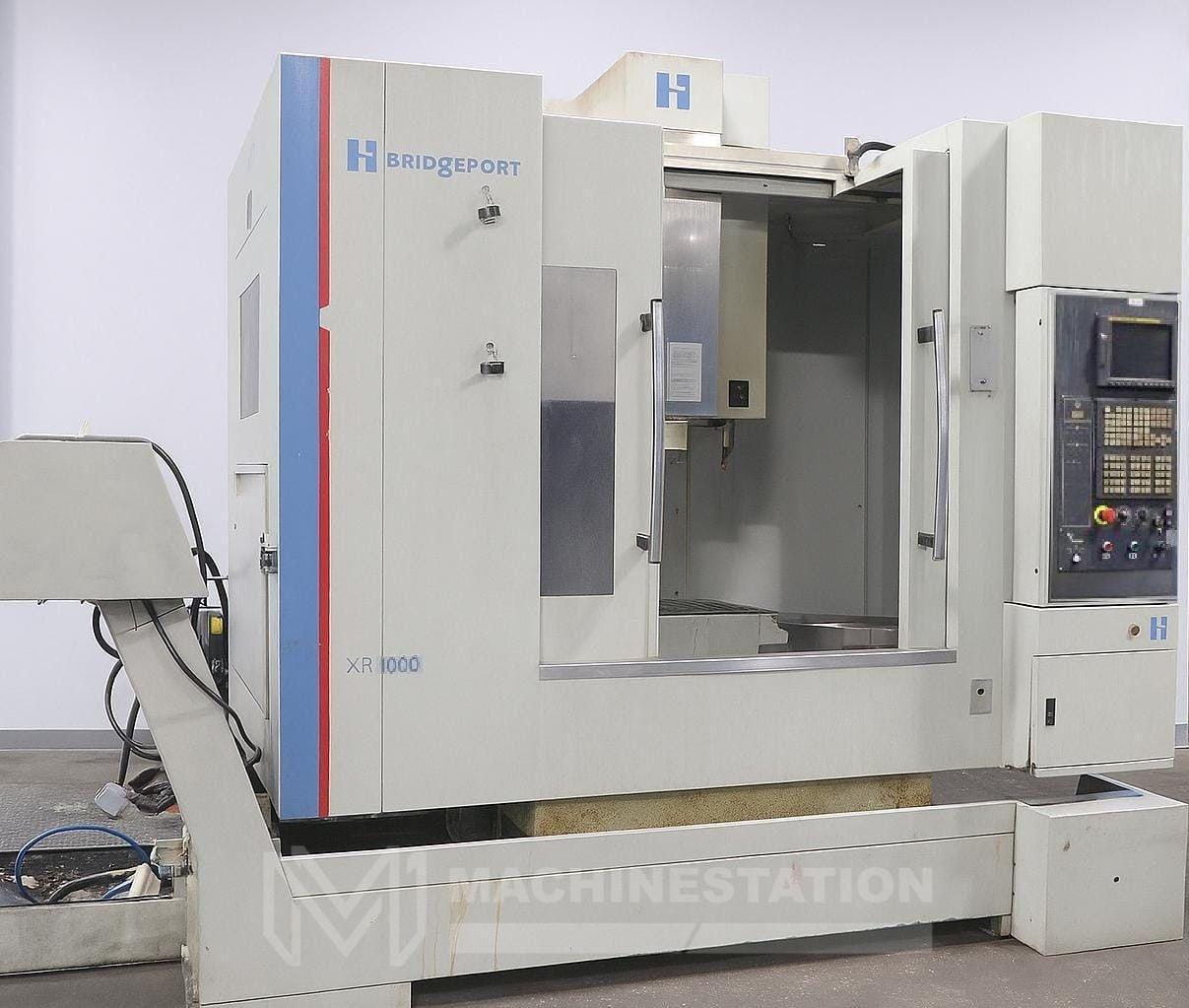

Hardinge Bridgeport XR 1000 CNC Vertical Machining Center – 12,000 RPM, TSC Mill

Hardinge Bridgeport XR 1000 CNC Vertical Machining Center – 12,000 RPM, TSC Mill

Name: Used HARDINGE Hardinge Bridgeport XR 1000 For Sale 112930
Brand: HARDINGE
SKU: 112930
Availability: PreOrder

Brand

HARDINGE

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112930

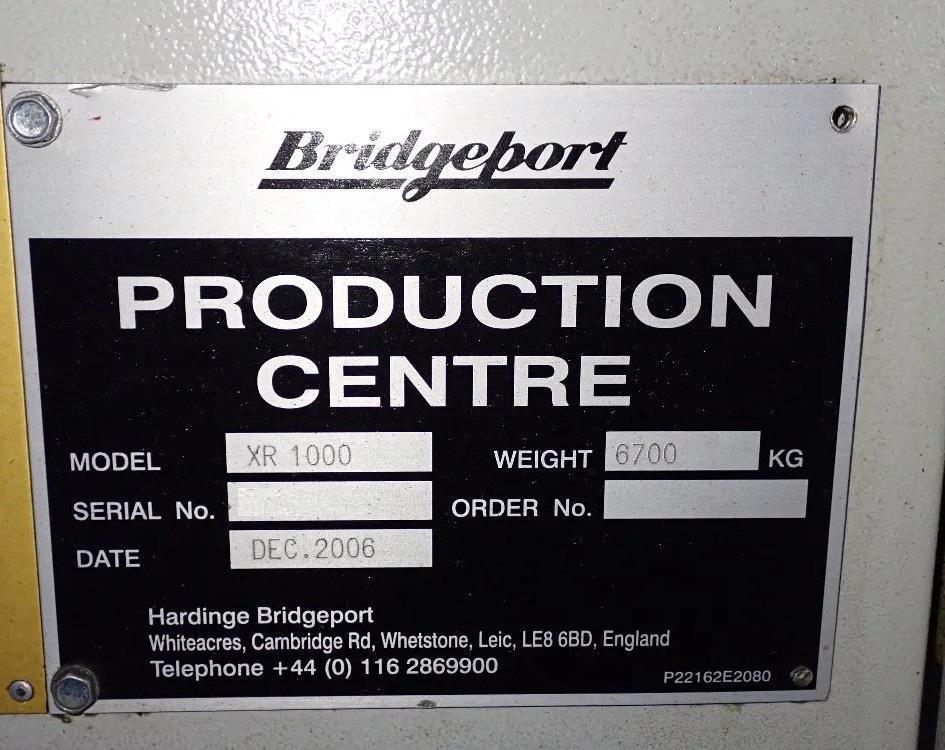

Make:	Hardinge Bridgeport
Model:	XR 1000
Year:	2006 (Installed in 2007)
Condition:	Used – Good

Features:
Fanuc 18i-MB Series CNC Control
Linear Ways Construction
12000 RPM High Precision Spindle
30 Station Side Mounted Automatic Tool changer

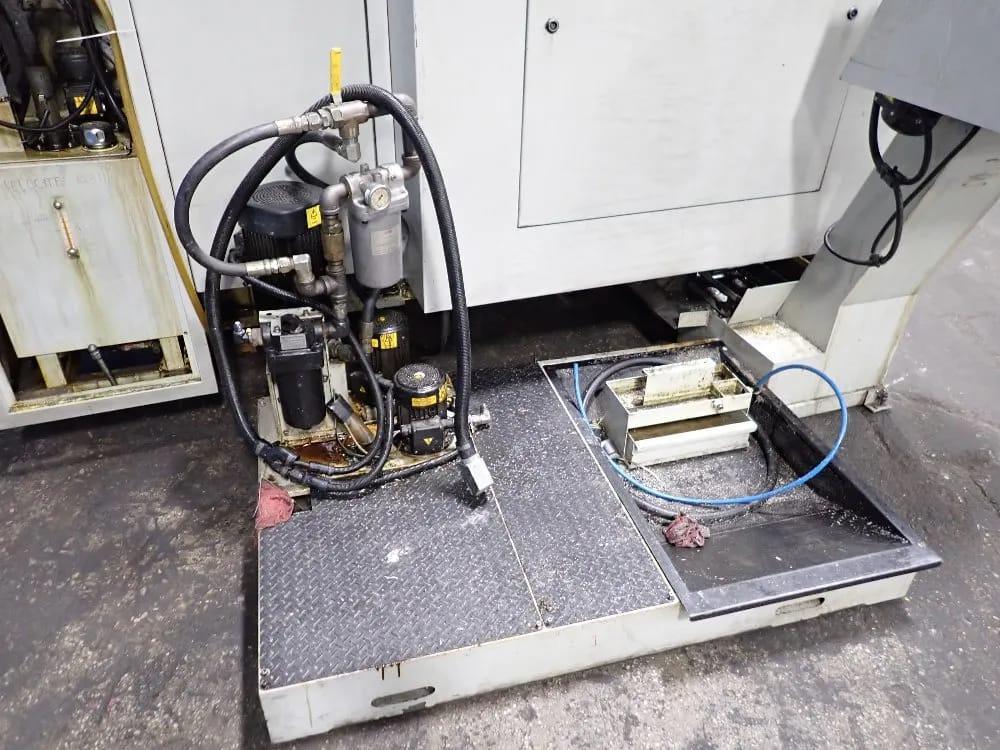

Through Spindle Coolant
PCMCIA Card Slot
RS-232 Port
Rigid Tapping
Coolant System
Chip Conveyor

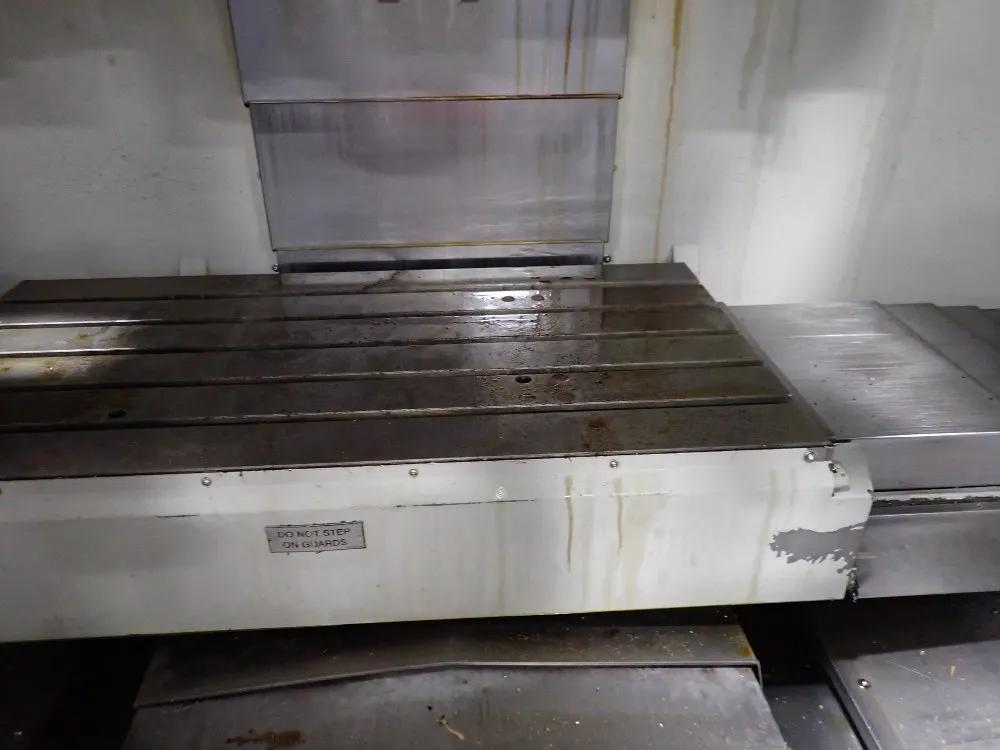

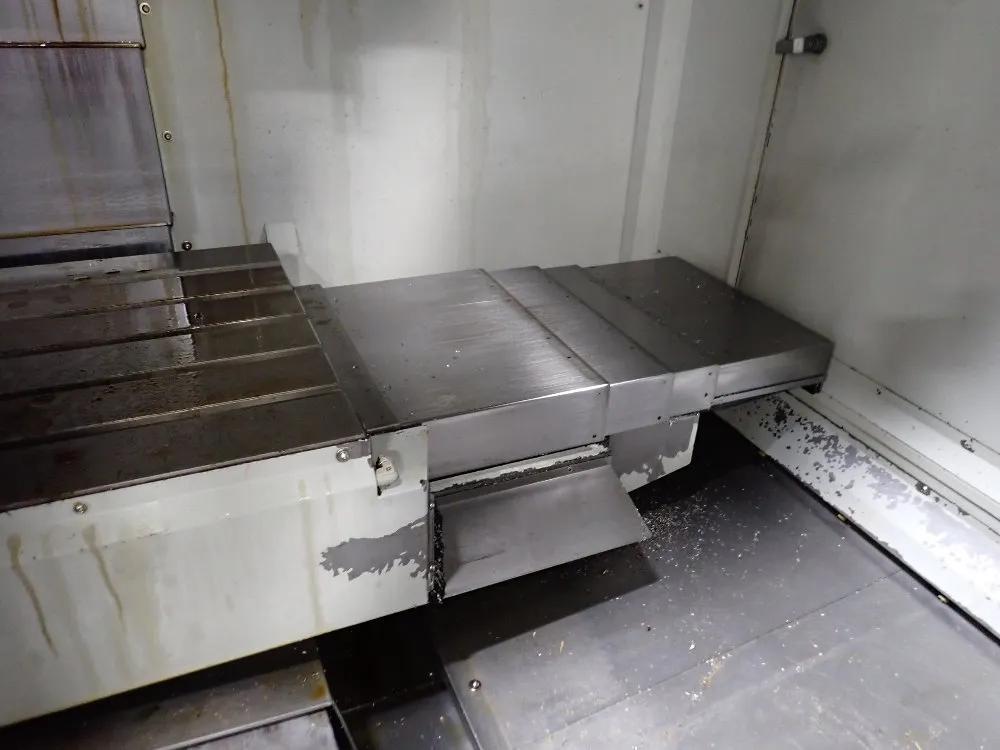

Table:
Length: 47.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 0.70″ X 3.93″
Max Weight on Table: 2000 lbs

Travels:
X-Axis: 40″
Y-Axis: 24″
Z-Axis: 24″
Rapid Traverse Rates X & Y Axis: 1692 IPM
Rapid Traverse Rates Z Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 3.94″ – 27.95″

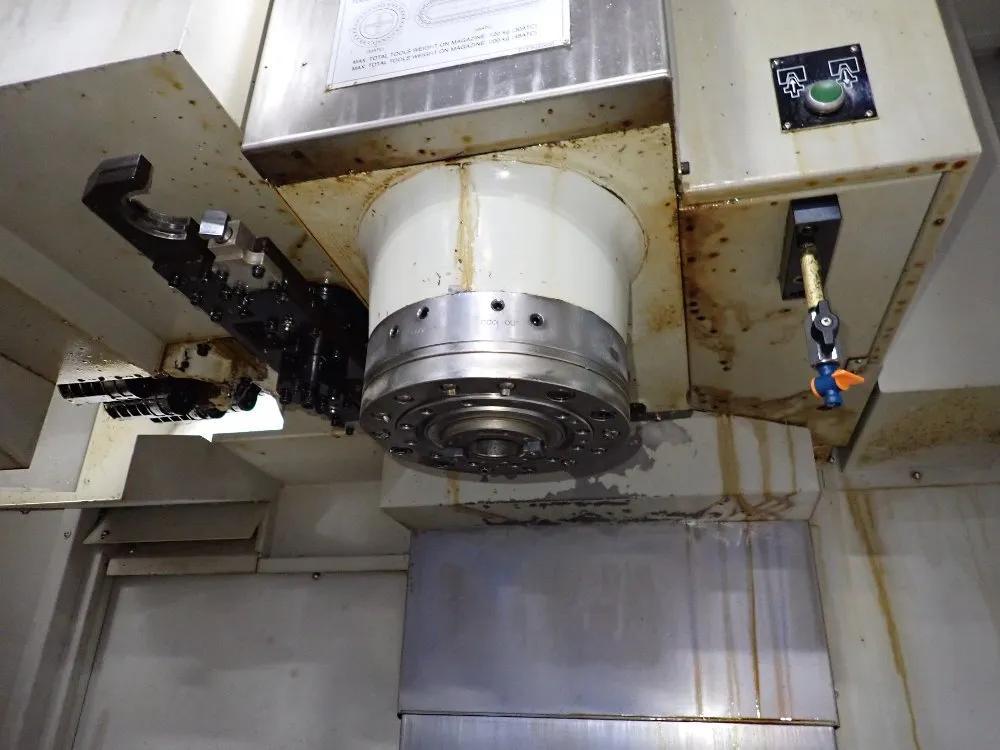

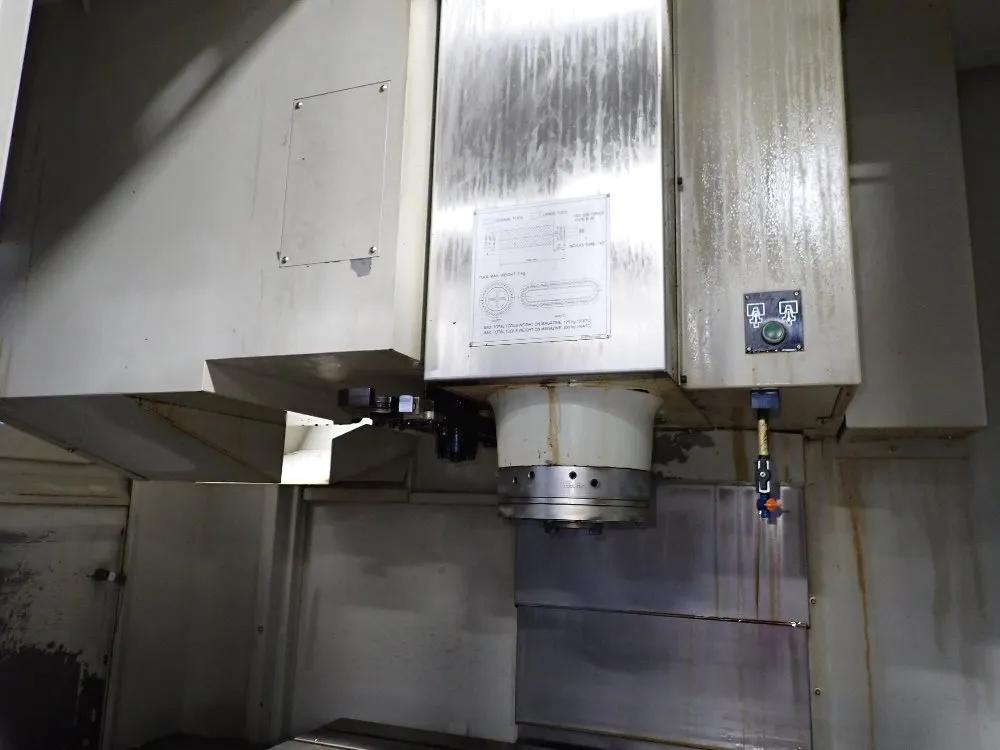

Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15.43 lbs
Max Tool Dia: 3.35″ – 4.92″
Max Tool Length: 11.81″
Tool Changing Time (Chip to Chip): 4 Seconds
