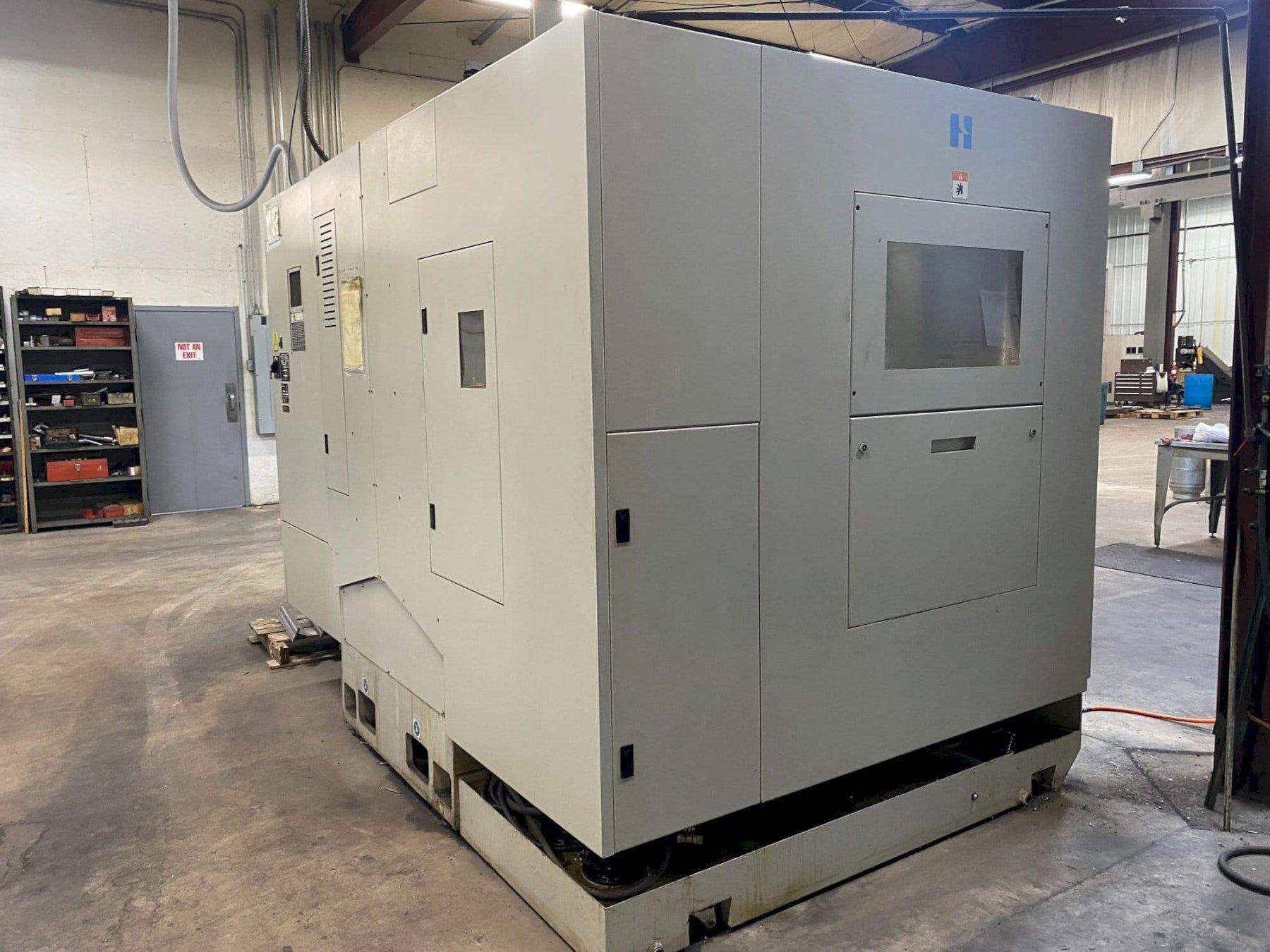

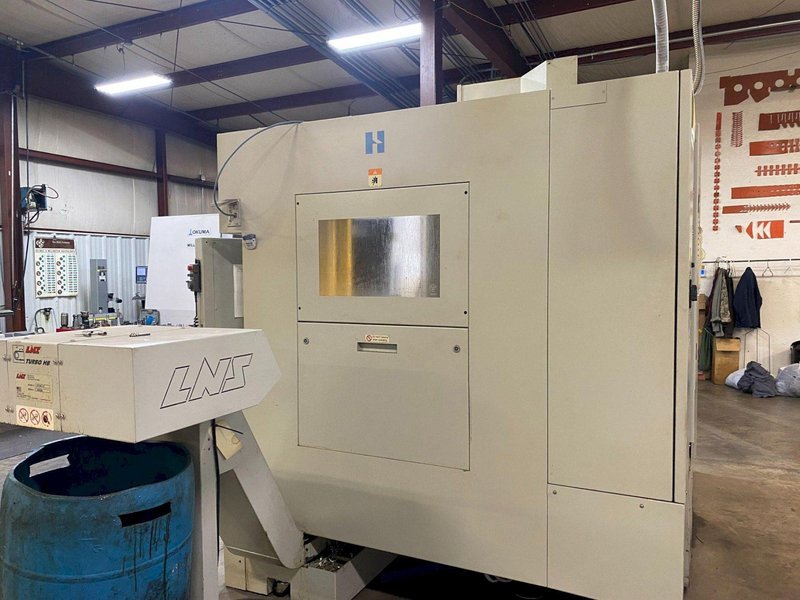

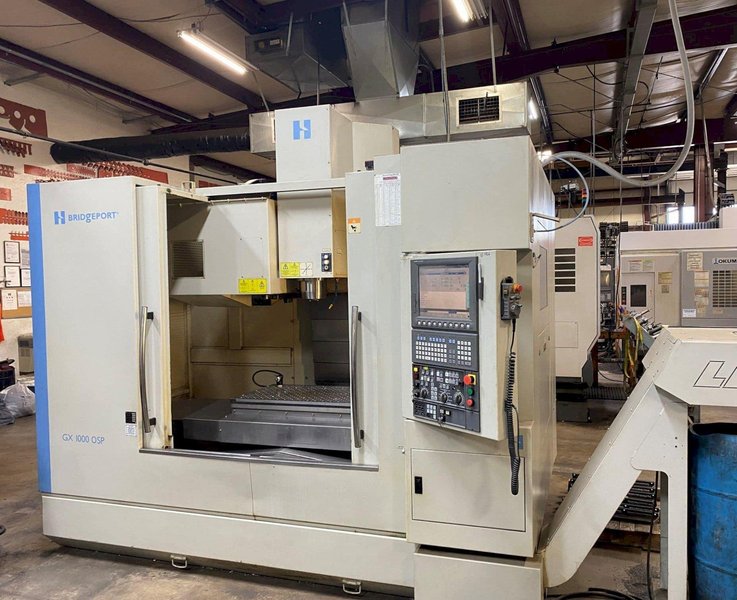

Hardinge GX1000 OSP VMC, 2011 – CTS Ready, Turbo Chip Conveyor, Probe & Okuma Control.

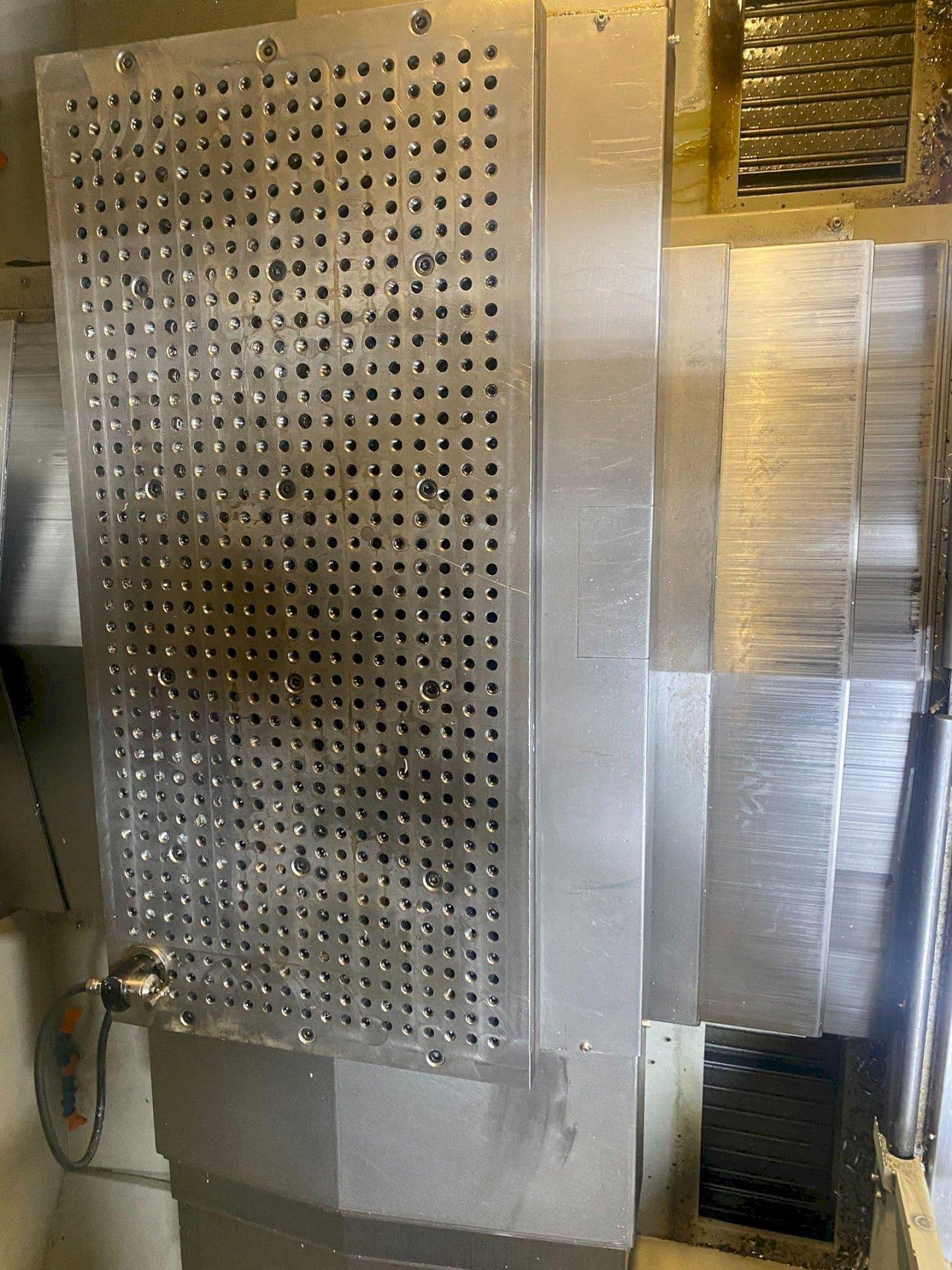

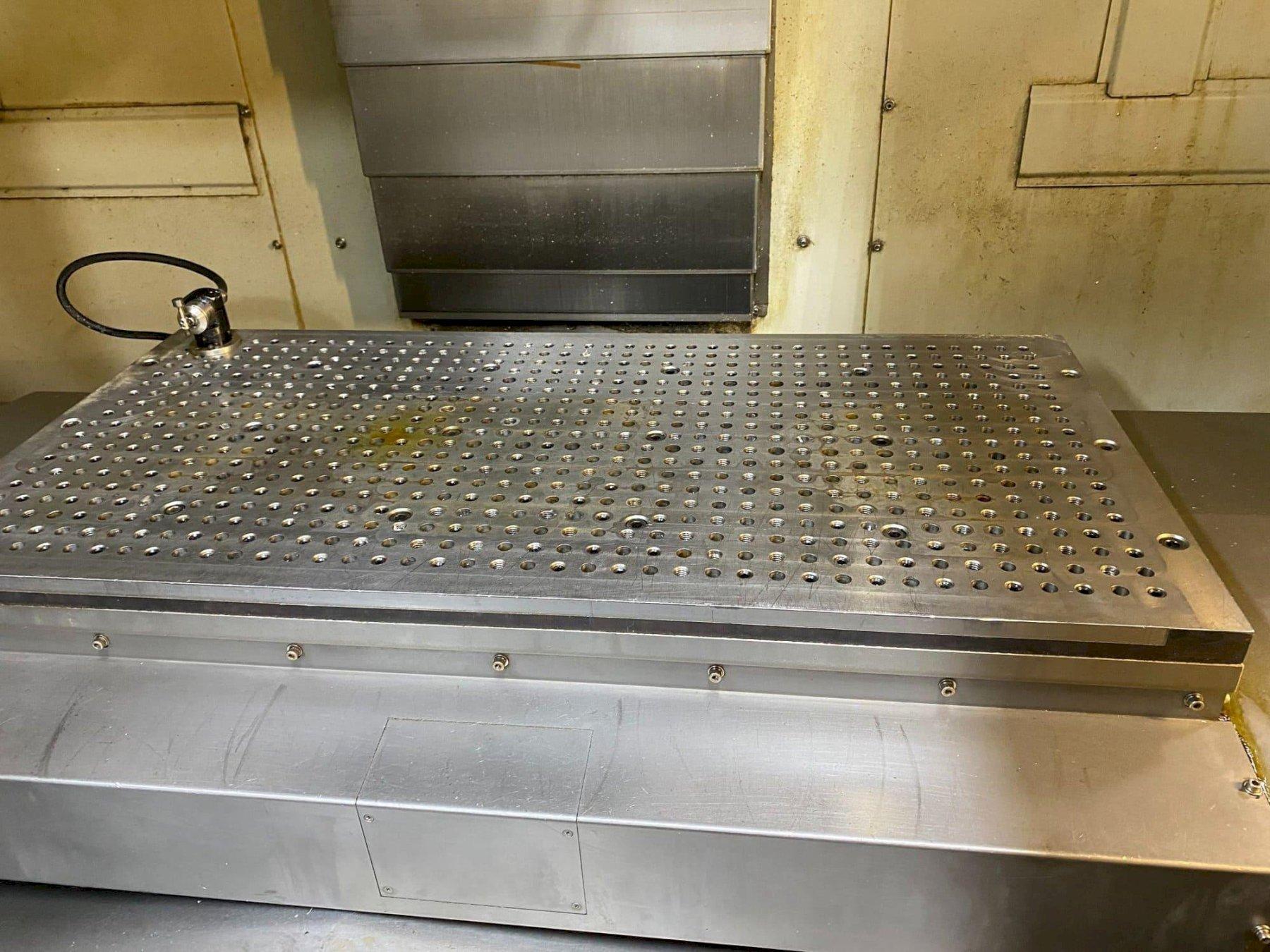

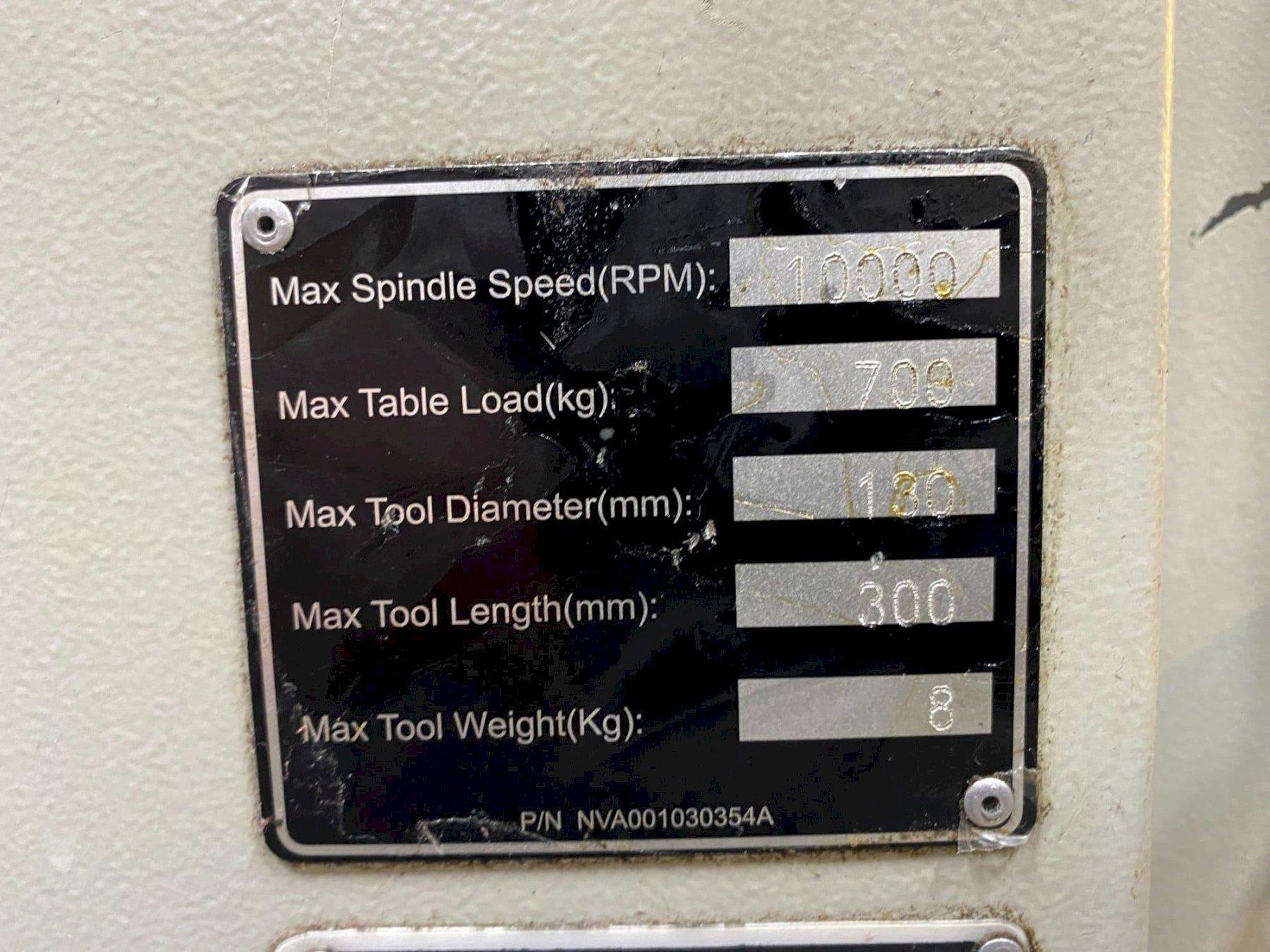

Axis Travels: Table (X axis): 40.16 in. Saddle (Y axis): 21.25 in. Head (Z axis): 21.25 in. Working surface: 44.16 in. X 21.25 in. Table Load: 1760lbs. Number of T-Slots: 3 on 6.3” centers T-Slot Size: 0.708” (18 mm) Positioning Auto Mode (X and Y axes): 1,417 in./min Auto Mode (Z axis): 1,417 in./min. Spindle Taper: No. 40 Tool Holder: CT40 or BT40 Max Spindle Speed: 10,000 RPM Spindle Motor HP: 15/20/34.8 hp Maximum Tool Weight 17.6 lbs. Maximum Tool Length 13.7”

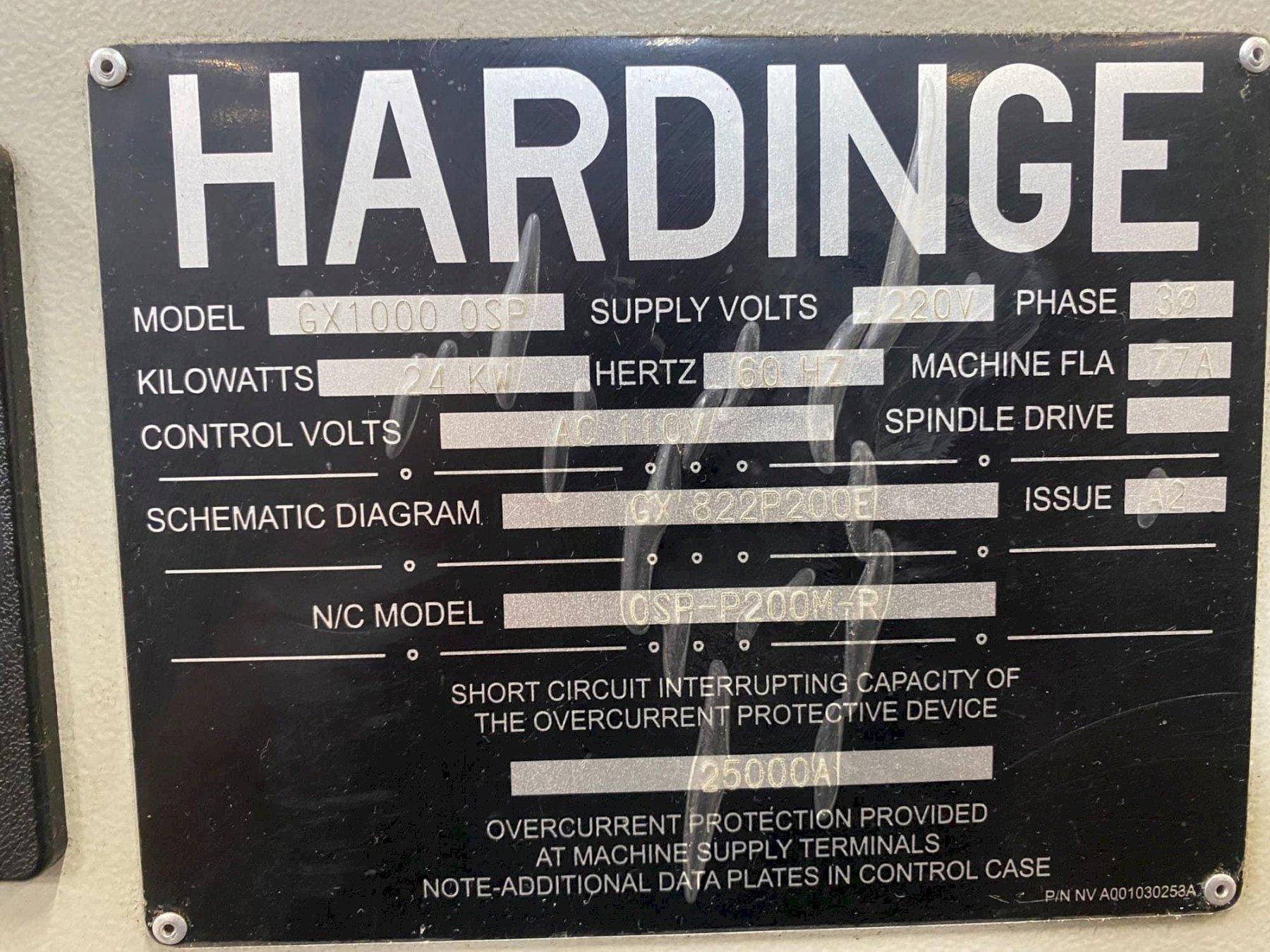

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 117″ x 85″ x 107″ H (Approx.) Weight: 13,000 lbs (Approx.) Power: 220 Volt / 3-phase 60 Hz

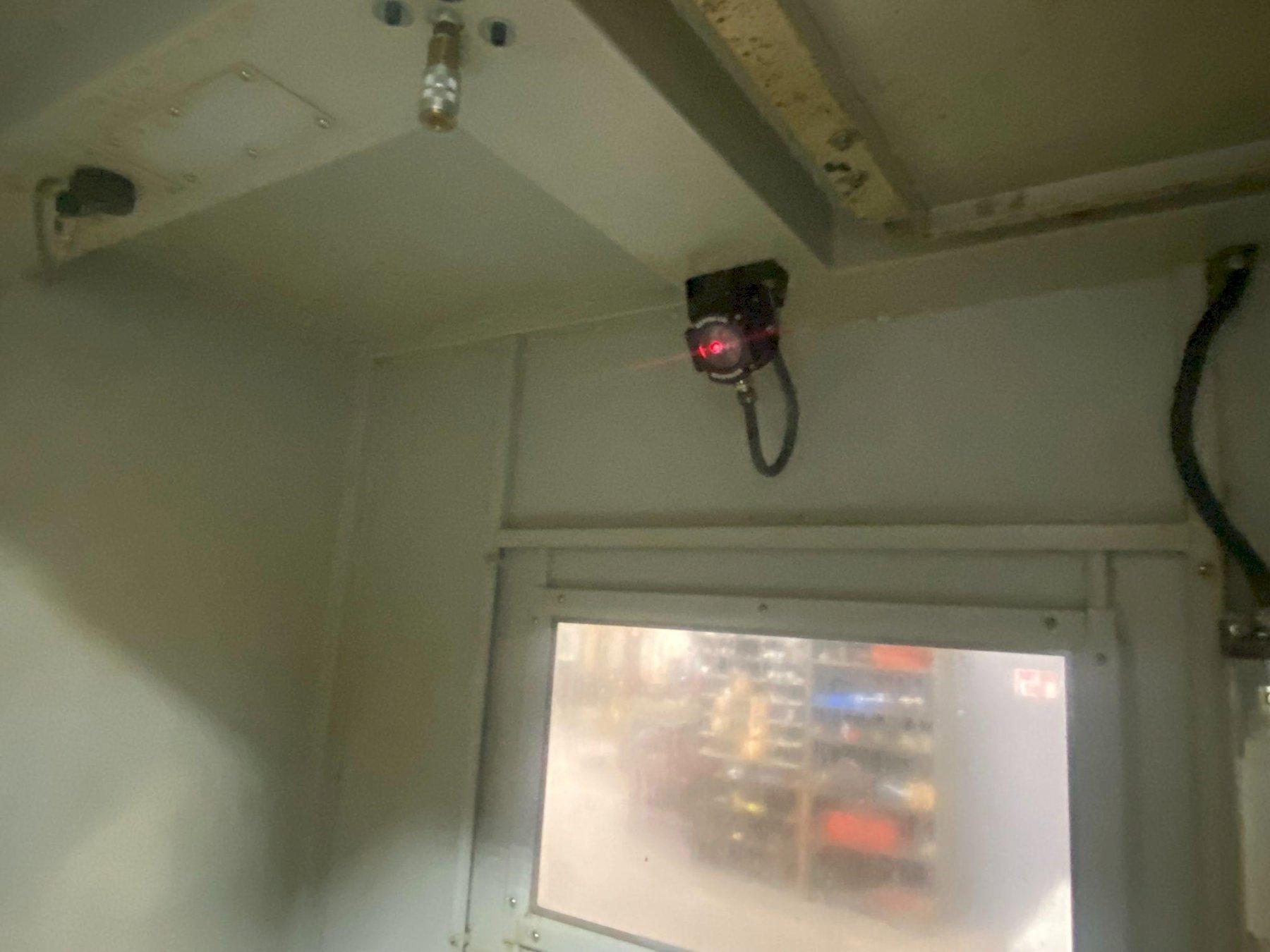

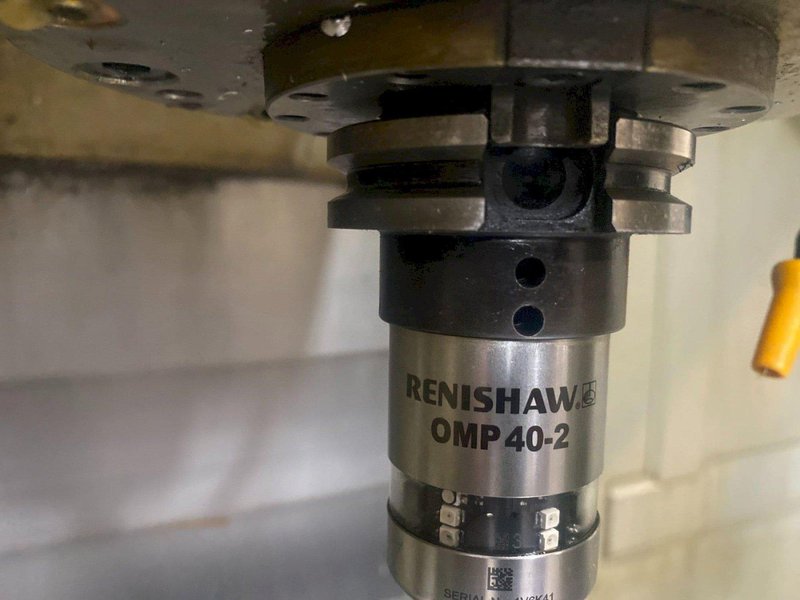

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Okuma OSP-P200 Control Hardinge Deluxe Software – By Okuma Swing Arm ATC: 30 Tools CAT-40 Chip flush System Coolant Wash Down-Manual Coolant tank capacity 95 US gallons (360L) Rigid Tapping LNS Turbo HB Chip Conveyor Air Blast for Dry Cutting OMP40 Spindle Probe & TS27R Tool Setting Probe Kit *MP System 1000psi TSC COOLANT (*MP unit does not go with machine, interface & spindle are capable of using MP unit) Tool Setter

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
