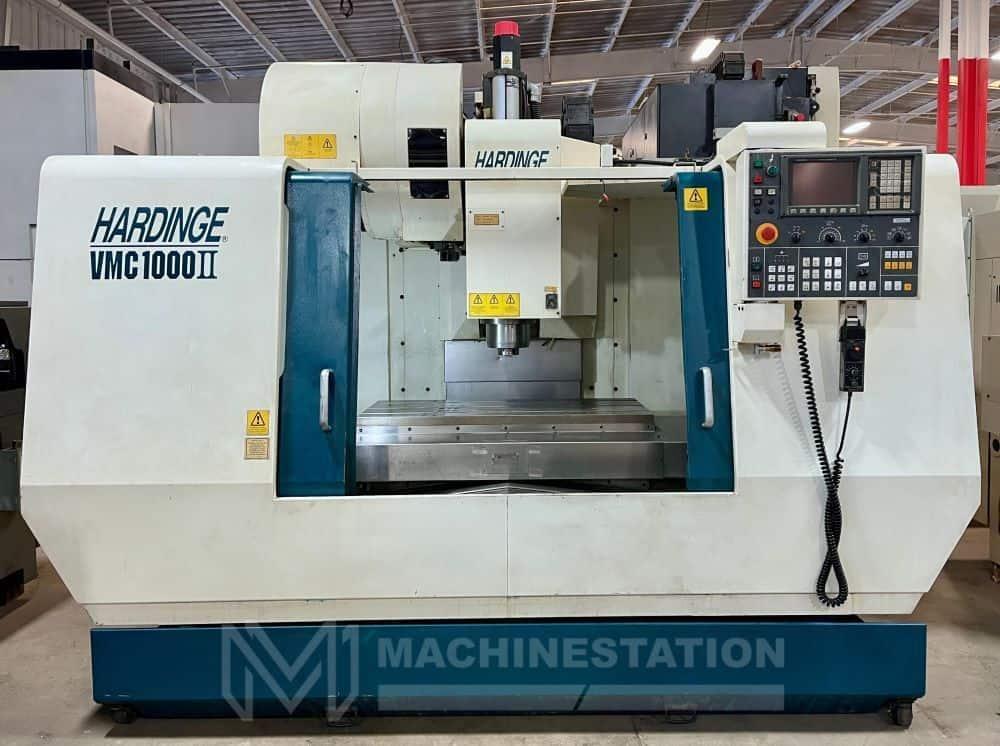

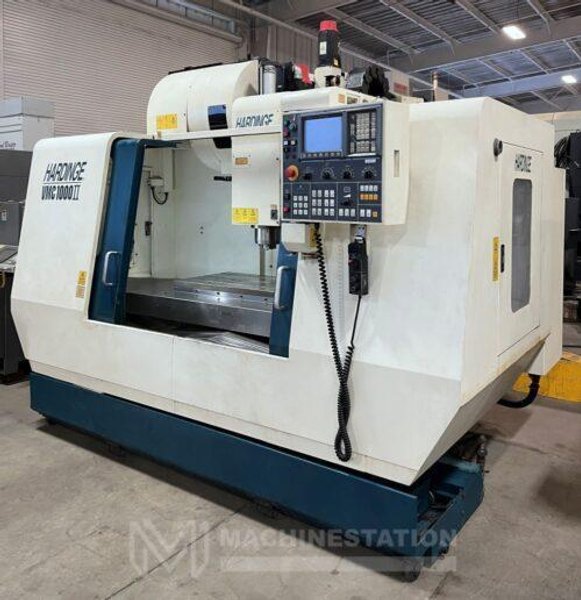

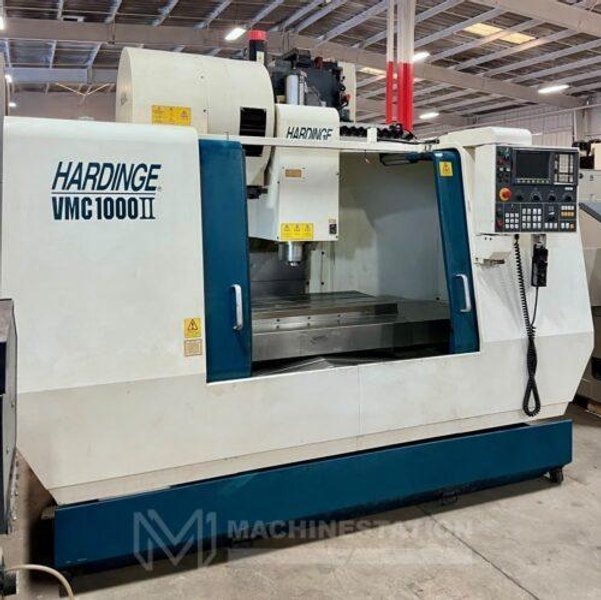

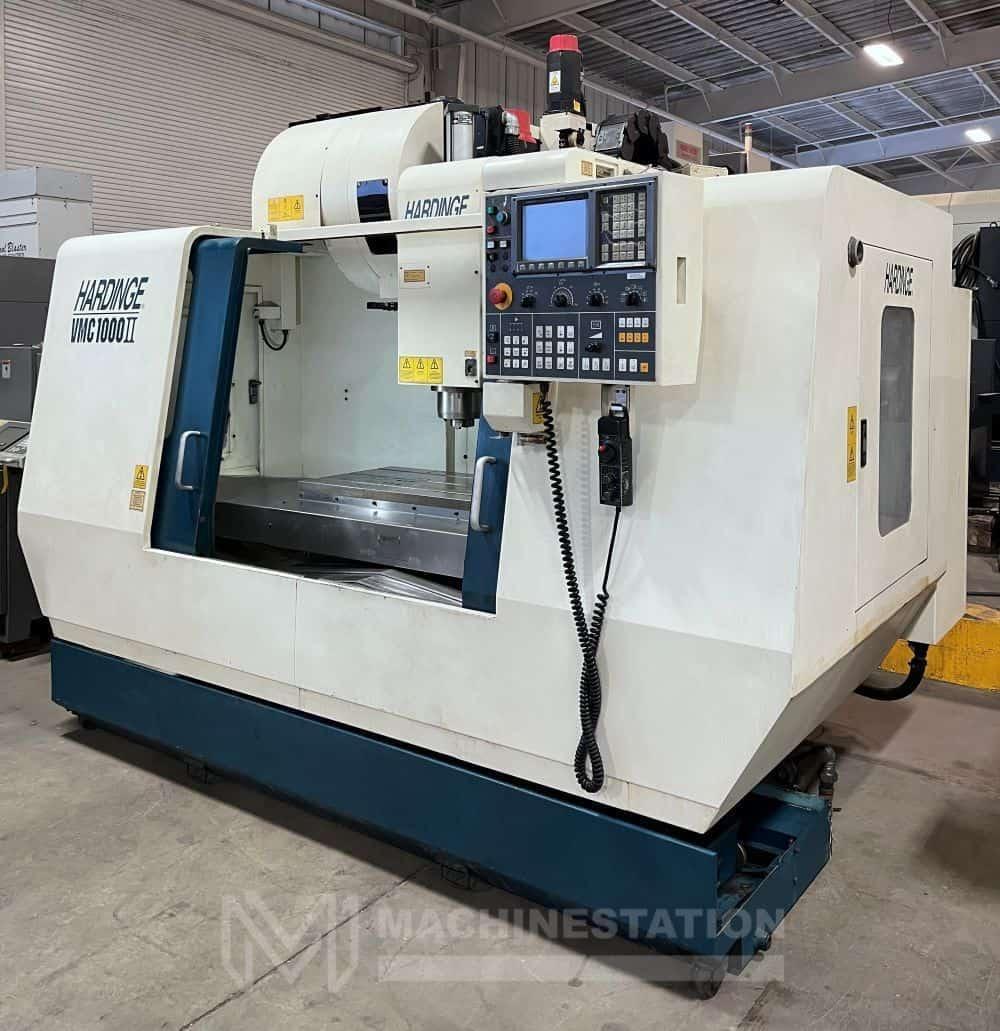

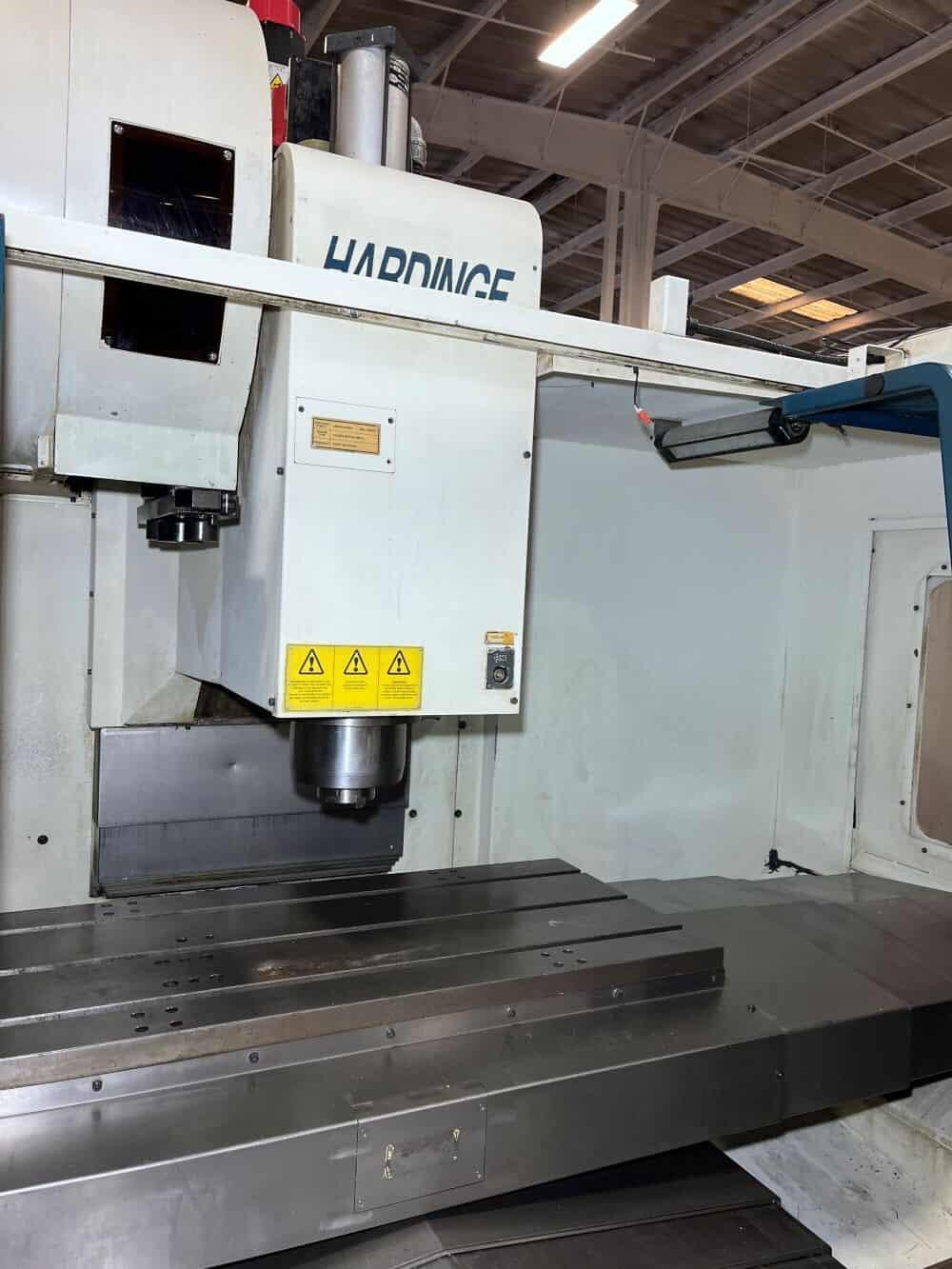

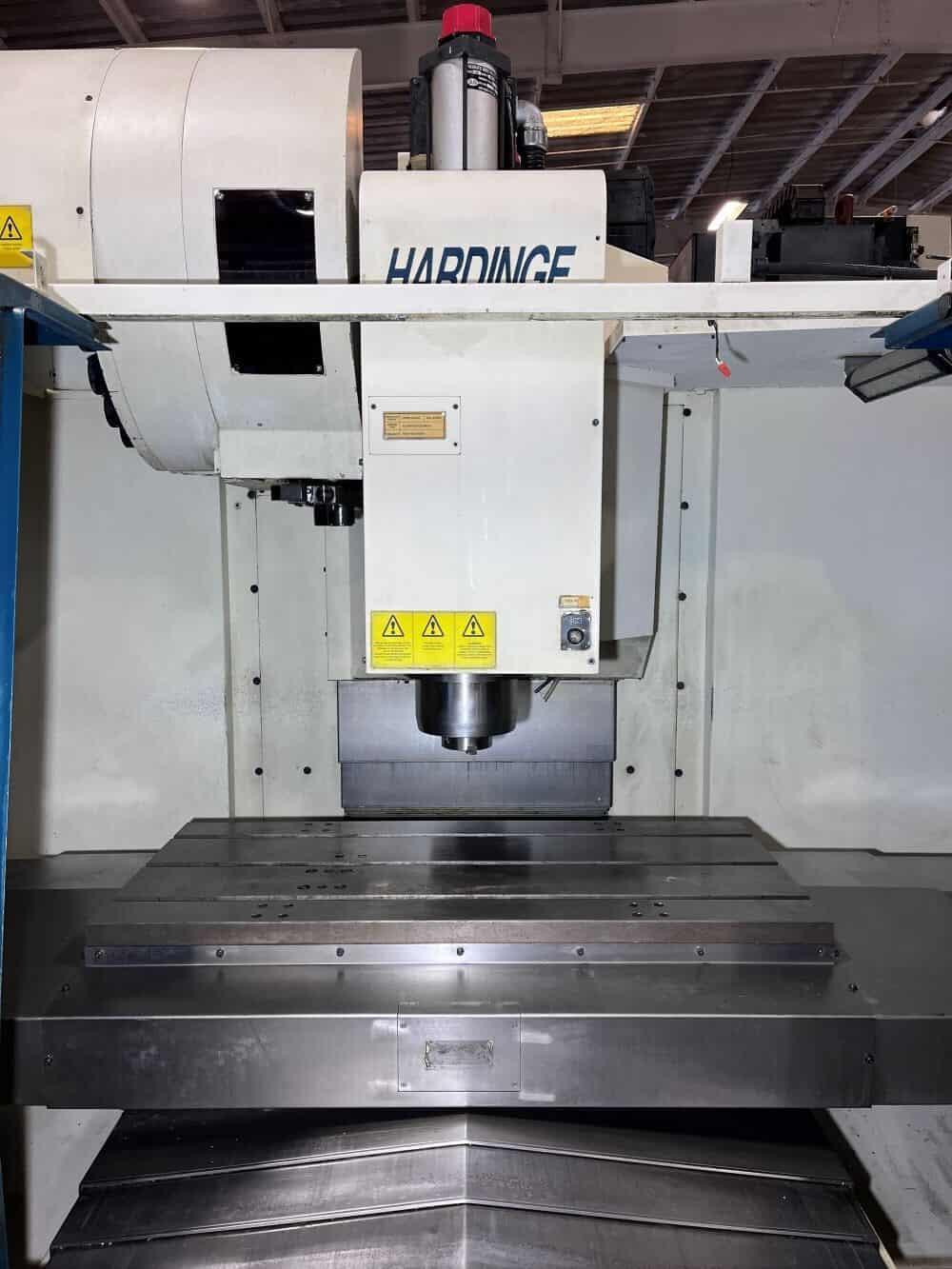

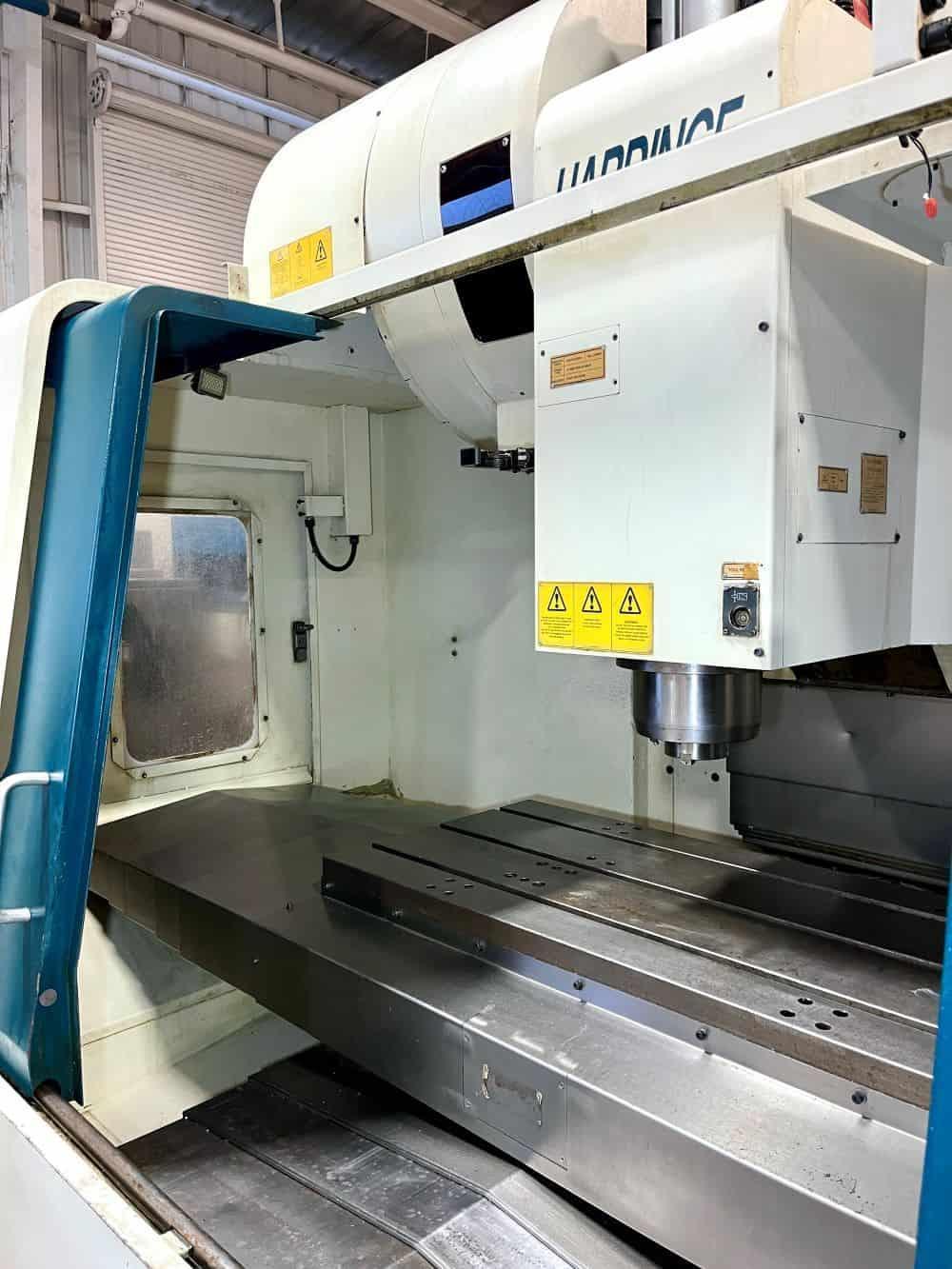

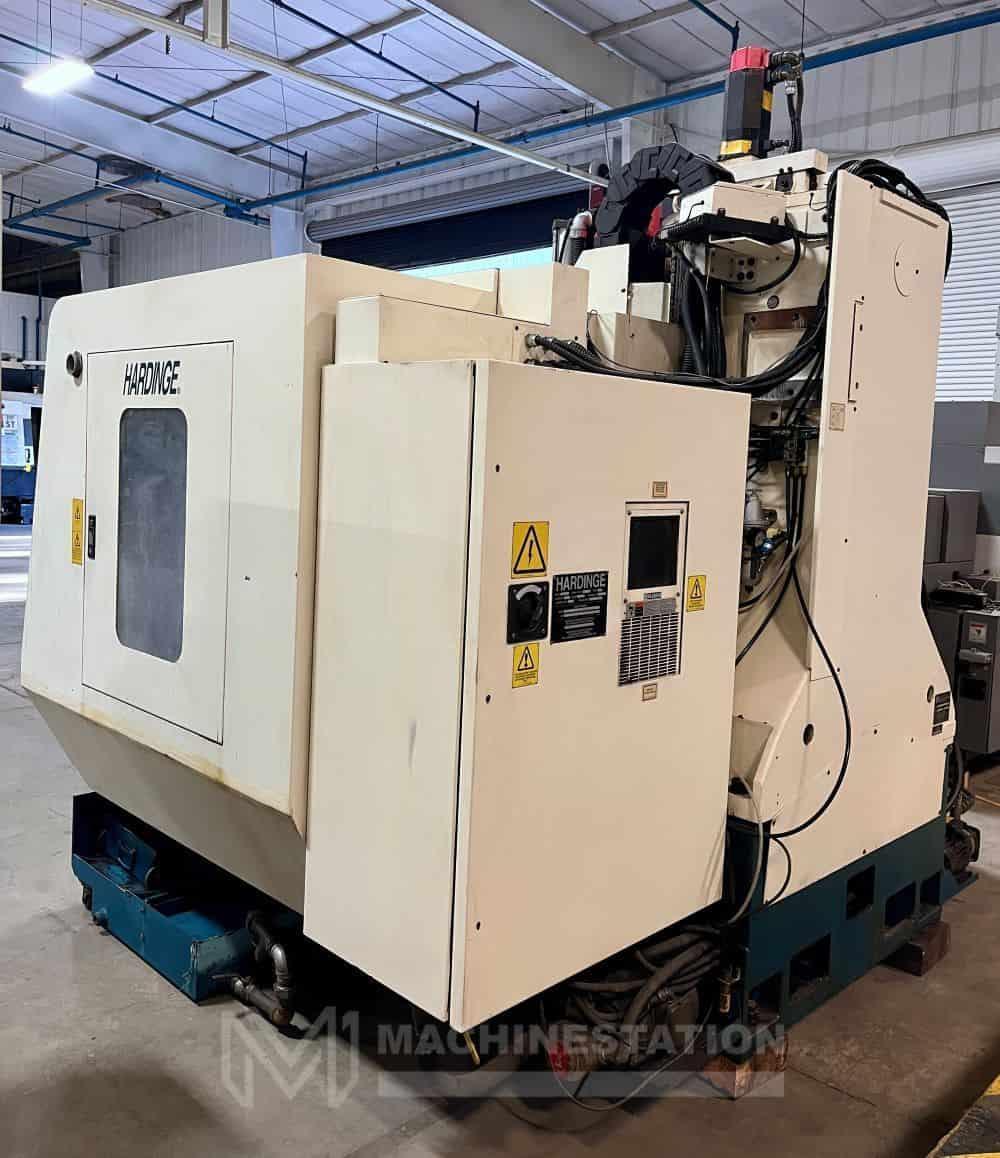

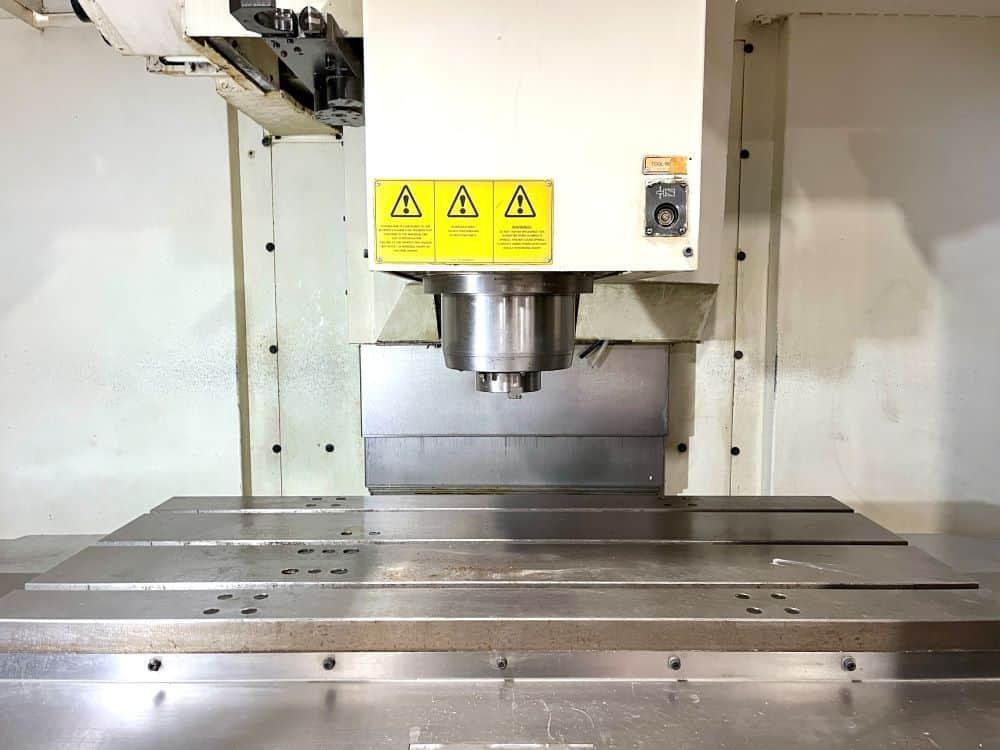

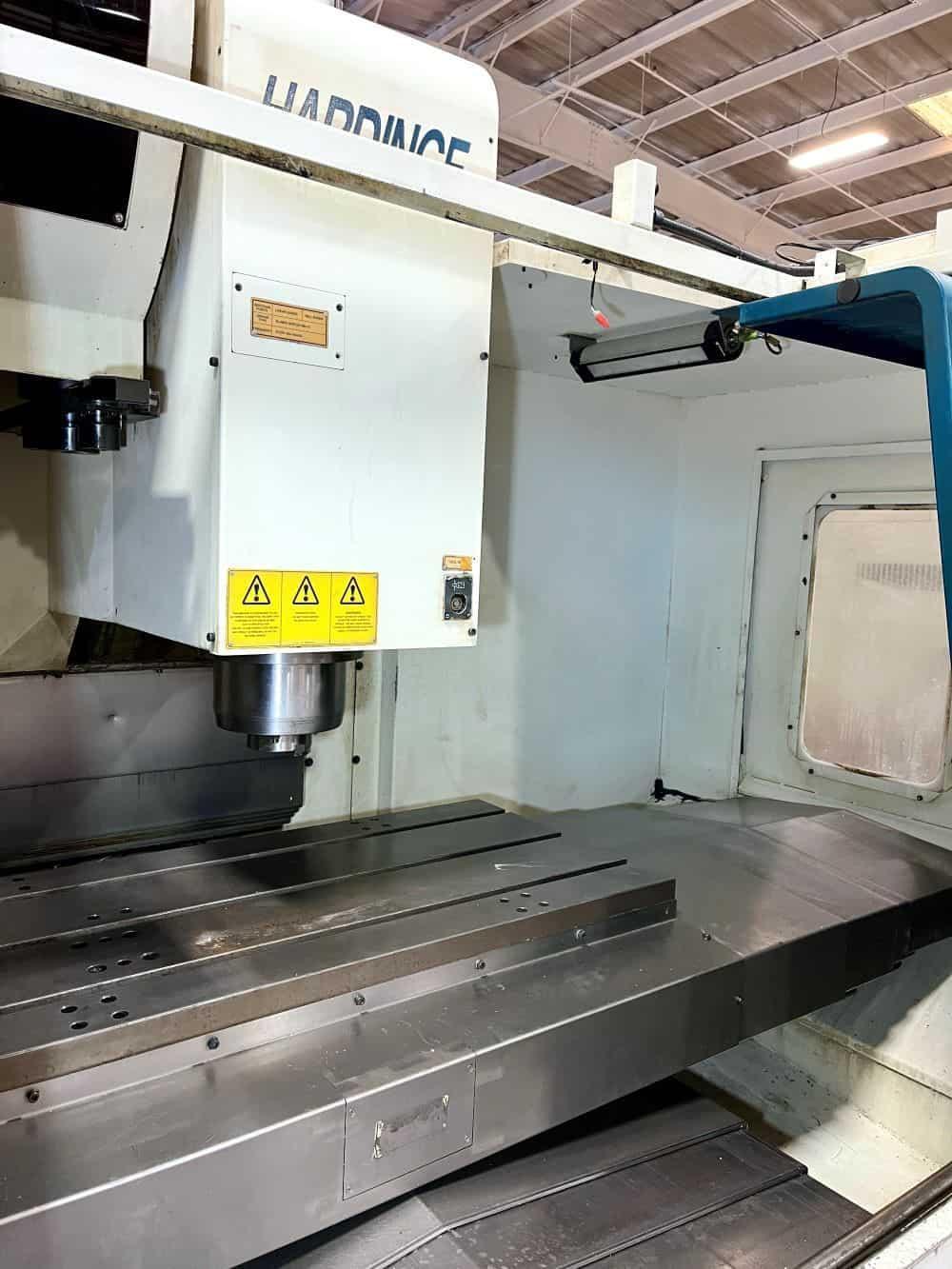

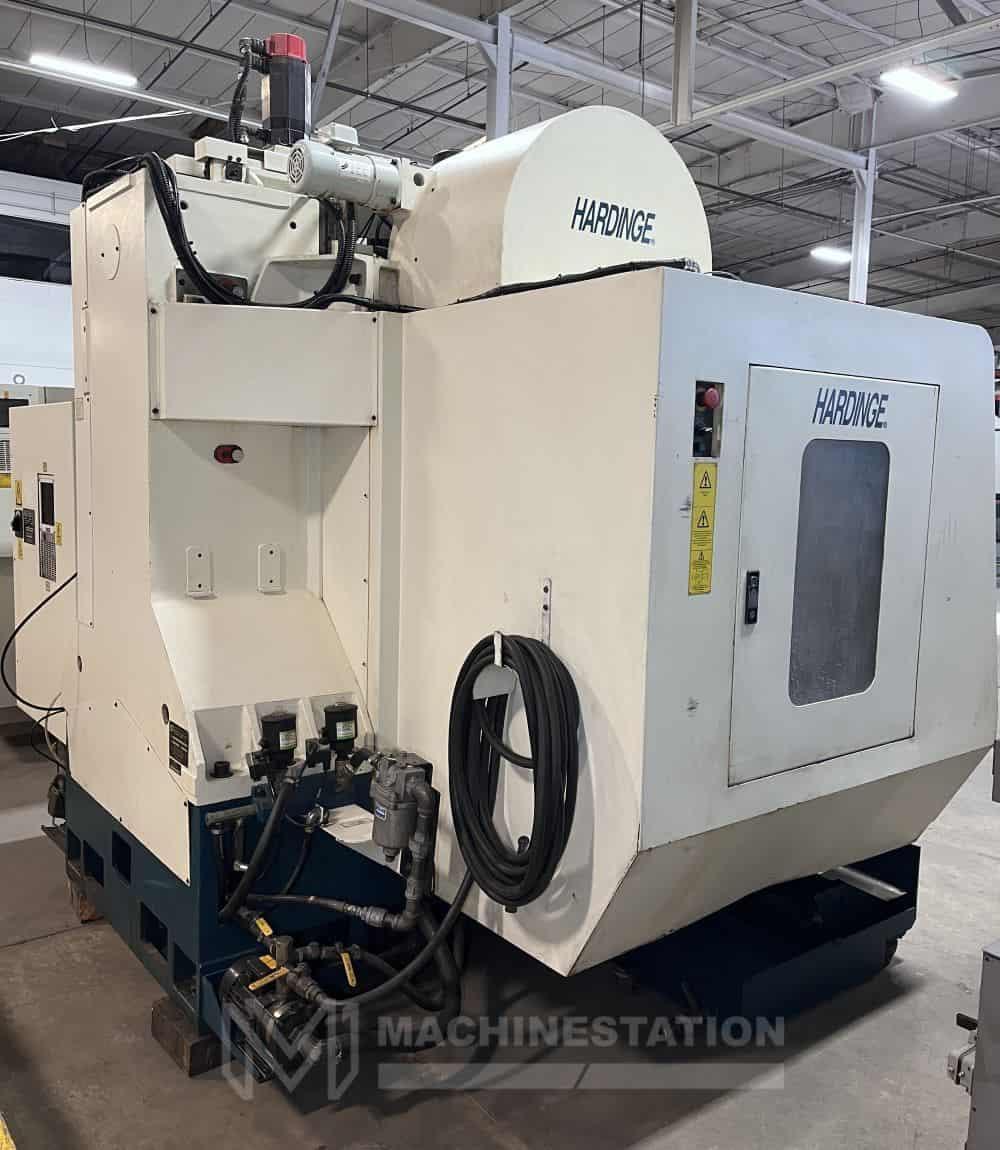

Hardinge VMC 1000II CNC Vertical Machining Center

Hardinge VMC 1000II CNC Vertical Machining Center

Brand

HARDINGE

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Hardinge
Model:	VMC 1000II
Year:	2002
Condition:	Used – Good

Key Features of the Hardinge VMC 1000II:

Hardinge-Fanuc CNC Control System II
8000 RPM Precision Spindle
24 Station Automatic Tool Changer
40 Taper Spindle
MPG Handwheel Control
Rigid Tapping
Telescopic way covers
Flood Coolant system
Levelling Pads

Travel:

X-Axis: 40.16″
Y-Axis: 20.08″
Z-Axis: 20.08″
Rapid Traverse Rates: 1181 Inch Per Minute
Cutting Feed Rates: 472 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6.1″ – 26.1″

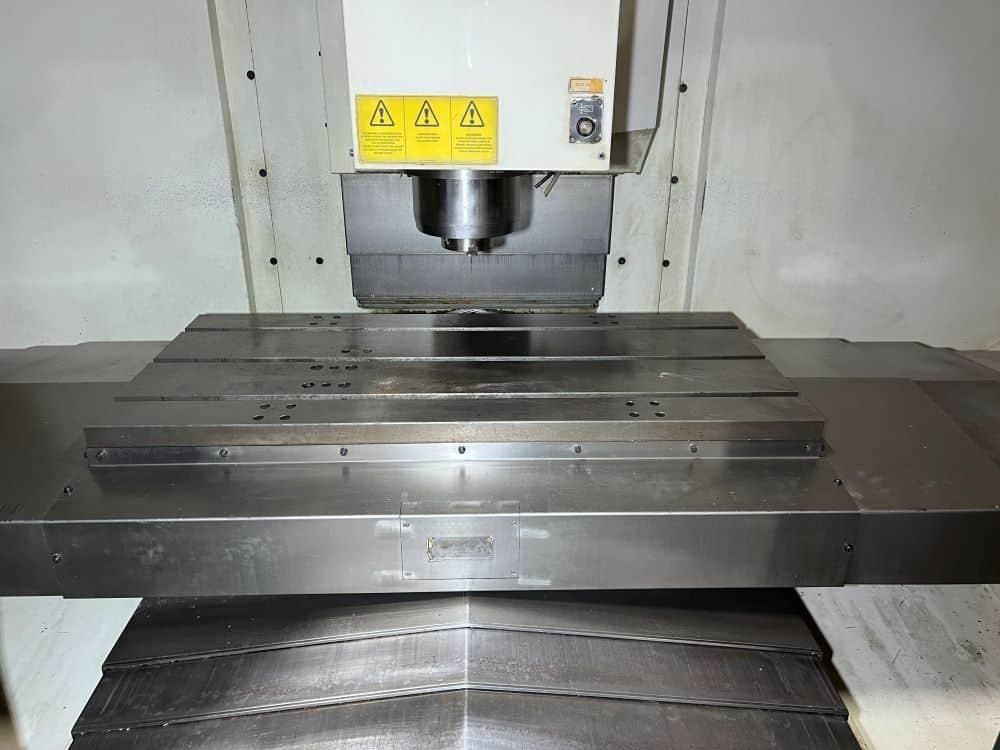

Table:

Length: 44.4″
Width: 20.0″
Number of Std T-Slots: 3
Max Weight on Table: 1540 lbs

Spindle:

Taper Size: 40
Speed Range: 8,000 RPM
Spindle Power: 20 HP

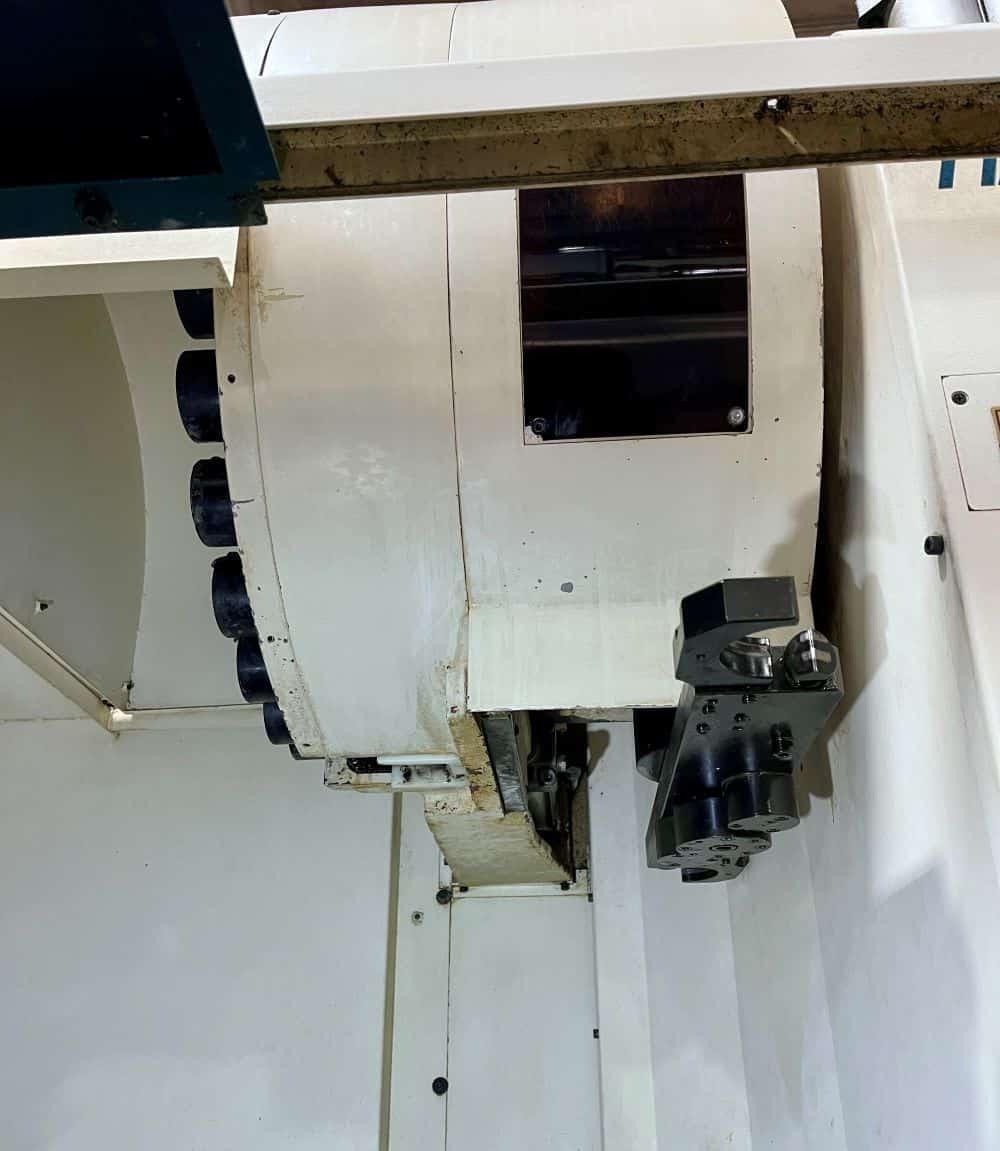

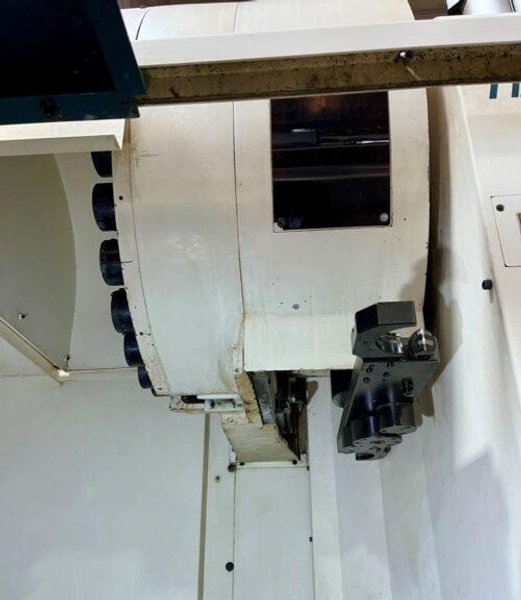

Automatic Tool Changer:

Capacity: 24 Tools
Max Tool Weight: 13.2 lbs
Max Tool Dia: 5.9″
Max Tool Length: 9.8″
Tool Changing Time: 1.5 Seconds

General:

Air Required: 800 psi 4 scfm

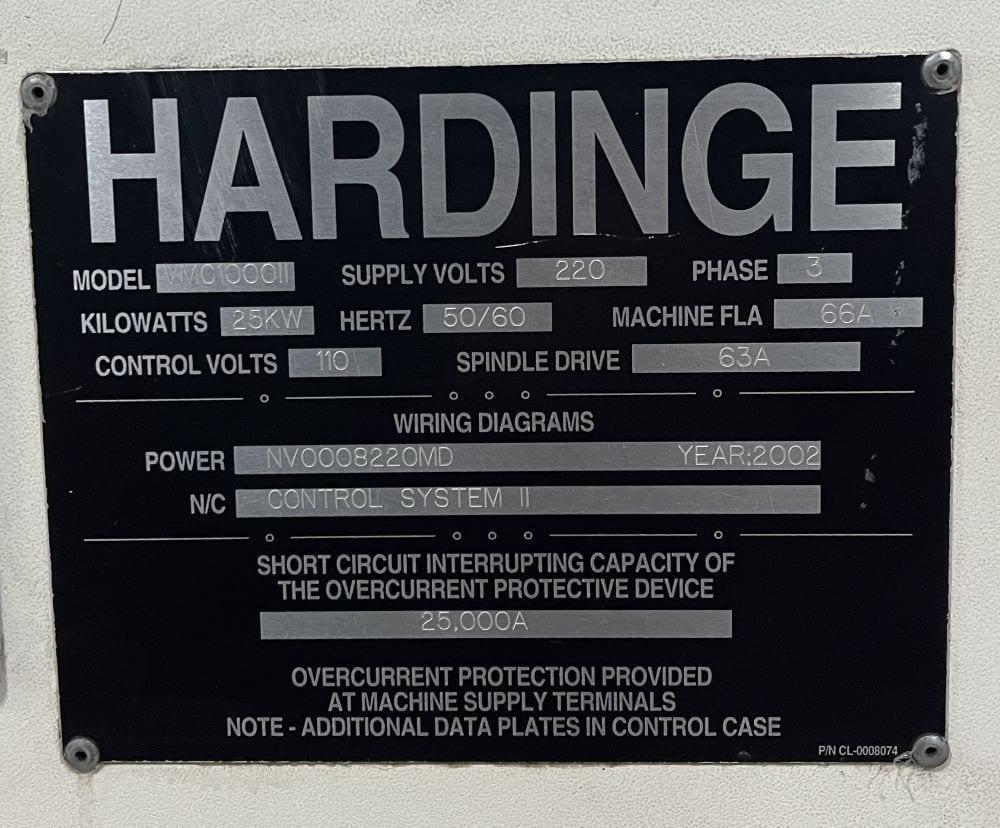

Power: 220v / 66FLA / 3-Phase / 25 kw
Overall Dimensions: 126″ x 90″ x 104″ High Approx.
Weight: 10,500 lbs. Approx.
