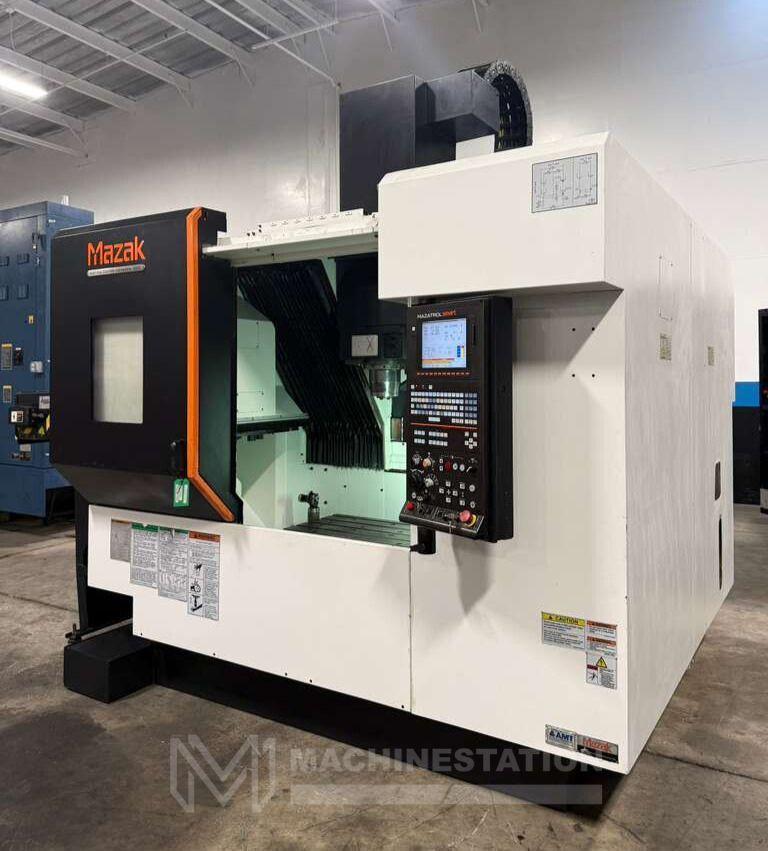

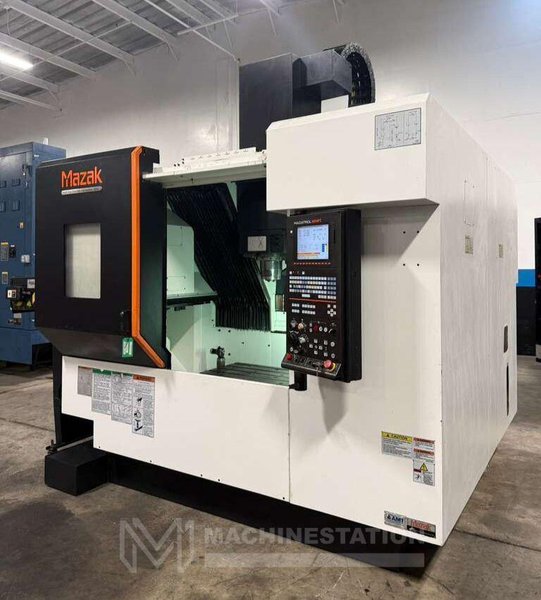

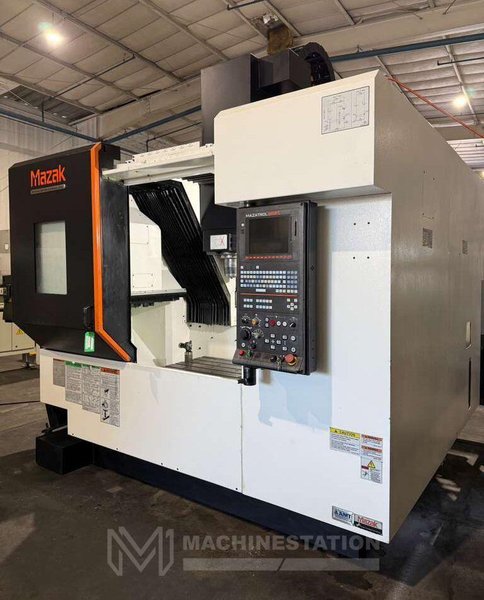

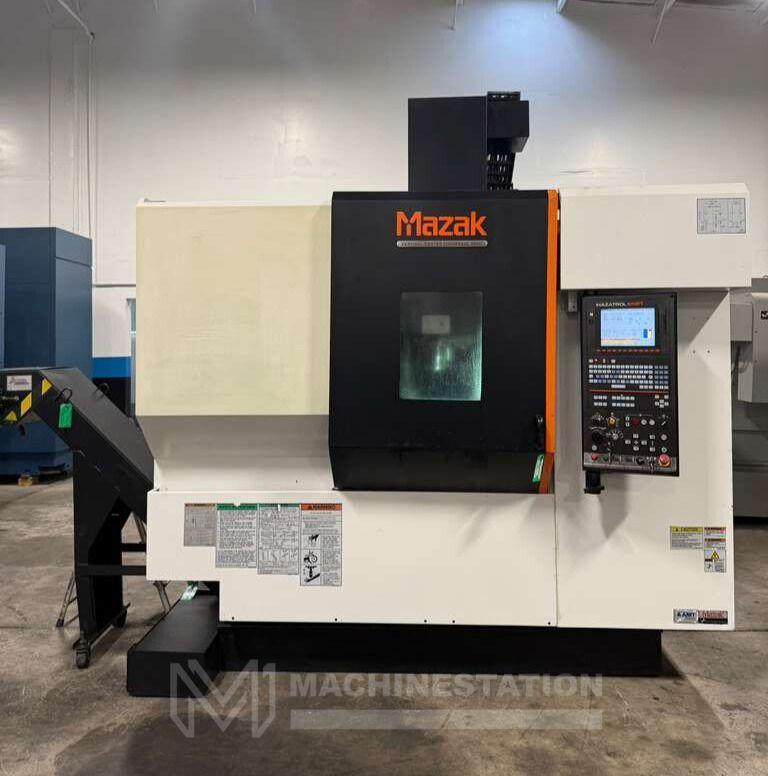

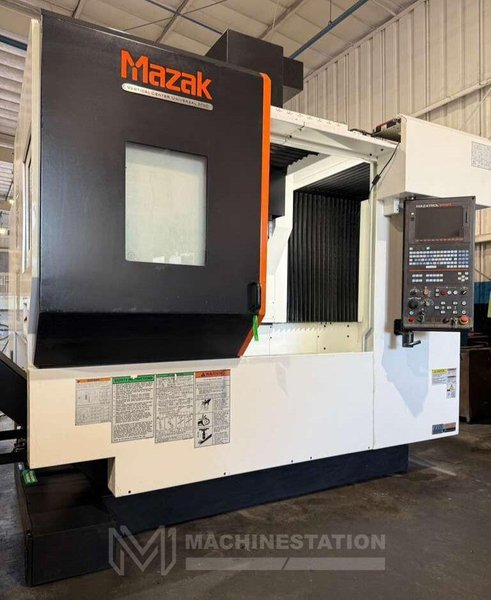

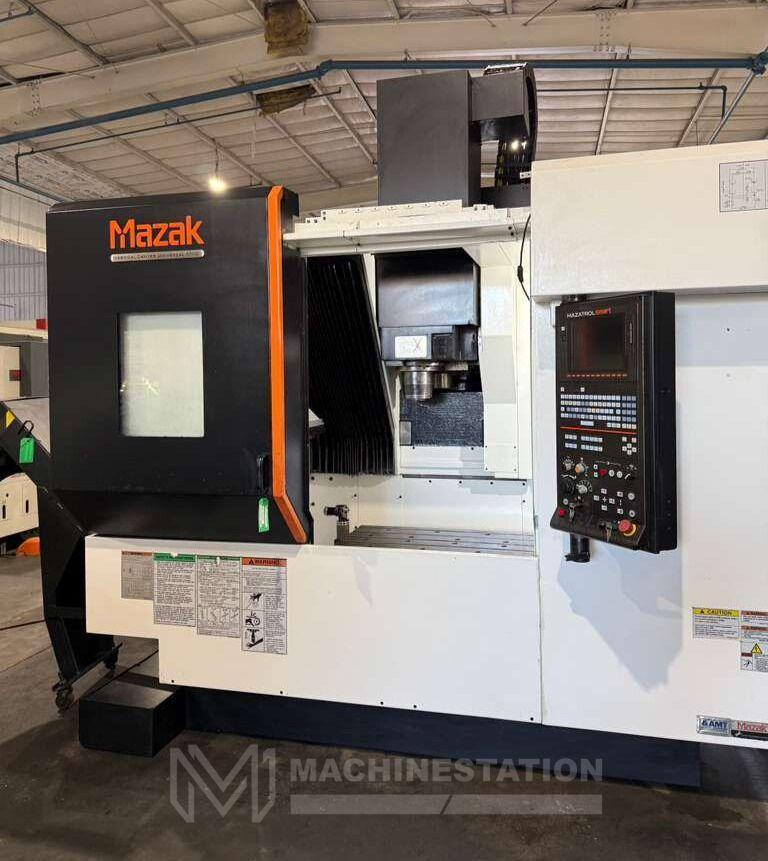

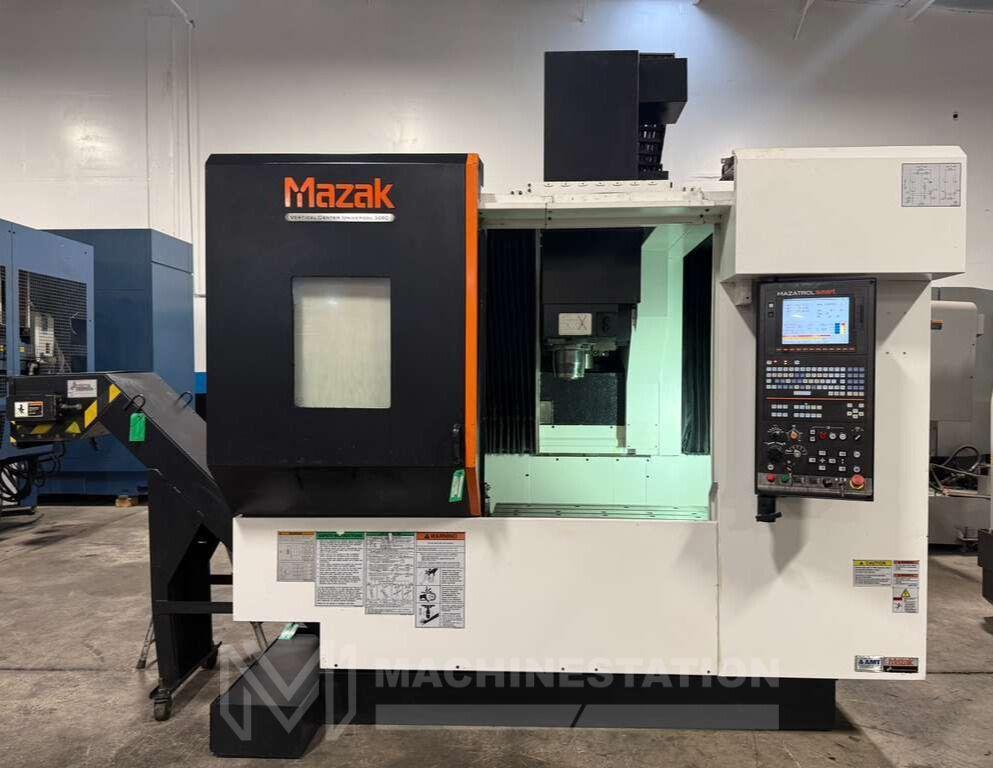

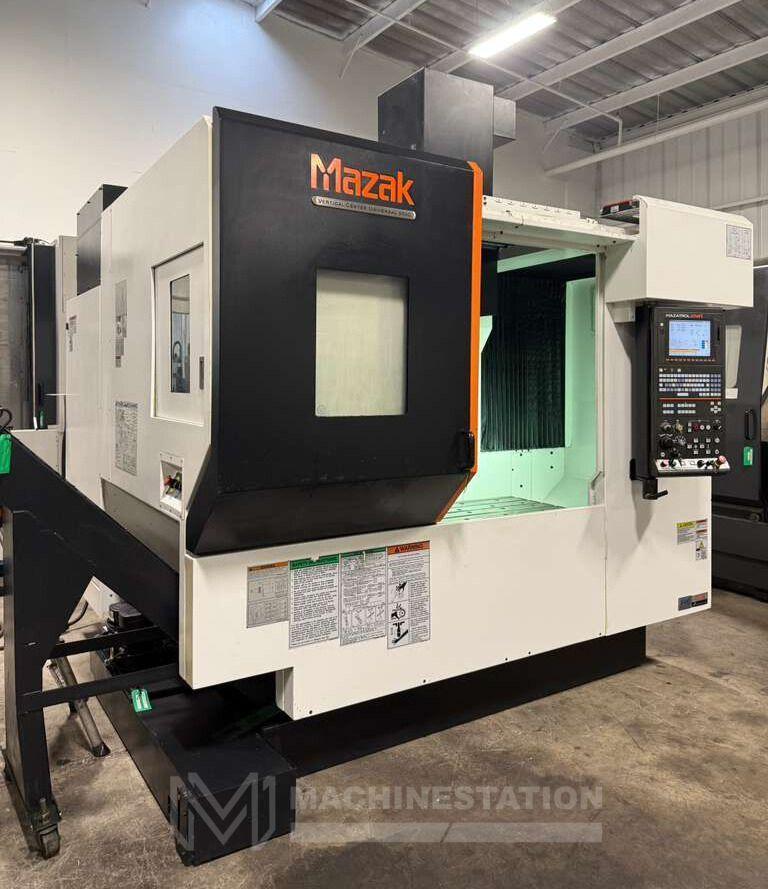

Mazak VCU 500C 3X CNC Vertical Machining Center – Mill

Mazak VCU 500C 3X CNC Vertical Machining Center – Mill

Name: Used MAZAK VCU 500C 3X For Sale 112888
Brand: MAZAK
SKU: 112888
Availability: PreOrder

Brand

MAZAK

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112888
Make:	Mazak
Model No.:	VCU 500C 3X
Year of Manufacture:	2014
Condition:	Used – Good

Equipped With:

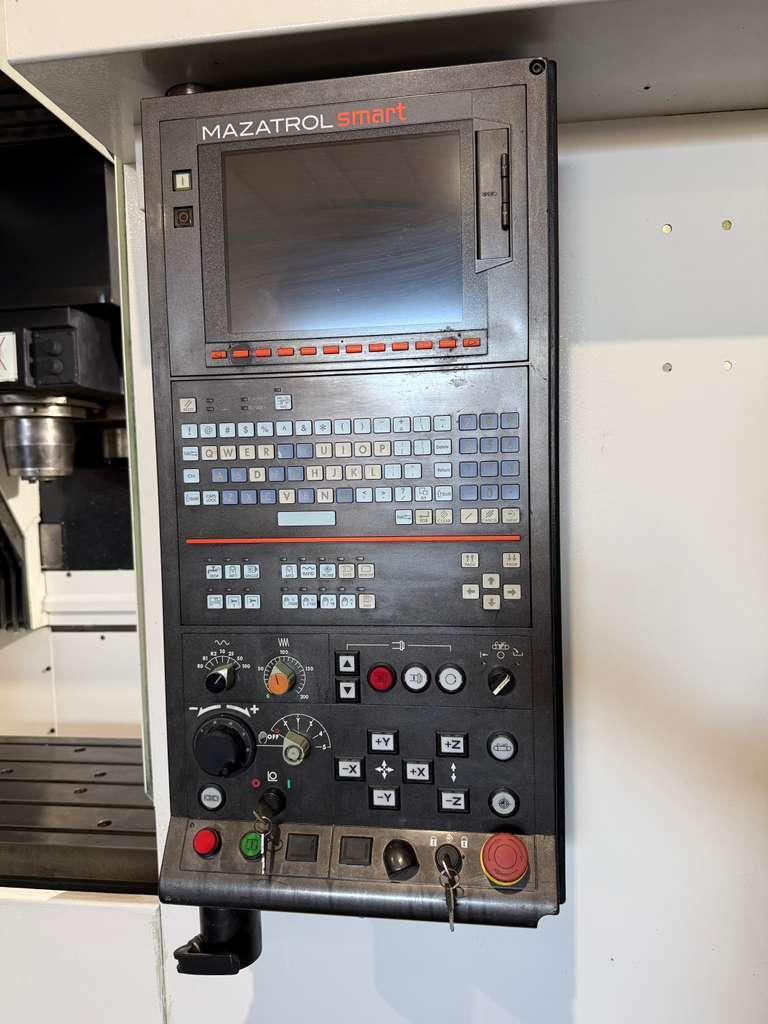

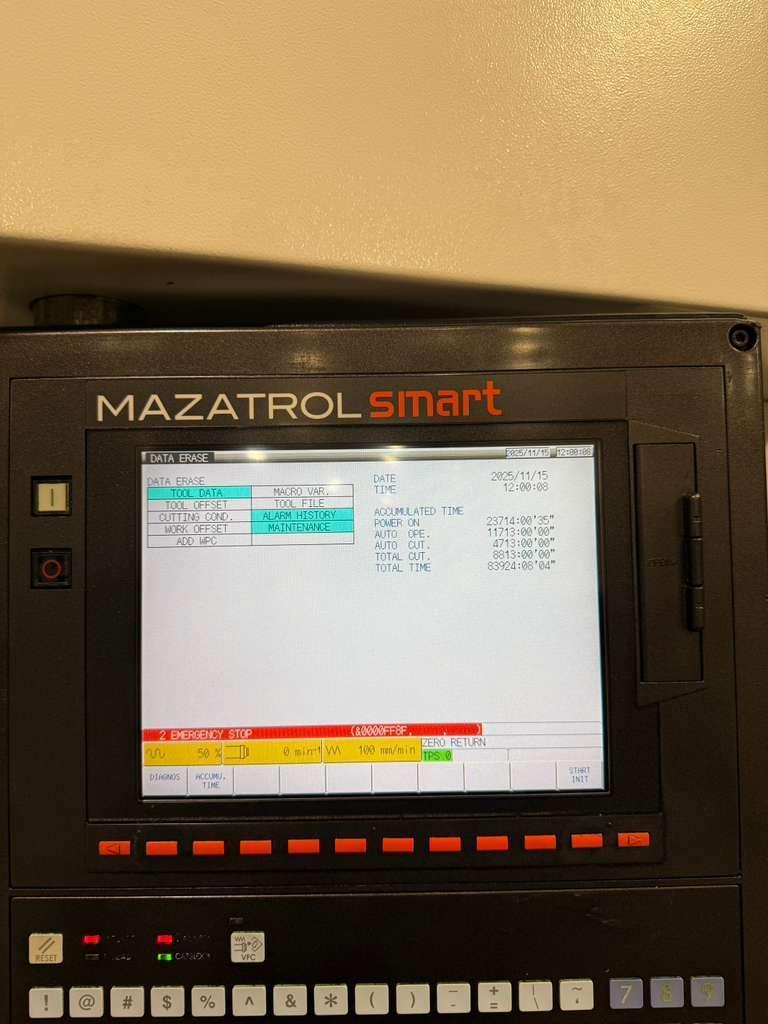

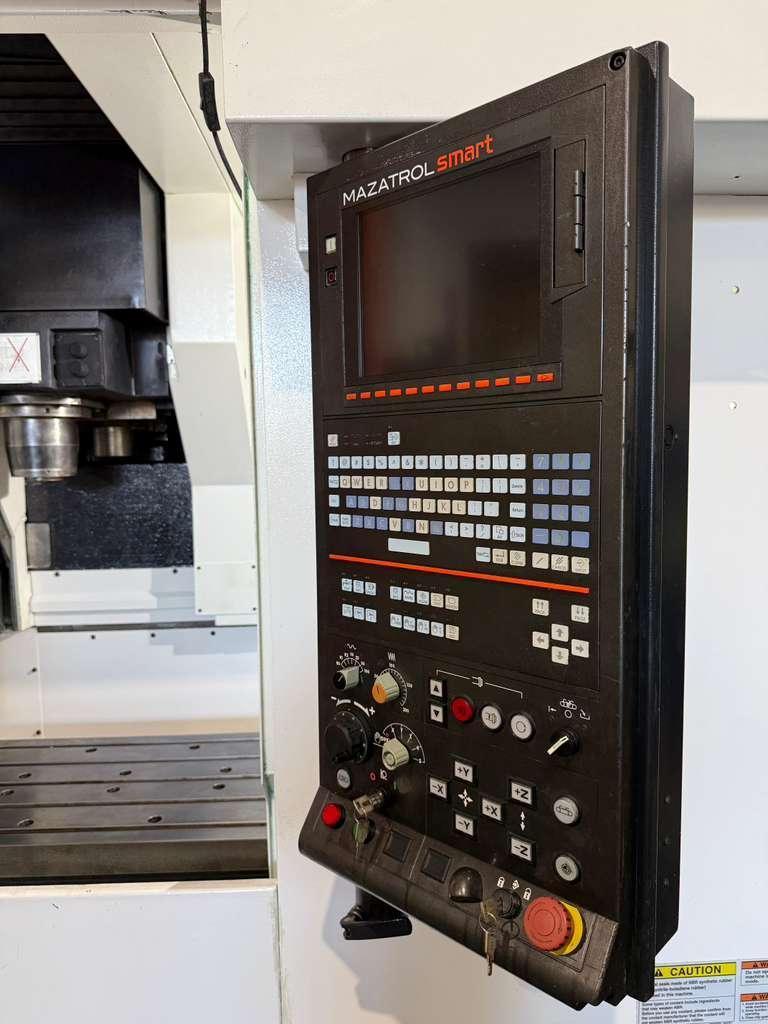

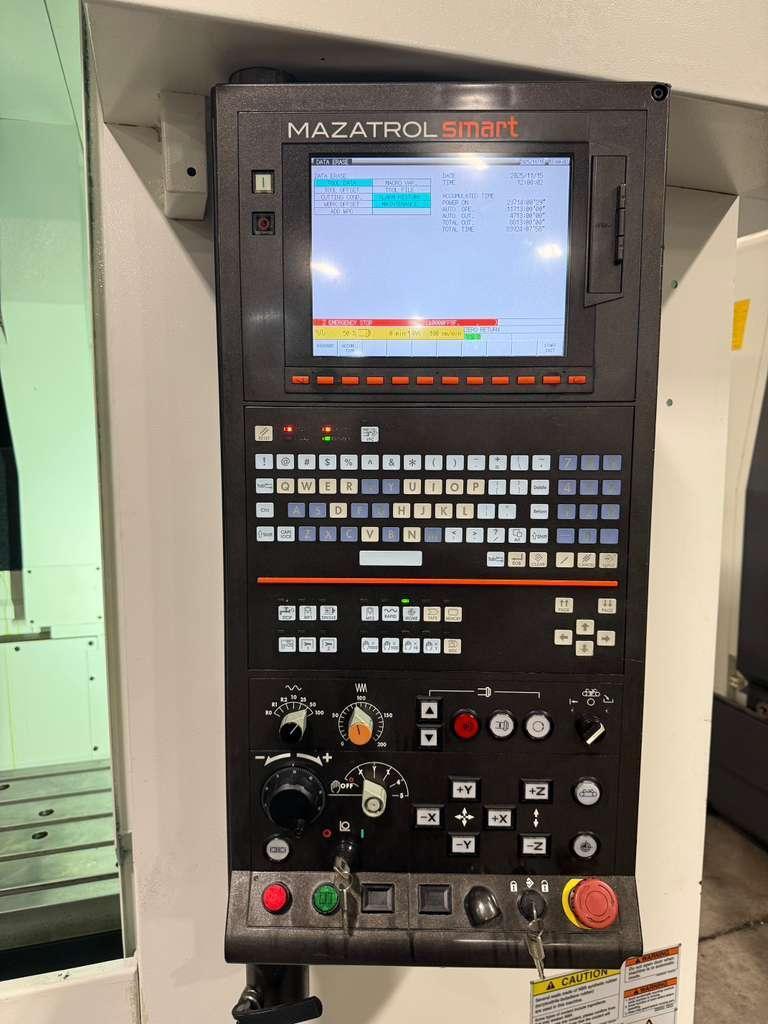

Mazatrol Smart CNC Control

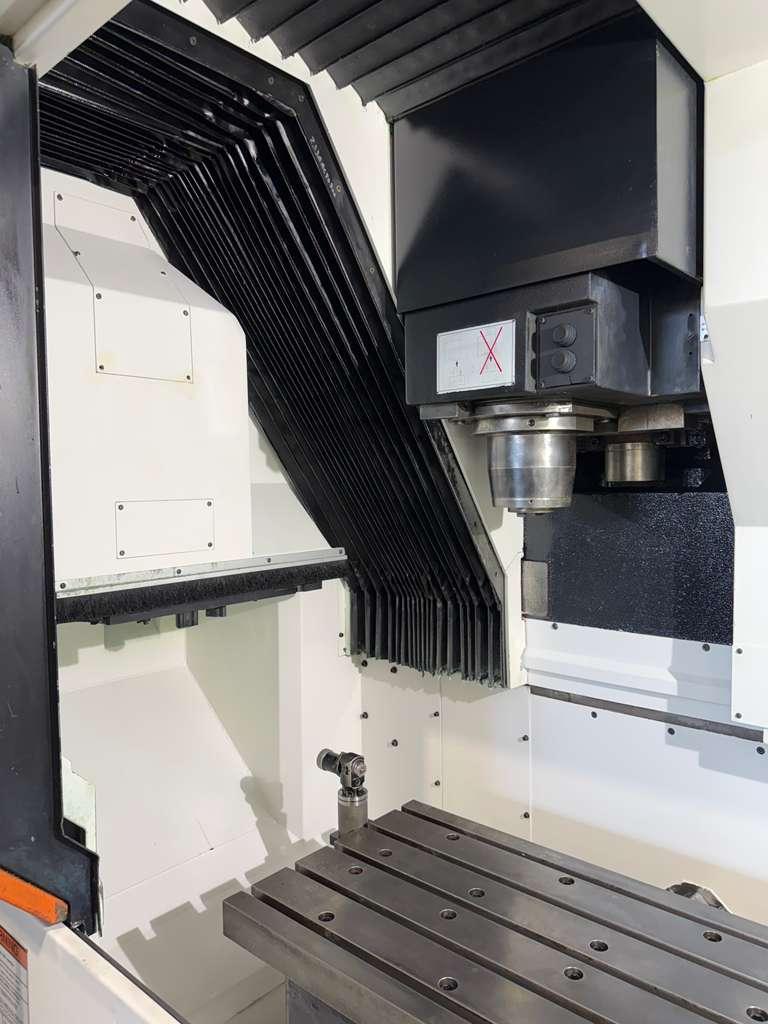

12,000 RPM High Speed Spindle
Renishaw Probing System (Probe Needed)

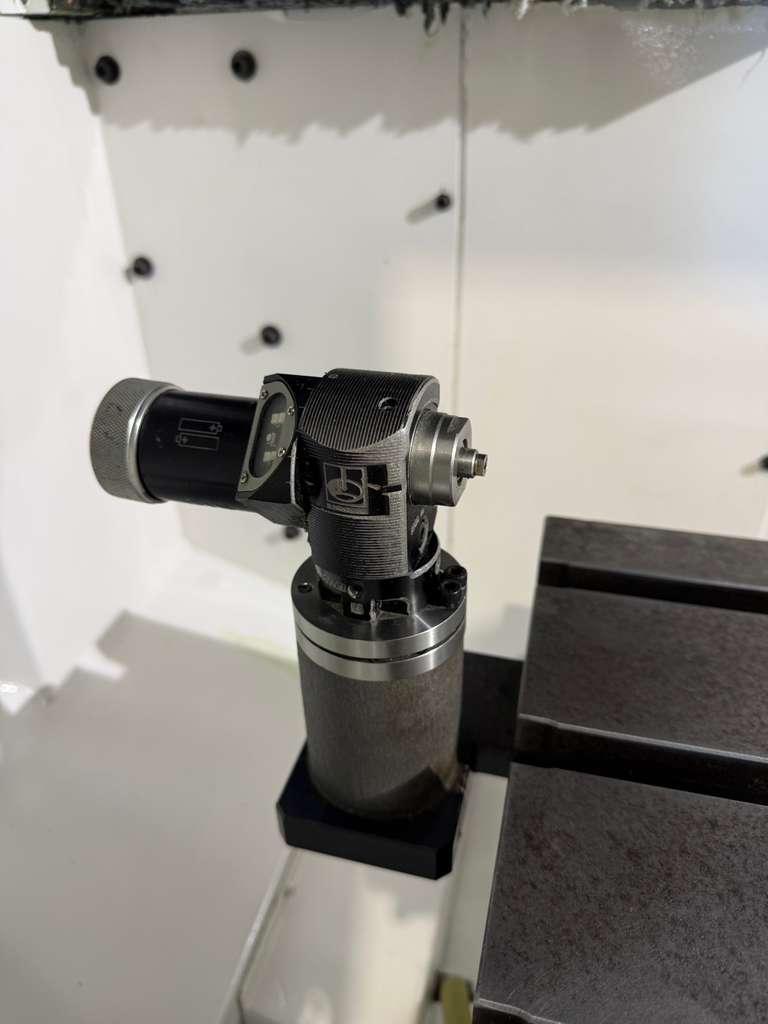

Tool Presetter
Through Spindle Coolant

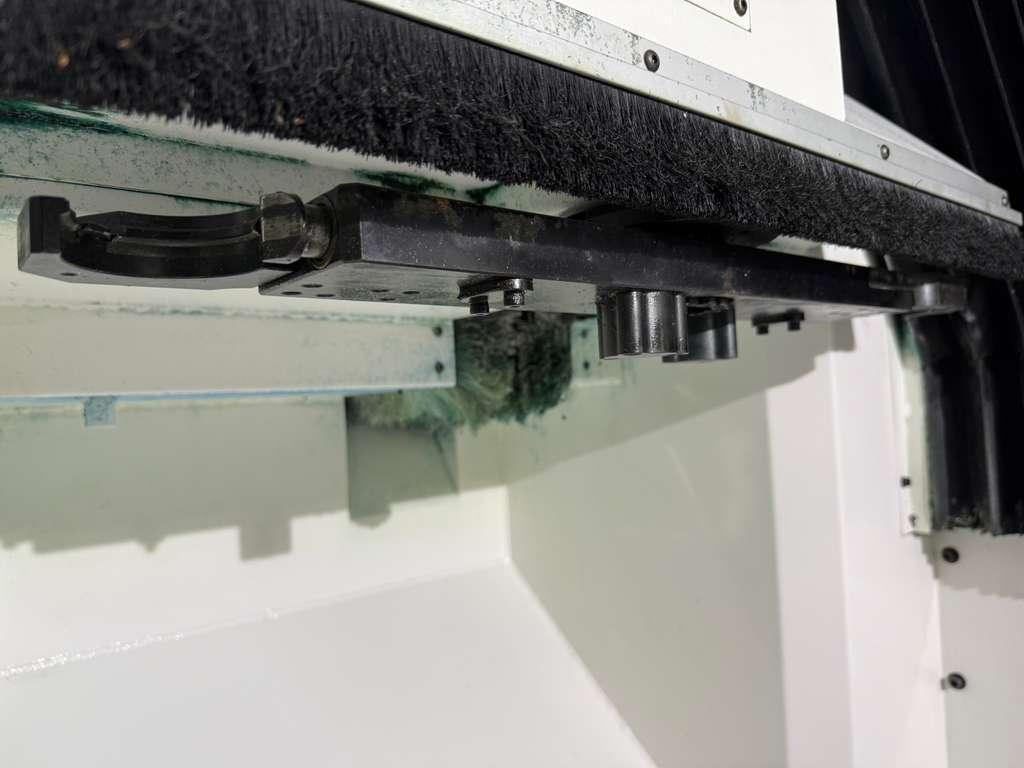

30 Station Automatic tool changer
25 HP High Torque Spindle
CAT-40 Taper Spindle
Rigid Tapping
Coolant System
Chip Conveyor
Books & Manuals

Travels:
X-Axis: 39.37″
Y-Axis: 19.88″
Z-Axis: 20.07″
Rapid Traverse Rates Axis: 1181 IPM
Spindle Nose to Table (Min.- Max.): 4.52″ – 24.60″

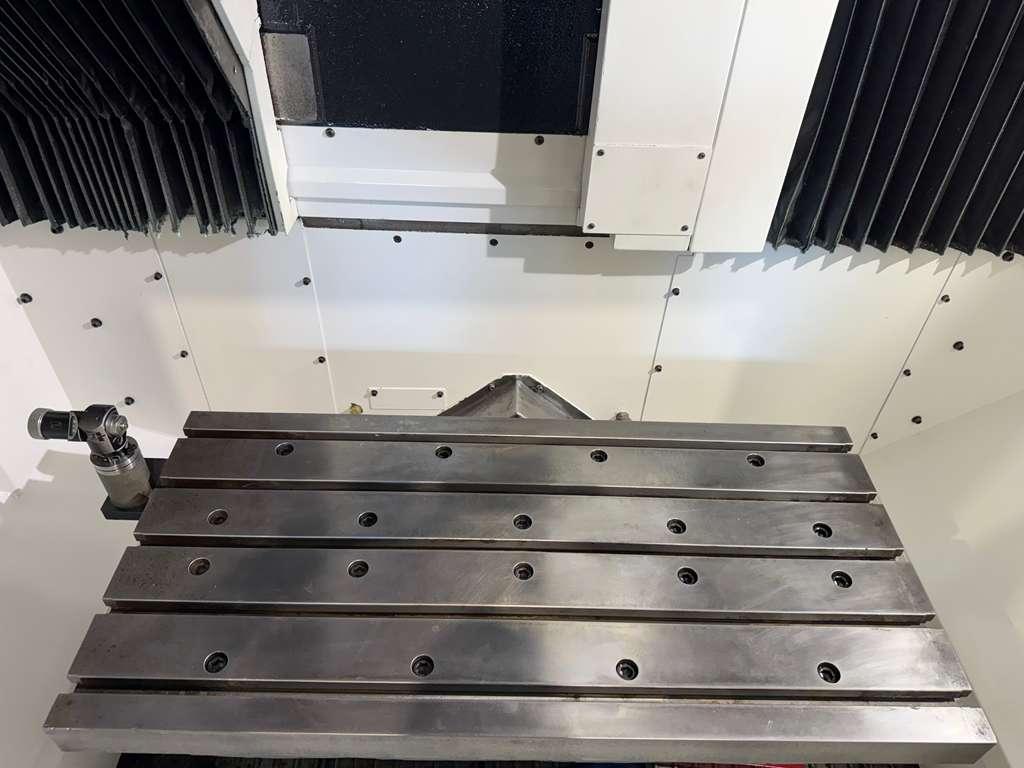

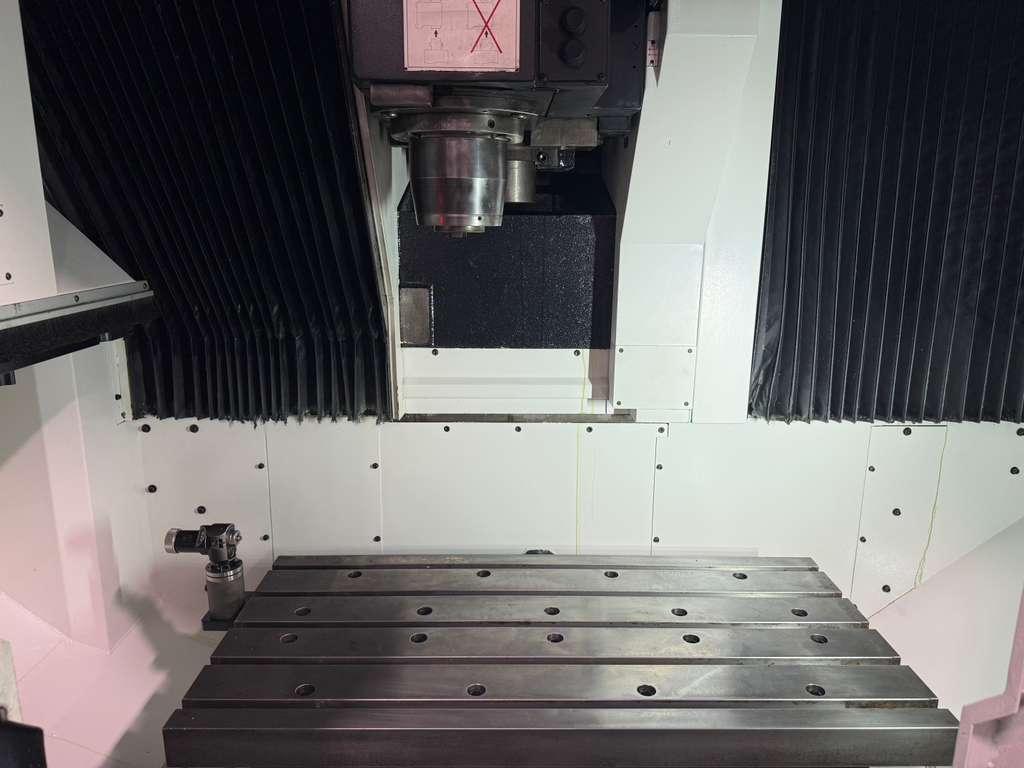

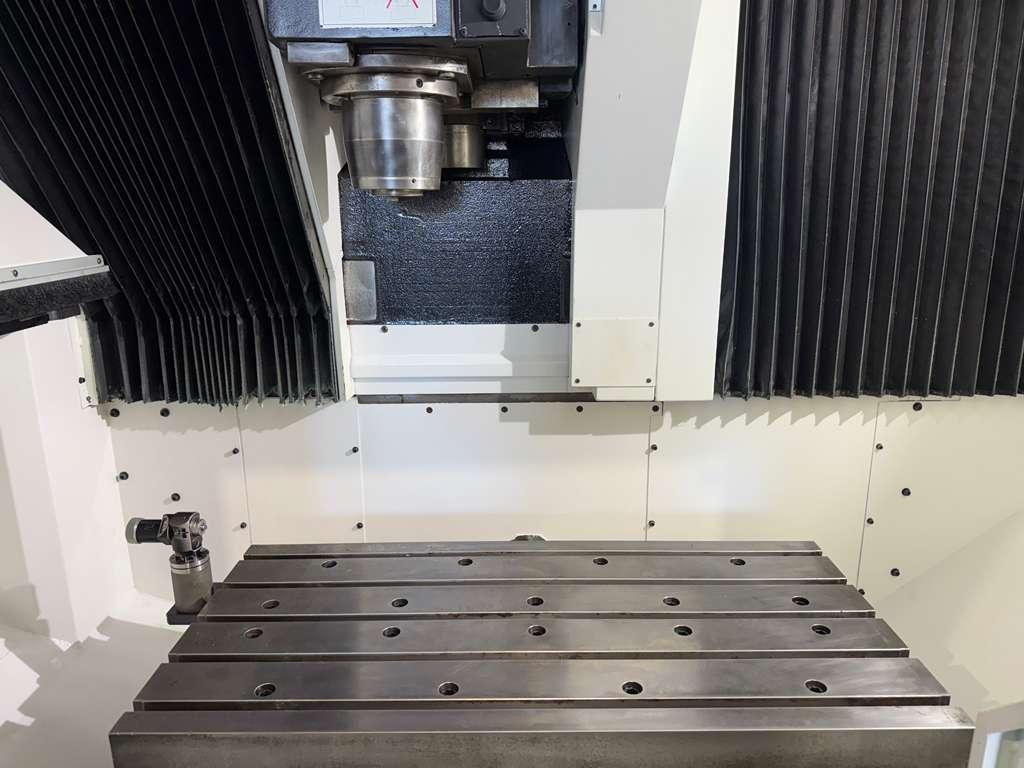

Table:
Length: 39.37″
Width: 19.68″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1322 lbs

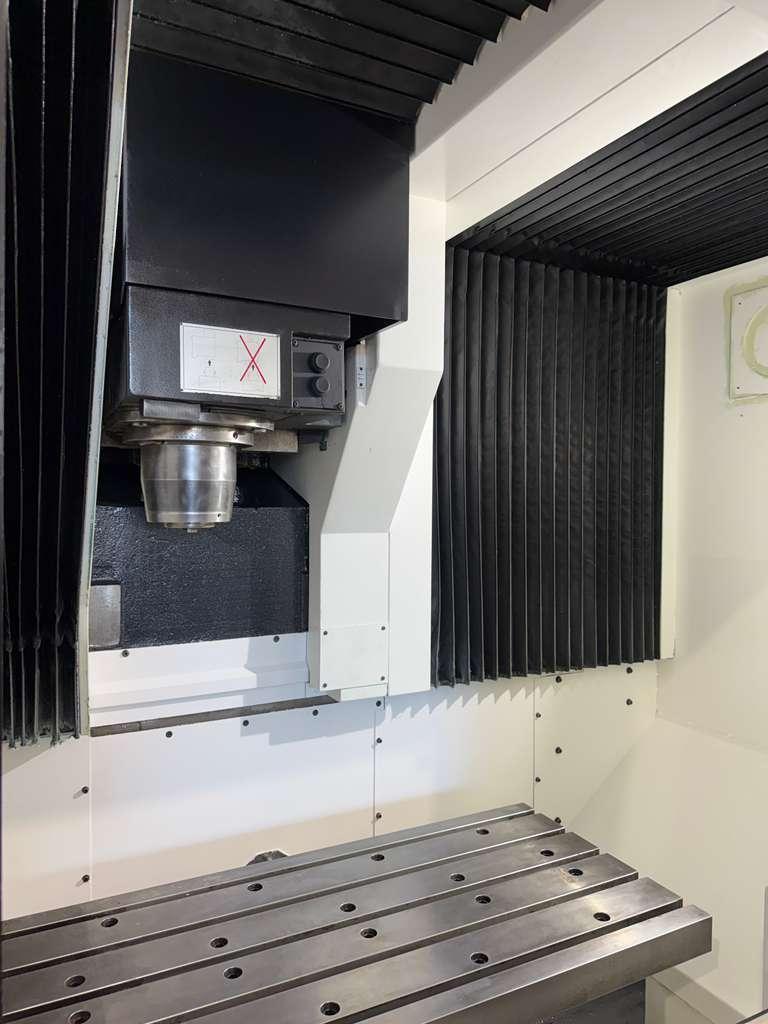

Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Dia: 3.15″ – 4.92″
Max Tool Length: 10.23″
Max Tool Weight: 17.63″ lbs

General:
Air Required: 80 psi, 4 scfm
Power: 208v / 35 kva / 3-Phase / 50/60 Htz
Overall Dimensions: 108.27″ x 125″ x 131.81″ High
Weight: 14,000 lbs Approx.
