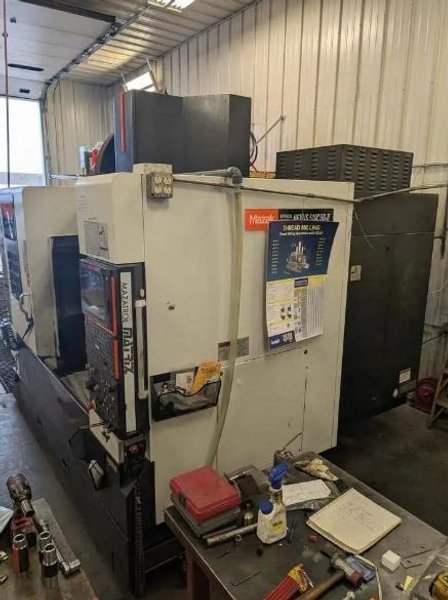

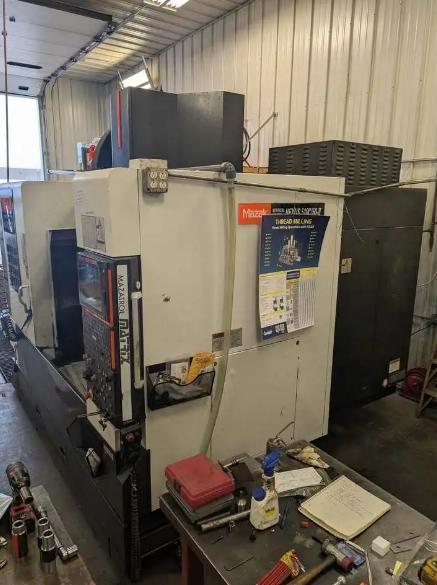

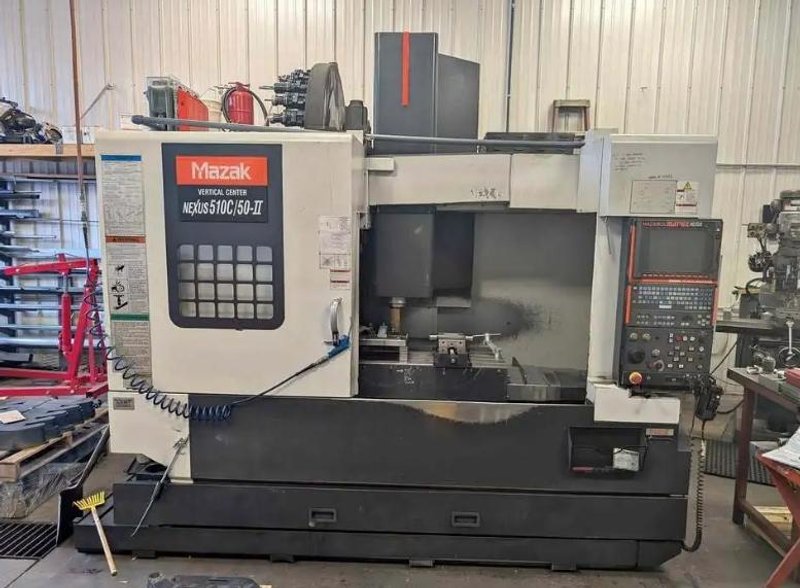

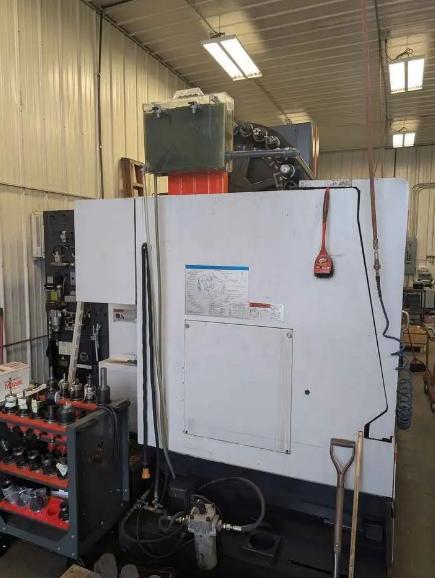

41” X 20” X 20” Vertical Machining Center with Mazatrol Matrix, Through Spindle Coolant, Through Spindle Air Blast and Rigid Tap.

GENERAL SPECIFICATIONS
X - Axis Travel:                        41”
Y - Axis Travel:                        20”
Z - Axis Travel:                        20”
Rapid Traverse Rates:                    1,417 IPM
Cutting Feed Rate:                        787 IPM
Table Size:                            51.8” X 21.65”
Table Load Capacity:                    2,640 Lbs
Spindle Taper:                        CAT 50
Spindle Speed:                        6,000 RPM
Spindle Motor:                        25 HP
Tool Changer Capacity:                    24 Positions (Side Mount ATC)
Tool Change Time (Chip-To-Chip):                1.3 - 2.9 Seconds
Max Tool Diameter:                        4.9”
Max Tool Length:                        13.8”
Max Tool Weight:                        17 Lbs
Spindle Nose to Table Top:                    5.9” - 25.98”
Air Requirements:                        80 PSI, 4 SCFM
Power Requirements:                    220V / ~35 KVA, 3 Ph


INCLUDES: Mazatrol Matrix, Through Spindle Coolant, Through Spindle Air Blast and Rigid Tap.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
