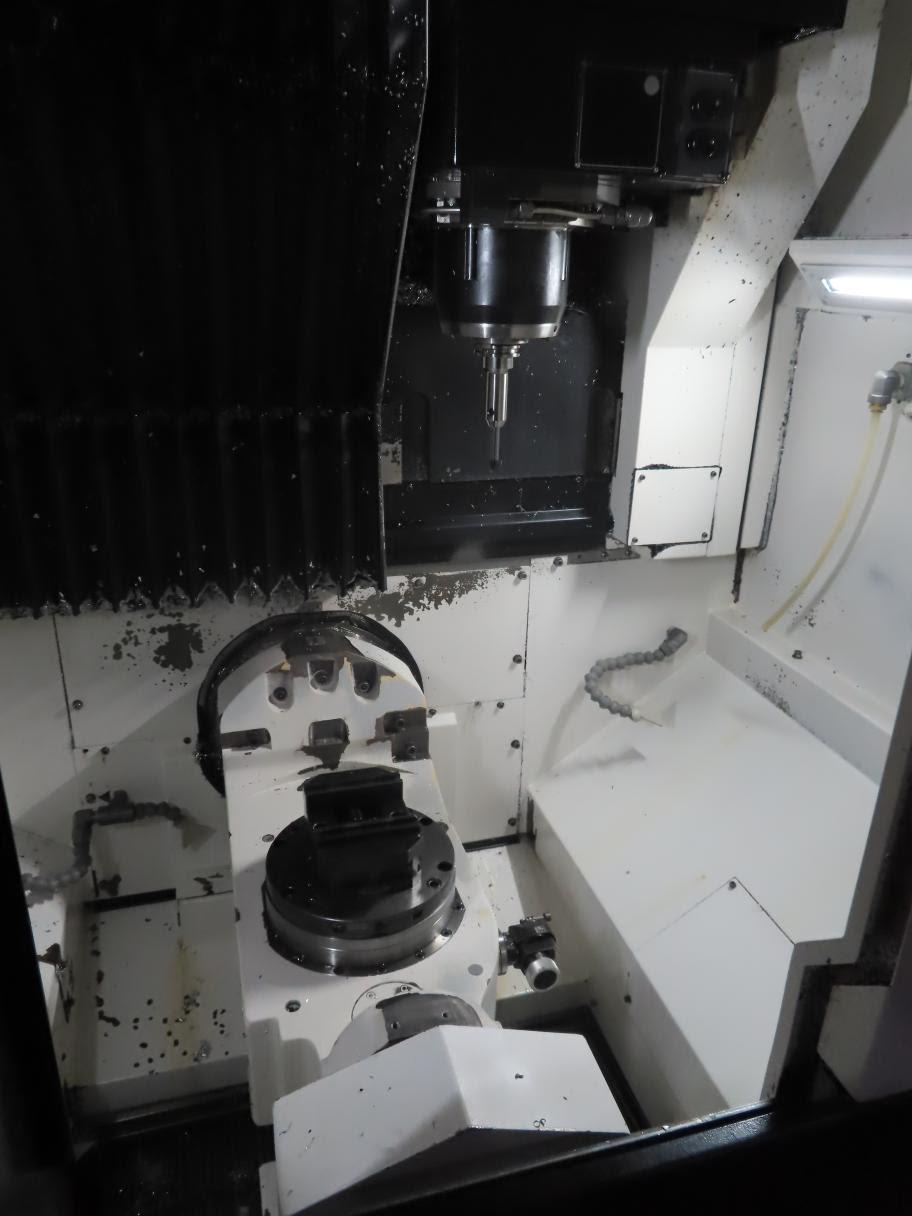

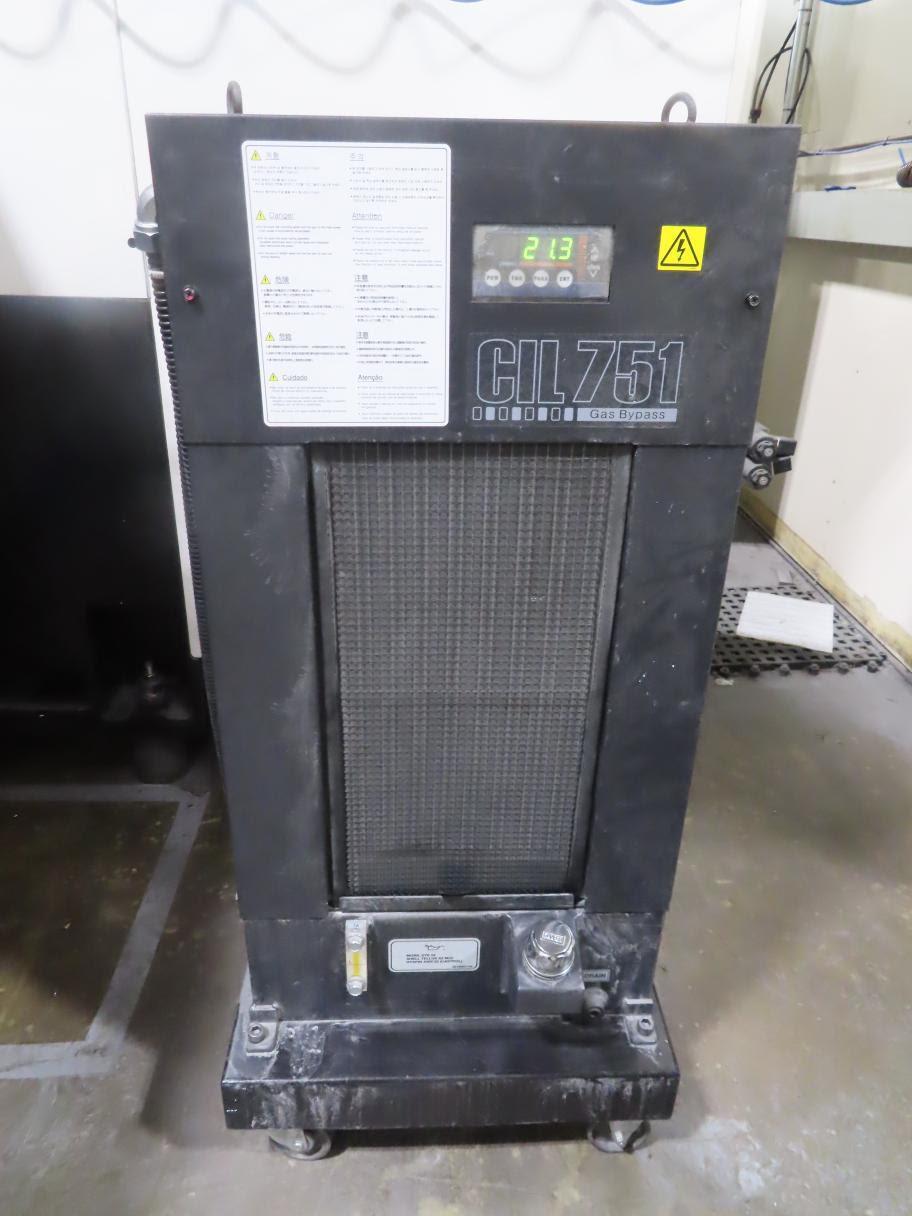

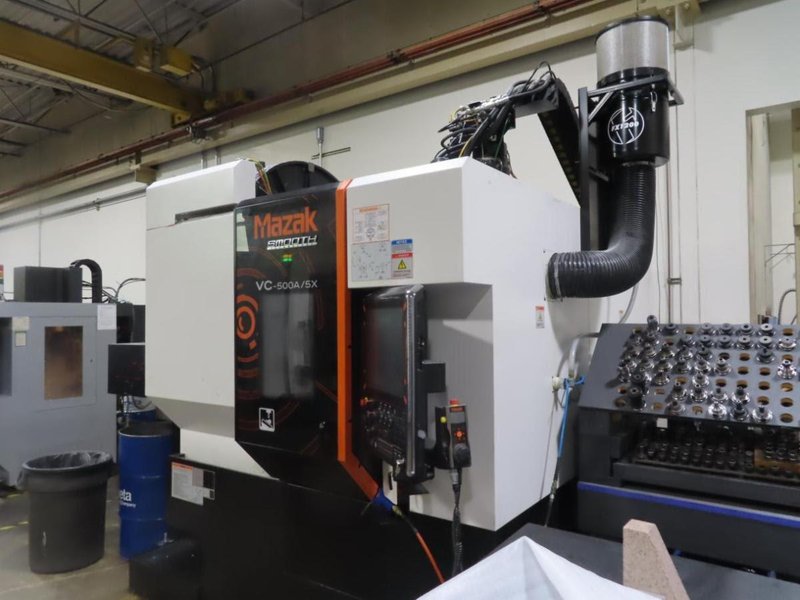

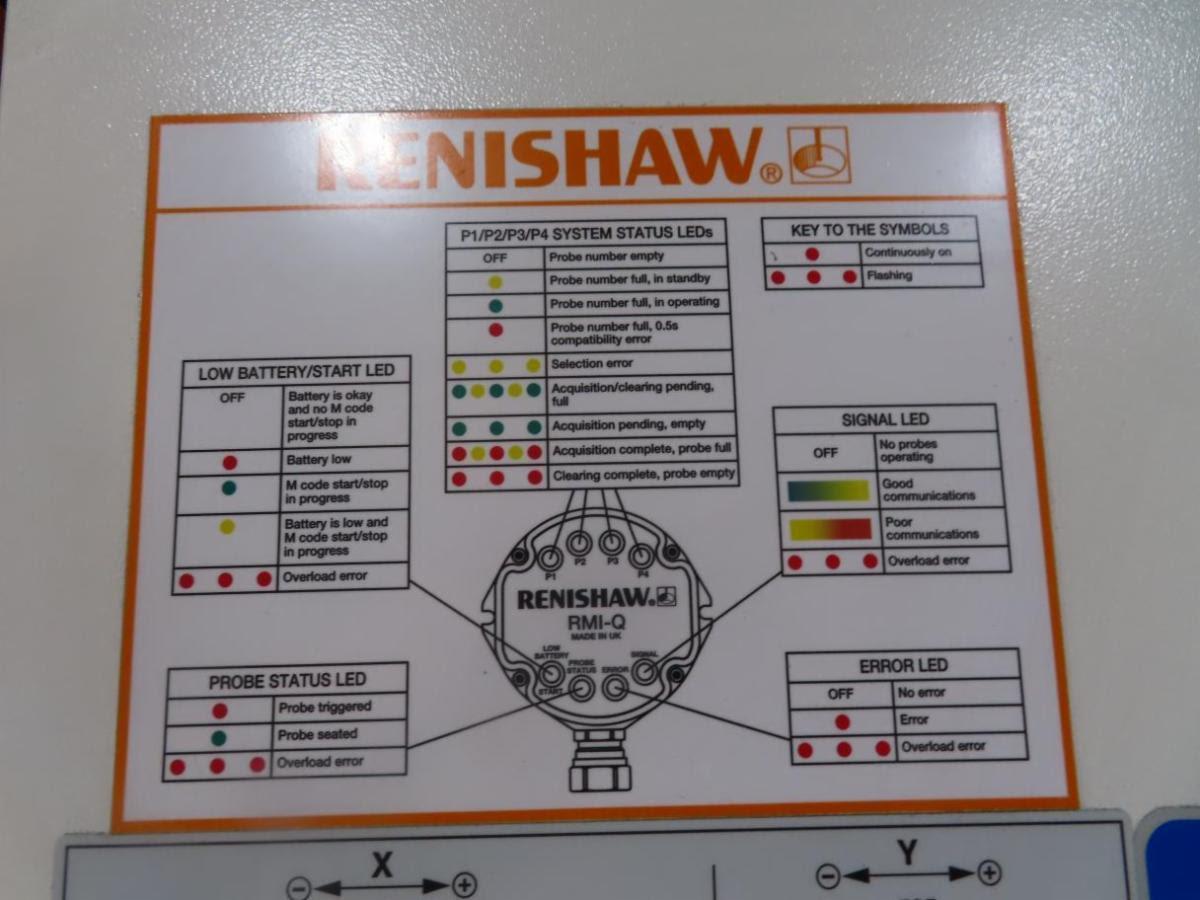

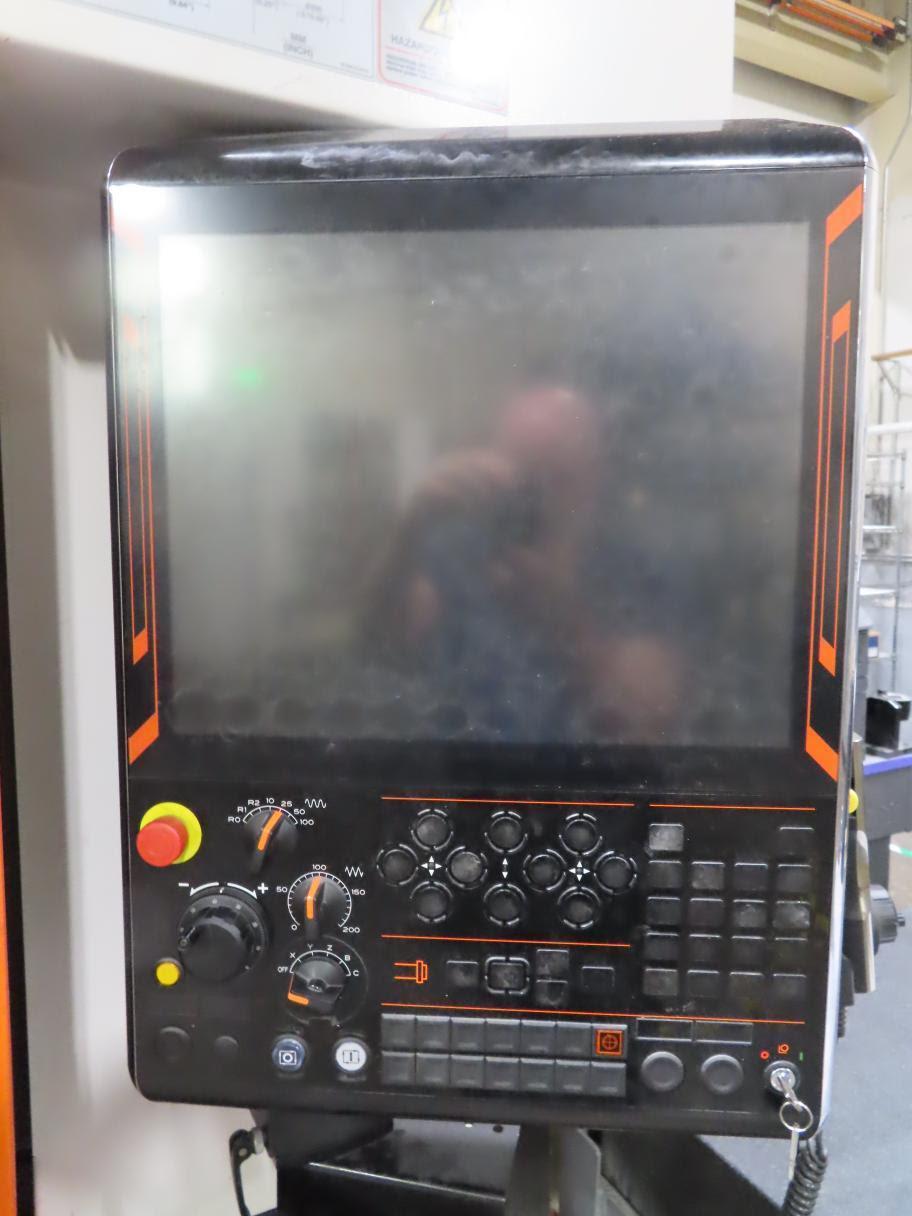

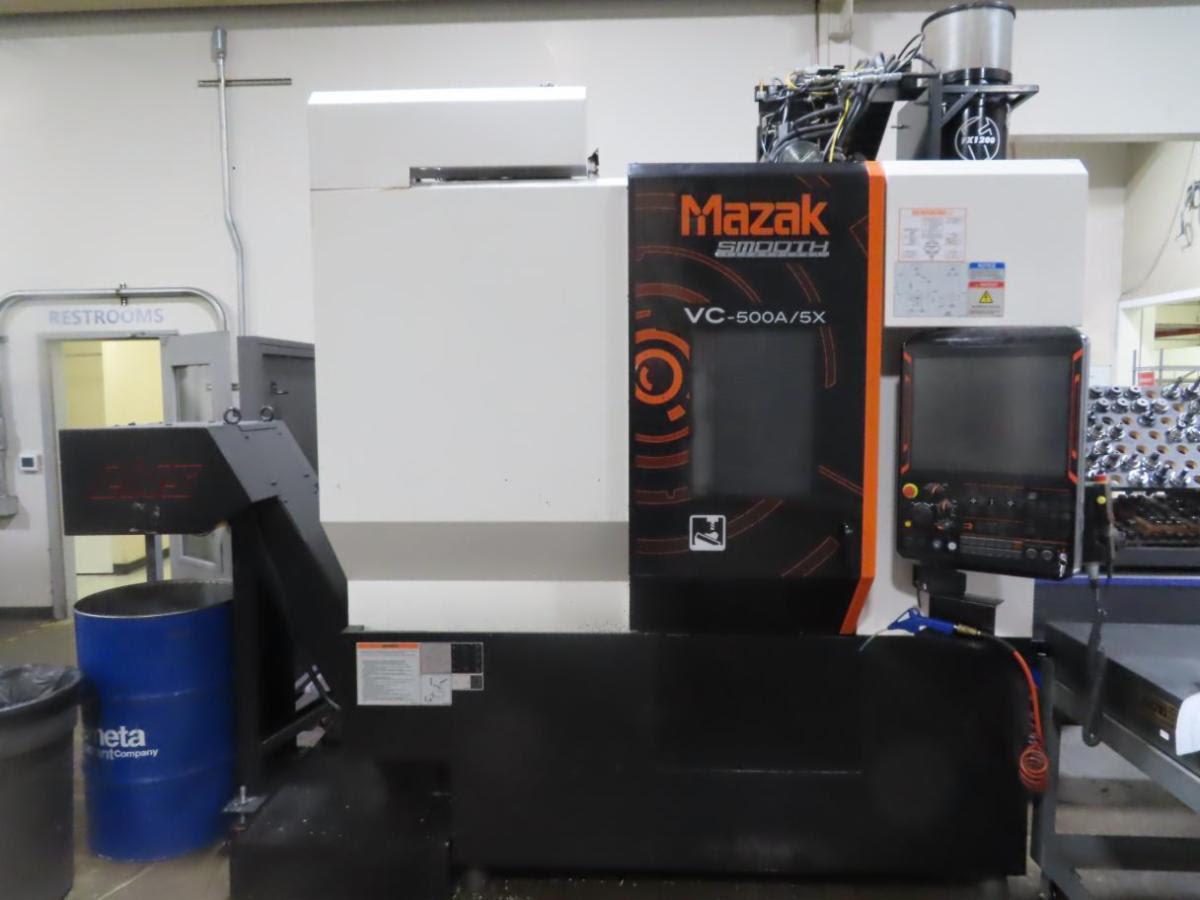

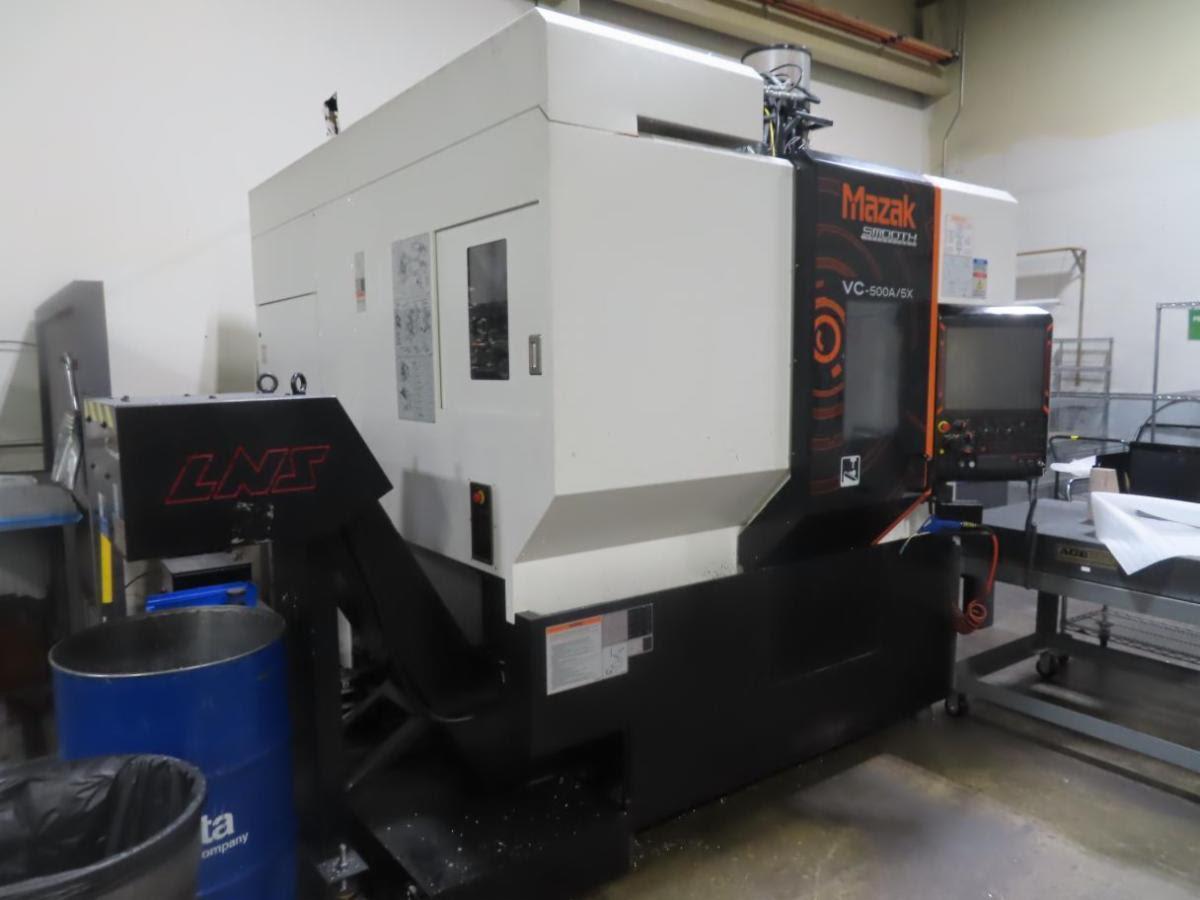

21.85” X 19.88” X 20.08 Vertical Machining Center with Mazak Smooth Technology Control, Trunnion Style Rotary / Tilt Table, CT40 Taper, 60 Slot ATC, Renishaw Probe System Probe in Spindle), Mist Collector, Oil Chiller, Scrap Conveyor and High-Pressure Coolant Thru Spindle.

GENERAL SPECIFICATIONS

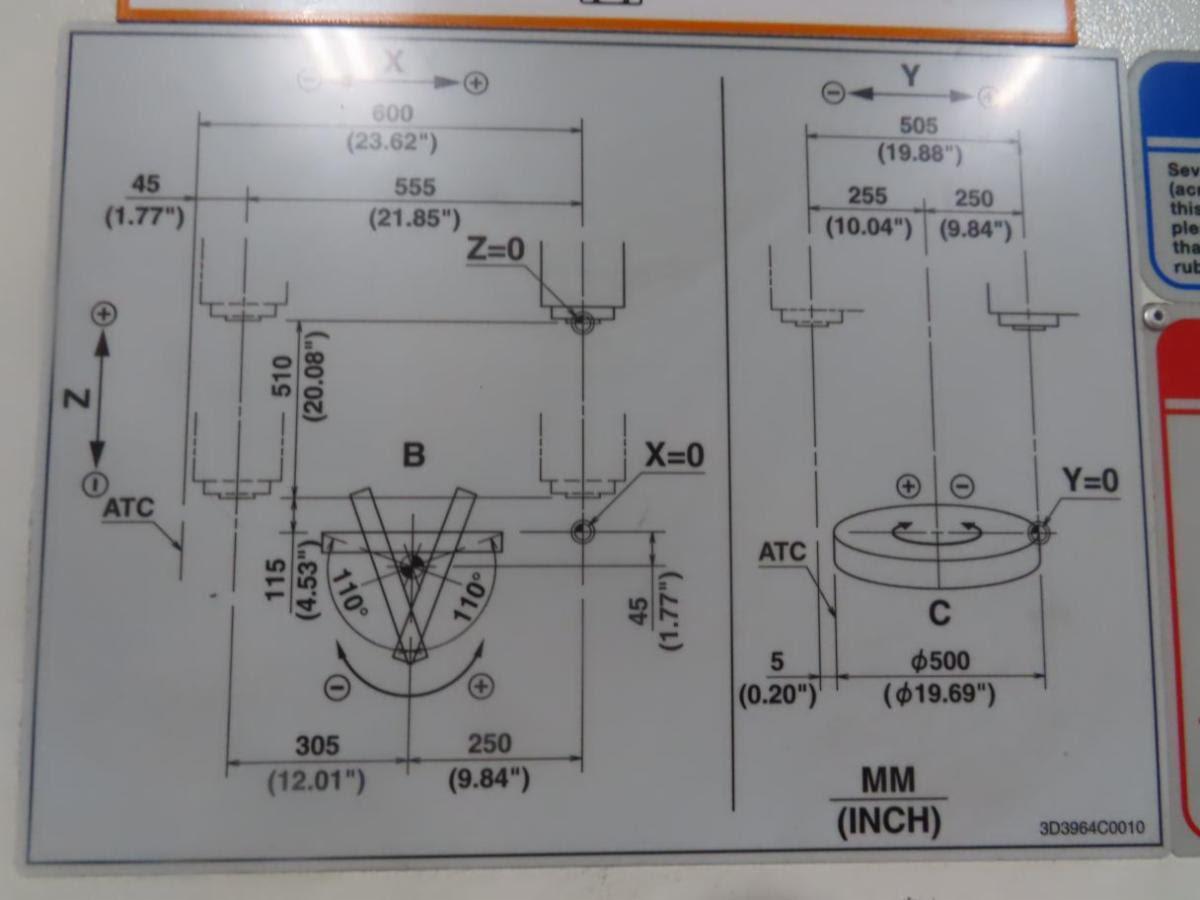

X - Axis Travels:                    21.85”
Y - Axis Travels:                    19.88”
Z - Axis Travels:                    20.08”
B - Axis Travels:                    ± 110°
C - Axis:                        360°

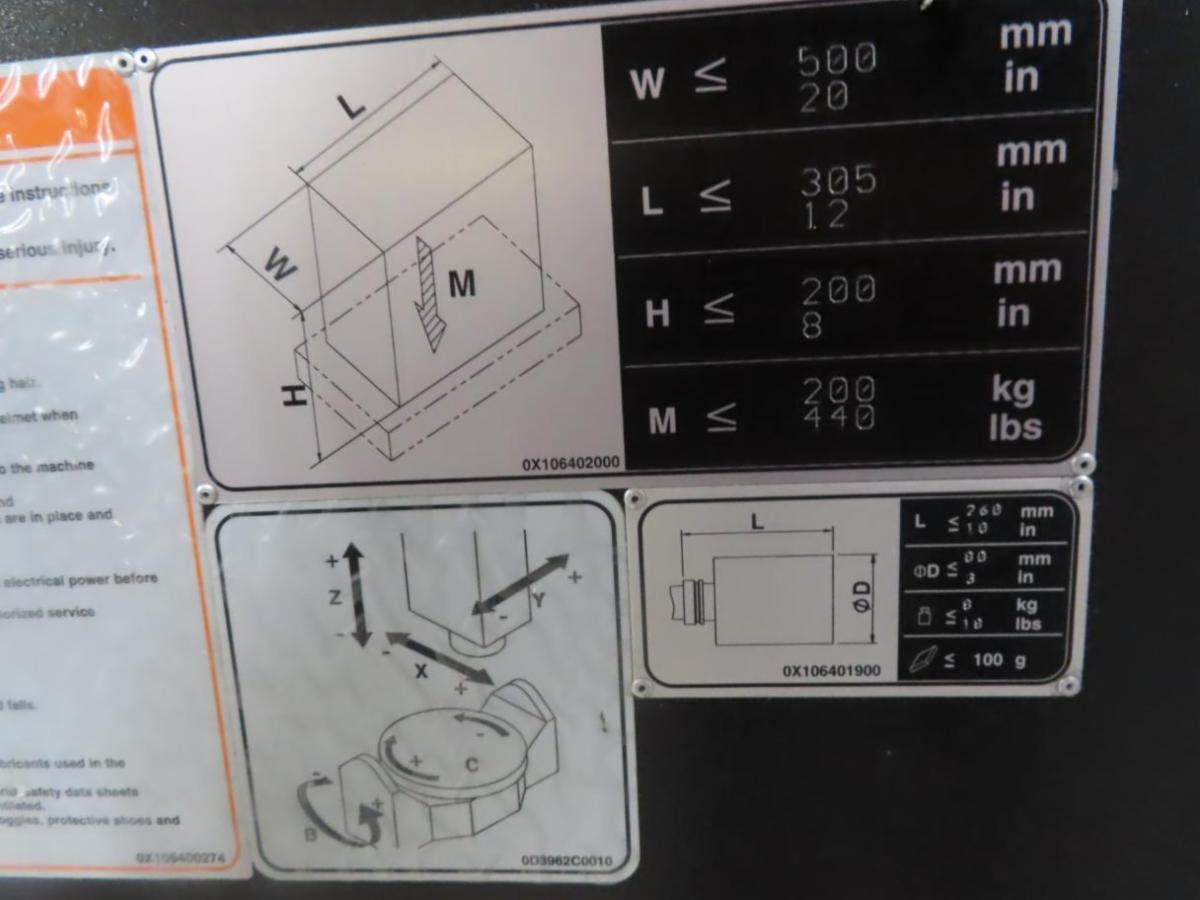

Work Piece Dimensions:                20” X 20” X 12”
Work Piece Weight:                    440 Lbs
Spindle Taper:                    CT40
Spindle Speed:                    15,000 RPM
Thru Spindle Coolant Pressure:            1,000 PSI
Approx Main Machine Dimensions:        118” X 99” X 118”
Approx Main Machine Weight:            18,000 Lbs


INCLUDES: Mazak Smooth Technology Control, Trunnion Style Rotary / Tilt Table, CT40 Taper, 60 Slot ATC, Renishaw Probe System Probe in Spindle), Mist Collector, Oil Chiller, Scrap Conveyor and High-Pressure Coolant Thru Spindle.
