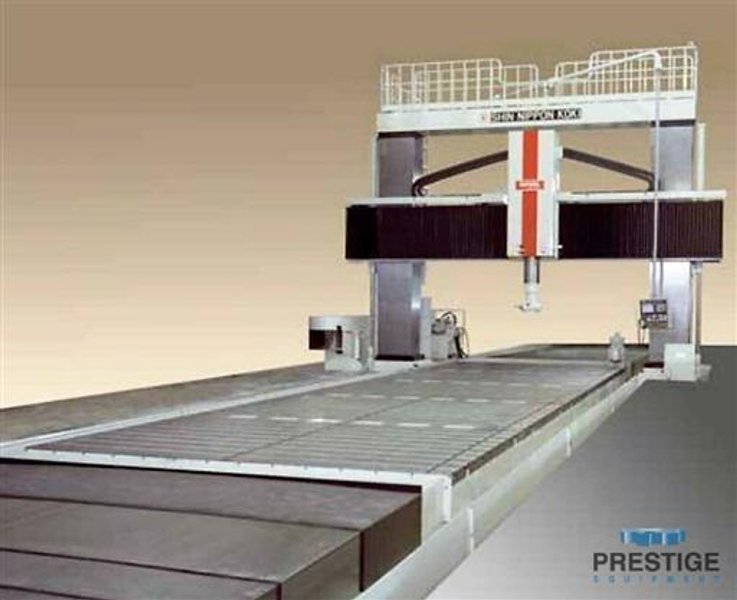

SNK RB-8VM 5-Face Bridge Type CNC Vertical Machining Center

Name: Used SNK RB-8VM For Sale 31418
Brand: SNK
SKU: 31418
Availability: PreOrder

Brand

SNK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

SPECIFICATIONS:
Table Dimensions 393.70" x 157.48"
Distance Between Columns 196.07"
Distance Spindle Nose - Table 0 - 137.79"
Gantry Travel, X-Axis 403.54"
Head Cross Travel, Y-Axis 209.44"
Ram Travel, Z-Axis 31.49"
Cross Rail Vertical Travel, W-Axis 114.17"
Spindle Speeds 30 - 4500 RPM
Spindle Taper ISO #50
Ram Diameter 12.99"
Rapid Traverse, X-Axis 393.70 IPM
Rapid Traverse, Y-Axis 787.40 IPM
Rapid Traverse, Z-Axis 314.96 IPM
Rapid Traverse, W-Axis 157.48 IPM
Cutting Feed Rate, X/Y/Z-Axes .039 - 236.22 IPM
Cutting Feed Rate, W-Axis .039 - 157.48 IPM
Spindle Motor 40 HP / 49.6 HP

Equipped With:
Fanuc 31i CNC Control
Angle Head Milling Attachment
Spindle Extension Attachment
