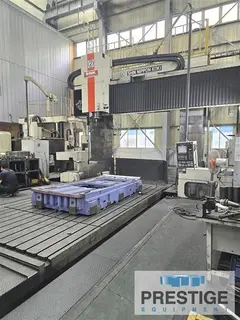

SNK RB 5VM/CS 5-Axis Double Column Vertical Machining Center

Name: Used SNK RB 5VM CS For Sale 44239
Brand: SNK
SKU: 44239

Brand

SNK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

SPECIFICATIONS:
X-Axis Table Travel 206.69"
Y-Axis Head Travel 114.17"
Z-Axis Quill Travel 23.62"
W-Axis Vertical Rail Travel 55.11"
Width Between Columns 112.20"
Distance Spindle to Table 11.81" to 90.55"
Table Size 196.85" x 98.42"
Table Load Capacity 44,000 Lbs.
Spindle Speeds 40-6000 RPM
Spindle Taper ISO 50 Taper
Spindle Drive Motor 33 HP / 25 HP
Rapid Feed X & Y Axes 787.40 IPM
Cutting Feed Rate 393.70 IPM

Equipped With:

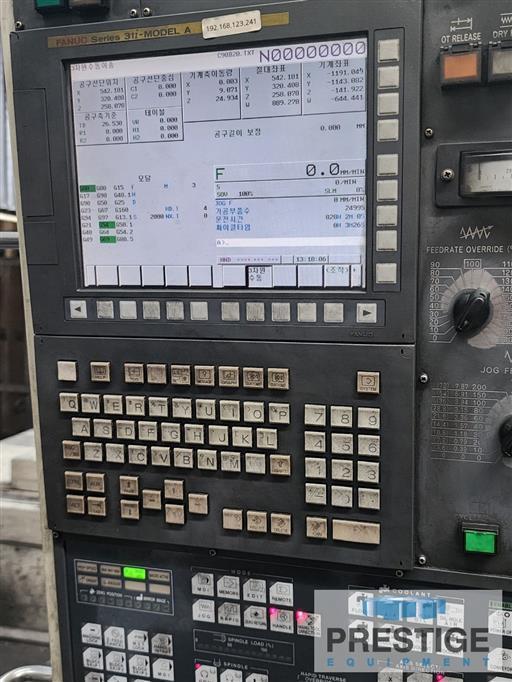

Fanuc 31iA CNC Control
40-Position Automatic Tool Changer
3-Station Automatic Attachment Changer

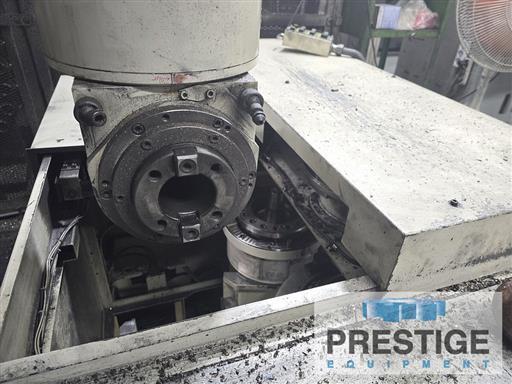

5-Axis Head
90 Degree Head
Scales on X,Y & Z Axis
Laser Length Measurement
(3)Chip Conveyors

HOURS: 27,503 Cutting Hours

No files or videos to display
