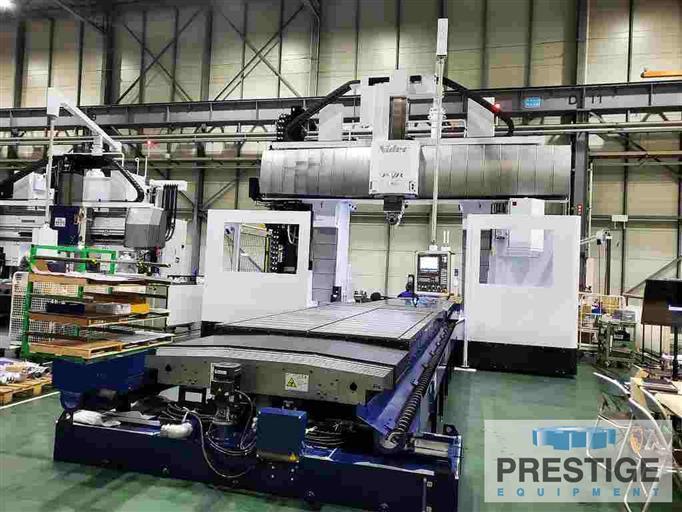

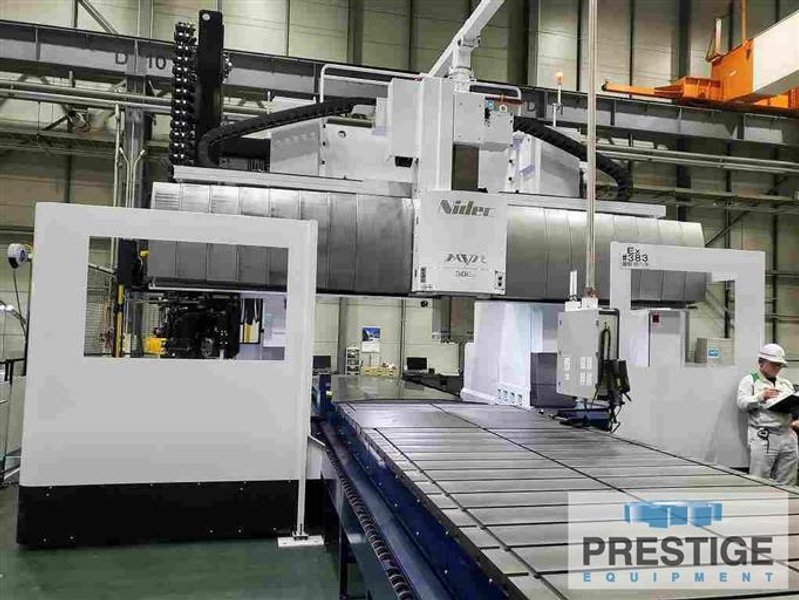

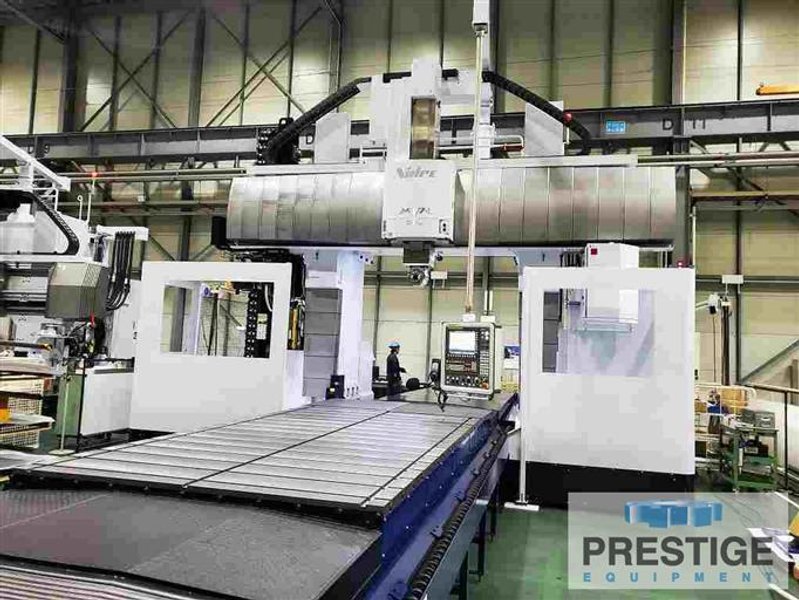

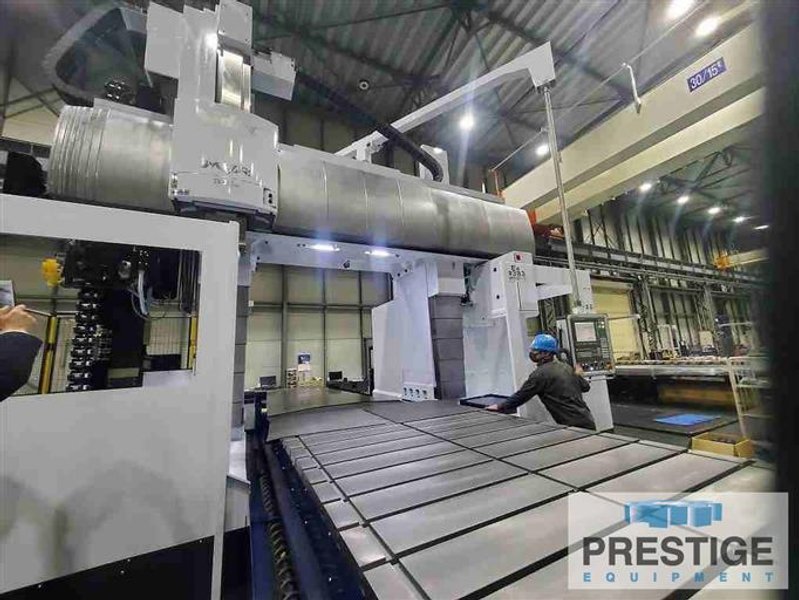

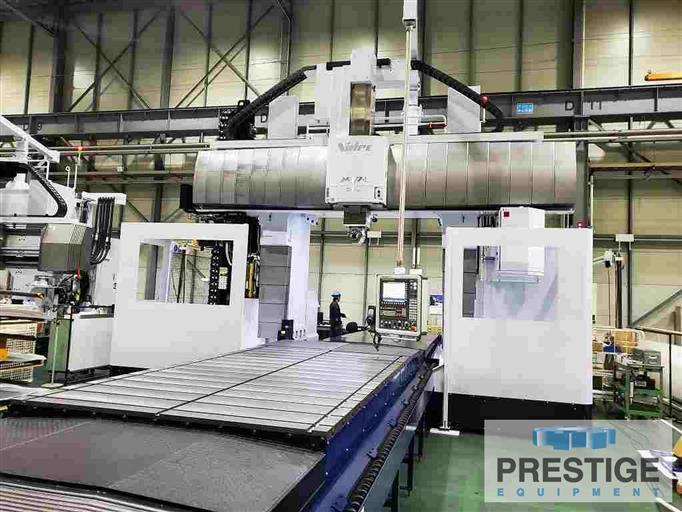

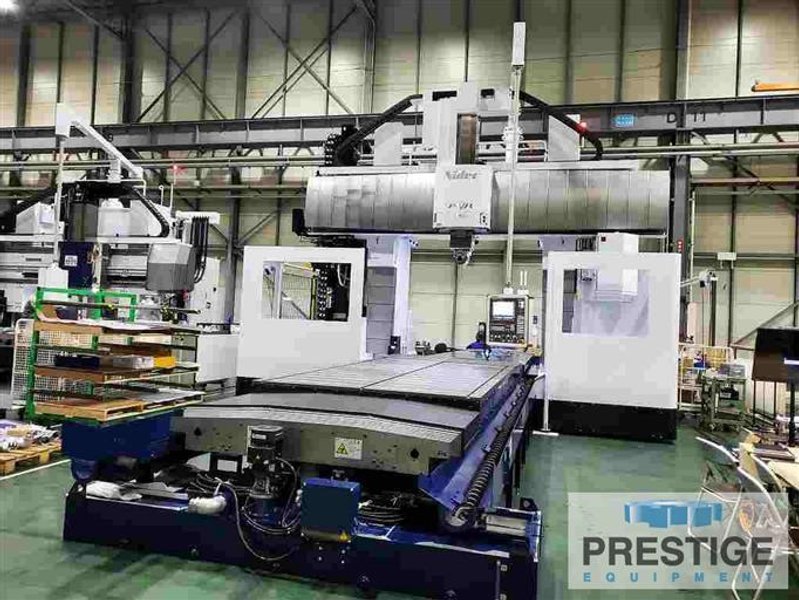

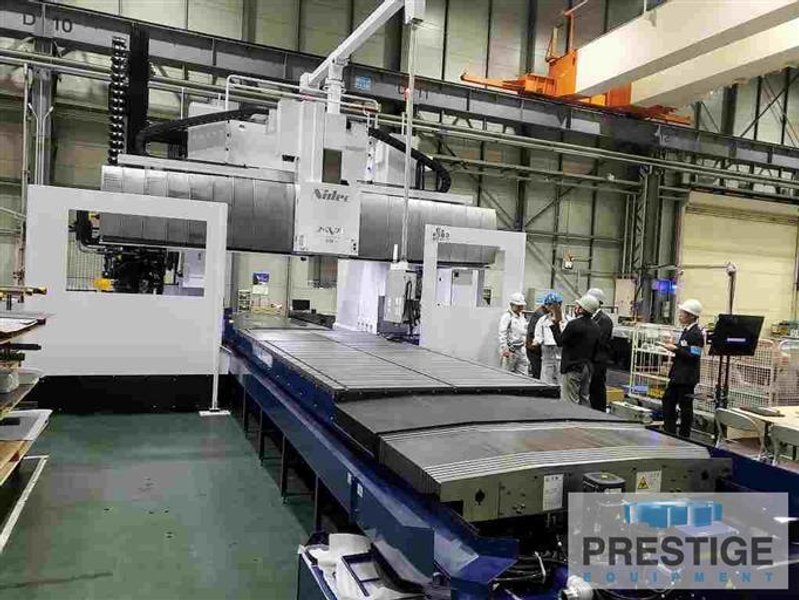

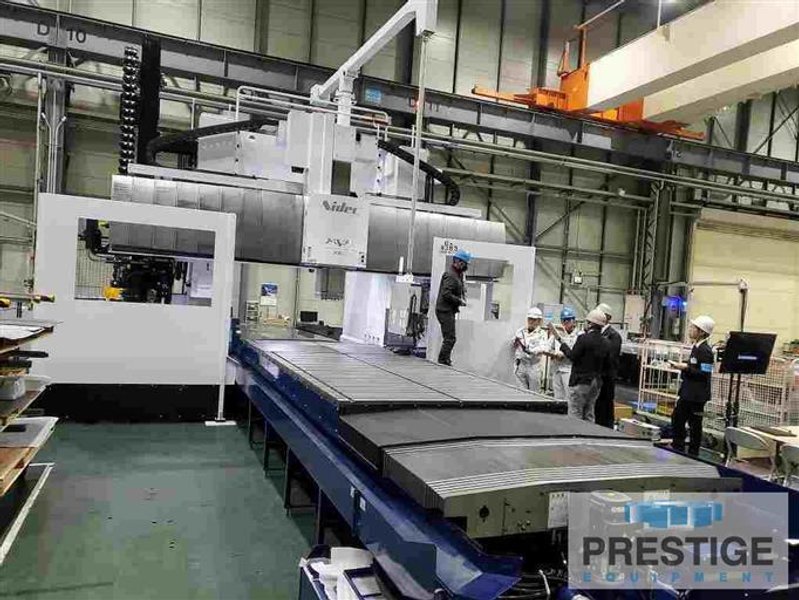

Nidec MVR30E 5-Face CNC Bridge Type Vertical Machining Center

Name: Used SNK MV30Ex For Sale 43996
Brand: SNK
SKU: 43996
Availability: PreOrder

Brand

SNK

Location

New York

REQUEST FINANCING

Specifications
Files & Videos

CAPACITY:
X-Axis Travel (Table Longitudinal) 204.72"
Y-Axis Travel (Head) 118.11"
Z-Axis Travel (Spindle) 31.49"
W-Axis Travel (Crossrail) 43.30"
Distance Table to Spindle Nose 64.96"
Table Size 196.85" x 78.74"
Table Load Capacity 66,000
Distance Between Columns 100.39"
Ram Size 13.77" x 13.77"
Spindle Speeds 8,000 RPM
Spindle Taper BT 50
Spindle Drive Motor 40 HP / 30 HP
Rapid (X/Y-Axis) 1181 IPM
Rapid (Z-Axis) 591 IPM

Equipped With:
Fanuc 31i-A CNC Control
80-Position Automatic Tool Changer
Right Angle Head
Extension Milling Head
