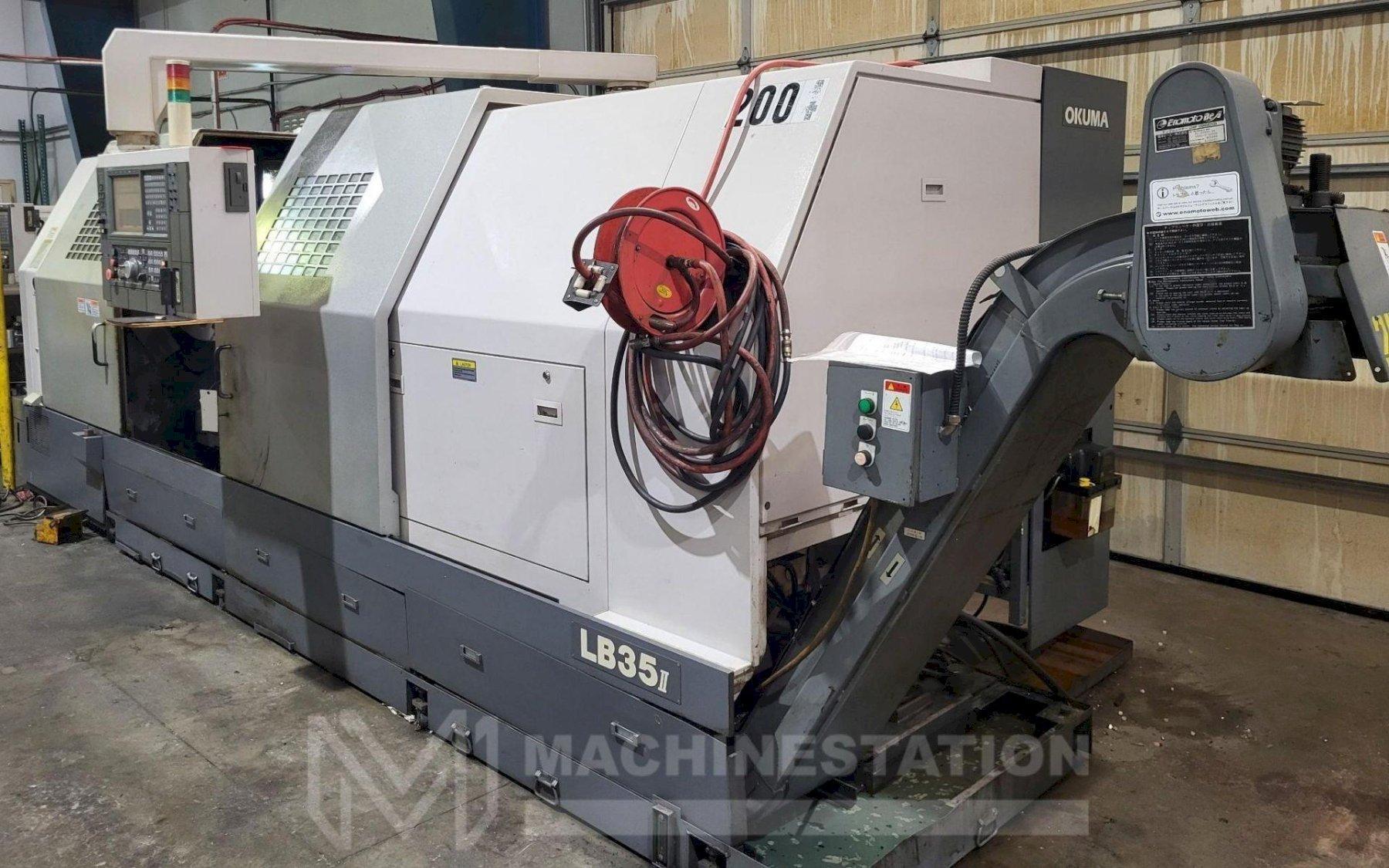

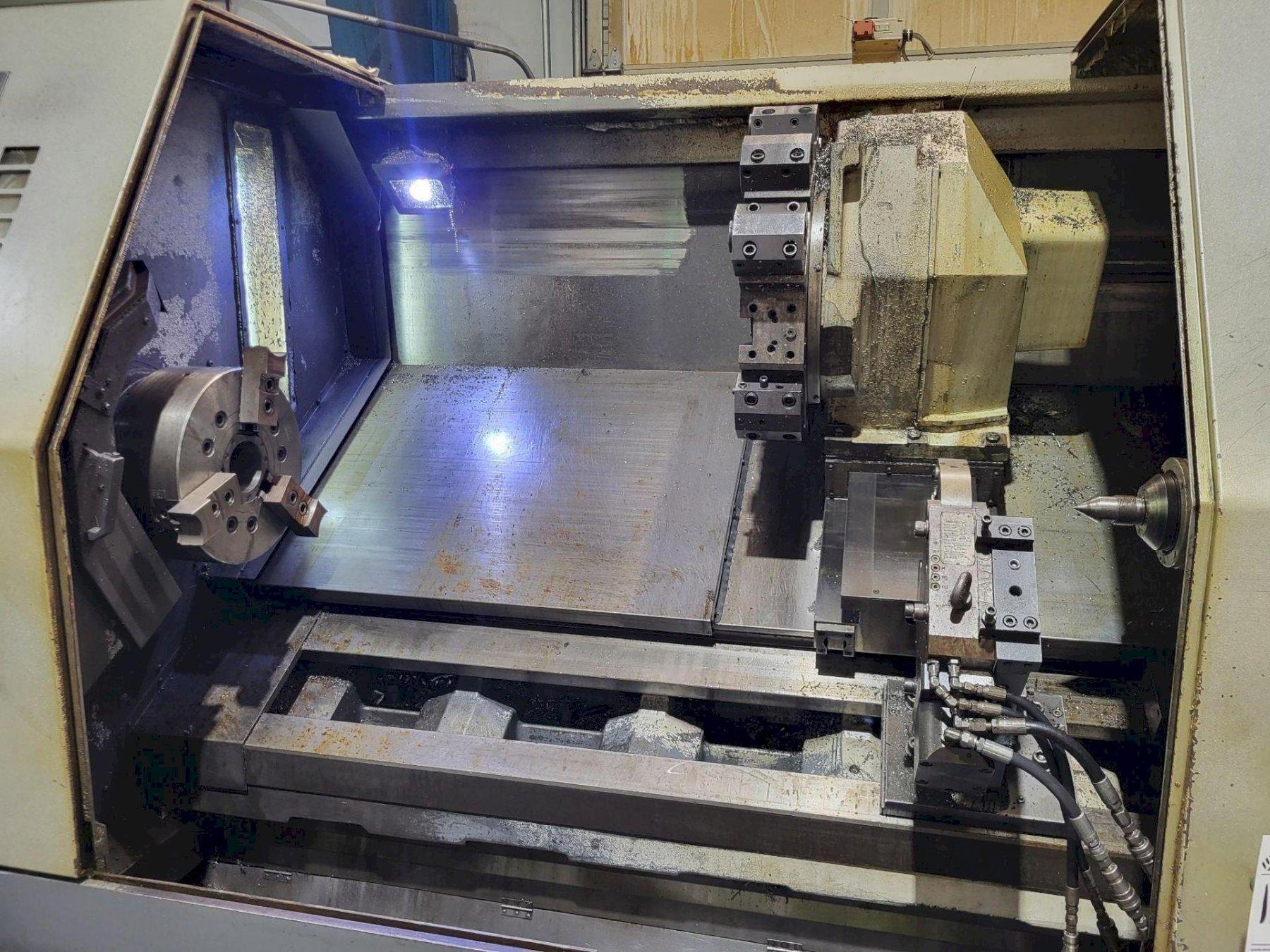

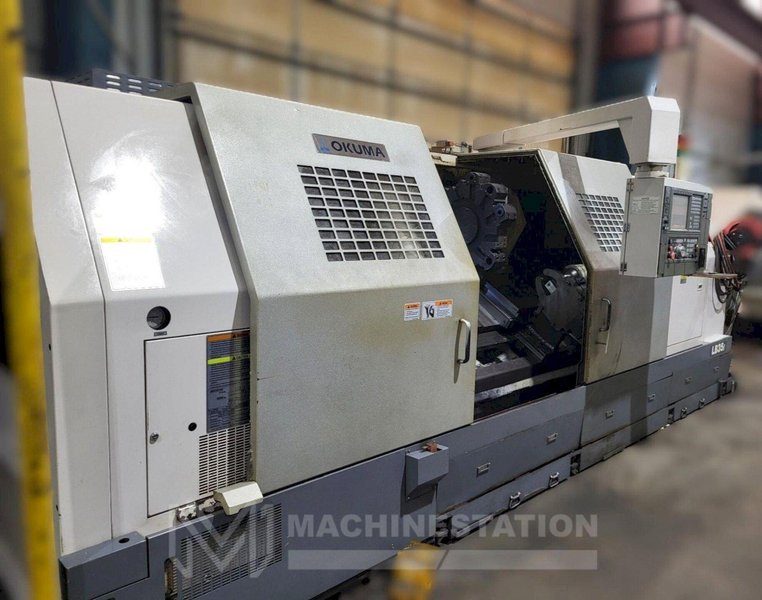

Okuma LB-35II CNC Turning Center – 15″ Chuck Steady Rest Long Bed Lathe

Okuma LB-35II CNC Turning Center – 15″ Chuck Steady Rest Long Bed Lathe

Name: Used OKUMA Okuma LB-35II For Sale 112918
Brand: OKUMA
SKU: 112918
Availability: PreOrder

Brand

OKUMA

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Okuma
Model:	LB-35II
Year:	2005
Condition:	Used – Good

Equipped With:

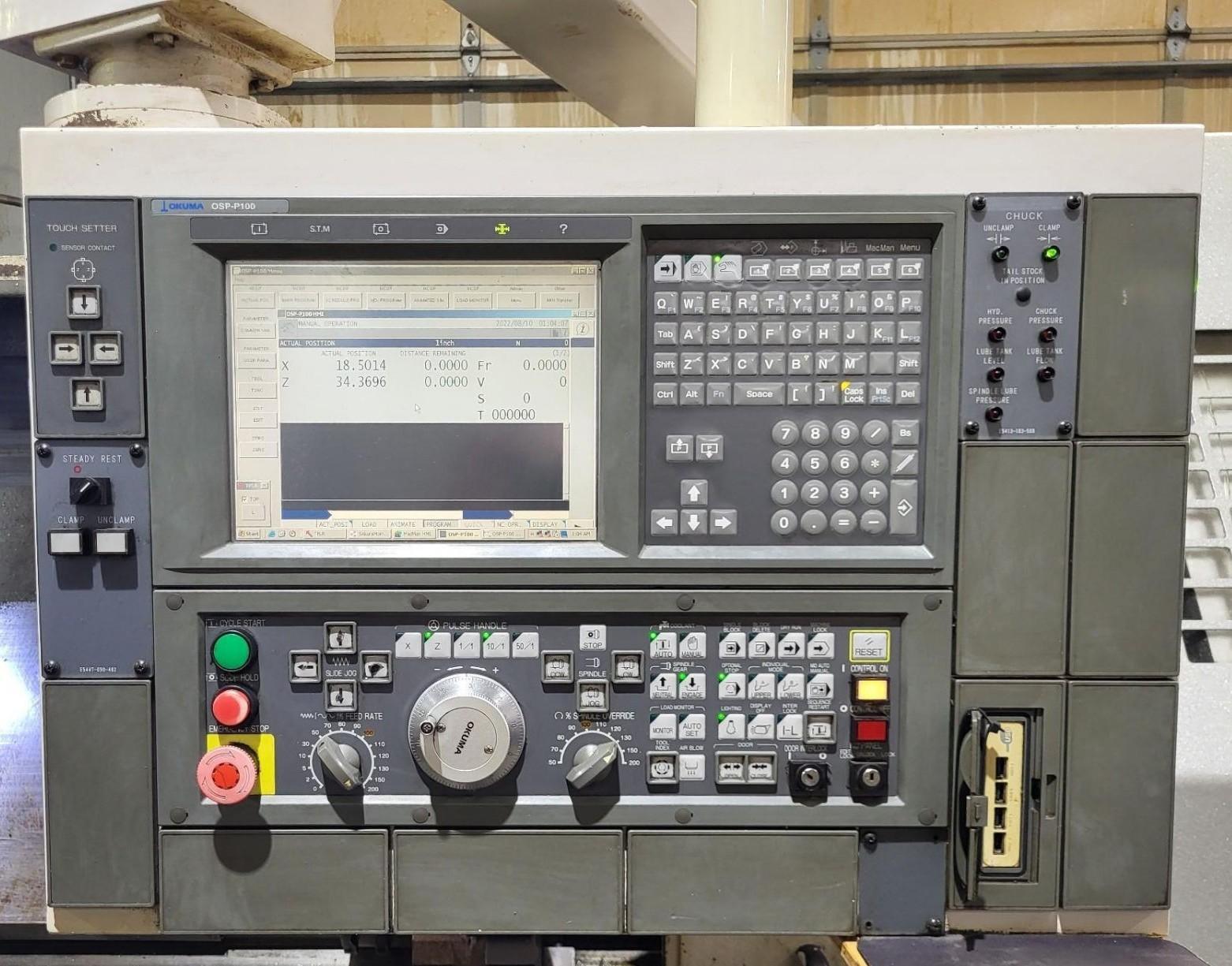

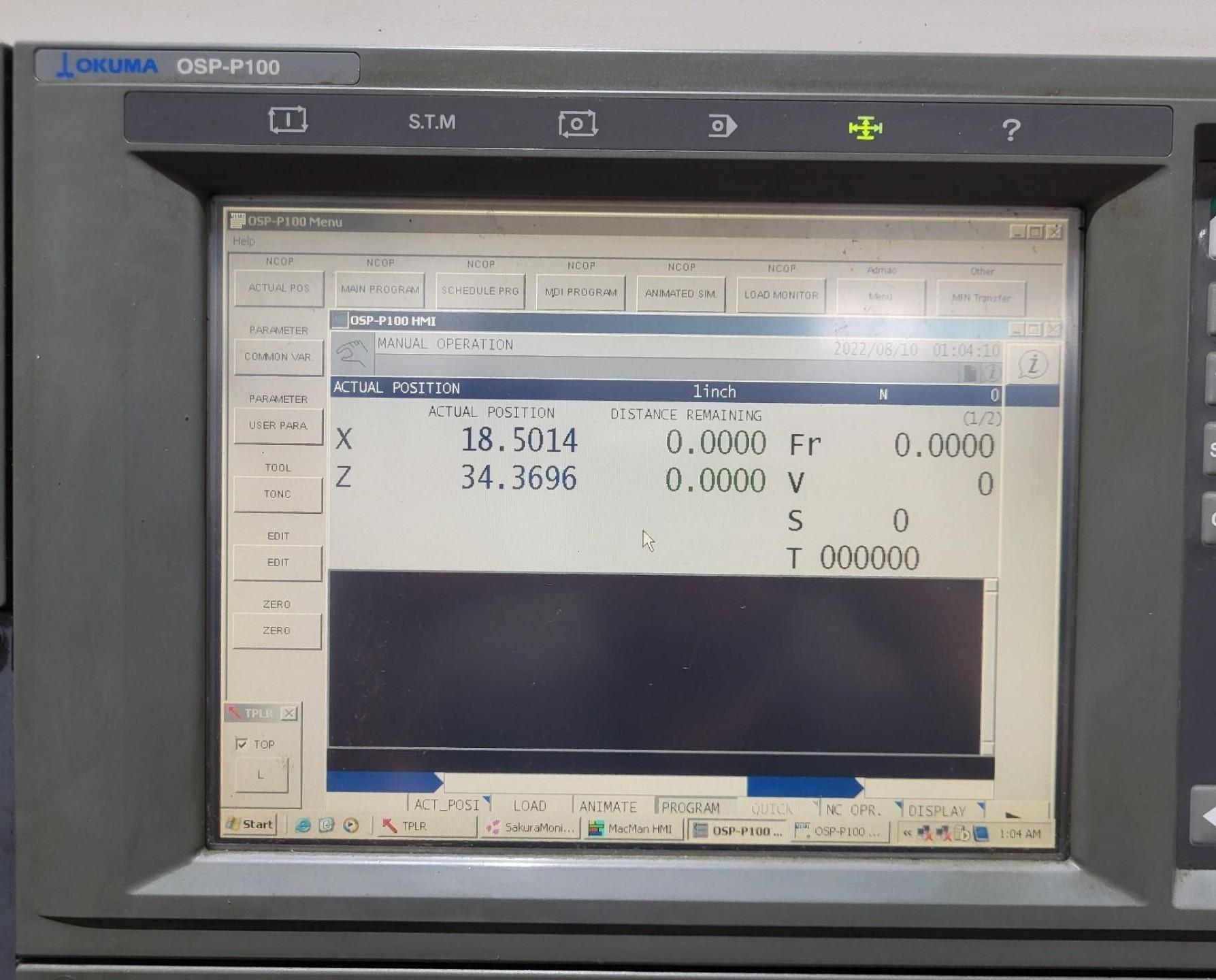

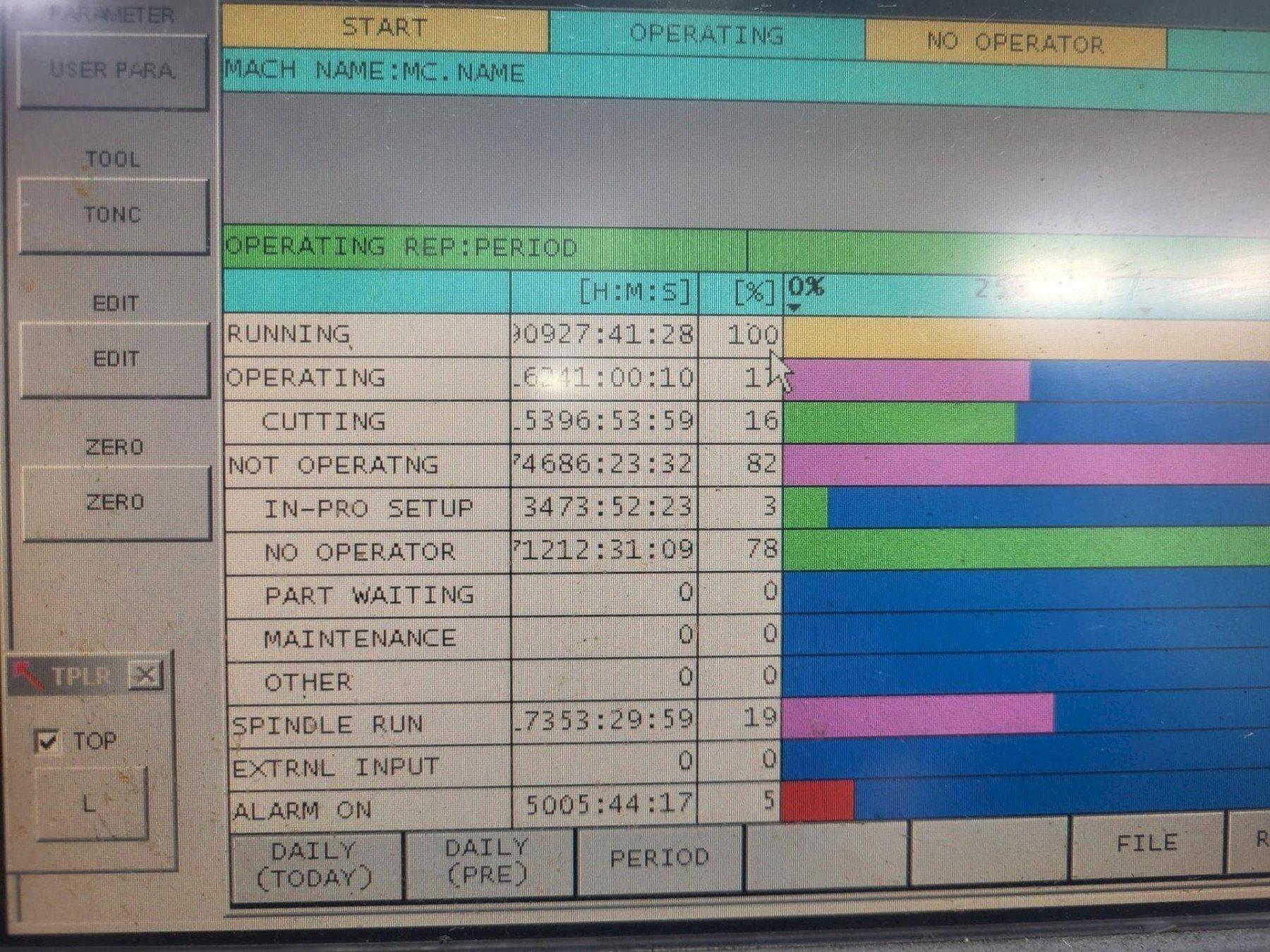

Okuma OSP-P100 CNC Control
Long Bed Box Way Machine

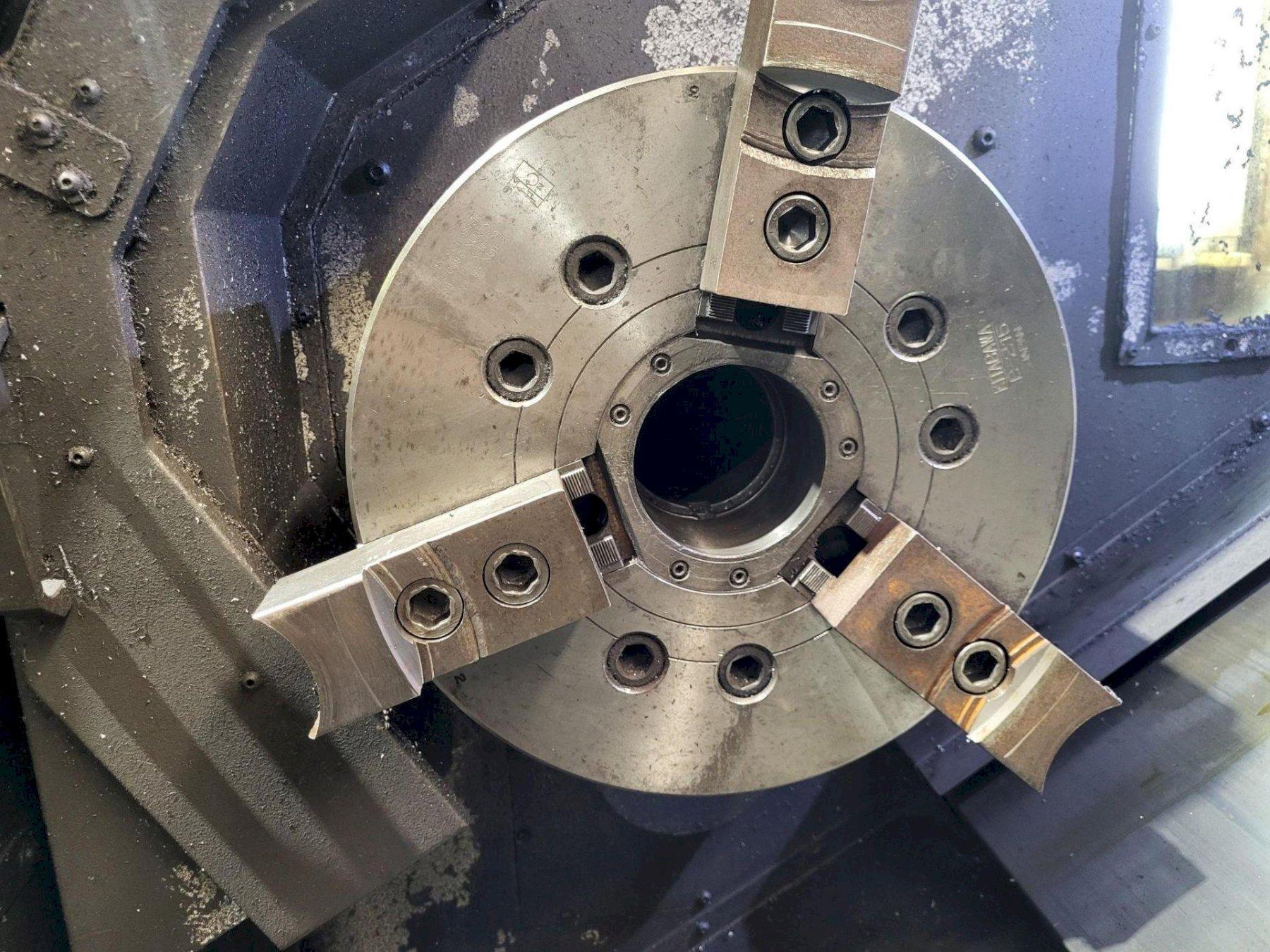

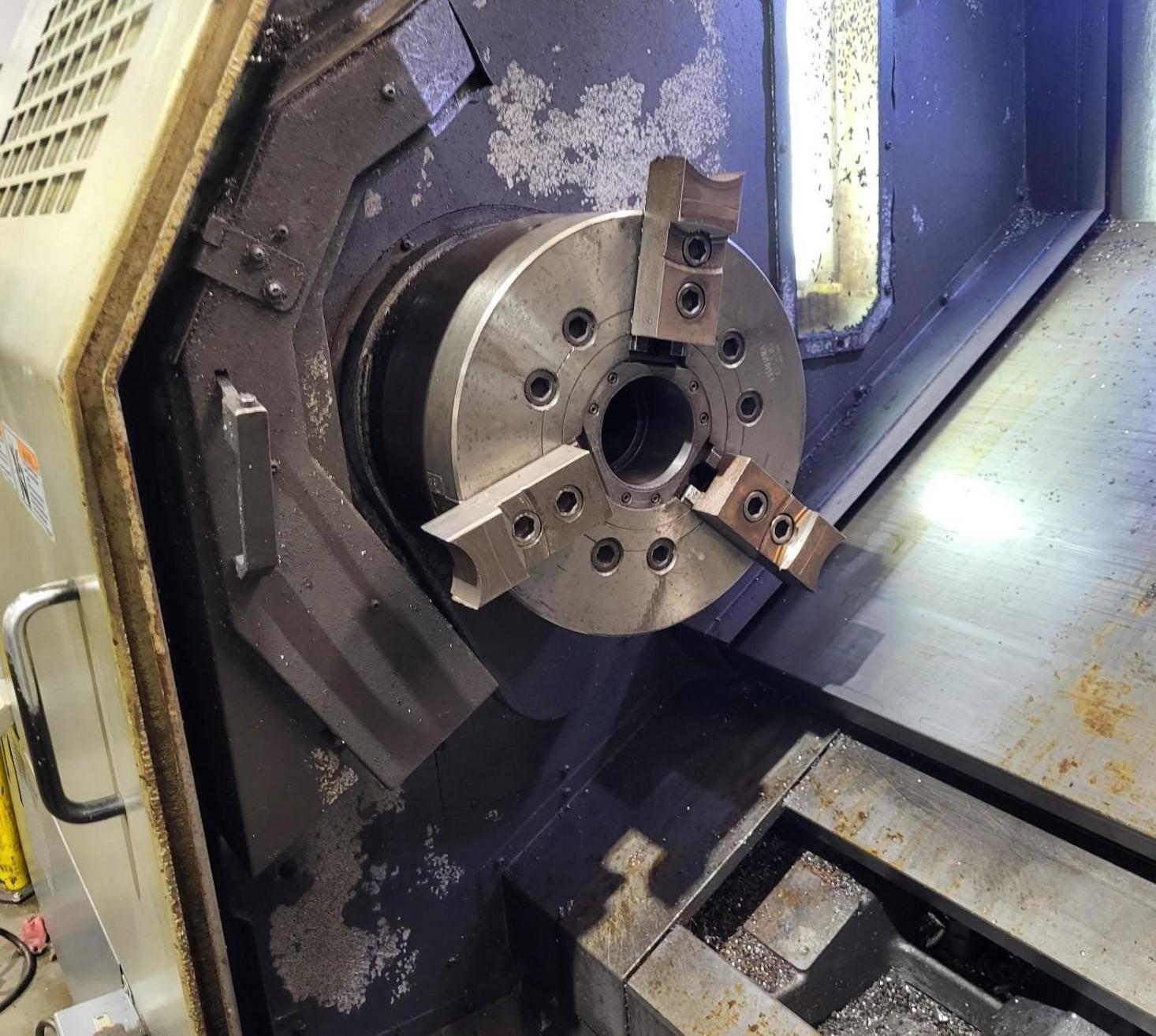

15″ 3-Jaw B-215 Kitagawa Hydraulic Chuck
4.33″ Big Bore, A2-11 Spindle

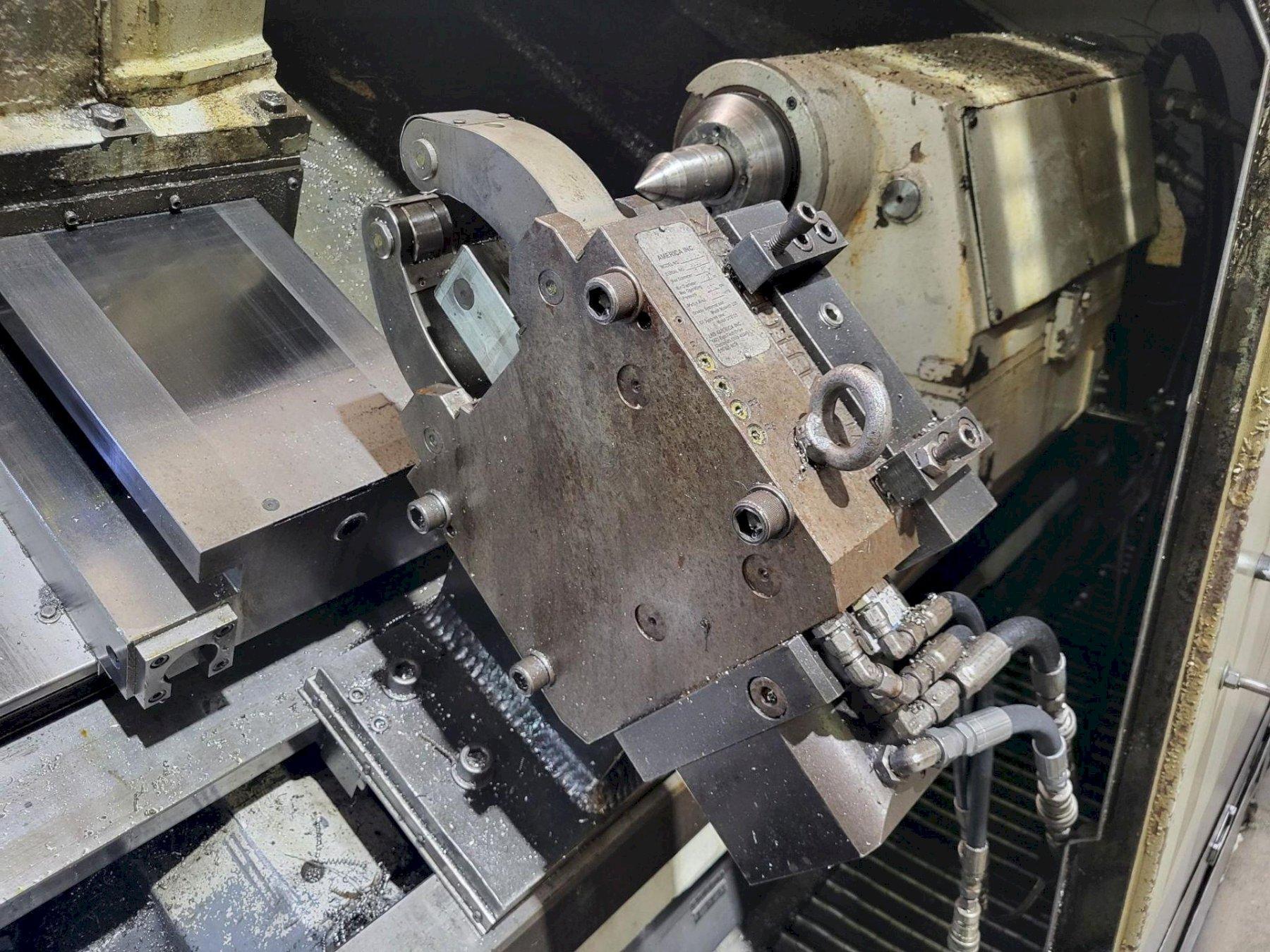

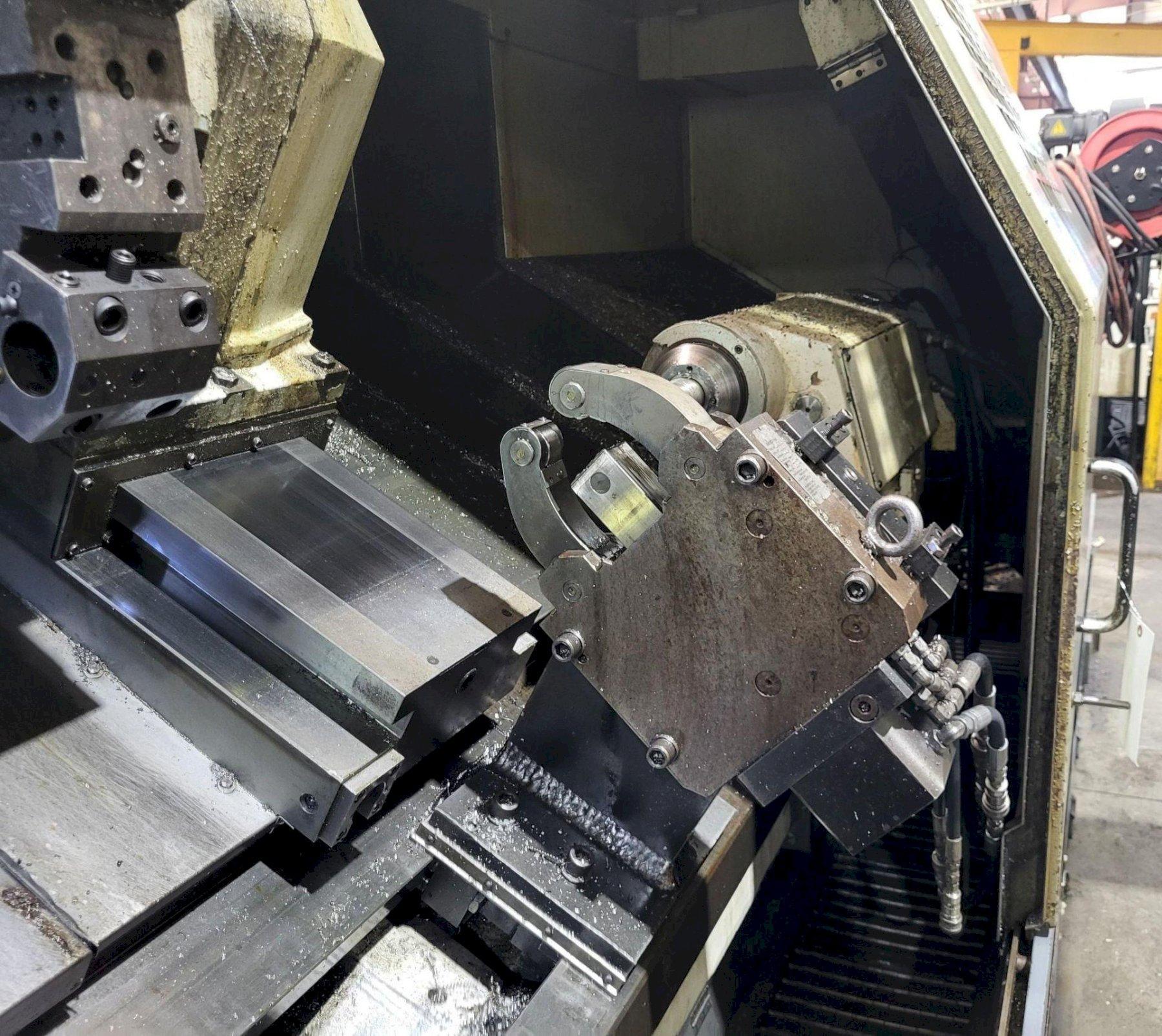

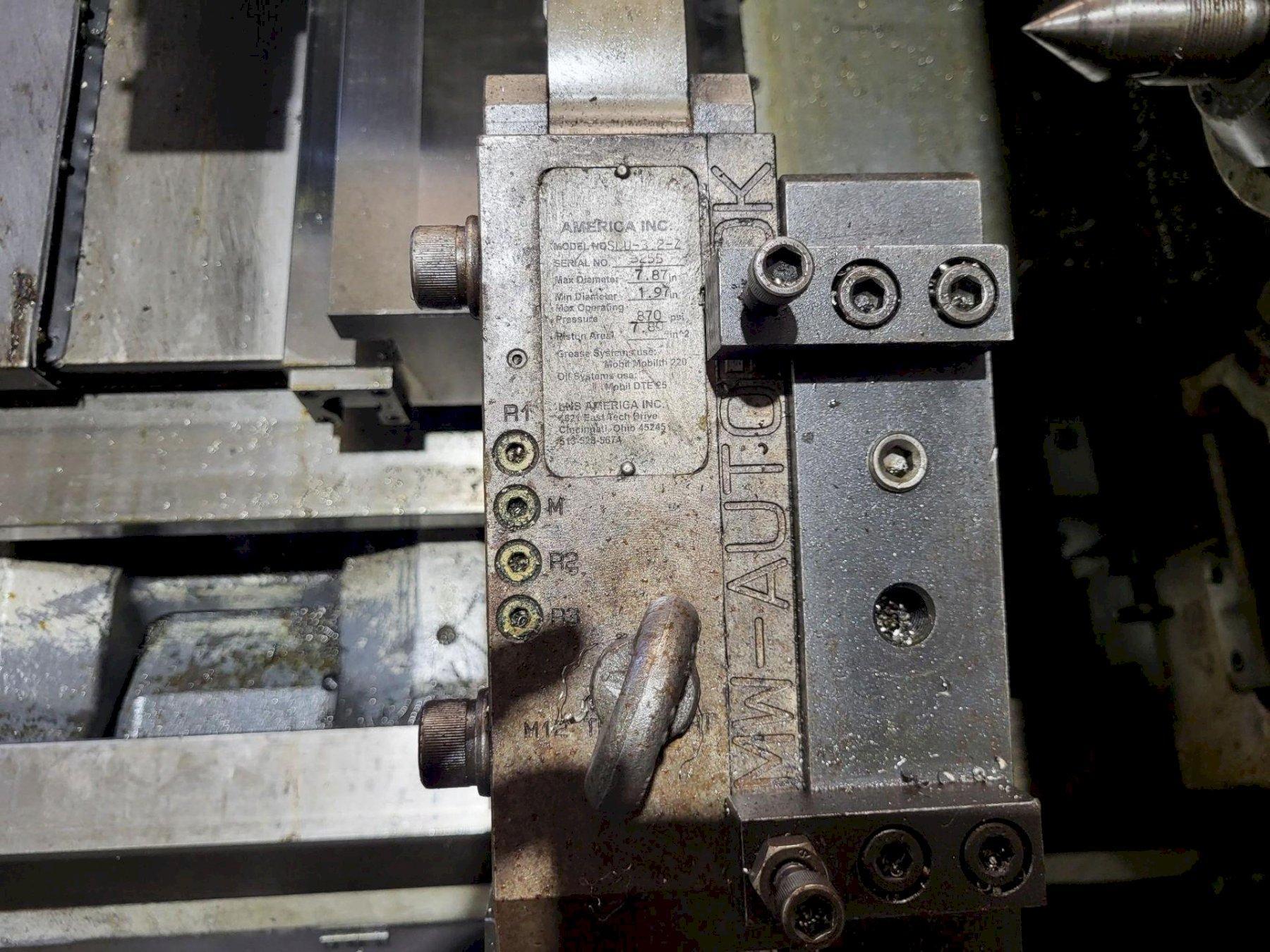

1.97″ – 7.87″ (Min – Max) Diameter SMW Autoblok Hydraulic Steady Rest
40 HP High Torque Spindle
12 Station Automatic Turret
Tool Presetter
Tailstock
USB Ports
Coolant System

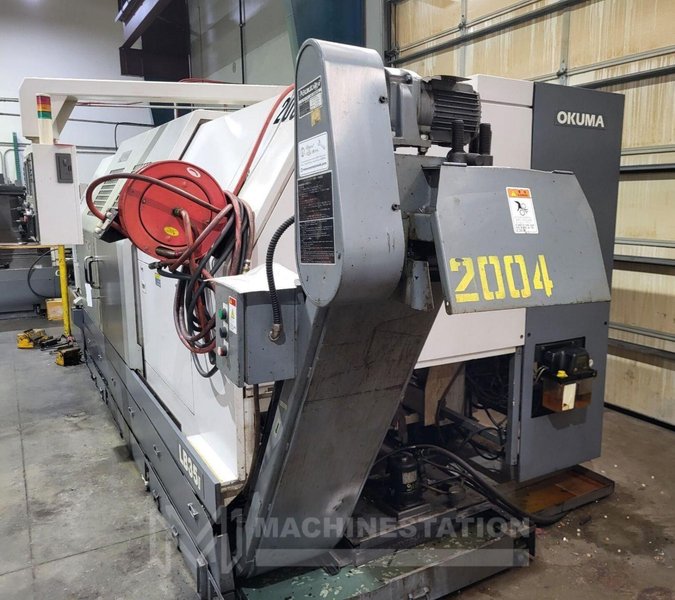

Chip conveyor
Foot Switch

Capacity:
Max Turning Diameter: 19.29″
Max Turning Length: 78.74″
Swing Over Bed: 28.38″
Max Over Saddle: 16.93″
Max Bar Capacity: 3.54″

Travel:
X Axis Travel: 13.0″
Z Axis Travel: 81.49″
Rapid Traverse X Axis: 591 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.33″
Spindle Speed: 2800 RPM
Spindle Motor: 40 HP

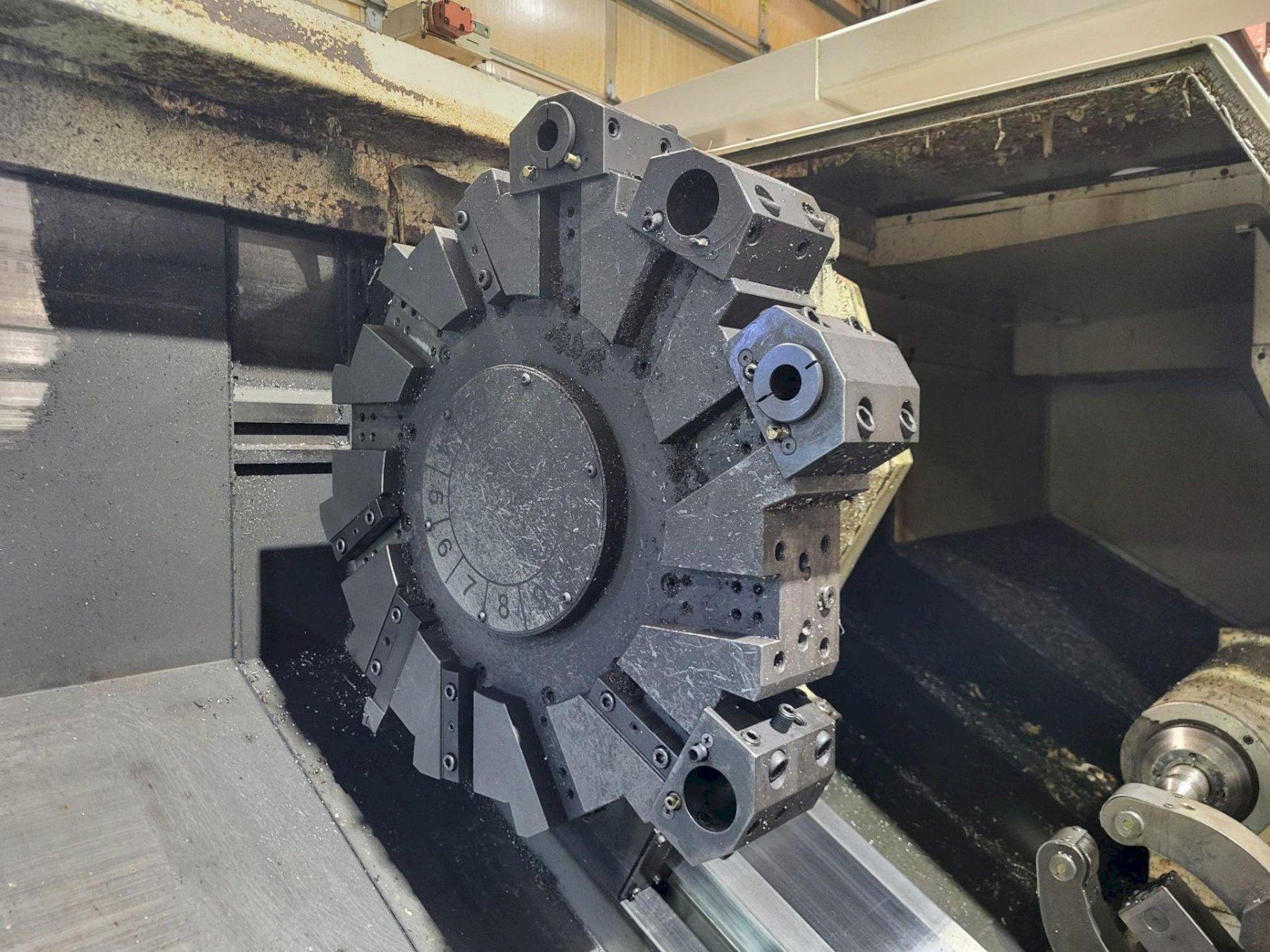

Turret:
Capacity: 12 Station Turret
Turning Tool Shank: 1.0″
Boring Bar Shank Diameter: 2.0″
Tool Holders Type: BMT

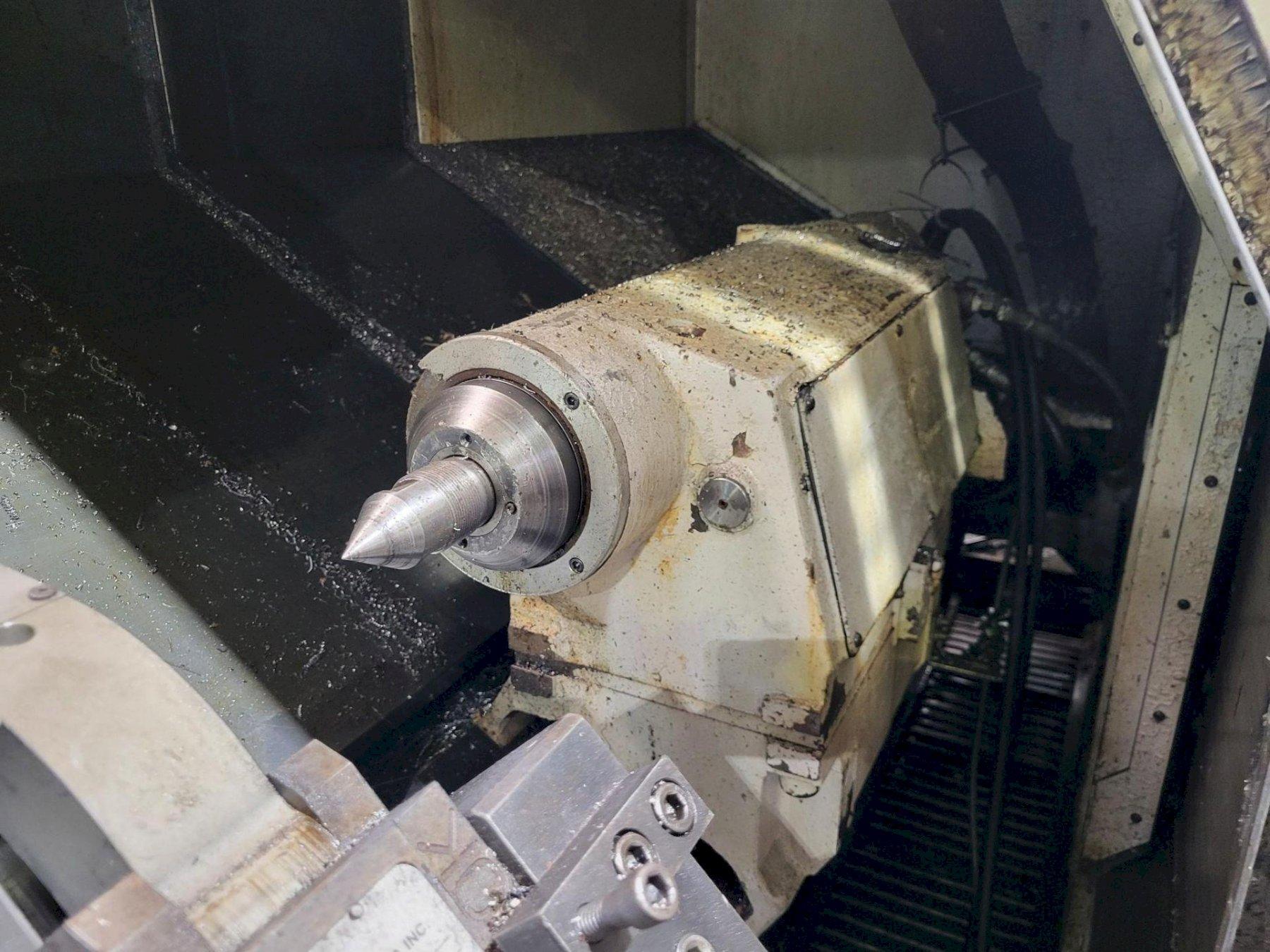

Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Dia.: 4.72″
Tailstock Quill Travel: 5.91″

General:
Power: 220/480v / 37.7kva / 3-Phase
Overall Dimensions: 221″ x 102″ x 90″ High Approx.
Weight: 28,380 lbs. Approx.
