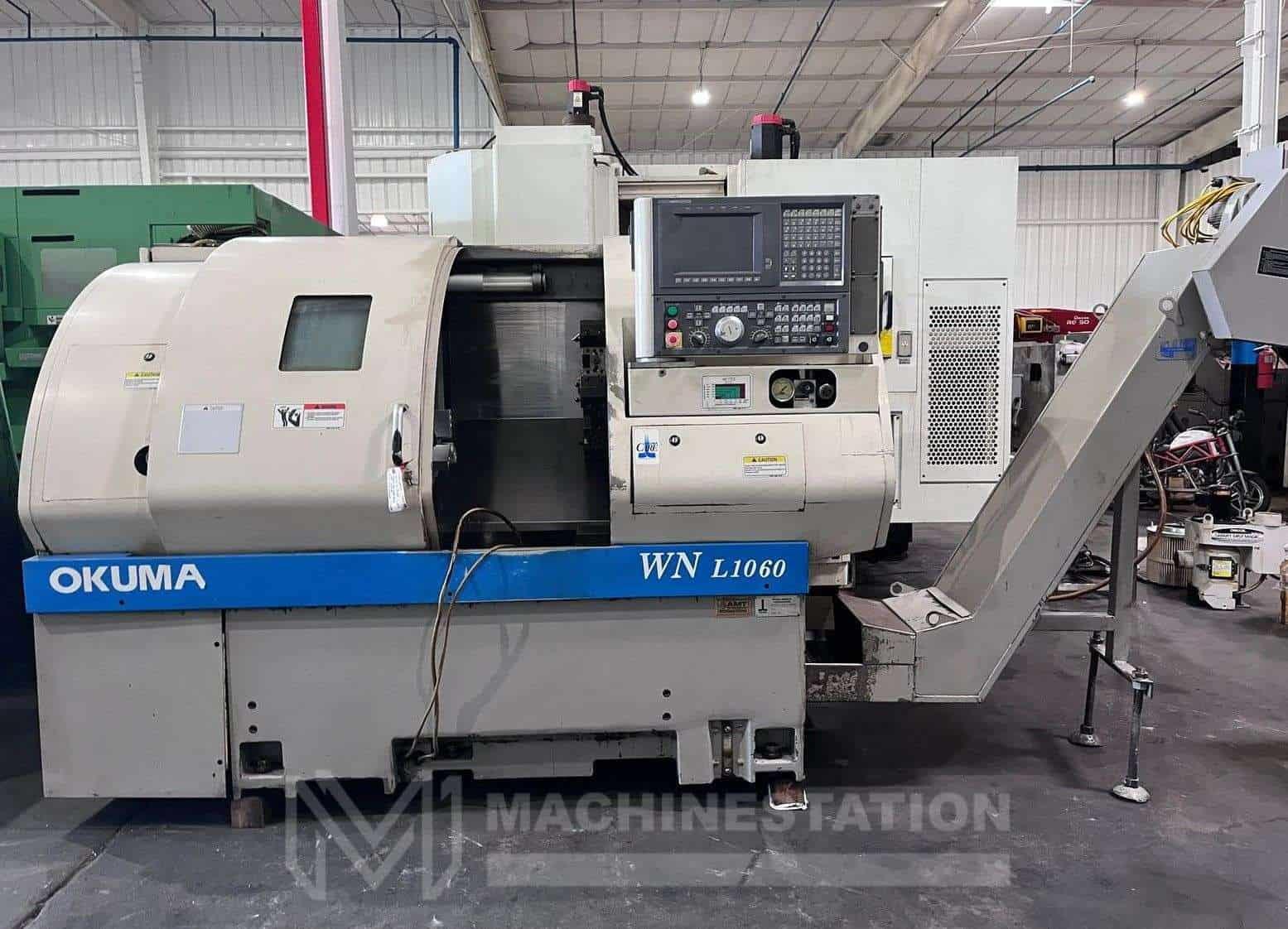

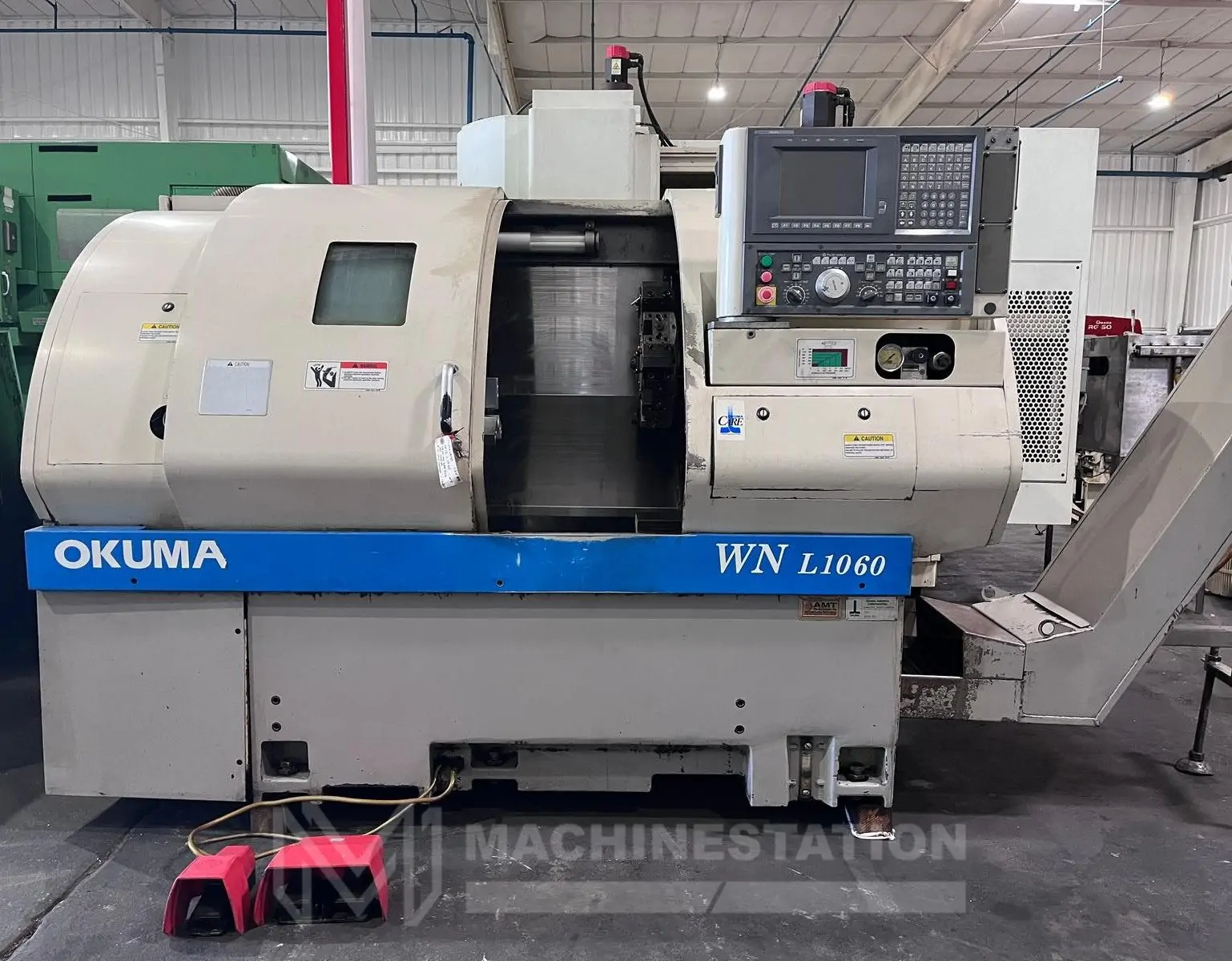

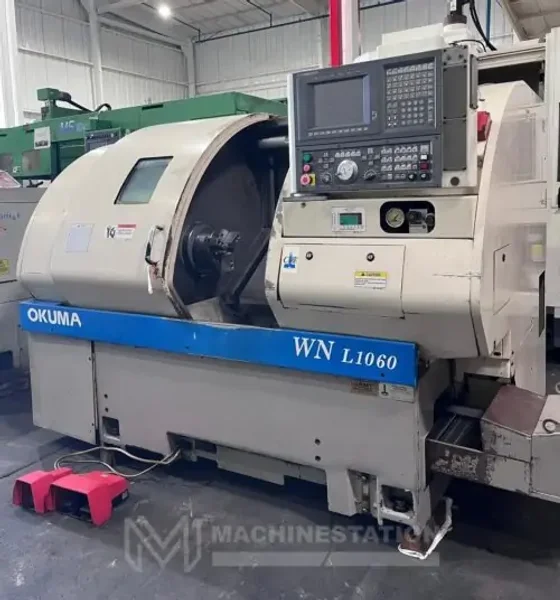

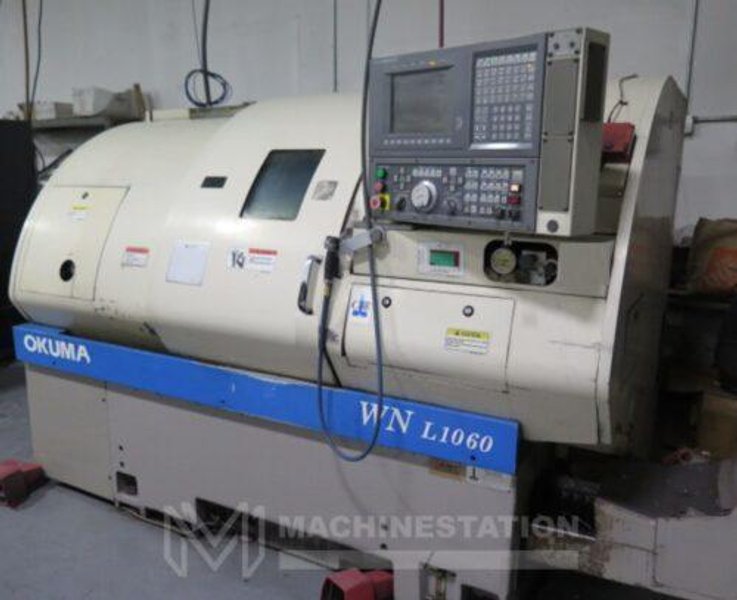

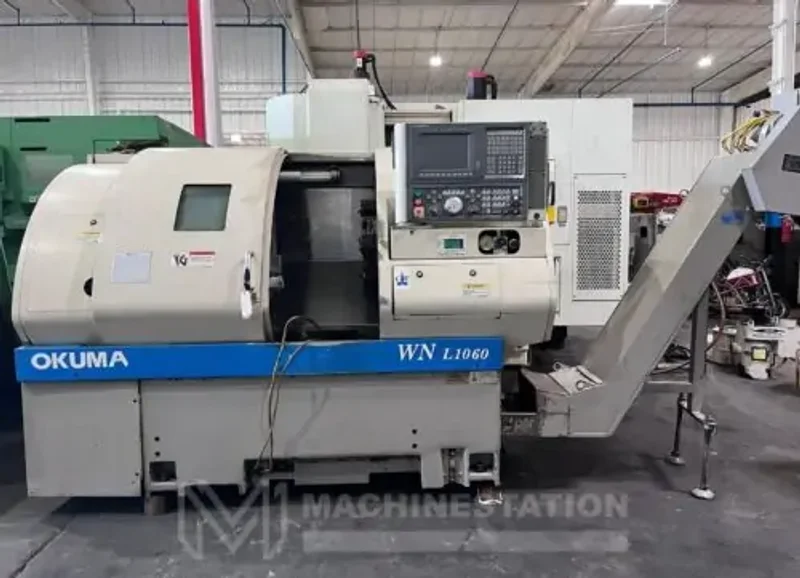

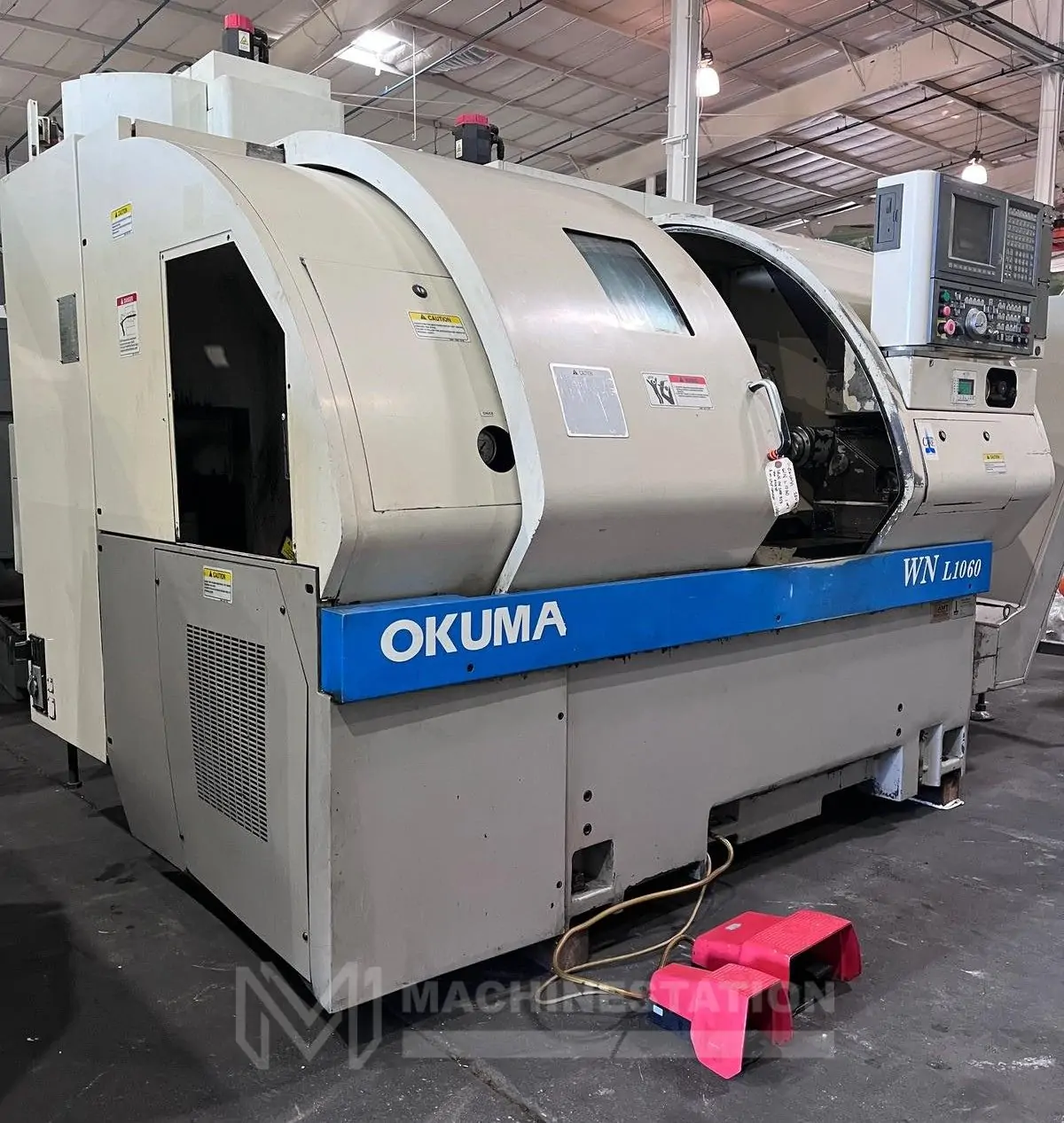

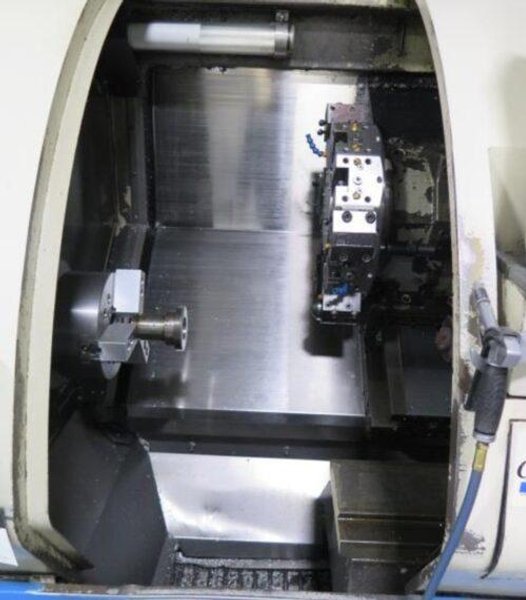

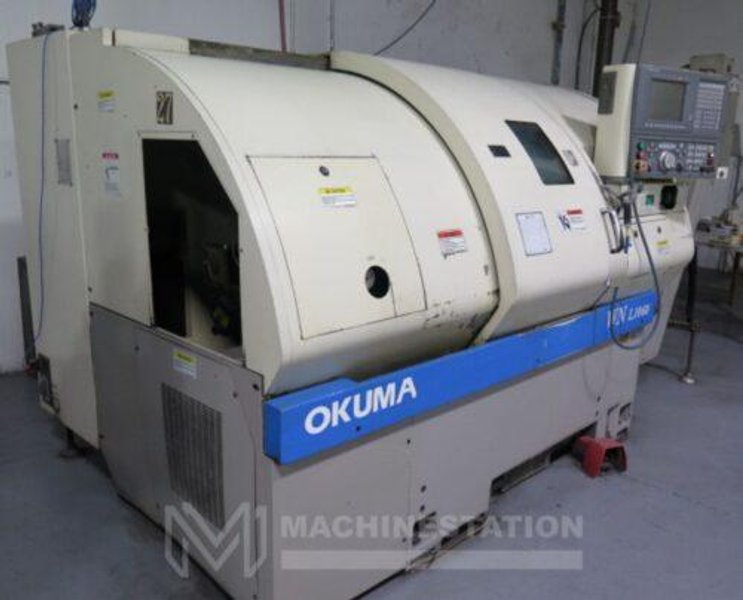

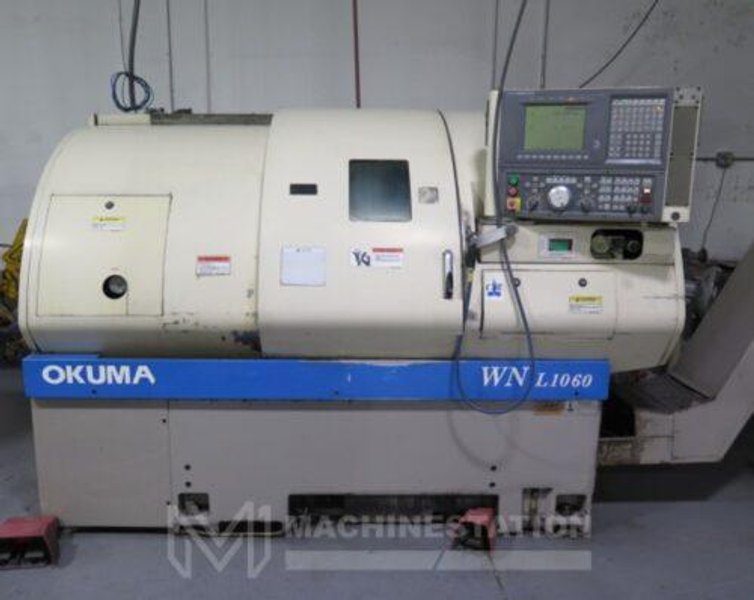

Okuma Crown L1060 762E CNC Turning Center

Okuma Crown L1060 762E CNC Turning Center

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	OKUMA
Model:	Crown L1060 762E
Year:	2001
Condition:	Used – Good

Equipped With:

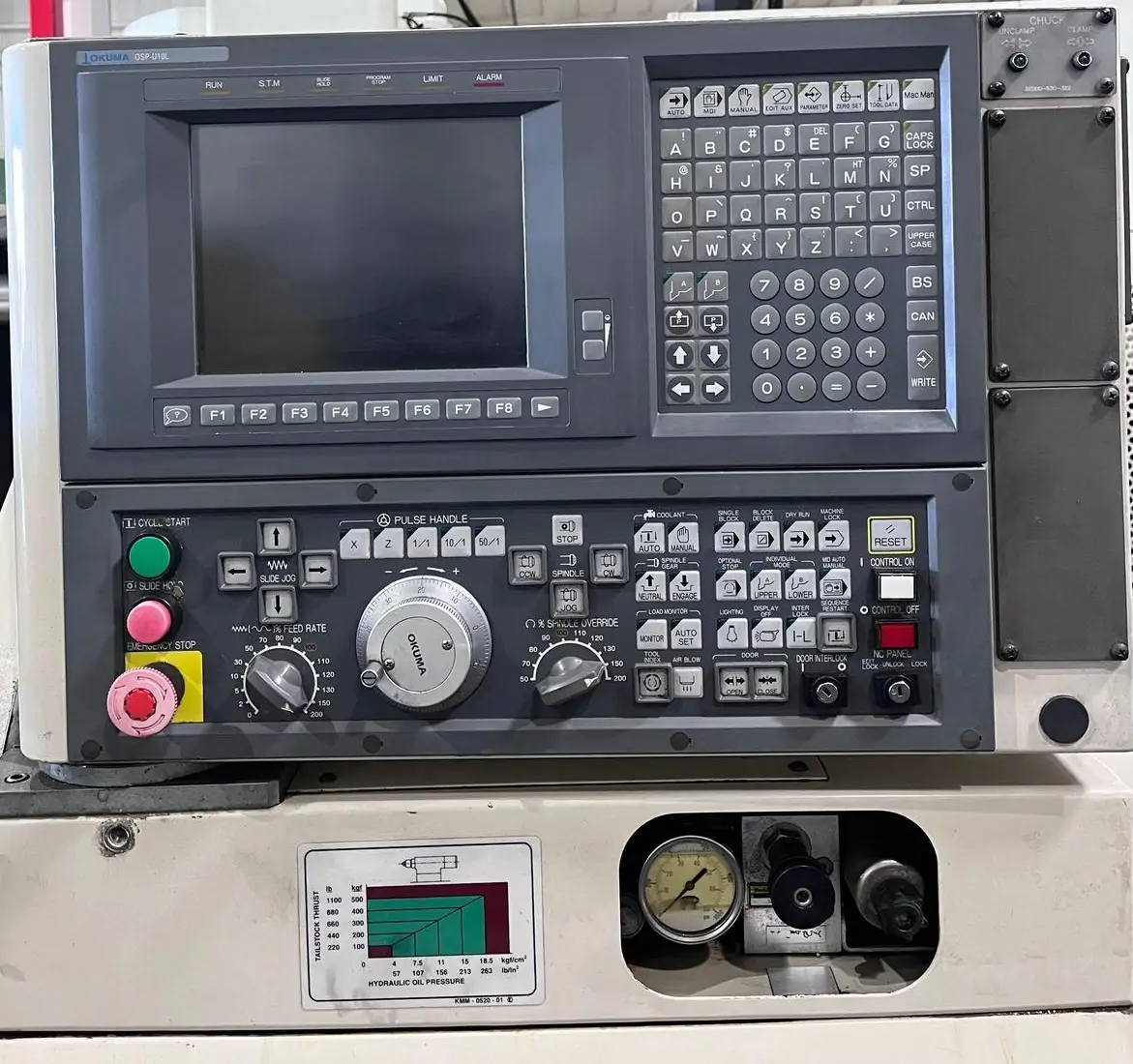

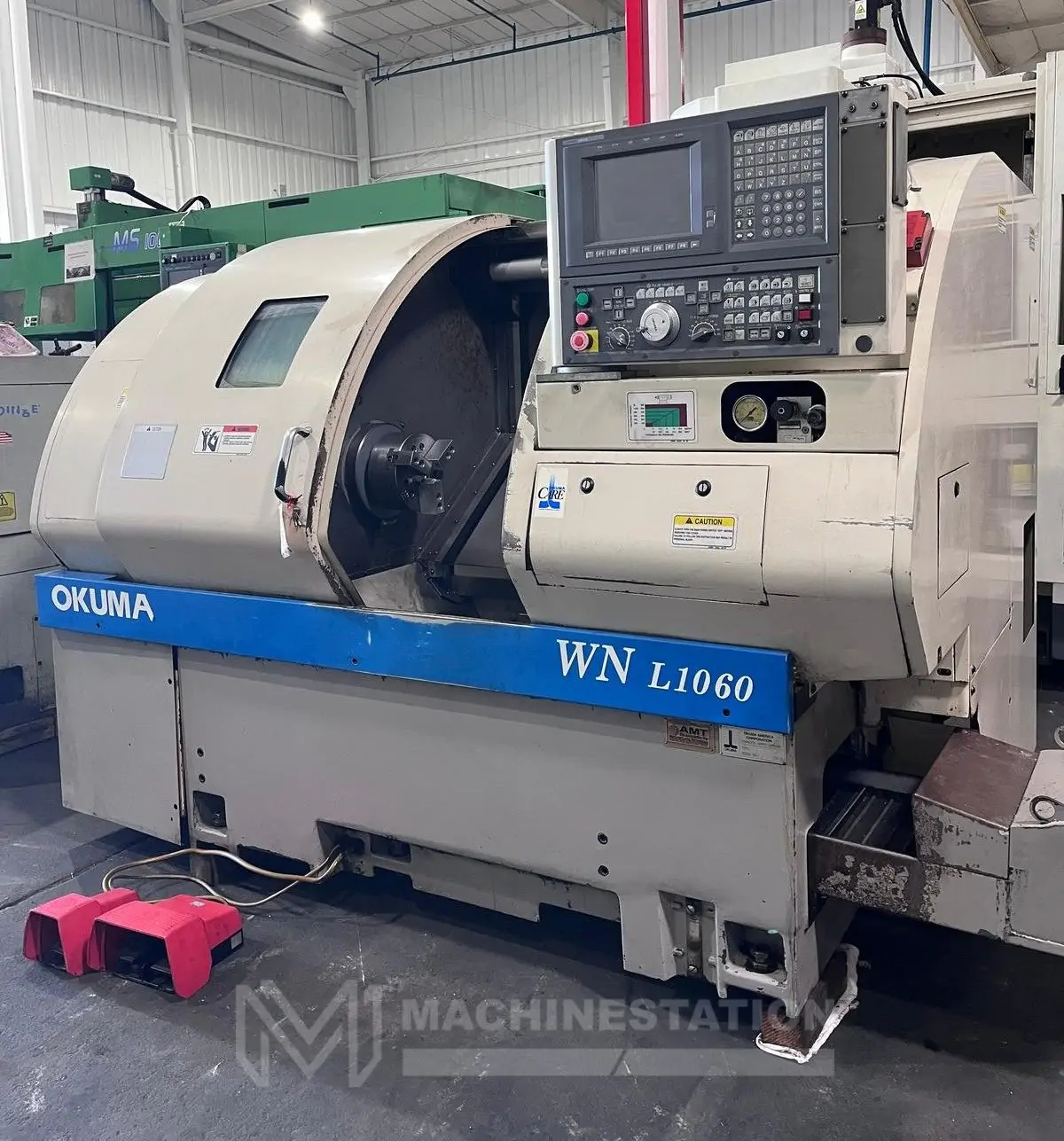

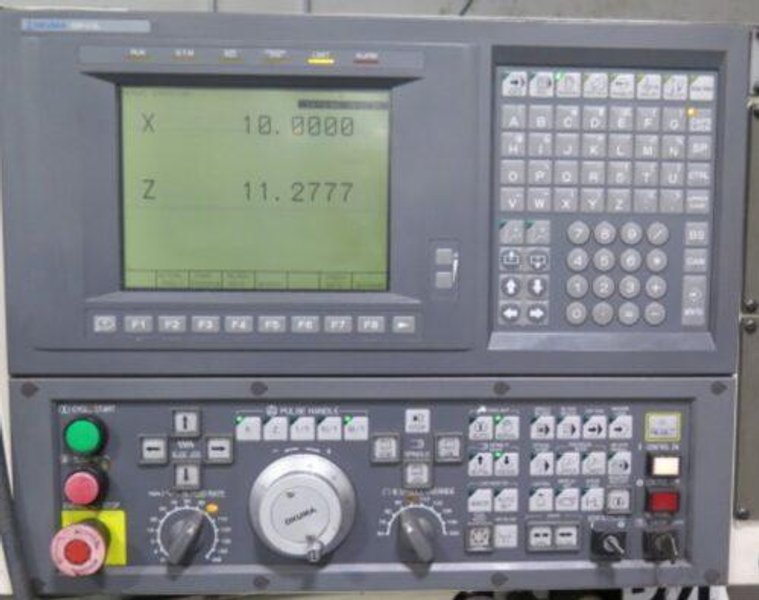

OSP-U10L CNC Control
One Touch IGF Programming

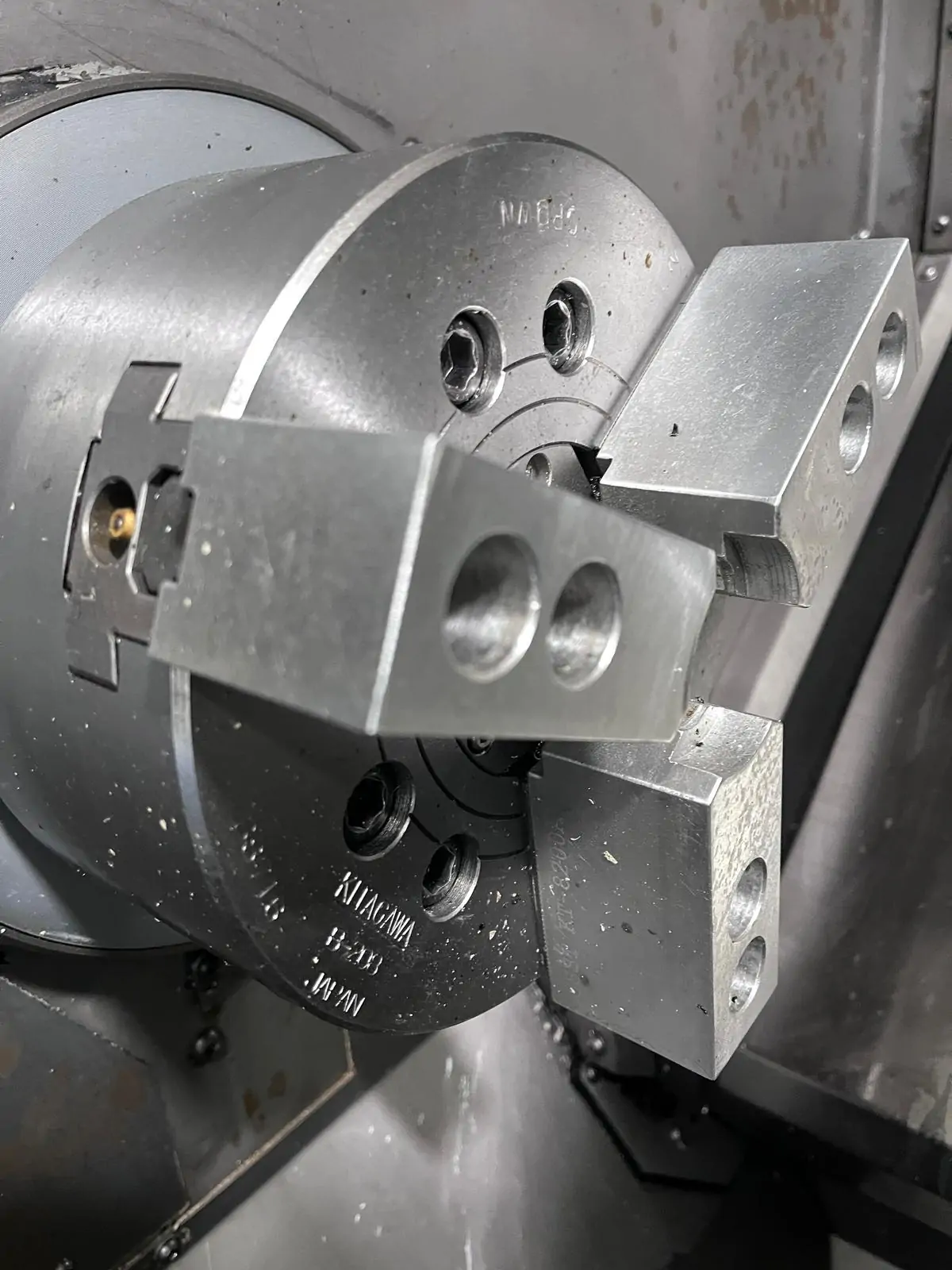

8″ 3-Jaw Kitagawa Chuck

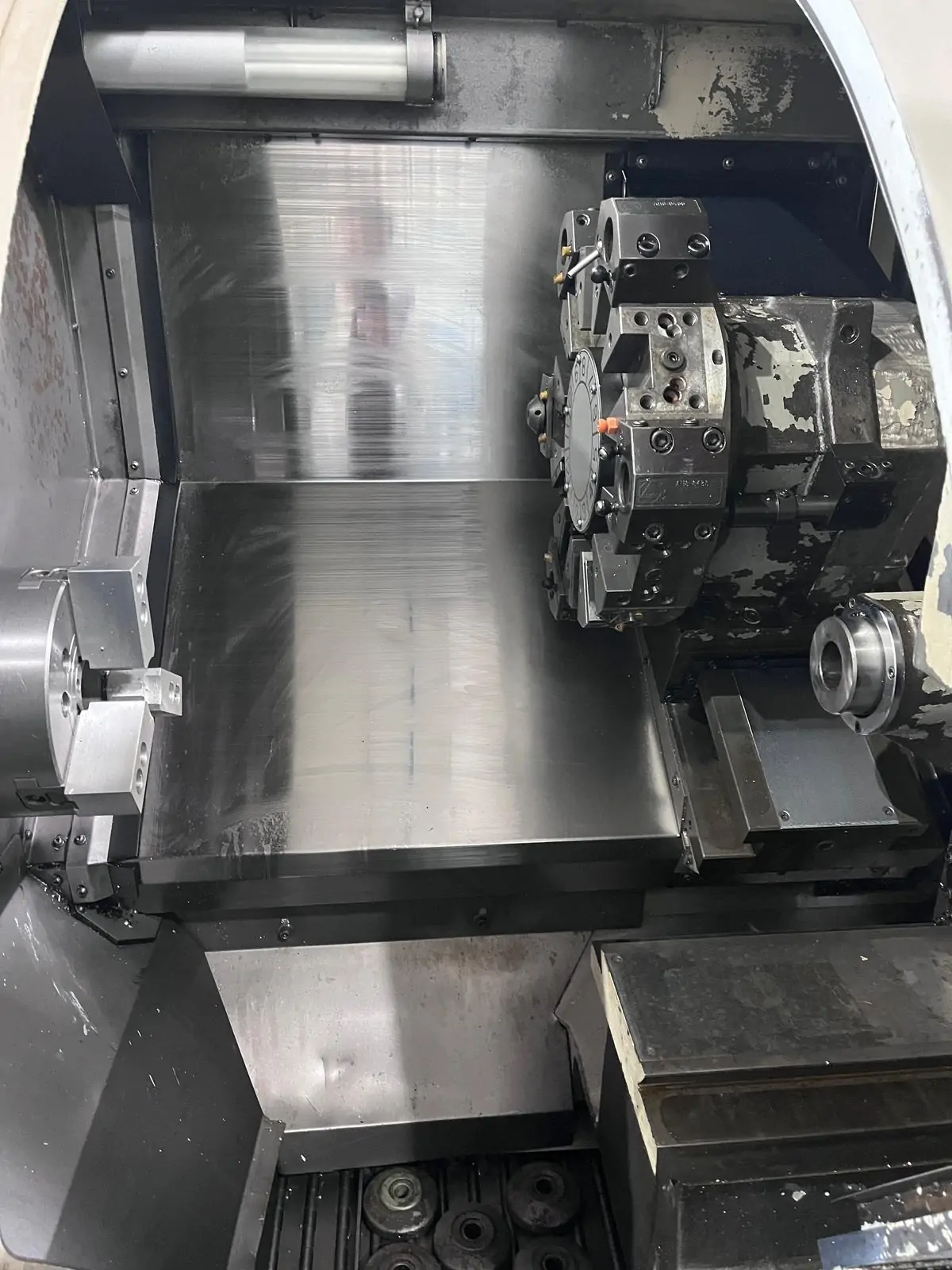

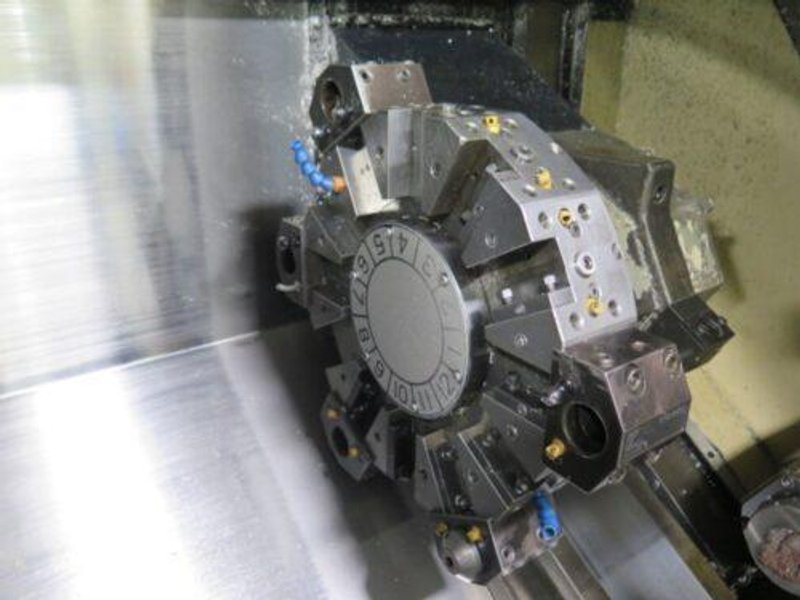

12-Station Automatic Turret
Floppy Drive
Hydraulic Tailstock
Chip Conveyor
Coolant System
Automatic Lubrication system

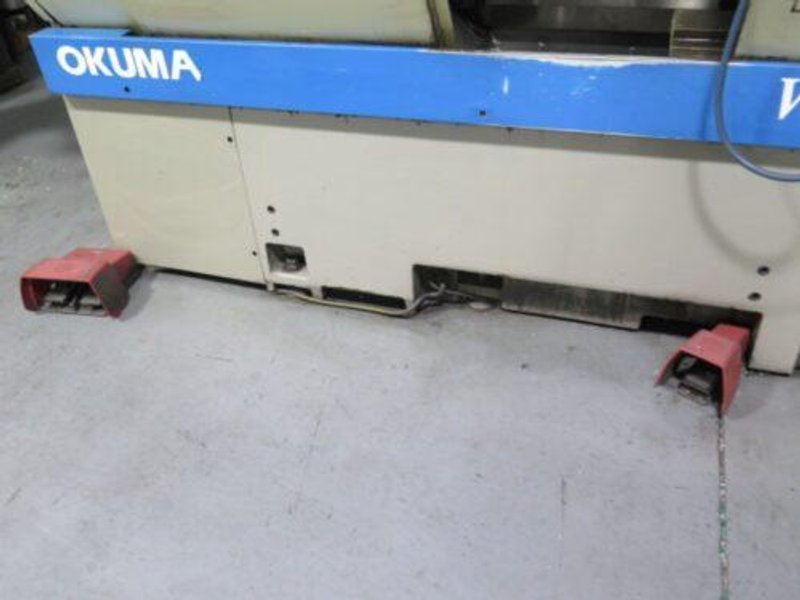

Foot Switches
Levelling Pads
Tool Holders (Mounted on Turret as shown in the images)

Capacity:
Max Turning Diameter: 10.63″
Max Turning Length: 19.68″
Max Bar Capacity: 2.05″
Swing Over Slide: 15.78″
Swing Over Bed: 21.65″
Distance Between Centers: 20″

Travels:
X Axis Travel: 7.28″
Z Axis Travel: 20.47″
Rapid Traverse X Axis: 591 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.44″
Spindle Speed: 4200 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tool Holders Type: BMT

Tailstock:
Tailstock Body Travel: 14.5″
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-4

General:

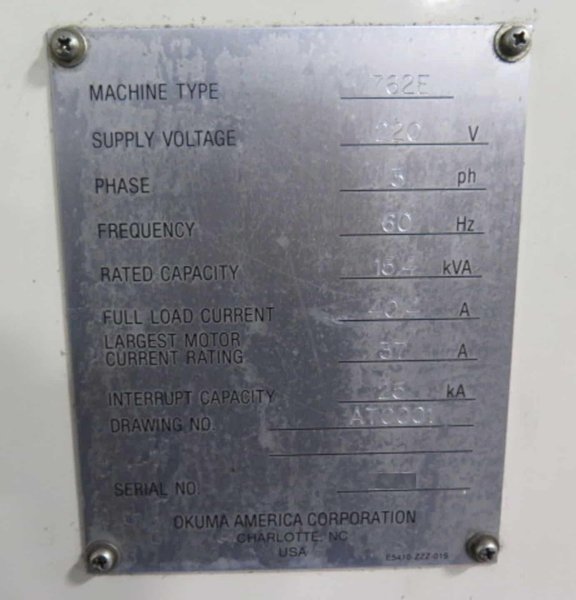

Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 15.4 kva
Overall Dimensions: 110″ x 68″ x 80″ High
Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor
Weight : 8,500 lbs Approx.
