NIDEC - CHS Coil Feed Line 20,000 Lbs. x 48" Wide x .125"

Name: Used NIDEC-CHS R200-48 . PS-350-48 / DRF-548 For Sale 5579
Brand: NIDEC-CHS
SKU: 5579
Availability: PreOrder

Brand

NIDEC-CHS

Michigan

Coil Weight Capacity:	20000 pounds
Stock Width Capacity	48 inches
Max Stock Thickness Capacity At Full Width	.125 inches
Minimum Expansion Range:	20 inches
Maximum Expansion Range:	24 inches
Coil O.D. Capacity:	72 inches

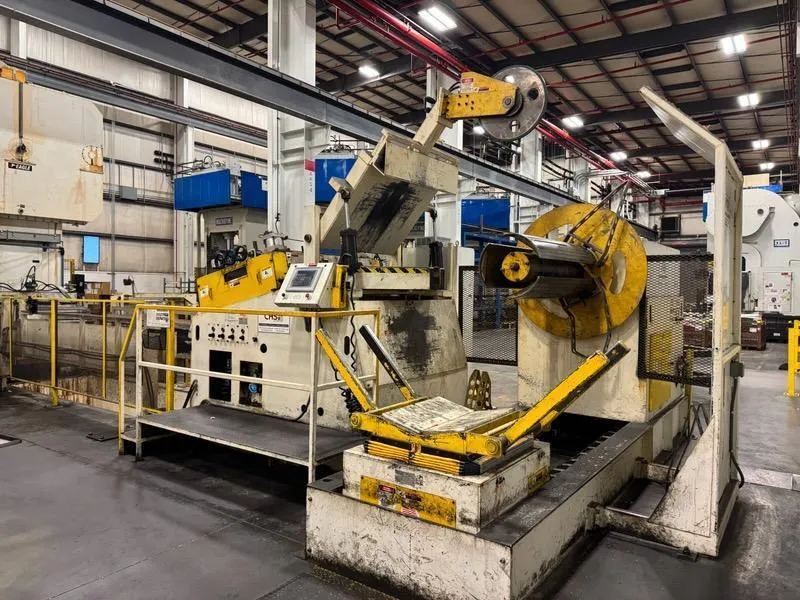

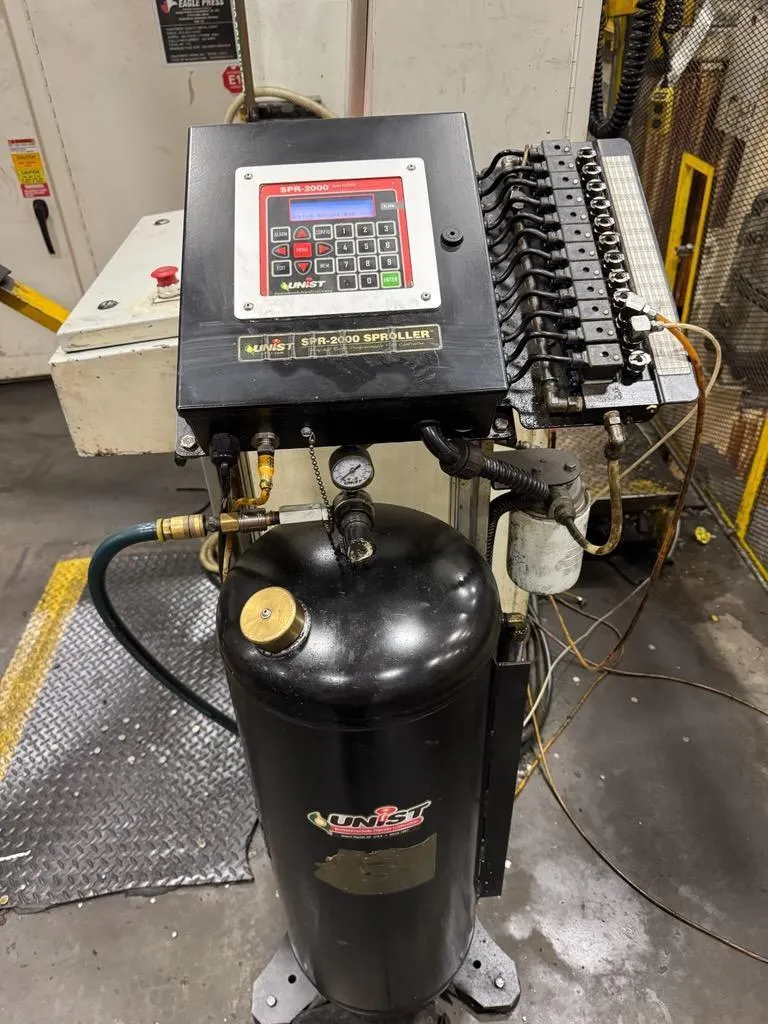

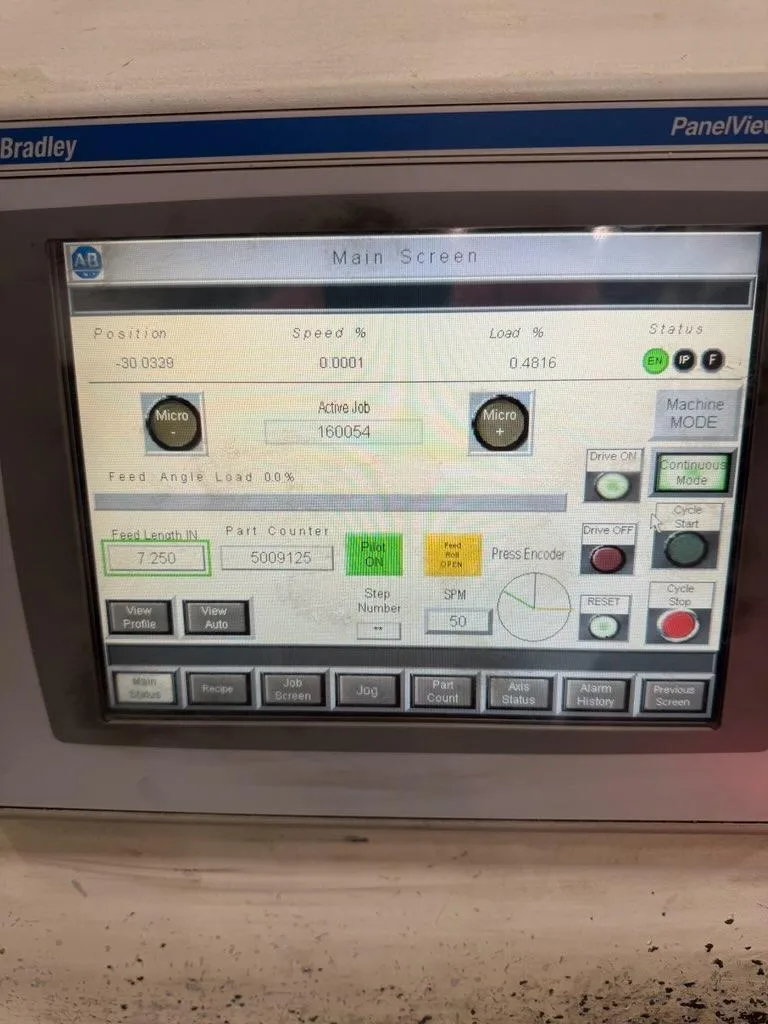

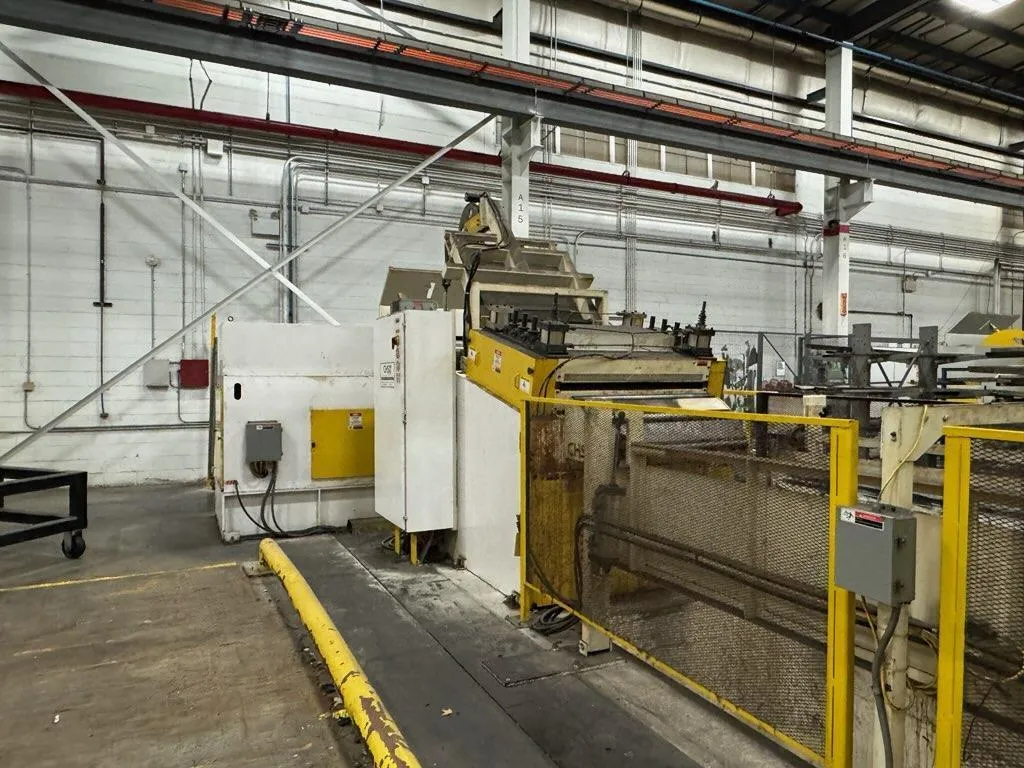

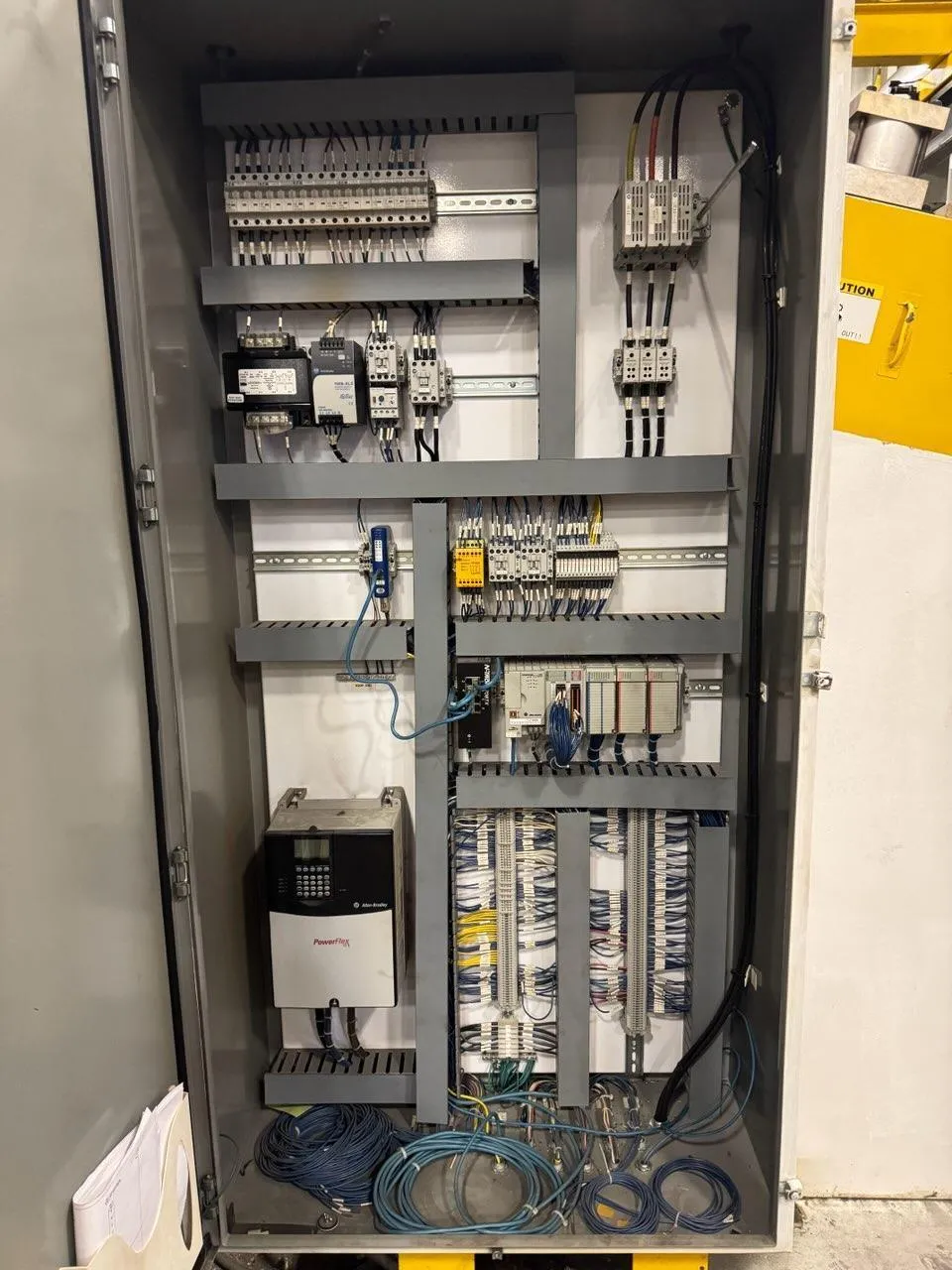

CHS COIL FEED LINE SPECIFICATIONS 2014 CHS Coil Feed Line Coil Weight Capacity: 20,000 Lbs. Coil width capacity: 48" Stock thickness capacity: .140" x 48" Wide Stock thickness capacity: .250" x 12" Wide Servo Roll Feed Model MX-4548 4.5" Diameter Feed Rolls Piloting Upper Feed Roll Cabinet Base Mounted with Adjustable Pass Line UNIST Stock Lubricator System Allen Bradley Servo Drive And Controls Exit Threading Tables MODEL ETT-48 Dual Side Bomb Bay Door Design Powered Coil Straightener Model PS-350-48 Seven Straightening Rolls x 3.5" Diameter Back ups on upper and lower straightening rolls Entry Pinch Rolls w/ Air Operated Actuation Exit Pinch Rolls w/ Air Counter Balance Feature Adjustable Stock Width Edge Guides Coil Hold Down Arm with Motorized End Wheel Stock Peeler Table Exit Side Cascade Loop Support Rollers Allen Bradley VFD Control System Laser Loop Control CHS Coil Reel and Load Car Model R200-48 Three Leaf Mandrel with Hydraulic Expansion Jog Drive F/R Drag Brake (Adjustable Tensioning) Traveling Coil Load Car Powered Lift And Travel
