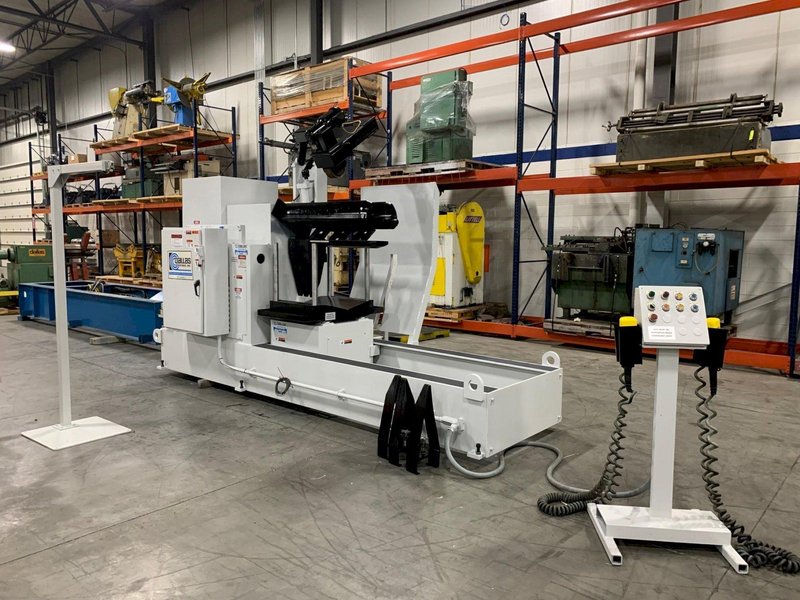

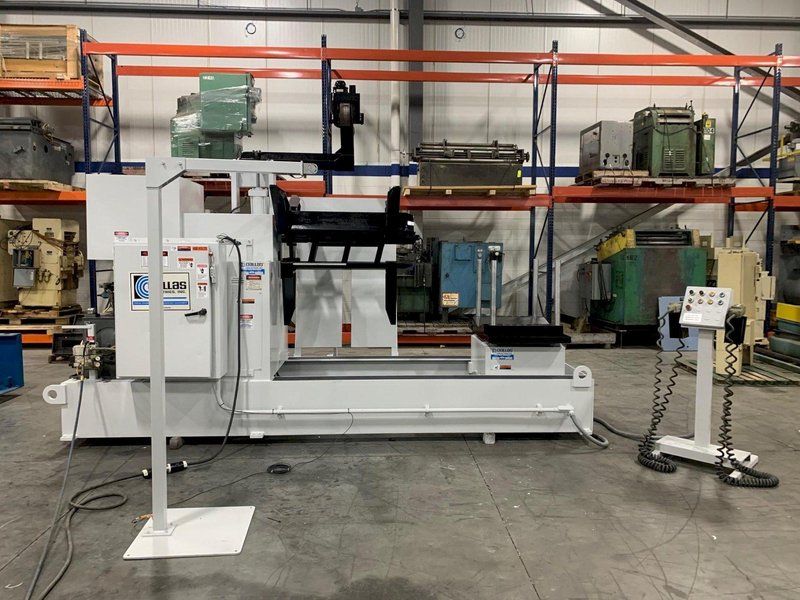

NIDEC-CHS / Dallas Coil Feed Line 10,000 Lbs. x 36" Wide
Brand
Category
Type
Model
MXS-336 / DPR-10,000# x 36-RH
Stock #
5333-FL
Year
Not specified
Condition
New
Location
Michigan
| Coil Weight Capacity: | 10000 pounds |
| Coil Width Capacity: | 36 inches |
| Minimum Expansion Range: | 20 inches |
| Maximum Expansion Range: | 24 inches |
| Coil O.D. Capacity: | 60 inches |
|
Specifications:

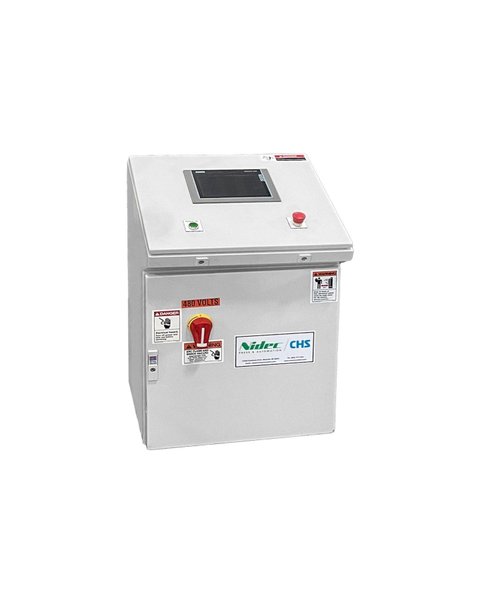

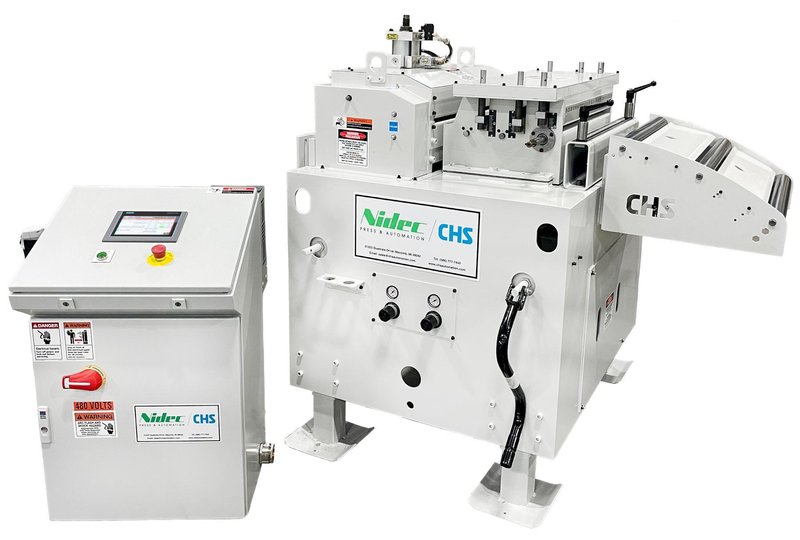

Coil weight capacity: 10,000 Lbs. Coil width capacity: 36" Stock thickness capacity at full width: .093" Stock thickness capacity at 06" width: .140" NEW NIDEC-CHS Servo Roll Feed - Straightener Combination Model No. MXS-336 Three inch diameter upper and lower feed rolls Piloting upper feed roll - pneumatic Adjustable stock width edge guides Seven straightening rolls Entry pinch rolls for stock threading Adjustable stock width edge guides Entry cascade loop support rollers HD Cabinet base with adjustable pass line AC Servo drive and control package Touch screen HMI 480 Volt Machine set to left to right feed direction Warranty: New Machine 4 - 2: Year: https://www.minster.com/c/CHS4-2_Warranty.pdf Dallas Ind. Motorized Coil Reel Uncoiler and Load Car Equipment and Features: Three leaf mandrel coil reel Hydraulic coil reel mandrel expansion Adjustable coil reel keeper arms Air operated coil hold down arm Motorized coil hold down arm end wheel Self contained hydraulic pump unit Traveling coil load car Powered lift and travel Adjustable narrow coil supports Coil car track Operator's control station Jog forward and reverse Auto / Run cycle Loop control Warranty: MDNA Thirty day return privilege |
|
