20,000 lbs. x 60" Wide CHS Automation / Littell Conventional Coil Feed Line
Brand
Not specified
Category
Type
Model
S200-60 Reel / 662-7SPD Str / DRF 6-60 Servo Feed
Stock #
2971
Year
Not specified
Condition
As-Is
Location
Michigan
| Coil Weight | 20000 pounds |
| Coil Width | 60 inches |
| Coil Thickness | .110 inches |
|
Preliminary Specifications

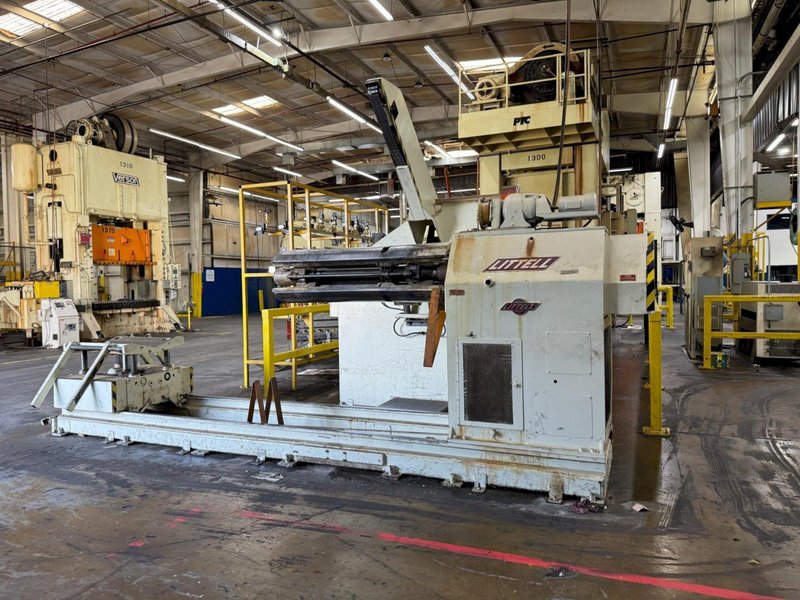

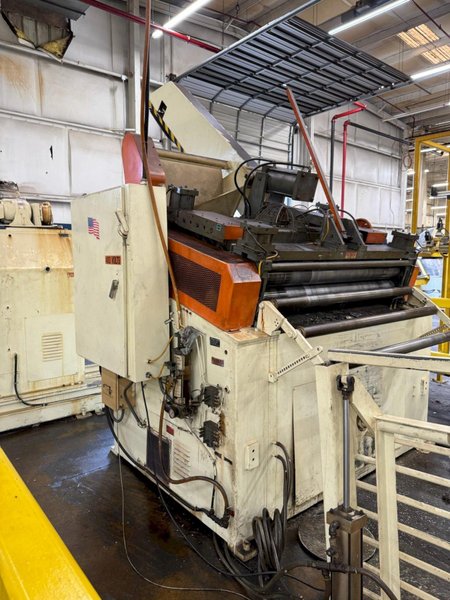

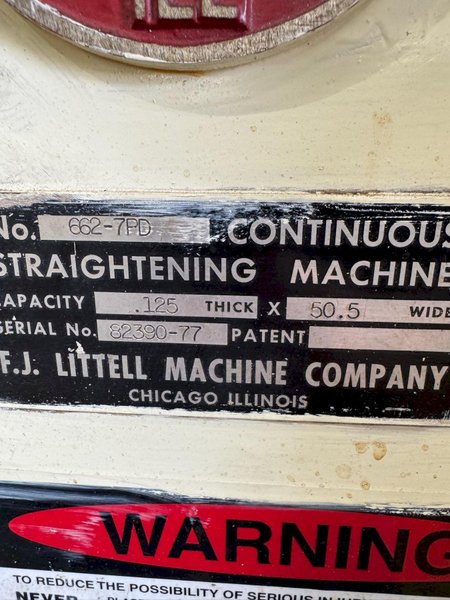

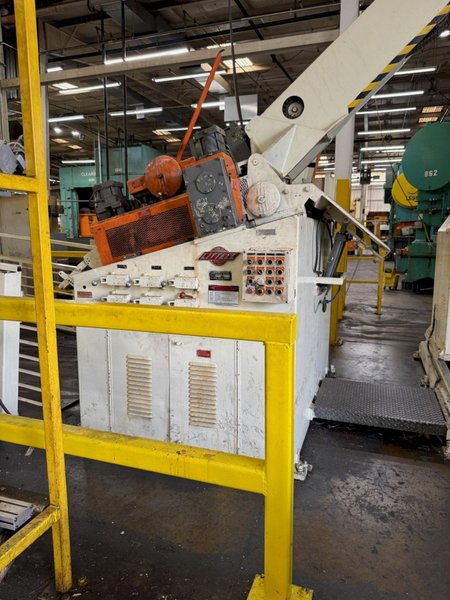

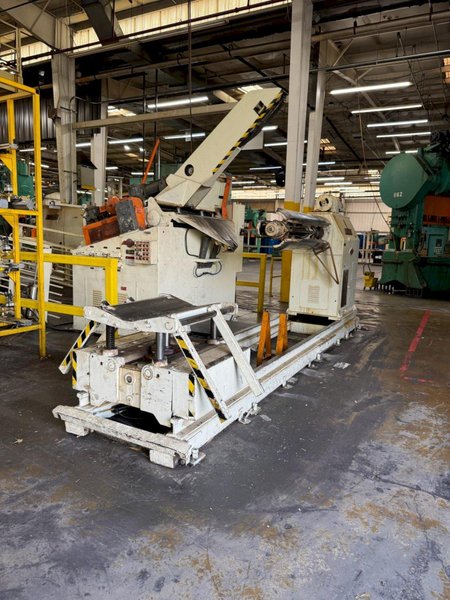

Littell and CHS Automation "Conventional Coil Feed Line" 20,000 lbs. Capacity x 60" Wide Coil Line For Metal Stamping Coil Feed Line Consisting of: Littell Model S200-60 Coil Reel with Coil Car sn/ 82384-77 20,000 lbs. Maximum Coil Capacity 60" Maximum Coil Width Three Leaf Mandrel Reel Hydraulic Coil Reel Mandrel Expansion Air Brake Mounted on Main Spindle Adjustable tensioning Motorized Thread Drive for Jog Forward and Reverse Traveling Coil Car with all hydraulics Powered Lift and Travel Keeper Arms Littell Model #662-7PD sn/ 82390-77 60" Maximum Coil Width 50.5" Width @ .125" Thick Capacity Entry and exit powered coil straightener pinch rolls x 6" diameter
Air operated powered coil straightener pinch roll adjustment
Seven coil straightening rolls x 4.25" diameter
Upper coil straightening roll adjustments
Dial depth indicators for upper coil straightening roll positioning
Adjustable stock width edge guides
Inclined powered coil straightener head design
Coil hold down arm with motorized cat track
Stock peeler table with spade extension
Jog forward and reverse
Auto/Run cycle
Laser Loop control

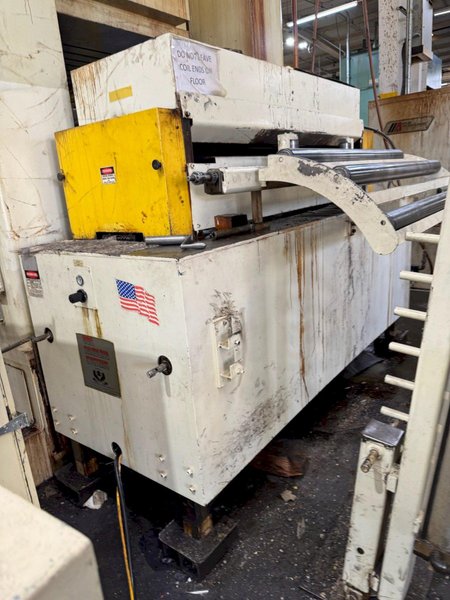

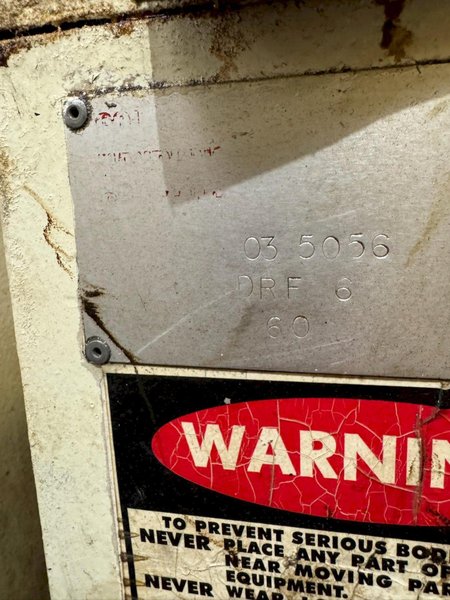

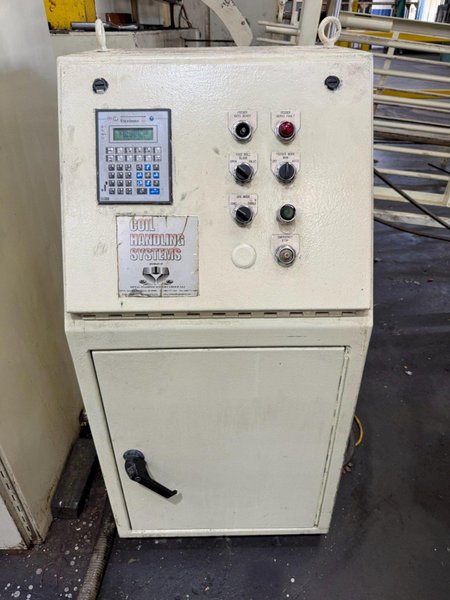

CHS Automation Double Sided "Bomb Bay" Threading Tables CHS Automation DRF-660 Servo Feed s/ 03-5056 6" Diameter Feed Rolls Matte Chrome finish on Servo Feed Rolls Air operated upper servo feed adjustment for piloting Entry side cascade material support rolls Centralized lubrication Cabinet base mounted with adjustable pass line height AC Servo Roll Feed and Controls 480 Volt |
|
