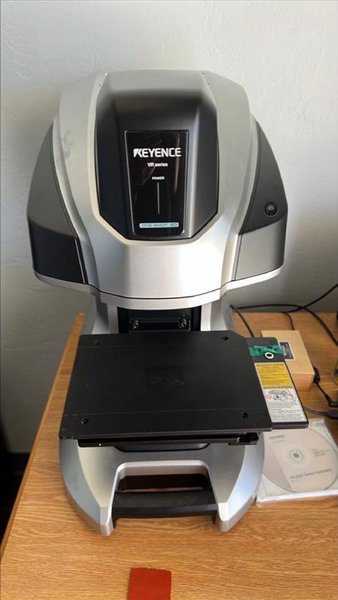

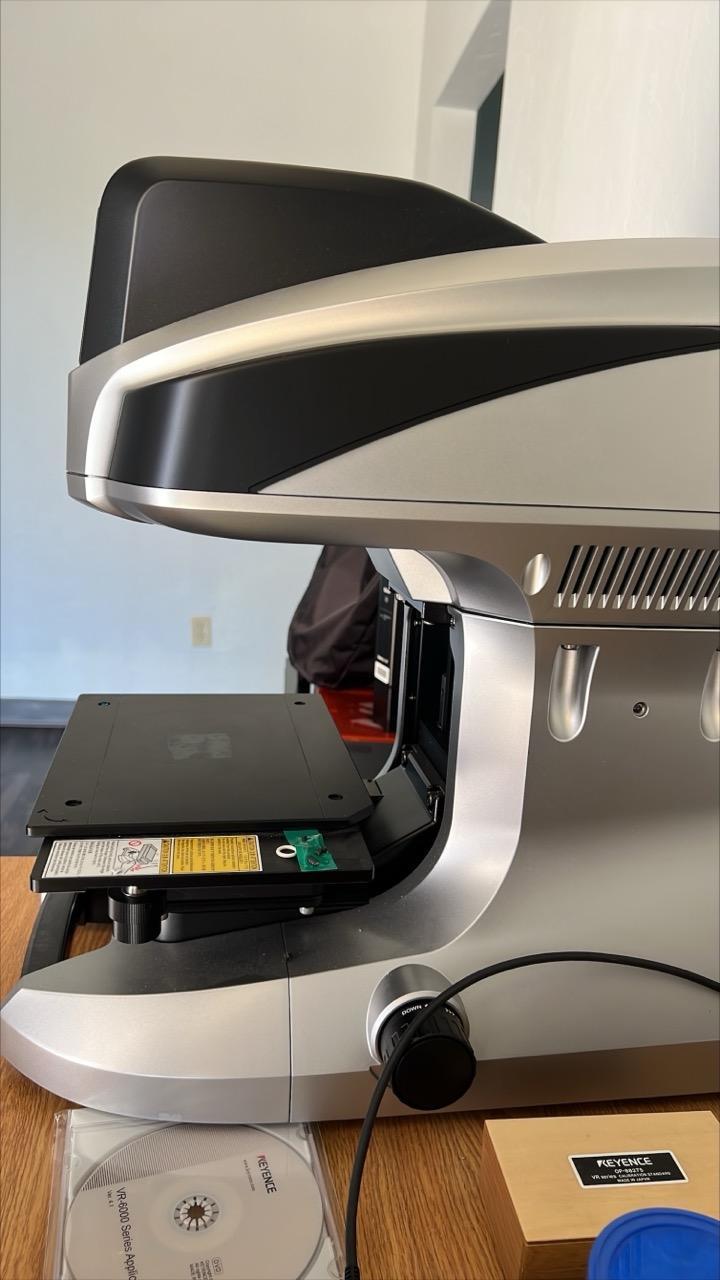

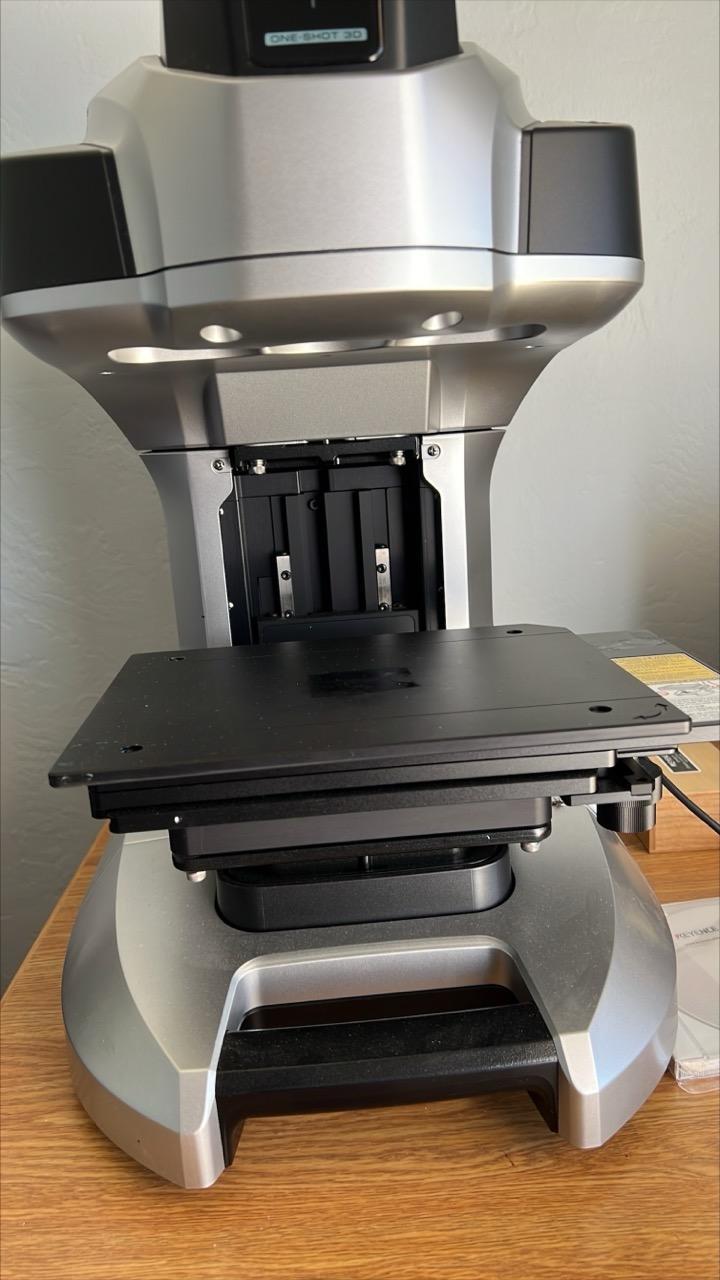

Keyence VR-6100 3D Optical Profiler

Model: VR-6100 Type: Head Unit (Standard Model) Controller: VR-6000 Operating System: Windows 10 Professional / Windows 11 Professional

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Optical & Measurement Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Zoom Range: 1× to 4×

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Display Resolution: 0.1 μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Field of View (Horizontal × Vertical):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,24.0 × 18.0 mm (12× magnification)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,12.0 × 9.0 mm (25×)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,8.0 × 6.0 mm (38×)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,7.6 × 5.7 mm (40×)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,6.0 × 4.5 mm (50×)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,3.8 × 2.9 mm (80×)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2.5 × 1.9 mm (120×)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1.9 × 1.4 mm (160×)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Height Measurement Range

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Without Z Stitching:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Low Mag (wide FOV): 10 mm (0.39″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High Mag (high res): 1 mm (0.04″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,With Z Stitching:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Low Mag (wide FOV): 50 mm (1.97″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High Mag (high res): 30 mm (1.18″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measurement Accuracy

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Height:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Without Z Stitching: ±2.5 μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,With Z Stitching: ±4.0 μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Repeatability (σ):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Without Z Stitching: 0.4 μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,With Z Stitching: 1.0 μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Width:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Low Mag (wide FOV): ±5 μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High Mag (high res): ±2 μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stage Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,XY Measurable Range: 92 × 86 mm (3.62″ × 3.39″) with VR-H4J module

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,XY Stroke: 70 × 70 mm (2.76″ × 2.76″) manual

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Z Stroke: 69 mm (2.72″) motorized

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Load Capacity: 4.5 kg (9.92 lb)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Working Distance: 75 mm (2.95″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Optics & Illumination

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Image Sensor: 4-megapixel monochrome CMOS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Transmitter Lens: Double-telecentric lens × 2

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Receiver Lens: Double-telecentric lens

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Observation Light Source: LED ring (red, blue, green)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measurement Light Source: White LED

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System & Power

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Data Processing: Dedicated PC specified by Keyence

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Supply: 100–240 VAC ±10%, 50/60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Consumption: 200 VA max

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Environmental Conditions

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature: +15 to +30°C (59 to 86°F)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Humidity: 20 to 80% RH (no condensation)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Physical

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: Approx. 25 kg (55.12 lb) total

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measurement Unit Only: Approx. 11 kg (24.25 lb)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,**SPEC SHEET AVAILABLE BY REQUEST**
