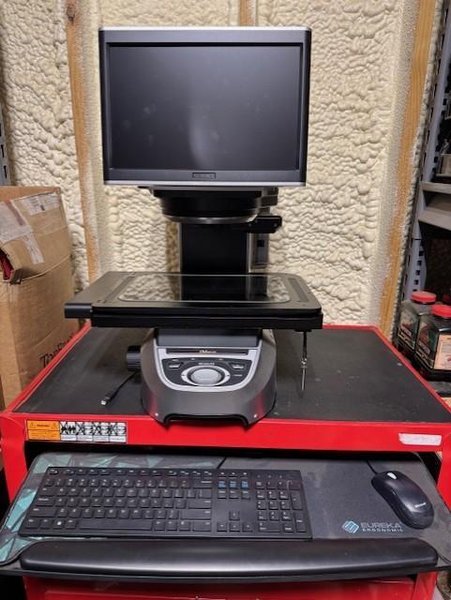

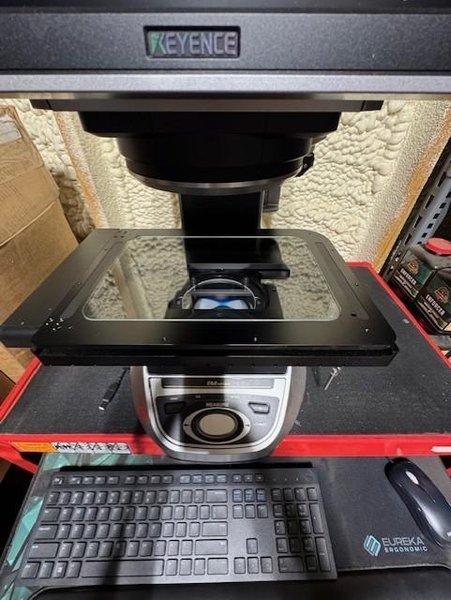

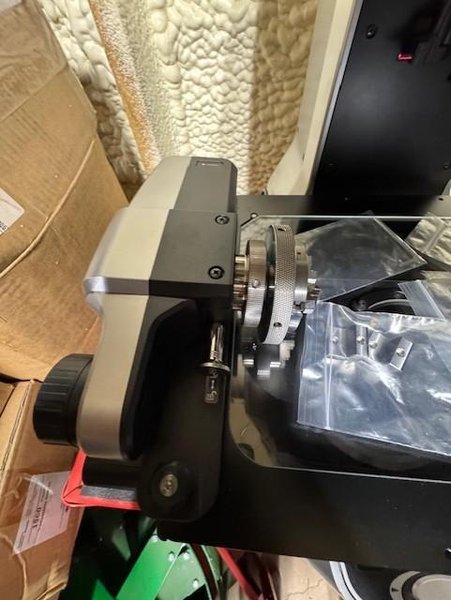

Keyence IM-8030 Image Dimension Measurement System, 2023

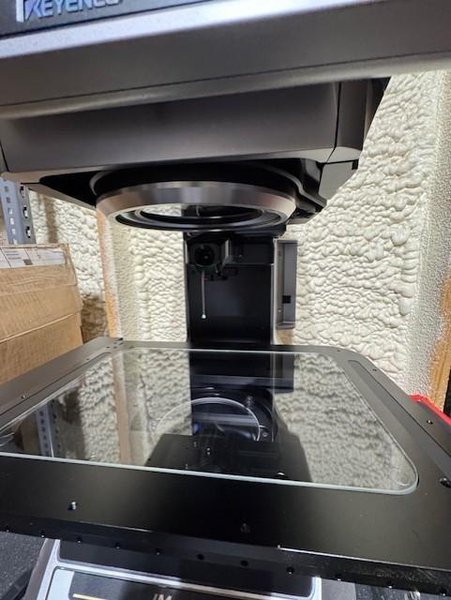

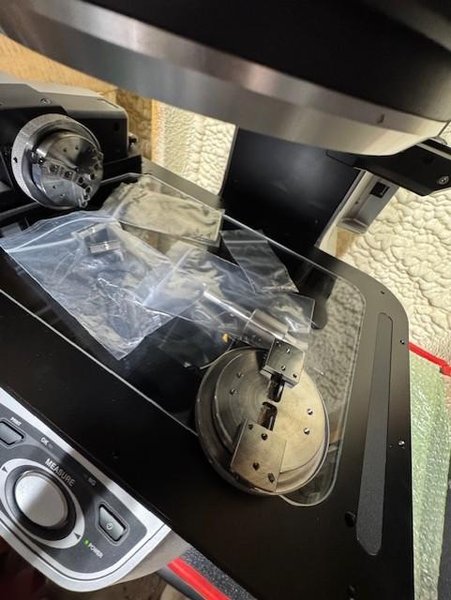

Stage Size: 300 × 200 mm (11.81″ × 7.87″) Measurement Modes:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wide-Field: 300 × 200 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High-Precision: 225 × 125 mm

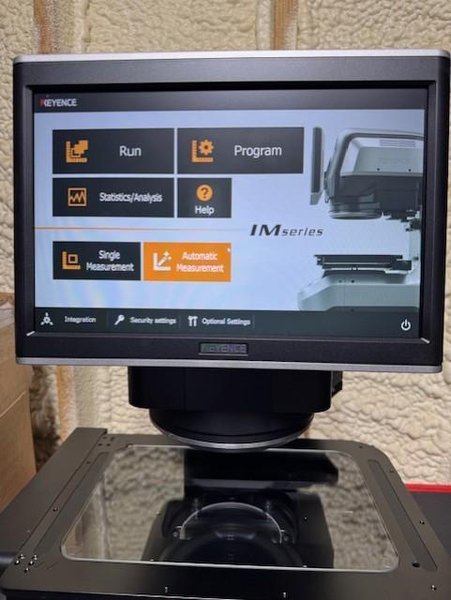

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Image Sensor: 1″ 20-megapixel monochrome CMOS Display: 12.1″ LCD Monitor (1280 × 800 WXGA) Lens: Double telecentric lens

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measurement Accuracy (±2σ):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wide-Field: ±(2.8 + 0.02D) μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High-Precision: ±(1.4 + 0.04D) μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Repeatability:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wide-Field: ±1 μm (no stage movement)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High-Precision: ±0.5 μm (no stage movement)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,XY Stage Movement Range: 200 × 100 mm (electric) Z Stage Movement Range: 75 mm Stage Load Capacity: 7.5 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Light Probe:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Diameter: ø3 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measuring Force: 0.015 N

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accuracy: ±(8 + 0.02L) μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Repeatability: ±2 μm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Connectivity:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,LAN (RJ-45: 10/100/1000BASE-T)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,USB 3.1: 4 ports (rear)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,USB 2.0: 4 ports (2 front, 2 rear)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DVI-D Monitor Output

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Illumination:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Telecentric transparent illumination

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ring and slit ring (multi-angle, electric)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hard Drive: 500 GB Power Requirements: 100–240 VAC ±10%, 50/60 Hz Power Consumption: 430 VA or less Operating Temp: +10 to 35°C Weight: Approx. 33 kg (72.8 lbs)

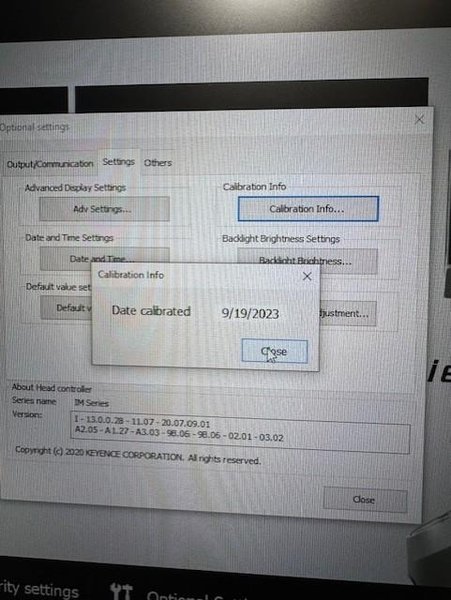

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Last Calibrated: 9/19/2023

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Full Data Sheet Available By Request
