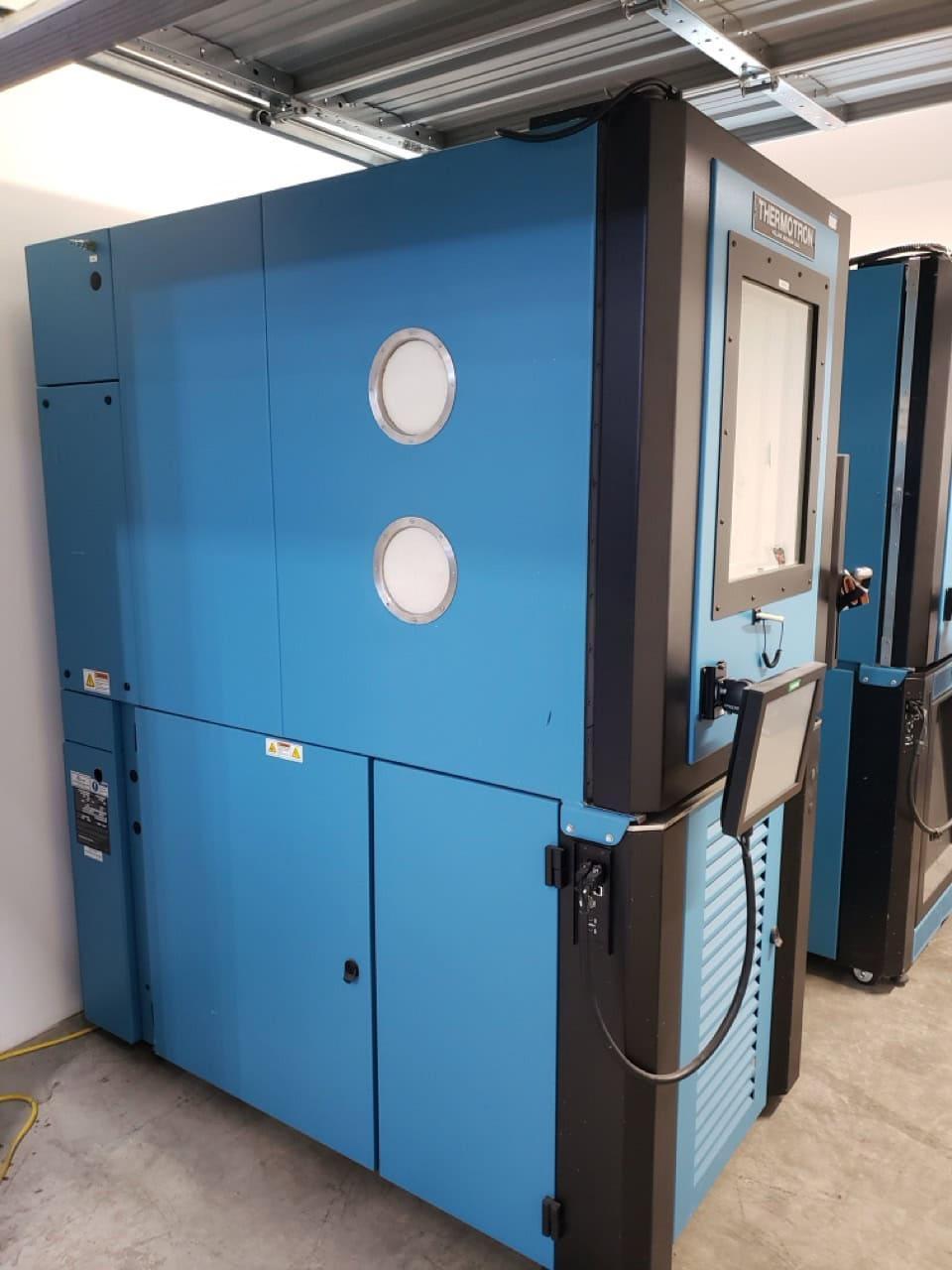

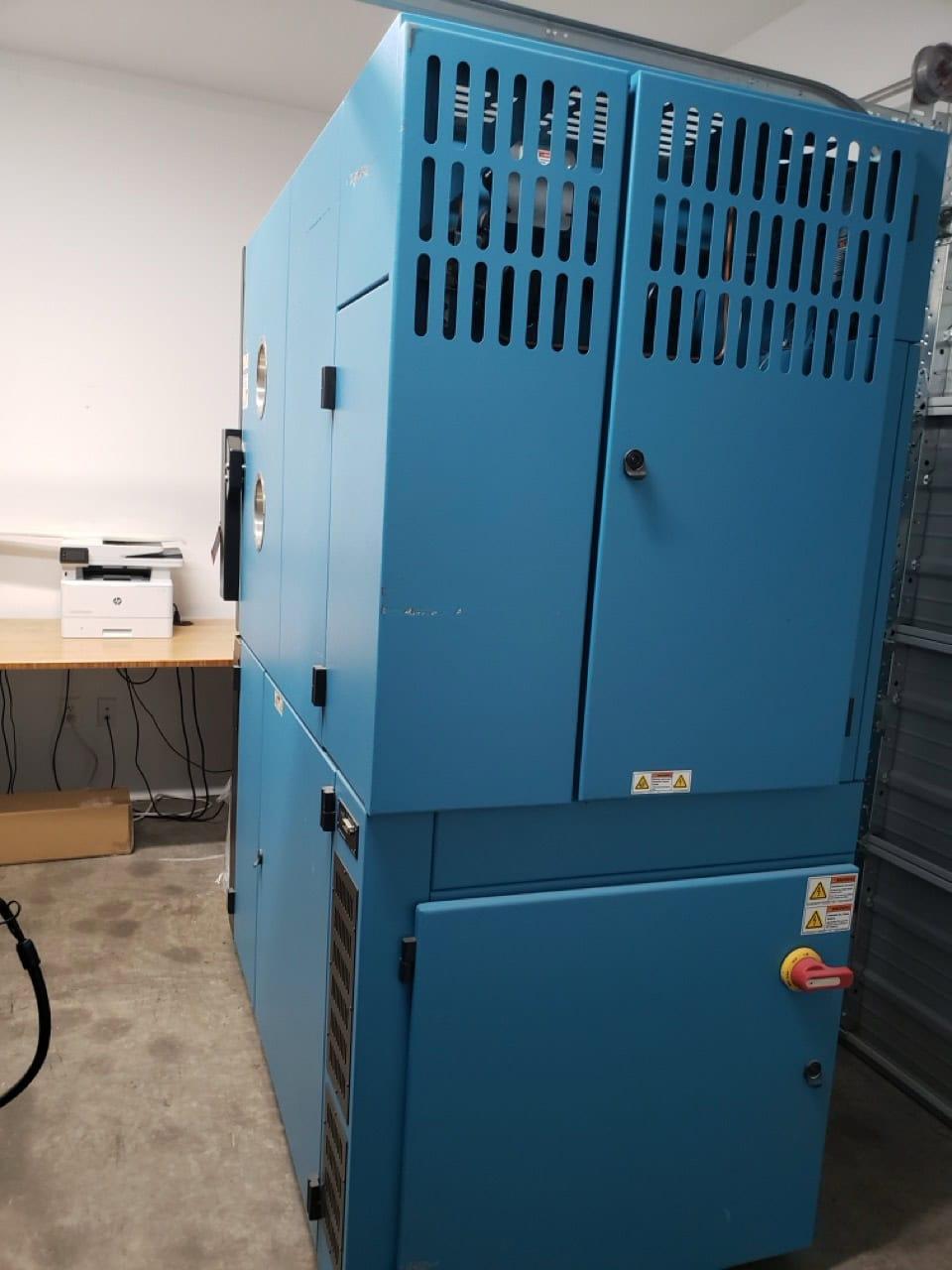

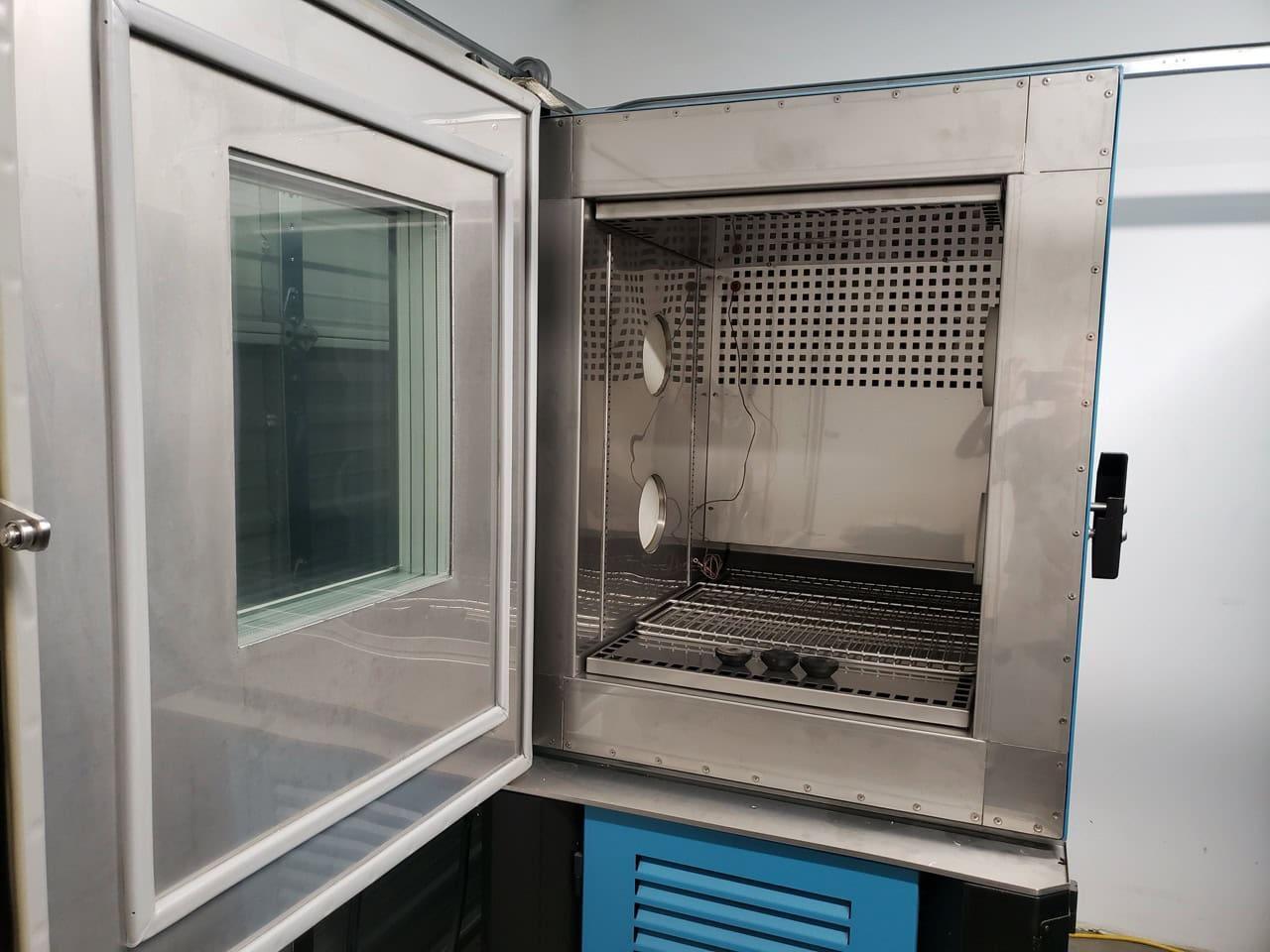

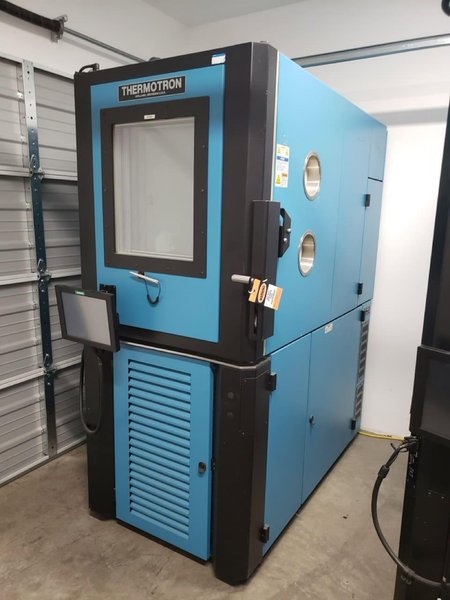

Thermotron SE-300-4-4 Environmental Test Chamber, 2014

Electrical Supply: 230 V, 3-phase, 60 Hz (230-3-60) Maximum Load: 55.2 A Recommended Service: 60 A Enclosure Type: 1

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motors & Loads Largest Motor: 4 HP — 10.5 A Largest Heater Load: 8 kW — 20.1 A Other Loads: 24.6 A Total (as shown): (Maximum Load indicated on nameplate: 55.2 A)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Short-Circuit / Wiring Short Circuit Current Rating: 5 kA RMS symmetrical Voltage Rating for Short-Circuit Spec: 250 V max. Wiring Schematic: E45645-1

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Refrigeration & Standby Refrigerant (primary): R508B — 2.0 lbs Alternate / additional refrigerant: R404A — 10.6 lbs Standby Pressure: 120 PSIG

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
