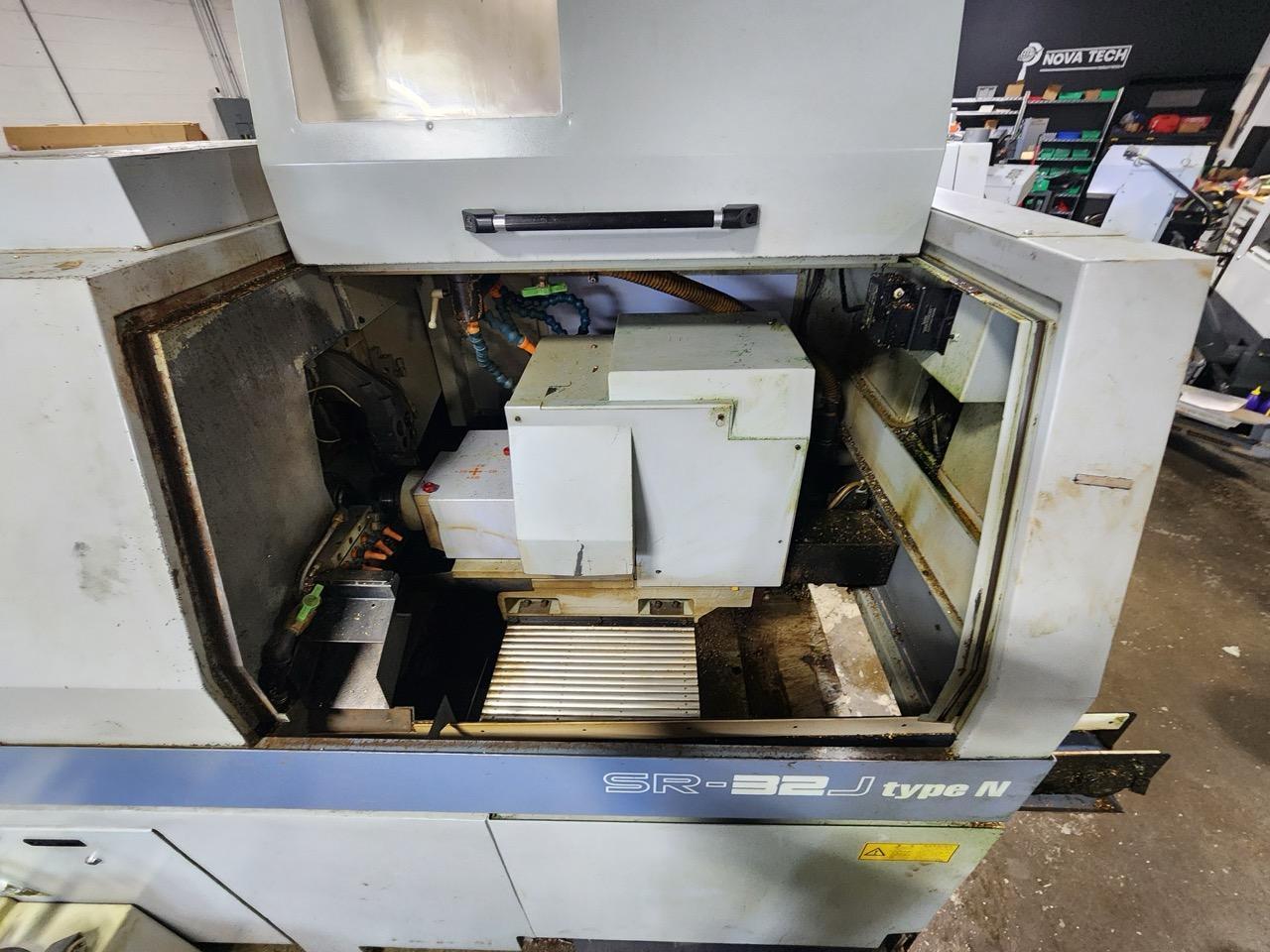

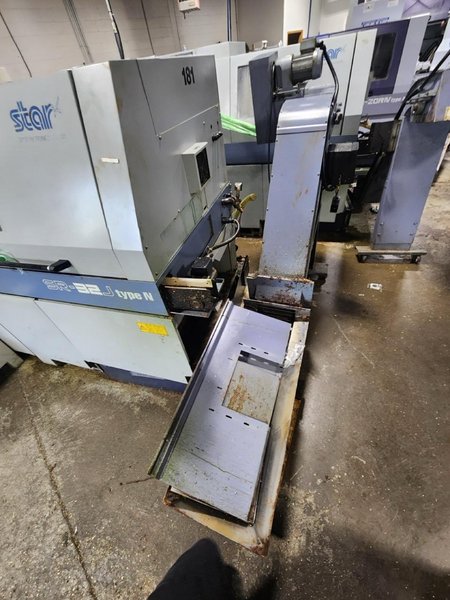

Star SR-32J CNC Swiss Lathe, 2010 – 32 mm Bar Capacity | 8-Axis Sliding Headstock | Fanuc Control
Brand
Category
Type
Model
SR-32J
Stock #
822530
Year
2010
Condition
Not specified
Location
Not specified
|
Manufacturer Star Micronics Co., Ltd.
Model ST-32J
Year 2010
Machine Type CNC Swiss-Type Automatic Lathe

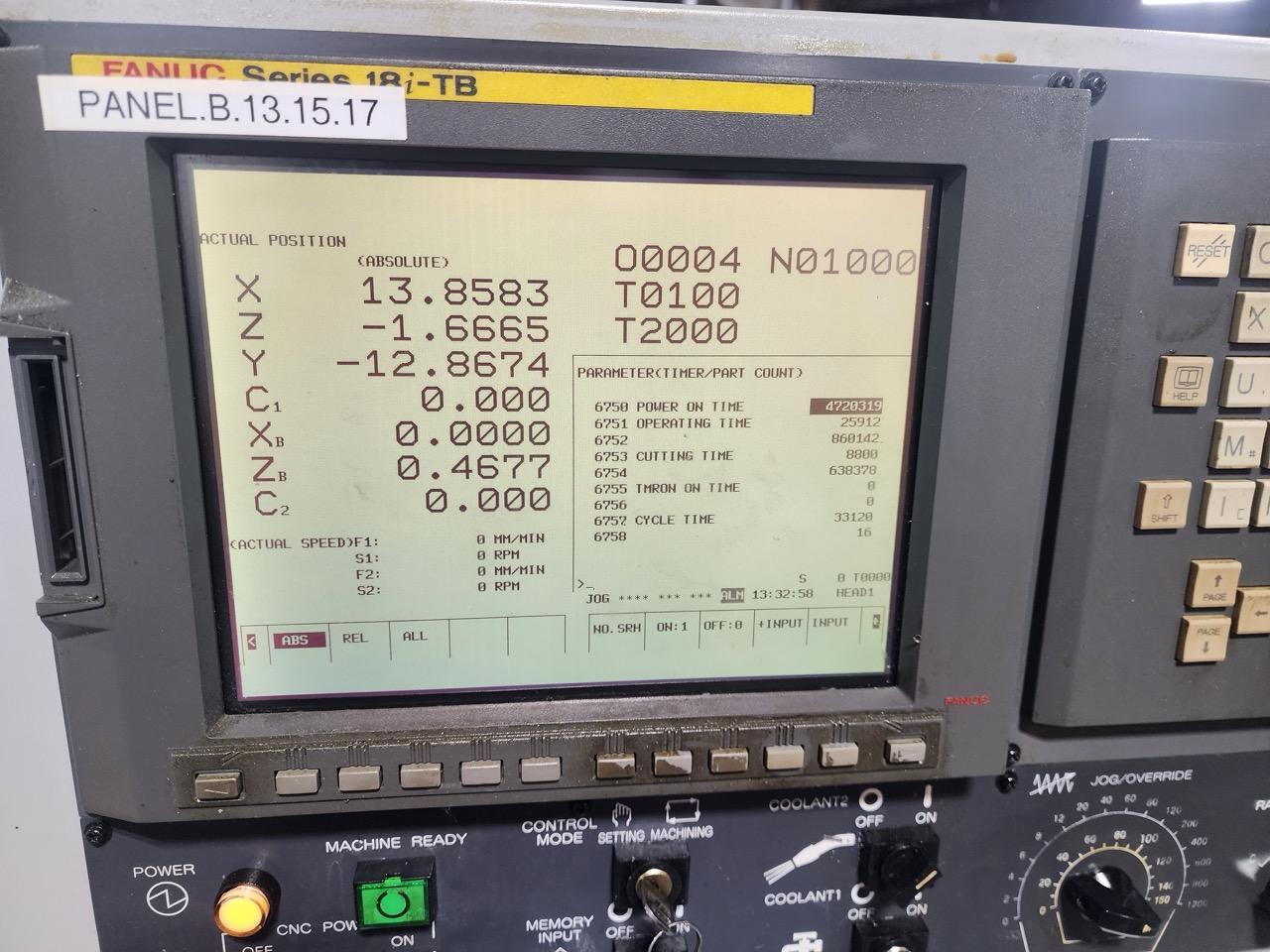

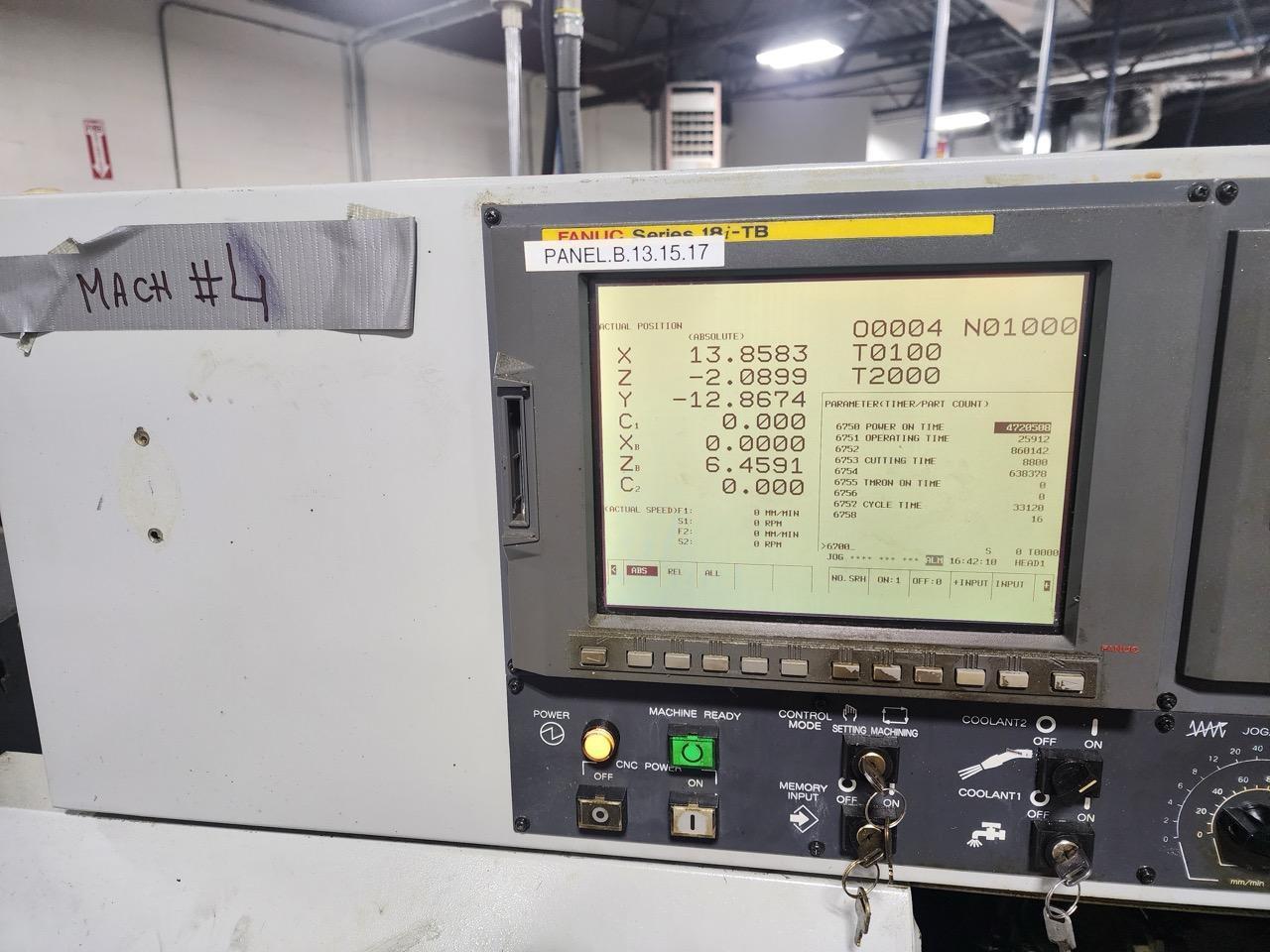

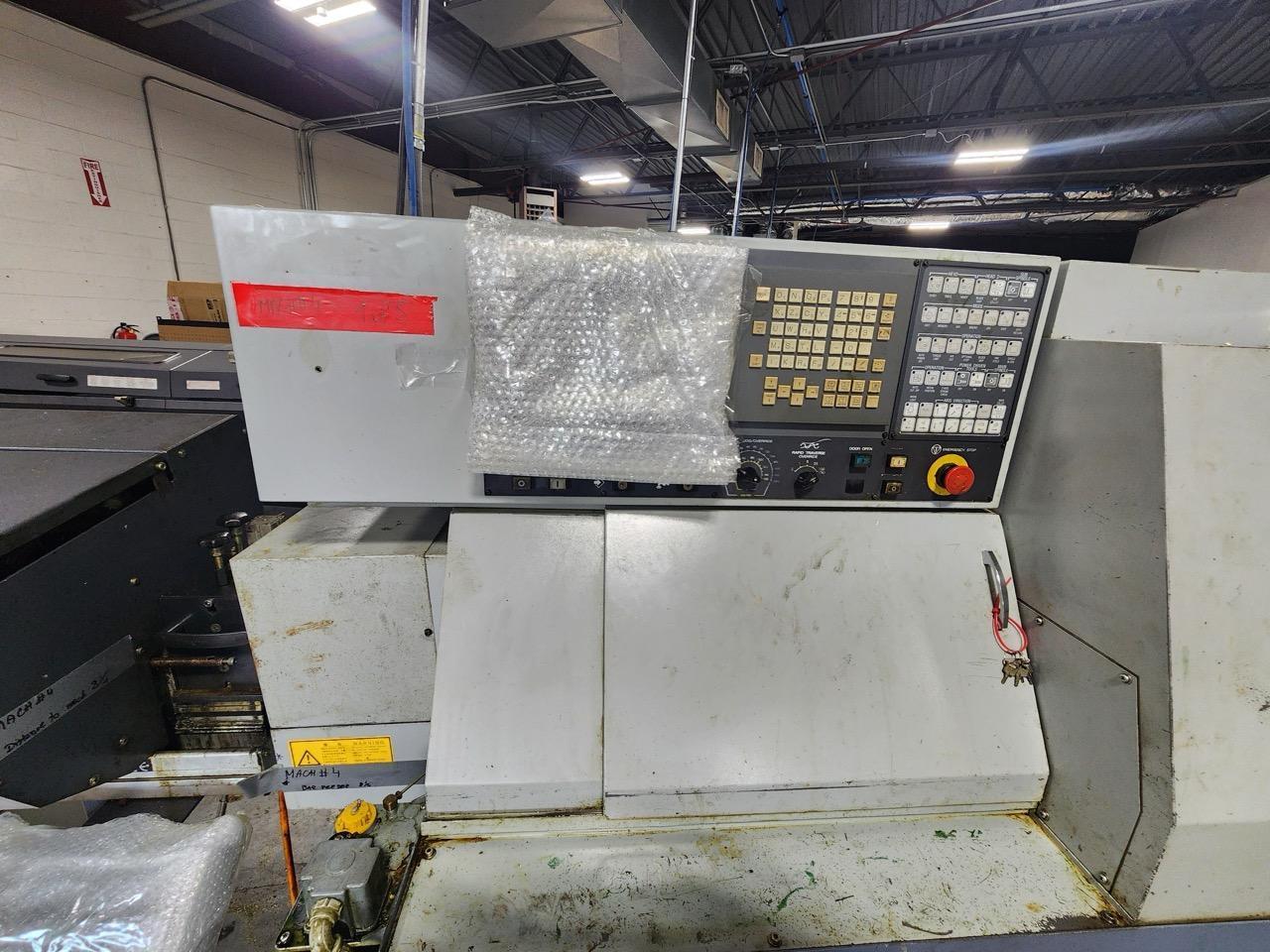

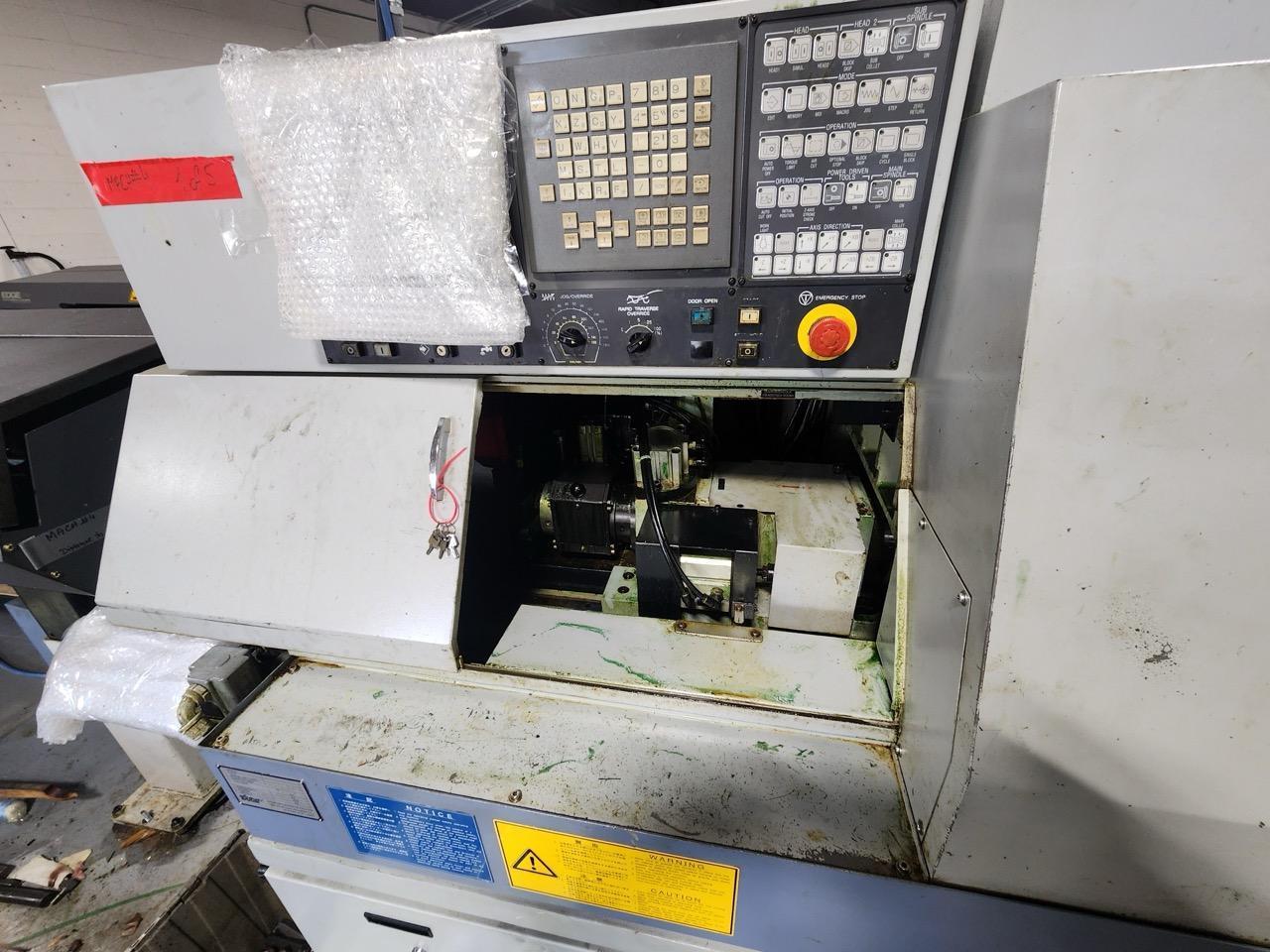

Control Fanuc CNC Control 18i-TB
Bar Capacity 1.26 in (32 mm)
Max Turning Length 12.6 in (320 mm)
Main Spindle Speed Up to 8,000 RPM
Sub Spindle Speed Up to 8,000 RPM
Number of Axes 8 (X1, Y1, Z1, C1 + X2, Z2, C2 + optional Y2)
Main Spindle Motor 5.5 / 7.5 kW (7.5 / 10 HP)
Sub Spindle Motor 3.7 kW (5 HP)
Live Tool Speed Up to 5,000 RPM
Tool Capacity Approx. 28 total positions
Cross-Drilling Stations 6 front + 4 rear live tools
Back-Working Tools 8 stations (drilling, tapping, milling)

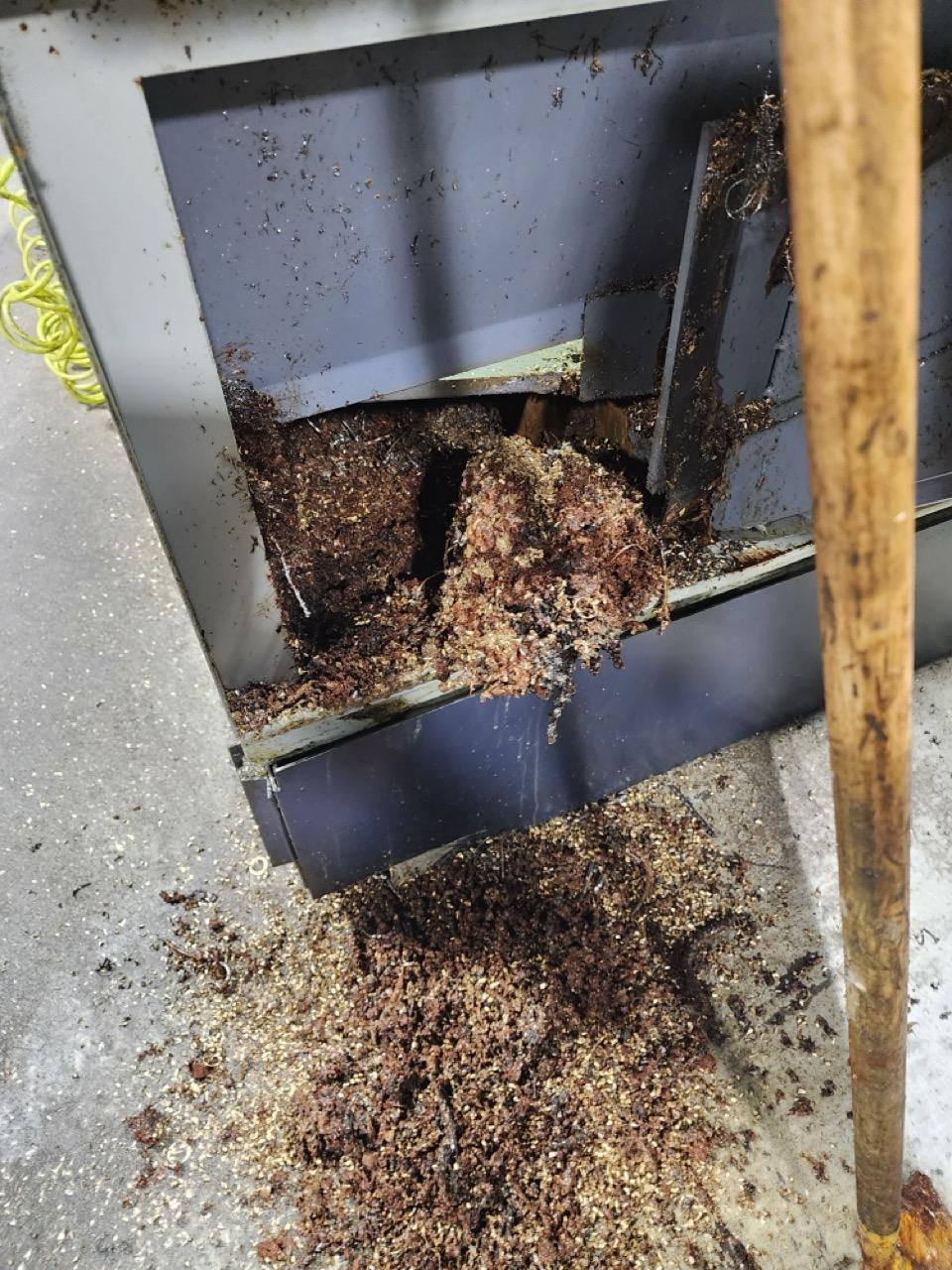

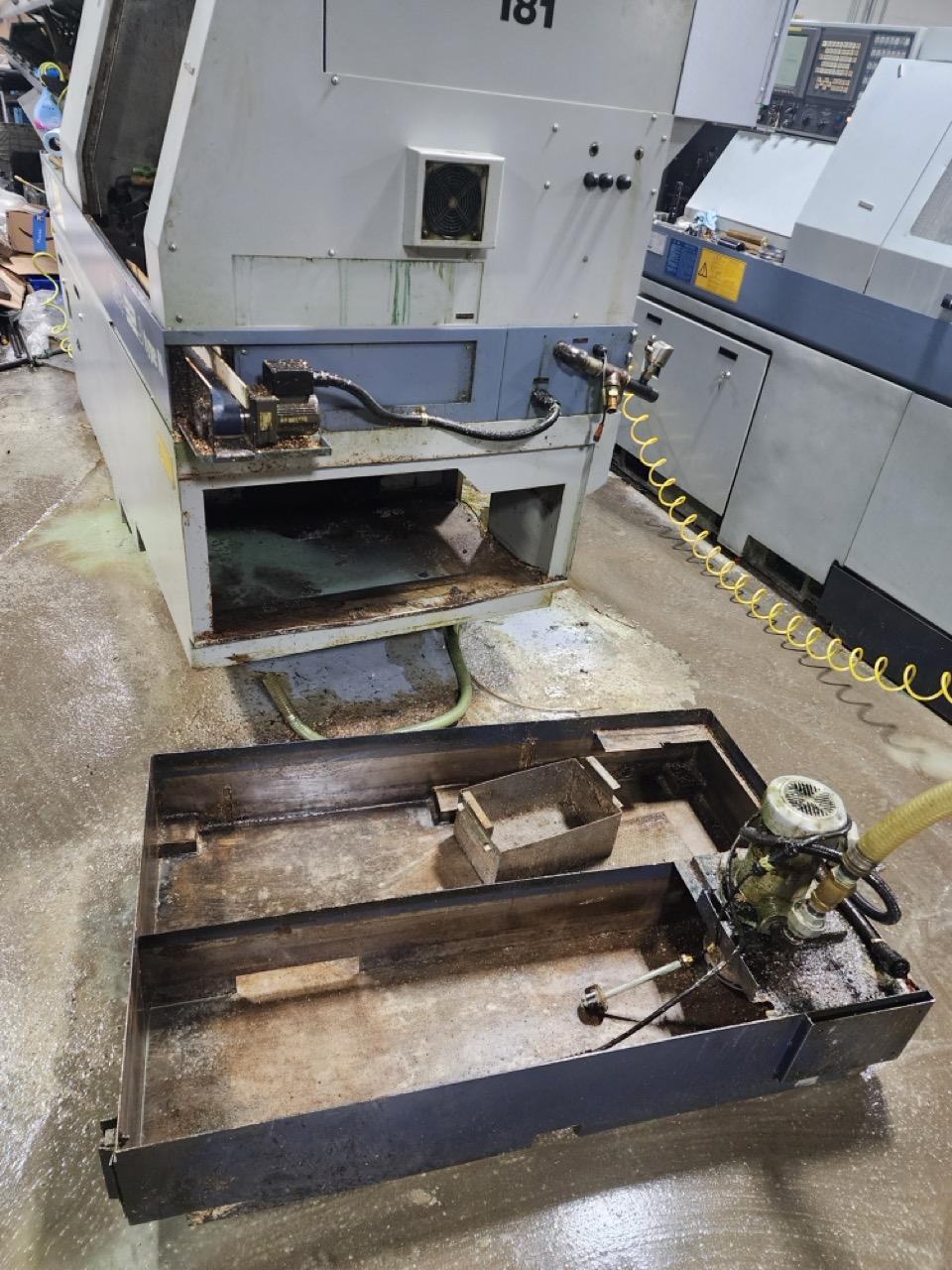

Coolant System Flood coolant (high-pressure option available)

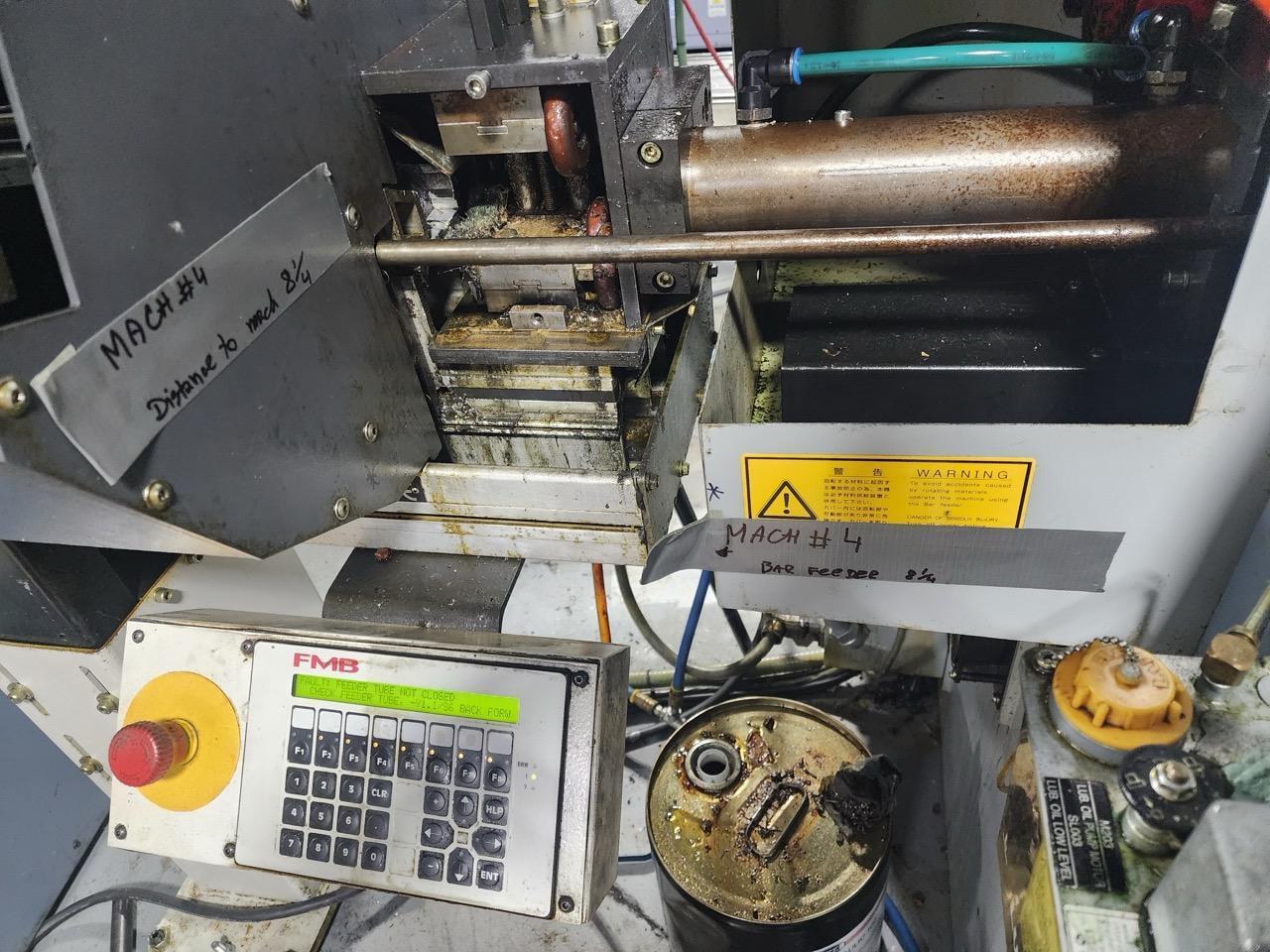

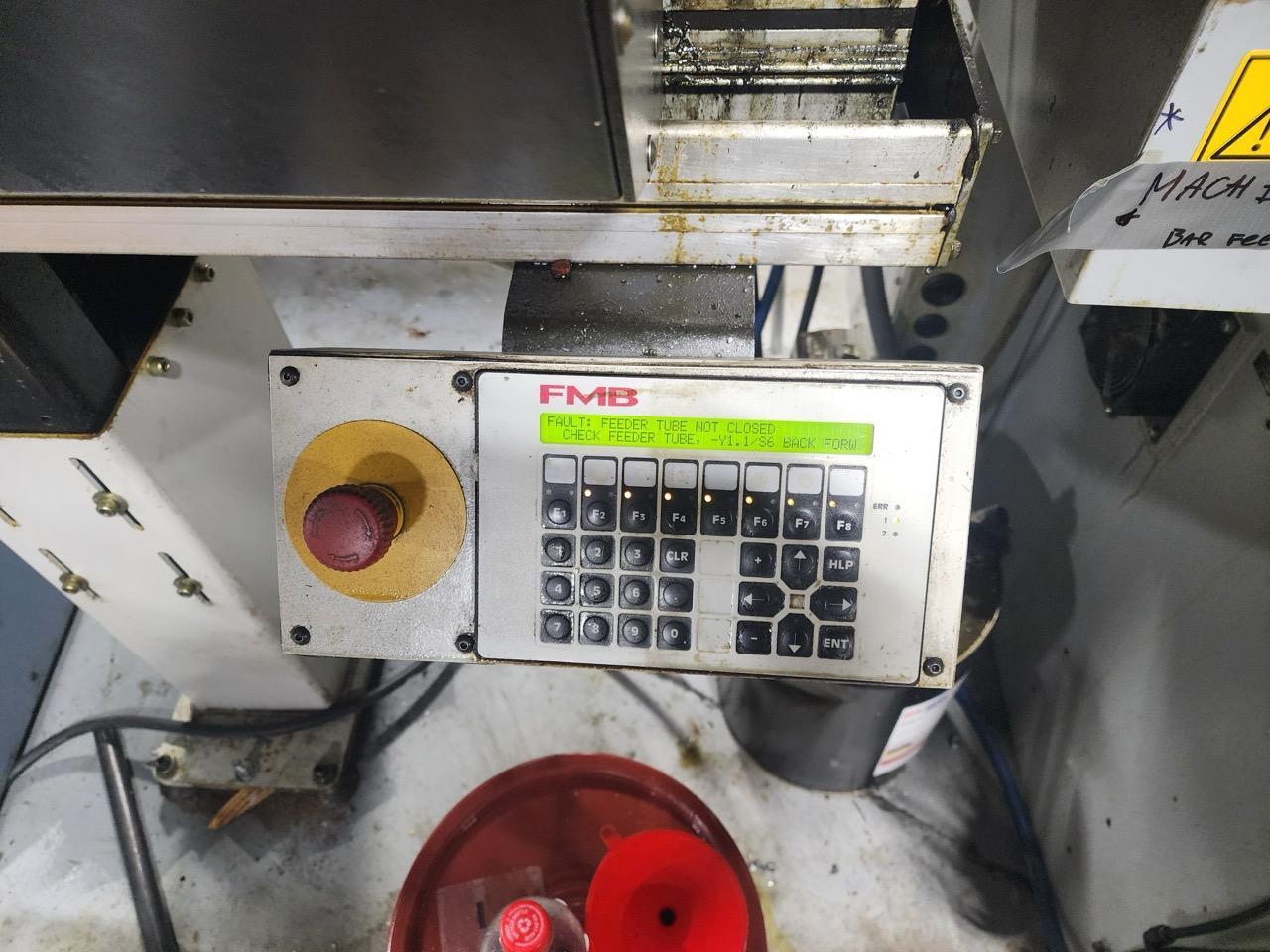

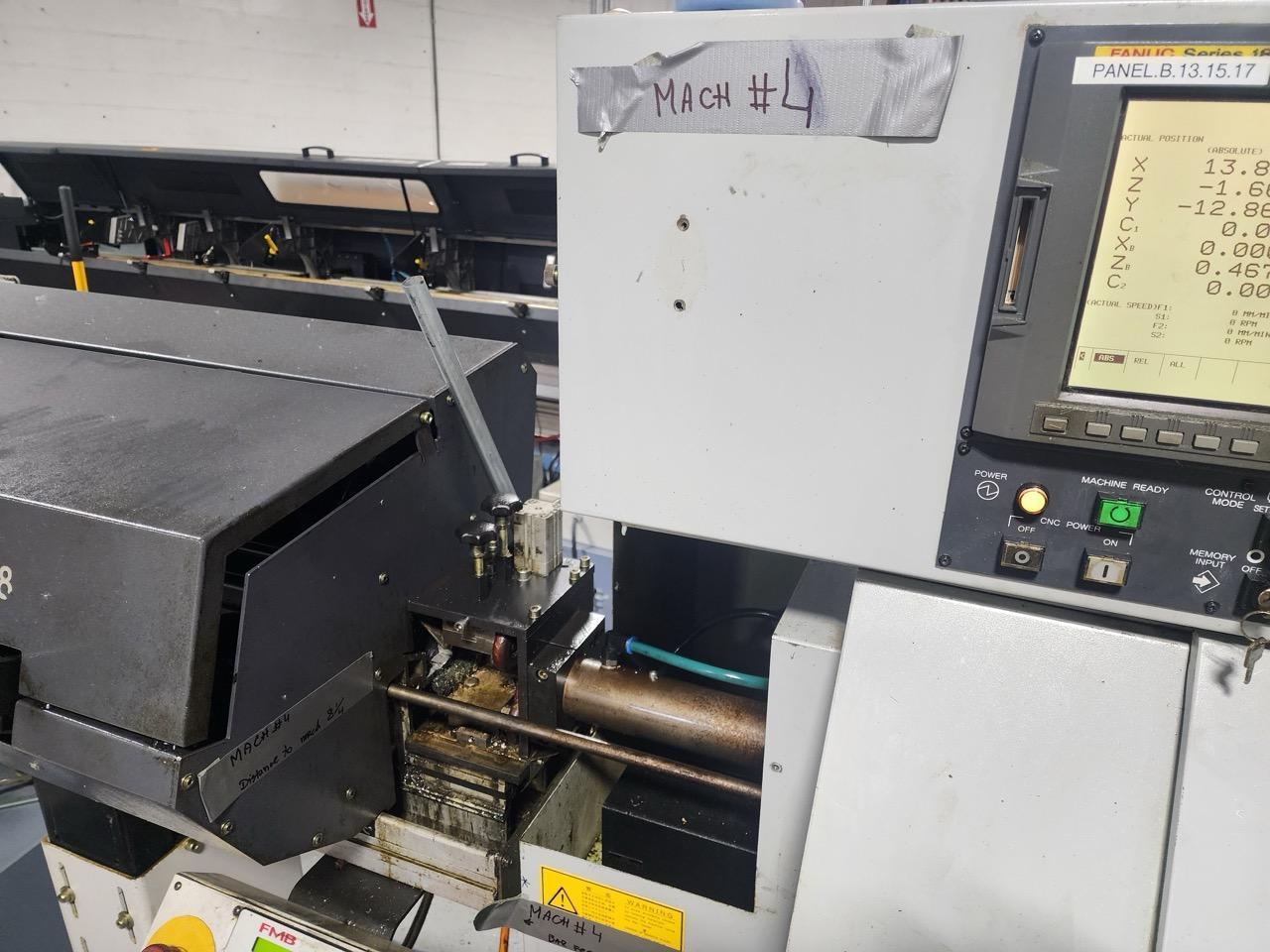

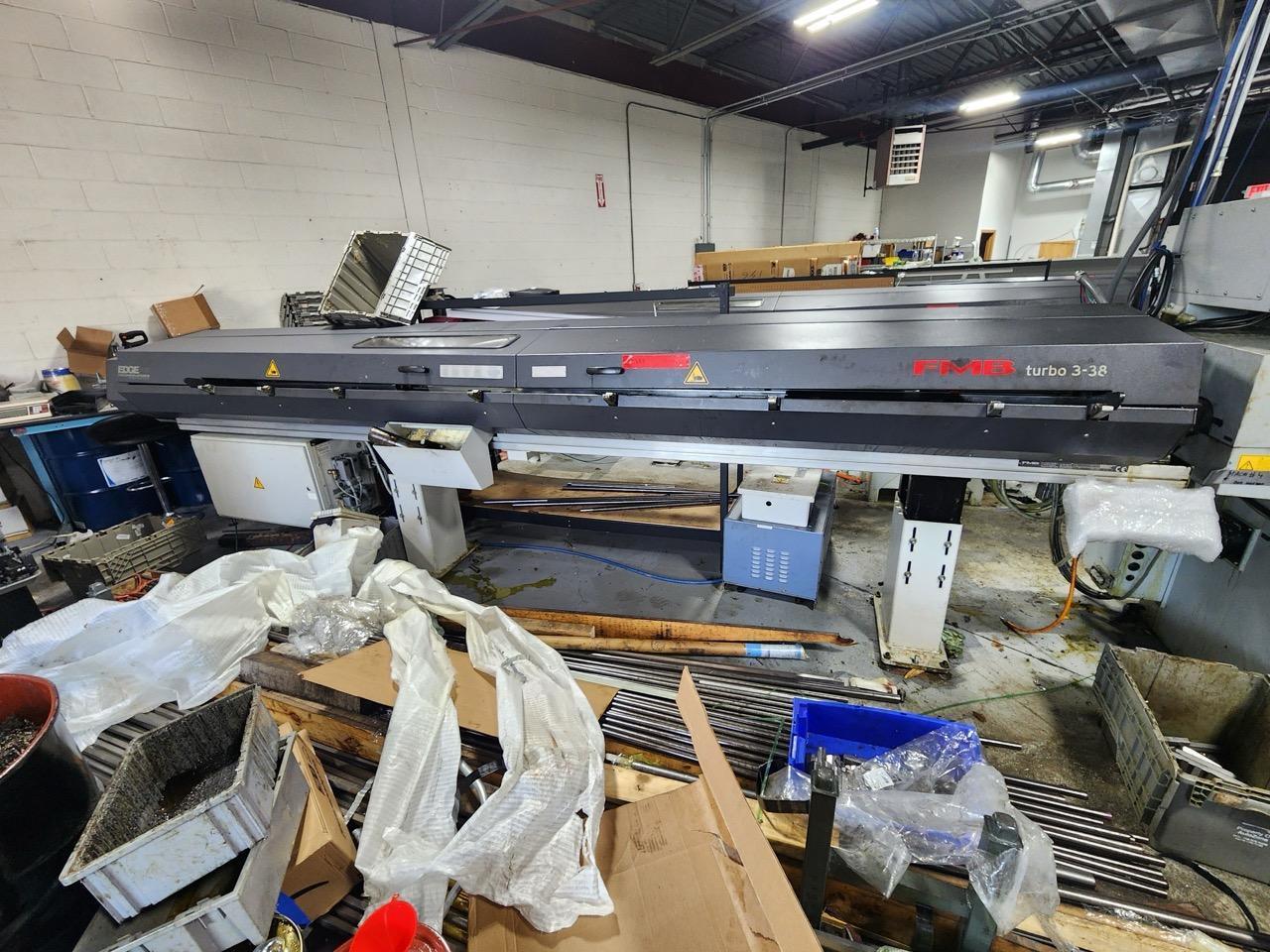

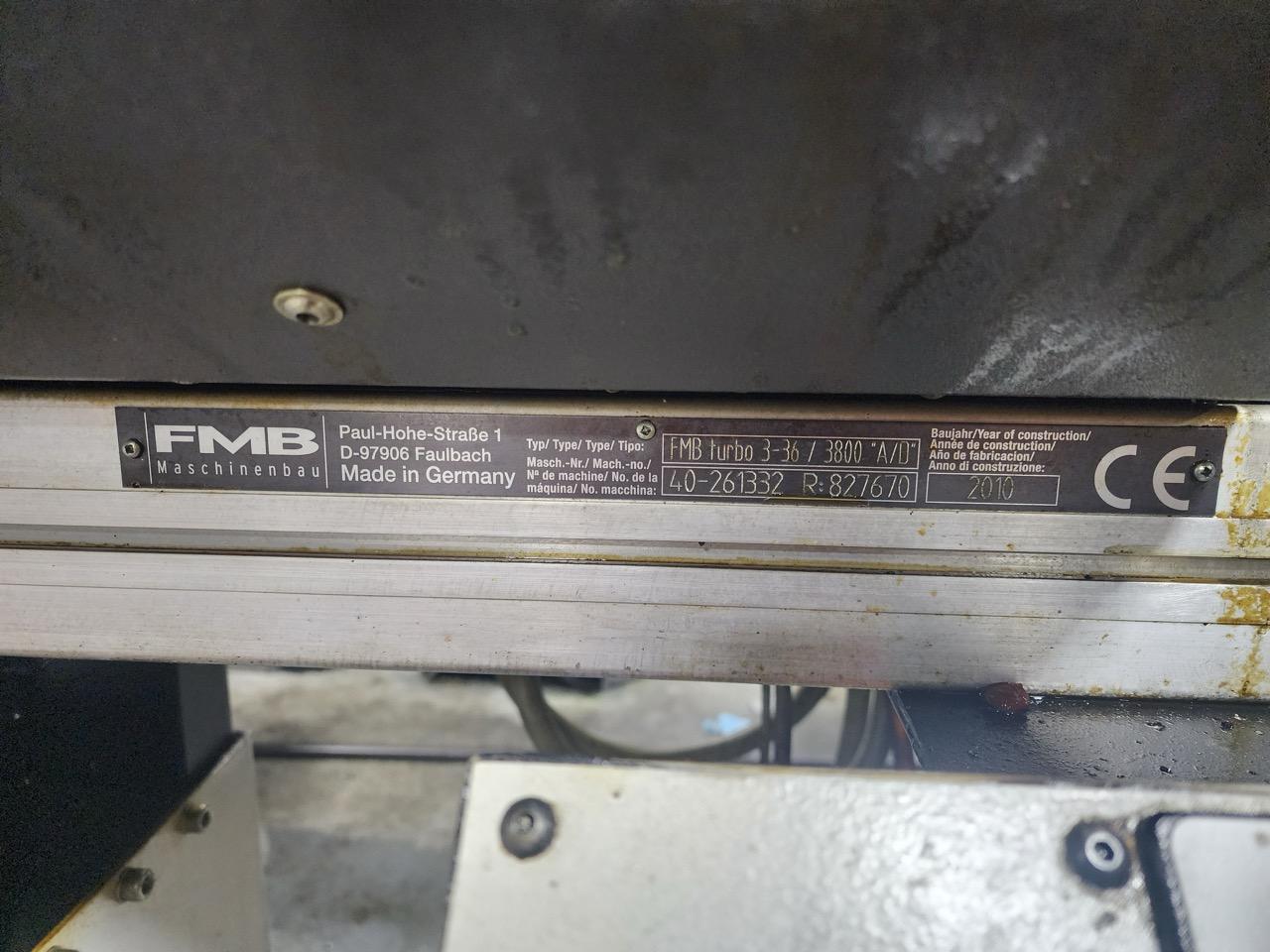

Bar Feeder Compatibility FMB
Dimensions (L × W × H) ≈ 100″ × 55″ × 65″ (2,540 × 1,397 × 1,651 mm)
Approx. Weight ≈ 6,500 lb (2,950 kg)
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
