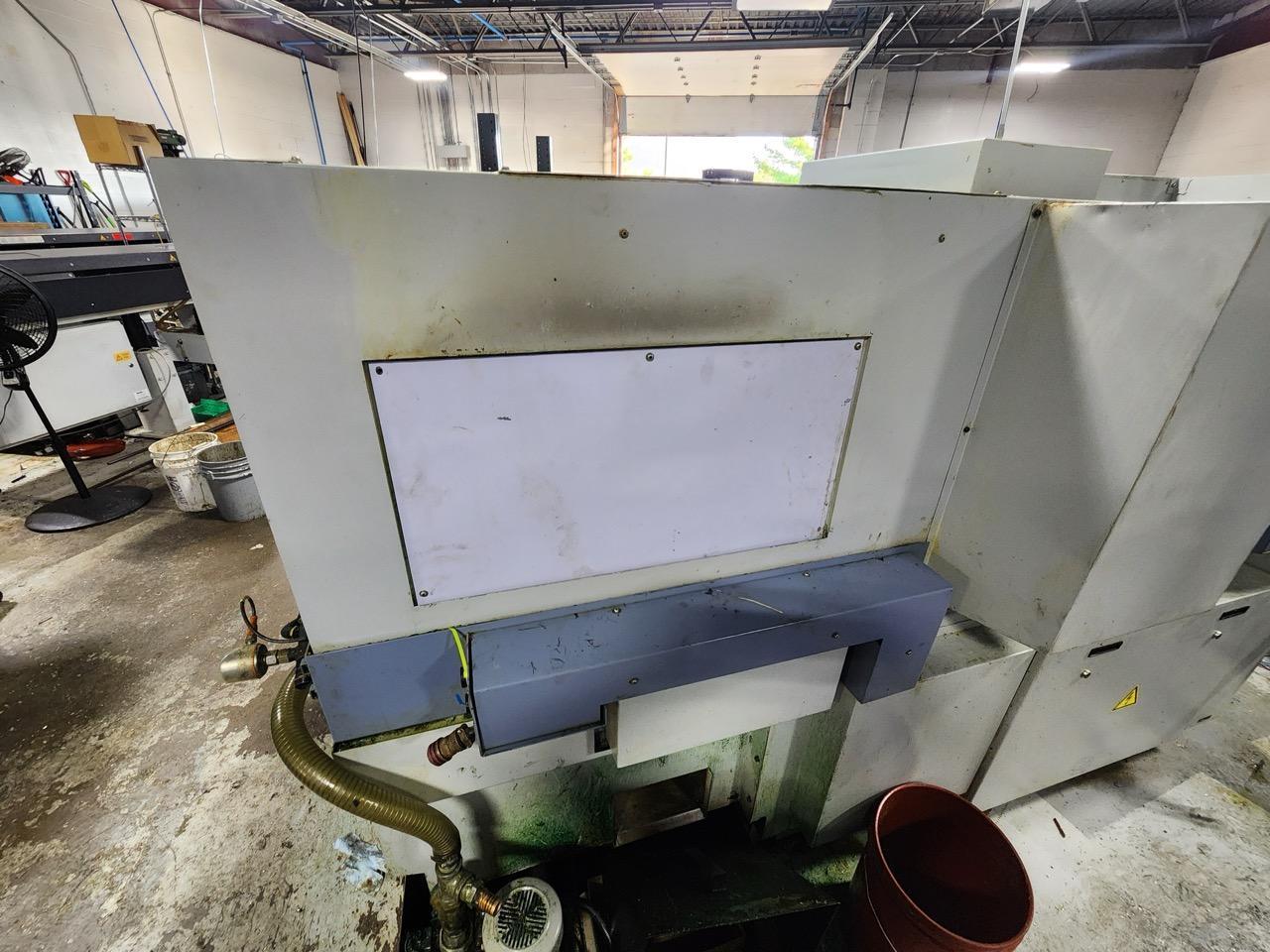

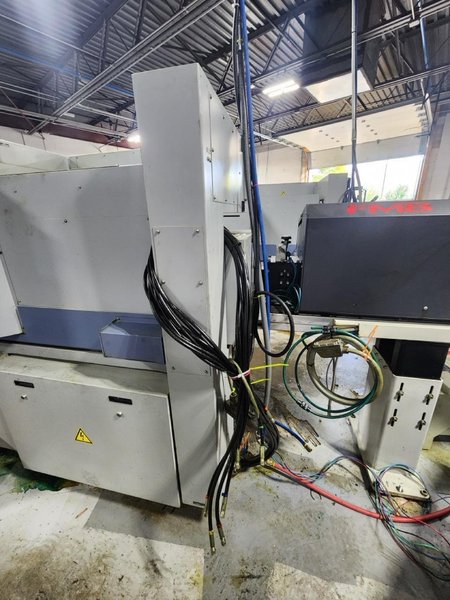

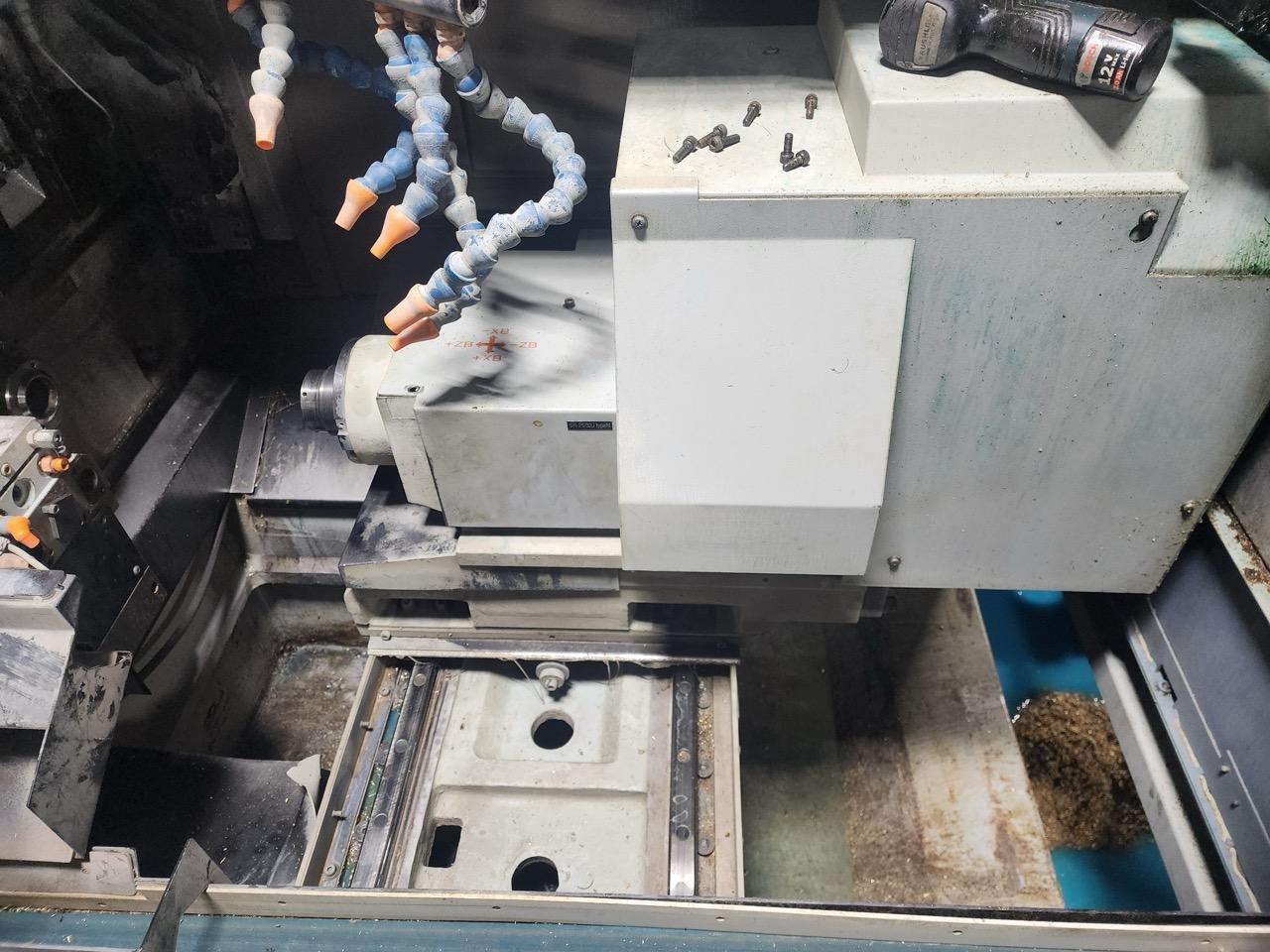

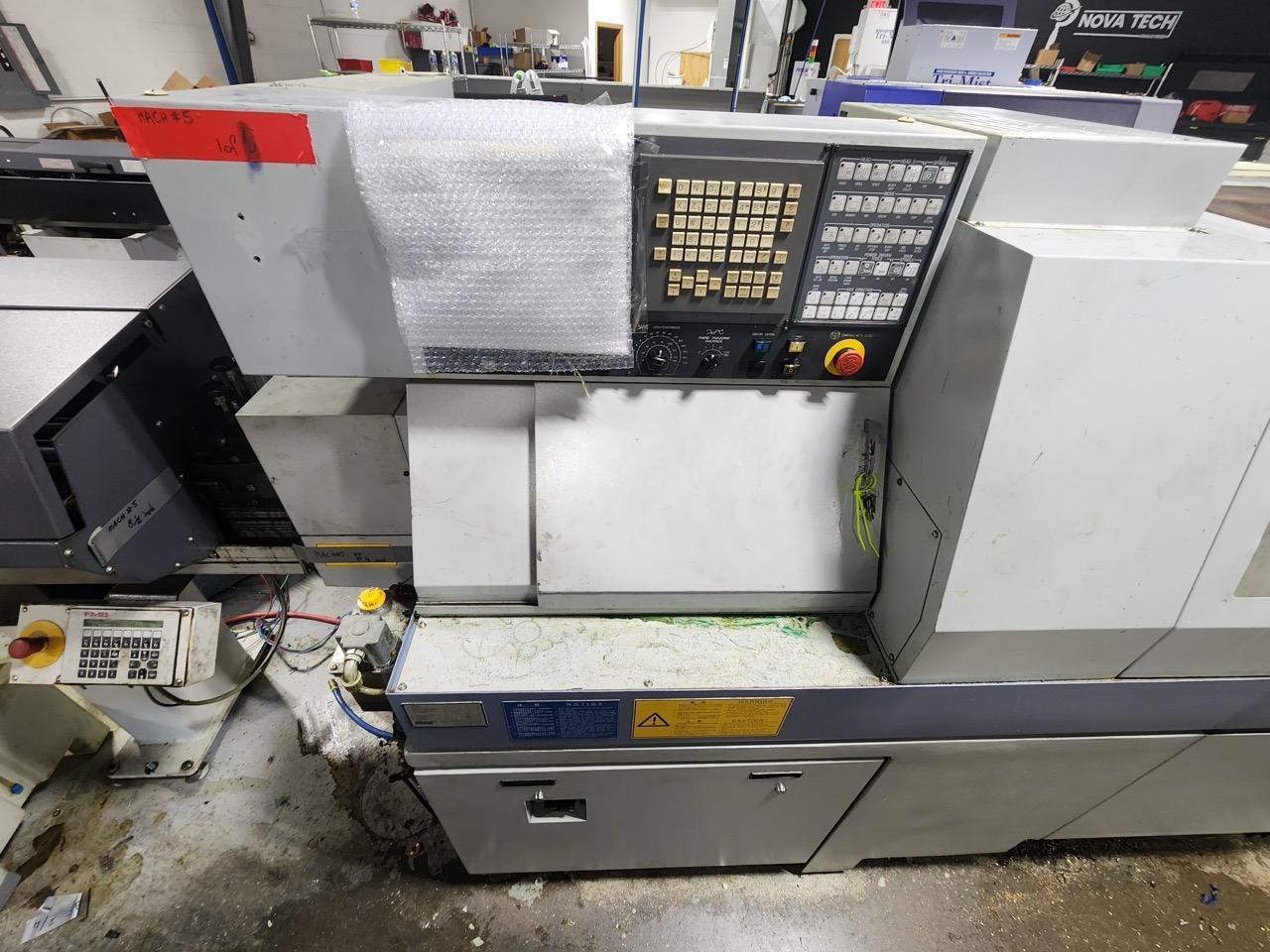

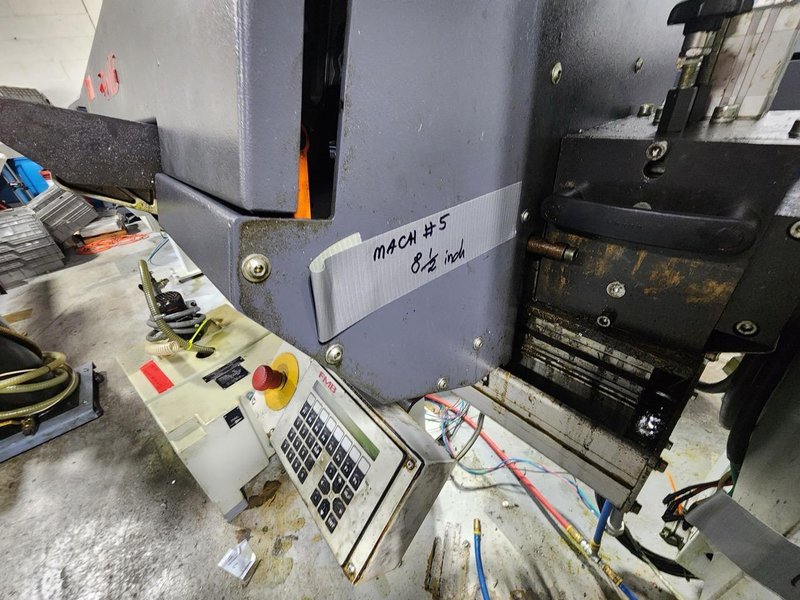

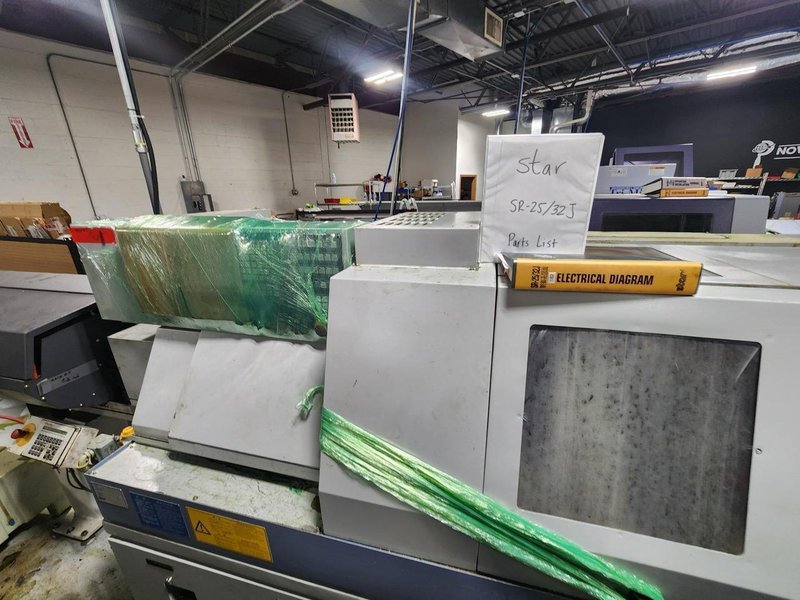

Star SR-32J CNC Swiss Lathe, 2010 – 32 mm Bar Capacity, 8-Axis Sliding Headstock, Fanuc Control

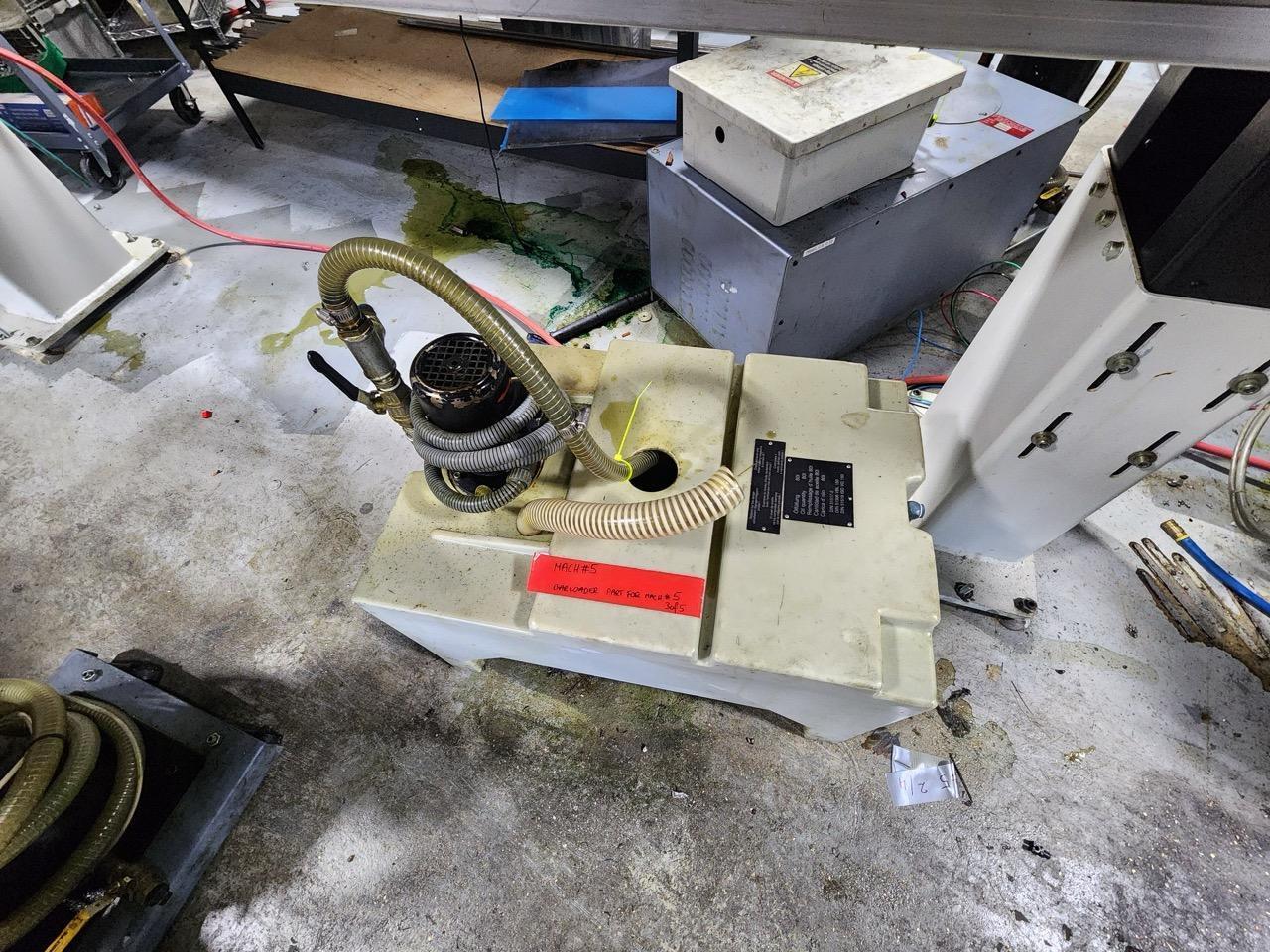

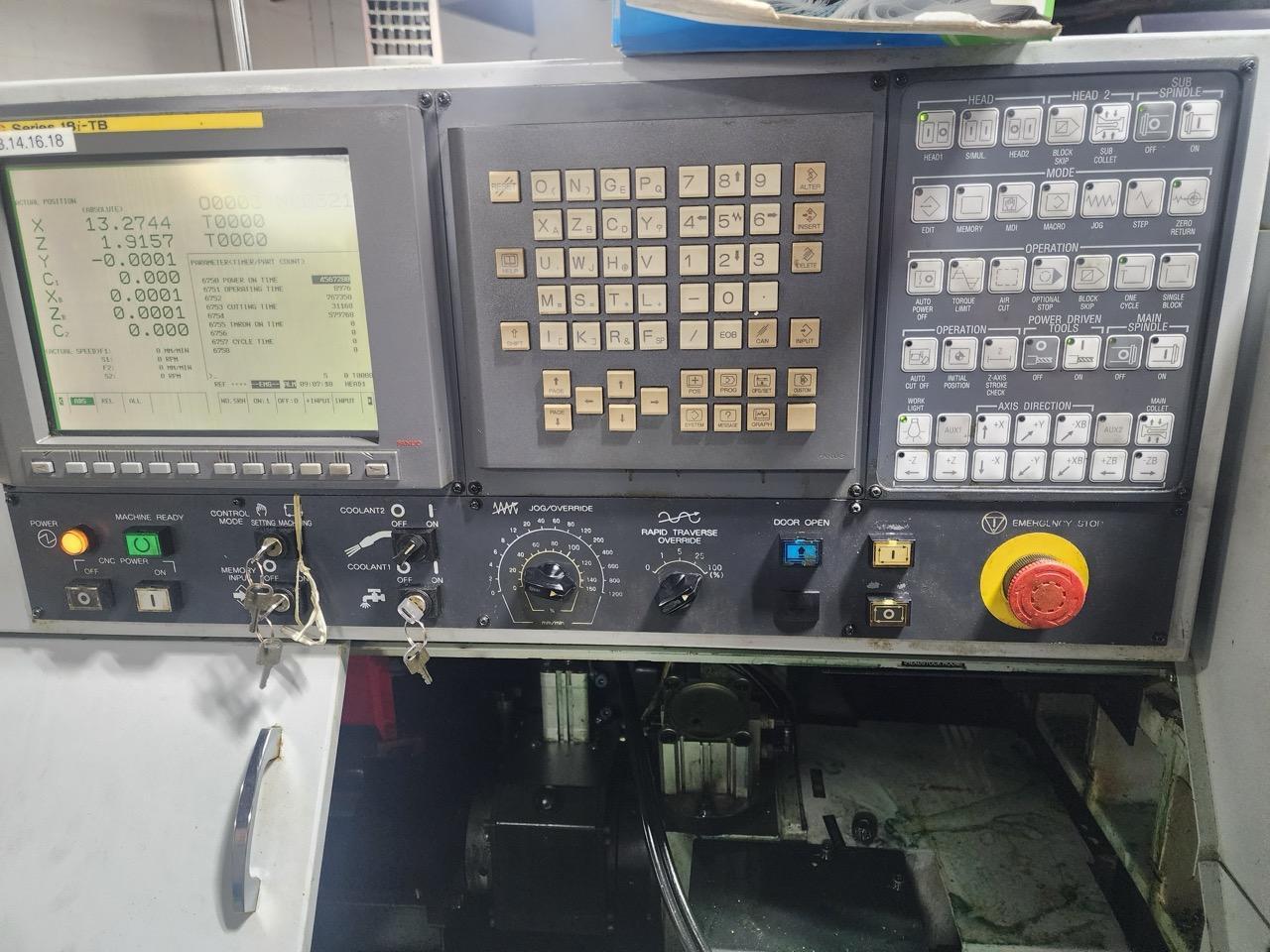

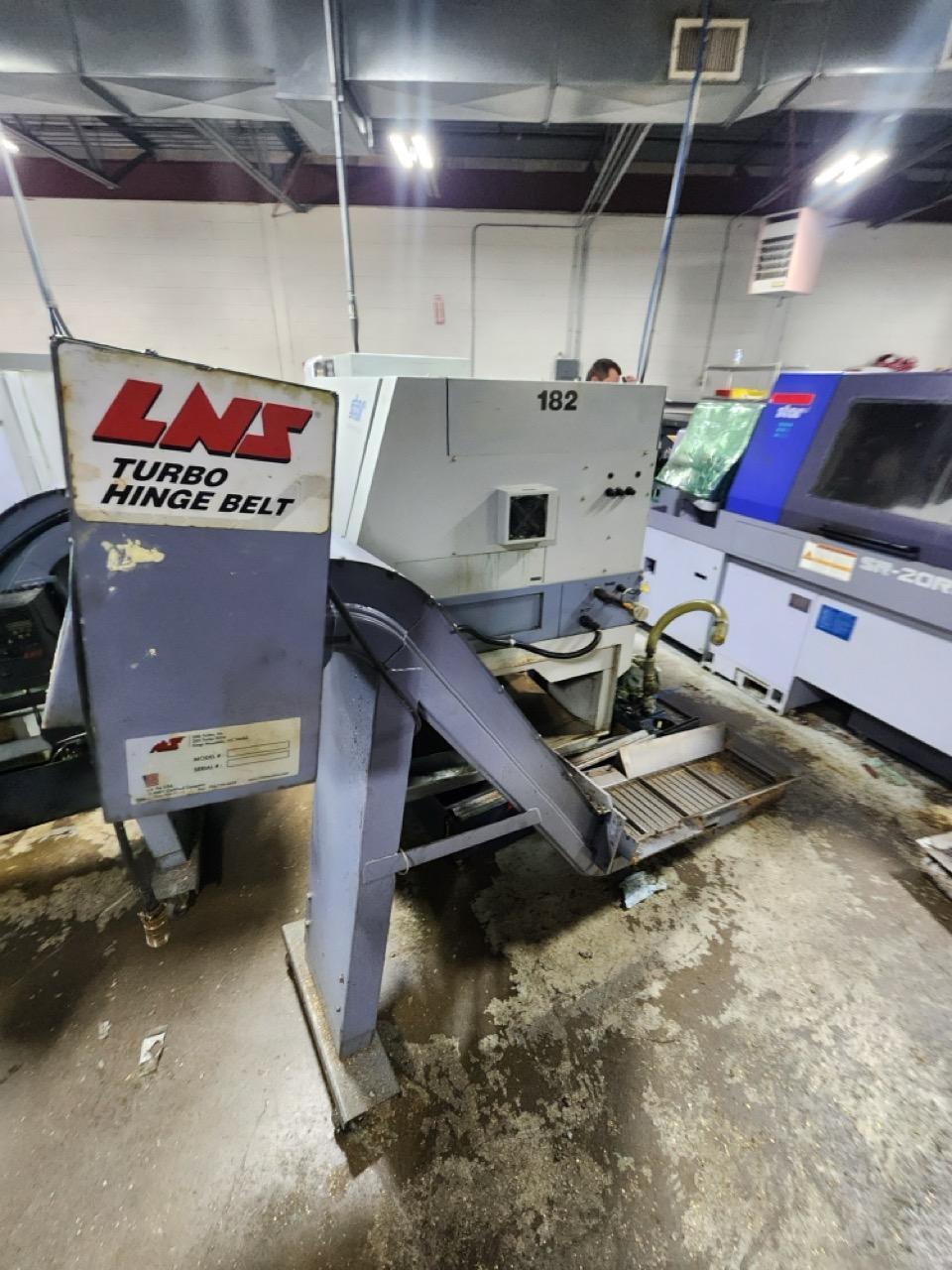

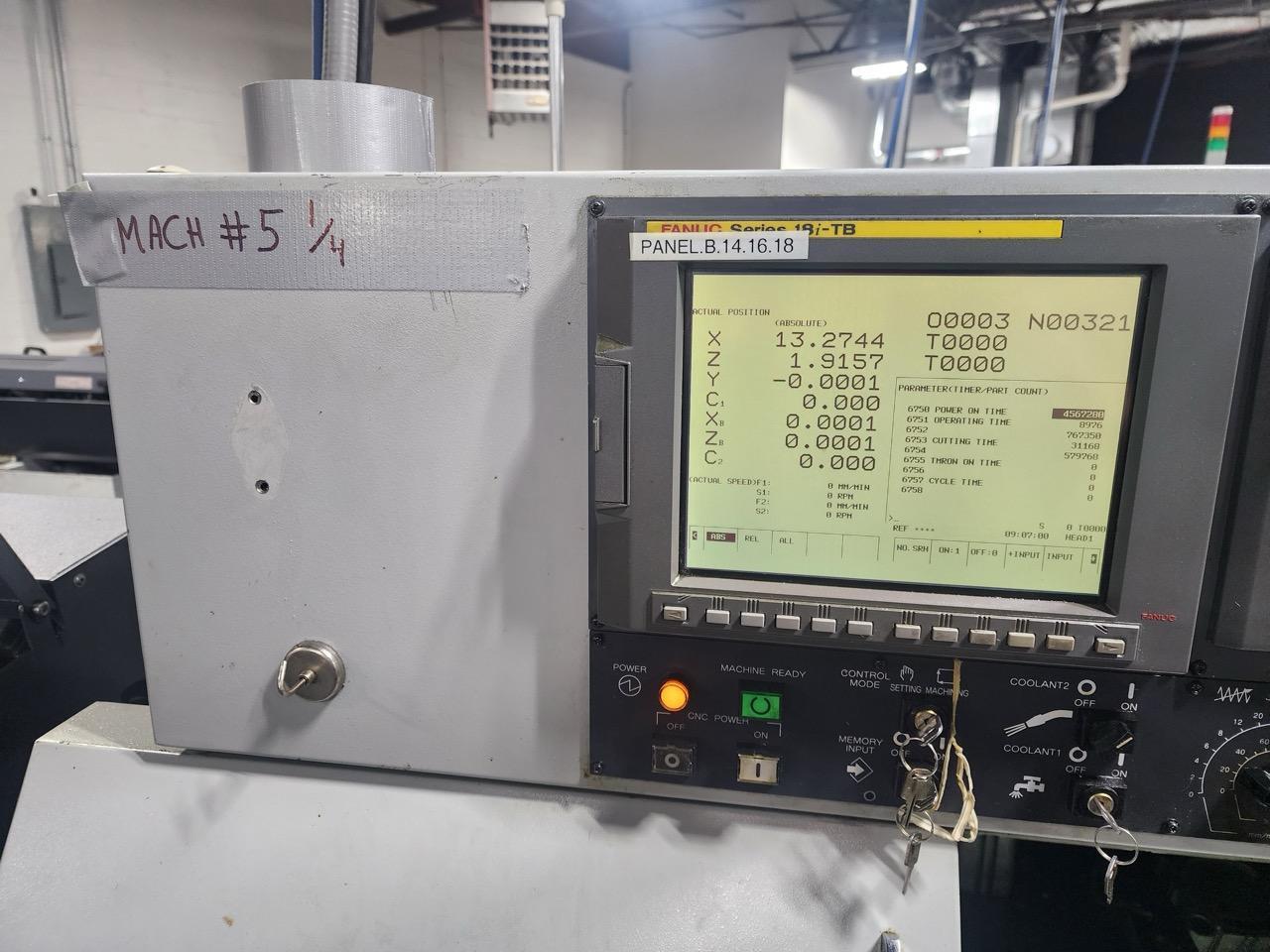

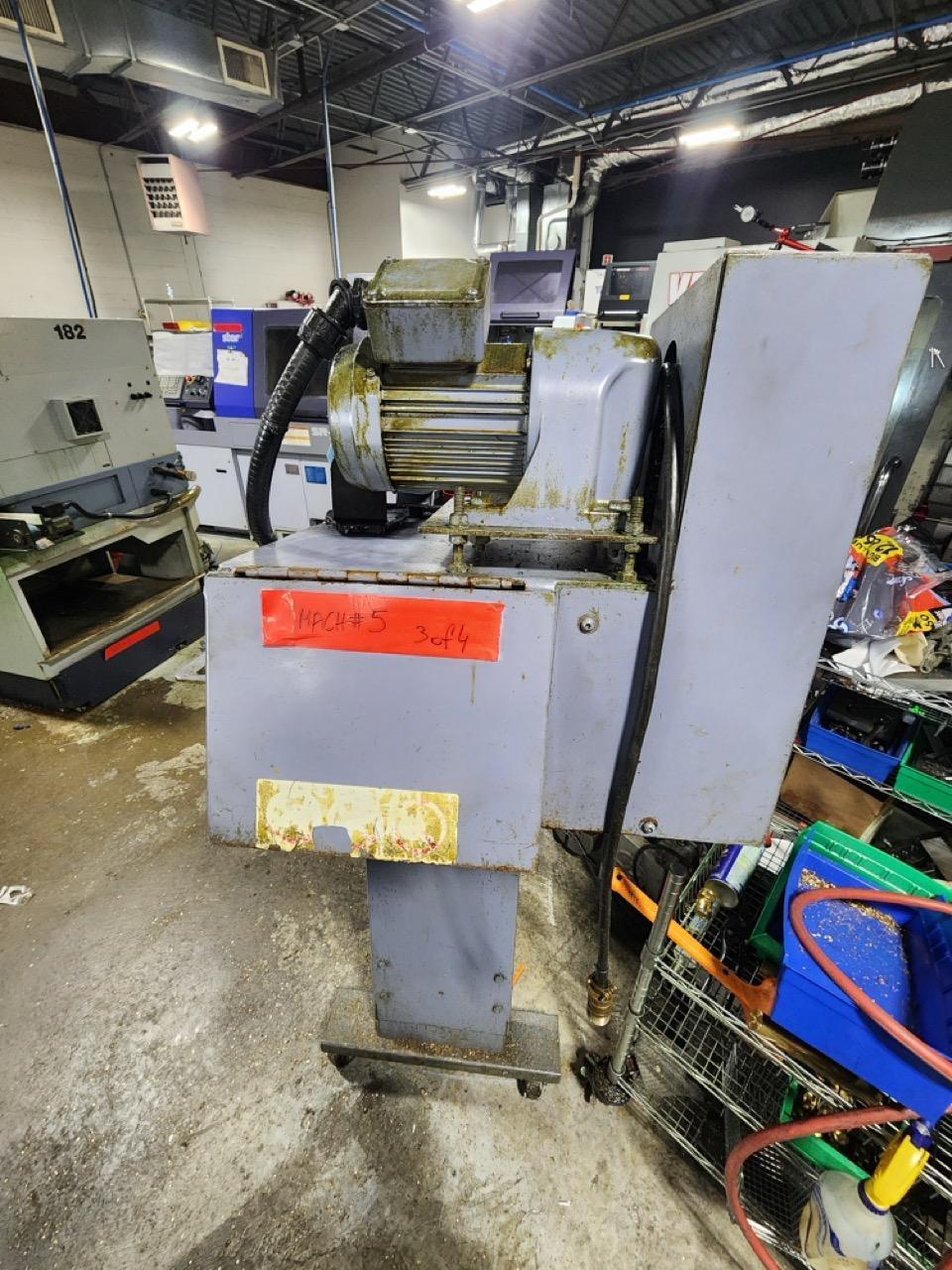

Manufacturer Star Micronics Co., Ltd. Model SR-32J Year 2010 Machine Type CNC Swiss-Type Automatic Lathe Control Fanuc CNC Control (typically Fanuc 18i-TB or 31i-A) Bar Capacity 1.26 in (32 mm) Max Machining Length (per chuck) 12.6 in (320 mm) Main Spindle Speed Up to 8,000 RPM Sub Spindle Speed Up to 8,000 RPM Number of Axes 8 (X1, Y1, Z1, C1 + X2, Z2, C2 + optional Y2) Main Spindle Motor 5.5 / 7.5 kW (7.5 / 10 HP) Sub Spindle Motor 3.7 kW (5 HP) Live Tool Speed Up to 5,000 RPM Cross-Drilling Stations 6 front + 4 rear live tools Back-Working Tools 8 stations (drilling, milling, tapping) Total Tool Capacity 28+ tools (depending on configuration) Coolant System Flood coolant / high-pressure coolant ready Bar Feeder Compatibility FMB Chip Conveyor – LNS Machine Dimensions (L × W × H) ≈ 100″ × 55″ × 65″ (2,540 × 1,397 × 1,651 mm) Weight ≈ 6,500 lb (2,950 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
