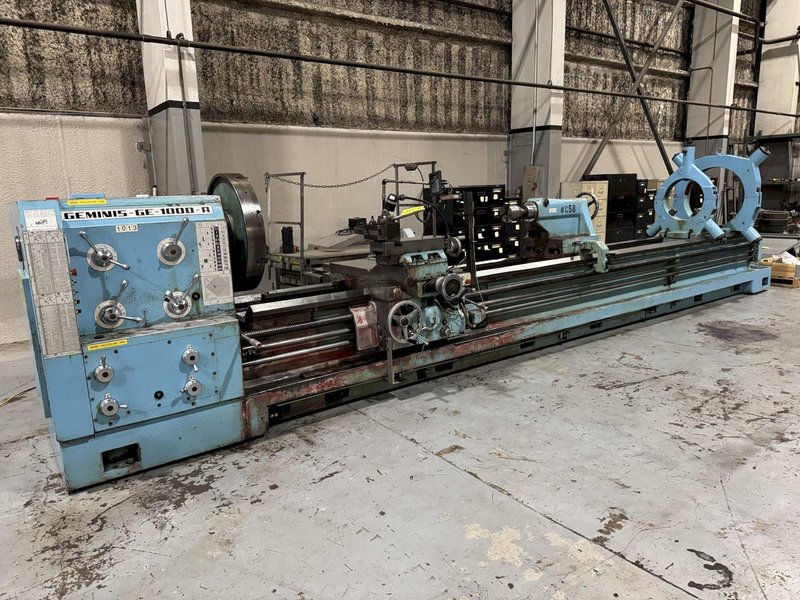

39" x 236" Geminis GE-1000A Gap Bed Engine Lathe

Name: 39" x 236" Geminis GE-1000A Gap Bed Engine Lathe
Brand: GEMINIS
SKU: TM395
Availability: PreOrder

Brand

GEMINIS

Illinois

Max Swing Over Bed	1000mm/39.3"
Max Swing Over Carriage	650mm/ 25.9"
Max Swing Over Gap	1300mm/51.18"

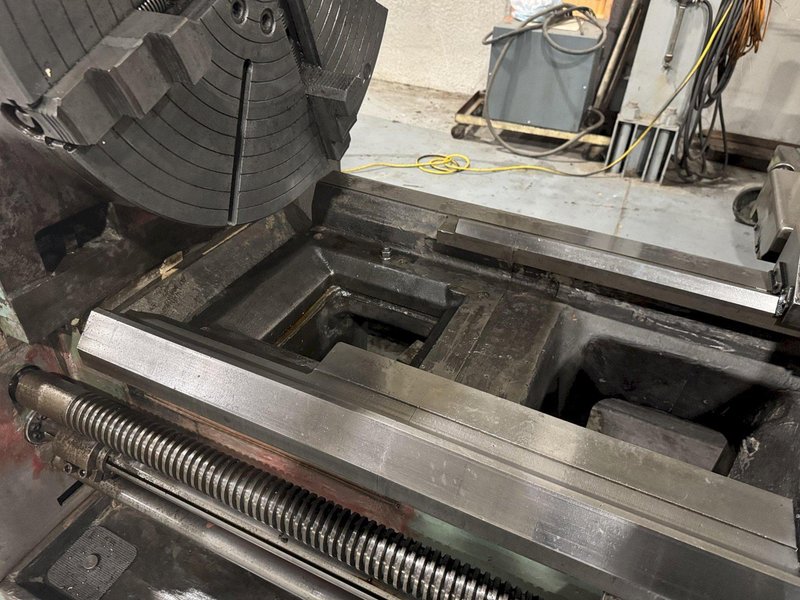

Length Of Gap	450mm/ 17.7"
Maximum Distance Between Centers	6000mm/ 236"
Main Spindle Bore	104mm/4.09"
Spindle Nose	A-11

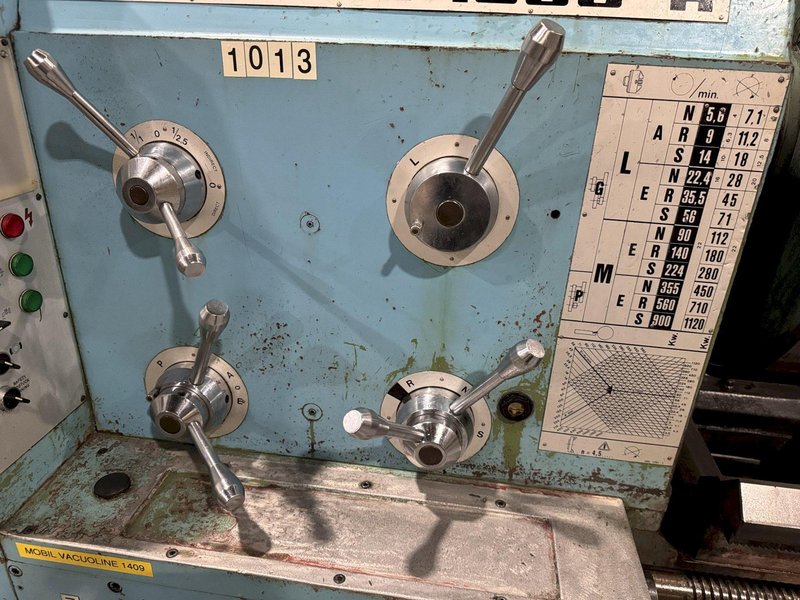

Spindle Speeds	5.6-1120 RPM

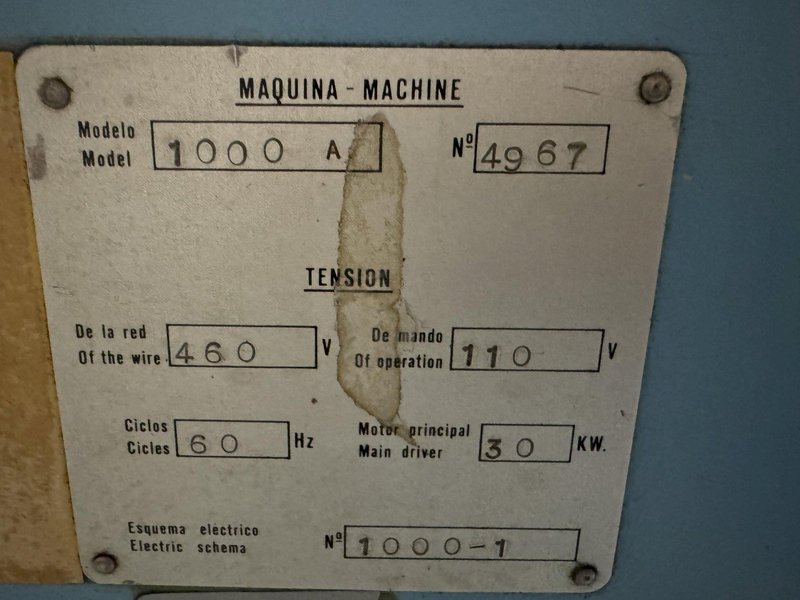

Main Motor	30KW/ 44 HP
Metric Threads (154)	0.4-600
Module Threads	1-150
Whitworth Threads	40- 3/32 TPI

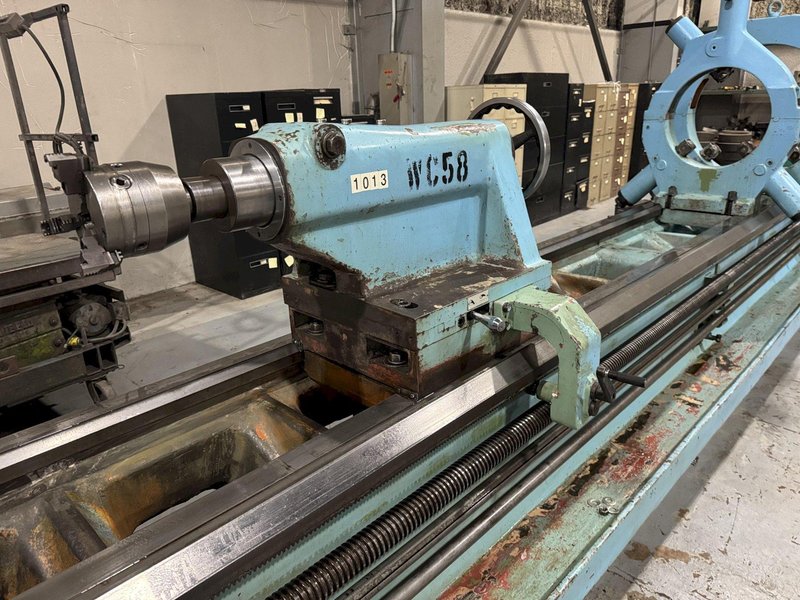

Tailstock Quill Diameter	140mm/ 5.51"
Travel Of Quill	300/11.8"

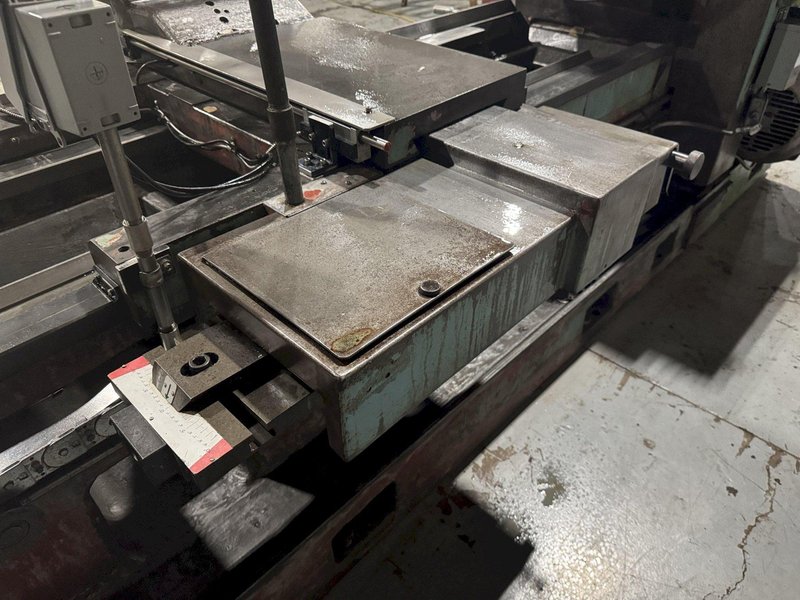

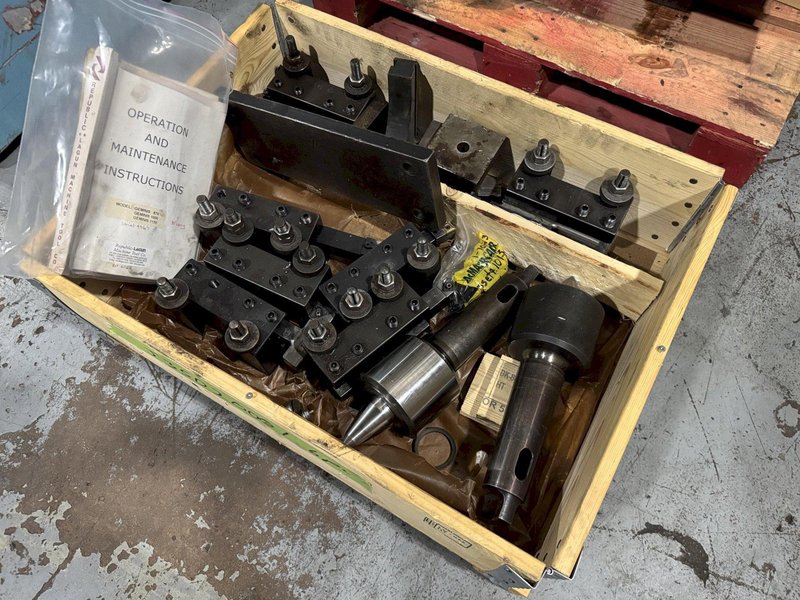

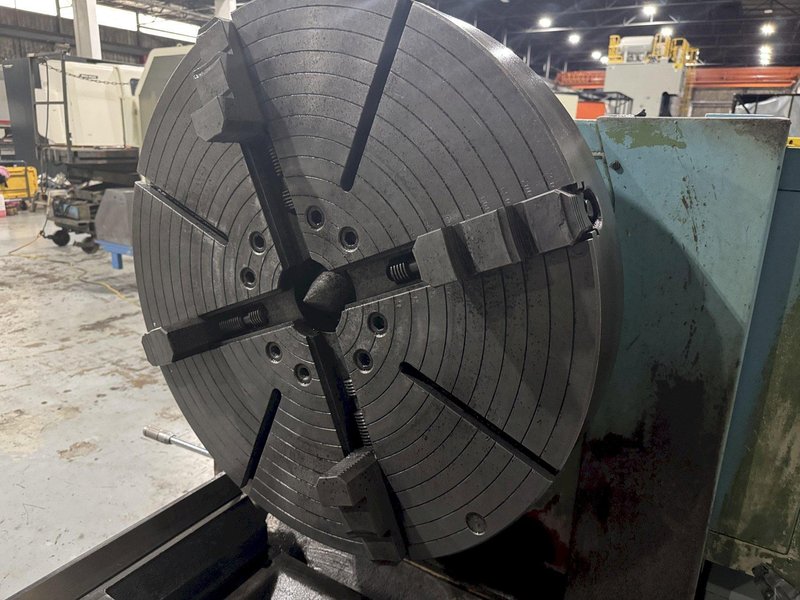

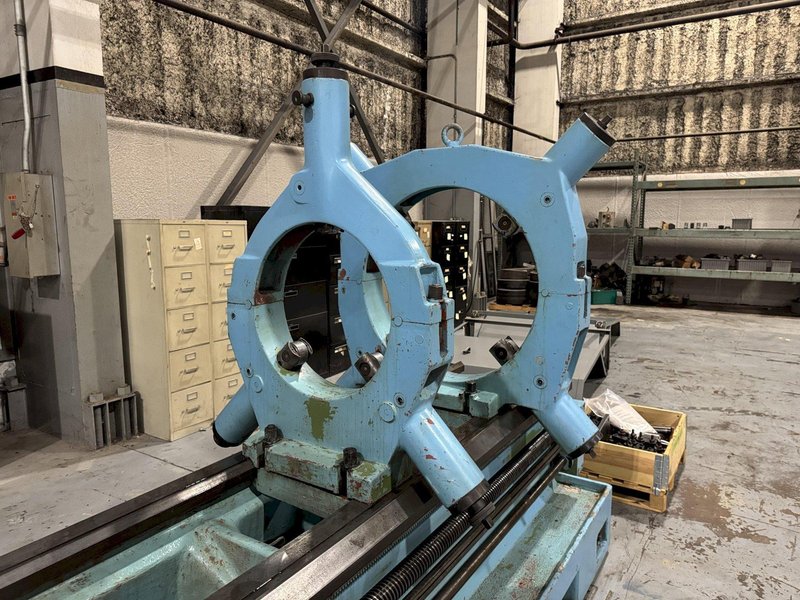

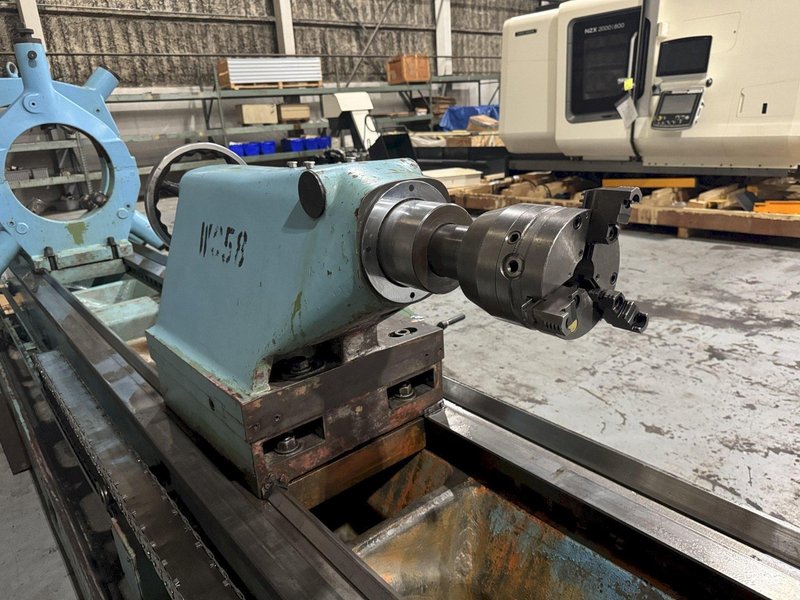

Equipped With: 31" 4 Jaw Independent Scroll Chuck and Center. In/mm Threading. Removable Gap. 4-Way Power Compound with Rapid Traverse. Square Tool Post with (6) InterchangeableTool Clamp bodies. Newall DP 700 2-Axis DRO. Taper Attachment. Tailstock with Handweel Quill Positioning, Locking Mechanism, (2) Live Centers. 6" 3-Jaw Chuck. 15" Capacity 3-Point Steady Rest. 24" Capacity 4-Point Steady Rest. (2) 24" Custom Fabricated 4-Point Steady Rest. Coolant Pan. Rolling Chip Guards. Work Light. Levelling Pad. Operators and Parts Manual.
