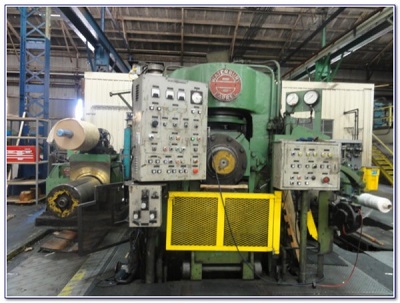

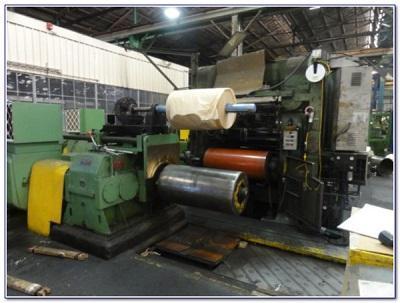

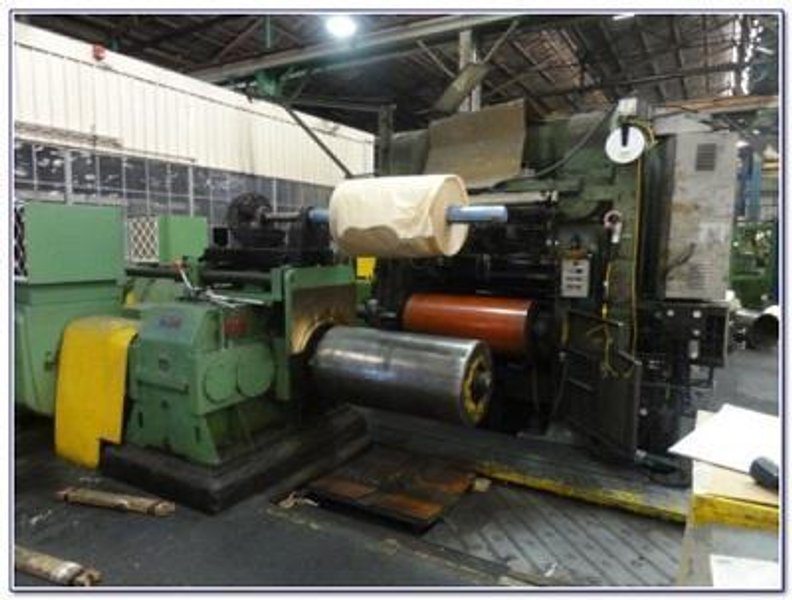

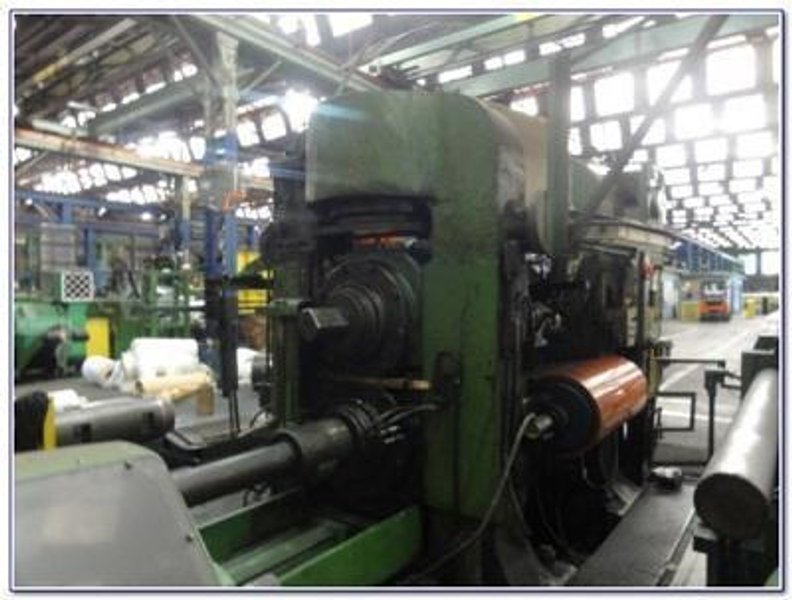

37" WATERBURY FARREL 2 HI SKIN PASS MILL

Brand
WATERBURY FARREL
Category
Roll Formers & Rolling Mills
Type
Rolling Mills, 2-HI
Model
Not specified
Stock #
113265
Year
1969
Condition
Not specified
Location
Not specified
YEAR:   1969

SPECIFICATIONS
MILL SECTION:   2 HI
MILL TYPE:   NON REVERSING
MATERIAL:   STAINLESS STEEL, CARBON STEEL

STRIP WIDTH DATA
MAXIMUM:  37IN/939.802MM
MINIMUM:  14IN/355.601MM
ENTRY GAUGE MAXIMUM:  0.125IN/3.175MM
EXIT GAUGE MINIMUM:  0.008IN/0.203MM
MAXIMUM COIL SIZE (WINDER) O.D.:  48IN/1219.202MM
COIL SIZE (WINDER) I.D.:  20IN/508.001MM
MAXIMUM COIL WEIGHT:
ABSOLUTE COIL WEIGHT:  14,200LBS/6441.077747KG

MILL DATA/
MILL SPEED (MAX):  500FPM/152.40MPM
MILL SPEED (MIN):  250FPM/76.20MPM

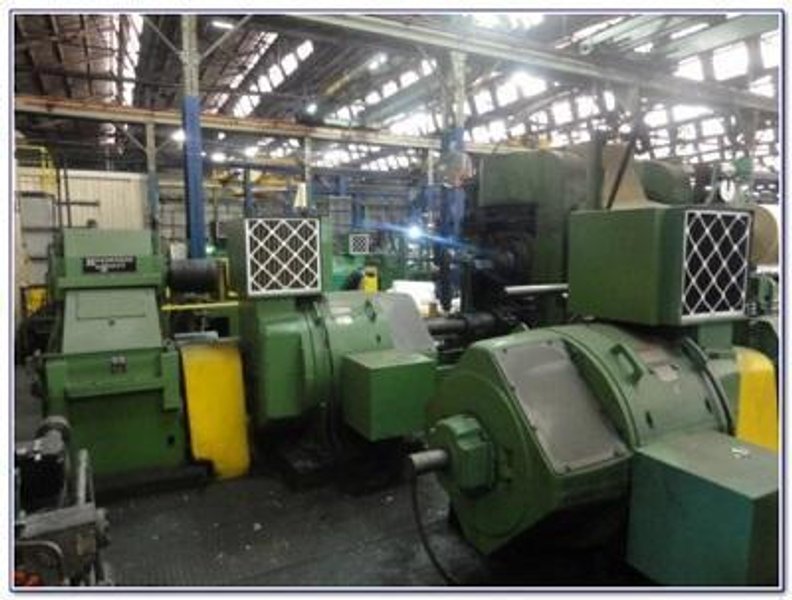

MILL POWER, MAIN MOTOR:  250HP/186.424968KW
650/1300 RPM, WATER COOLED, EDDY CURRENT CLUTCH
44O VOLT, 3PH, 60 CYC
PINION STAND RATIO16.8 : 12 SPEED

MILL ROLLS
WORK ROLL NOMINAL DIAMETER:  25IN/635.00127MM
BACK UP ROLL DIAMETER42IN/1066.802134MM
MILL BEARINGS , ROLLER TYPE/

WINDERS
WINDER POWER:  150HP/111.8549808KW
WATER COOLED, EDDY CURRENT CLUTCH
440 VOLT, 3 PH, 60 CYC

WINDER MANDREL:
DIAMETER:  20IN/508.001016MM
FACE:  42IN/1066.802134MM
MANDREL TYPE:  EXPANDABLE, 19.687" CLOSED

WINDER TENSION:
MAXIMUM:  15,000LBS/6803.955366KG
INTERMEDIATE  TO 650 FPM:  LBS/0KG
MINIMUM:  9,900LBS/4490.610542KG
GEAR REDUCER RATIO15.22 : 1

PAYOFF
POWER:  3HP, AC/2.237099616KW
TENSION:  8,332LBS/3779.370407KG
SPEED:  500FPM
MANDREL DIAMETER:  17.5IN/444.5MM
NOMINAL:  21.521.5IN/546.1MM
(WITH FILLERS):  25.0IN/635.0MM
WATER COOLED  BRAKE, MANUAL EDGE CONTROL

COOLANT -FILTER SYSTEM:
MILL DIRECTION:  RIGHT TO LEFT

LINE CONFIGURATION
COIL CAR:  FIXED, HYDRAULIC LIFT
PAYOFF REEL:  PAPER WINDER
ENTRY BRIDGE TABLE: HYDRAULIC OPERATION
SENSING HEADS

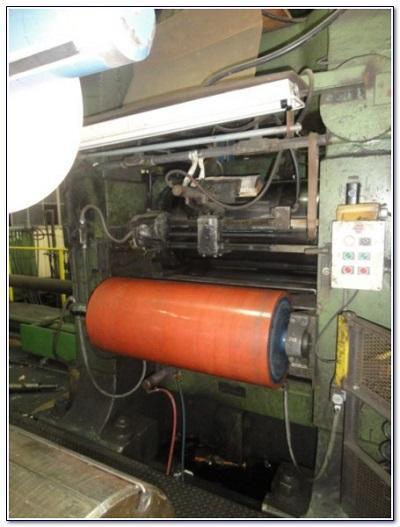

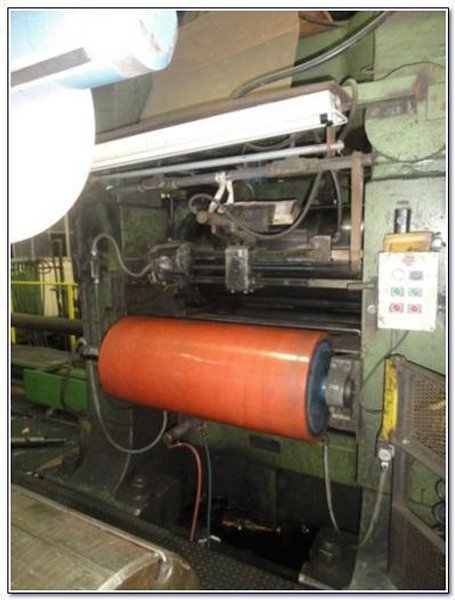

DEFLECTOR ROLL:
MAIN MILL FRAME:  (2) 20" DIA HYDRAULIC CYLINDER LOAD/ADJUSTMENT
ROLL POLISHING TOP AND BOTTOM
ROLL CHANGE SLED
DEFLECTOR ROLLPIVOTING FOR LOAD CELL
WINDER (LEFT):
COIL CAR:  HYDRAULIC LIFT

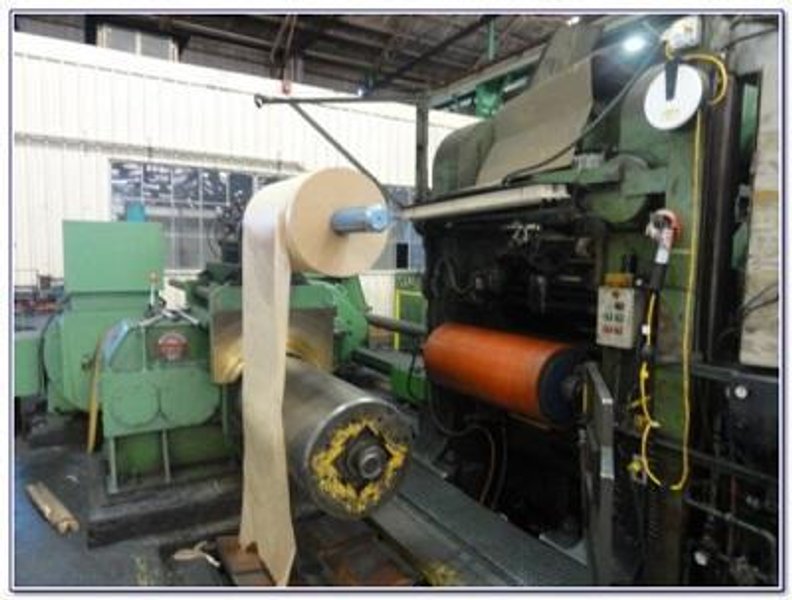

PAPER WINDER
MOTOR DRIVE CONTROLS:

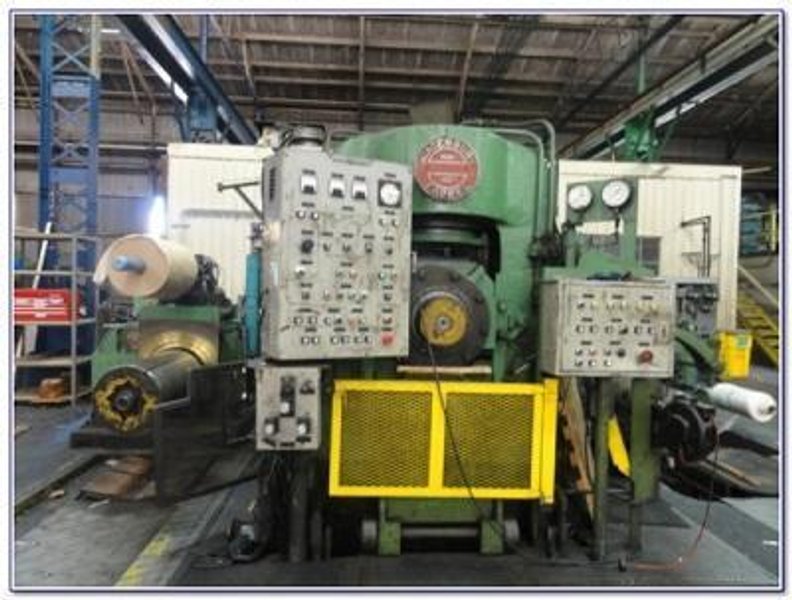

OPERATOR CONTROL CONSOLE
OVERALL FLOOR DIMENSIONS, (L-R / F-B):  26 FT X 33 FT

CLICK ON THE FOLLOWING LINK TO WATCH A VIDEO OF THE MACHINE

Watch https://youtu.be/Ss0ceKzuhKA
