Four-lane carbide knife cutting with ±0.1mm accuracy and <20μm burr specification
Wheel-type knife system with AC reversible motor drive and fixed block configuration
EPC system with speed control motor for electrode positioning and tracking

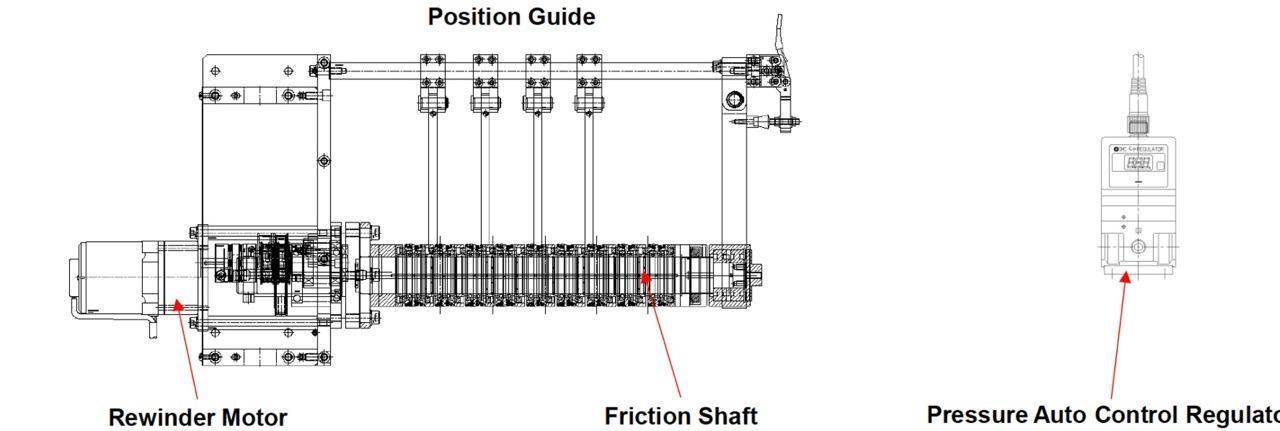

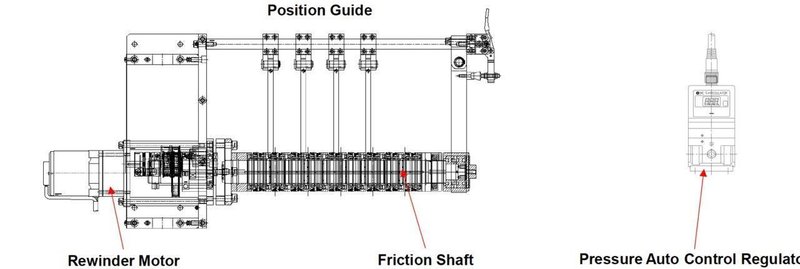

Dual friction shaft rewinders with automated pressure regulation and position guides
Photo sensor monitoring for foil break detection across all four lanes
Mitsubishi PLC control with Proface 7″ touchscreen interface
350mm maximum foil width with 5 m/min processing speed capability
System includes integrated unwinder with 3″ air shaft and automated tension control.
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additional Documentation (NDA Required) Detailed Process Specifications Key Technical Specifications Maximum Foil Width 350 mm Machine Speed 5 m/min maximum Slitting Lanes 4 lanes Slitting Accuracy ±0.1 mm Burr Specification <20 μm Position Accuracy ±0.1 mm Maximum Spool Size Ø300 mm Knife Material Carbide Knife Configuration Fixed Block Type Tension Control Powder clutch & dancer roll Unwinder Shaft 3″ air shaft Rewinder Shafts 3″ friction shaft (2 sets) All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
