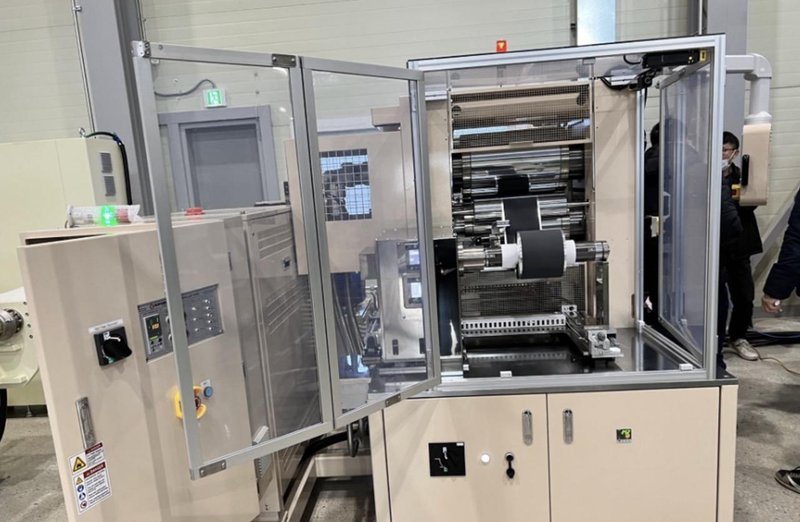

KGA Dual Calender System, Hot Roll- OEM NEW!
Brand
Category
Model
DCS
Stock #
950165
Year
2025
Condition
Not specified
Location
Not specified
|
Technical Specifications
Overall Dimensions: 1,850 × 1,800 × 2,000 mm
Equipment Weight: 5 tons
Maximum Web Width: 400 mm
Roll Diameter: Ø300 mm
Line Pressure: 2.0 ton/cm
Maximum Temperature: 150°C (hot roll)
Machine Speed: 10 m/min maximum
Working Speed: 2-10 m/min
Thickness Deviation: ±1.5 μm
Power Consumption: 40 kW maximum
Roll Straightness: ±0.002
Surface Roughness: RA 0.1
Power Requirements: AC 380V, 3-phase, 50Hz
Compressed Air: 0.5 MPa required
Core Size & Weight: 3″ maximum, W500mm & Ø500mm, 120kg limit
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
