Elumatec SBZ-140 4-Axis Machining Center, 2014 – 9.7 Meter Bed Length, Low Hours

Max Machining length with Profile end Machining: 31′ (9.7 Meter) Traverse Path X-axis: 31′ (9,820 mm) Traverse Path Y-axis: 33″ (845 mm) Traverse Path Z-axis 24″ (620 mm) A-axis Pivoting range: -90 0 +90 degree Spindle Speed: Max. 24,000 RPM Direction of Machining: Top, Front, Rear, Left/Right Positioning Accuracy: .004″ (.1 mm) Tool Holder: HSK-63F Tool Changing: 8 tools Dimensions approx: 44′ L X 11’W X 9’H Approx. Weight: 18,000 lbs.

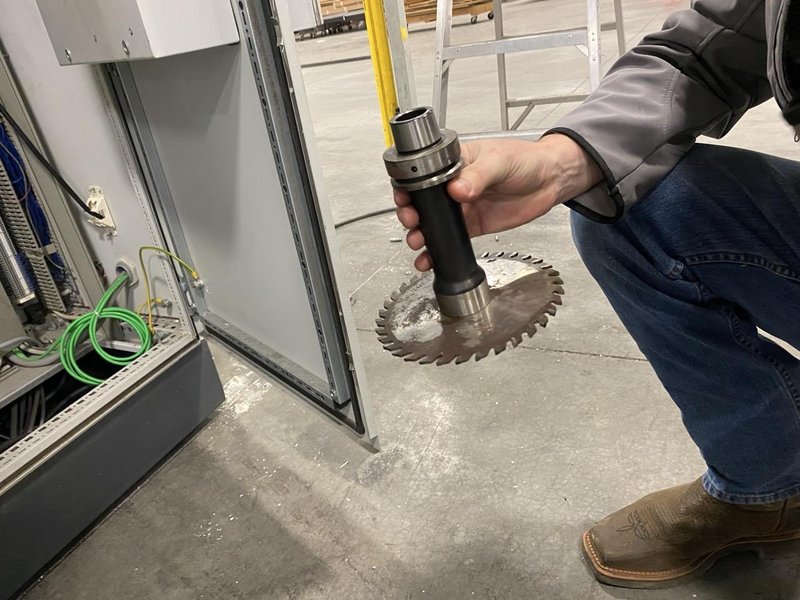

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: 4-axis controller 18.5″ colour display, USB ports and network connection Windows operating system eluCam Saw blade attachment for notching *videos available

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
