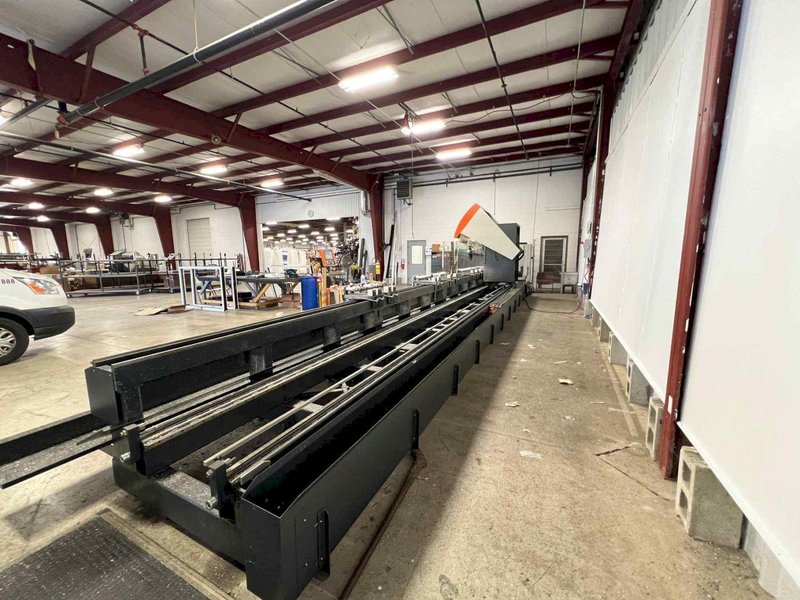

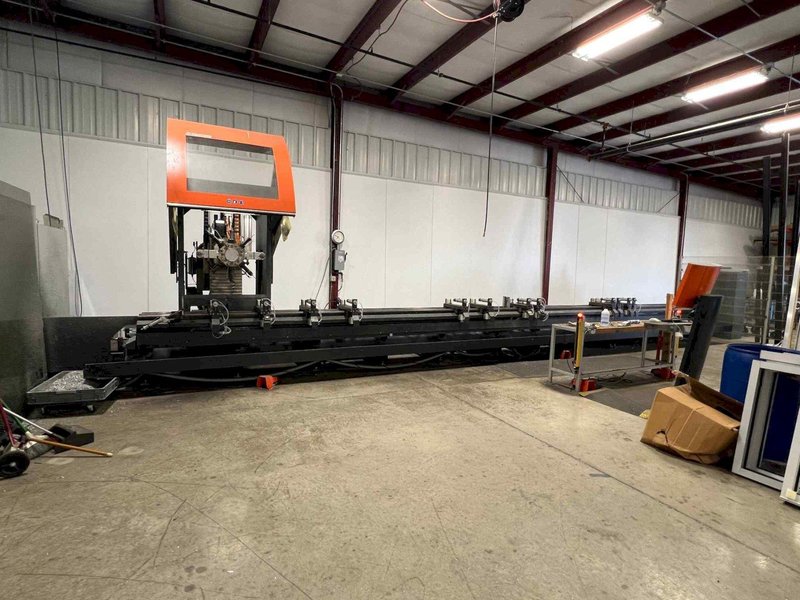

Elumatec SBZ130 Profile Machining Center, 2013

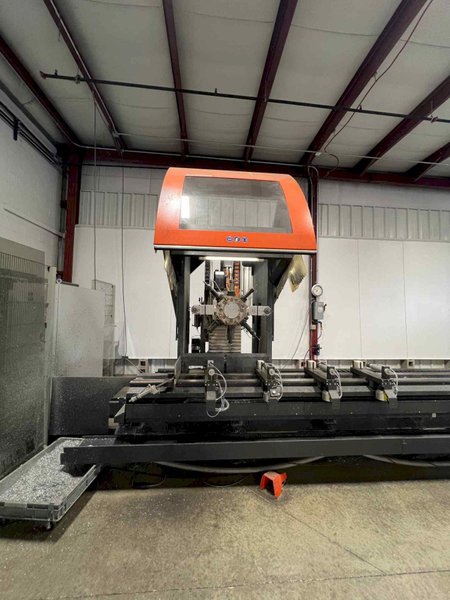

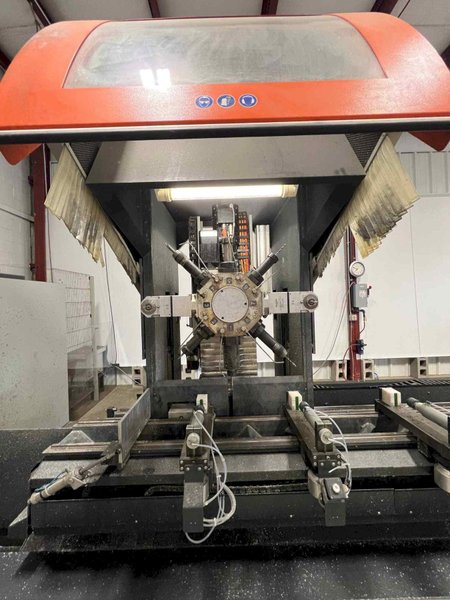

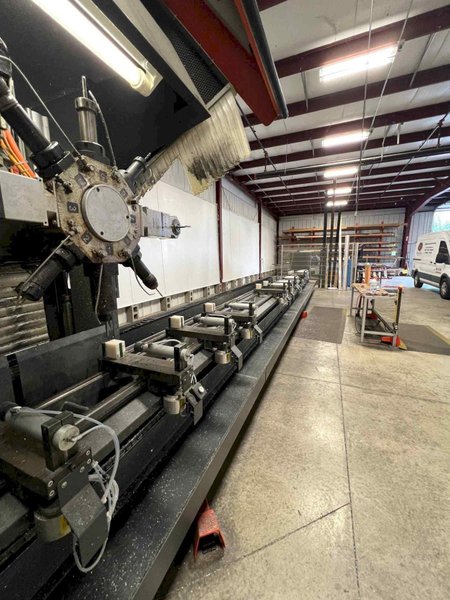

3-axis profile machining centre Designed for economical and efficient machining of aluminium, steel and stainless steel profiles All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces The on-board turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles The turret head can be equipped with eight tools or four angle routing heads Automatic clamp positioning enables the machine to position the material clamps

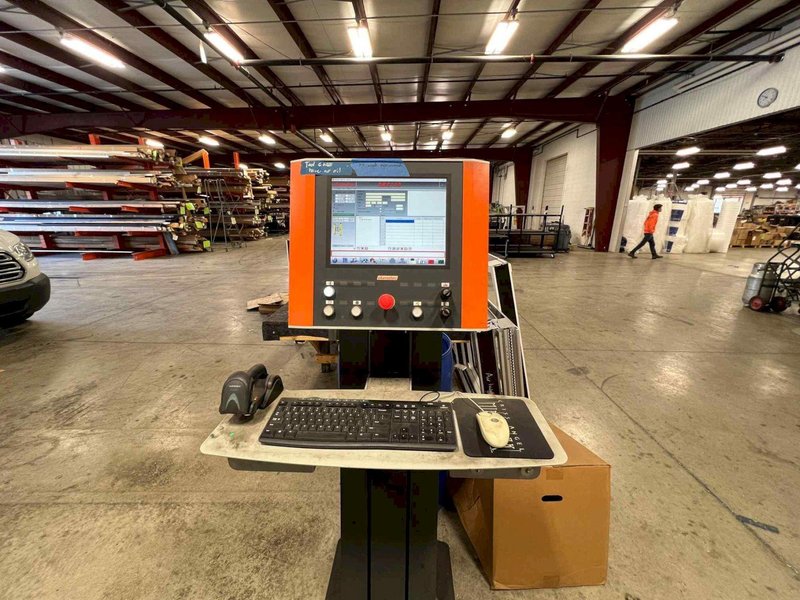

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,3-axis controller The tool spindle is designed as an additional axis Angle heads for lateral and profile end machining 18.5″ panel PC, USB ports and network connection Windows operating system eluCam Machining lengths

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SBZ 130 – 10.2 m Max. machining length with profile end machining, 10,080 mm Max. machining length without profile end machining, 10,200 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
