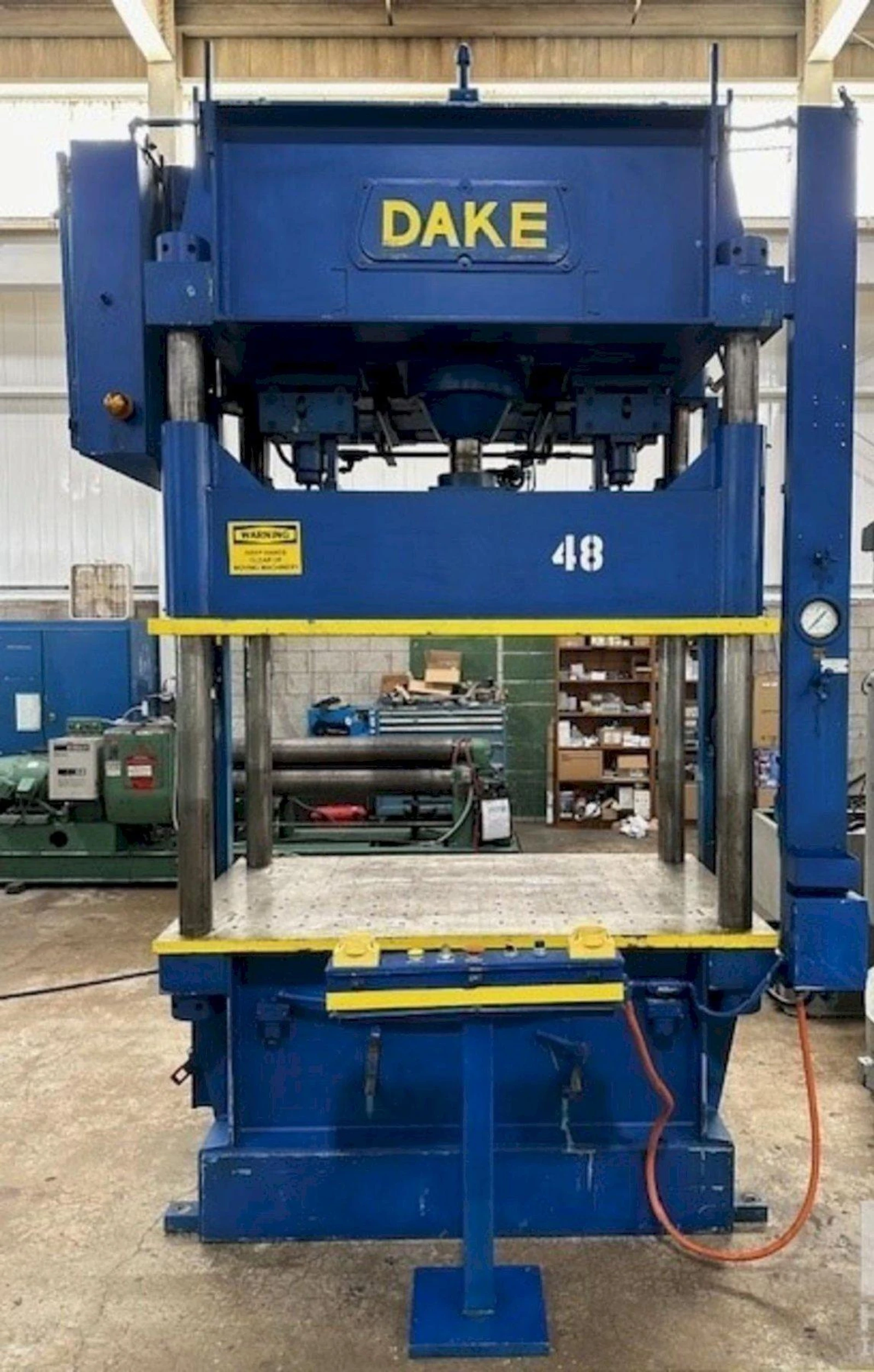

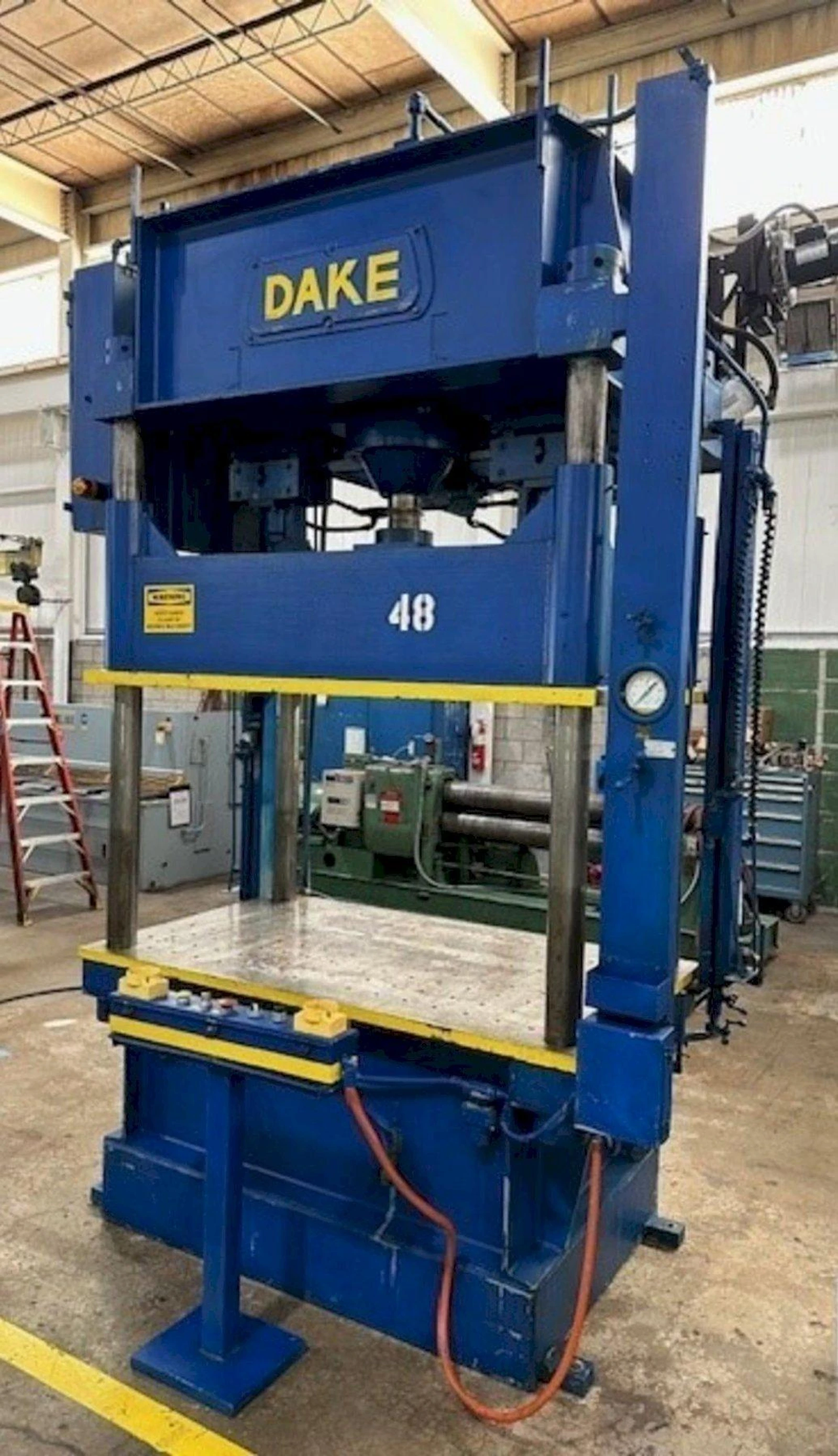

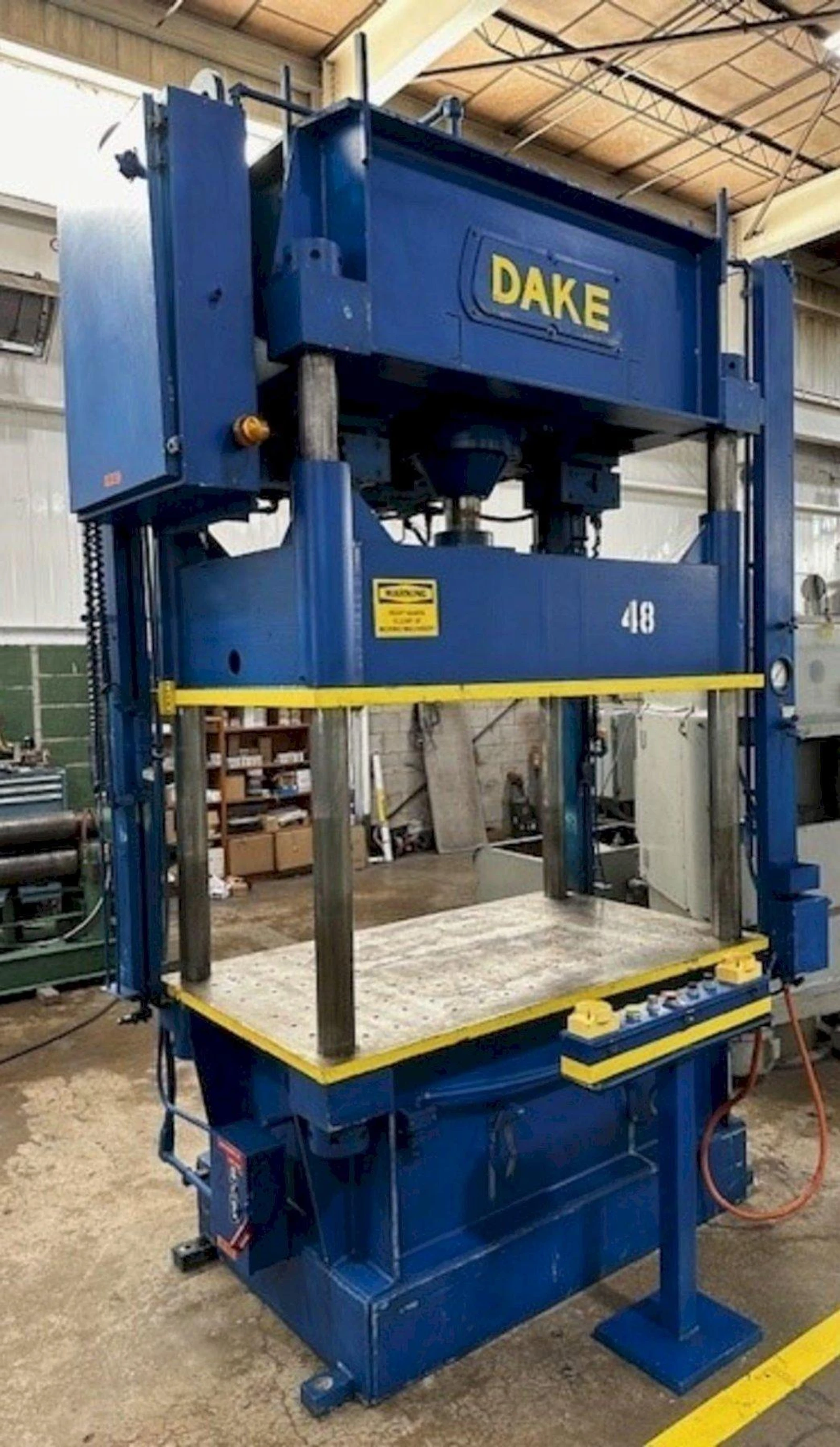

75 TON DAKE MODEL #18-558 HYDRAULIC 4-POST PRESS, 23" STROKE: YOBRO #24084

Name: Used DAKE 18-558 For Sale 24084
Brand: DAKE
SKU: 24084
Availability: PreOrder

Brand

DAKE

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Serial no. 178704
Model 18-558
4 post downstroke type; floor standing
Distance between 4" diameter posts: 60" L-R x 30" F-B
Area of bed (nominal): 60" L-R x 42" F-B
Overall dimensions of bed: 72" L-R x 42" F-B
Area of slide (nominal): 60" L-R x 42" F-B
Overall dimensions of slide: 72" L-R x 42" F-B
Stroke of fully guided slide: 0 - 23" maximum
Daylight opening (total): 36" maximum
Main ram diameter: 6"/4.75" @ 5300 PSI - 75 tons
Floor to top of bed: 36"
Power unit (top rear of press): (2) hydraulic pumps, both driven by 15 HP 1755 RPM 230/460/3/60 motor

Speeds approx.:
150"/minute closing
30"/minute pressing to 75 tons
400"/minute return

Controls:
Pushbutton operation w/stroke & pressure control
Dual touch palm buttons
Selector switch for manual or semi- automatic operation
Safety slide lock Pressure gauge
