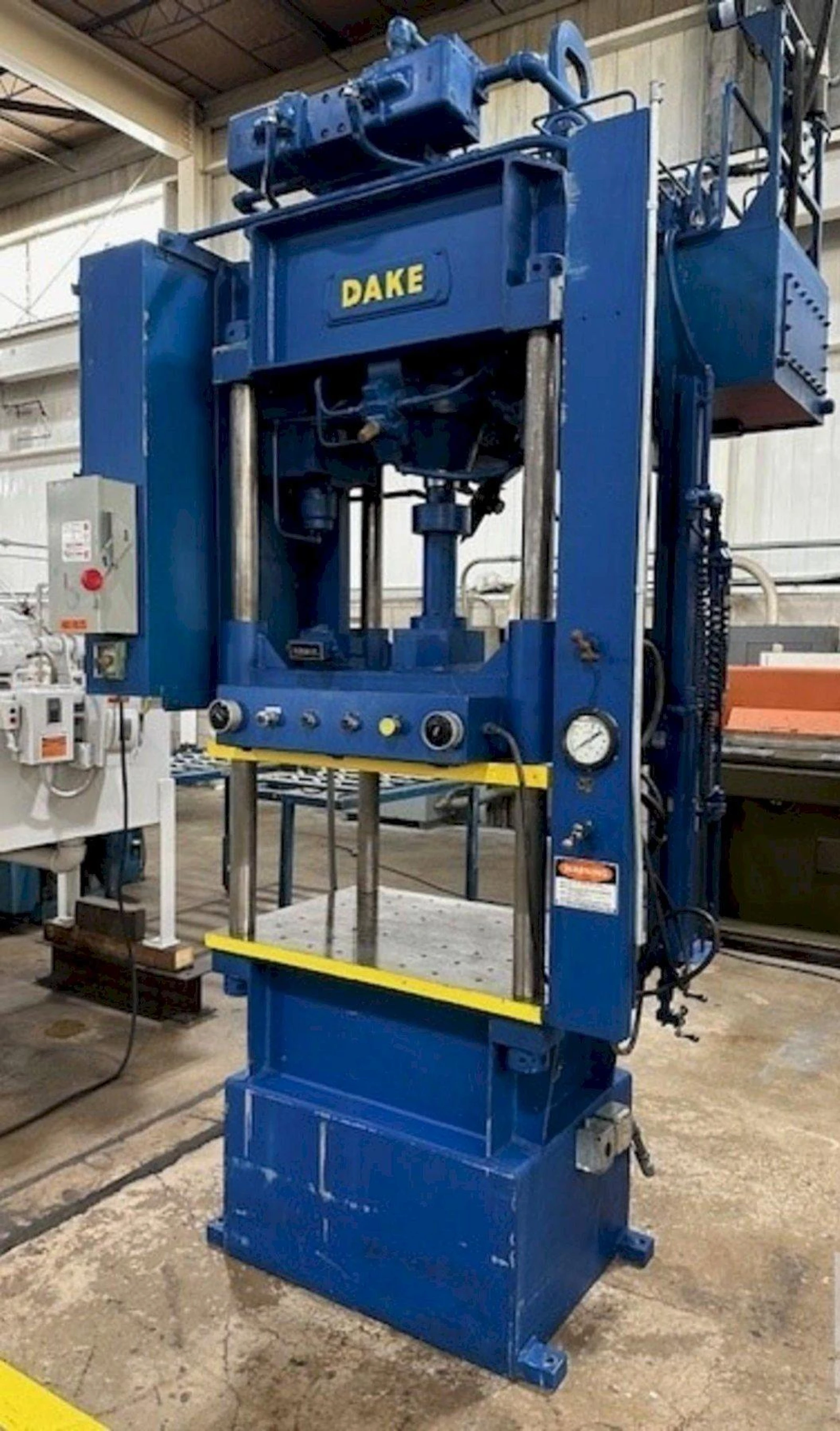

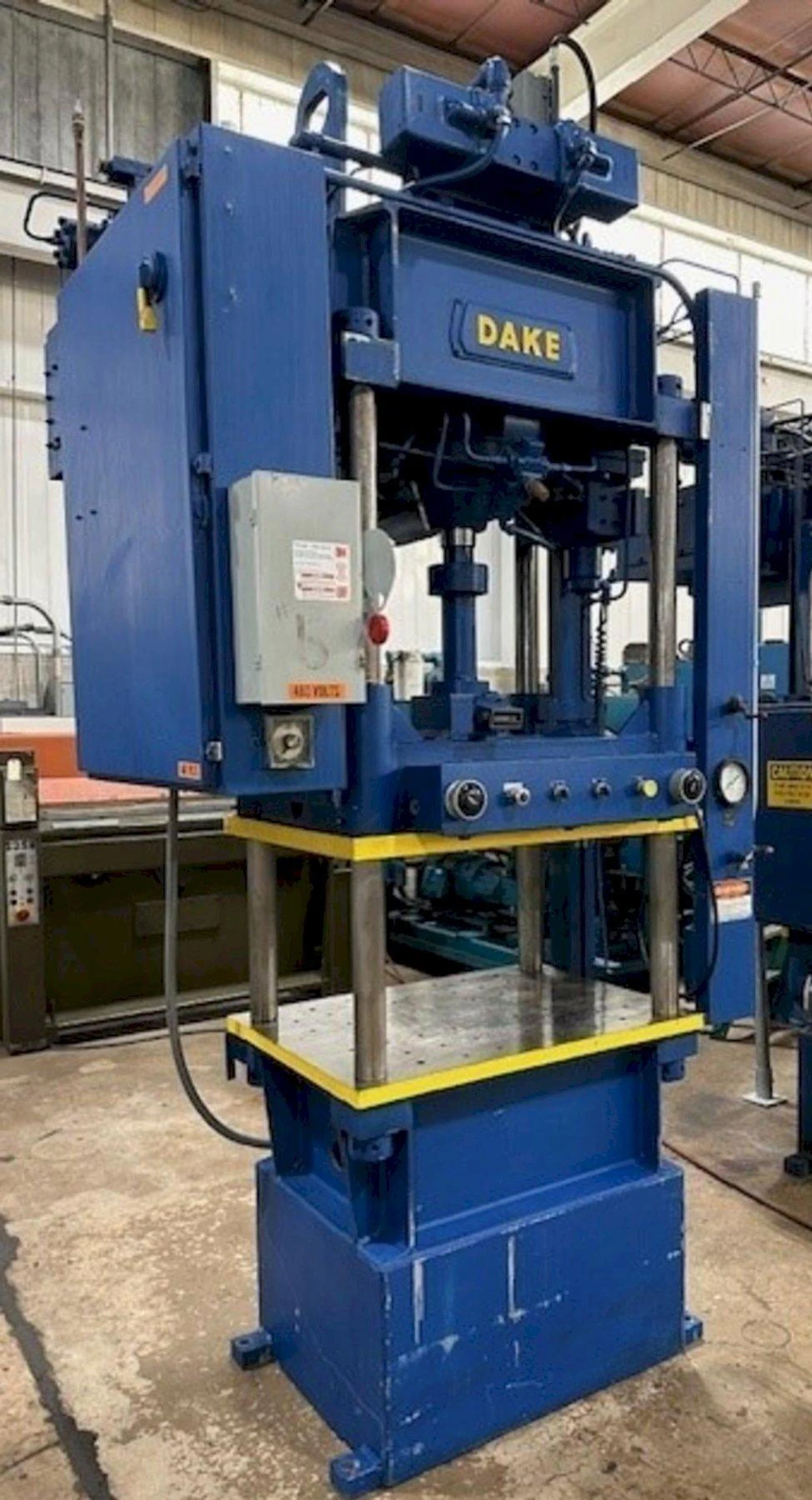

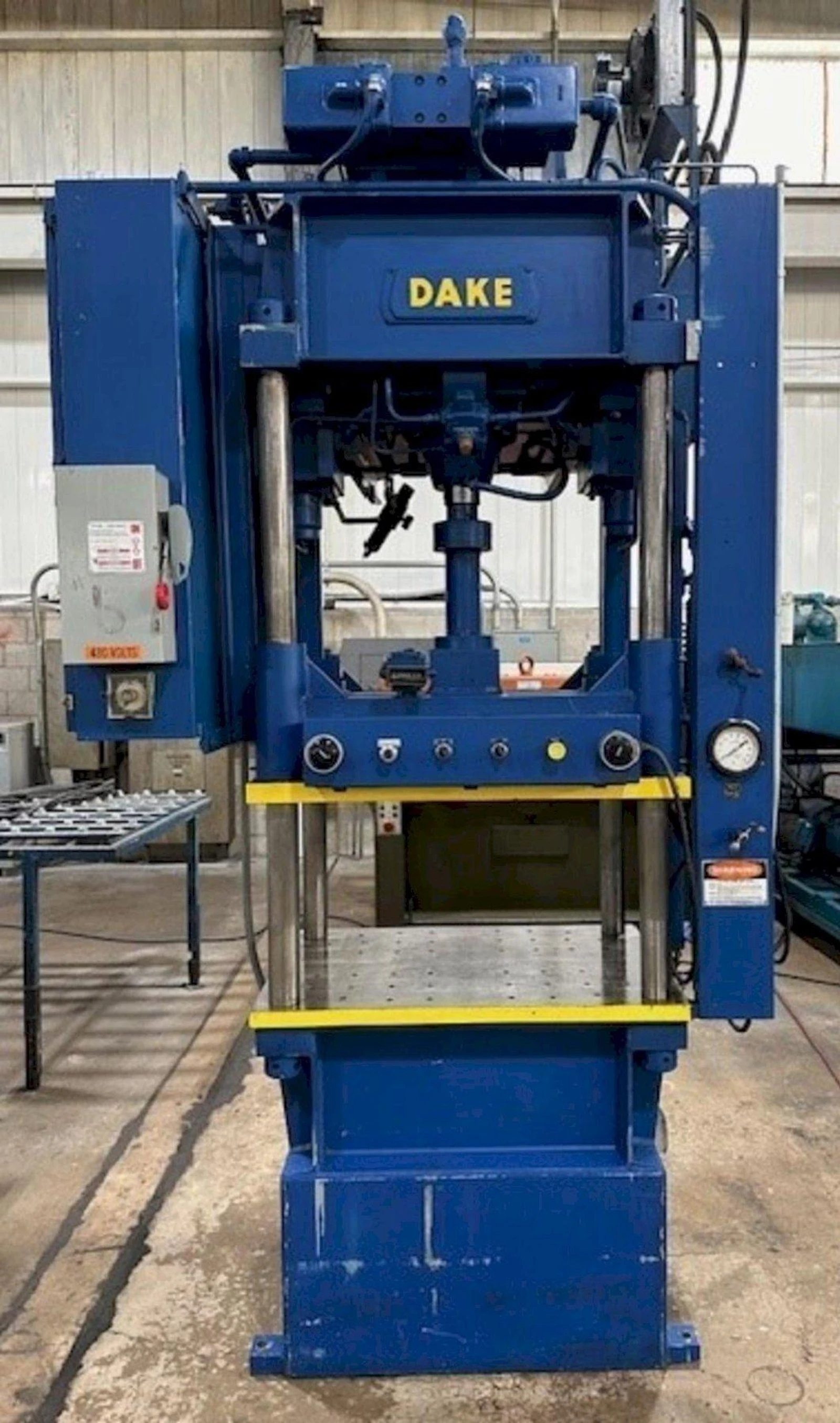

50 TON DAKE MODEL #27-783 HYDRAULIC 4 POST PRESS 14" STROKE: YOBRO #24083

Name: Used DAKE 27-783 For Sale 24083
Brand: DAKE
SKU: 24083
Availability: PreOrder

Brand

DAKE

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Serial no. 178359
Model 27-783
4 post downstroke type; floor standing
Distance between 3" diameter posts: 33" L-R x 20" F-B
Area of bed (nominal): 33" L-R x 29" F-B
Overall dimensions of bed: 42" L-R x 29" F-B
Area of slide (nominal): 33" L-R x 29" F-B
Overall dimension of slide: 42" L-R x 29" F-B
Stroke of fully guided slide: 0 - 14" maximum
Daylight opening (total): 32" maximum
Daylight opening with 12" ram spacer: 20" maximum
Main ram diameter: 5"/4" @ 5090 PSI - 50 tons
Floor to top of bed: 36"
Power unit (top rear of press): (2) hydraulic pumps, both driven by 15 HP 1755 RPM 230/460/3/60 motor
Speeds approx.: 215"/minute closing 42"/minute pressing to 50 tons 600"/minute return

Controls:
Pushbutton operation w/stroke & pressure control
Dual palm buttons
Selector switch for manual or semi-automatic operation
Cycle timer
Safety slide lock
Pressure gauge

No files or videos to display
