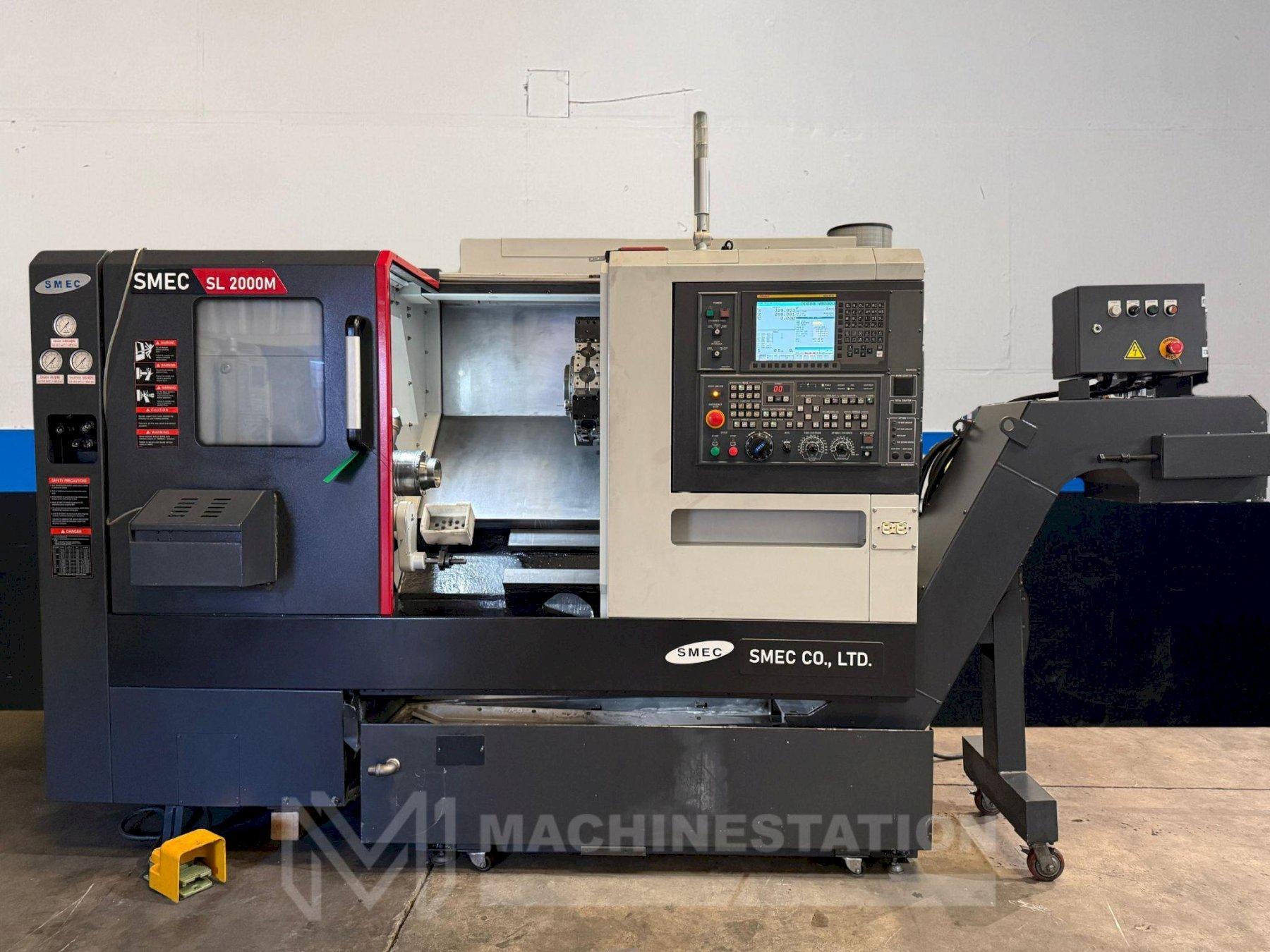

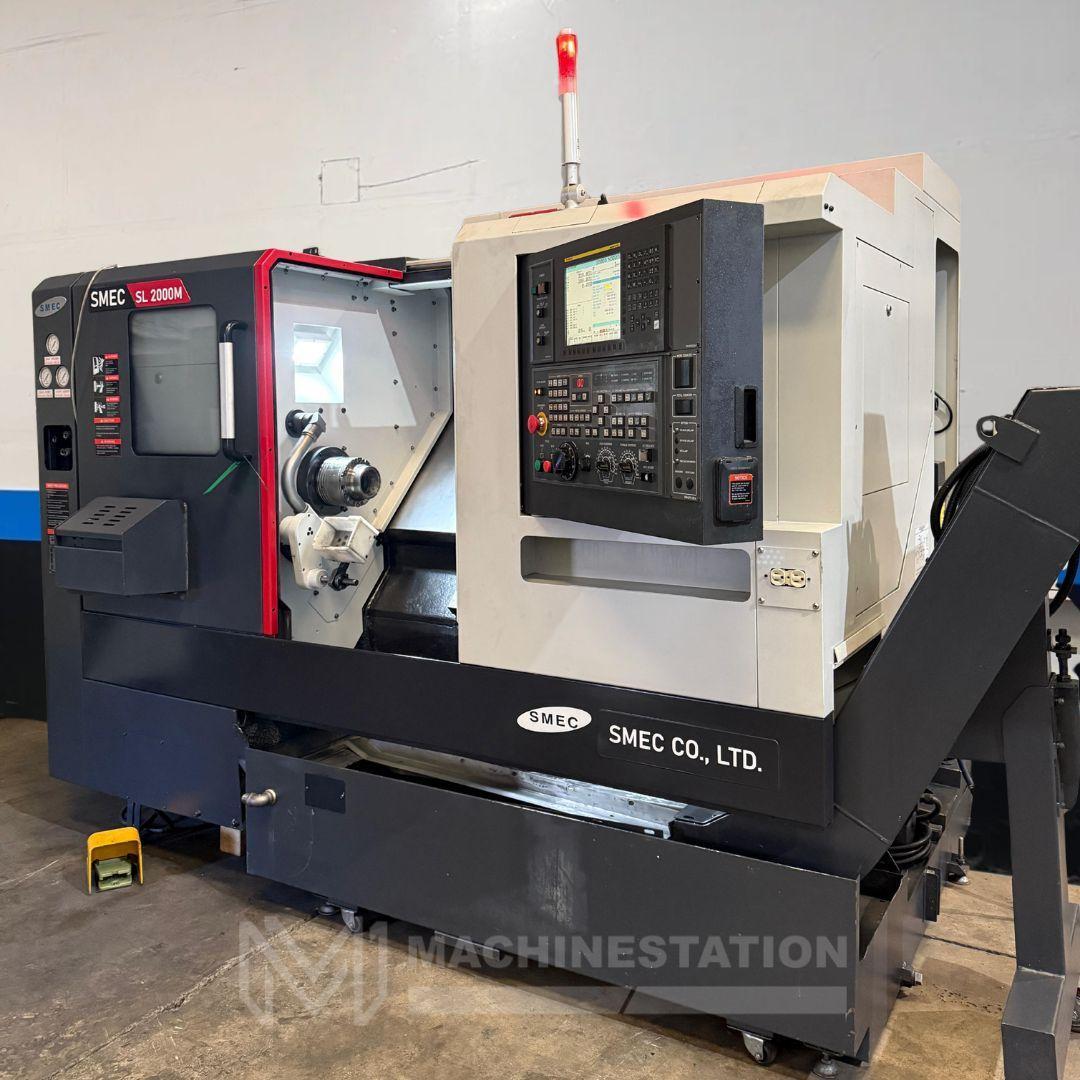

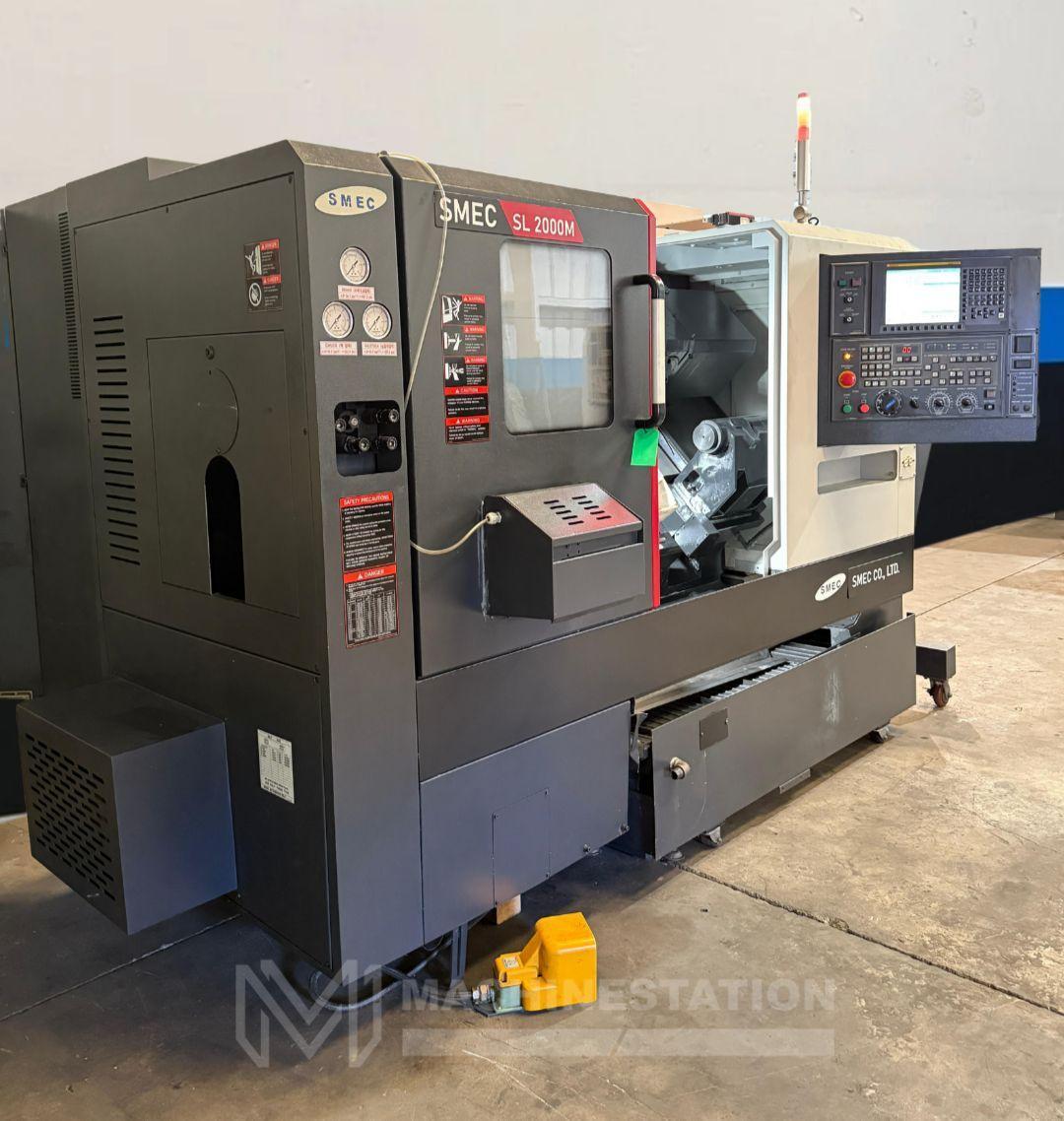

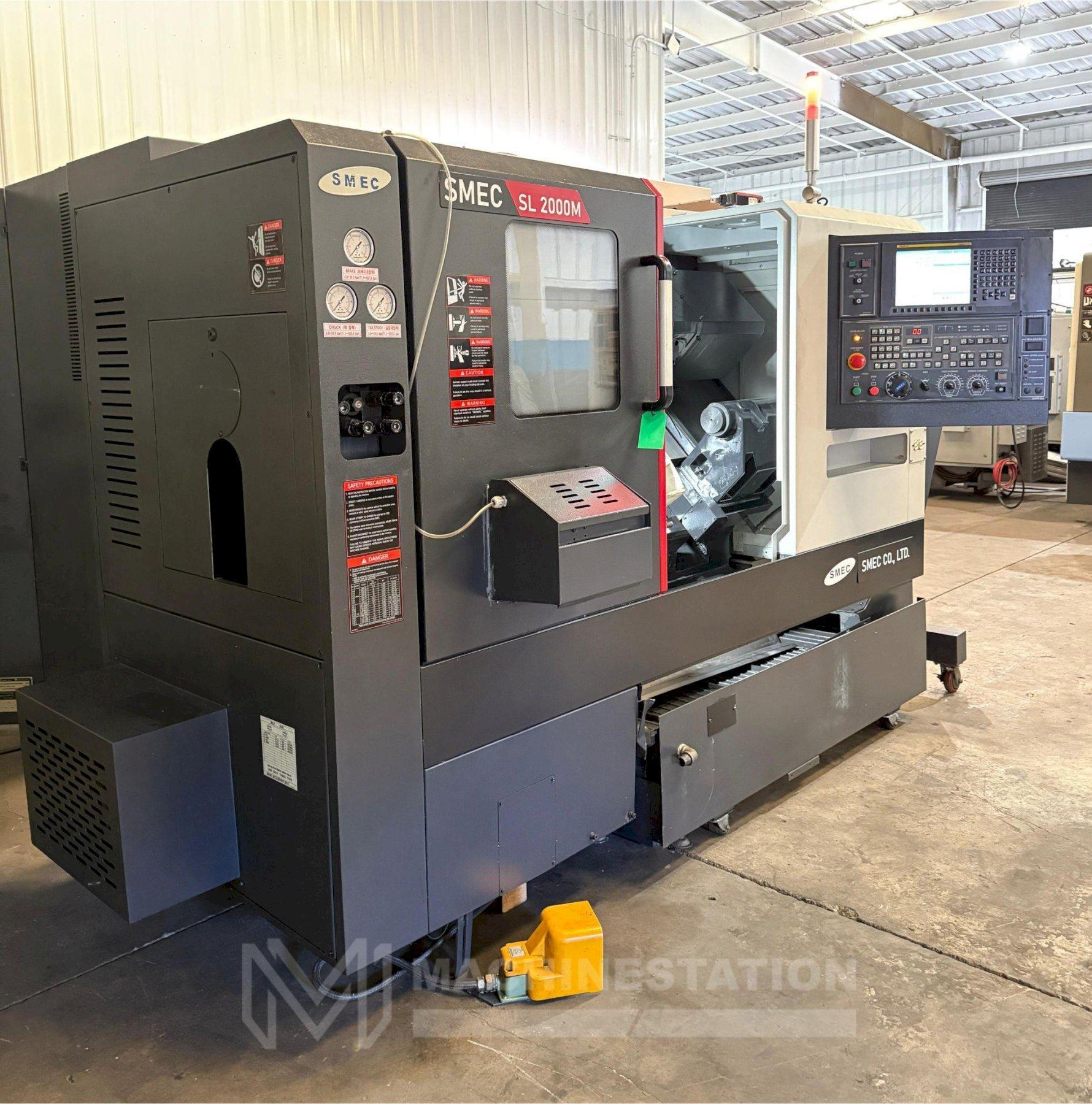

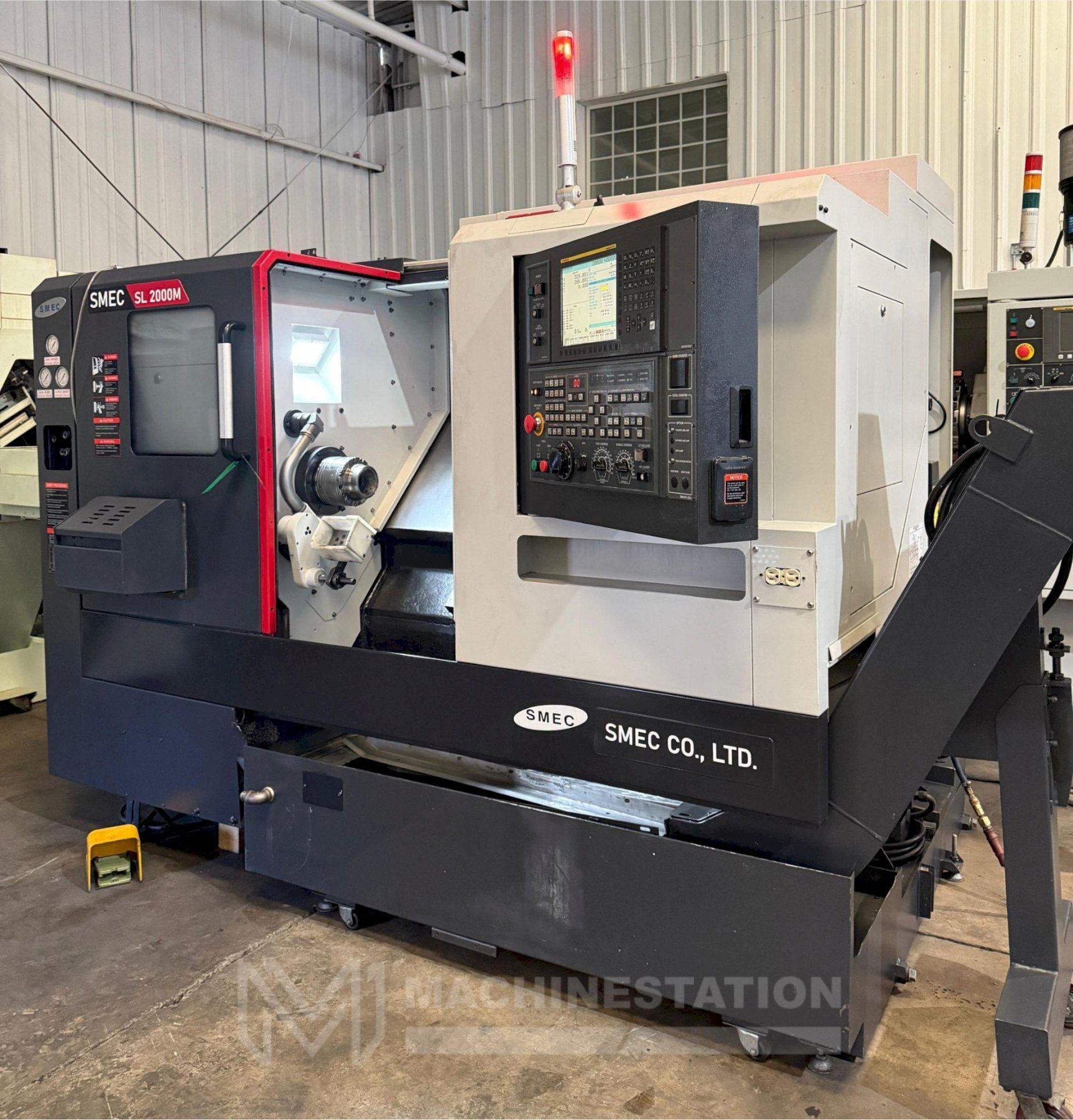

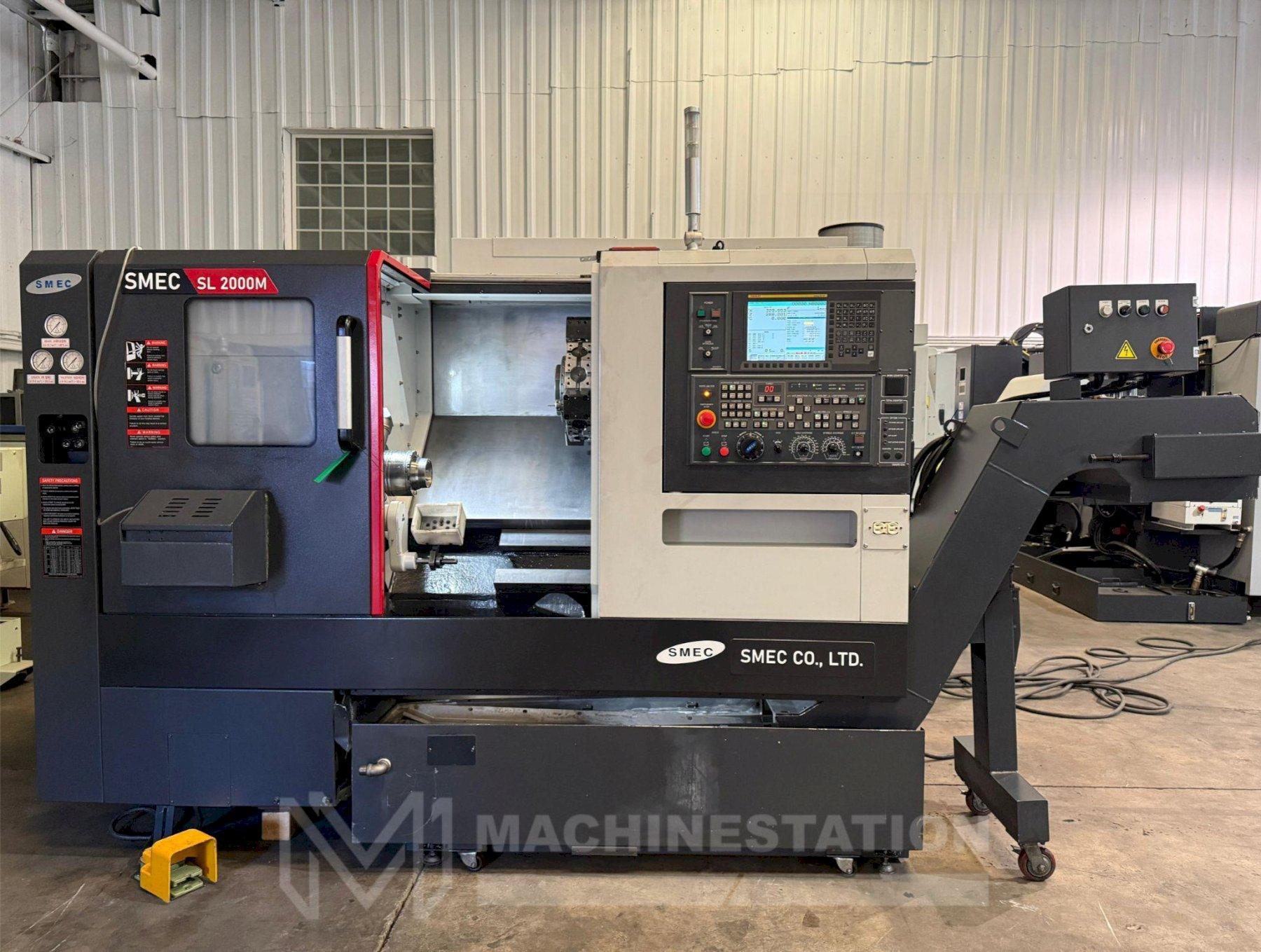

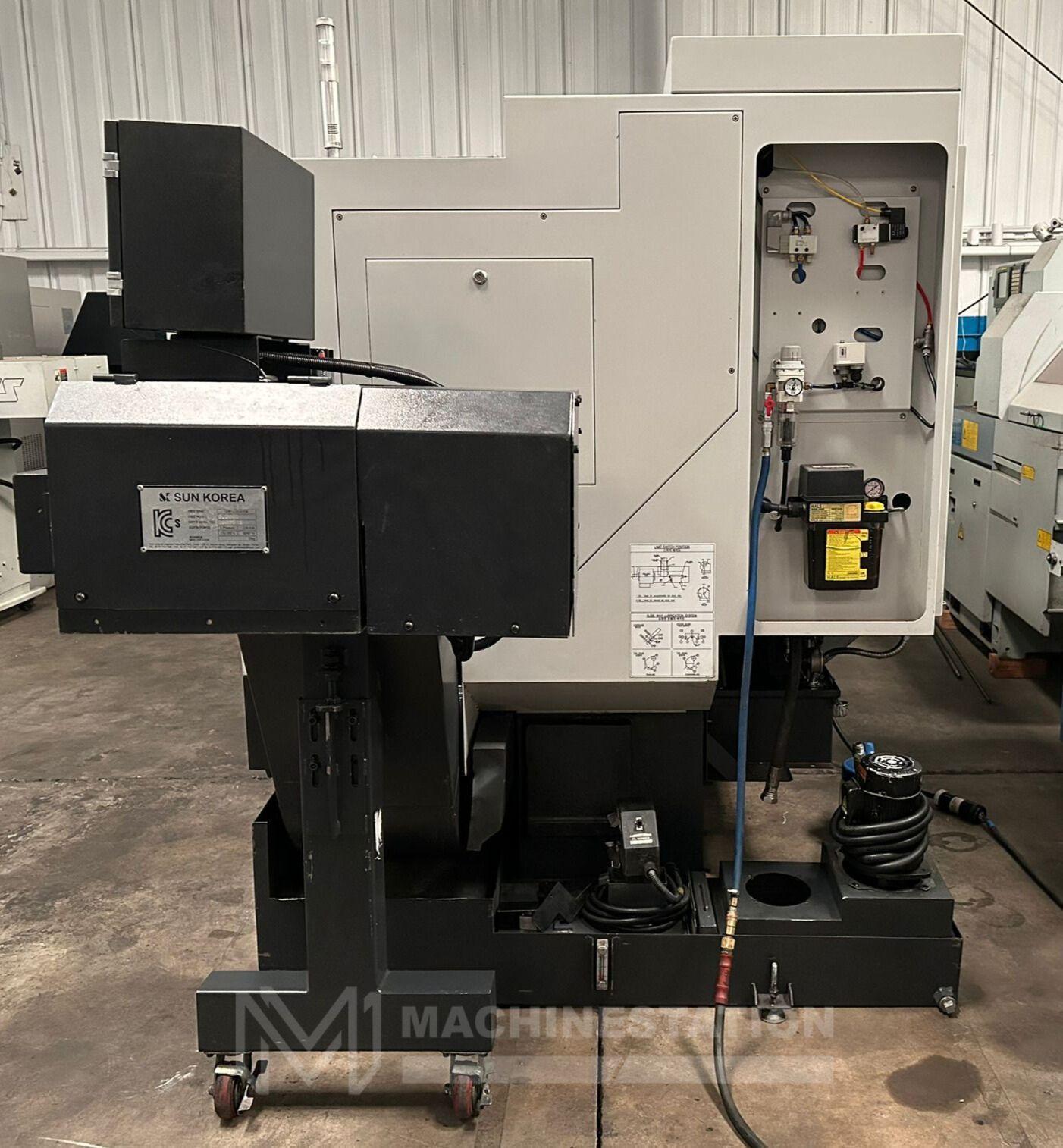

Samsung SMEC SL-2000M CNC Turning Center – 2020 C Axis Live Tool Lathe

Brand
SAMSUNG
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Samsung SMEC SL-2000M
Stock #
112848
Year
2020
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU: 112848
Make: Samsung SMEC
Model: SL2000M
Year: 2020
Condition: Used – Excellent
Equipped With:

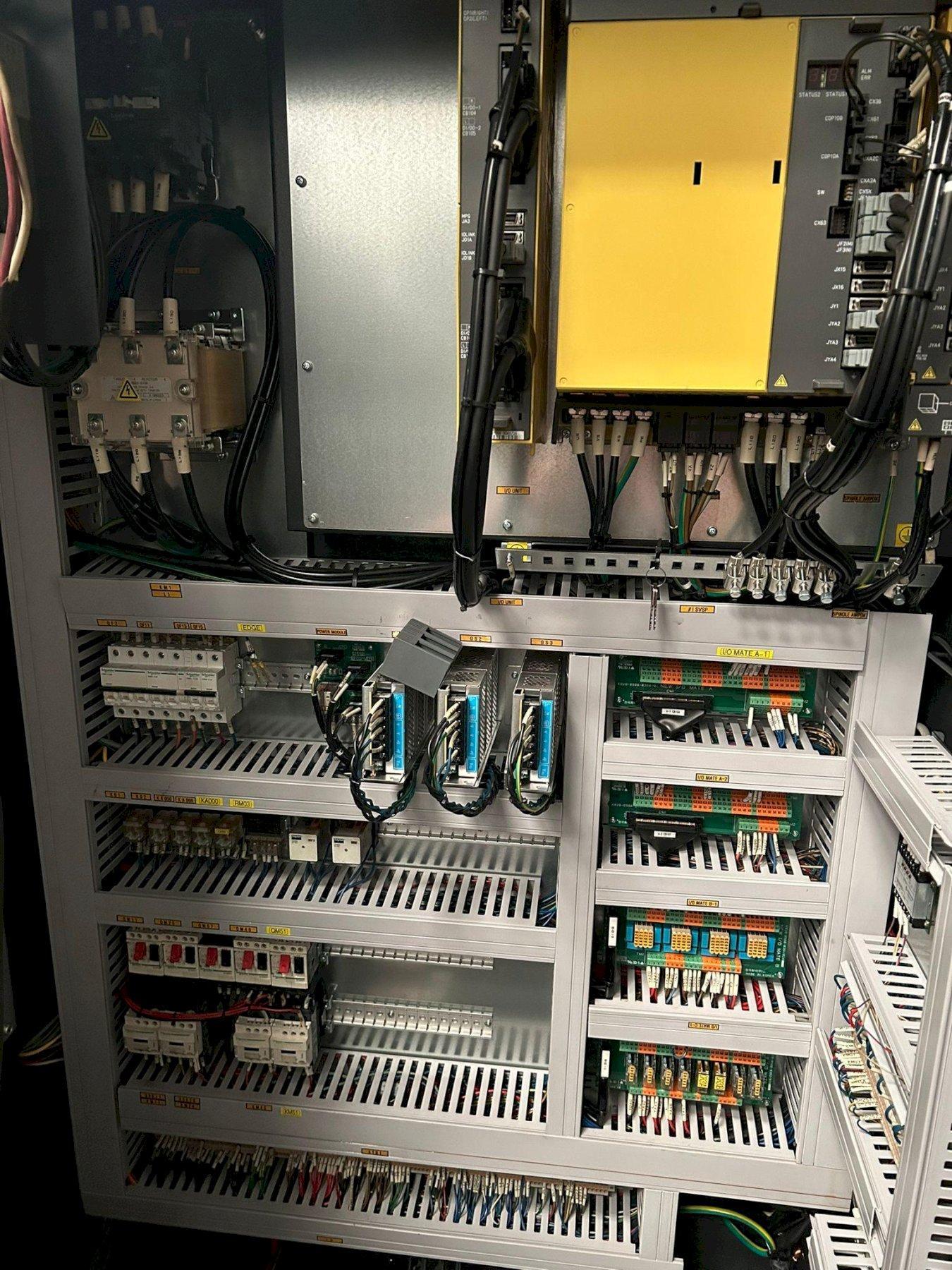

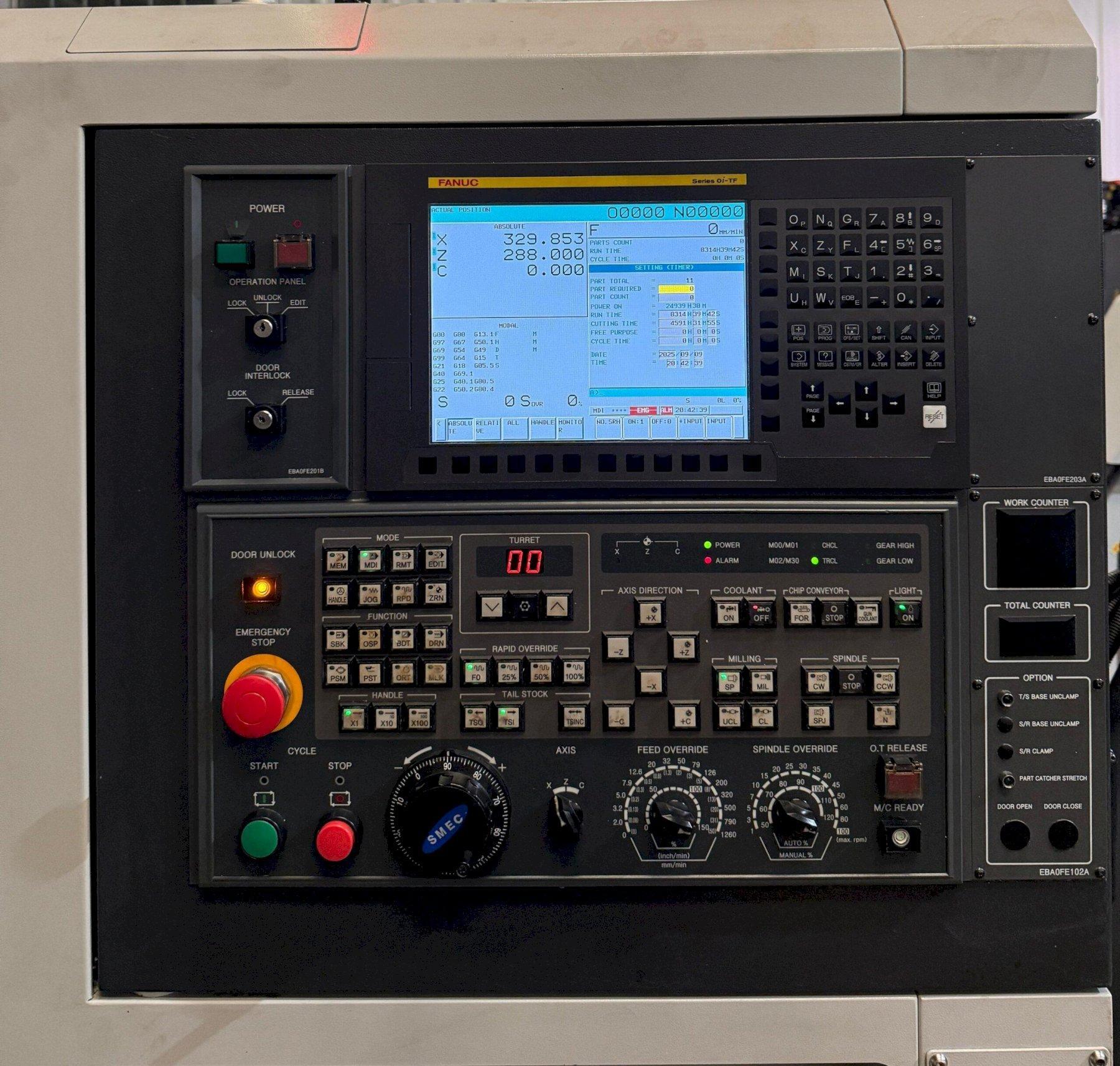

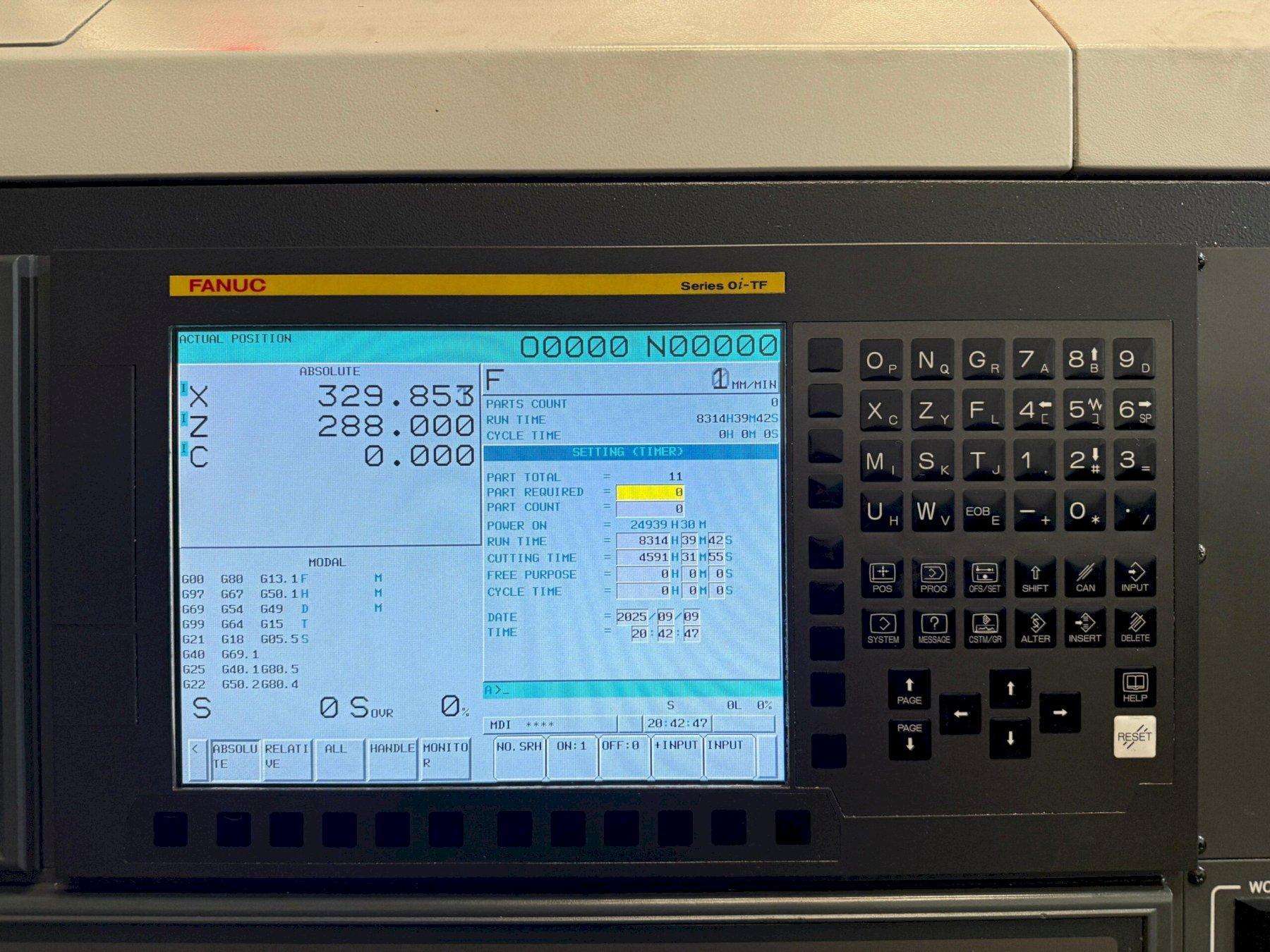

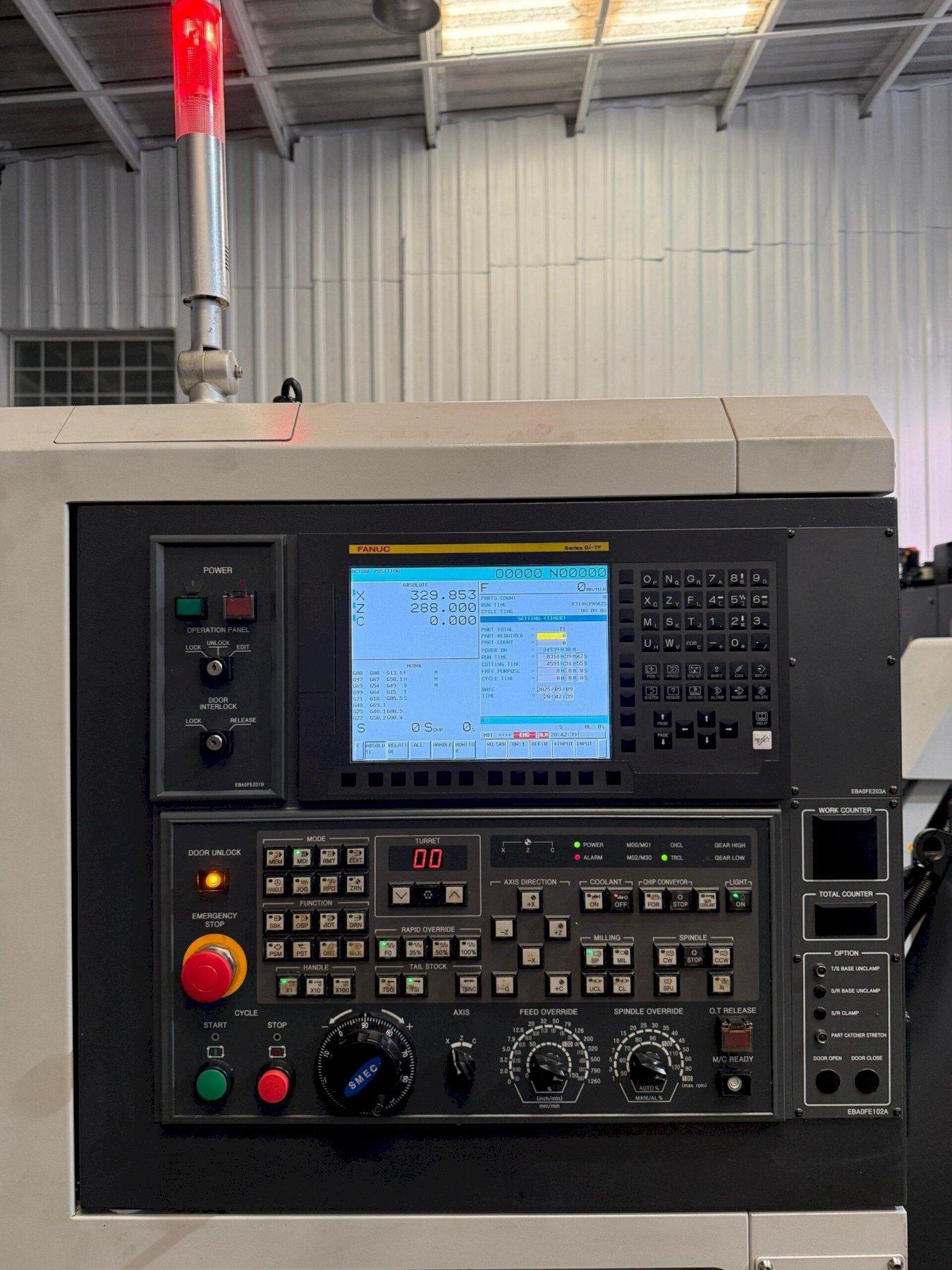

Fanuc Oi-TF series CNC Control
Box Way Construction

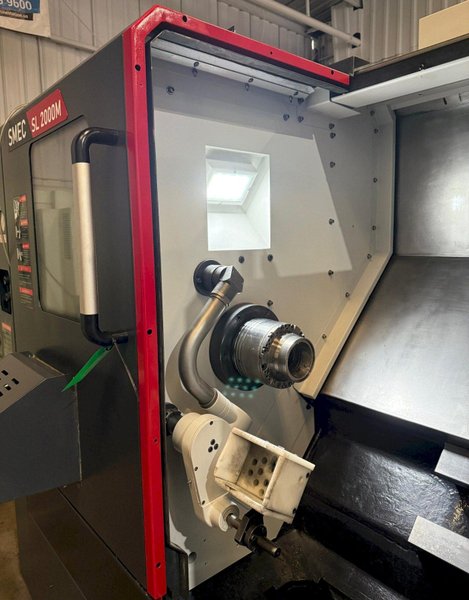

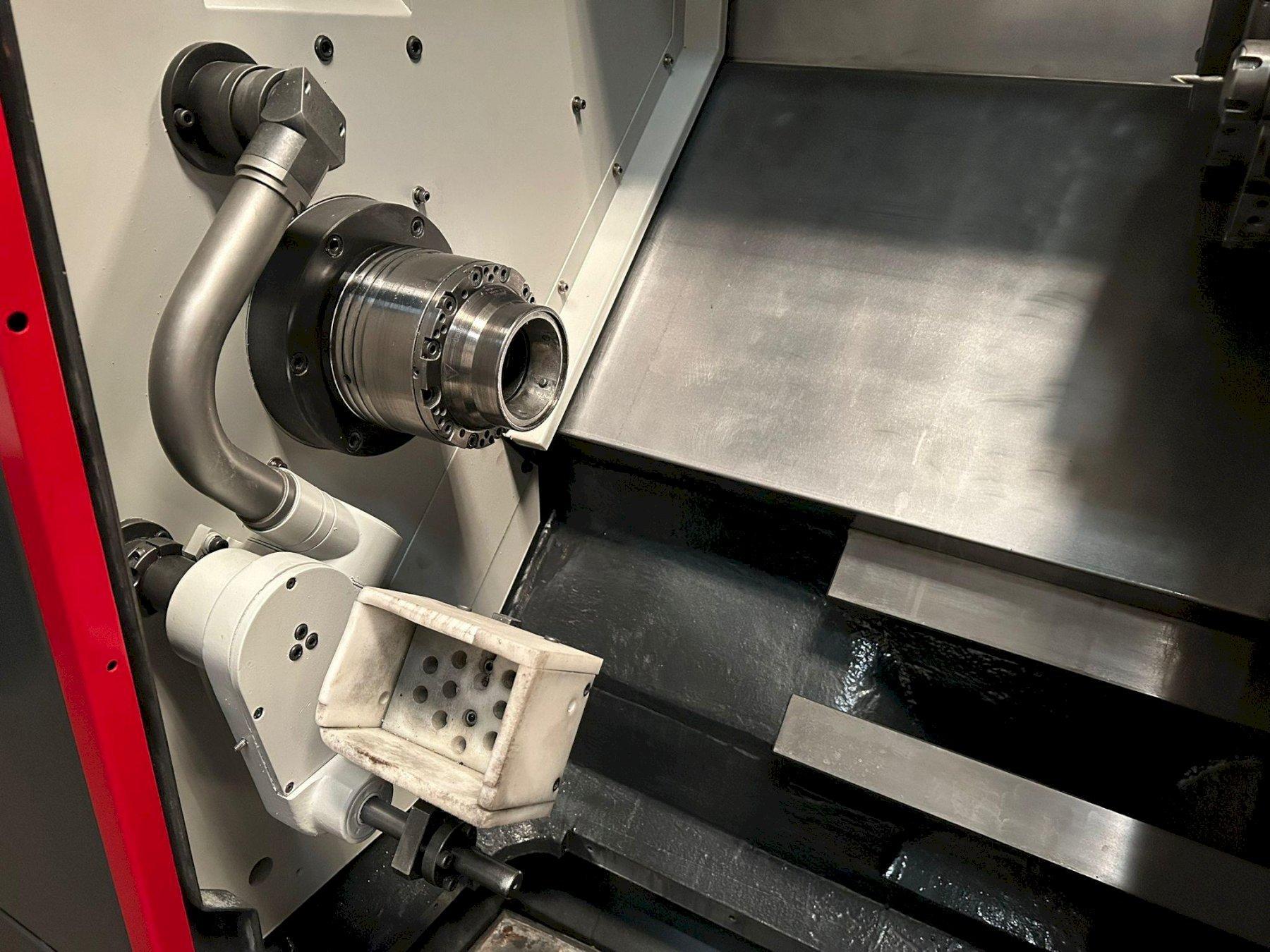

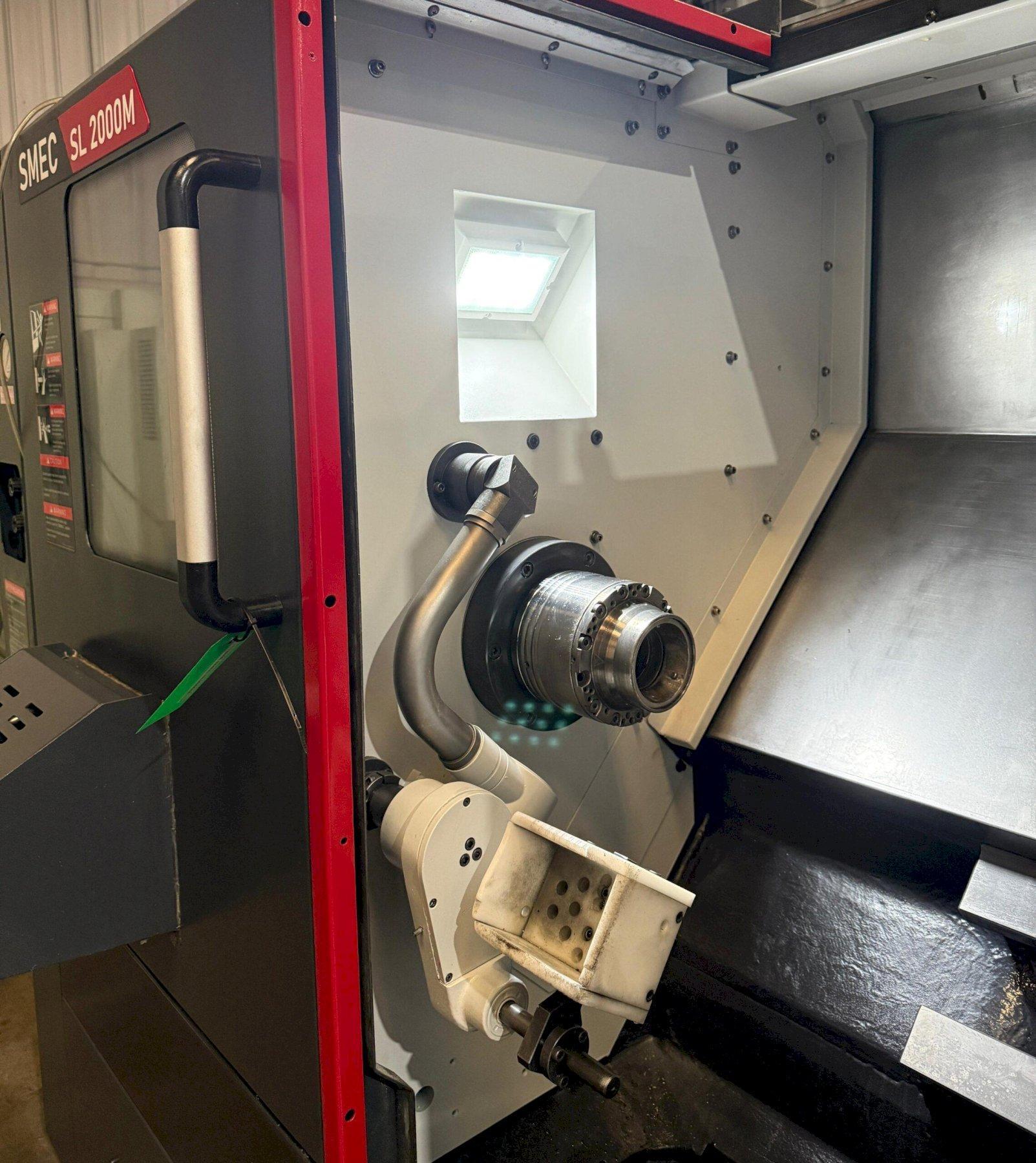

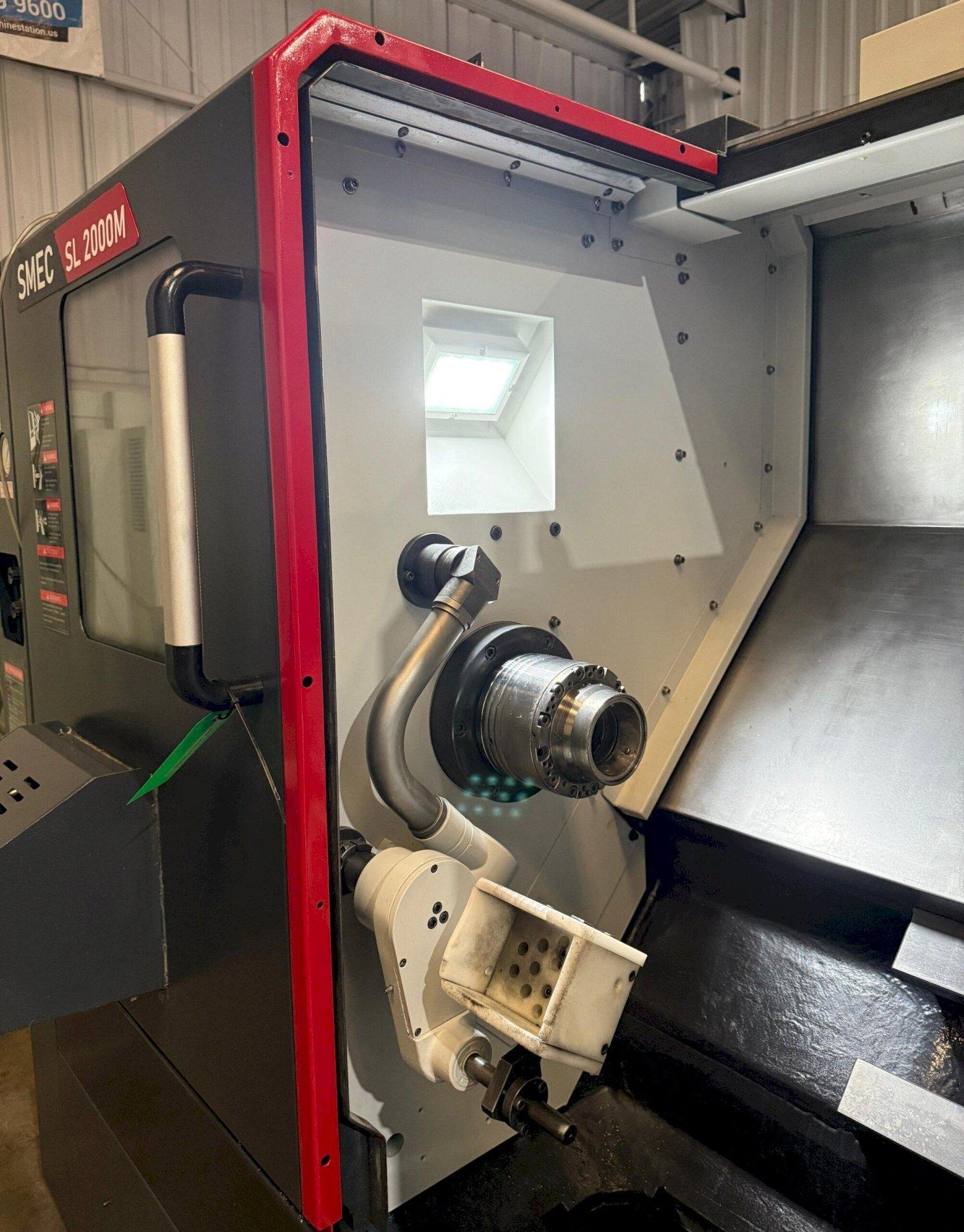

Collet Chuck (Capable 6″ Chuck)
A2-5, 6,000 RPM Spindle
Servo Controlled C Axis on Spindle
12 Station Live Tool Turret – 24 Positions
Bar Feeder Interface
Part Catcher
Tool Presetter
Tailstock
PCMCIA Card Interface & USB Port
Coolant System
Chip Conveyor
Foot Switch

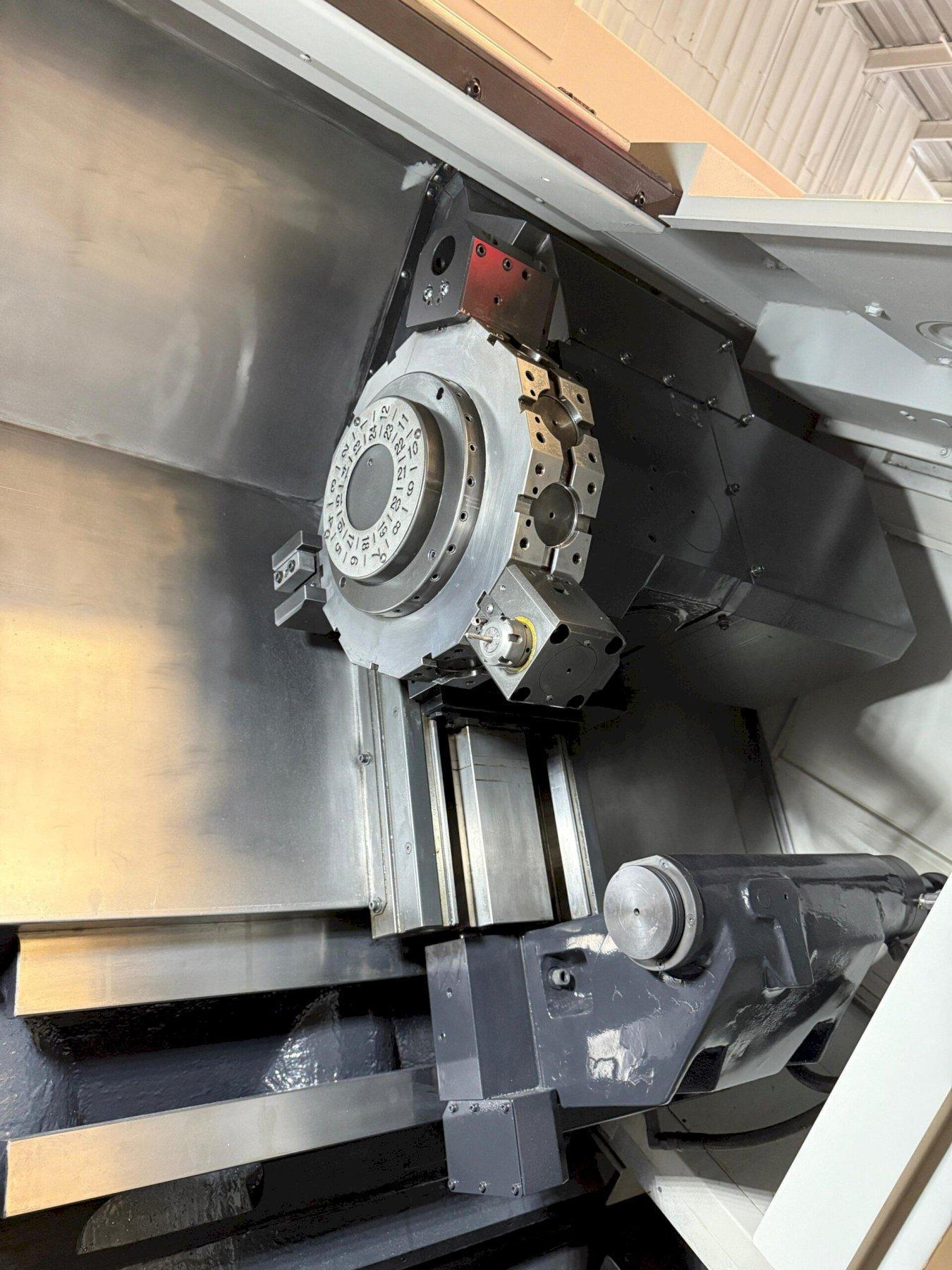

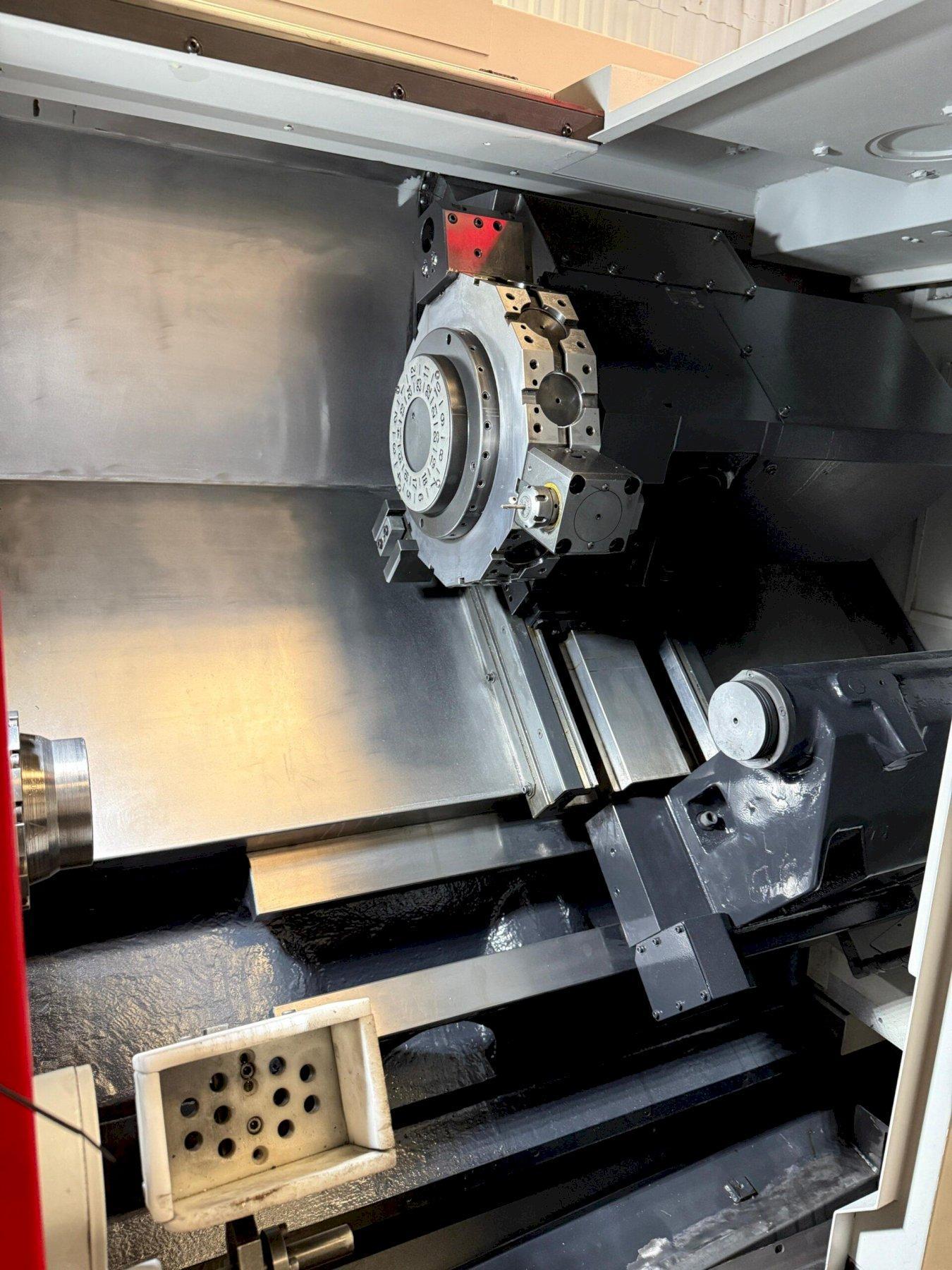

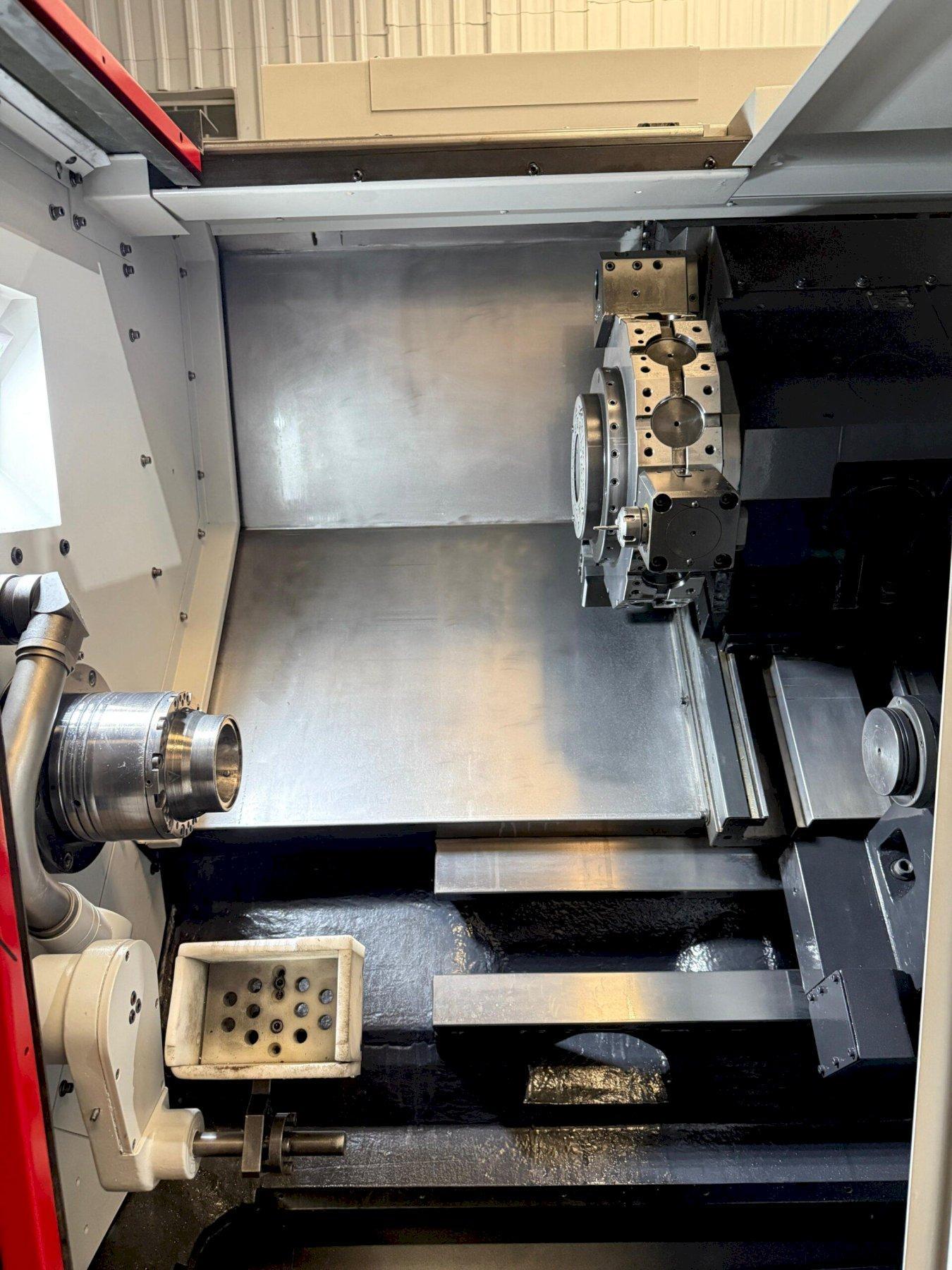

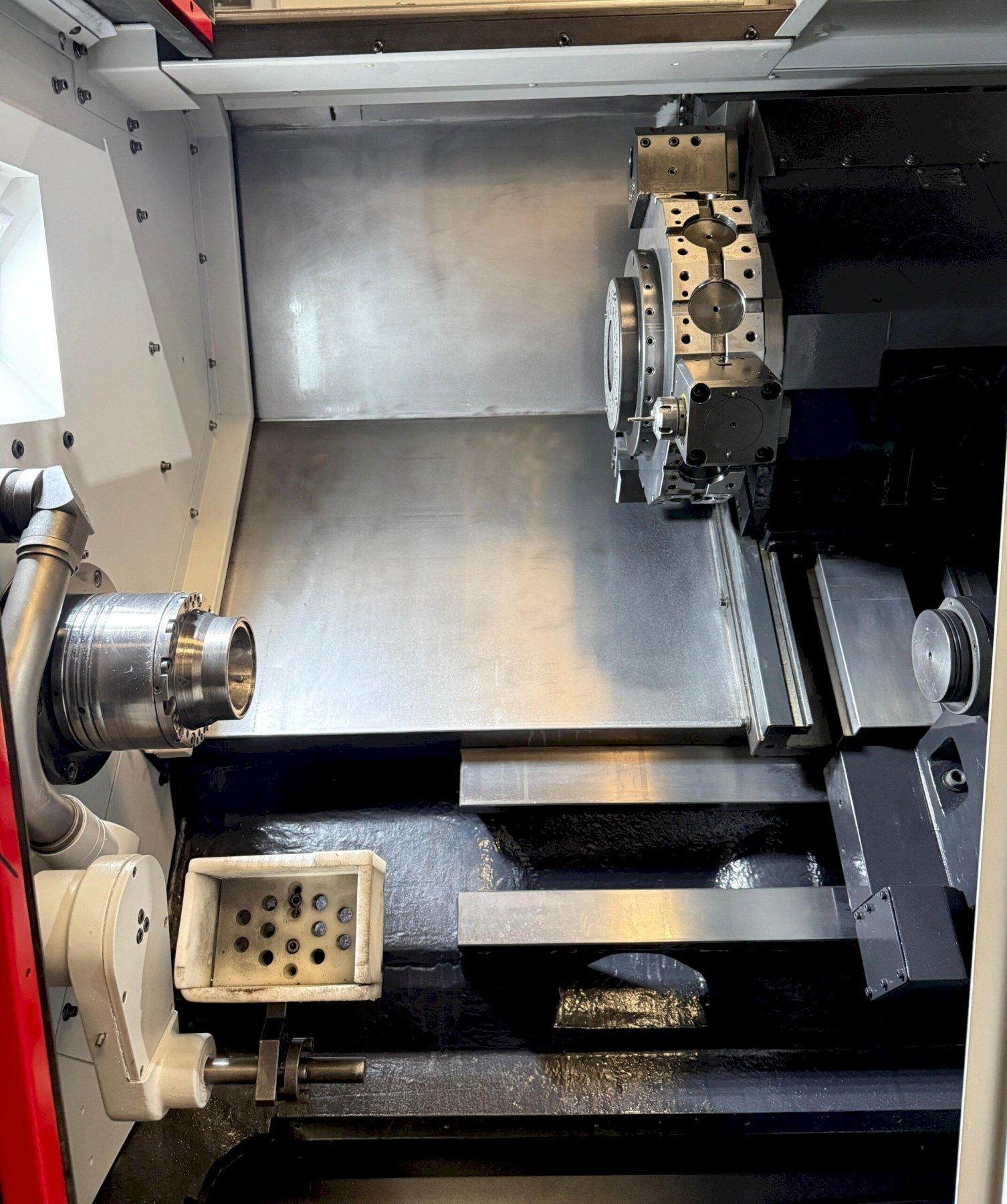

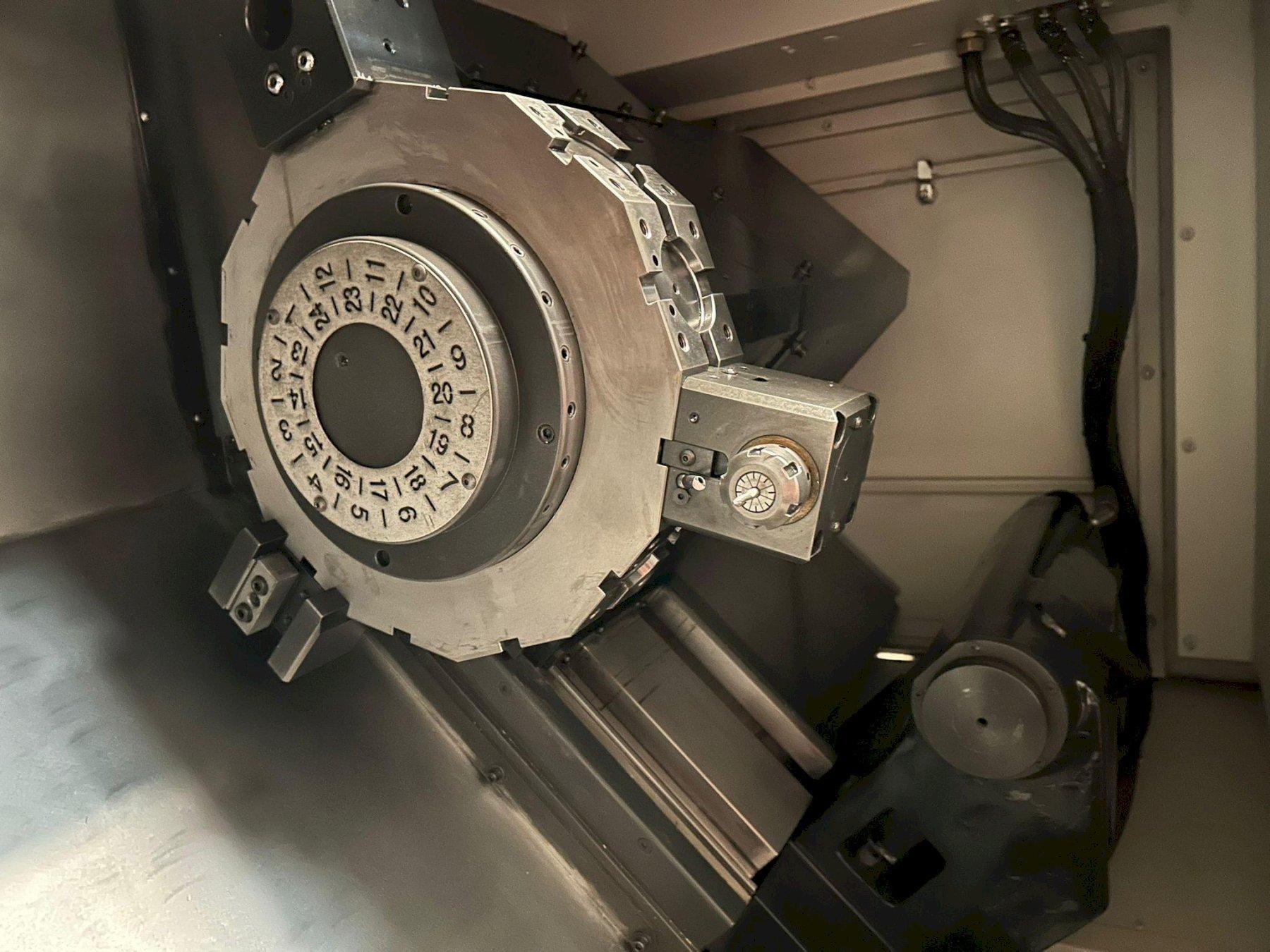

(1) Turning Tool Holder, (1) Boring Tool Holder, (1) Live Tool Holder are Equipped on Turret (As shown in the images)
Specifications:
Max Turning Diameter: 14.65″
Max Turning Length: 20.48″
Swing Over Bed: 22.45″
Swing Over Cross Slide: 18.12″
Max Bar Capacity: 2.05″
Travel:
X Axis Travel: 8.47″
Z Axis Travel: 22.14″
C Axis: 0.001 Degrees
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.40″
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations (24 positions)
Turret Index Time: 0.2 Second
OD Tool Size: 1.0″
Boring Bar Diameter: 1.58″
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor Power: 7.5 HP
Tool Holders Type: BMT-55
Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 17.72″
General:
Power:  200v – 220v / 3-Phase / 31 kva / 50/60 Hz
Overall Dimensions: 108″ x 61″ x 76″ High Approx.
Weight: 8,378 lbs Approx.
