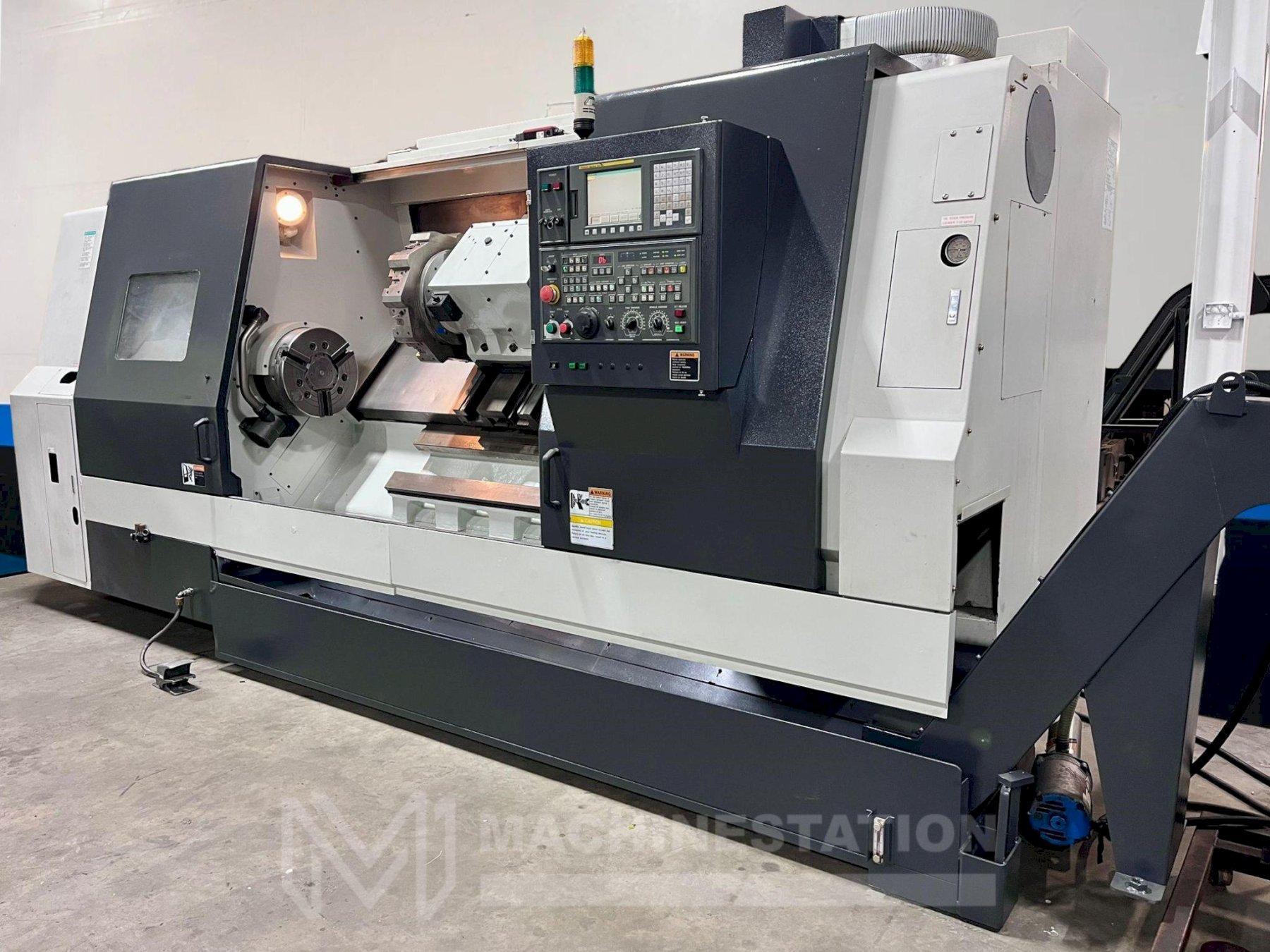

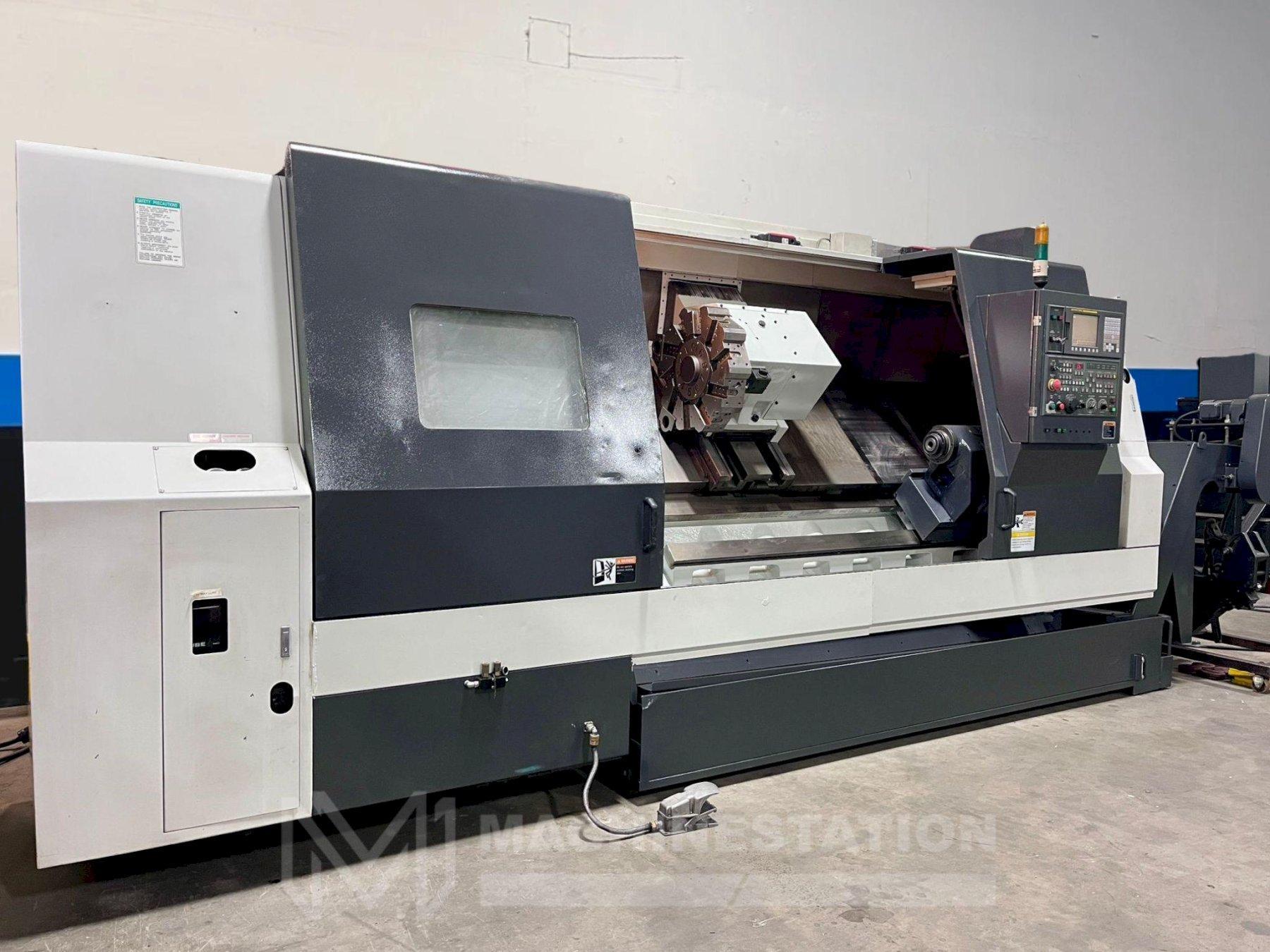

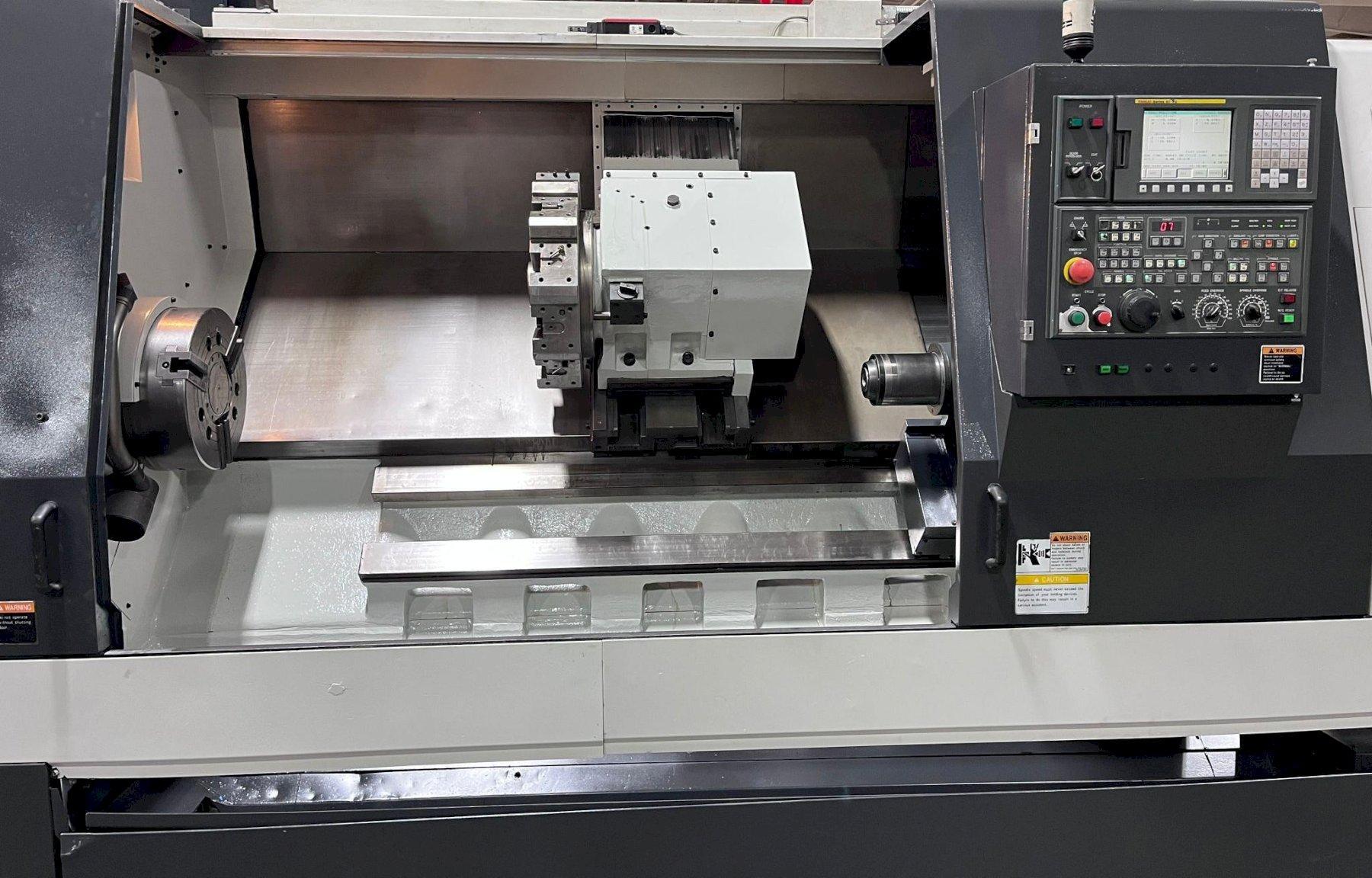

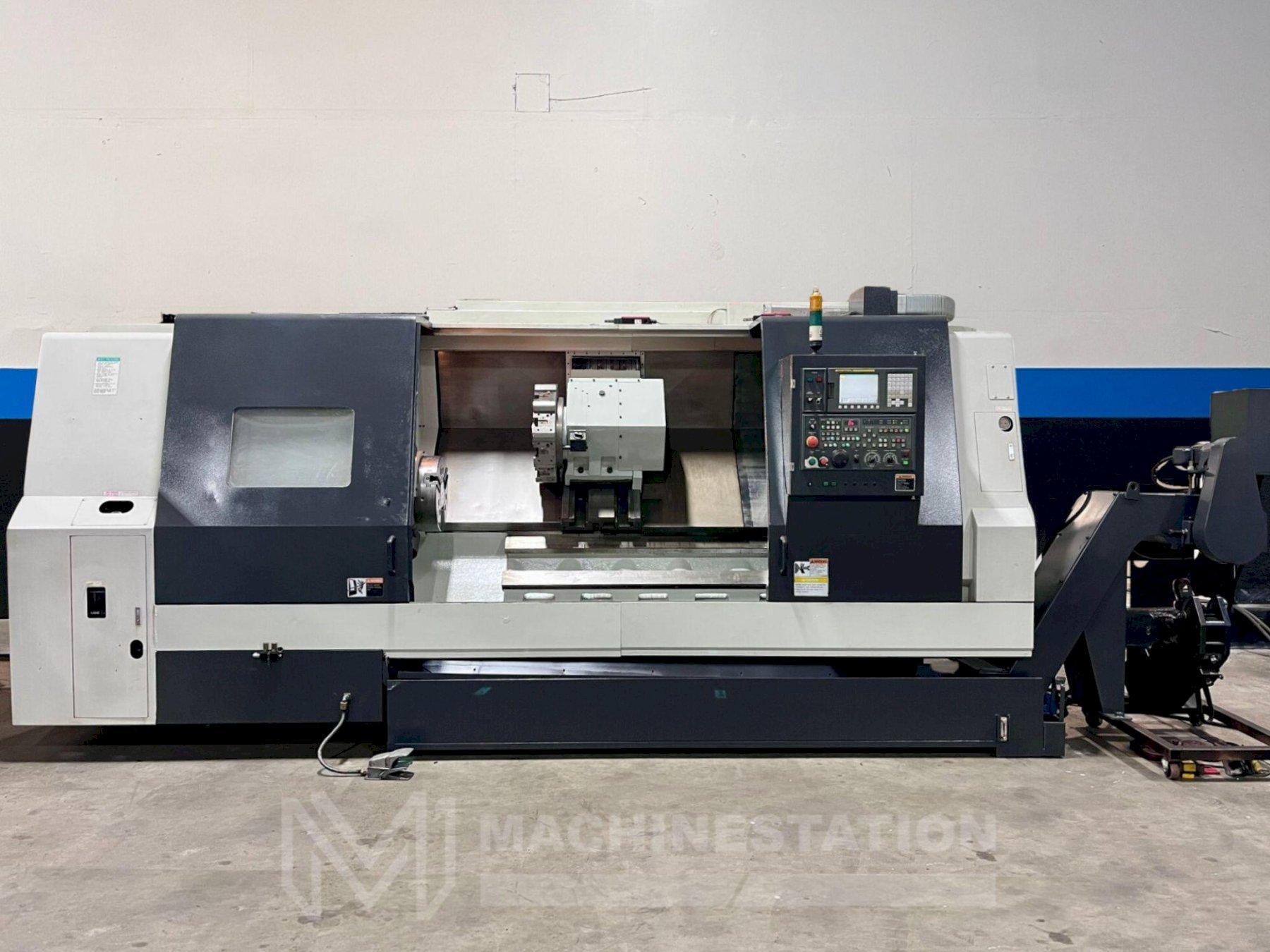

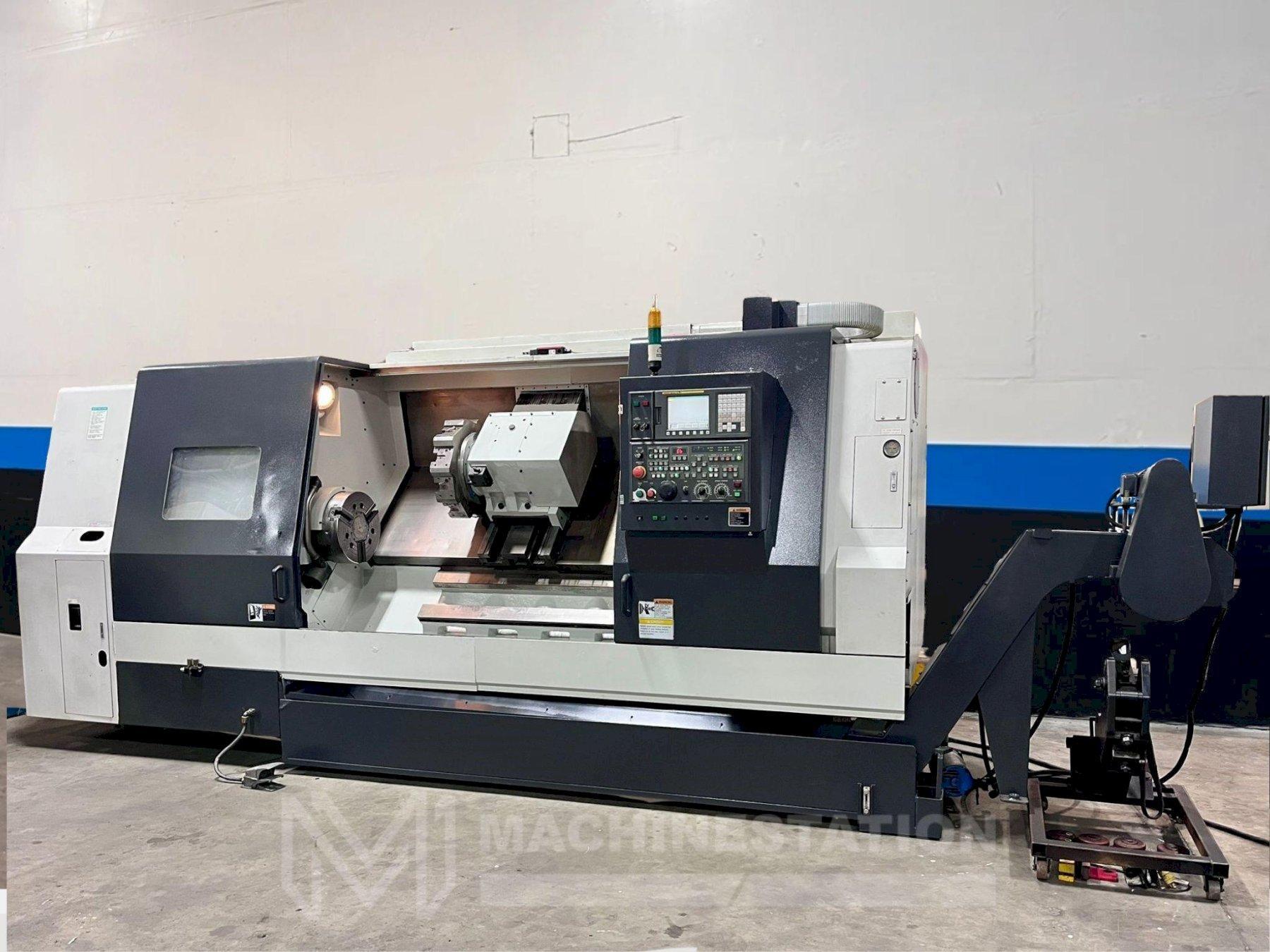

Samsung SL-35A/1500 CNC Turning Center – Long Bed Steady Rest Lathe

Brand
SAMSUNG
Category
Lathes & Turning Machines
Type
Turning Centers
Model
SL-35A/1500
Stock #
113004
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: SAMSUNG
Model: SL35A/1500
Year: 2009
Equipped With:

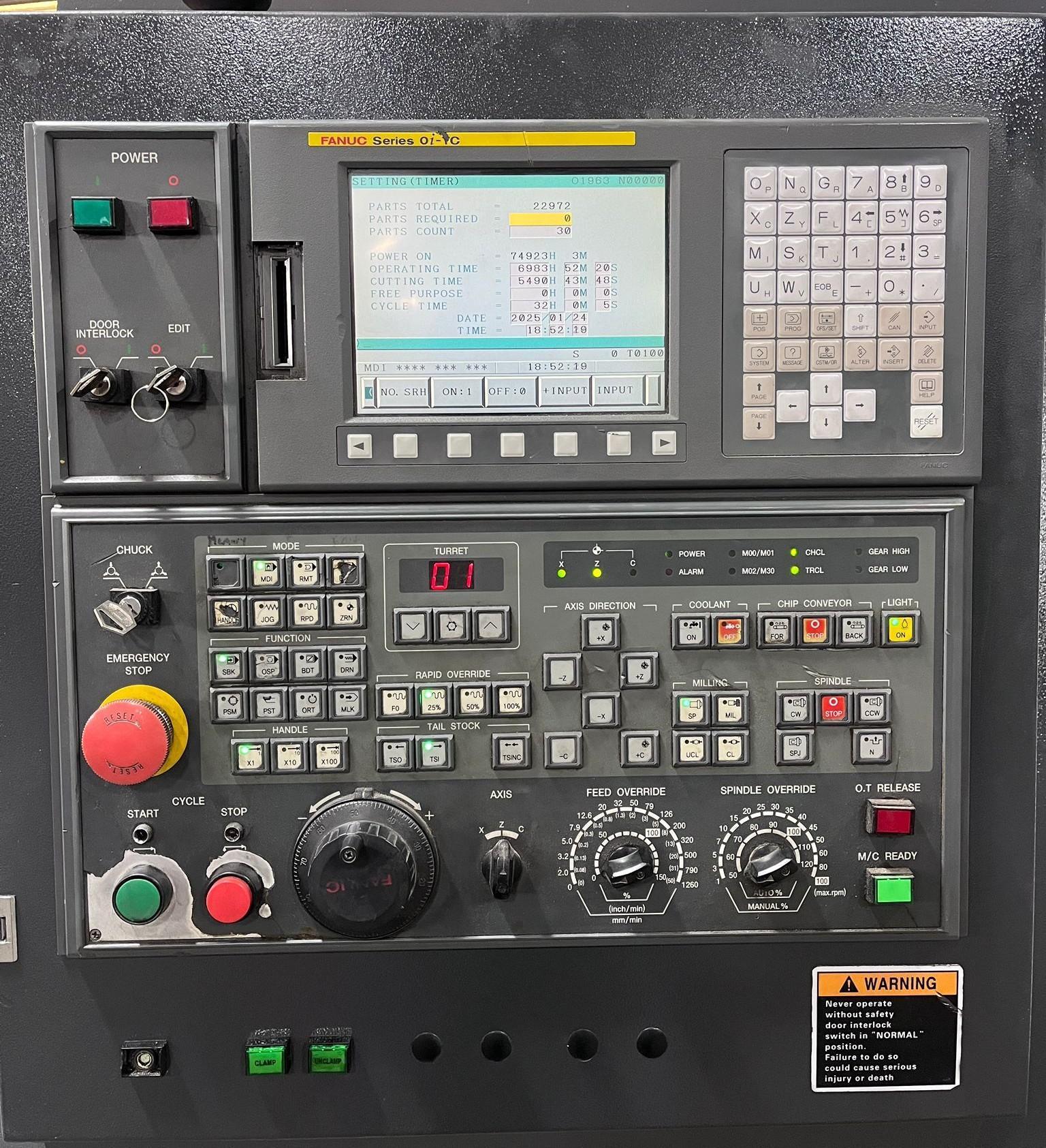

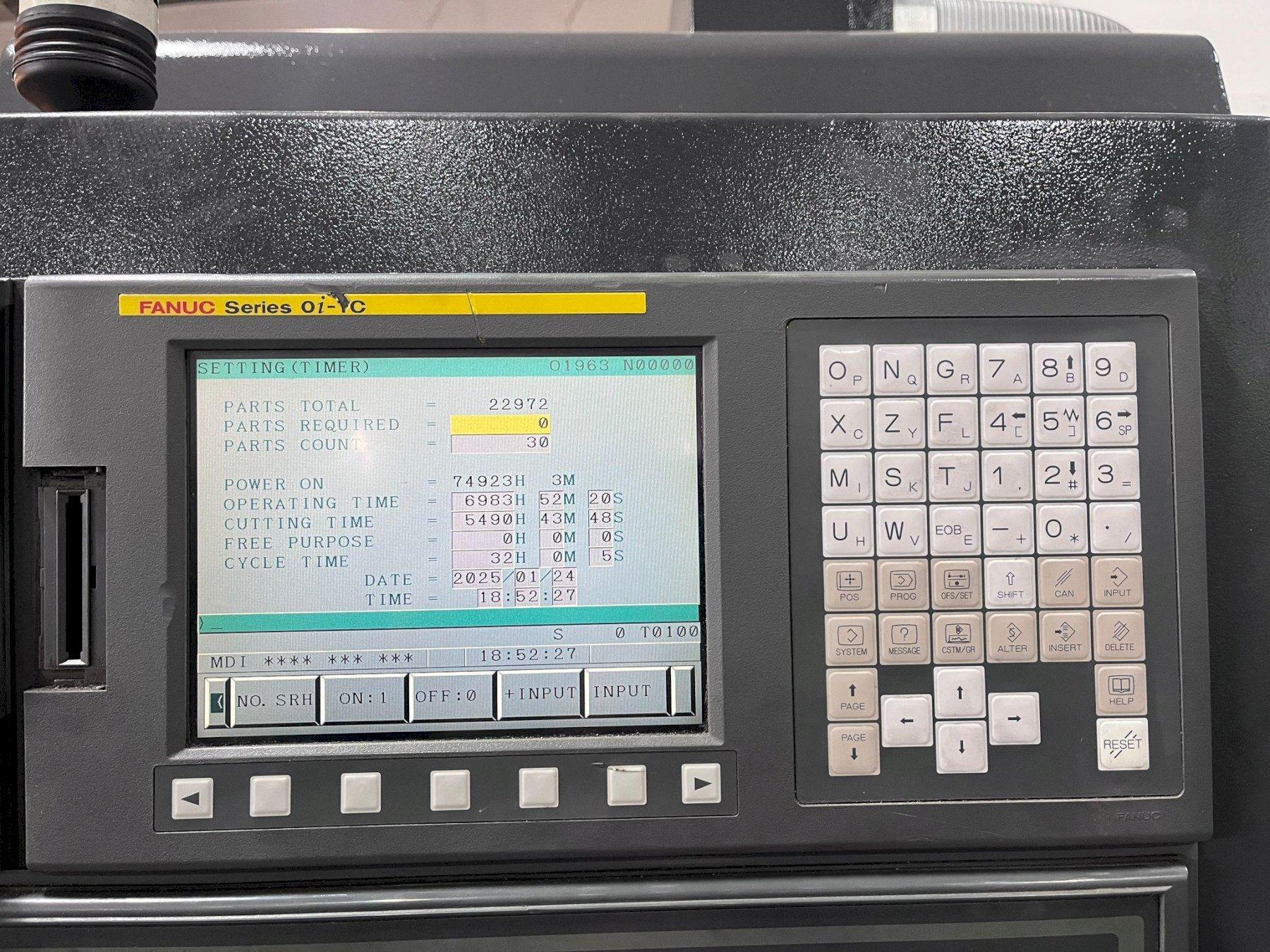

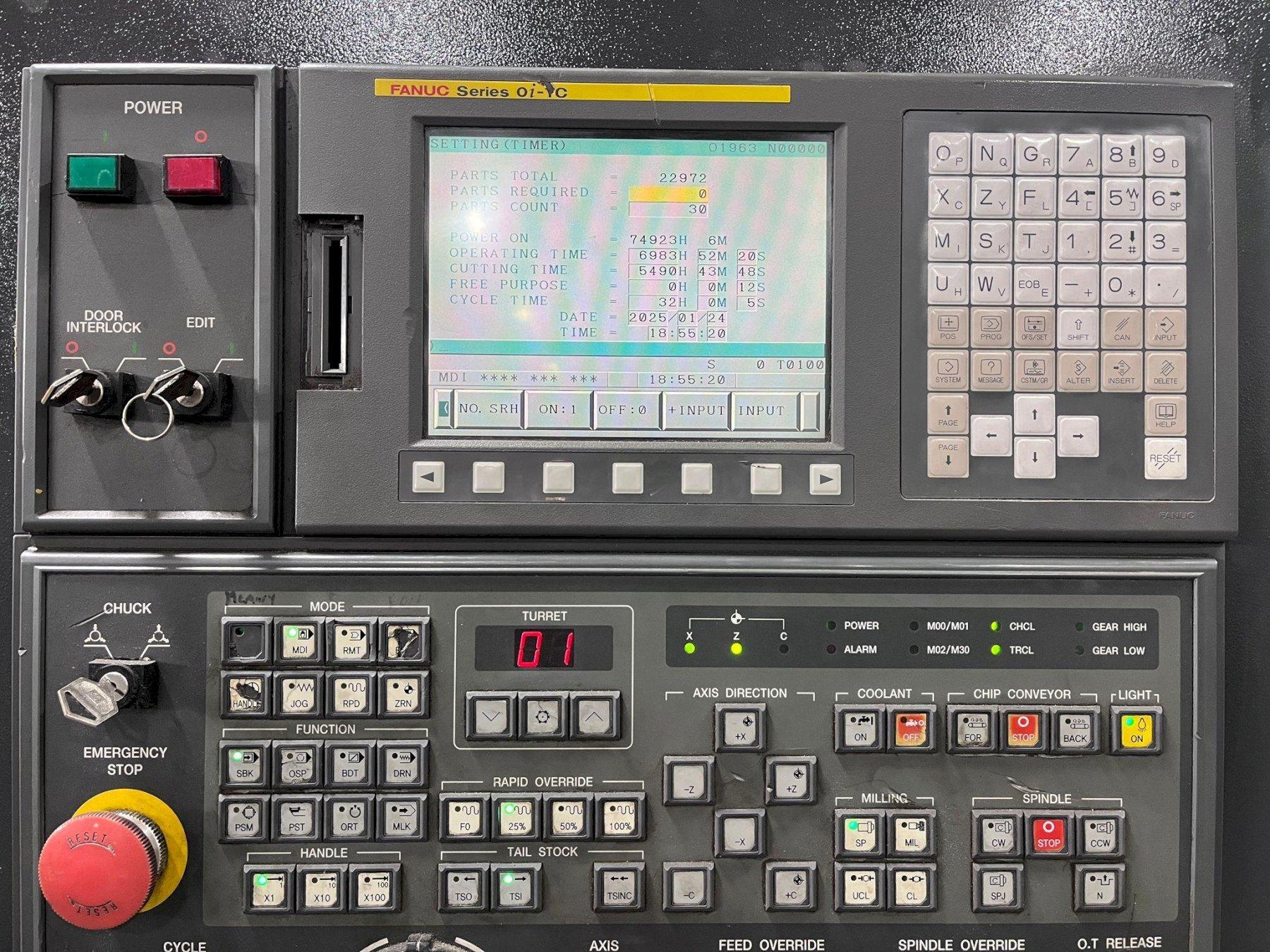

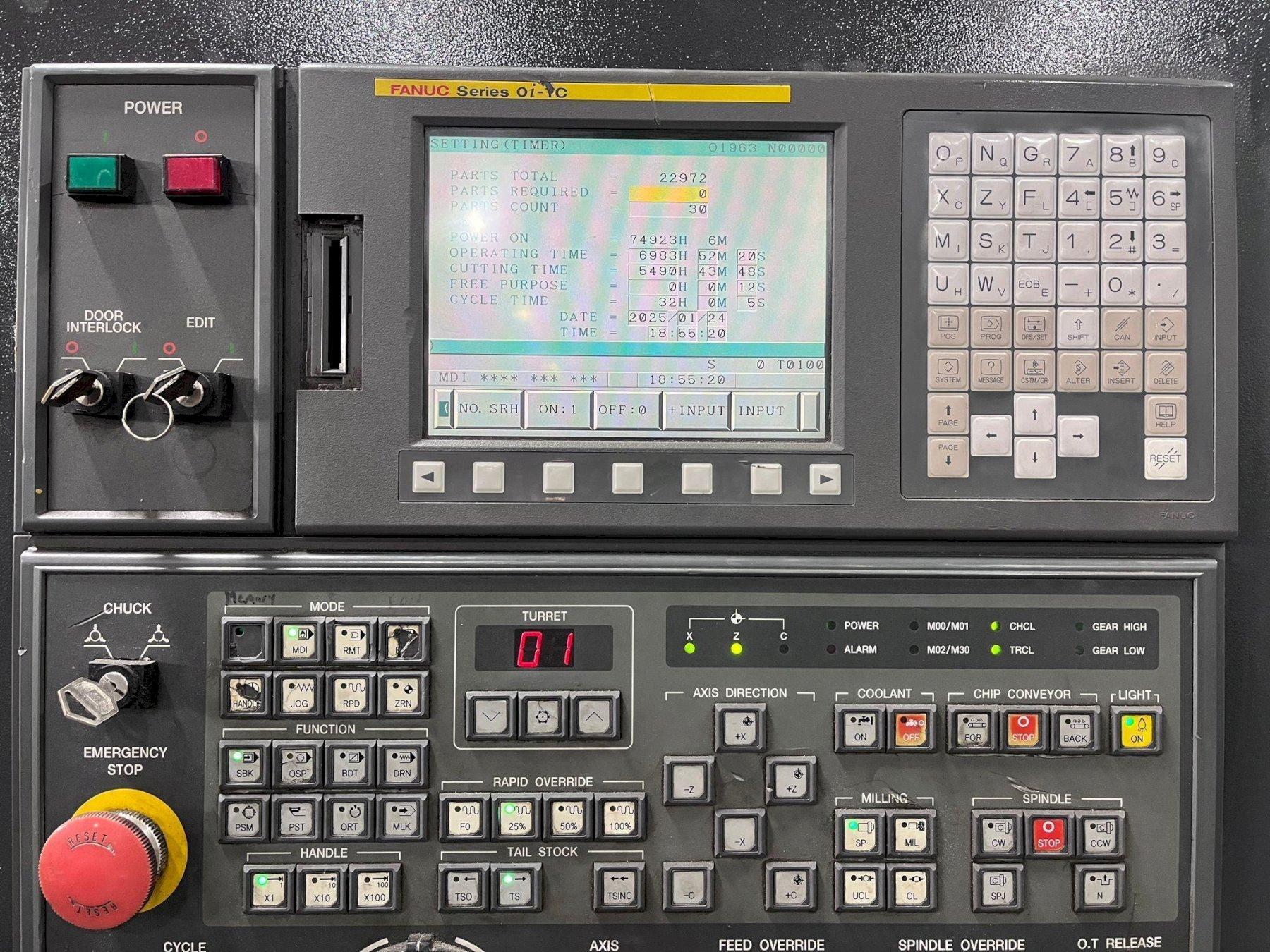

Fanuc 0i-TC CNC Control
Long Bed Box Way Machine

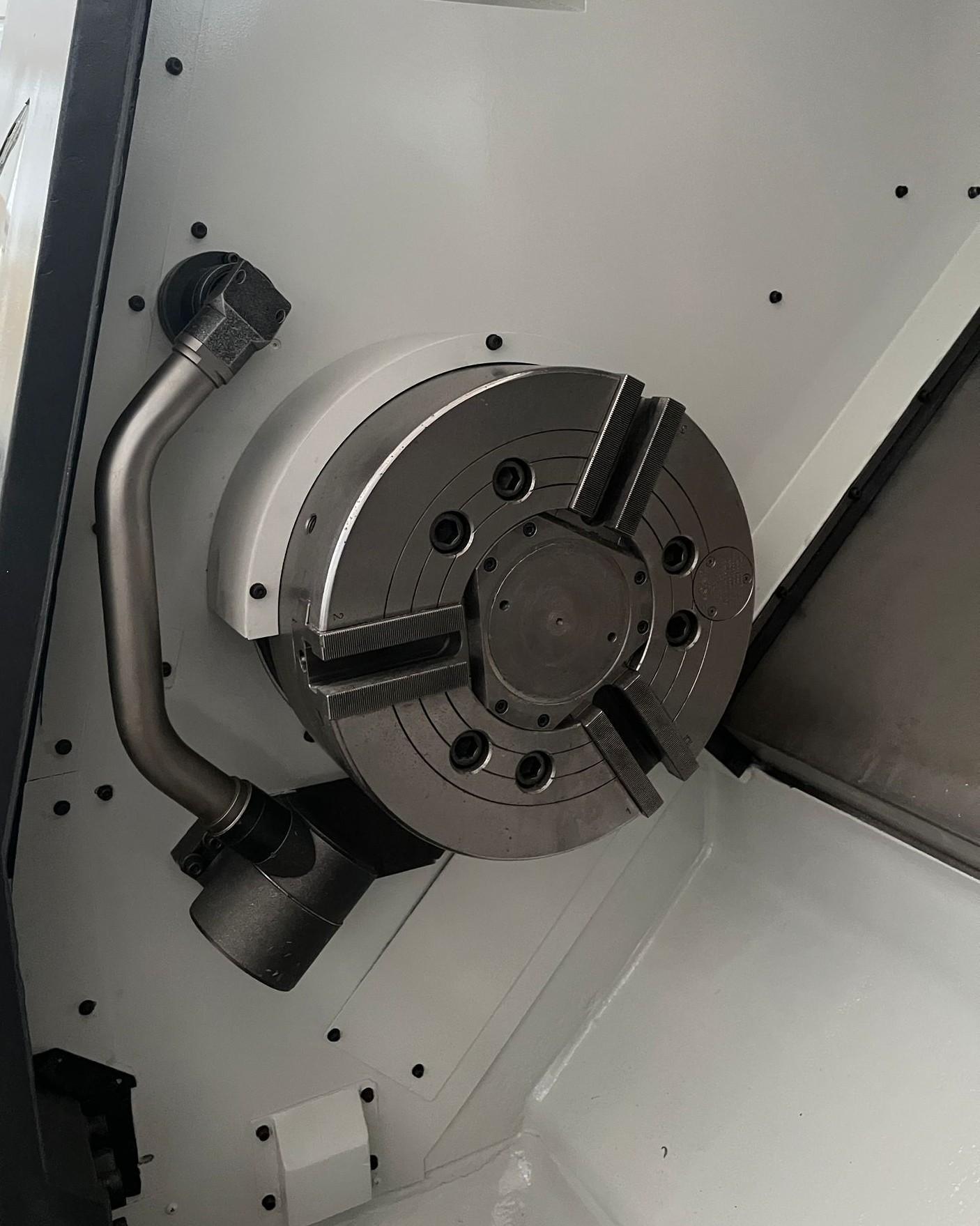

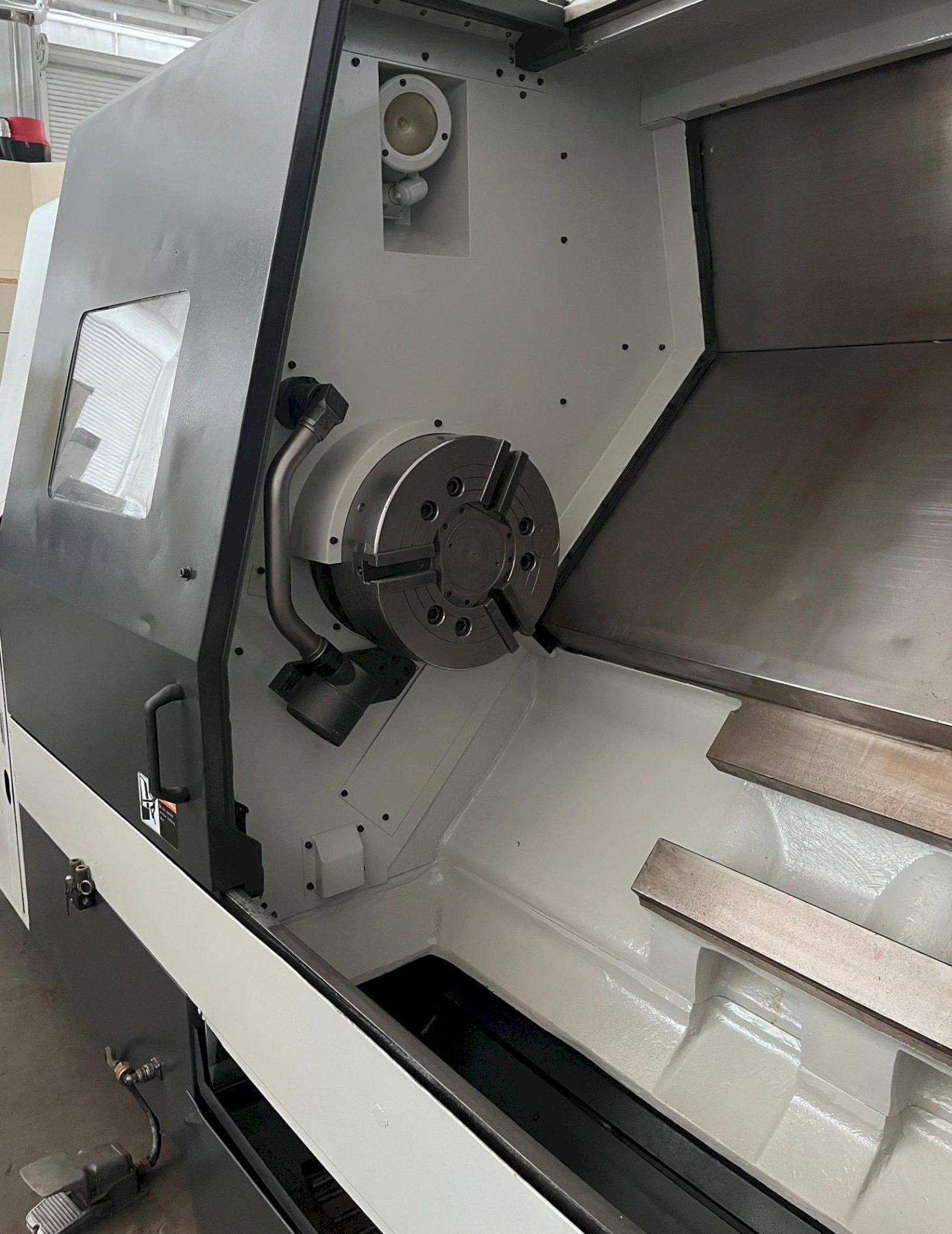

15 inch 3-Jaw Hydraulic Chuck
5.20 inch Big Bore, A2-11 Spindle

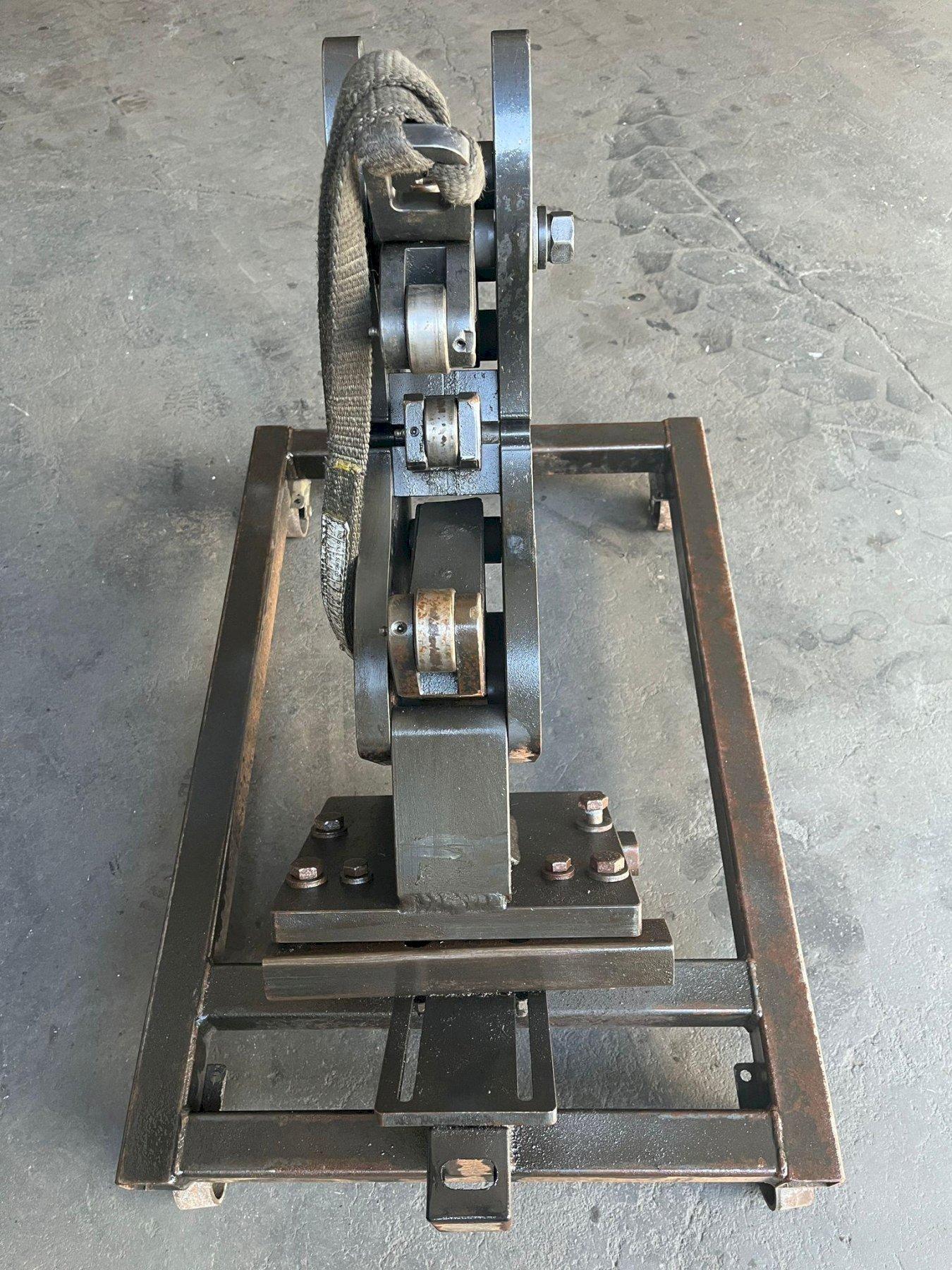

1 inch – 12 inch (Min – Max) Diameter Schmidt RIP – 112 Hydraulic Steady Rest
30 HP High Torque Spindle

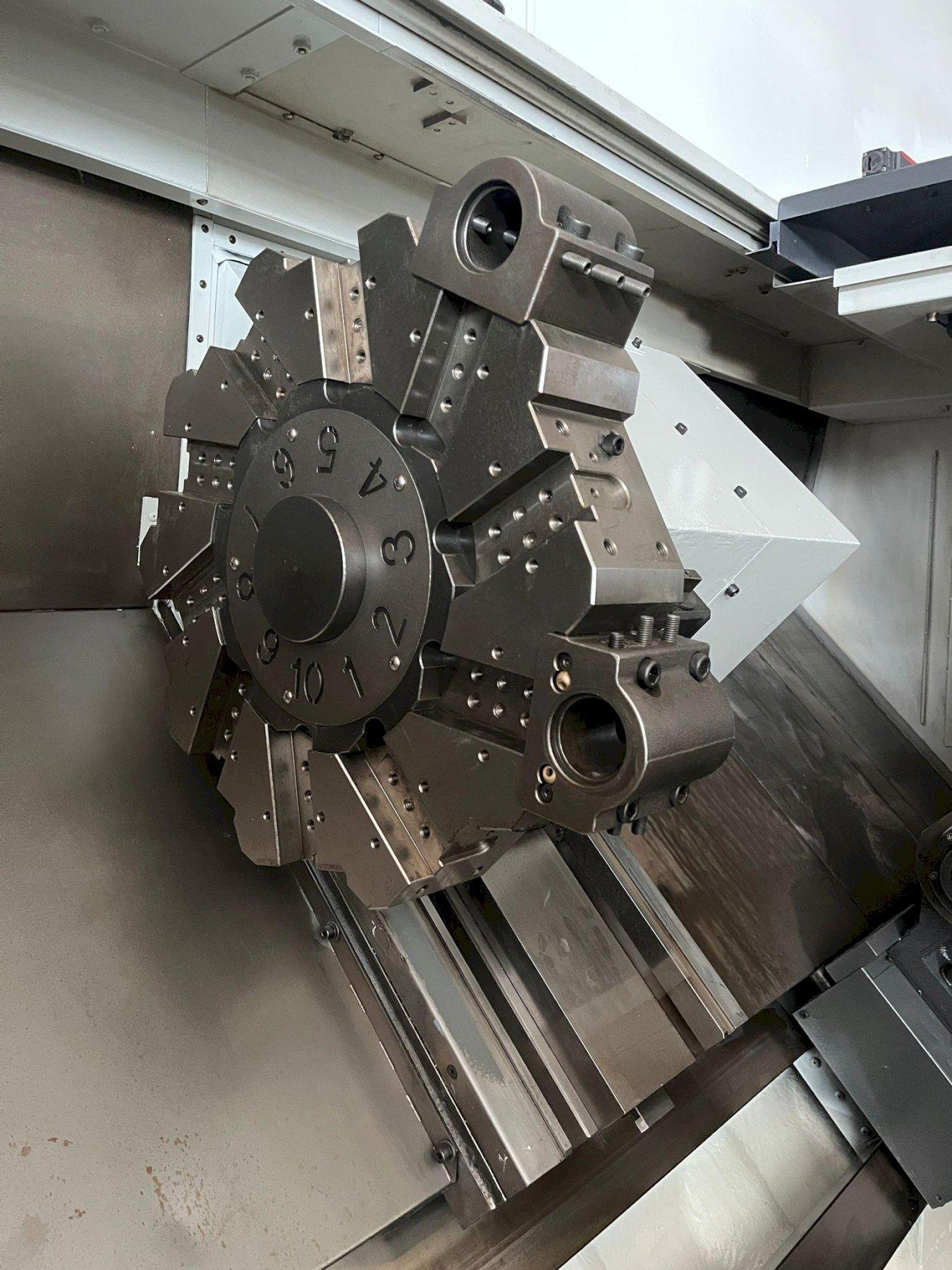

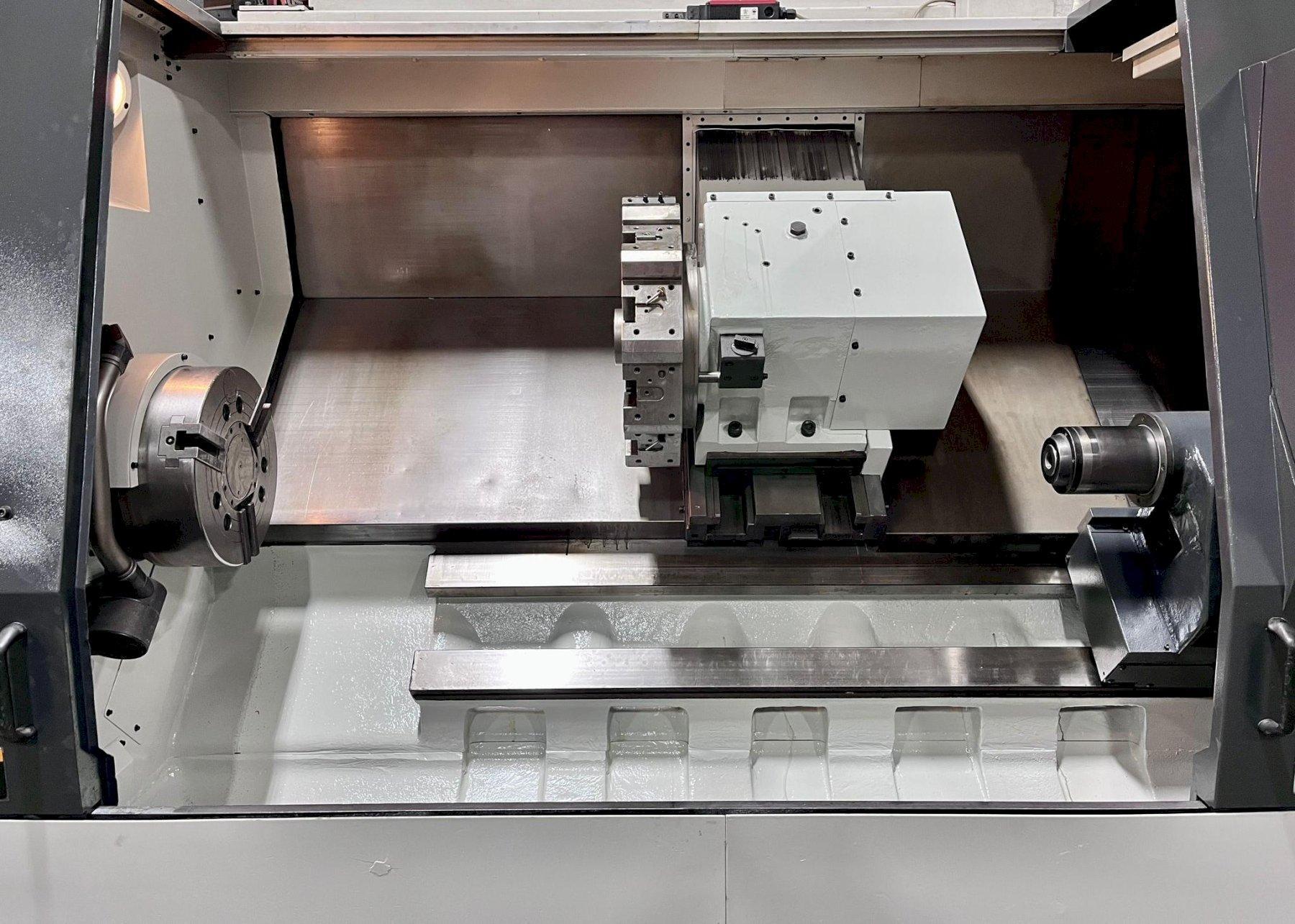

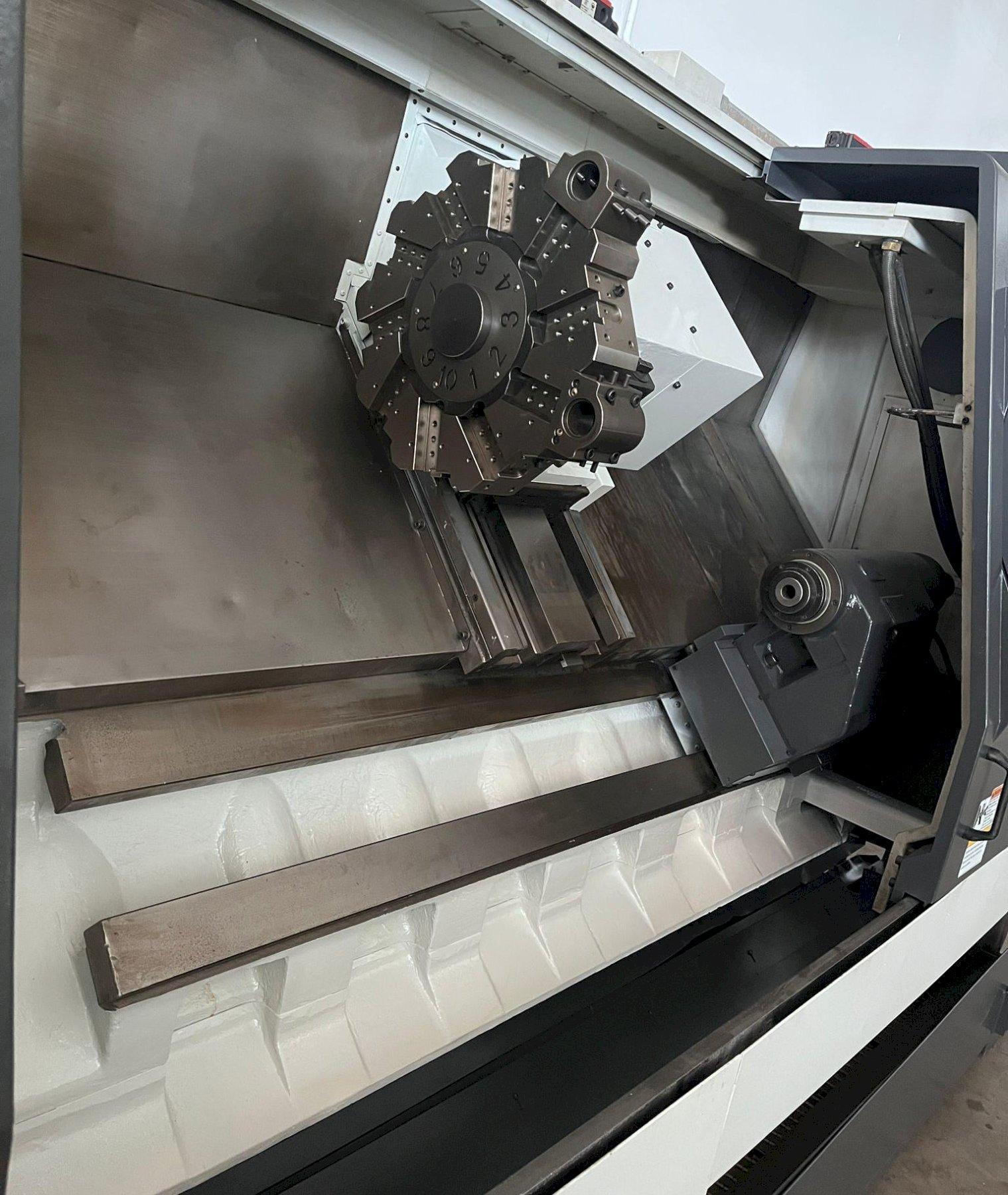

10 Station Automatic Turret
Tool Presetter

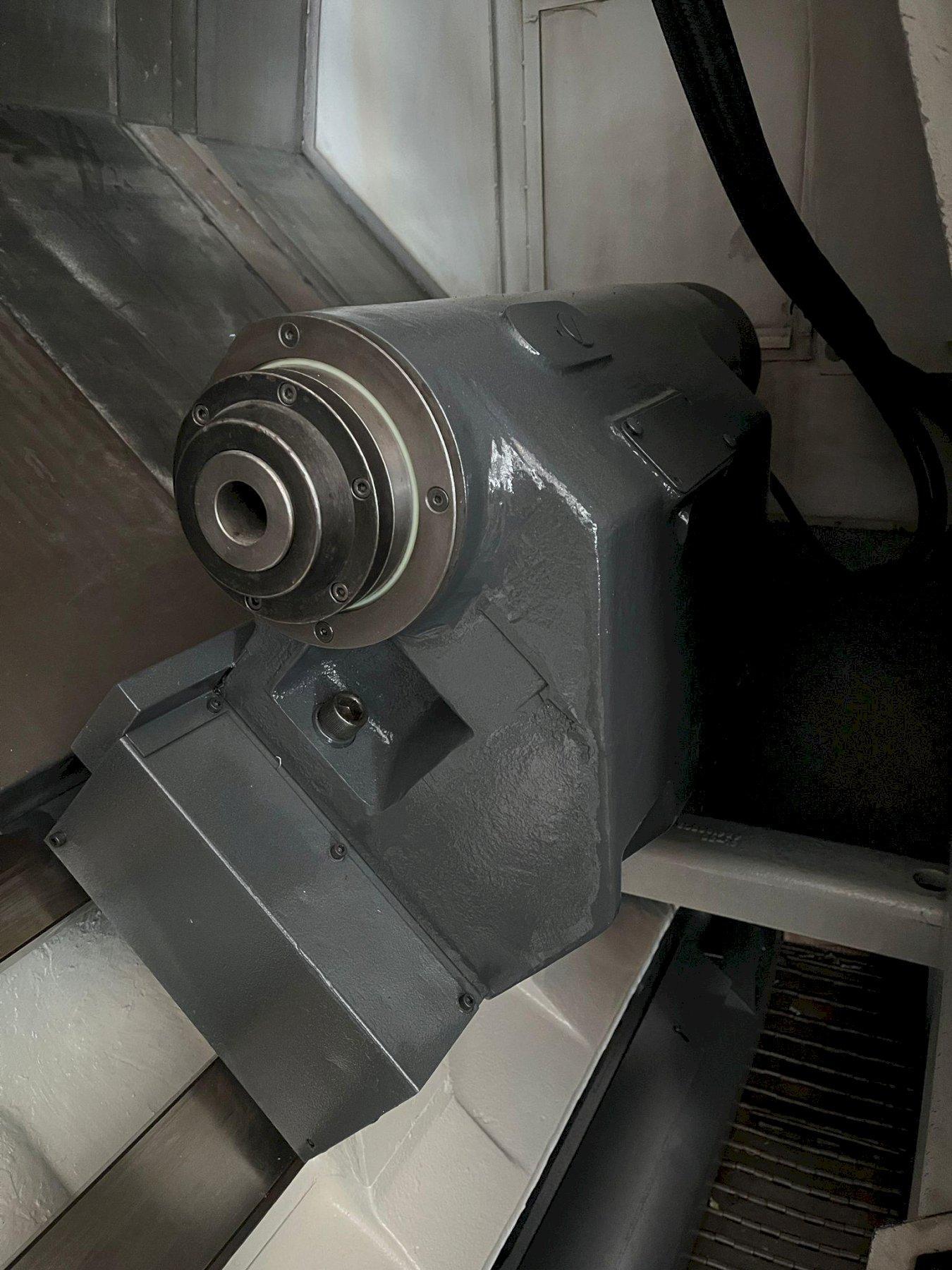

Tailstock
PCMCIA Card Interface
System
Coolant & Chip conveyor
(2) Boring Tool Holders Mounted on Turret (As shown in the images)
Capacity:
Max Turning Diameter: 16.5 inch
Max Turning Length: 60.2 inch
Max Bar Capacity: 4.63 inch
Swing Over Bed: 23.62 inch
Travel:
X Axis Travel: 9.47 inch
Z Axis Travel: 63.19 inch
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.20 inch
Spindle Speed: 2000 RPM
Spindle Motor: 30 HP
Turret:
Capacity: 10 Station Turret
Turret Index Time: 0.15 Second
Tool Holders Type: BMT
Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Dia.: 5.12 inch
Tailstock Quill Travel: 4.70 inch
General:
Power: 220v / kva / 3-Phase
Overall Dimensions: 197 inch x 73 inch x 80 inch High Approx.
Weight: 19,800 lbs. Approx.
