Nol-Tec BBU & LIW Powder Handling System – Twin Tower, Dual Feeder, Dilute Phase Pneumatic Transfer

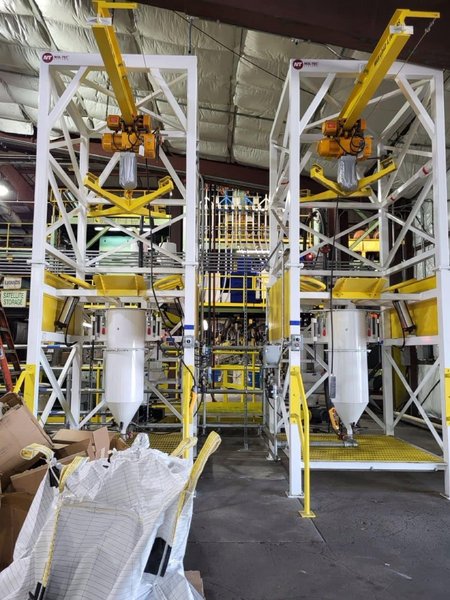

Machine Overview This Nol-Tec powder handling system is a dual-tower configuration supporting polyester powder transfer from bulk bag unloaders through surge hoppers, loss-in-weight feeders, and rotary valves into a dilute phase pneumatic line. Both systems are identical and operate independently with separate destinations. Designed for precise powder metering, the system integrates Brabender LIW feeders, Siemens-based PLC control, and full air and rotary valve interface.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications & Features

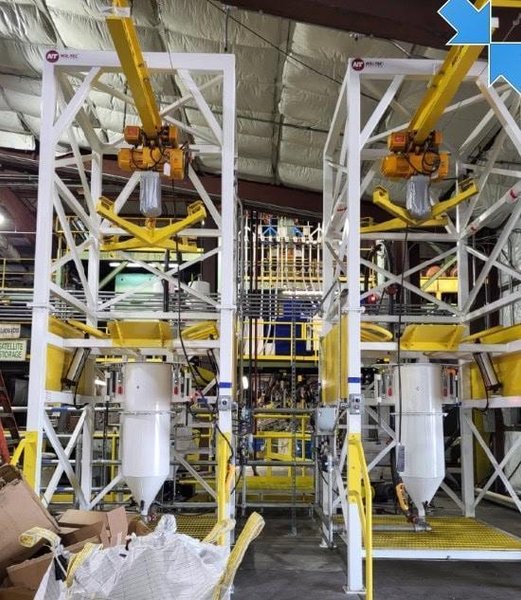

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Two (2) complete BBU + LIW transfer towers with dilute phase pneumatic transfer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Polyester powder handling design; 43.7 / 87.4 lb/ft³ density, 30 micron particle size

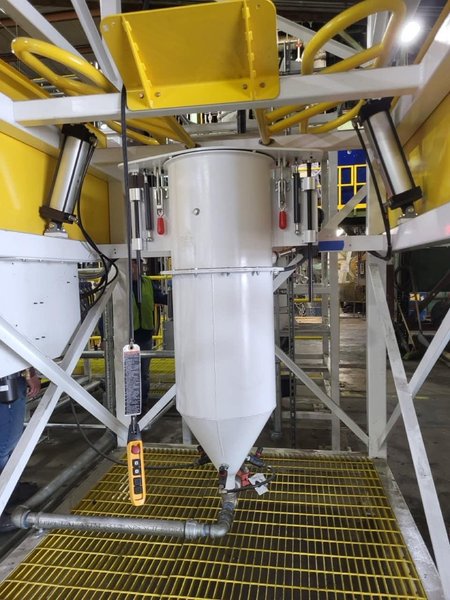

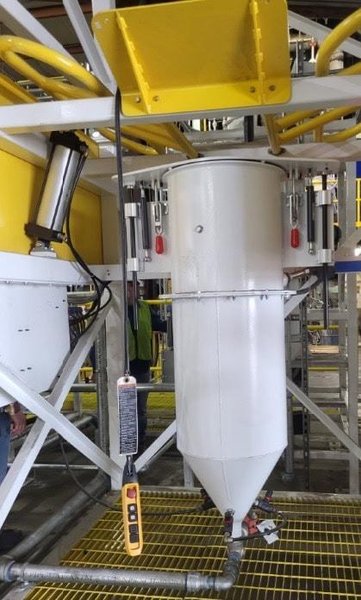

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bulk Bag Unloaders (Model 348 hoist-style, 2-ton certified):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Electric hoist, pendant control, bag spout seal, agitator, surge hopper, educator

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– 4 cu. ft. surge capacity, level probe, aeration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Twelve (12) single-bag dust filters with polyester media and pulse valve

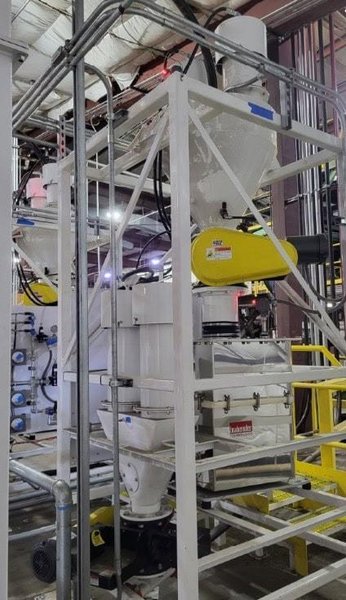

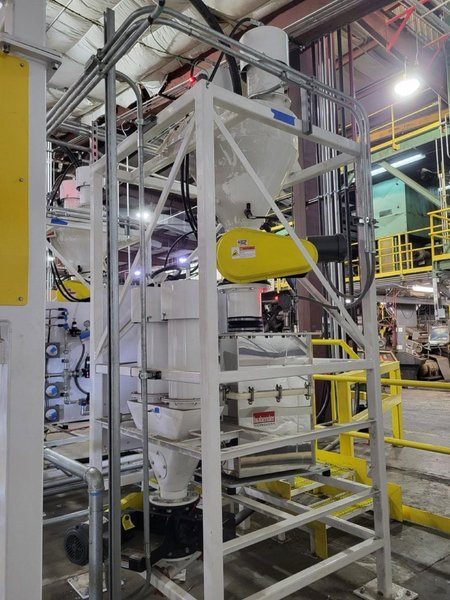

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Loss-in-Weight Feeders (Brabender, Qty 2): – Polyurethane trough, 200L hopper, Class II Div 2, external agitator – Load cell system, high-level probe, spare screw/tube, stainless contact parts

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotary Valves (Qty 4): – 8″ (.18 CFR) and 6″ (.07 CFR) cast iron, chrome-plated, ¾ HP gear motors – Outboard bearings, air purge seals, quick-clamp adapters

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dilute phase pressure conveying system (2″ line, 10’ vertical, 40’ horizontal, 3 bends)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Design transfer rate: 330–1200 PPH (Tower 1); 1800 PPH (Tower 2)

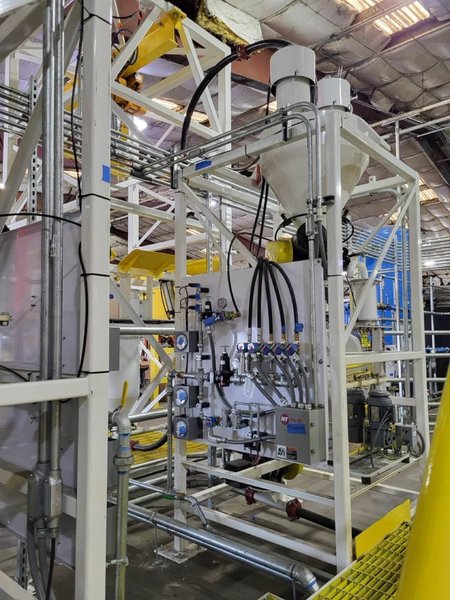

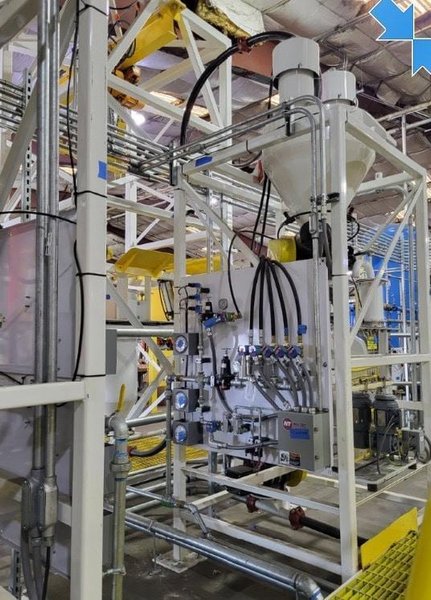

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Secondary air control panel: solenoids, regulators, transmitters, gate valves, servo regulators

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Control Panel (Siemens): – S7-1200 1215C CPU, I/O, analog modules, HMI 12″ Comfort Panel – Siemens G120 VFDs with ProfiNet, weigh scale indicators – 24VDC supplies, Ethernet switch, programming port, isolation relays – Allen-Bradley breakers, fuse blocks, terminals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All towers and components built on mild steel support frames
