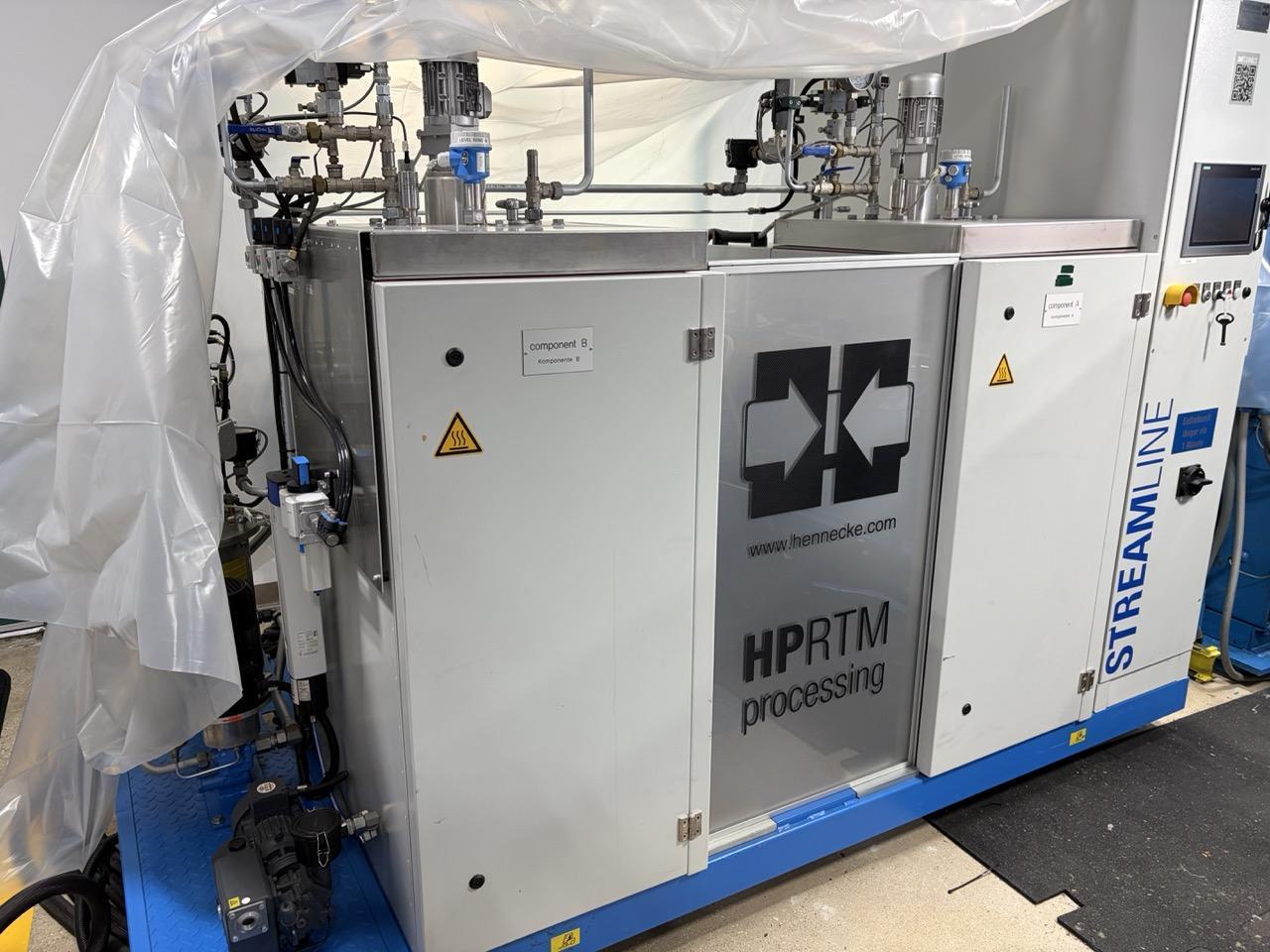

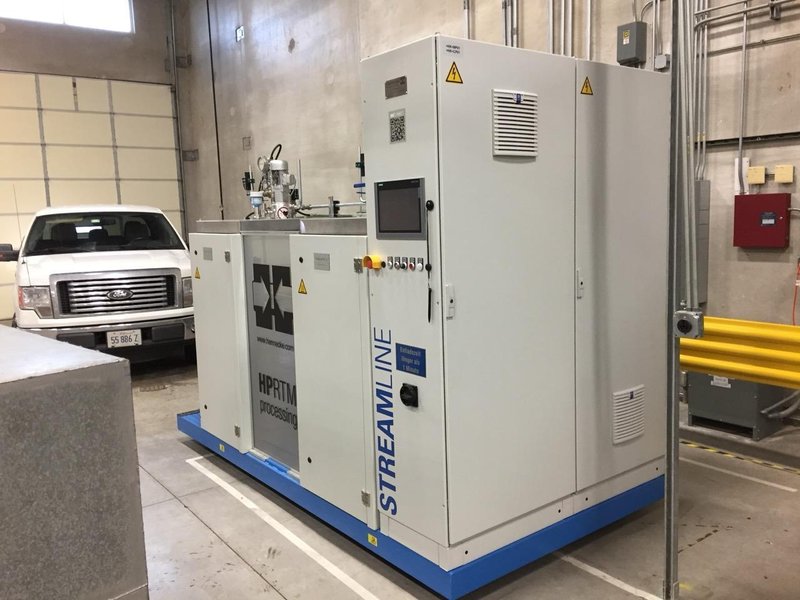

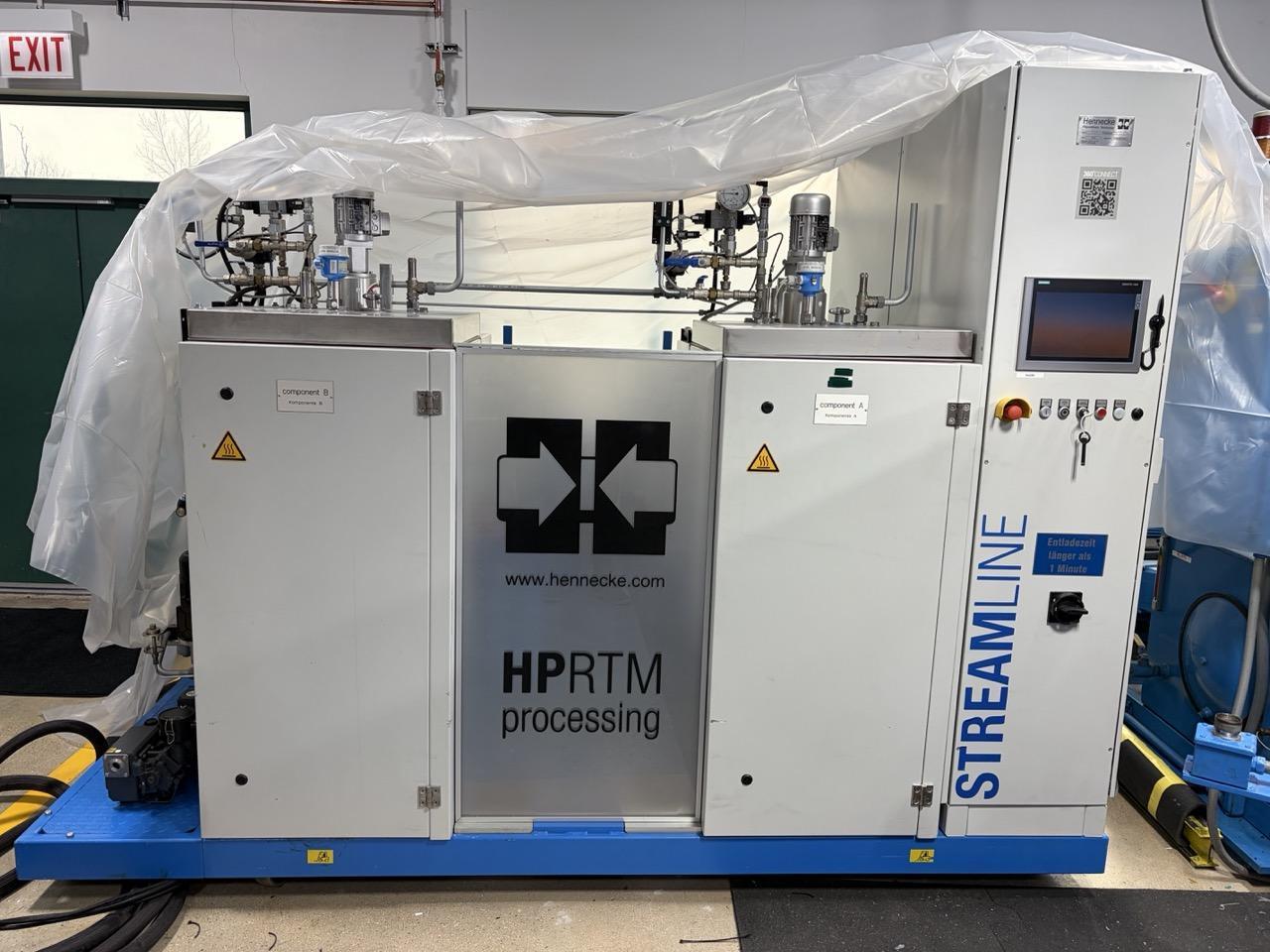

Hennecke HP‑RTM High‑Pressure Polyurethane Metering Machine Streamline, 2016 – Low hours, MN 10-RTM Mixing Head

MN 10-RTM Mixing Head

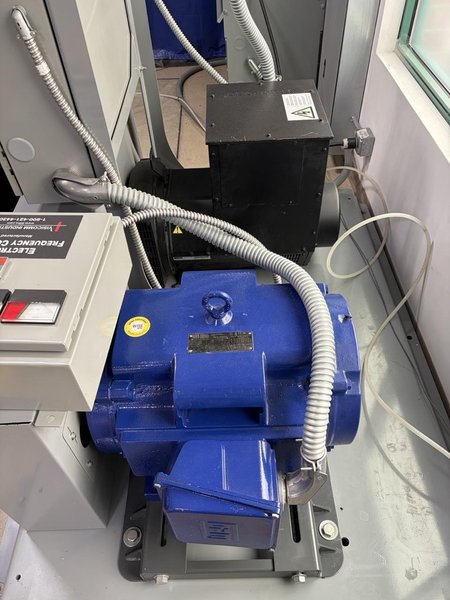

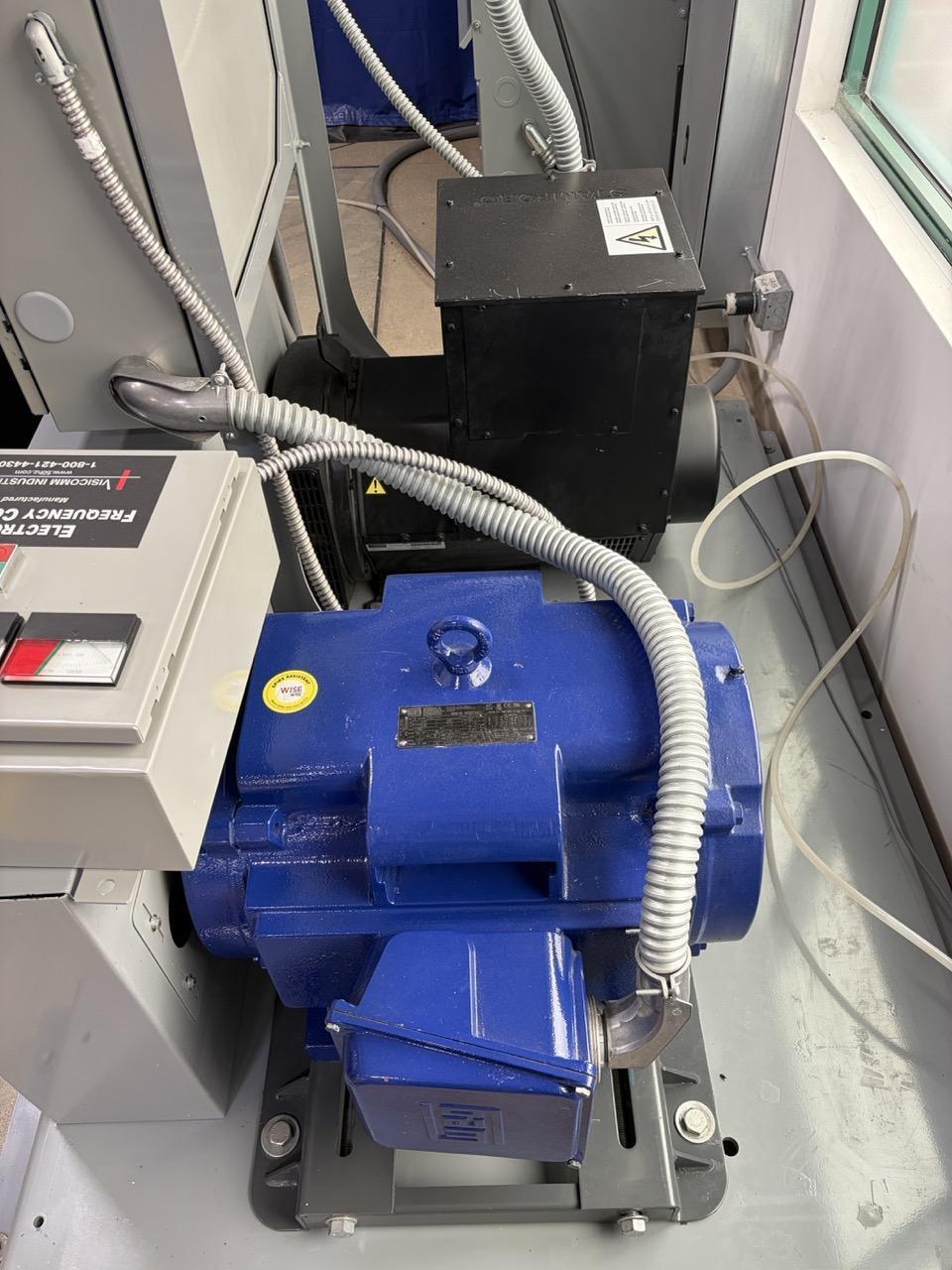

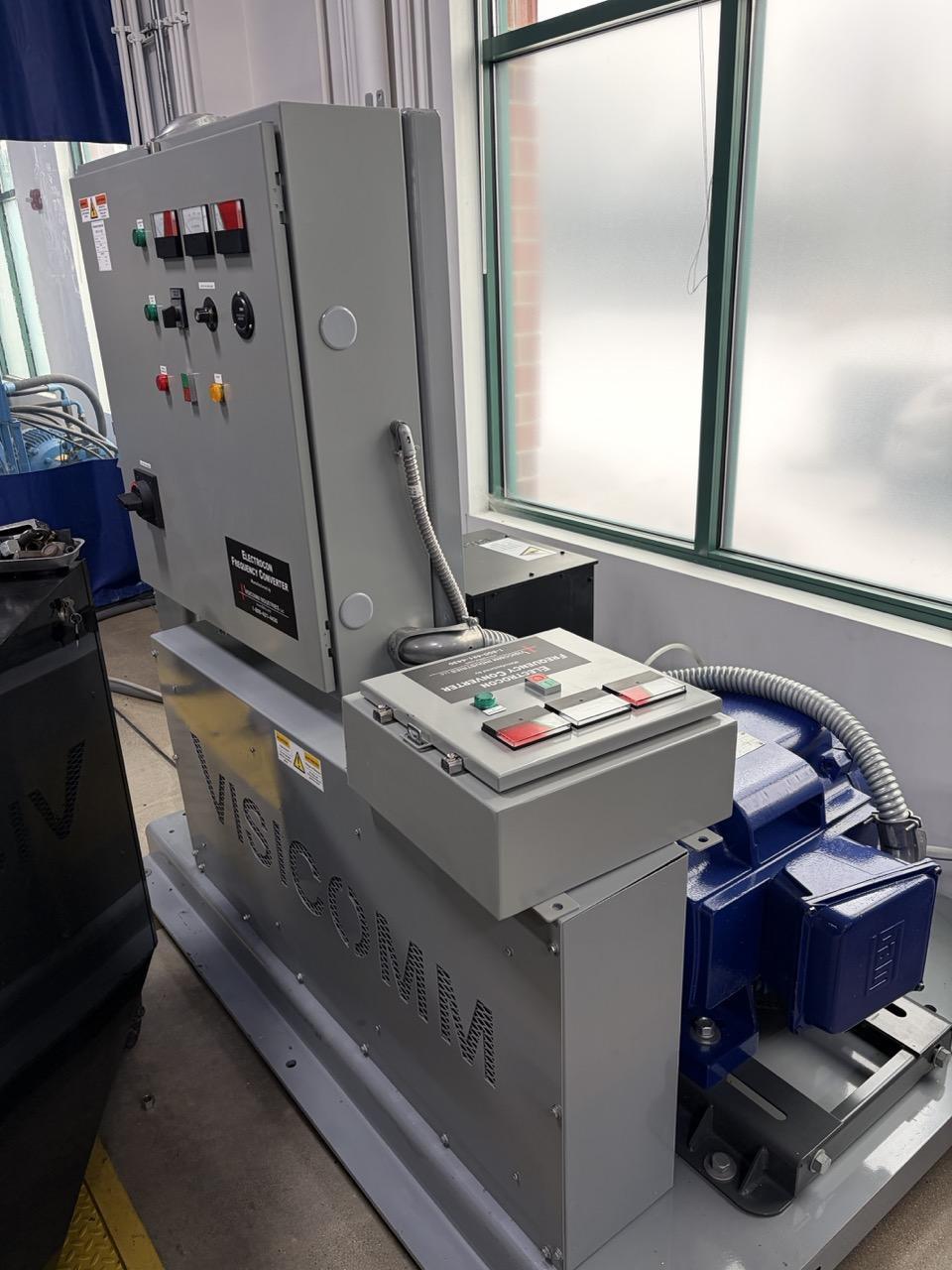

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Visicomm frequency converter coming with the machine. Set up for European voltage.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System Overview:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type: High-Pressure Resin Transfer Molding system for fiber-reinforced structural parts

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Configuration: Two main components plus one additive component

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Reactive Plastic System: Polyurethane

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mobile frame design for flexible floor placement

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature Control:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard: 100°C maximum

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Optional: 130°C maximum with enhanced insulation package

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Energy consumption at 70°C: 1.5 kWh (on 60L tank at 70% capacity)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Metering Line A (HP2 – Polyol Component):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max output: 45 cm³/sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Min output: 2 cm³/sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor: 3 kW, 1,430 min⁻¹, frequency-controlled

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank capacity: 60L (55L effective)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank material: Mild steel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank operating pressure: -1 to 2 bar

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stirrer: 0.25 kW, 51 min⁻¹ with magnetic coupling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety valve: 2 bar fixed setting

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Metering Line B (HP6 – Isocyanate Component):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max output: 150 cm³/sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Min output: 6 cm³/sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor: 5.5 kW, 1,450 min⁻¹, frequency-controlled

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank capacity: 60L (55L effective)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank material: Stainless steel (for corrosion resistance)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank operating pressure: -1 to 2 bar

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stirrer: 0.25 kW, 51 min⁻¹ with magnetic coupling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety valve: 2 bar fixed setting

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mixhead:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: MN10-RTM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features: Position encoder and pressure sensor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Output range: 30–250 cm³/sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Self-cleaning via ejector

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Prolonged outlet pipe to minimize docking distance

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control System:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,PLC: Siemens programmable logic controller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,HMI: 12″ TFT touchscreen display, fully graphic

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Metering programs: 250 available (manual startup)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Functions: Shot simulation, timer, shot data logging, process analysis

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Monitoring: Warning limits and alarm limits for flow rate, temperature, pressure

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Data logging: Shot logs, shift logs, trend displays

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Network: Ethernet connection for data acquisition

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Release Agent Station:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Output range: 0.25–1.8 g/sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Admission pressure: 3–4 bar

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Differential pressure: 50–160 bar

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Viscosity range: 250–700 mPas

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features: Integrated static mixer, level meter, pressure tank with recirculation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mould Evacuation Module:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Purpose: Removes trapped air from product

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features: Integrated monitoring and control via WINTRONIC system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Adjustable closure during mould filling phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additional Features:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vacuum unit (standard in basic configuration)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed pump for uninterrupted component supply

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Frequency-controlled metering lines

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Remote access via Hennecke-MPR-Router

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CE compliant with European Pressure Equipment Directive compliance
