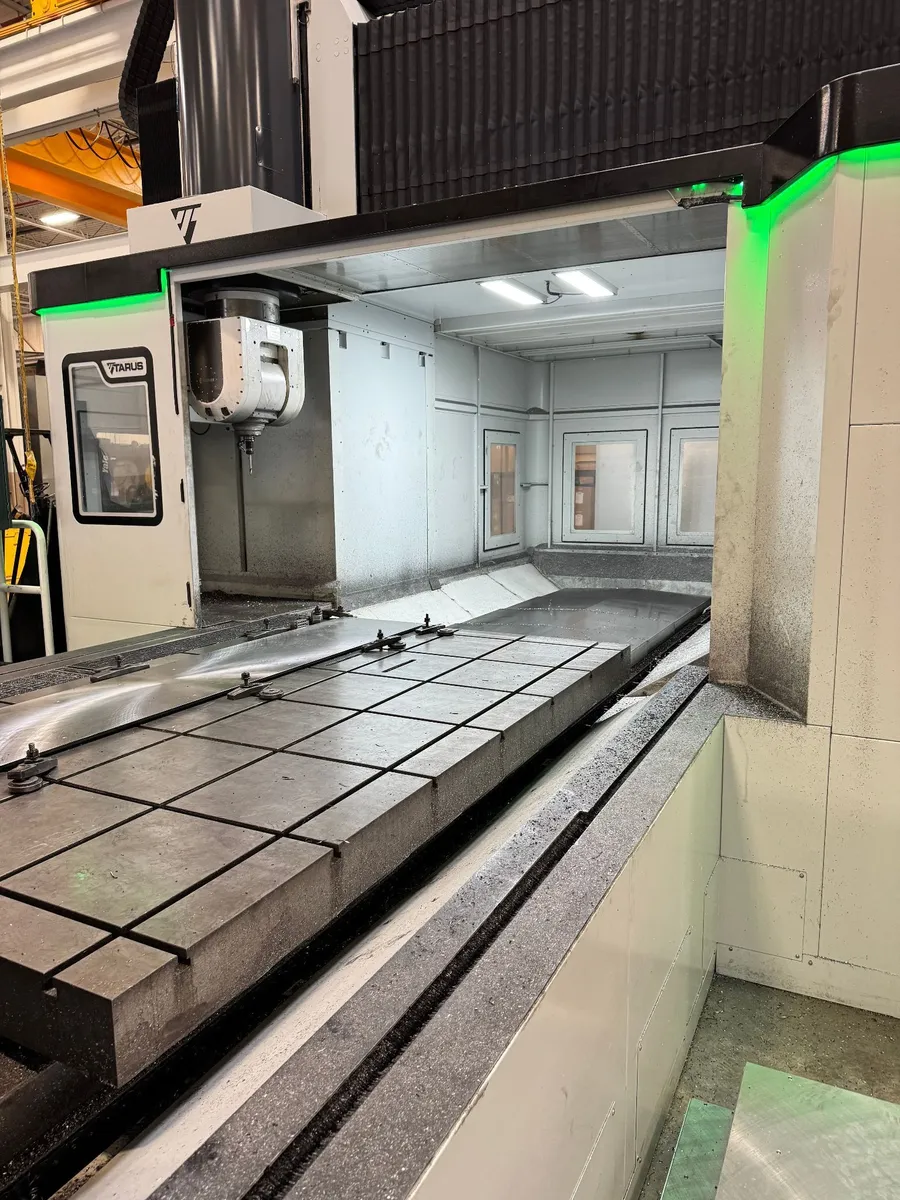

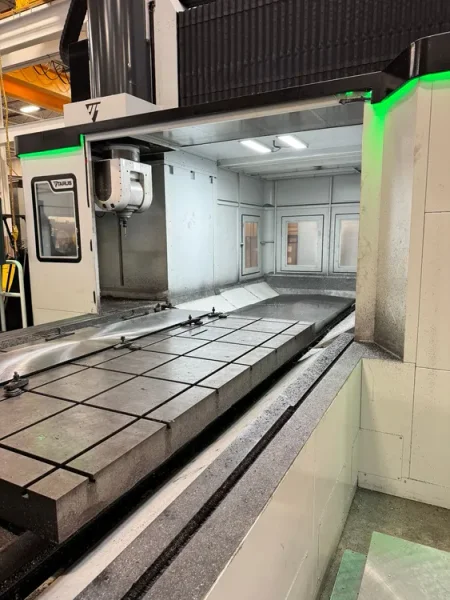

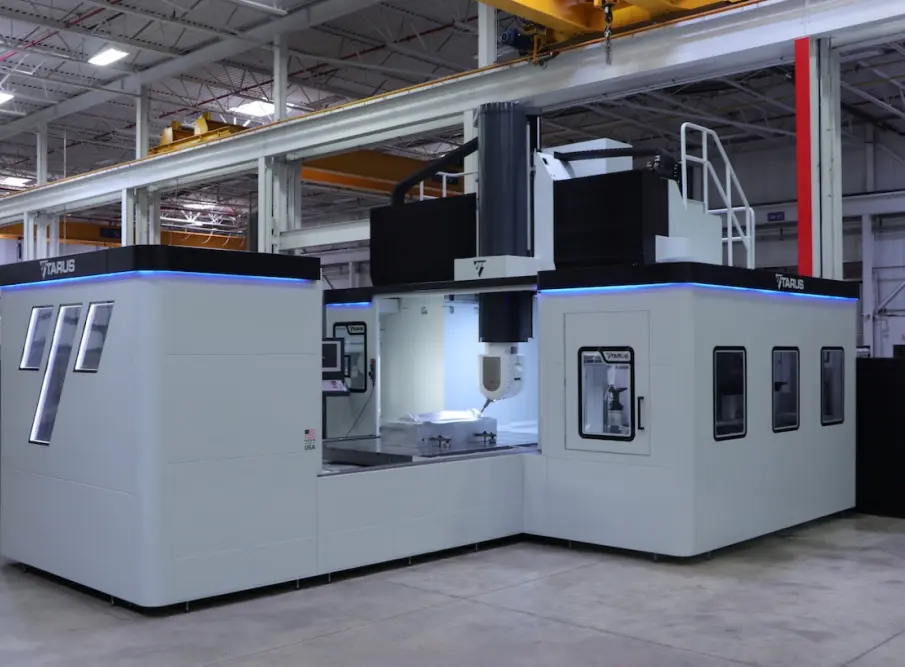

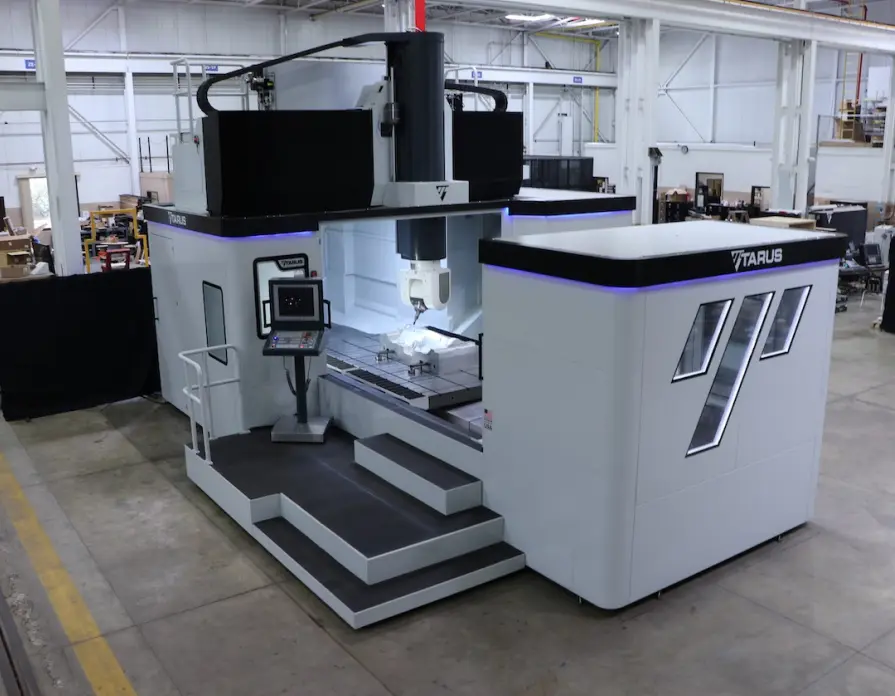

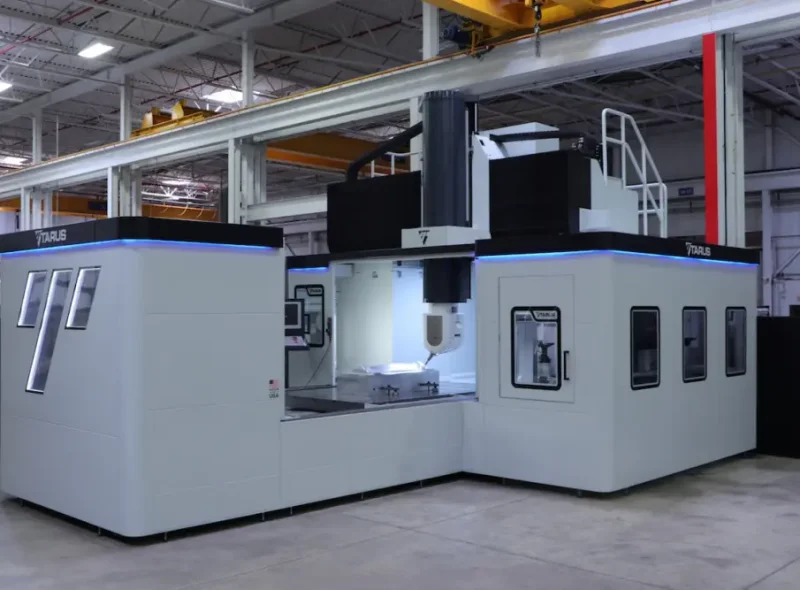

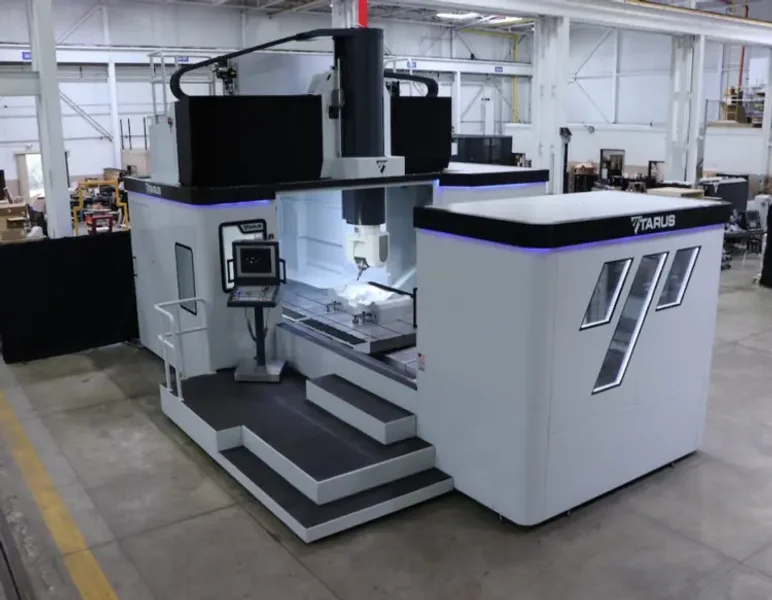

TARUS PMT 5-Axis Bridge Mill

TARUS PMT 5-Axis Bridge Mill
Year: 2018

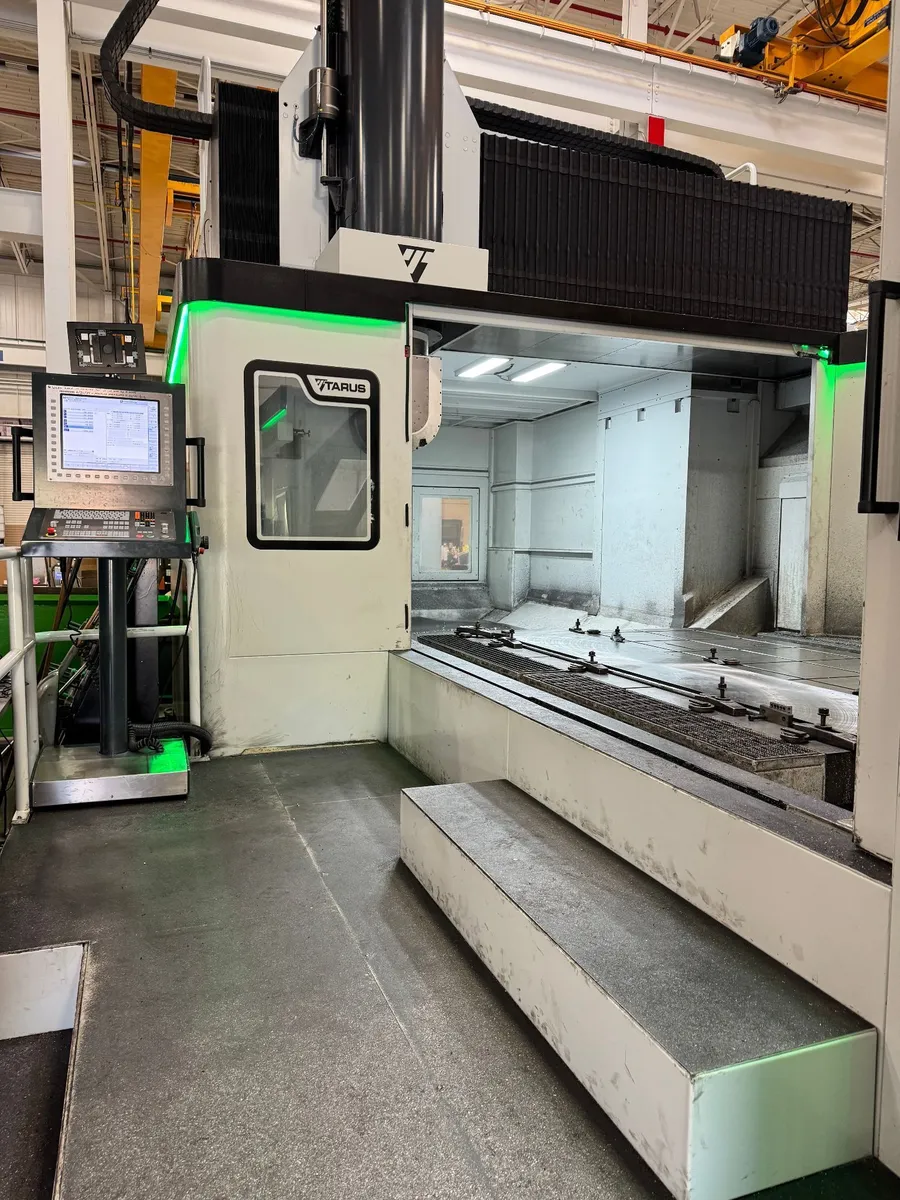

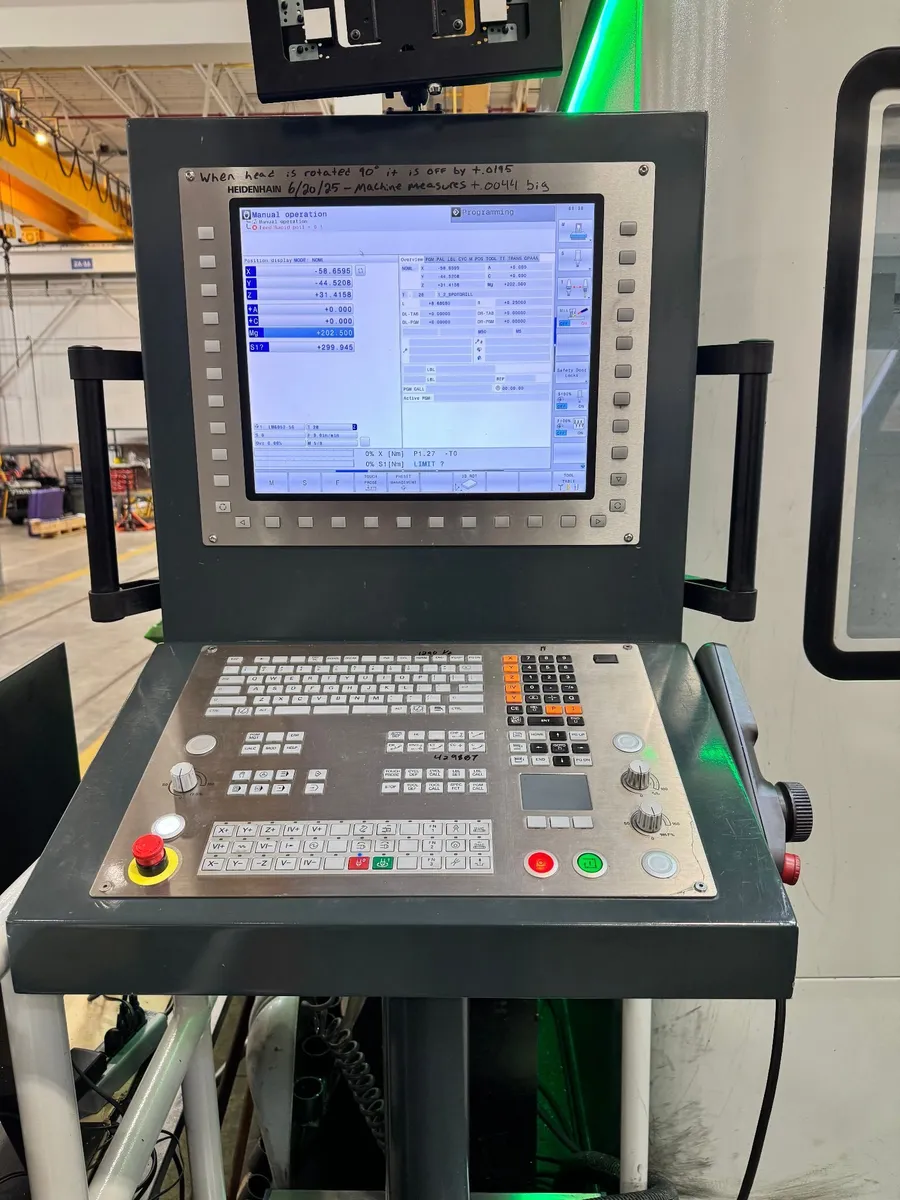

- Heidenhain TNC640 Control

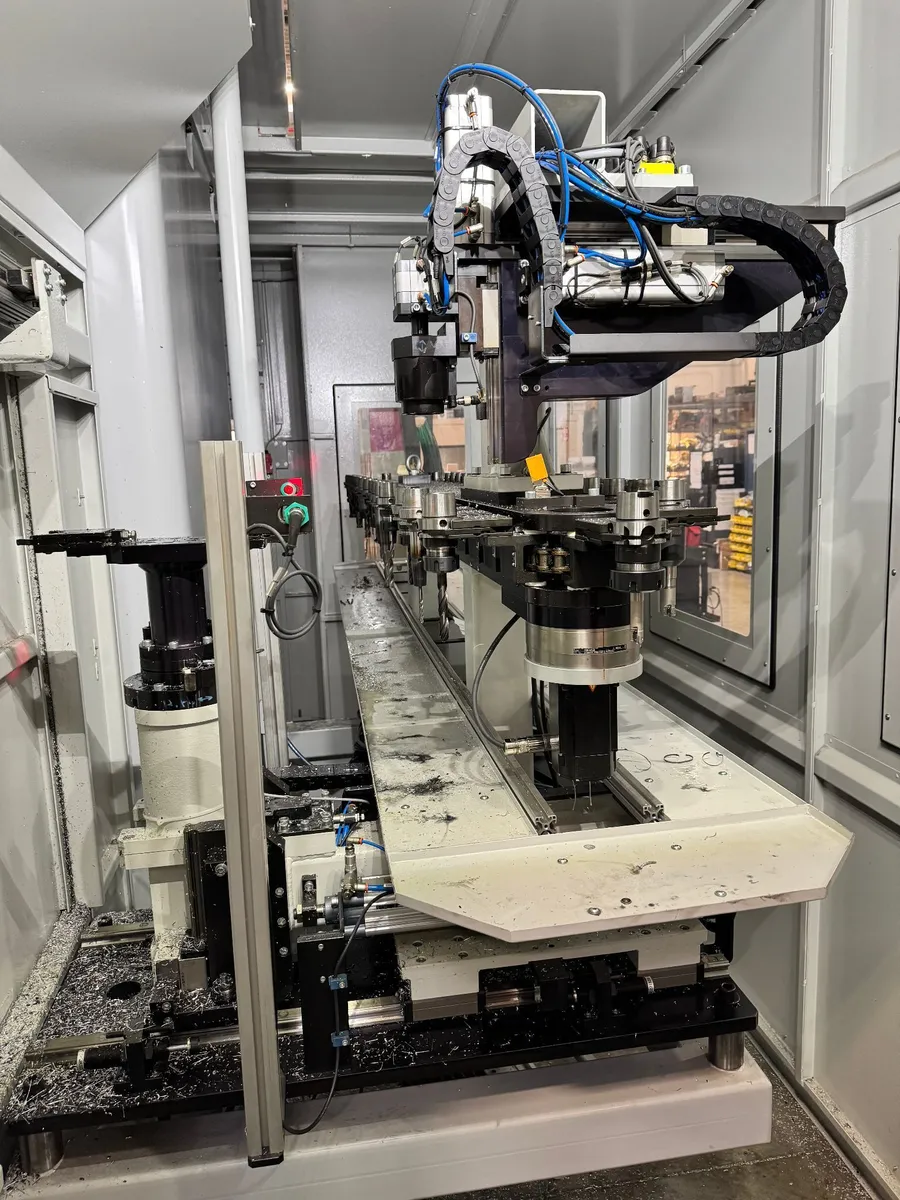

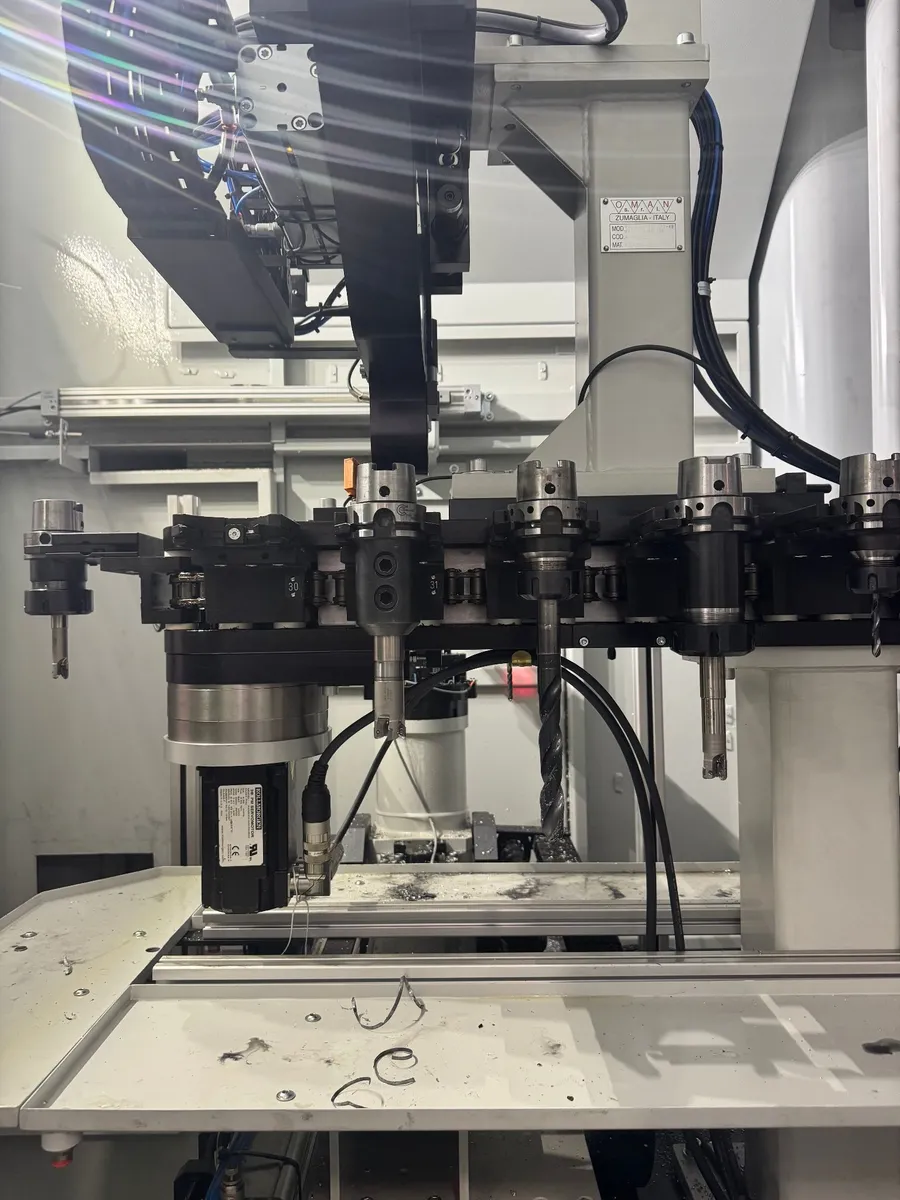

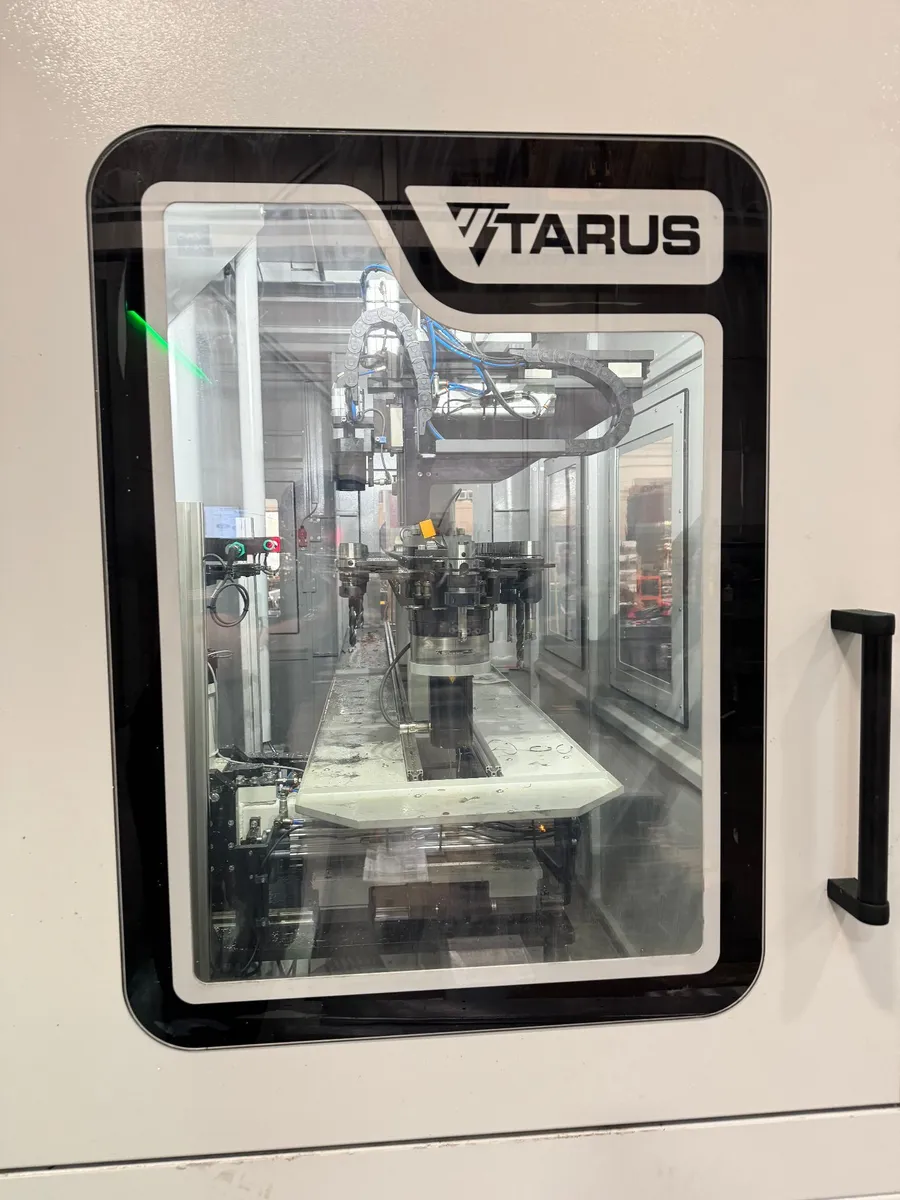

- 49 count Tool Changer
- Full 5 axis with Hydraulic Clamped 3-axis functionality

Goes for 1.3m new!

PMT5 General Specifications

| Specification | Imperial | Metric |
|-----------------------------|----------------------|--------------------------|
| X Axis | 120" | 3048 mm |
| Y Axis | 113" | 2870 mm |
| Z Axis | 46" | 2438 mm |
| Maximum Under Spindle | 50.3" | 1280 mm |
| Opening Between Columns | 96" | 4368 mm |

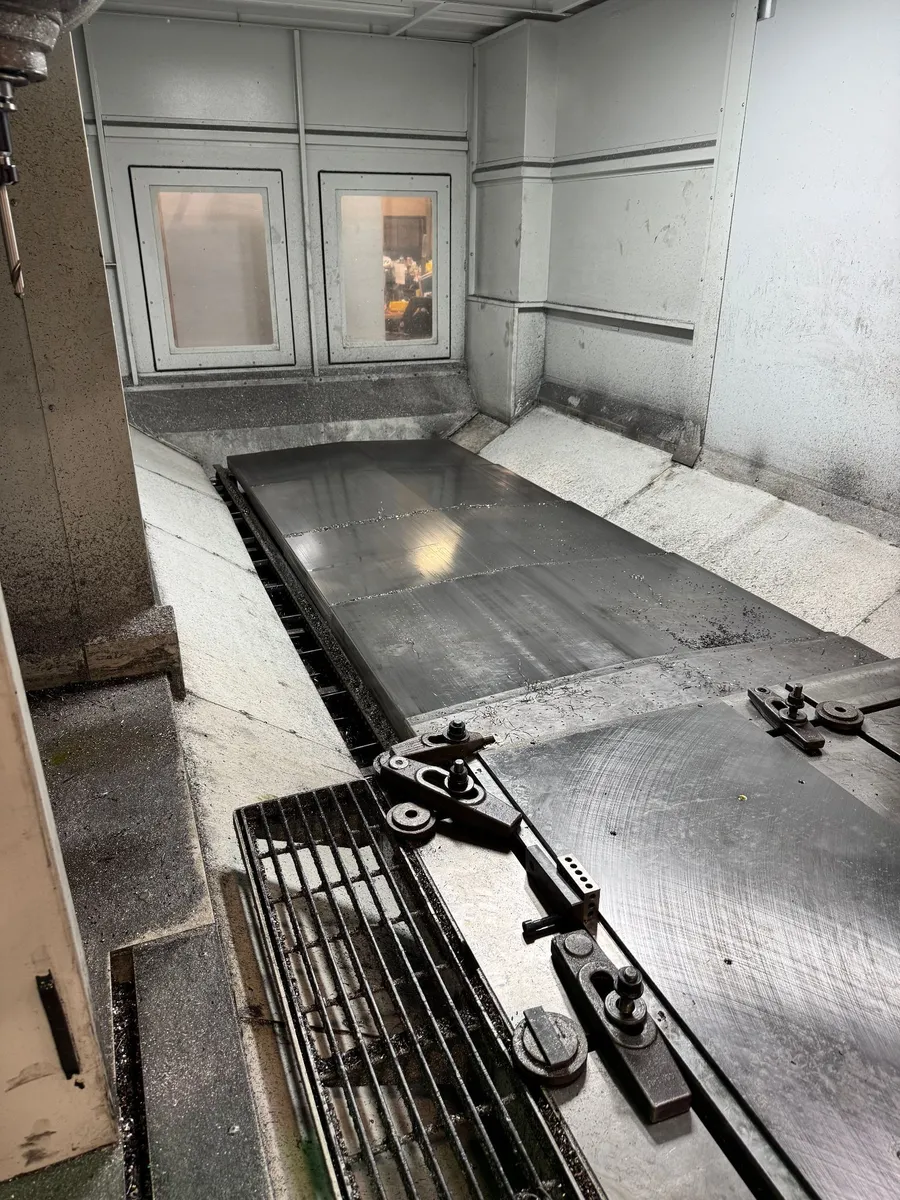

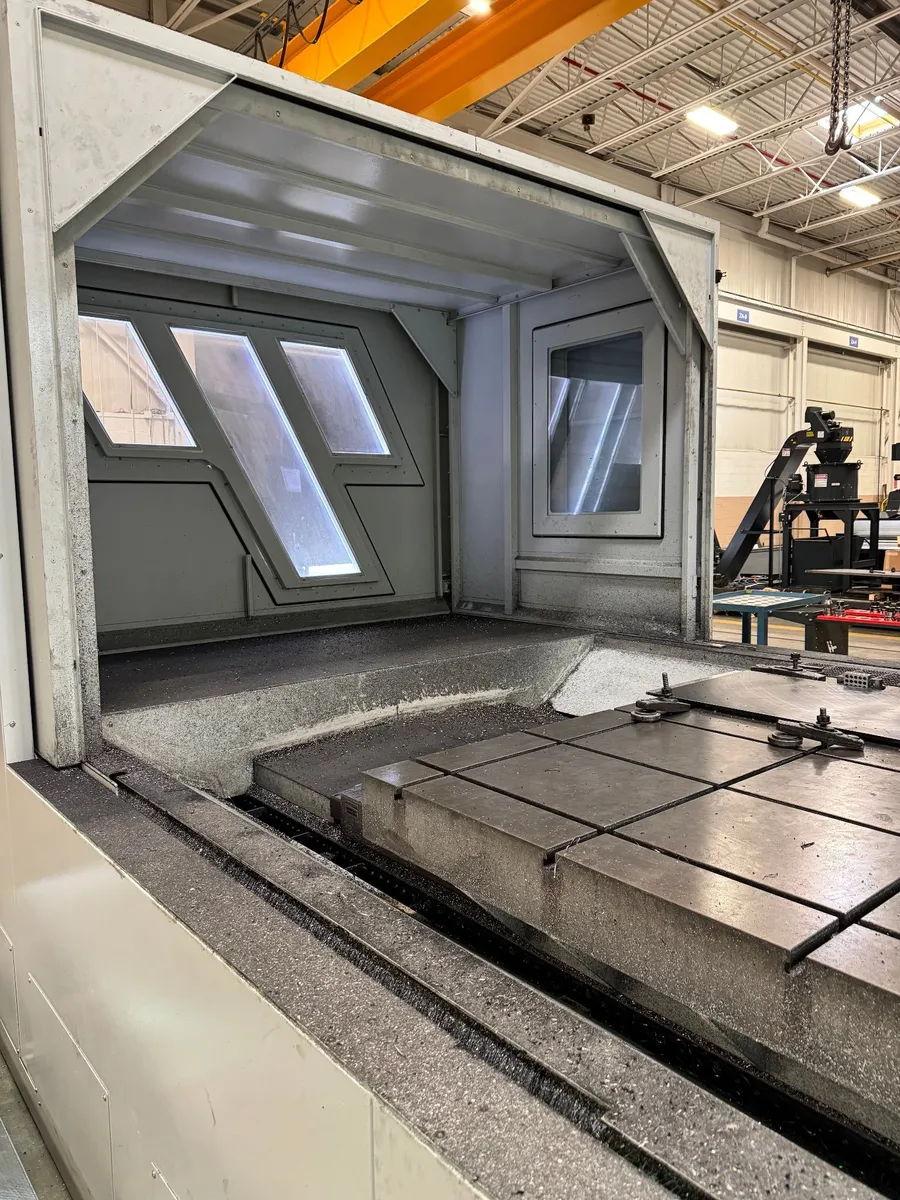

| Table Size | 72" by 120" | 1828 mm by 3048 mm |
| Table Capacity | 65,000 lb | 29,545 kg |
| Maximum Rapid | 1300 ipm | 33 meters per minute |
| Maximum Acceleration Rate | 0.2 G | 2 meters/second² |
| Automatic Tool Changer | 49 Tools Standar
| ATC Max Tool Length | 15.74" | 400 mm |
| ATC Max Tool Diameter | 7" | 180 mm |

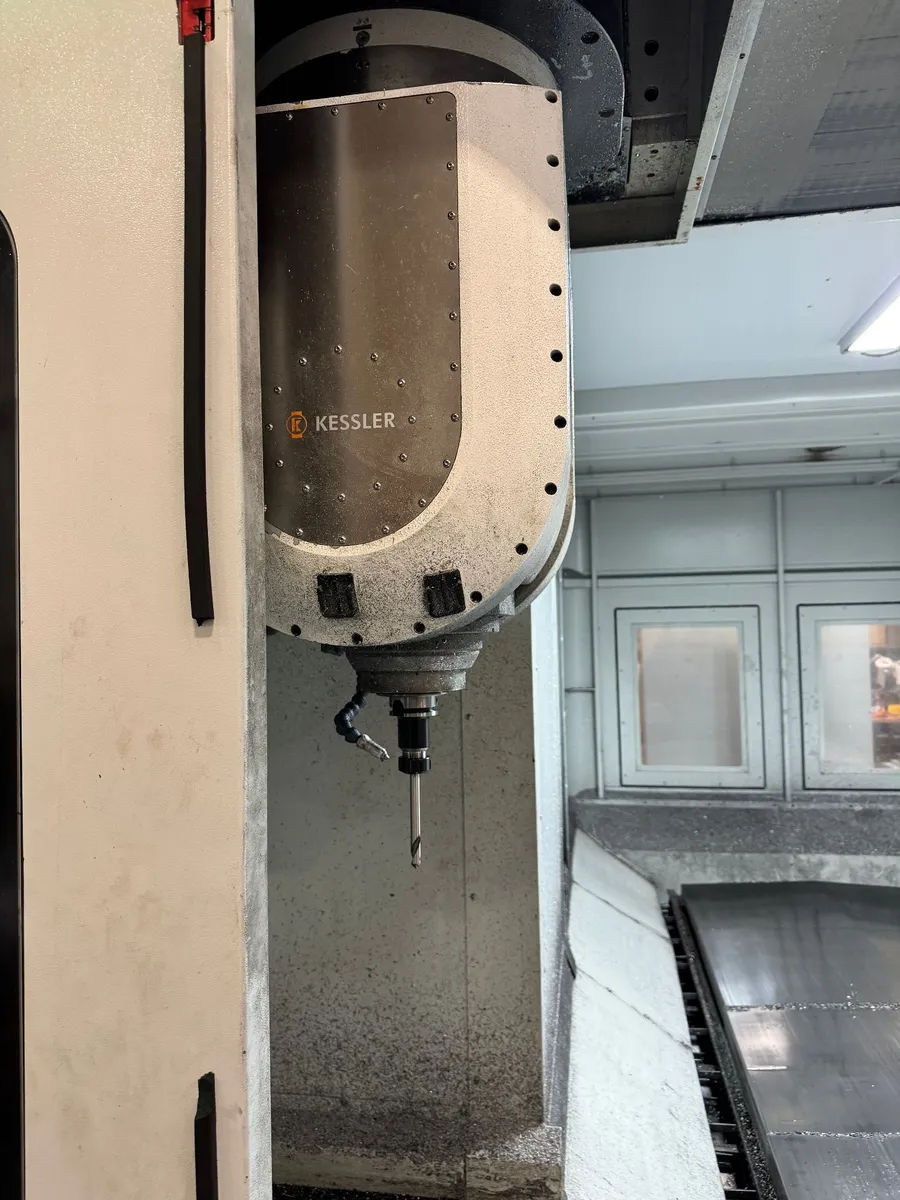

PMT5-K (Kessler Milling Head and Spindle)

Milling Head:
Fork Style Milling Head, Torque Motor Direct Drive, Hydraulic Clamping, Cartridge Spindle

Imperial Metric
-------------------------------------------------------------------------
A Axis Rotation +/- 105° +/- 105°
A Axis Position Force /
Clamp Force 885 ft·lb / 2212 ft·lb 1200 Nm / 3000 Nm

C Axis Rotation +/- 210° +/- 210°
C Axis Position and
Clamping Force 811 ft·lb / 2950 ft·lb 1100 Nm / 4000 Nm

A and C Axes
Max Rotation Speed 100 rpm 100 rpm

Spindle HSK63A HSK63A
Spindle Speed 0–18,000 RPM 0–18,000 RPM

Spindle Power and
Torque 65 ft·lb (S1), 81 ft·lb (S6) 70 kW, 89 Nm (S1), 110 Nm (S6)
