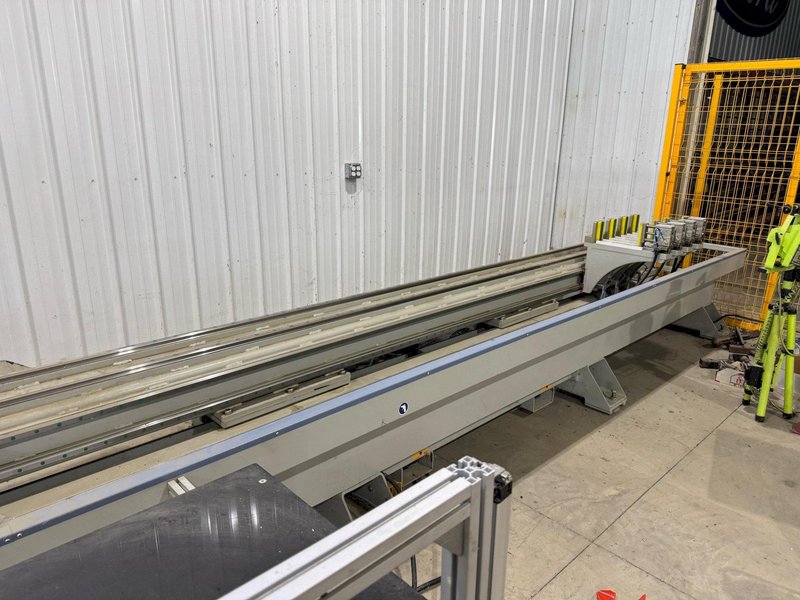

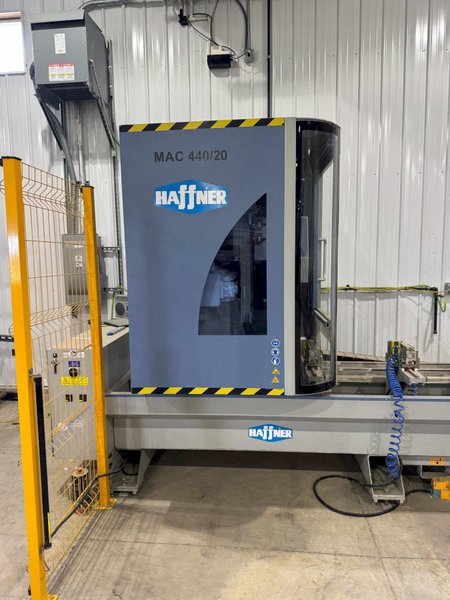

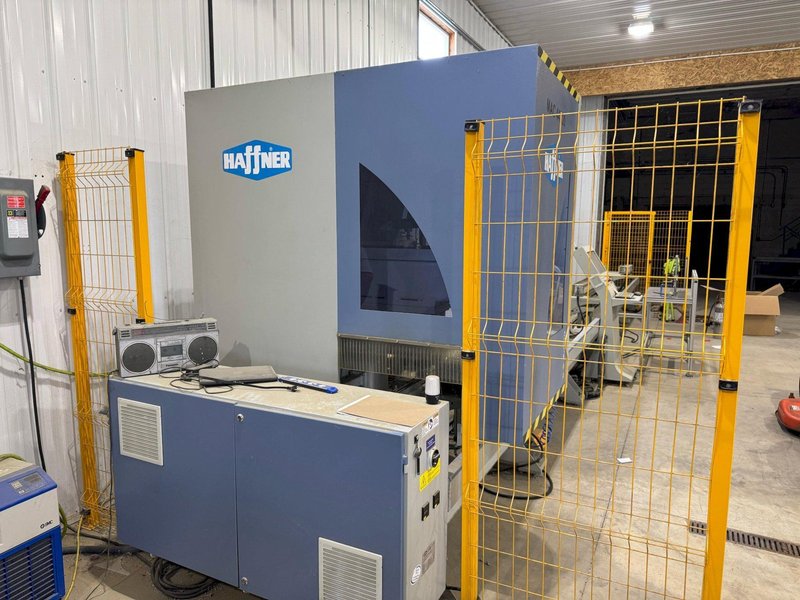

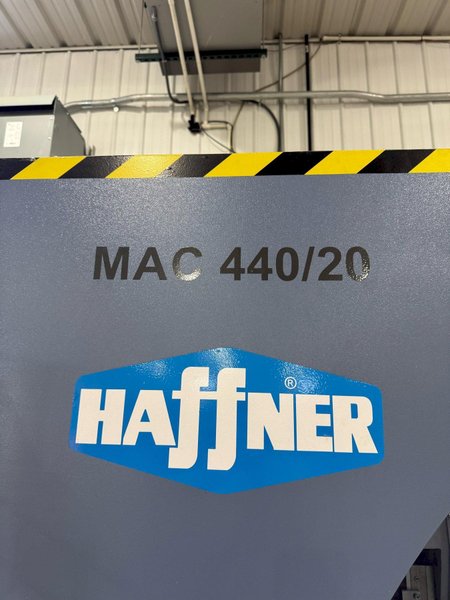

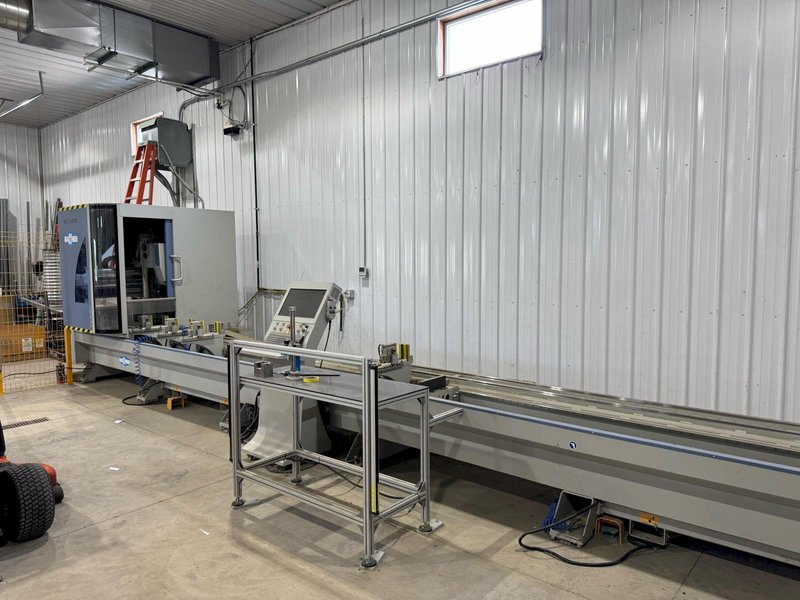

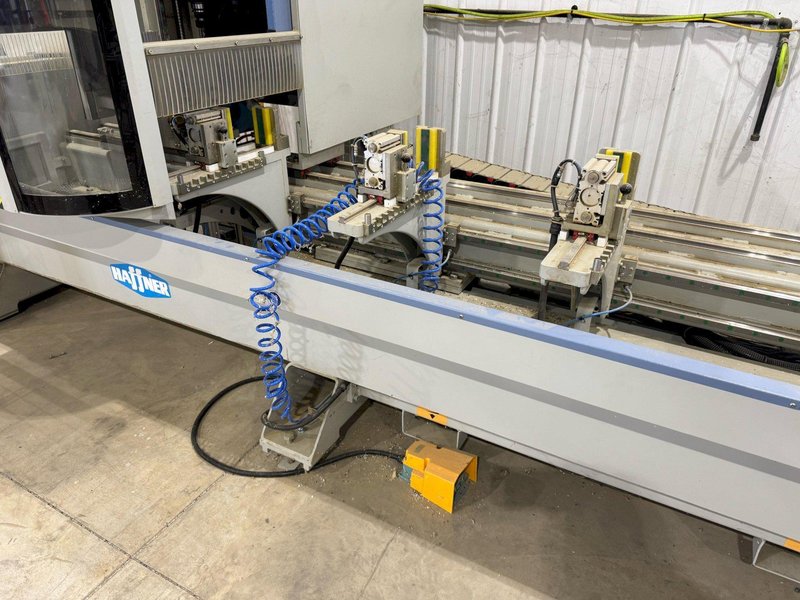

1 - PREOWNED 2021 HAFFNER MAC- 440/20 ALUMINUM PROFILE PROCESSING CENTER

Name: New HAFFNER MAC-440/20 For Sale 87020
Brand: HAFFNER
SKU: 87020
Availability: PreOrder

Brand

HAFFNER

Iowa

WATER CHILLER INCLUDED

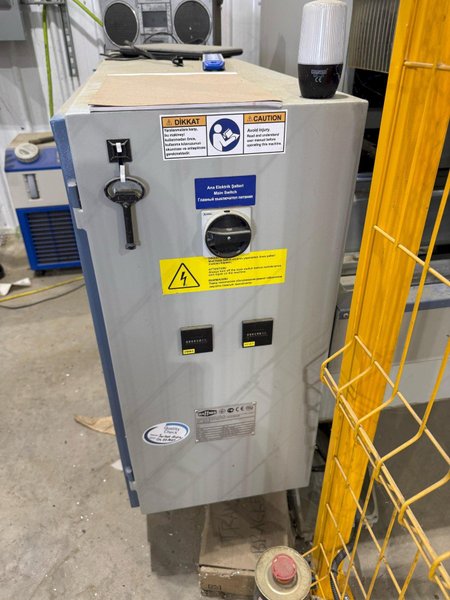

TRANSFORMER INCLUDED
SPINDLE HOURS---13
MACHINE HOURS---166

SPECIFIATION:

X-Axis traverse path:9,350 mm (368.11 in.) Vmax. = 120 m/min. (393.70 ft./min.)

Y-Axis traverse path:930 mm (36.61 in.) Vmax. = 60 m/min. (196.85 ft./min.)

Z-Axis traverse path:625 mm (24.60 in.) Vmax. = 60 m/min. (196.85 ft./min.)

Maximum machinable length:8,500 mm (334.64 in.)

Tool magazine:6 positions (10 positions available)

Maximum milling blade diameter:150 mm (5.90 in.)

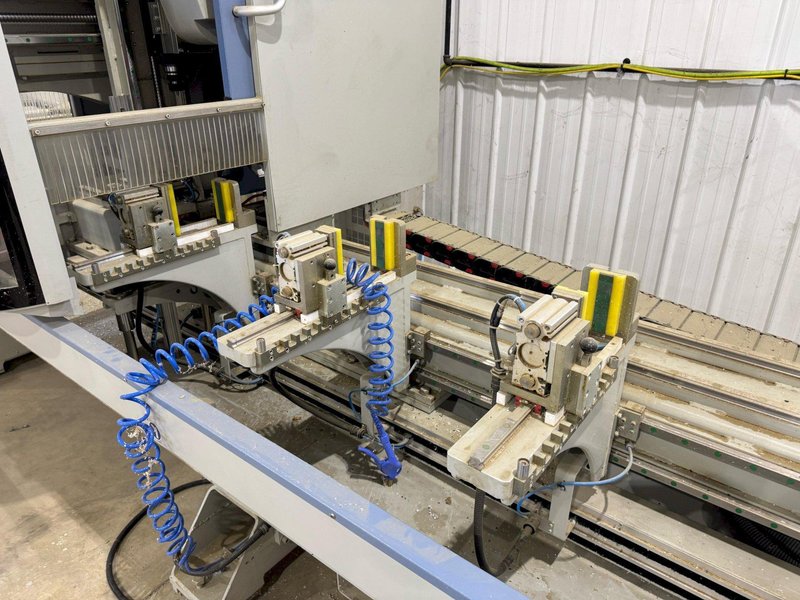

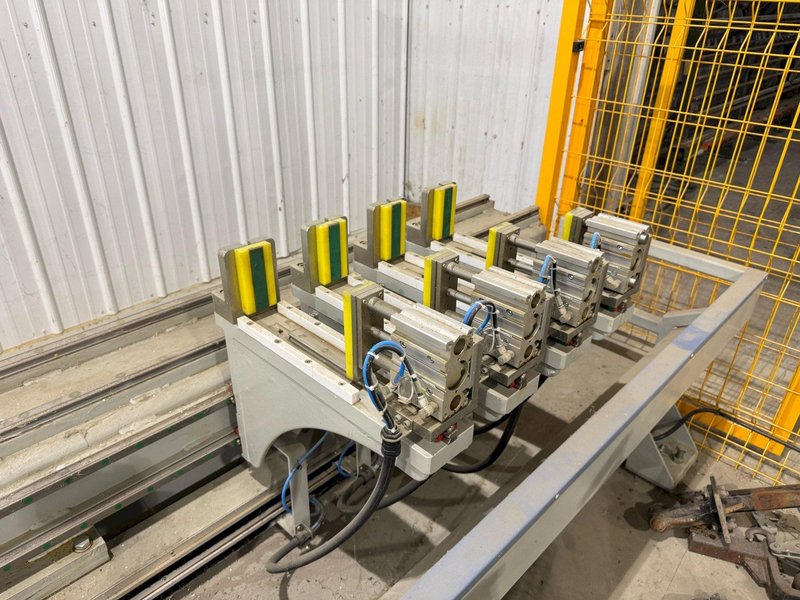

Number of standard pneumatic clamps:8 pcs.

Clamp positioning:Automatic Movement by Machine Head

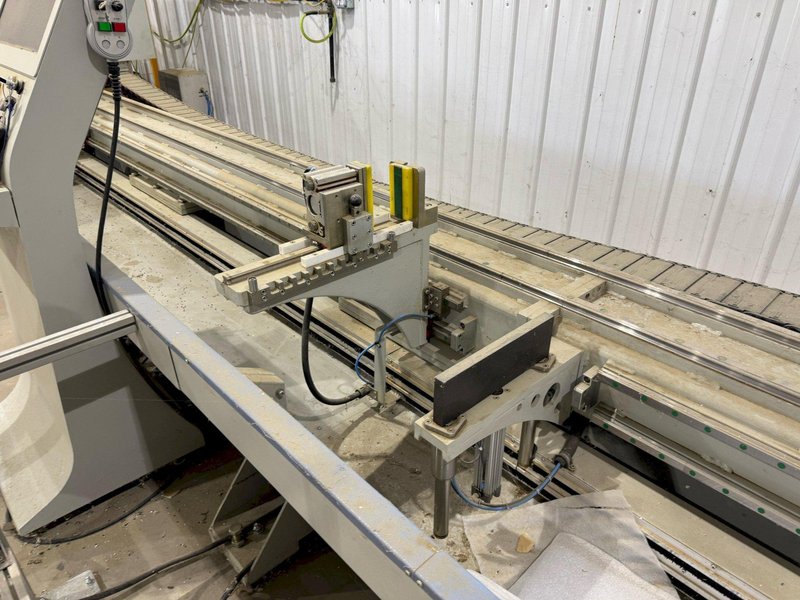

Number of reference stops:2 Pneumatic

Power supply:240, 400, 480 or 575V, 3 ph., 50/60 Hz

Spindle motor power:8 kW (10.72 hp) (11 kW (14.75 hp) available

Adjustable electro spindle motor:0 – 24,000 rpm

Tool holder:HSK-F63

Working air pressure:7 bar (100 psi)

Connected load:12 kW

Machine height:2,300 mm (90.55 in.)

Machine length:11,100 mm (437.00 in.)

Machine width:
1,800 mm (70.86 in.)
Machine Weight ----------10850 lbs.
Overview

The 4-Axis movement is controlled by high-precision servomotors
4.1 meters (161.41 in.) of machinable length

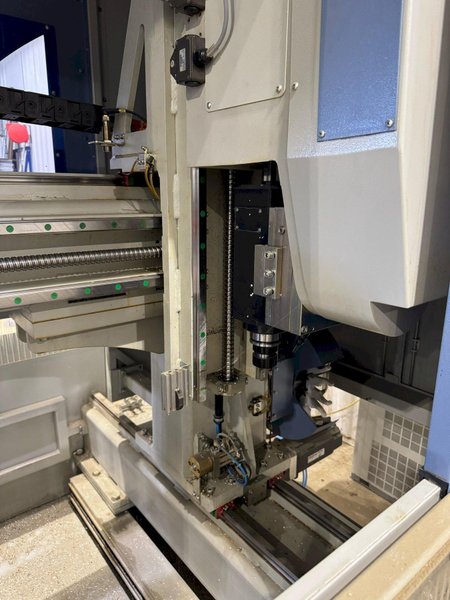

Water-cooled electric spindle (8 kW, (10.72 hp), 24,000 rpm), with HSK-F63 tool connection suitable for material removal processes during milling and drilling operations

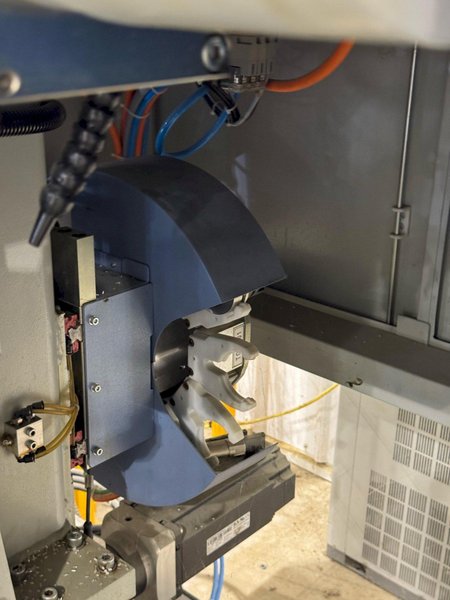

Mobile tool magazine holding up to 6 tools (10 optional) reduces the automatic tool changing time (tools not included)
Automatic clamp recognition and clamp positioning
A-Axis processing between -120° to +120°.
Windows operating system

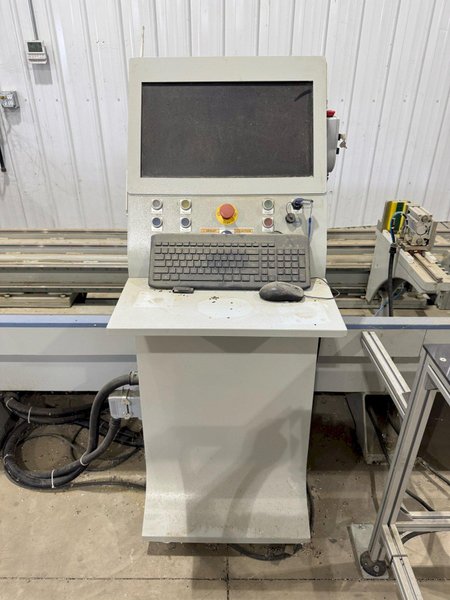

19” LED display screen

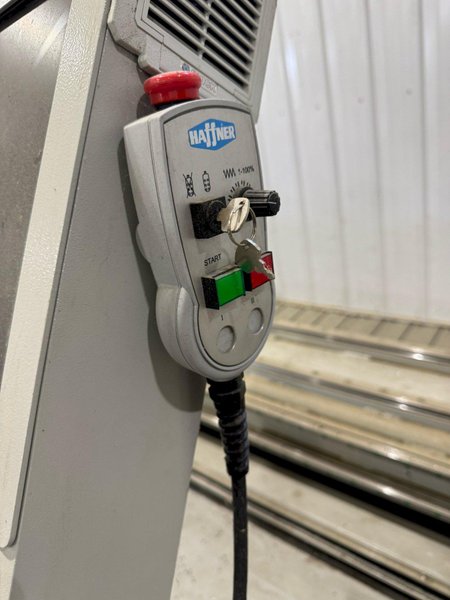

Hand held operator terminal with start/stop switch and speed control
Pulse spray mist tool lubricant system
Photoelectric barrier along the front and safety fences along the left and right sides of the machine
Network connection for remote technical support
Chip collection trays
Protective safety cover around machining spindle
Filter-Regulator-Lubricator for incoming air supply
Tool kit
Operating and maintenance manual
Machine installation and training
