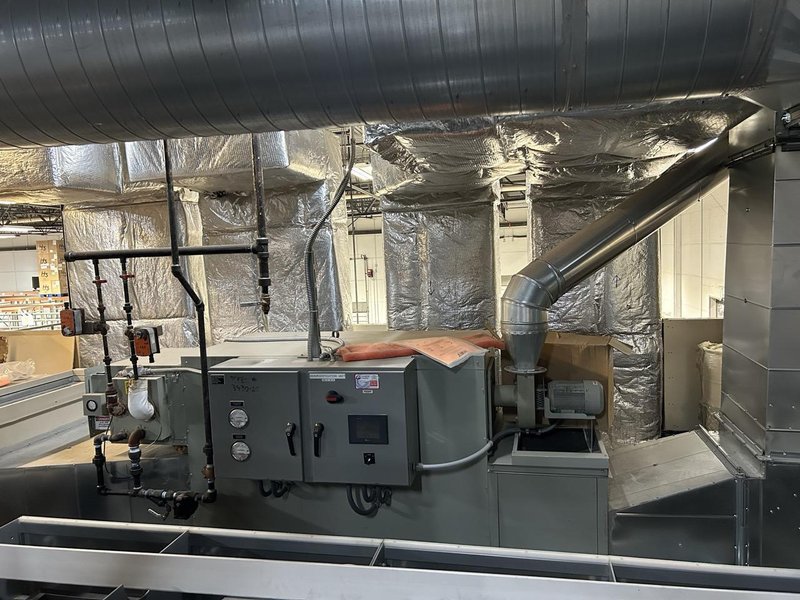

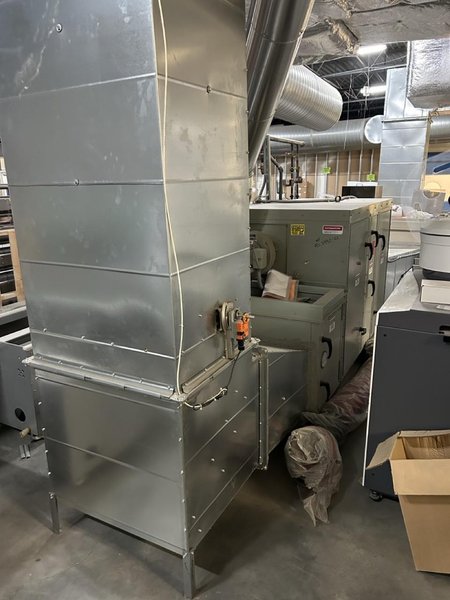

Kathabar 600KBD – Liquid Desiccant Dehumidification System with 7.5 HP Blower

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The Kathabar 600KBD is a high-performance liquid desiccant dehumidification system designed to control humidity within ±1% RH. It features a fiberglass (FRP) enclosure and utilizes a Kathene-based conditioning and regeneration loop. The unit is suitable for pharmaceutical, food, and clean environment applications with high moisture load control needs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications – Model 600KBD with 7.5 HP blower – Liquid desiccant dehumidification using Kathene solution – Moisture removal capacity: up to 600 lb/hr (depending on conditions) – Conditioner and regenerator configuration on dedicated skid – Tight humidity control: ±1% RH – FRP non-metallic construction, hygienic and corrosion-resistant – Uses waste heat or low-grade hot water for desiccant regeneration – Suited for 1,500 to 20,000 CFM airflow (depending on configuration) – Energy-efficient design with recovery-based dehumidification process

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
