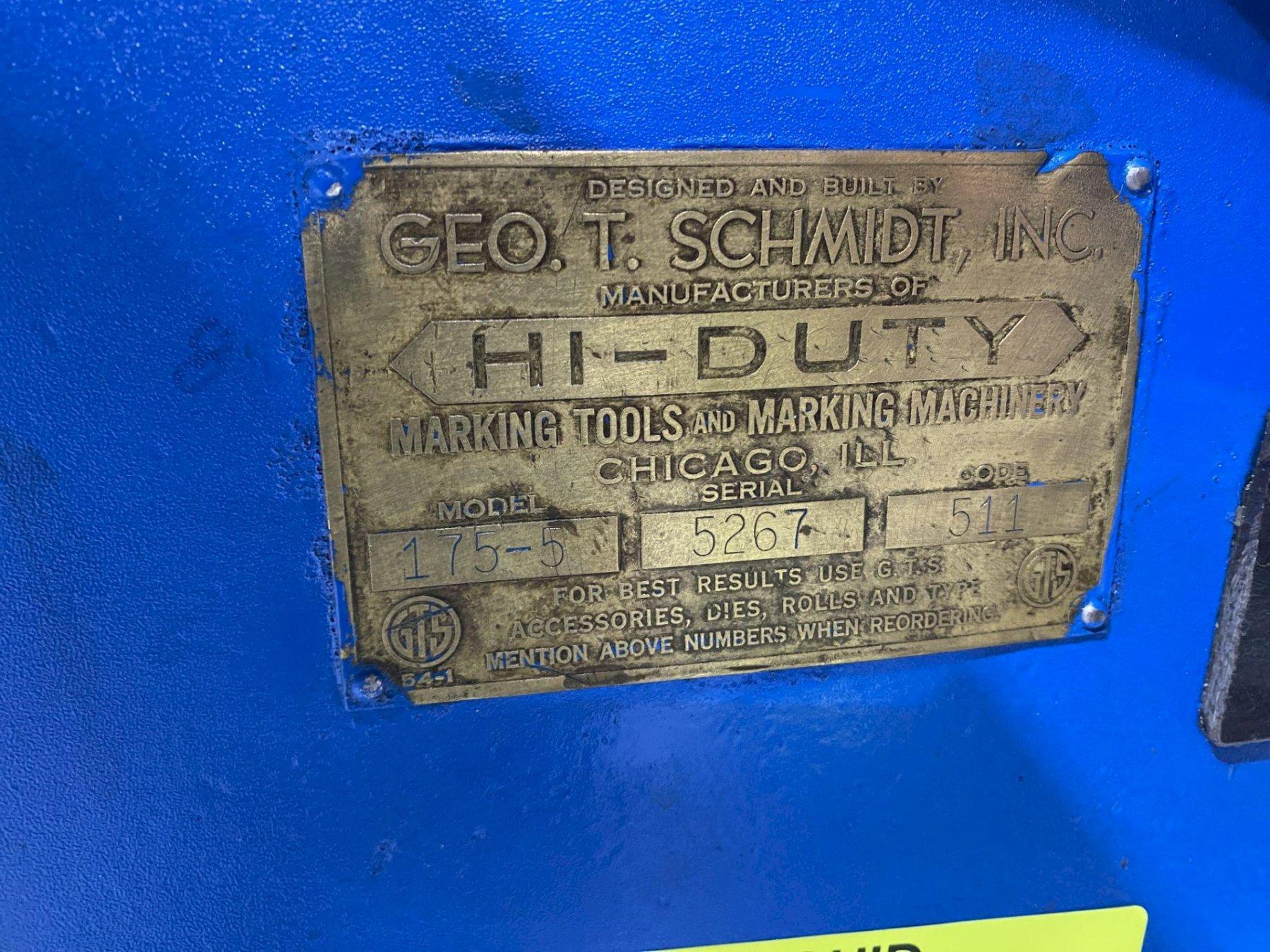

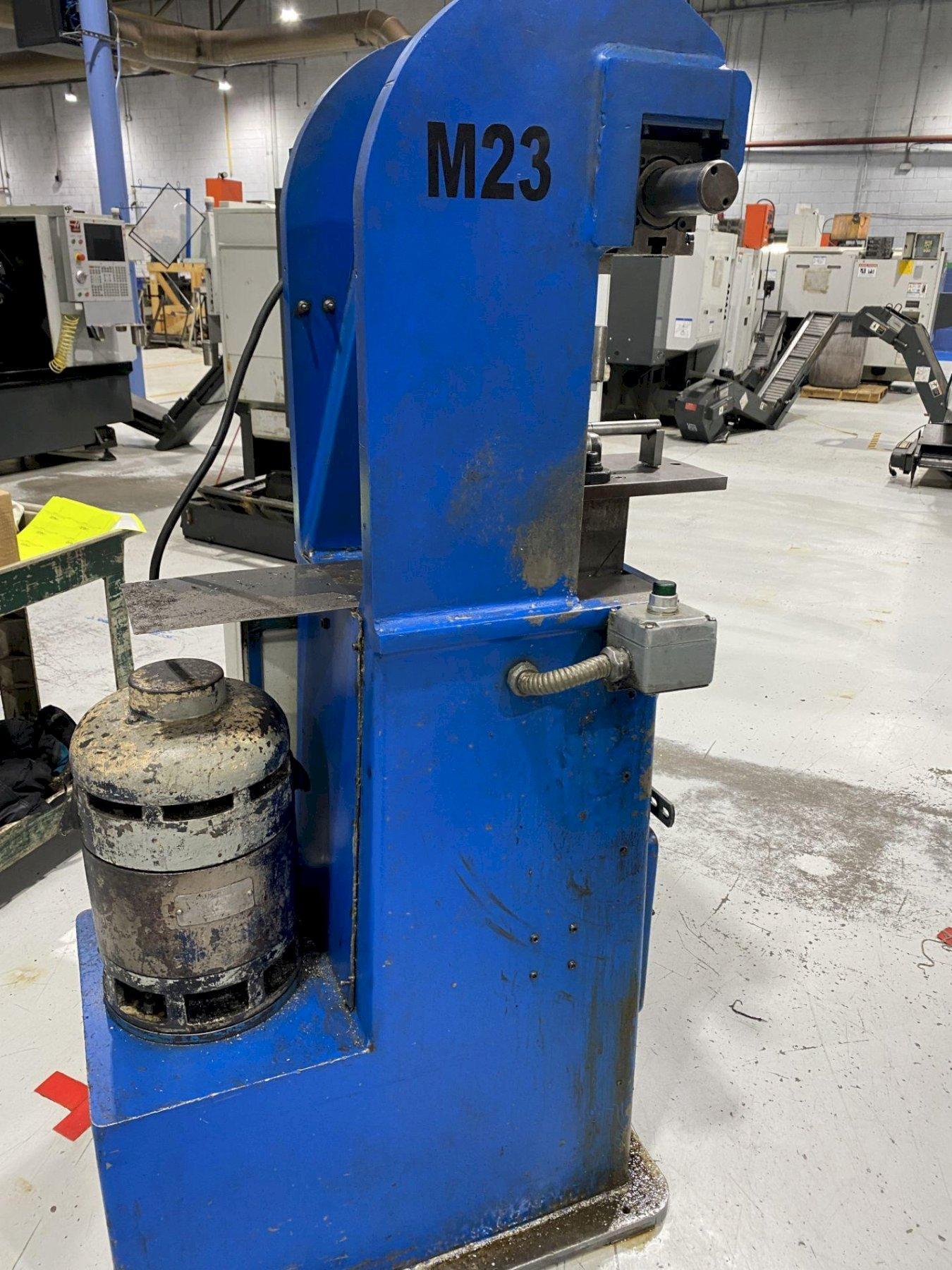

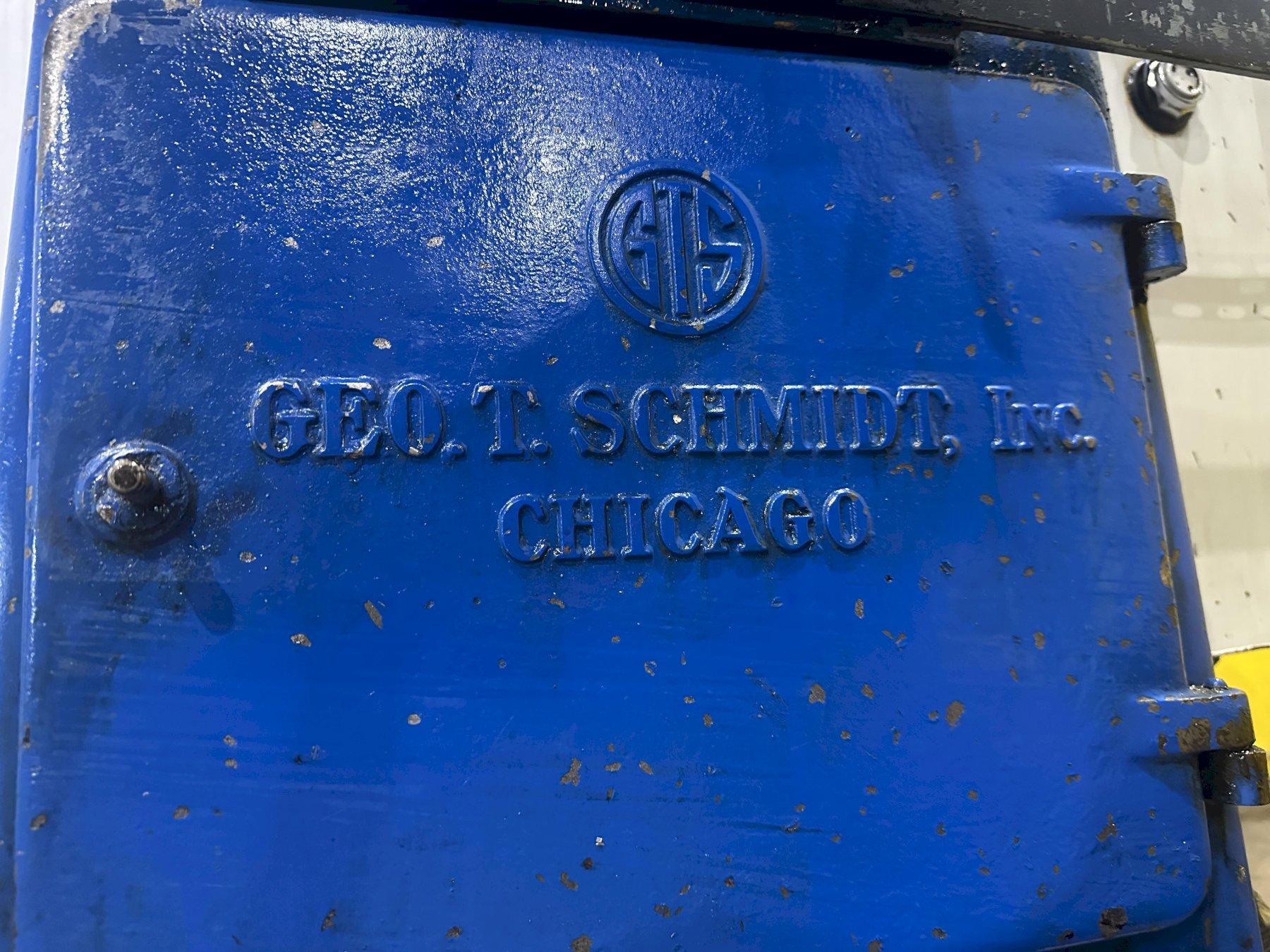

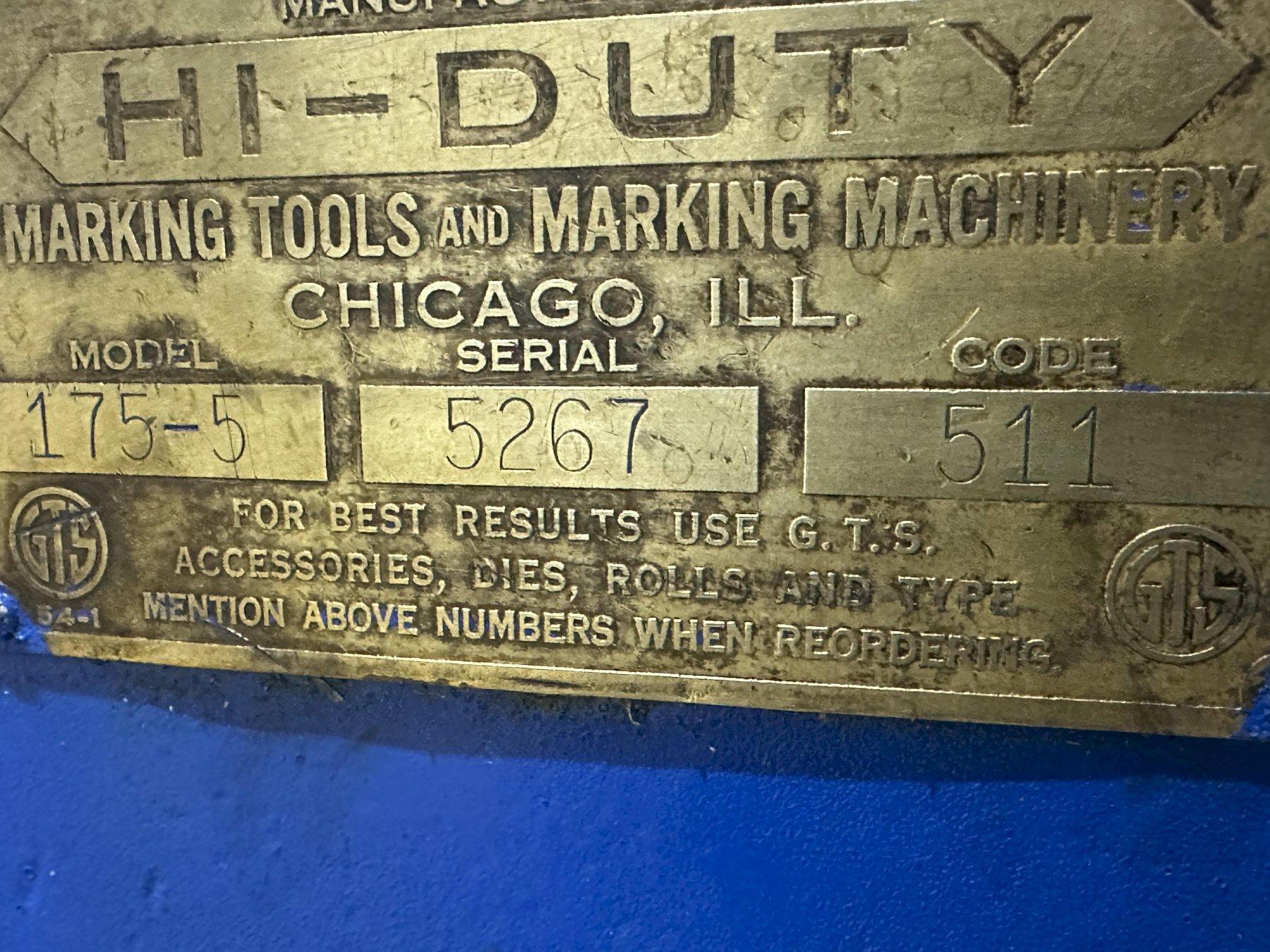

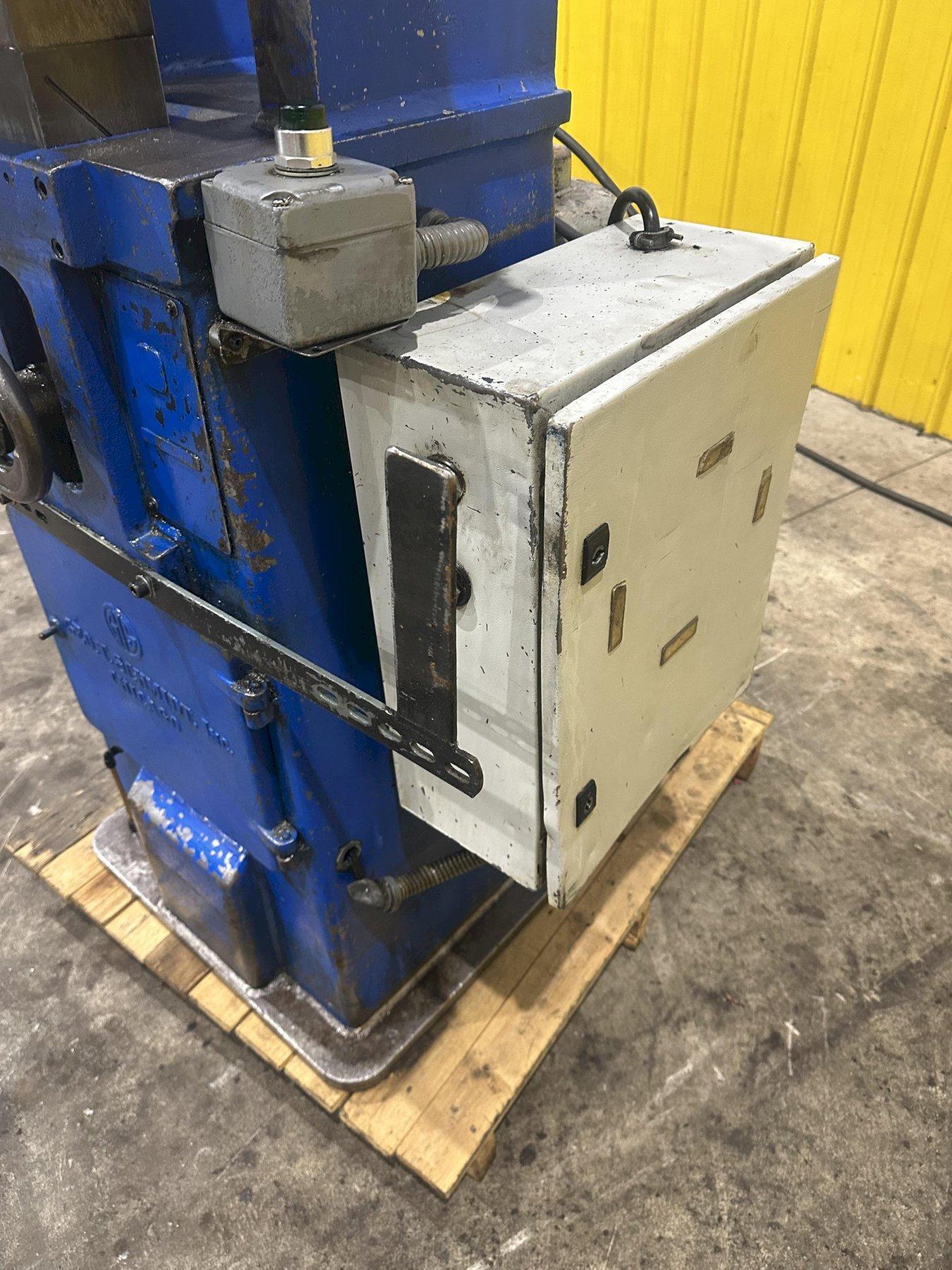

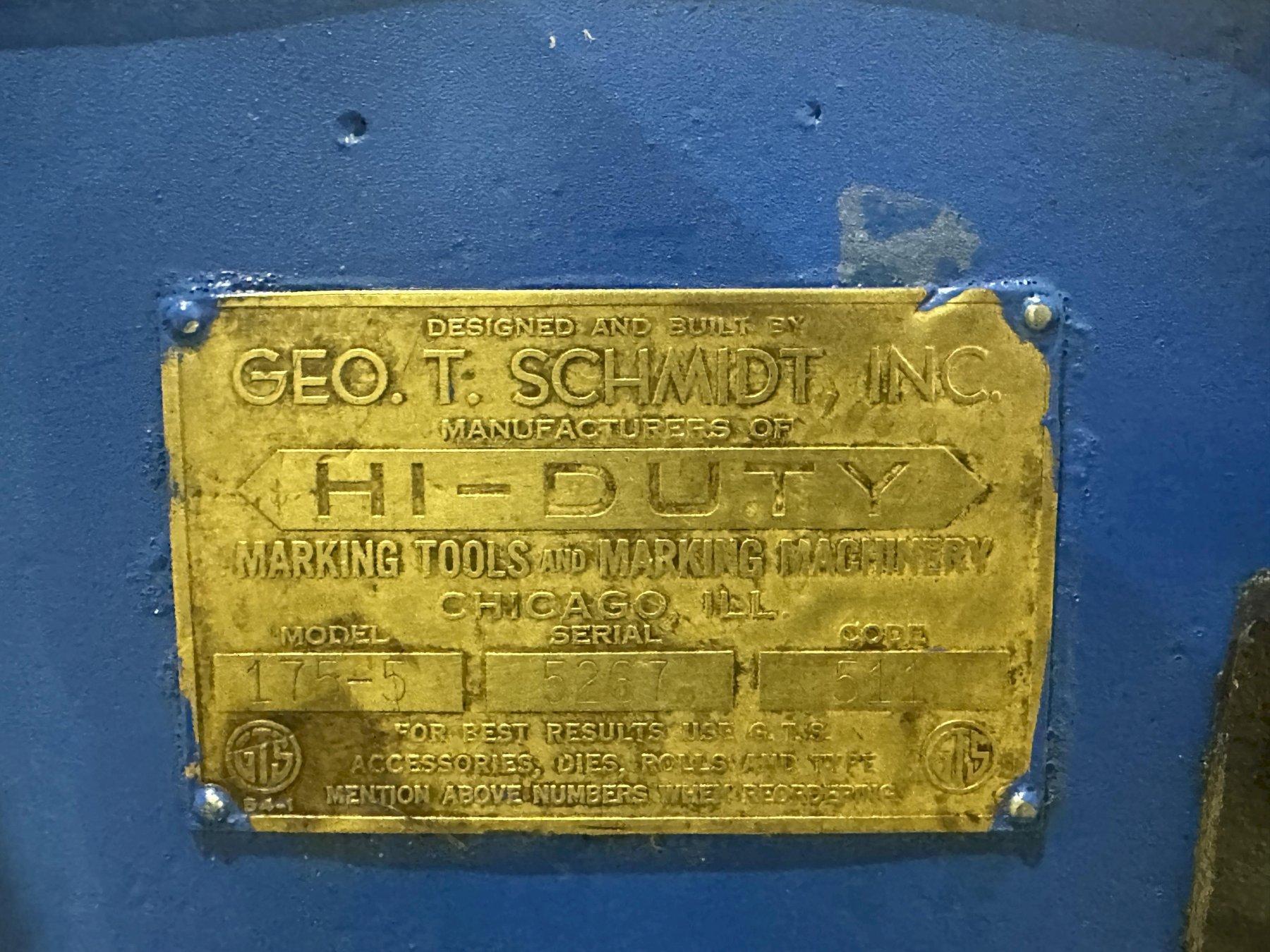

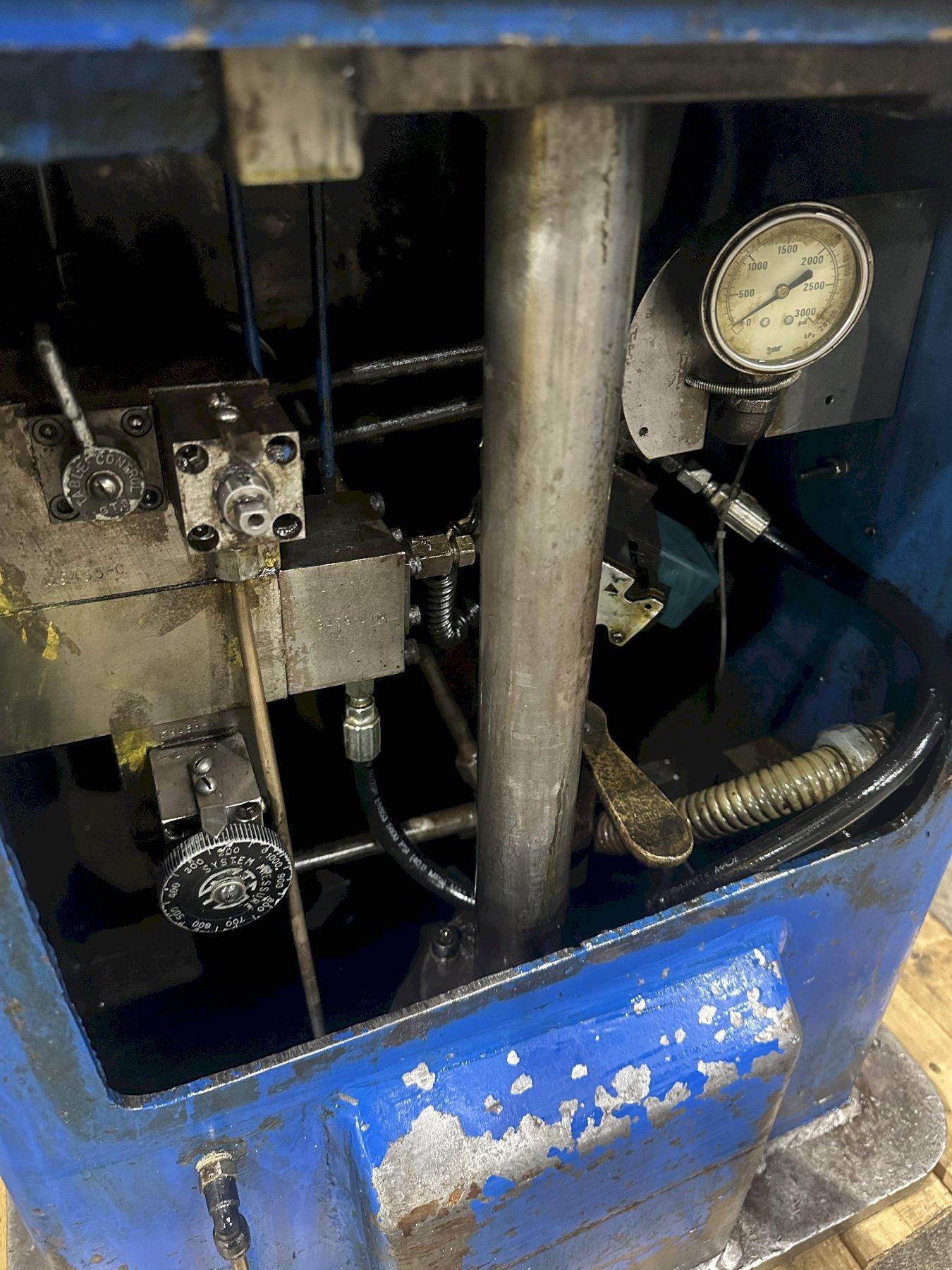

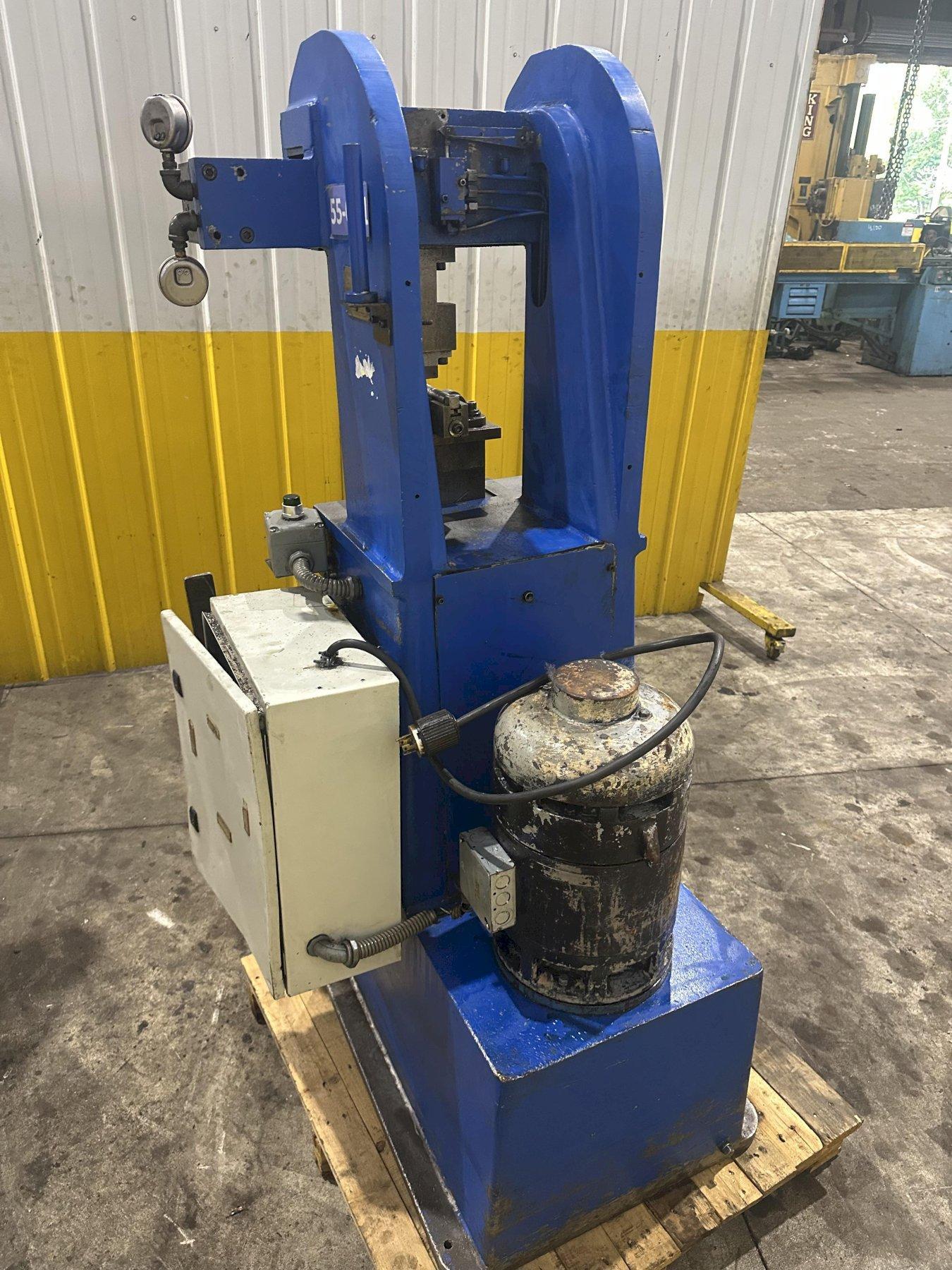

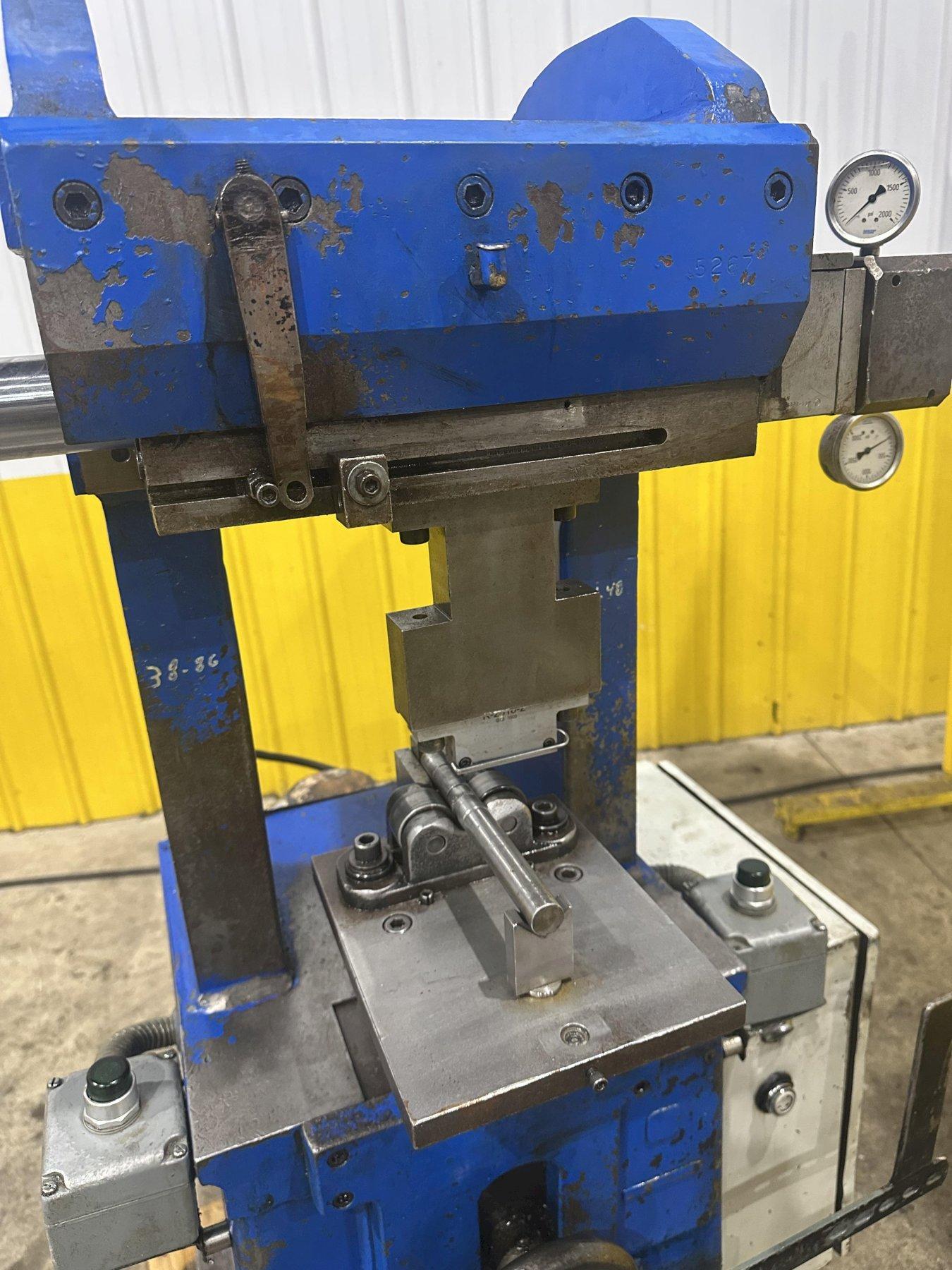

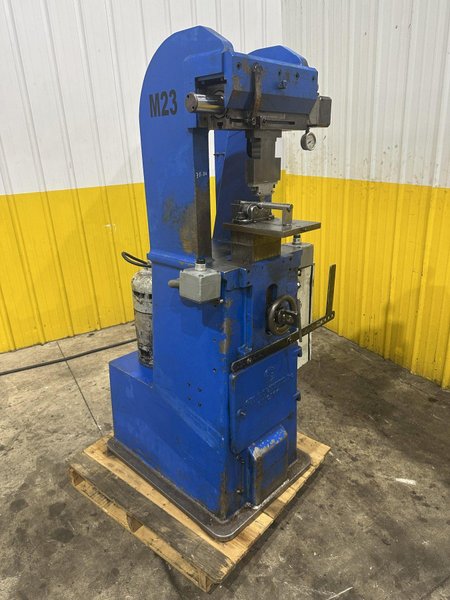

#175 HI-DUTY GEO SCHMIDT ROLL STAMP MARKING MACHINE: STOCK #23766
Brand
Category
Type
Model
175-5
Stock #
23766
Year
Not specified
Condition
Not specified
Location
Ohio
Price
$2,450.00
|
SERIAL ................................ 5267
MODEL ................................. 175-5 ADJUSTABLE TABLE PRESSURE ............. UP TO 12,000 LBS
DISTANCE BETWEEN UPRIGHTS ............. 10"
TABLE SIZE ............................ 6" X 10"
TABLE RISE HYDRAULICALLY .............. 1/2"
TABLE RISE HAND ....................... 4"

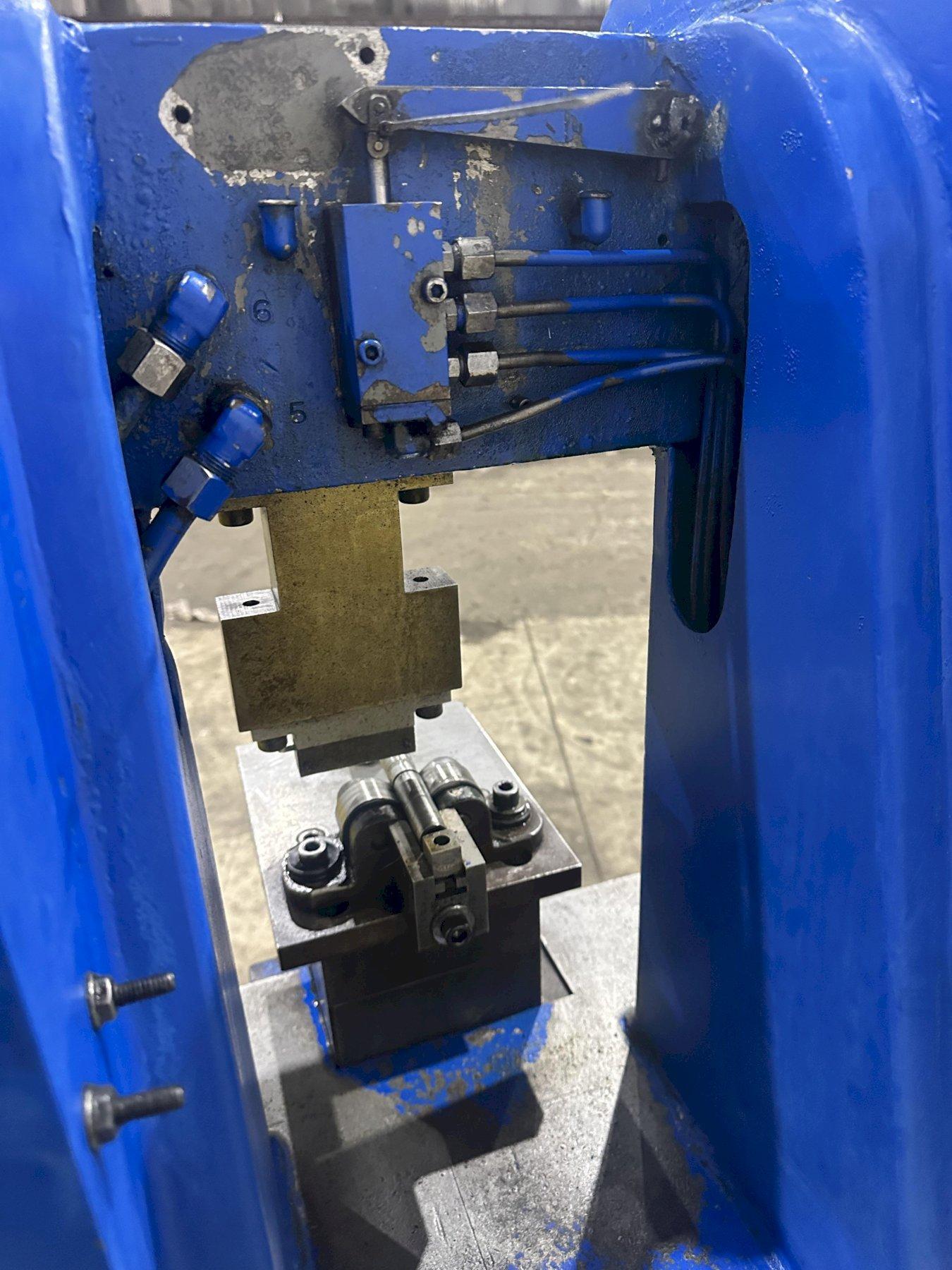

DIE SPACE FROM TABLE TO DIE SLIDE ..... 8"
DIE SLIDE (ADJUSTABLE STROKE) ......... 3/8" TO 7"
VARIABLE DIE SLIDE SPEED .............. 90-1" TO 15-6" STROKES
DEPTH OF THROAT ....................... 3-1/2"
TABLE HEIGHT .......................... 41-3/4"
MARKING CAPACITY OF 1/4" CHARACTERS ... 3 LINES
MARKING CAPACITY OF 3/16" CHARACTERS .. 4 LINES
MARKING CAPACITY OF 1/8" CHARACTERS ... 5 LINES

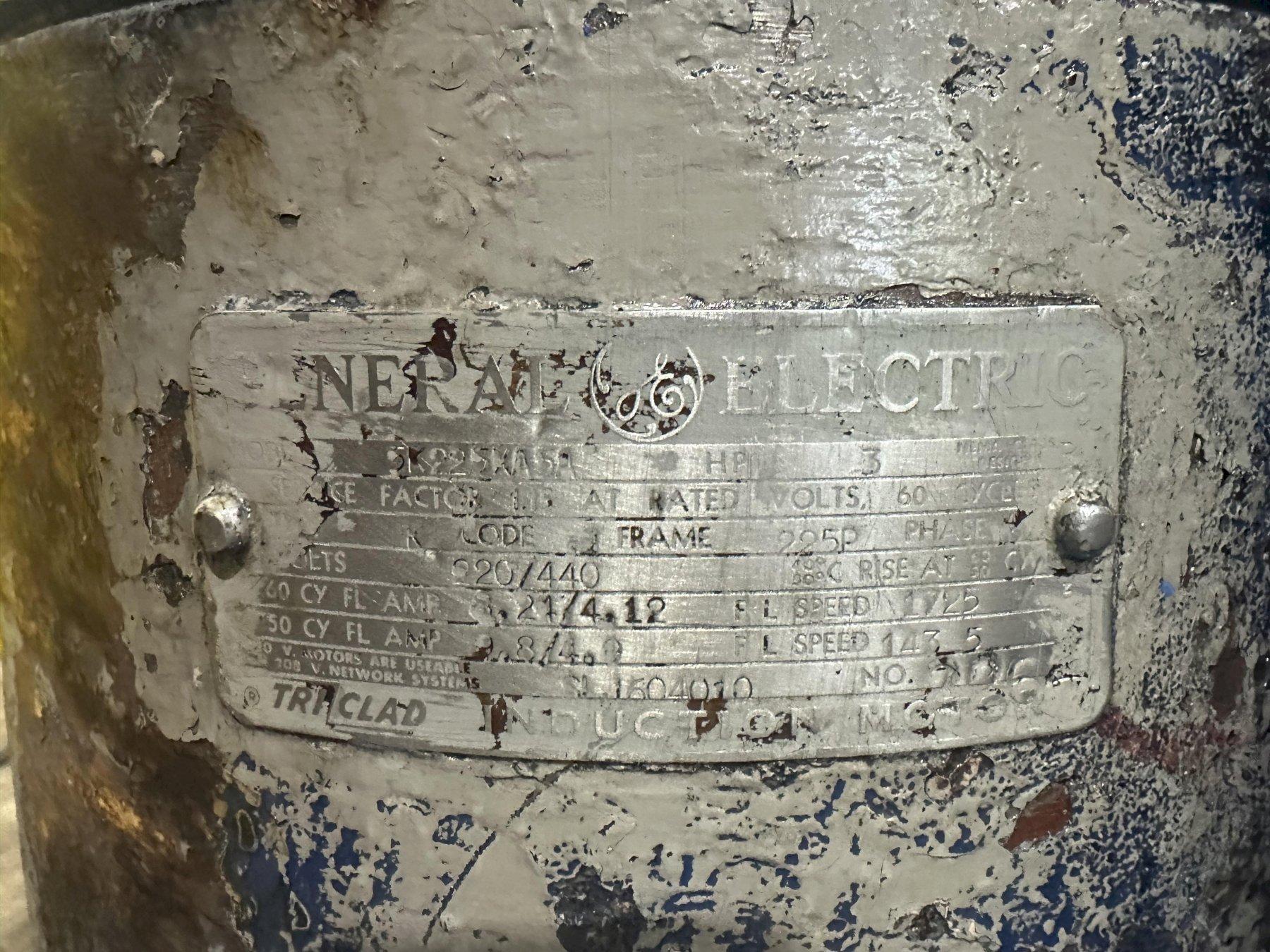

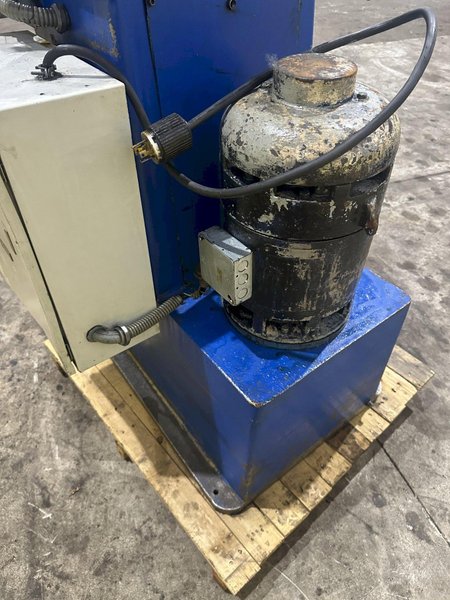

MARKING CAPACITY OF 1/16" CHARACTERS .. 8 LINES MOTOR ................................. 3 HP |
