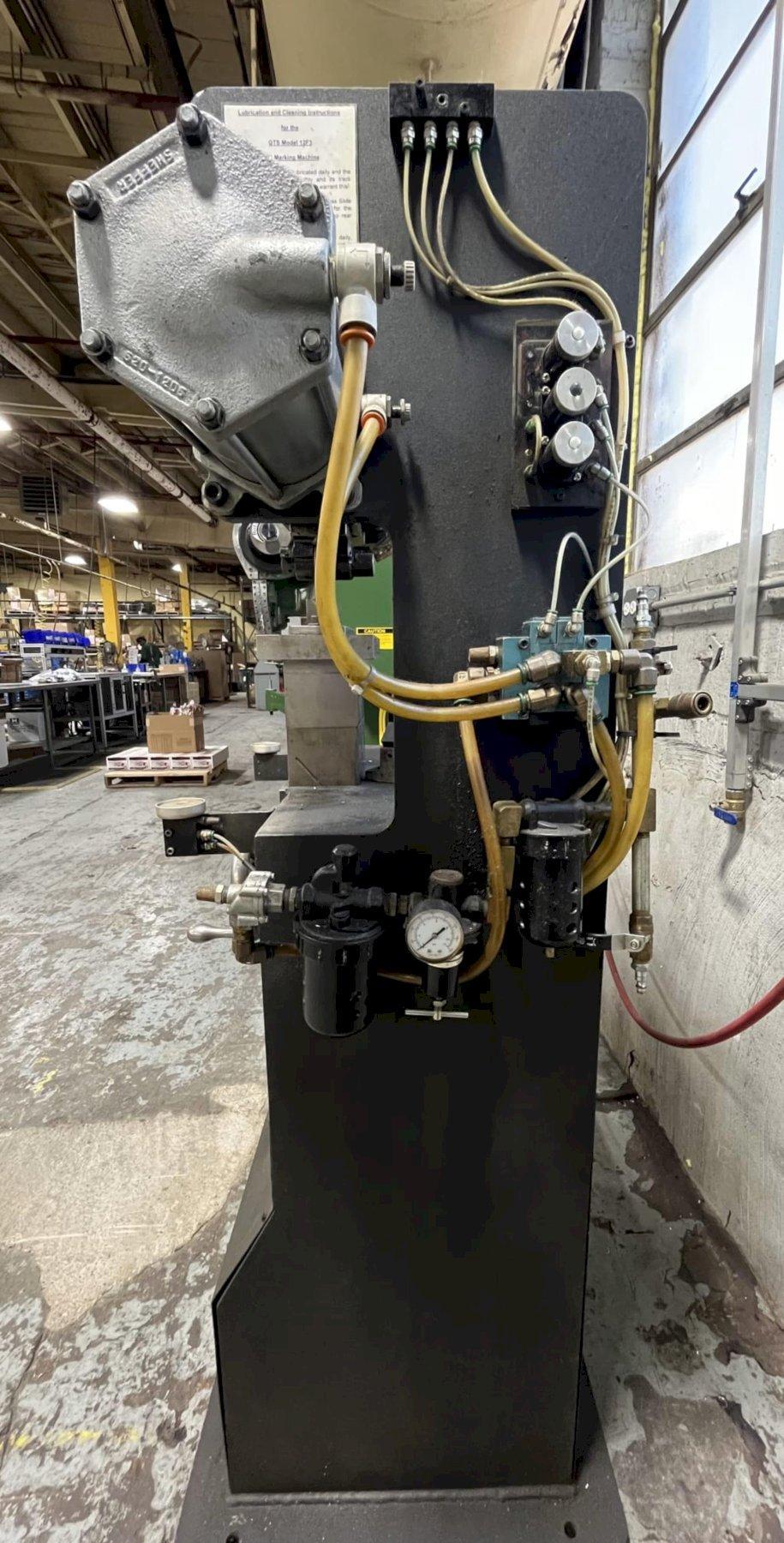

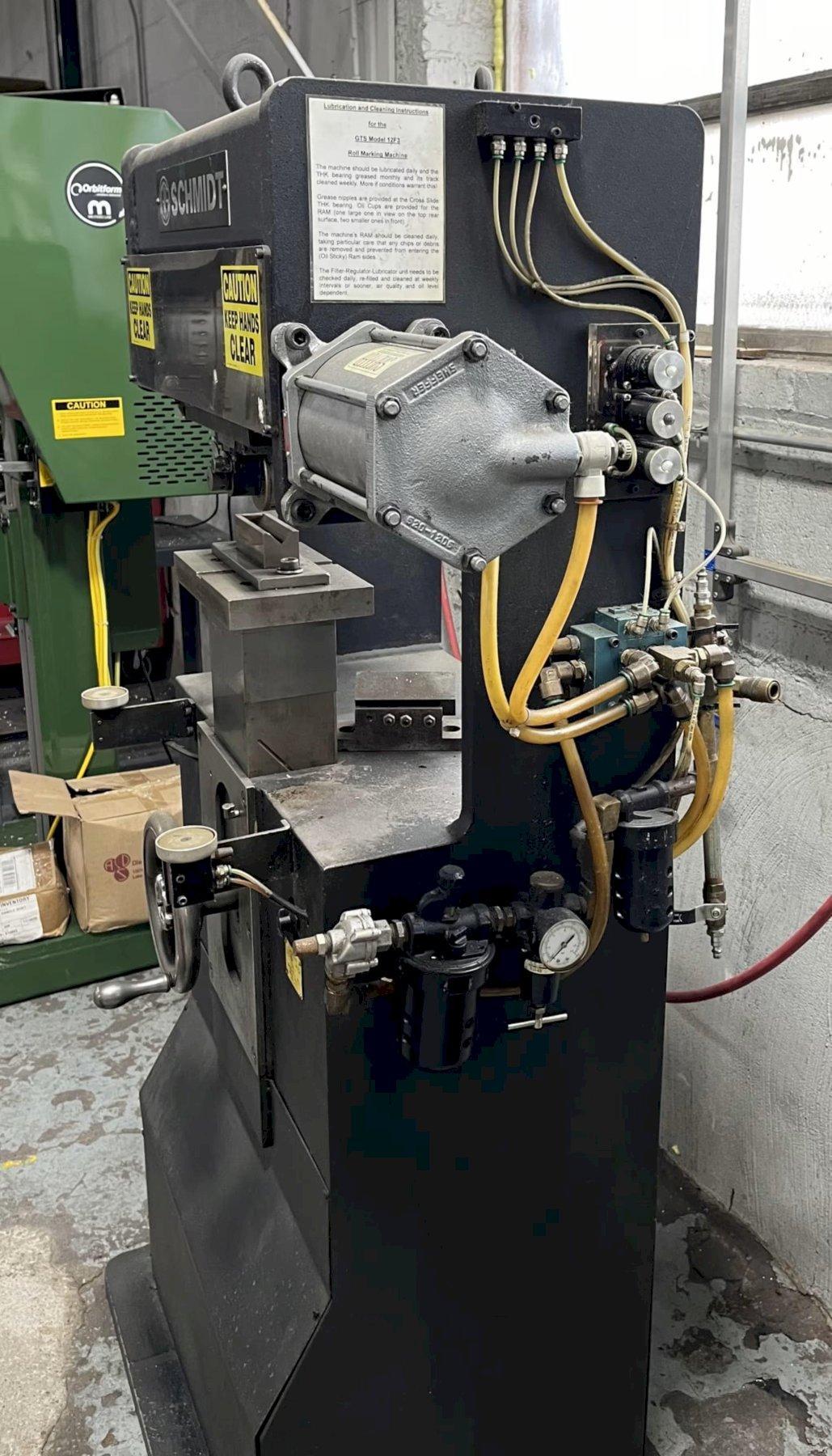

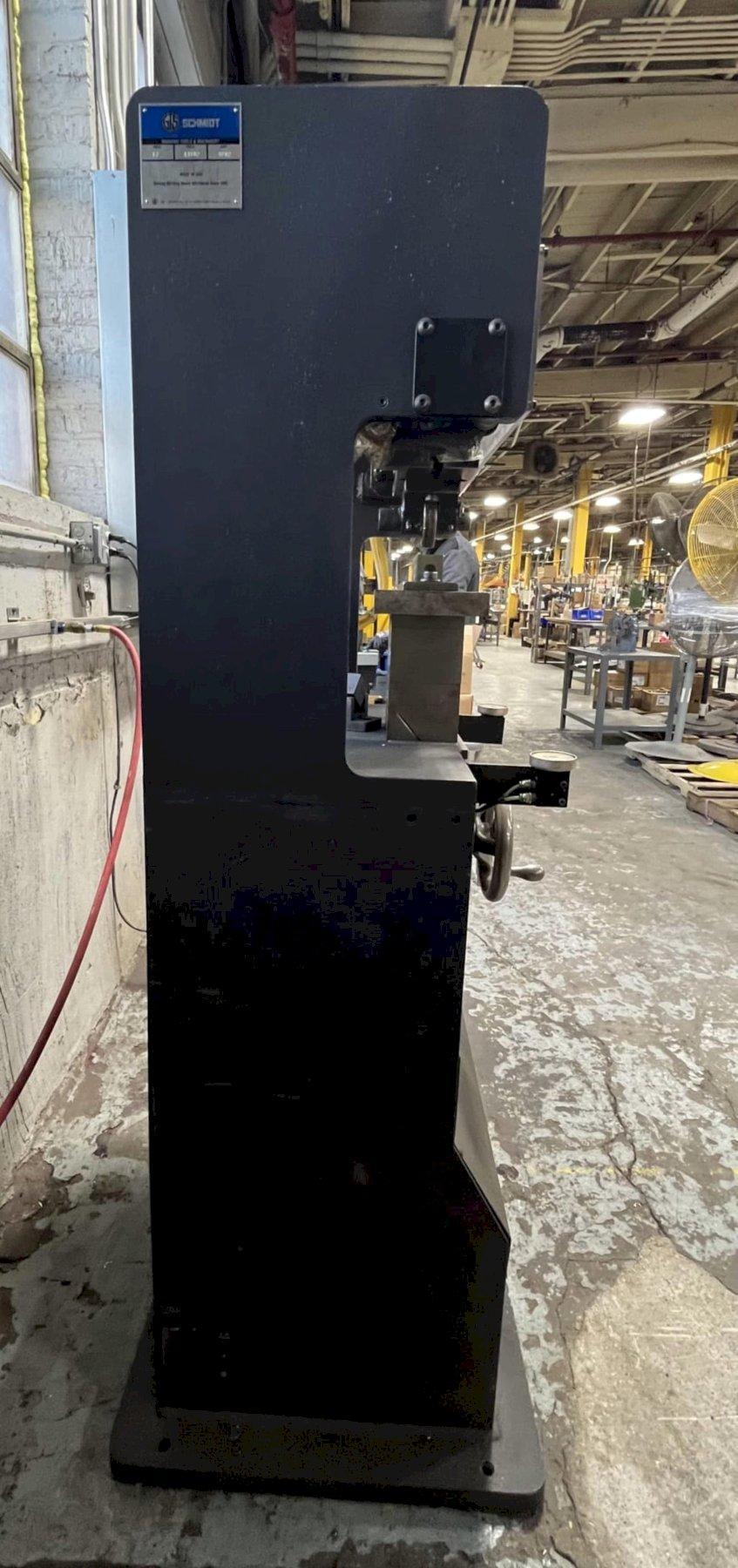

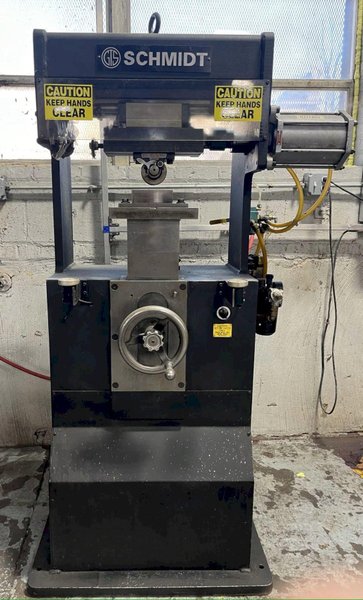

3 TON SCHMIDT SERIES 12 PNEUMATIC ROLL MARKING MACHINE

3 TON SCHMIDT SERIES 12 PNEUMATIC ROLL MARKING MACHINE

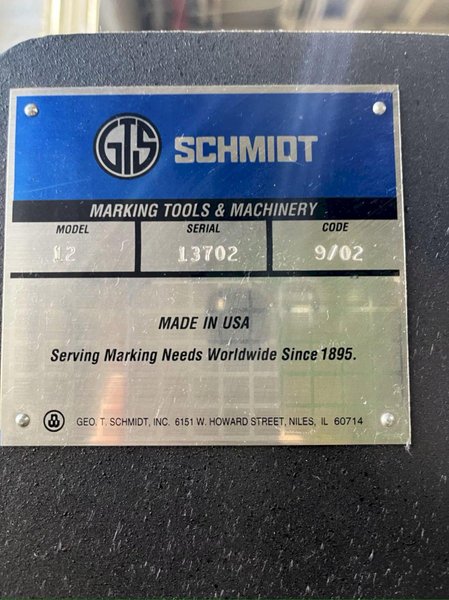

Serial No. 13702  New 2002

Combines 3 tons of marking pressure with the advantage of pneumatic power in a compact floor mounted machine. This economical general purpose marker has the capability of roll marking your round or flat parts, as well as acting as a press marker. The benefit of roll marking is that the characters are applied one at a time. This reduces marking pressure and allows the Series 12 to apply up to 4 lines of 1/8” characters, one character per line at the same time, in a single roll marking cycle. When operated in the press mode 4 - 1/8” characters can be applied.

SPECIFICATIONS:
Max. Ram Pressure                                                  3 Tons
Max. Ram Strone                                                     1/2"
Max. Cross Slide Stroke                                           6"
Vertical Die Space Height                                        12"
Throat                                                                      4" at 22" Side Plates
Table Size                                                                 10" W x 6" D
Min. Working Pressure                                             20 PSI
Max. Working Pressure                                            100 PSI
Approx. Weight                                                        1,200 Lbs.
