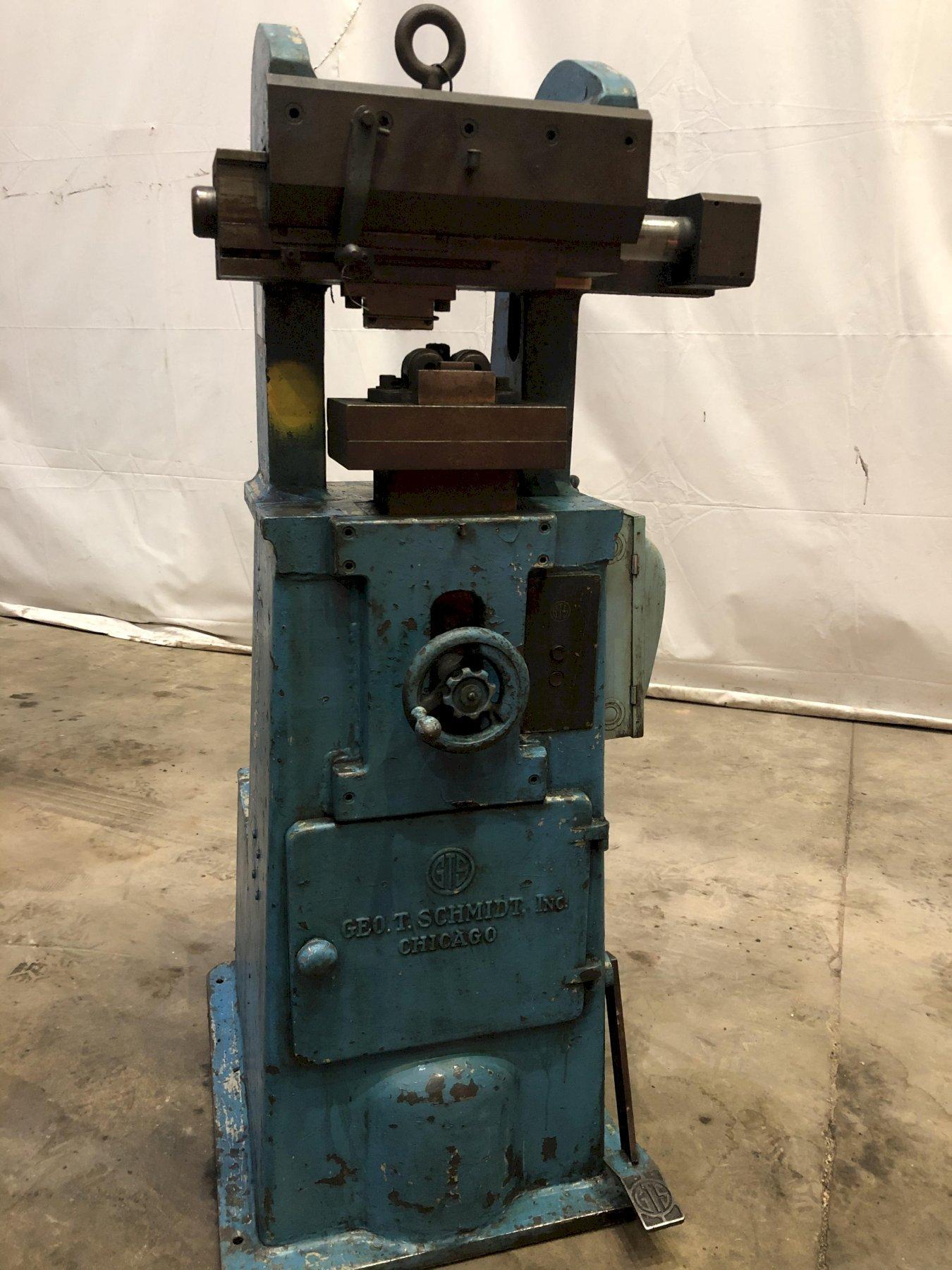

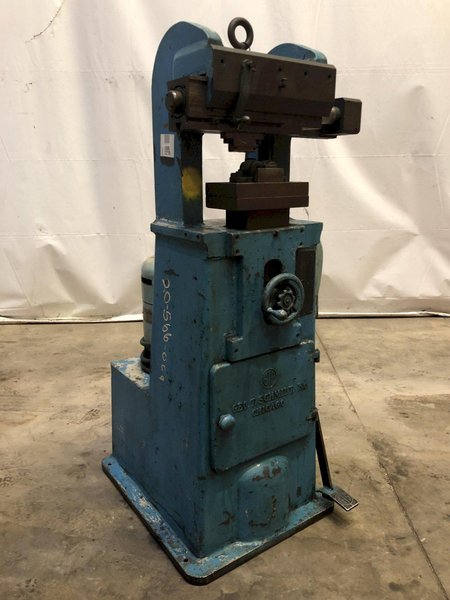

#175 SCHMIDT ROLL STAMP MARKING MACHINE: STOCK #11858
Brand
Category
Type
Model
Not specified
Stock #
11858
Year
Not specified
Condition
Good
Location
Ohio
Price
$3,950.00
|
SERIAL ................................ 4694
MODEL ................................. 175 HI DUTY
ADJUSTABLE TABLE PRESSURE ............. UP TO 12,000 LBS
DISTANCE BETWEEN UPRIGHTS ............. 10"
TABLE SIZE ............................ 6" X 10"
TABLE RISE HYDRAULICALLY .............. 1/2"
TABLE RISE HAND ....................... 4"
DIE SPACE FROM TABLE TO DIE SLIDE ..... 8"
DIE SLIDE (ADJUSTABLE STROKE) ......... 3/8" TO 7"
VARIABLE DIE SLIDE SPEED .............. 90-1" TO 15-6" STROKES
DEPTH OF THROAT ....................... 3-1/2"
TABLE HEIGHT .......................... 41-3/4"
MARKING CAPACITY OF 1/4" CHARACTERS ... 3 LINES
MARKING CAPACITY OF 3/16" CHARACTERS .. 4 LINES
MARKING CAPACITY OF 1/8" CHARACTERS ... 5 LINES
MARKING CAPACITY OF 1/16" CHARACTERS .. 8 LINES
|
