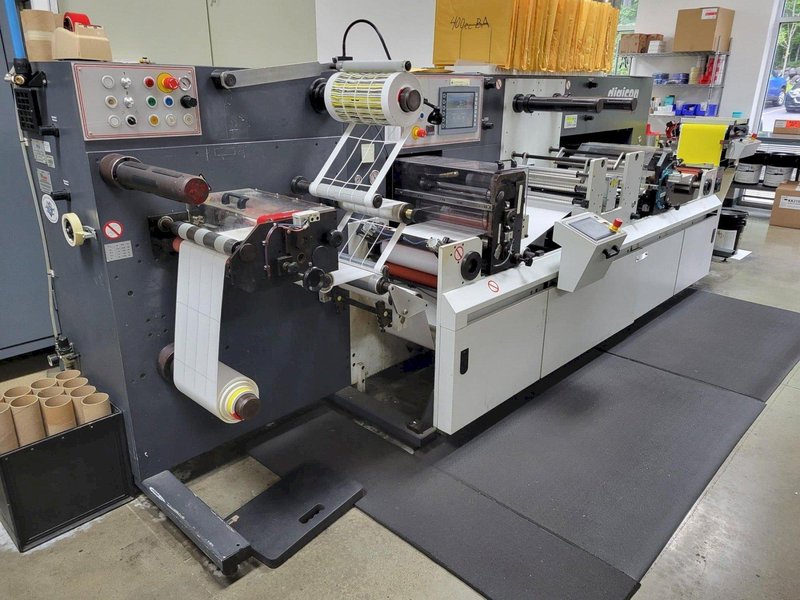

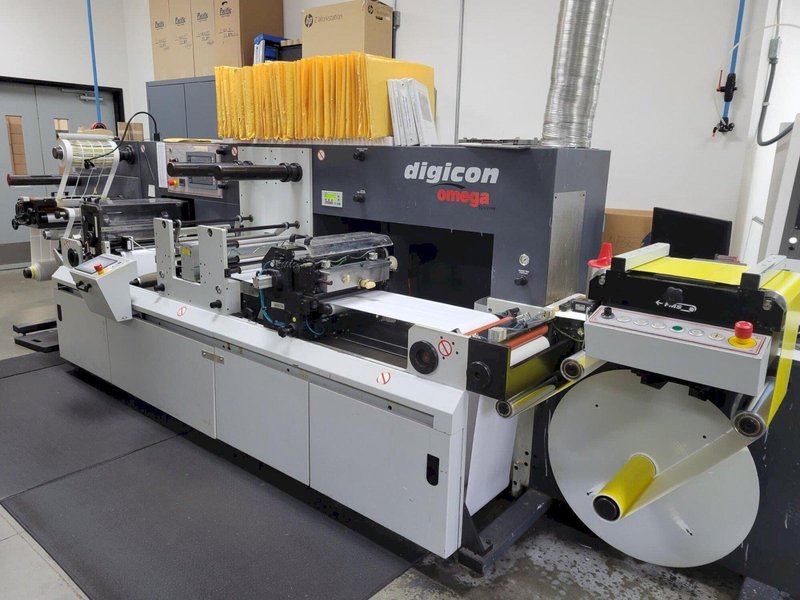

Omega Digicon S Semi-Rotary Finishing System – Flexo, Die Cut, Overlaminate, Rewind – 330mm Web

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This Omega Digicon S finishing system is a versatile modular label converting solution configured for semi-rotary applications. Capable of handling 330mm web widths, it features unwind, flexo varnish, cold lamination, semi-rotary die cutting, and dual rewinds. Designed for left-to-right operation, the system includes extensive control via HMI and panel interfaces, ideal for mid-scale converters handling short-to-medium run work.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

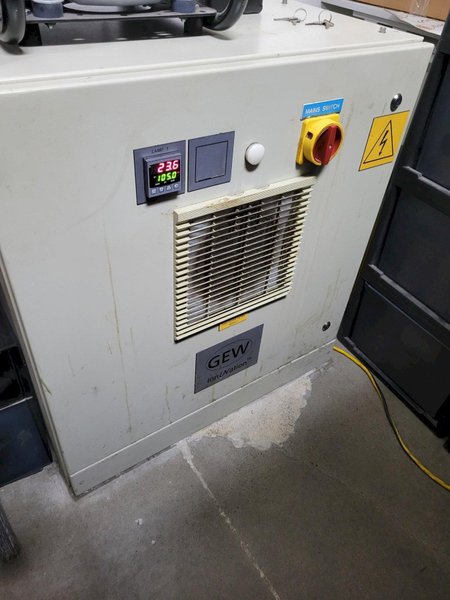

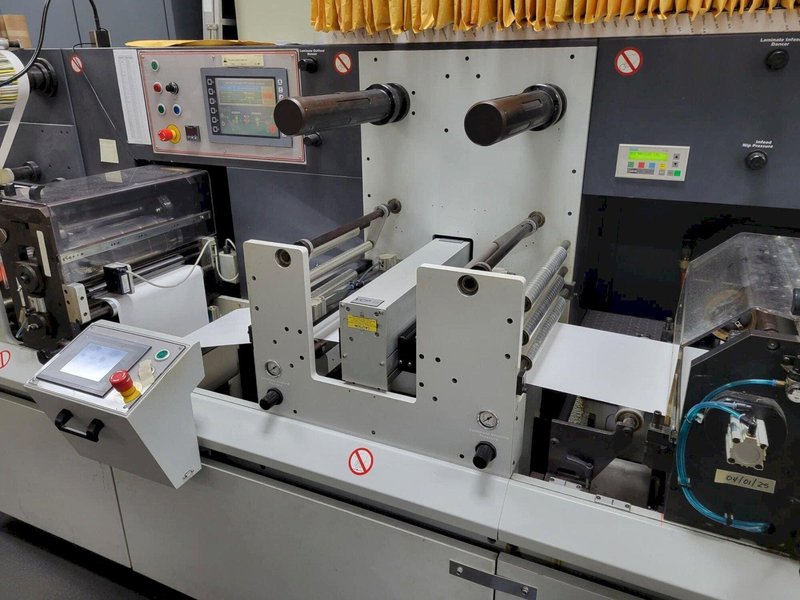

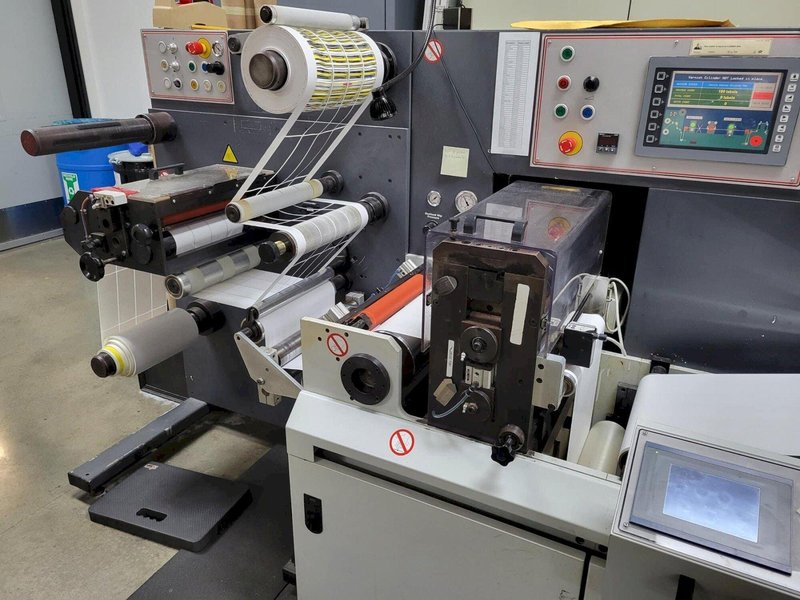

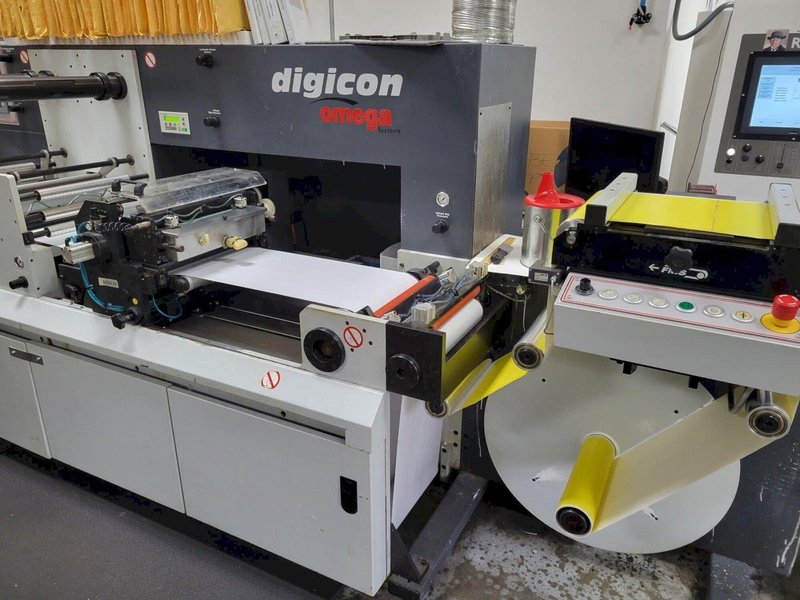

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Web Width Capacity: 330mm (13″) • Operation: Left-hand (right to left) • Speed: 50 m/min semi-rotary, 80 m/min full rotary • Flexo Module: 200LPI Anilox / GEW VCP UV Dryer; Plate repeat: 2–18″ (supplied with 19″ repeat); Cartridge-style ink system • Die Cut: Magnetic cylinder, 2–18″ repeat range, Hydraulic pressure bridge • Lamination: Cold/UV lamination & cold foil, 400mm roll capacity • Rewind: Dual air mandrels, 76mm cores, Matrix rewind, backscore slitting • Electrical: 220V, 60Hz, 3-phase (40A machine, 32A UV) • Air Requirement: 6 bar / 30 CFM • Customer: Metagenics (OEM-labeled)
