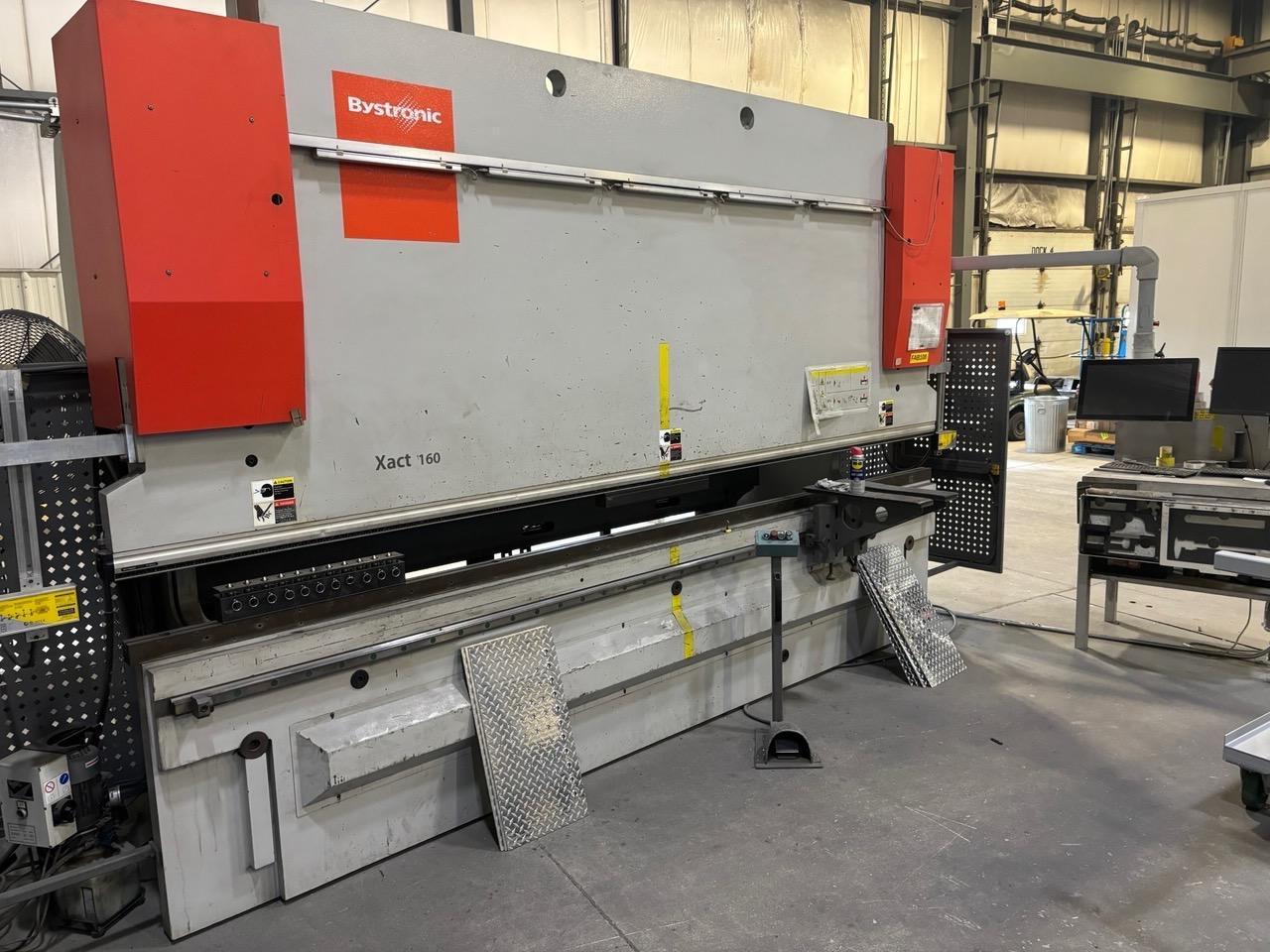

176 Ton x 10′ Bystronic Xact 160 CNC Press Brake, 2015

*Upgraded to 2020 model style CNC control* Specification Working Length: 122″ Max. Press Force: 176 US Tons Standard Stroke: 7.9″ Max. Stroke: 11.81″ Open Height: 18.9″ Distance between Side Frames: 96.5″ Throat: 15.8″ Rapid Approach: 425 in/min Working Speed: 1-13 mm/s Return Speed: 425 in/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Backgauge X-axis Travel: 23.6″ X-axis Speed: 1417.3 in/min X-axis Position Accuracy: 0.002″ R-axis Travel: 5.9″ R-axis Speed: 472.4 in/min R-axis Position Accuracy: 0.002″ Z-axis Travel: 72″ Z-axis Speed: 2362.2 in/min Max. Y-Approach Speed: 330.7 in/min Max Y-Working Speed: 23.6 in/min Y-Position Accuracy: 0.0004″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electric values Power of Main Motor: 18.5 kW Total Connected Load: 30 kW Operating Voltage: 3PH 480V Frequency: 60Hz Control voltage V DC: 24 Nominal Current Fuse A: 63

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions Length: 154″ Width: 74″ Height: 107″ Weight: 25,353 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Crowning Upgraded Bystronic controller with 3D simulation (most likely ByVision Bending) Tooling: Top is Wila standard, and the bottom bed is American tang Tooling Included (Punches included 1/16”R straight, 1/8”R gooseneck, and ¼”R Straight. Bottom dies included 5/8” V opening, 1”V opening, and 1 ¼” V opening; possibly more)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
