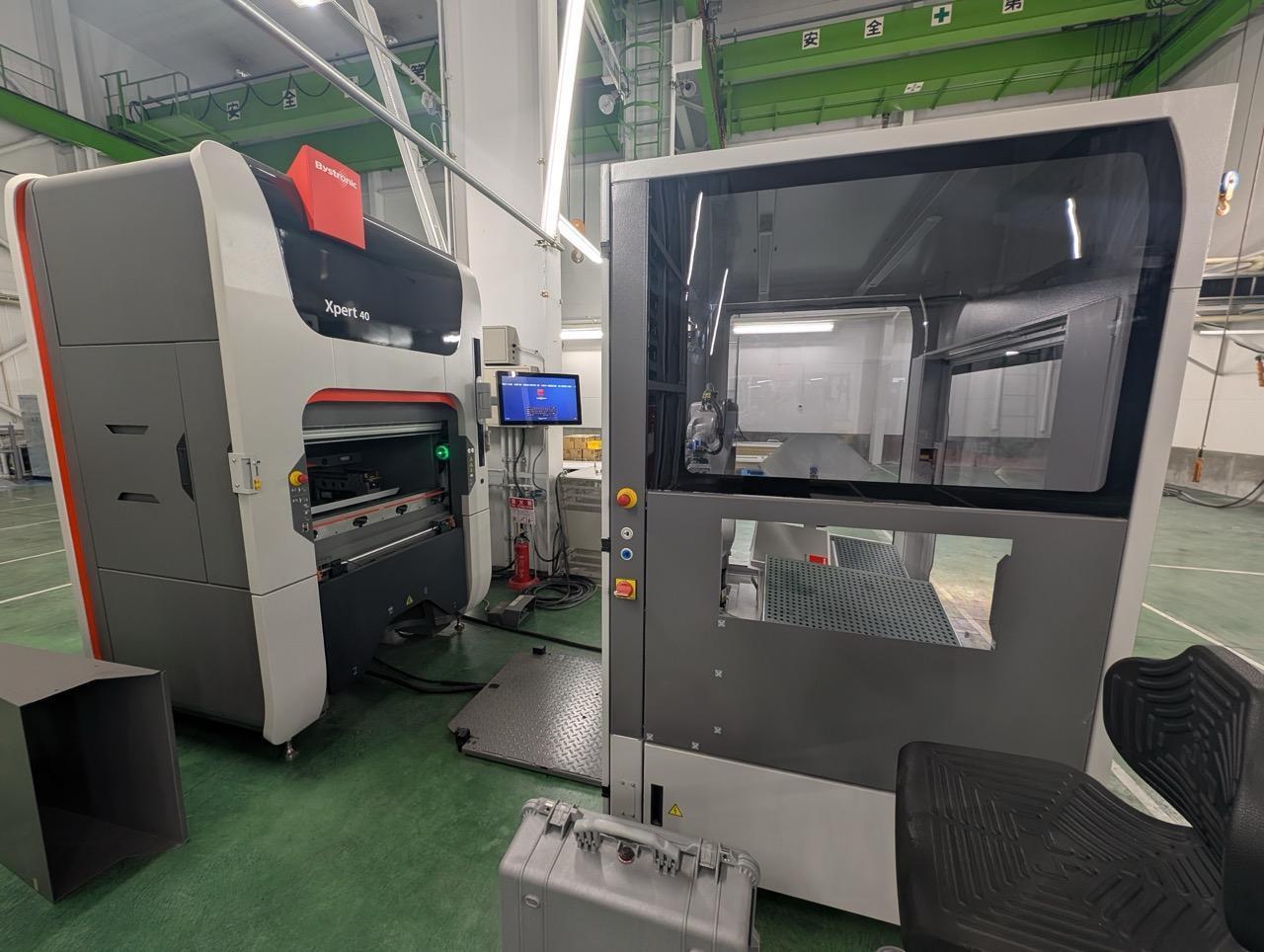

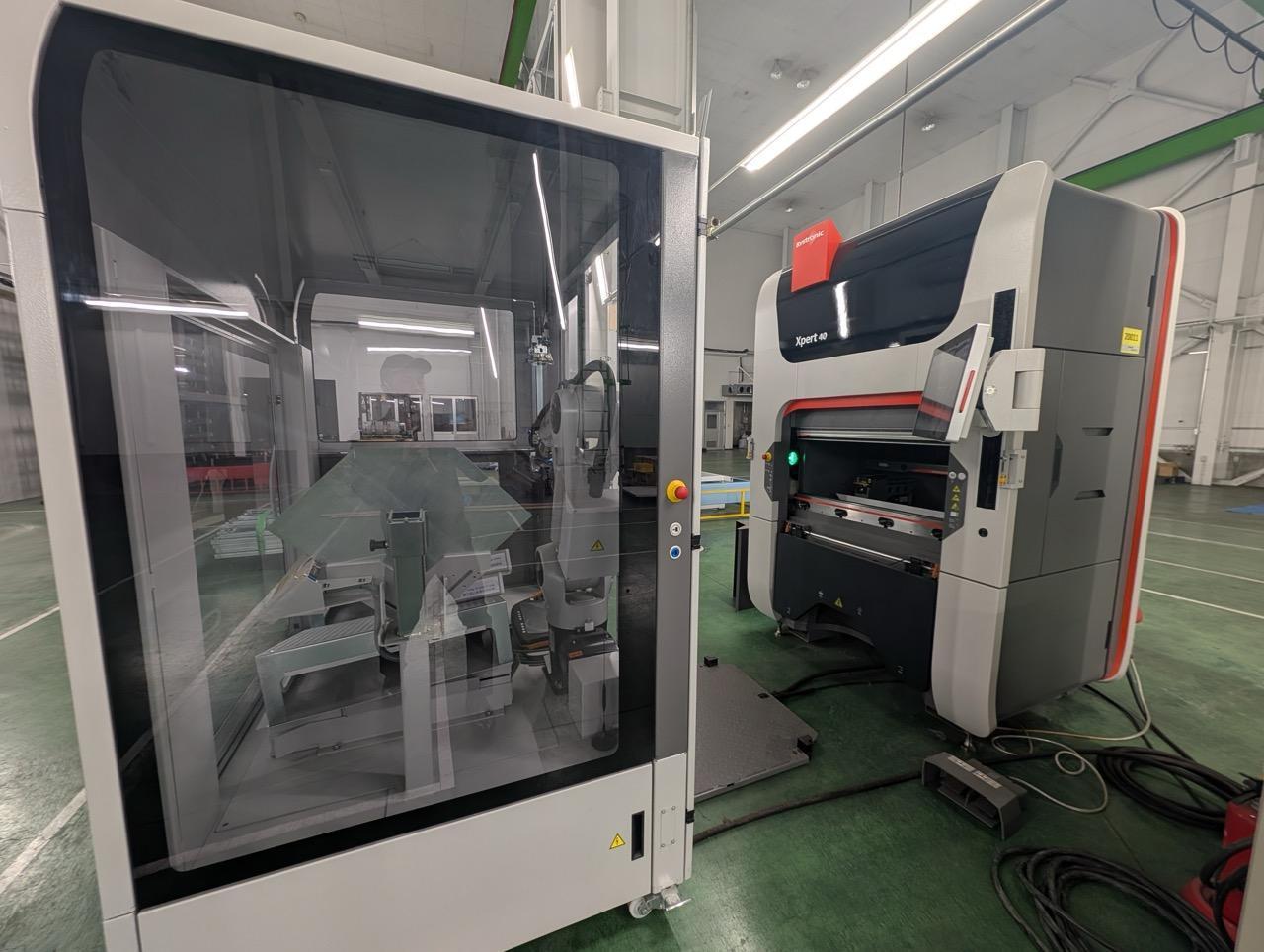

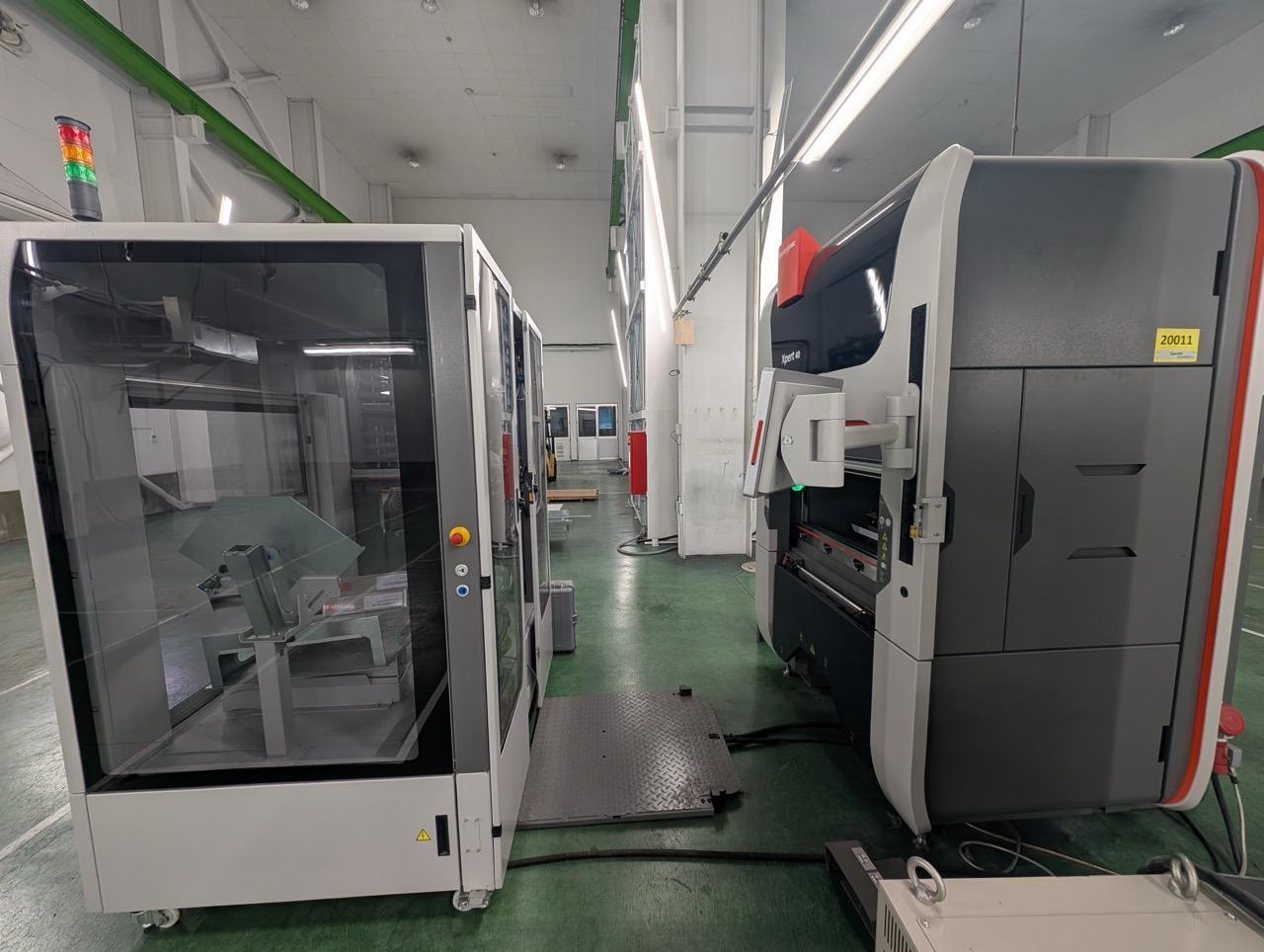

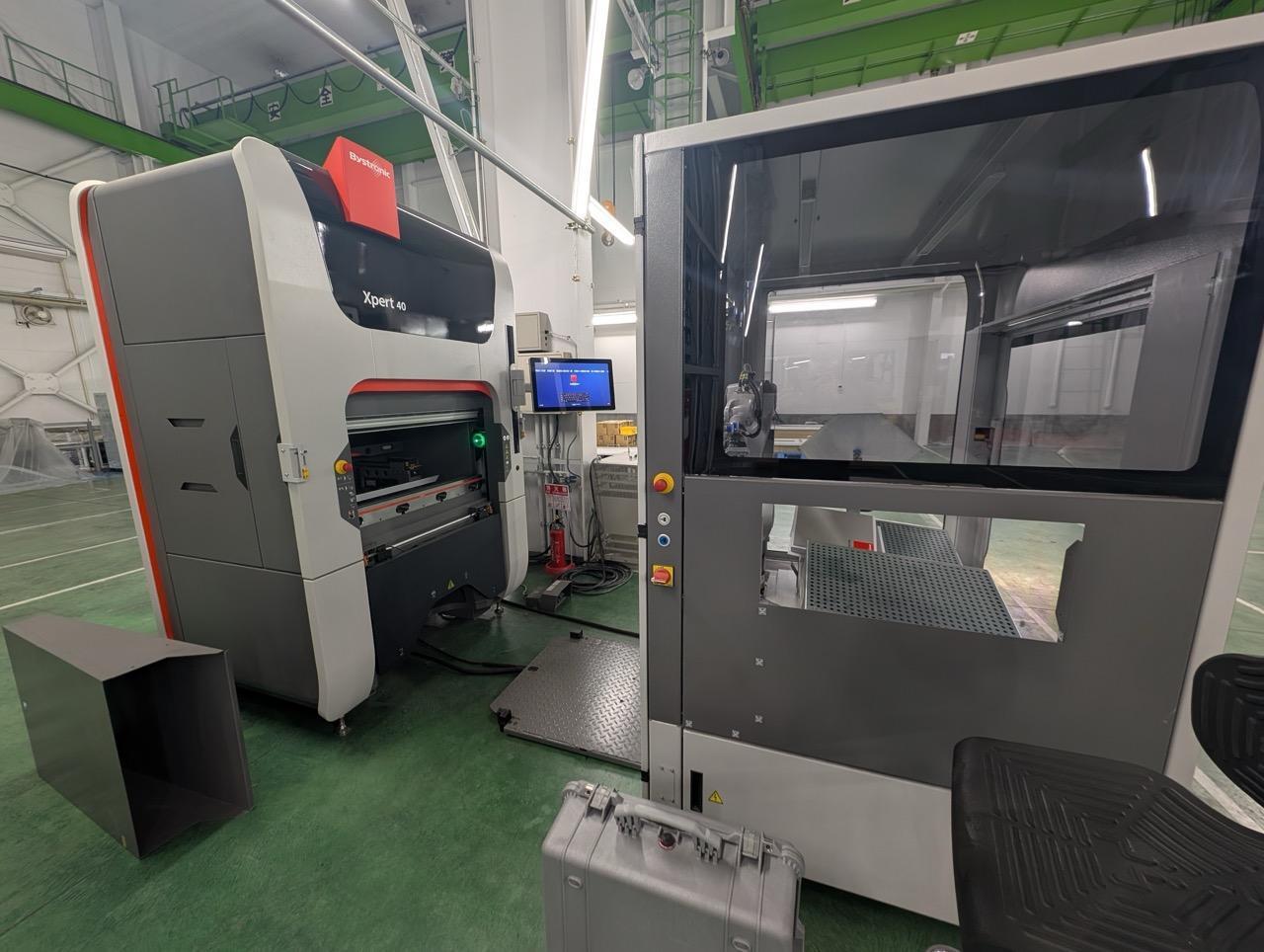

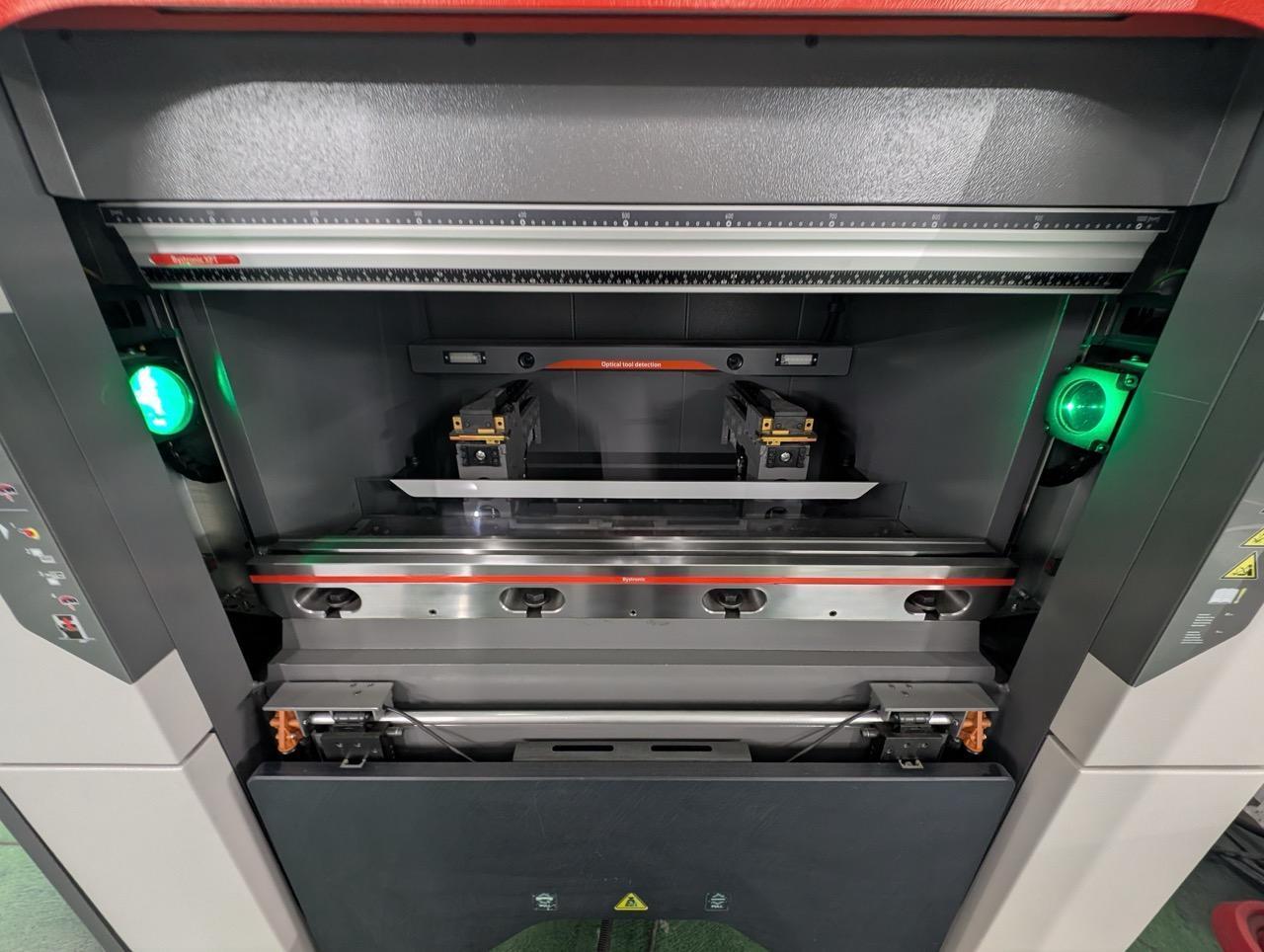

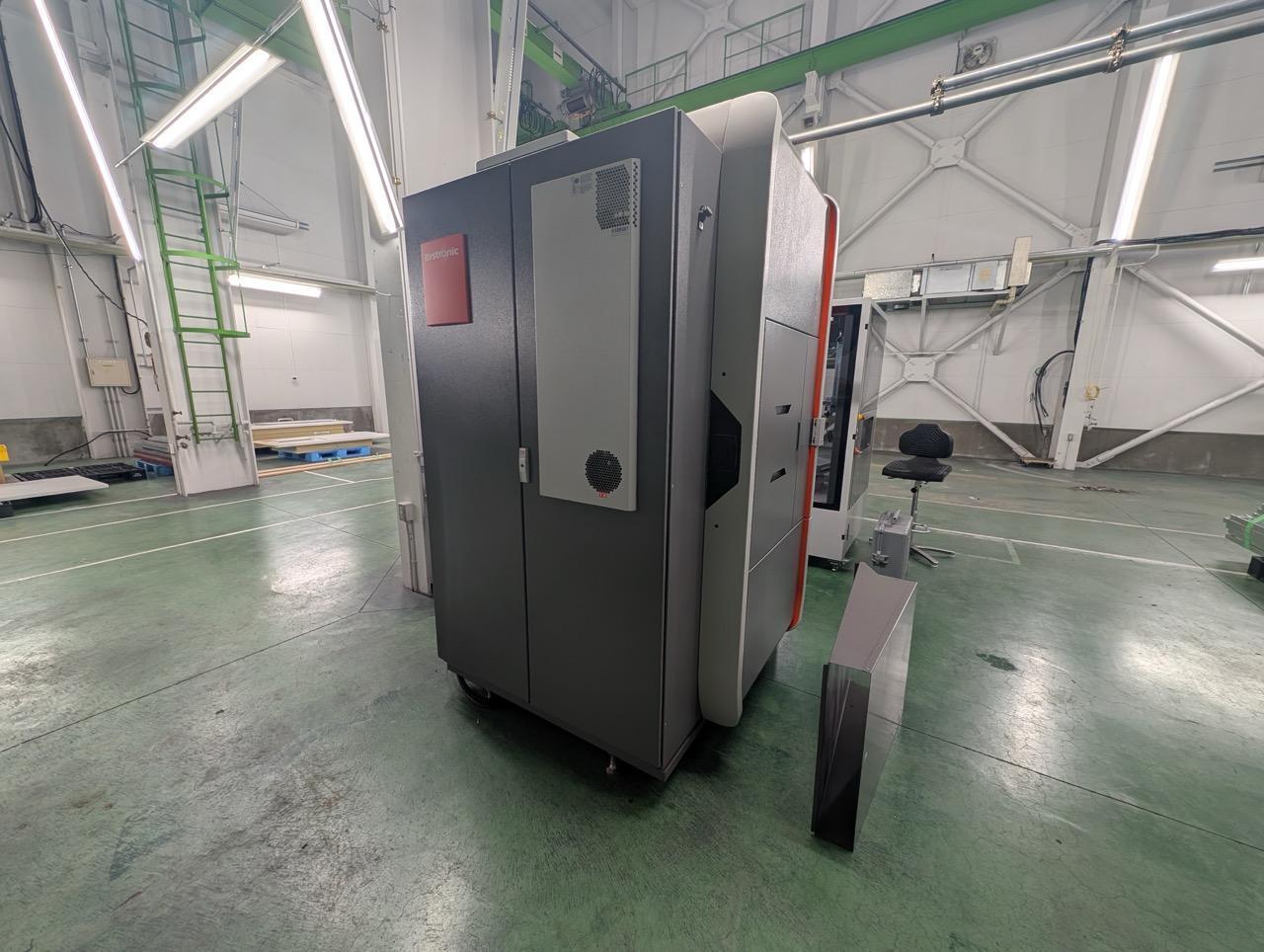

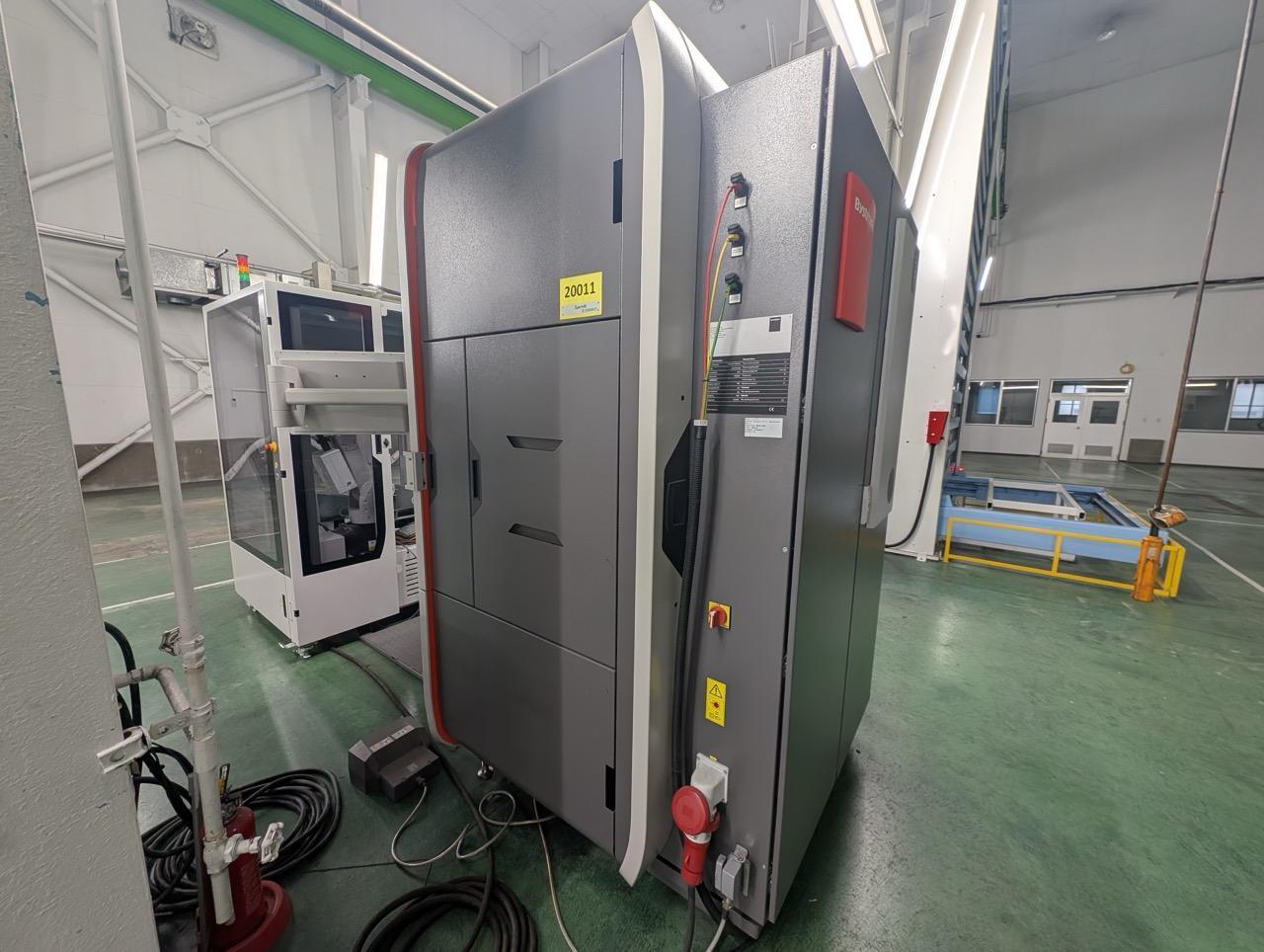

44 Ton x 3.5′ Bystronic Xpert 40/1030 CNC Hydraulic Press Brake, 2019 – w/ KUKA KR10R1100 Robot, 6 Axis Backgauge

Tonnage 44 Tons Bending length 40.6” Standard stroke [S] 7.9” Open height [D] 20.3” Distance between side frames 41.7” Table Width 2.4” Max. Stroke: 8” Max. back gauge range X-axis 19.7” X-axis travel 11.8” X-axis speed 3543”/min R-axis travel 3.9” R-axis speed 1181”/min Z-axis travel 37.6” Z-axis speed 4724”/min max. Y-approach speed 591”/min Max. Y-working speed 59”/min Y-position accuracy 0.00016” Oil capacity 26 gal Main motor power 7.5 kW Operating voltage V AC: 3 PH 400 Frequency Hz: 50 Control voltage V DC: 24 Nominal current fuse A: 32 Weight 8,818 lbs Length, approx. [L] 60” Width, approx. [W] 62” Height, approx. [H] 96”

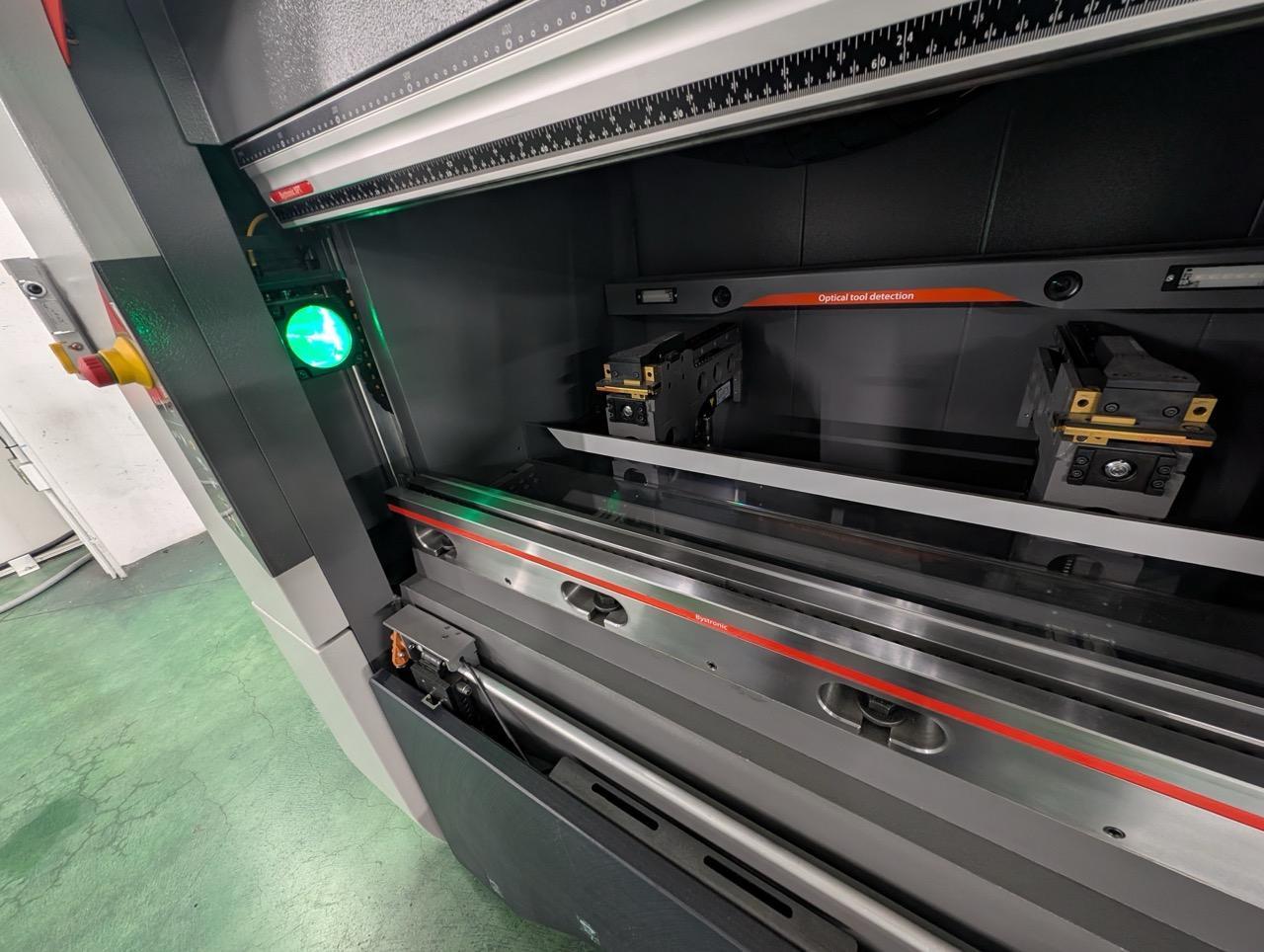

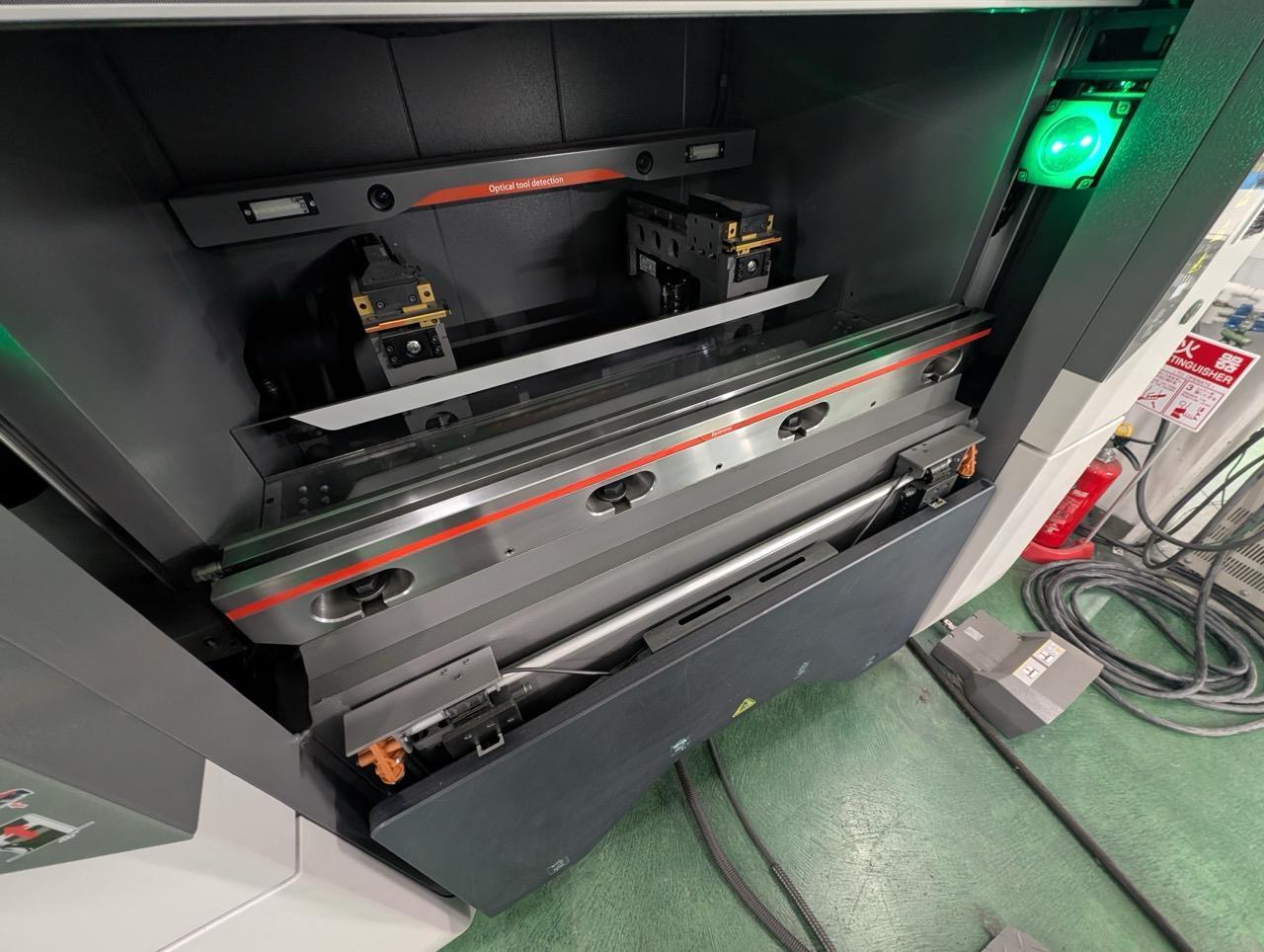

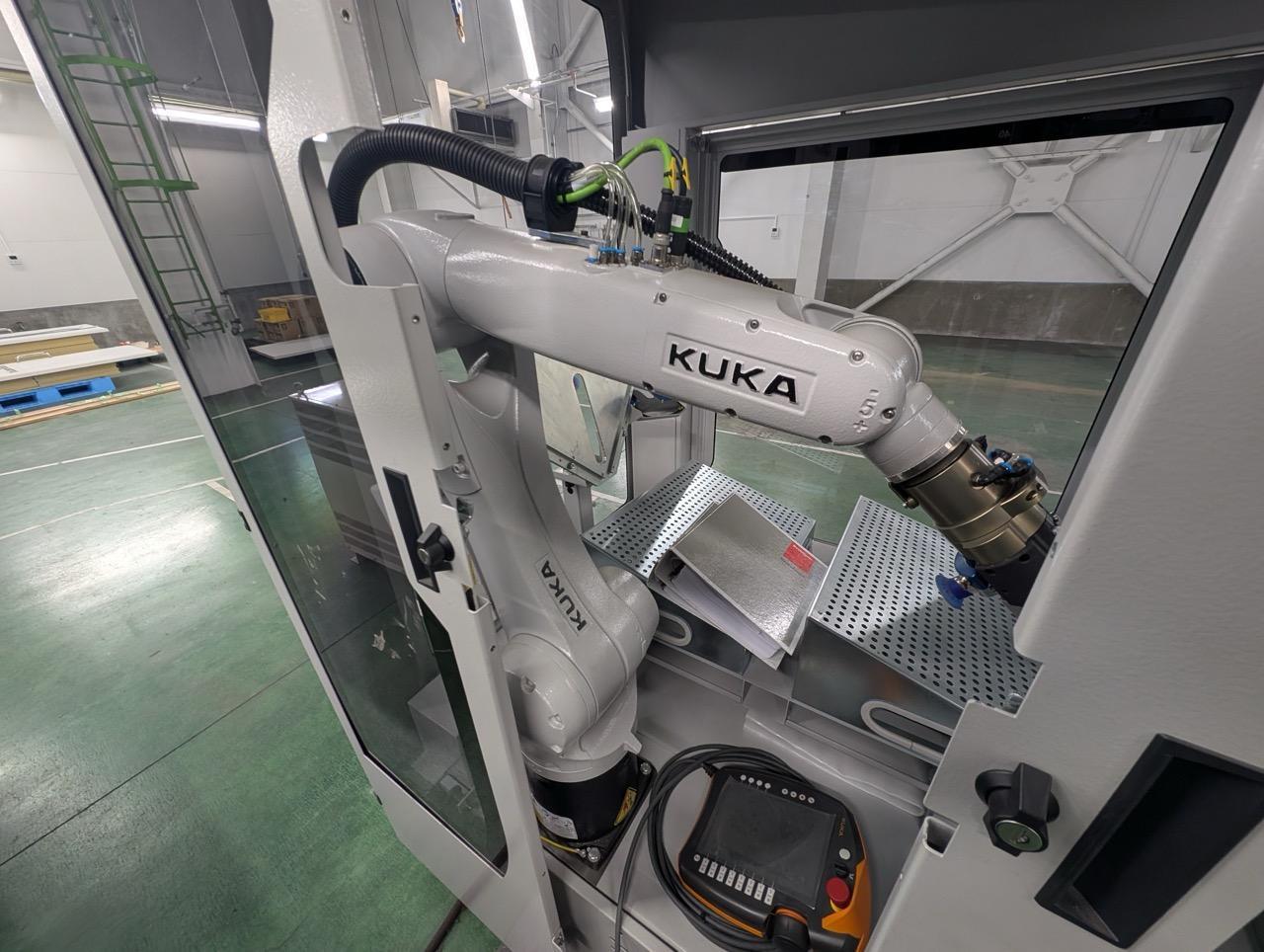

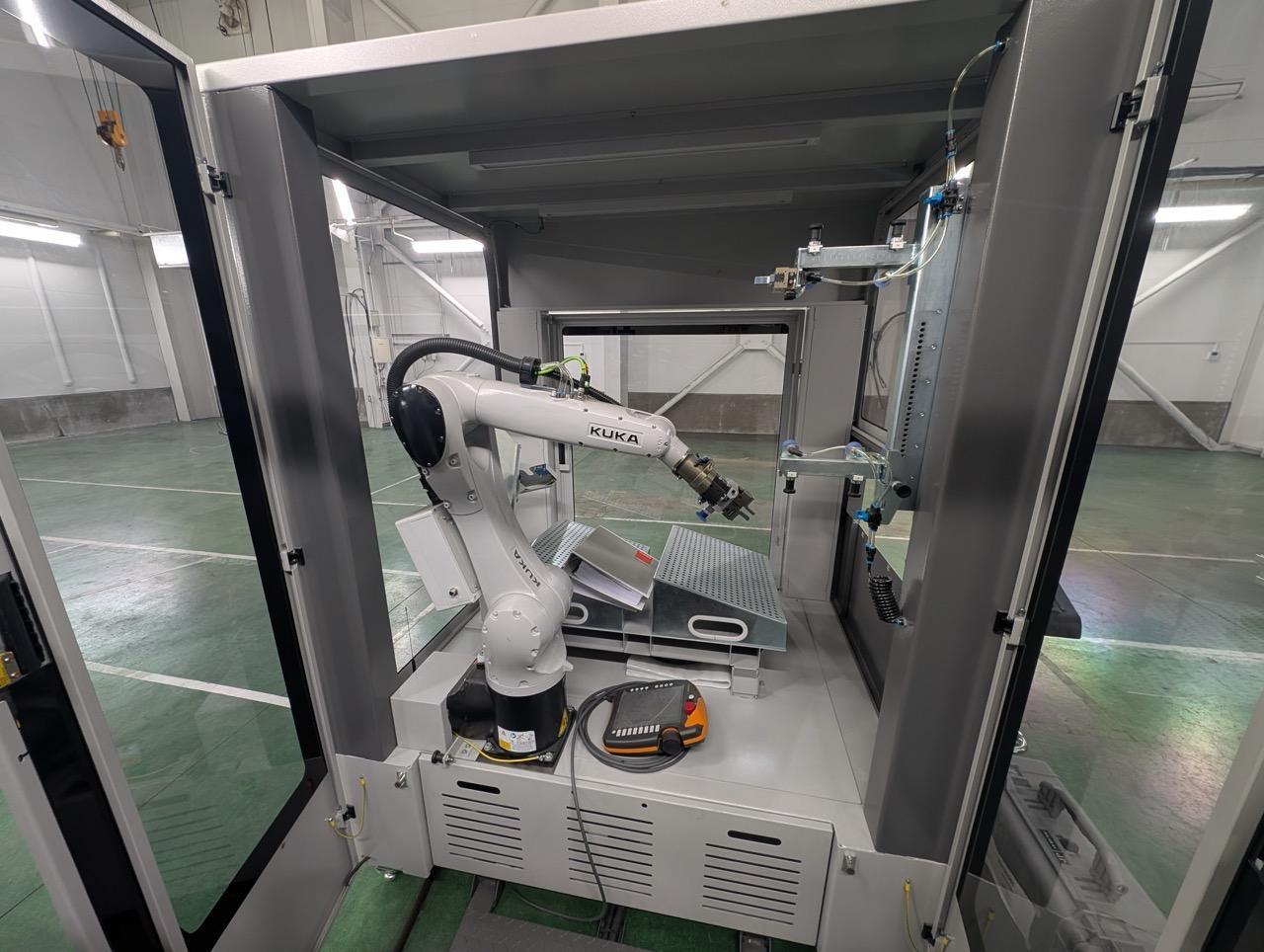

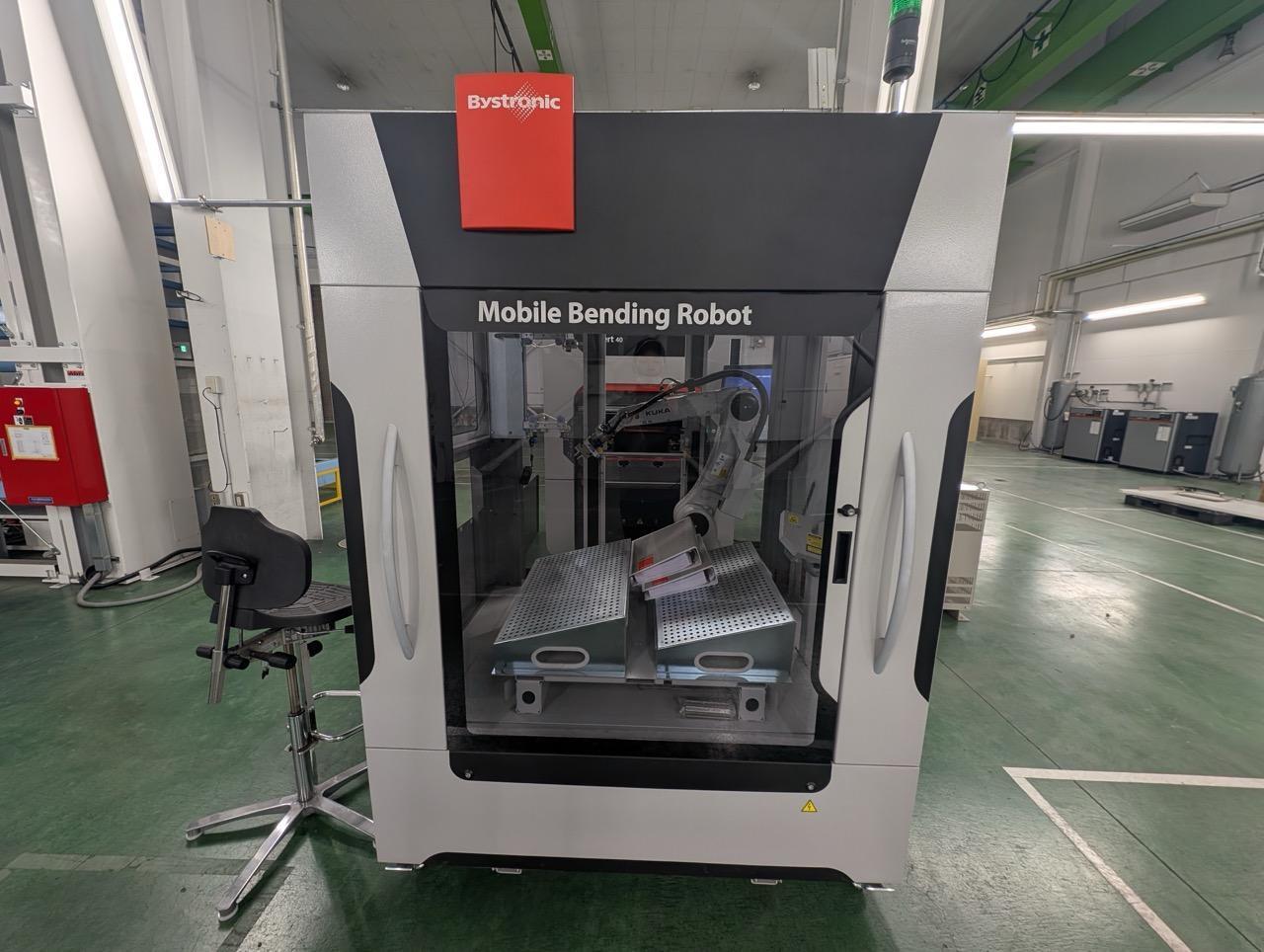

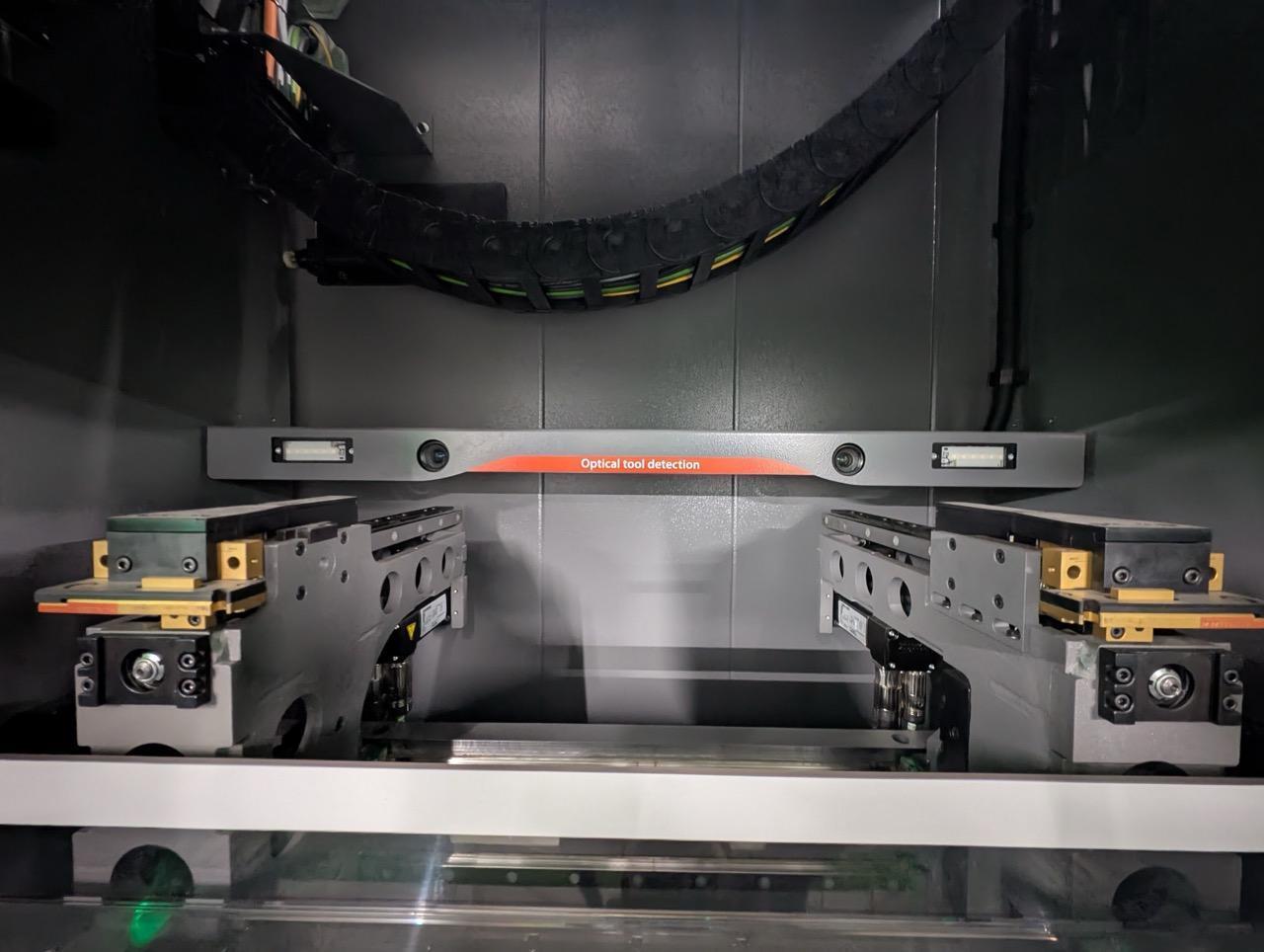

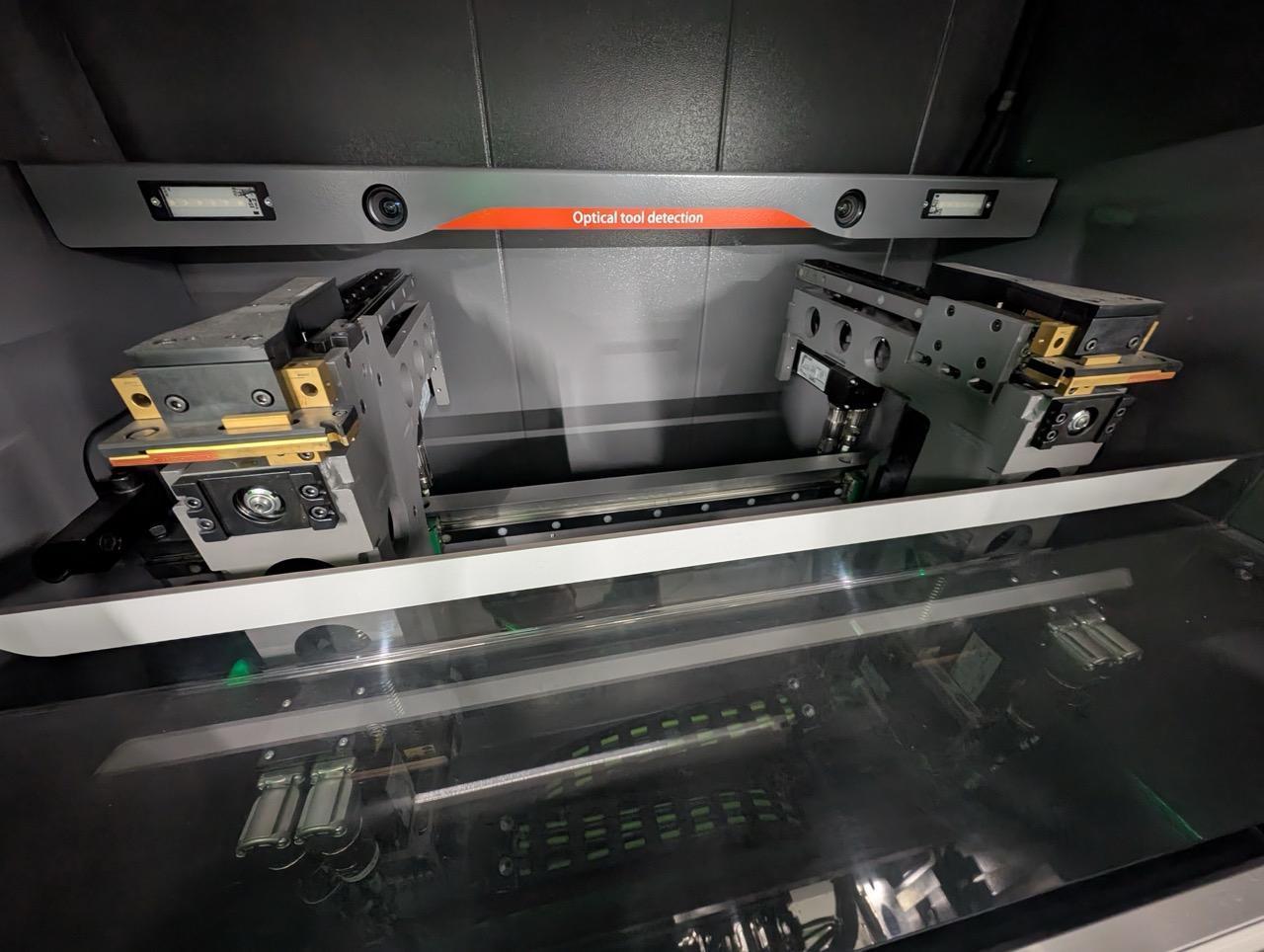

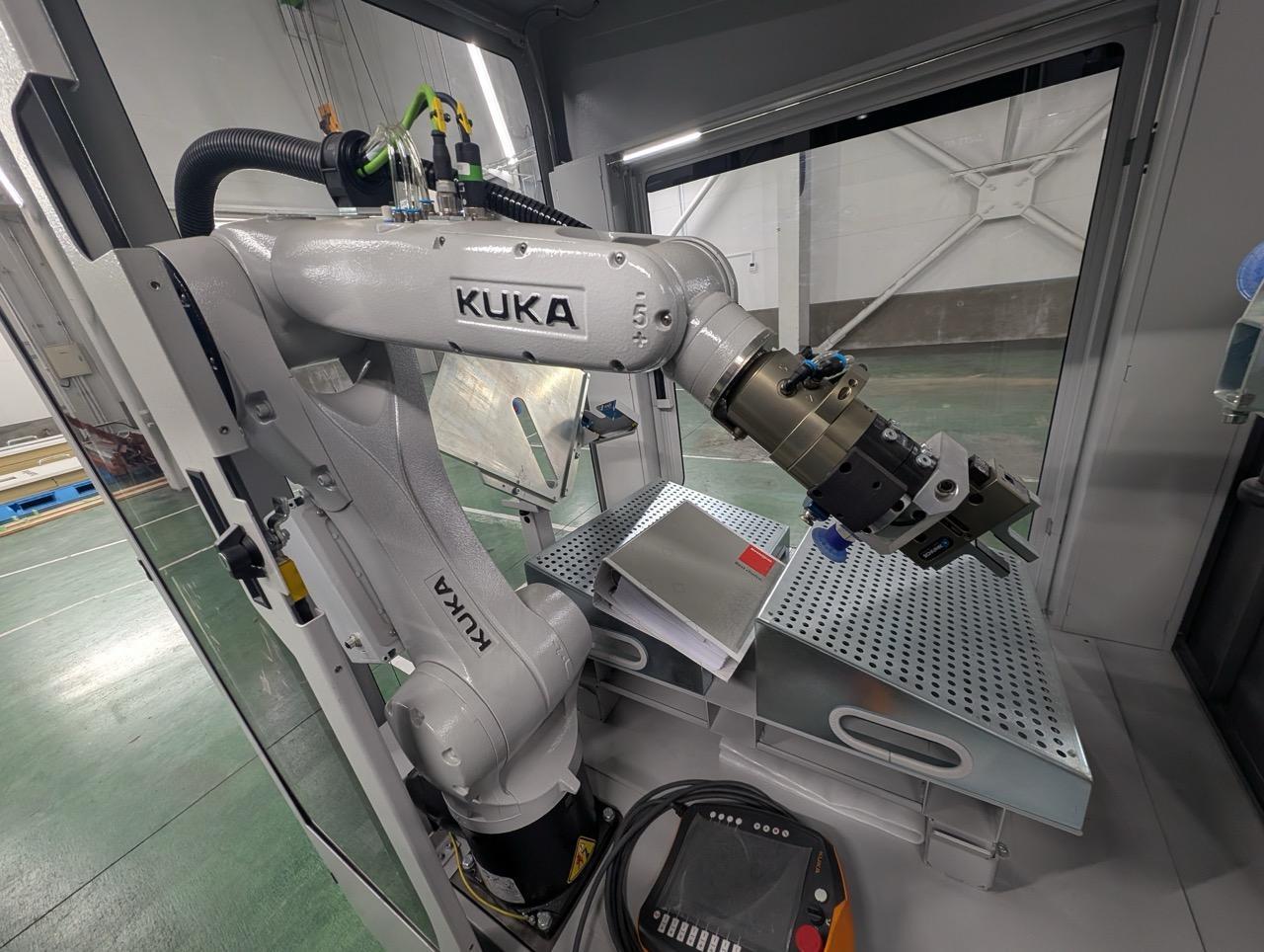

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: KUKA KR10R1100 Robot Obligatory options: Fast Bend G2 – safety system with manual height Backgauge system: 6-Axis back gauge Other variations: Hydraulic Oil User ergonomics: Ergo LE illumination pack Ergo arm support Ergo tool and bend equipment cabinets/.shelfs on each side integrated into the machine housing Ergo sitting position Optical Bend Guiding System (with RF-A/XPT only) Value Packages: Productive clamping pack RF-A Tools: Upper Tool P4 RF-A/85 L=1000 Sect. FSC (65206.0004.0003) Upper Tool P4 RF-A/85 L=100 Horn II, +re. (65206.0004.7002)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
