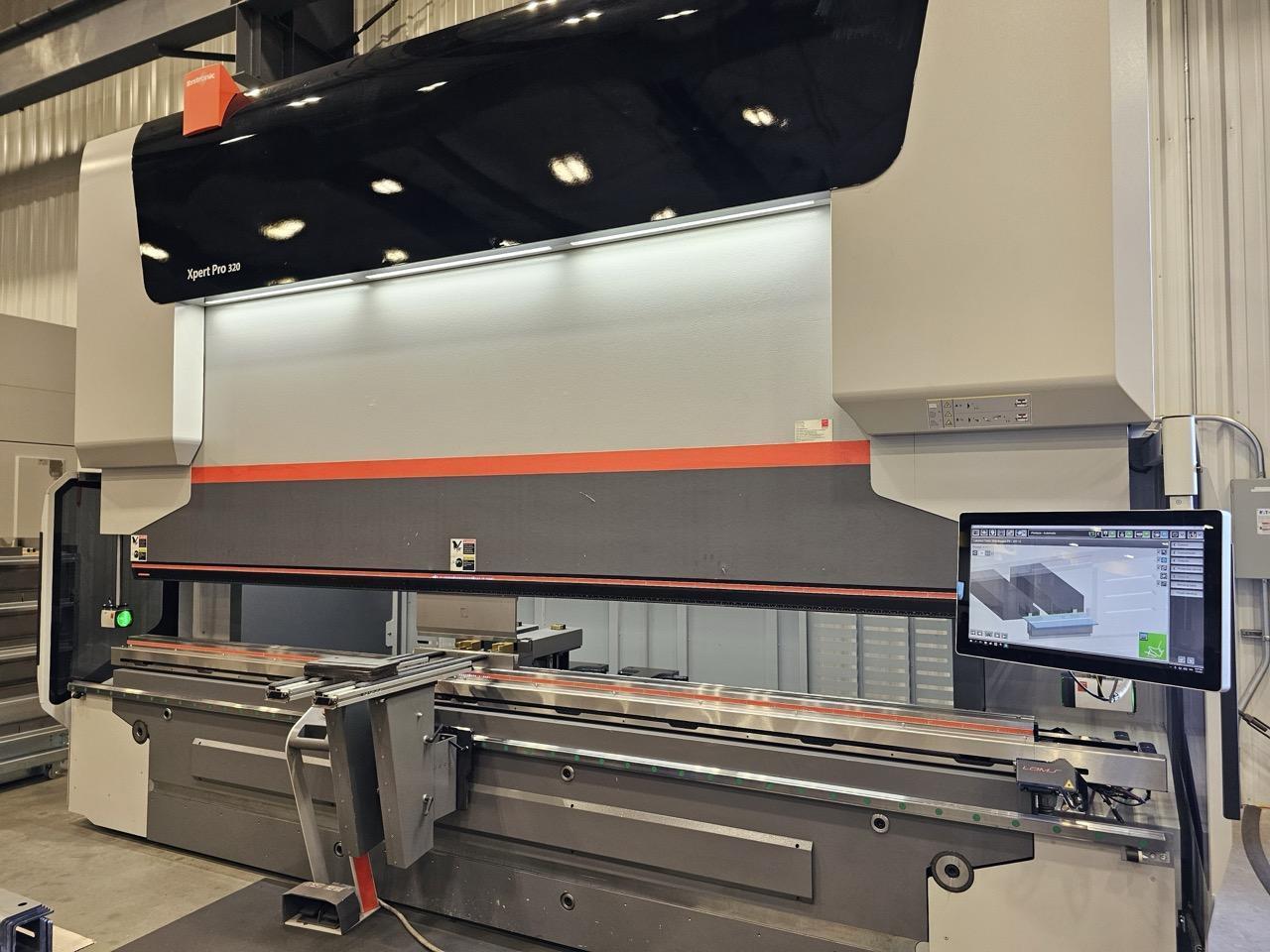

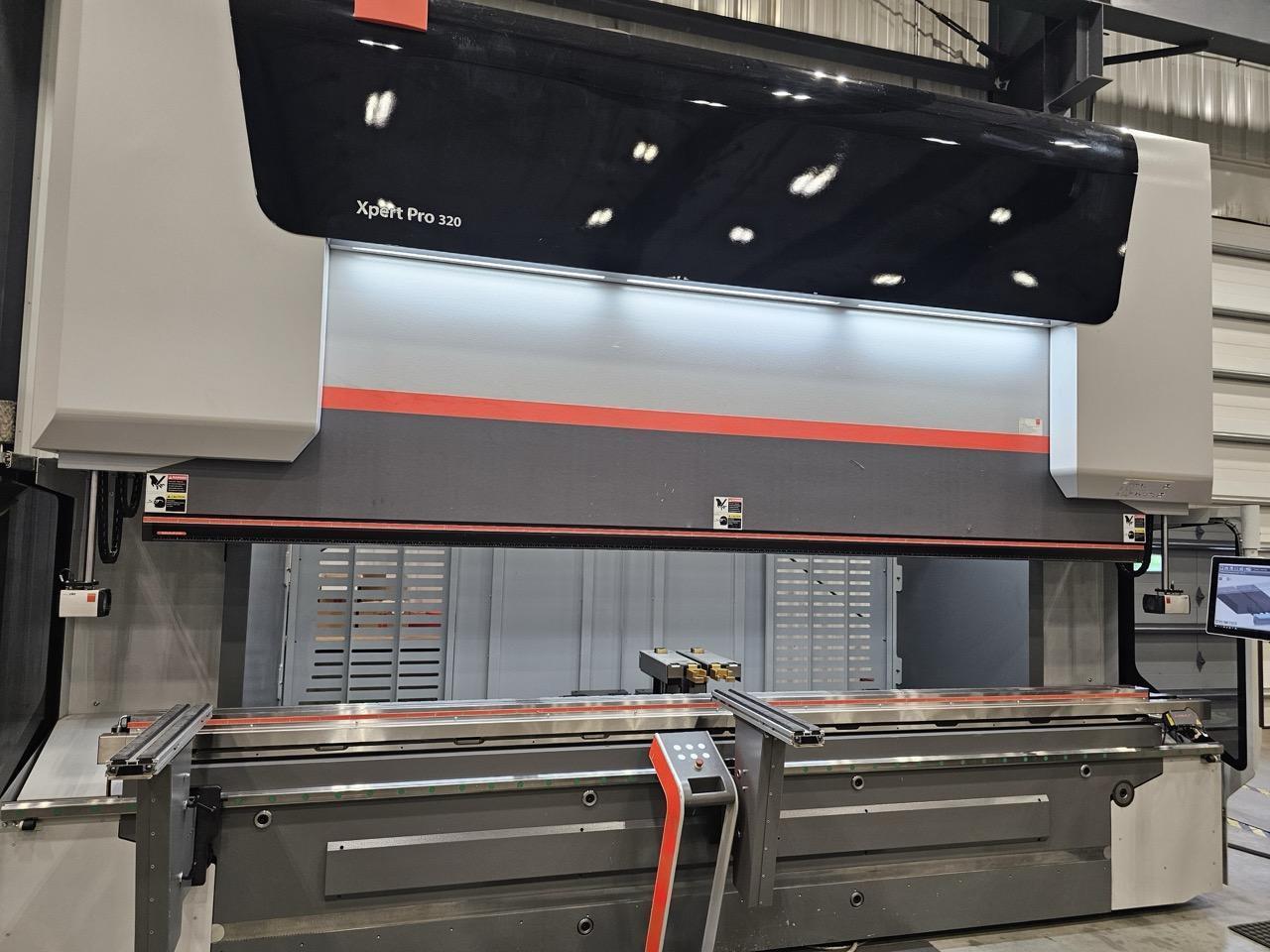

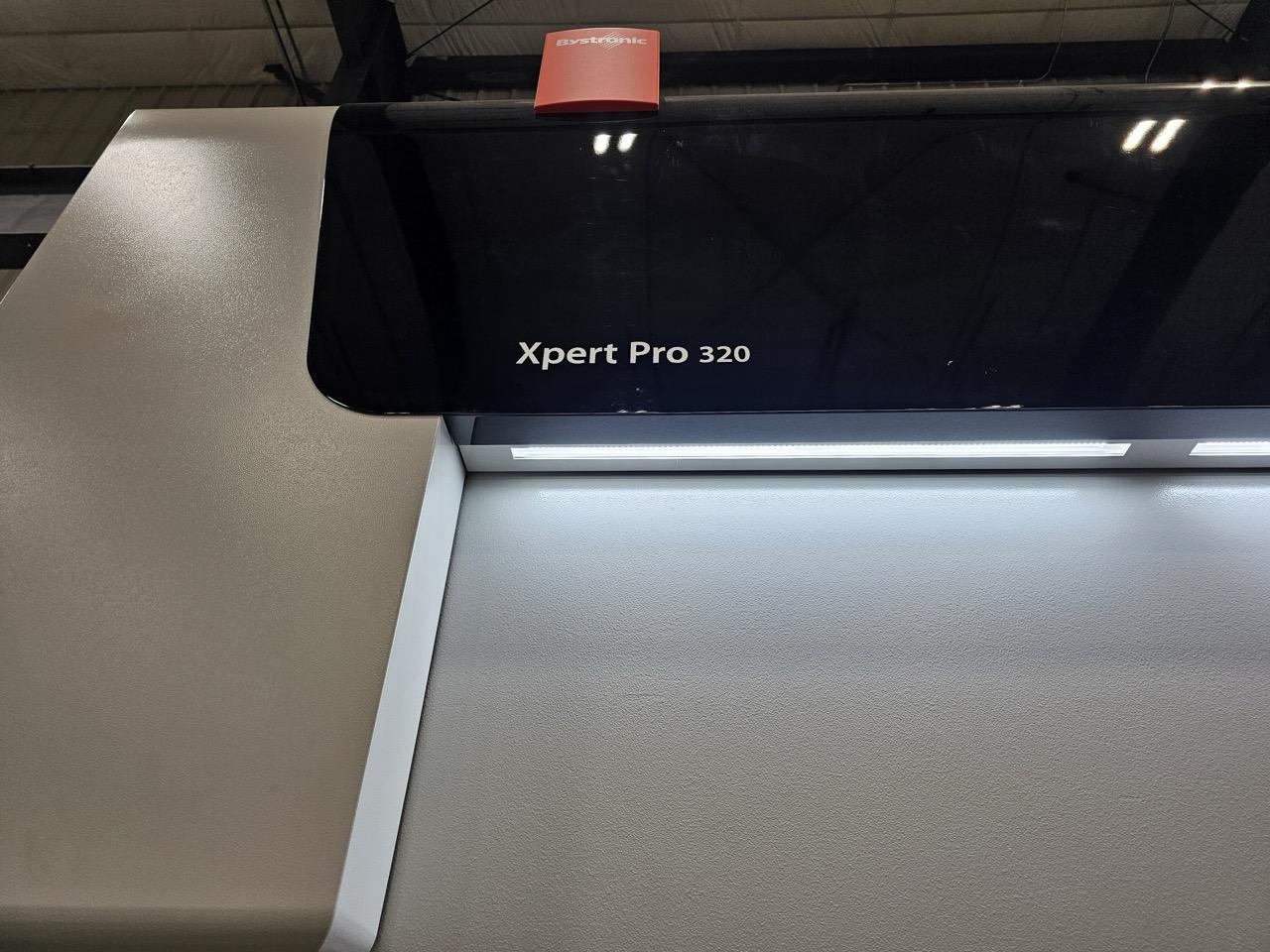

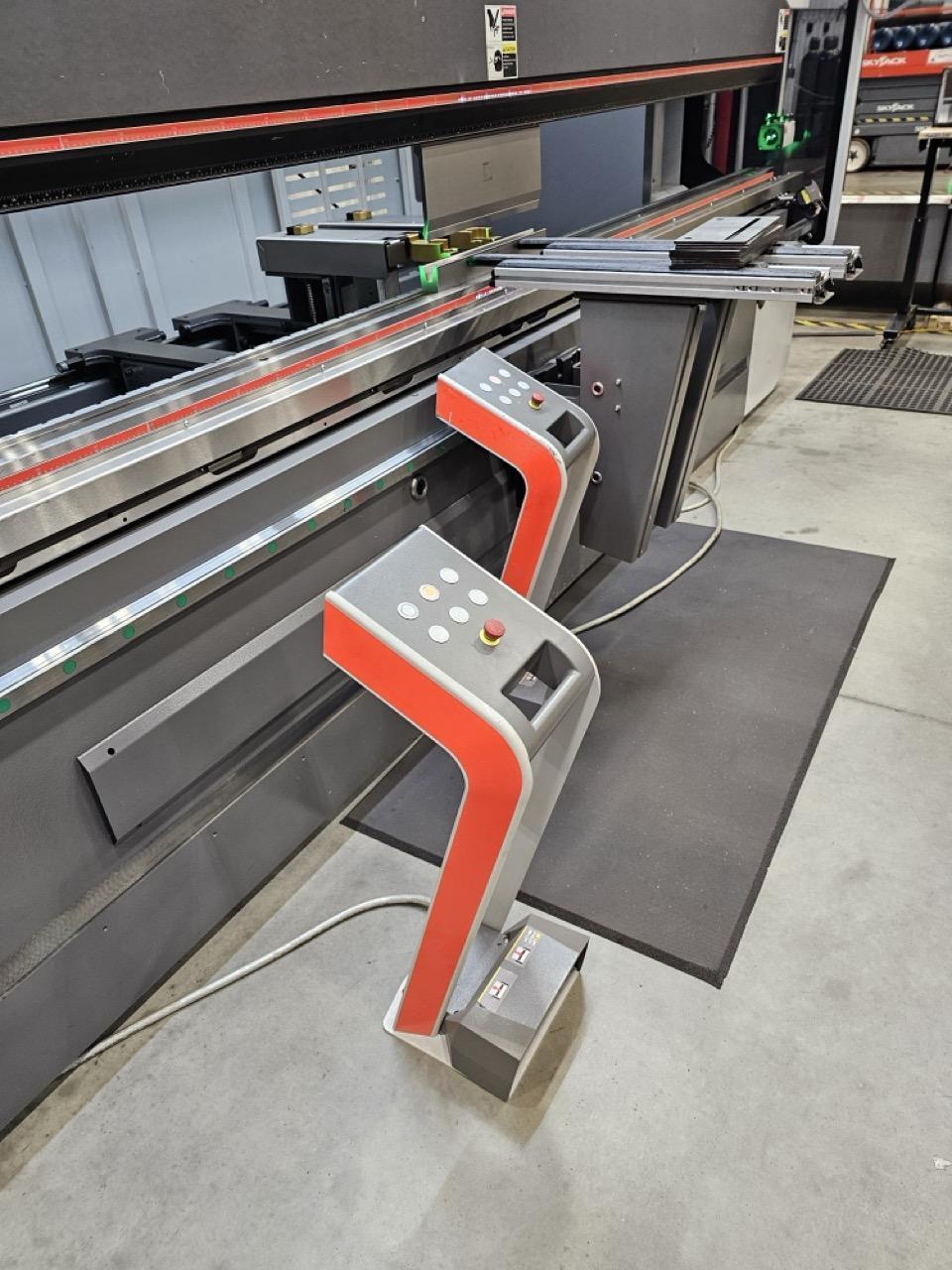

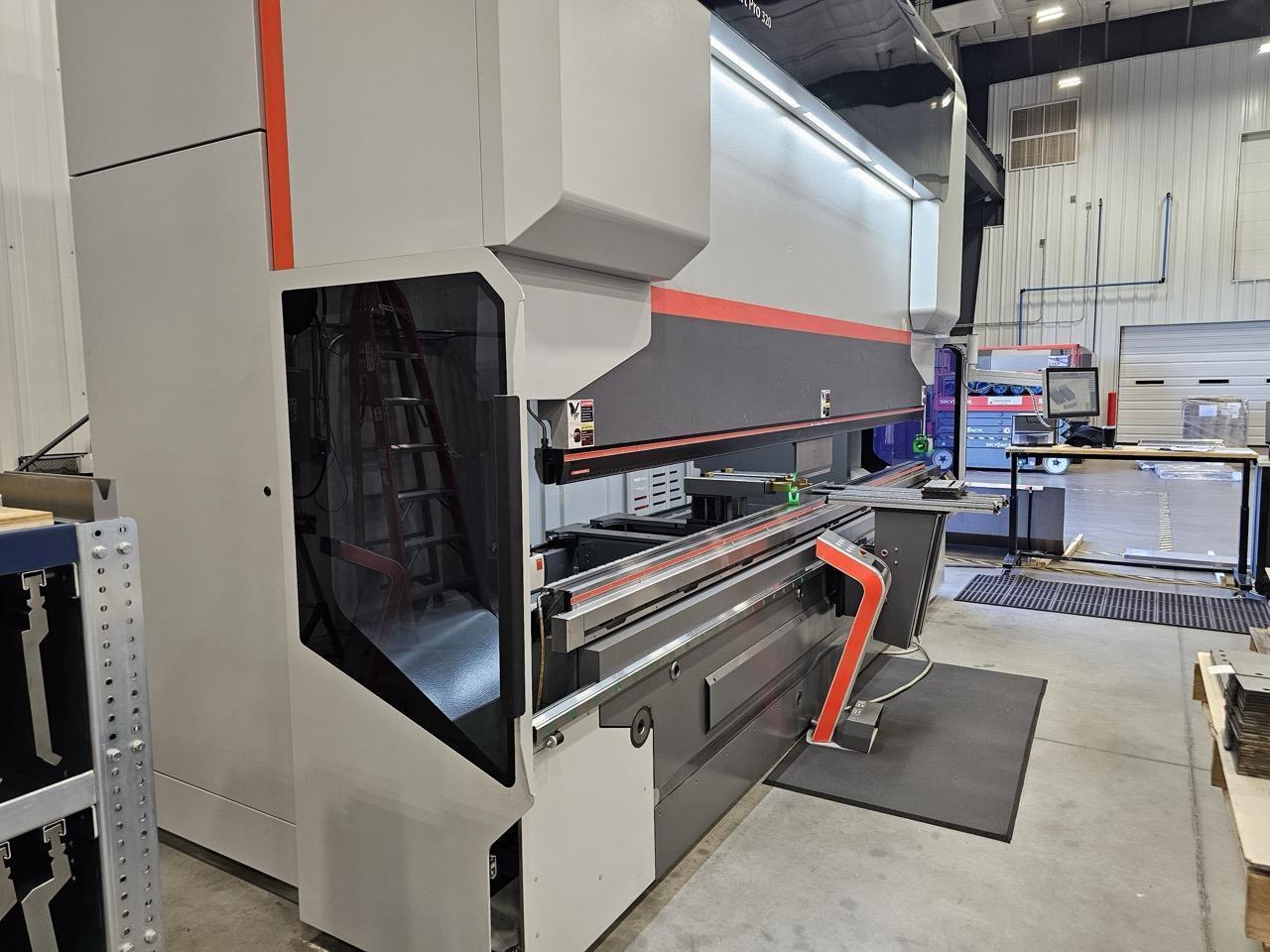

352 Ton x 14′ Bystronic Xpert Pro 320/4300 Extended Hydraulic Press Brake, 2022

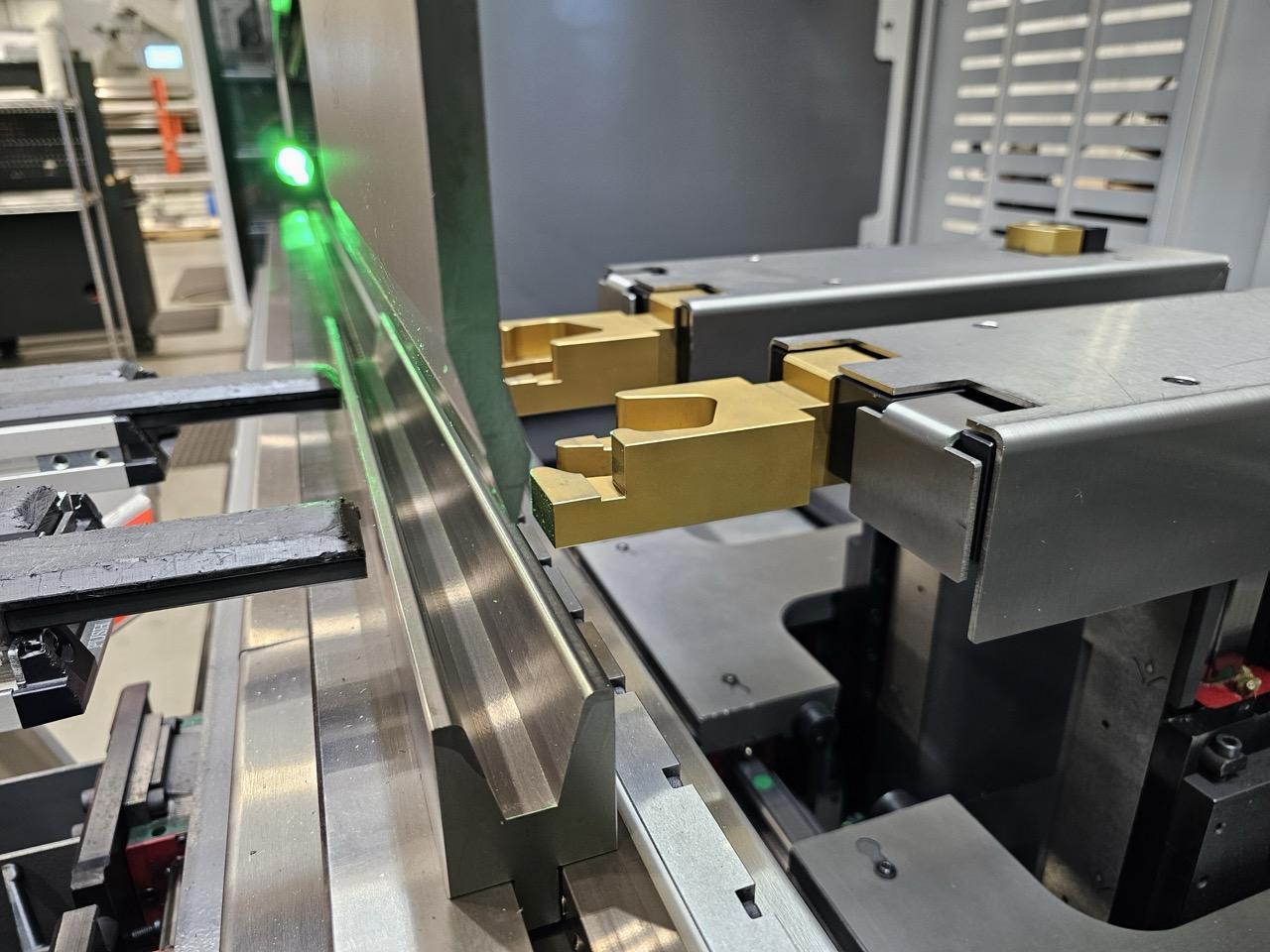

Tonnage: 352 Tons Bending length: 169.3 in Standard stroke: 17.7 in Open height: 33.0 in Distance between side frames: 147.7 in Throat: 15.8 in Table Width: 2.4 in Max. back gauge range X-axis: 41.4 in X-axis travel: 23.7 in X-axis speed: 1536 in/min X-axis position accuracy: 0.0016 in R-axis travel: 9.9 in R-axis speed: 473 in/min R-axis position accuracy: 0.004 in Z-axis travel: 114 in Z-axis speed: 3544 in/min Z-axis speed for 6-axis: 2834.6 in/min Z-axis position accuracy: 0.004 in Y-position accuracy: 0.00016 in

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight 60186.2 lbs Length, approx. [L] 207.1 in Width, approx. [W] 78.7 in Height, approx. [H] 147.6 in Proposed foot print approx. [LF x WF x HF] 276x177x165.4 in

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
