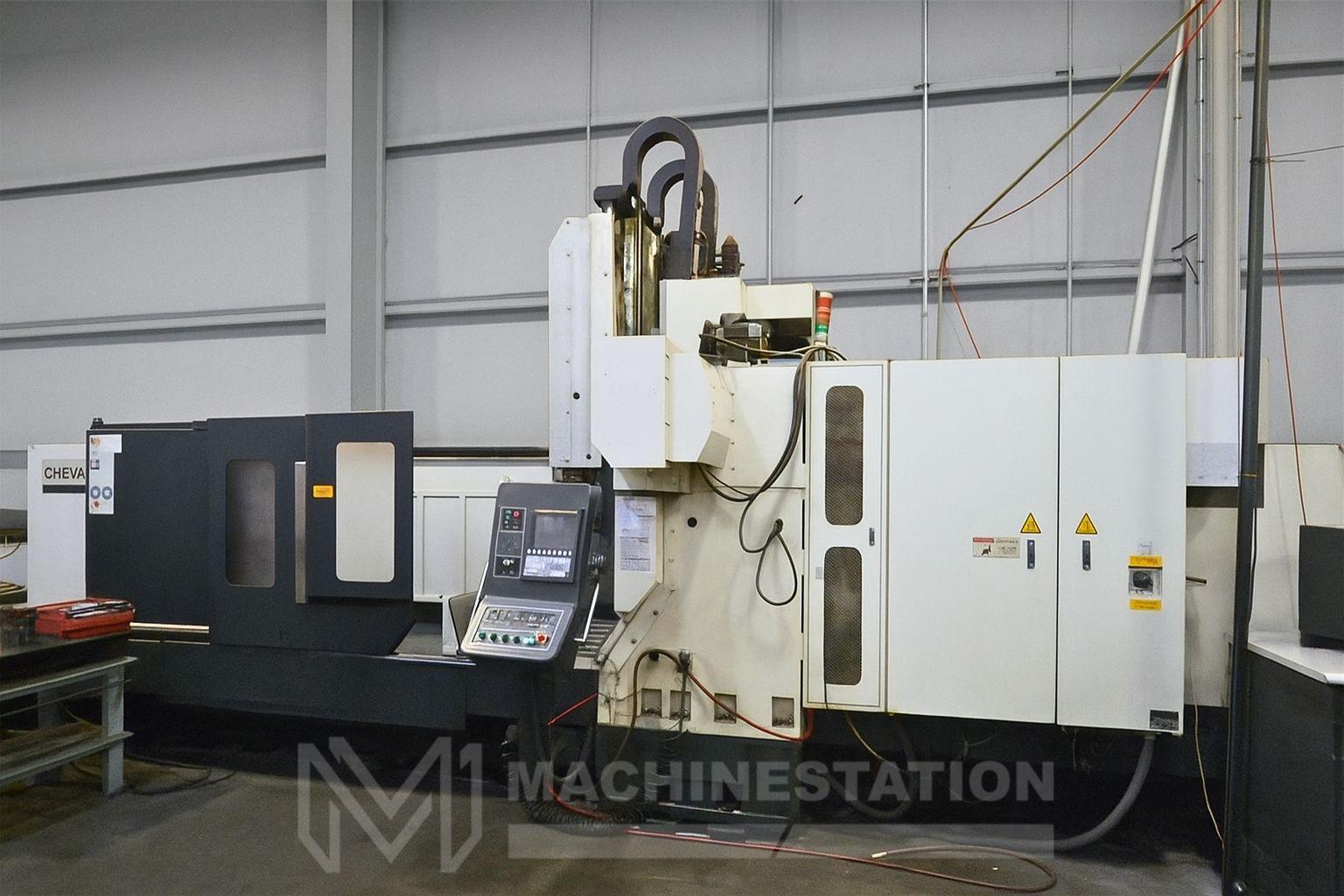

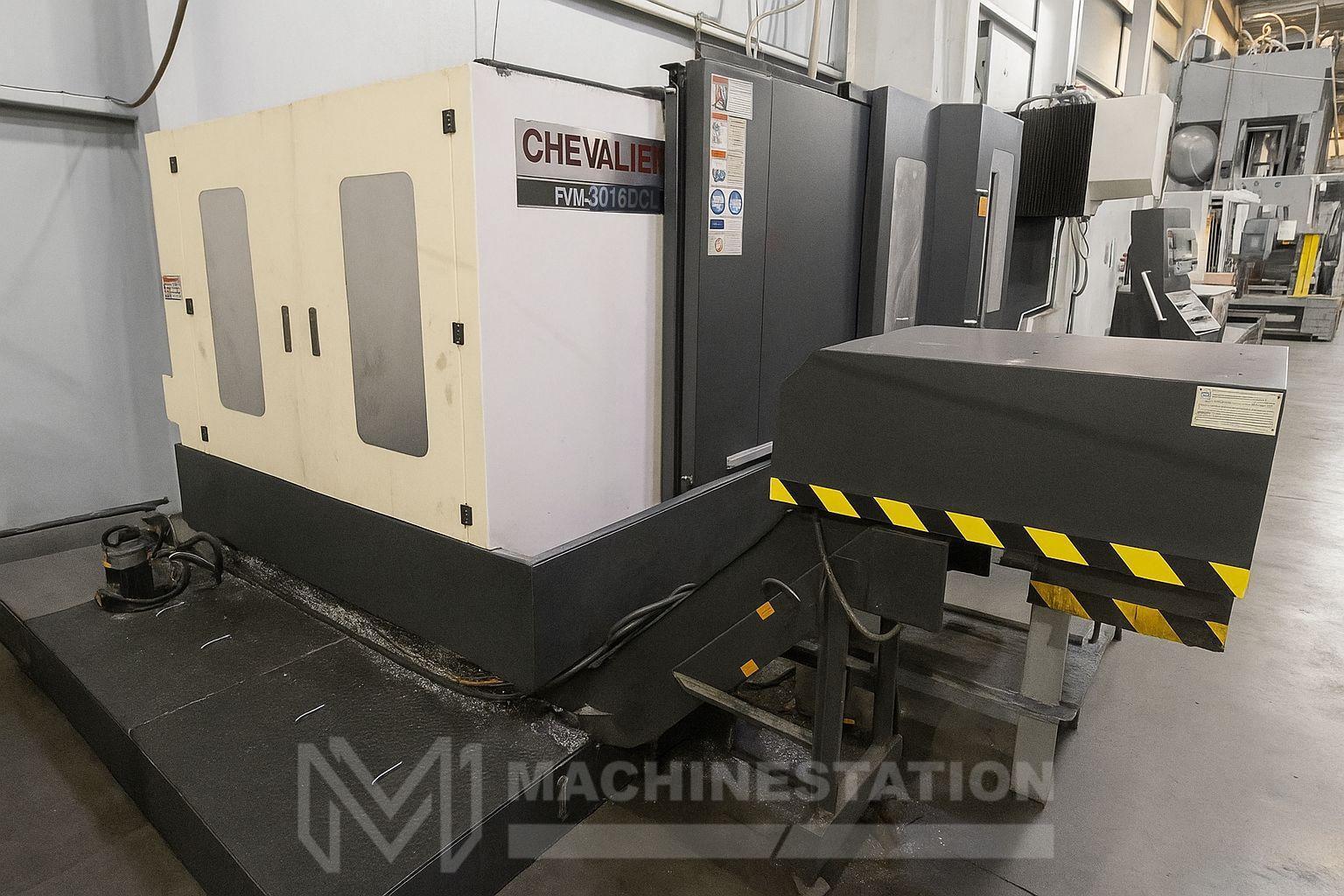

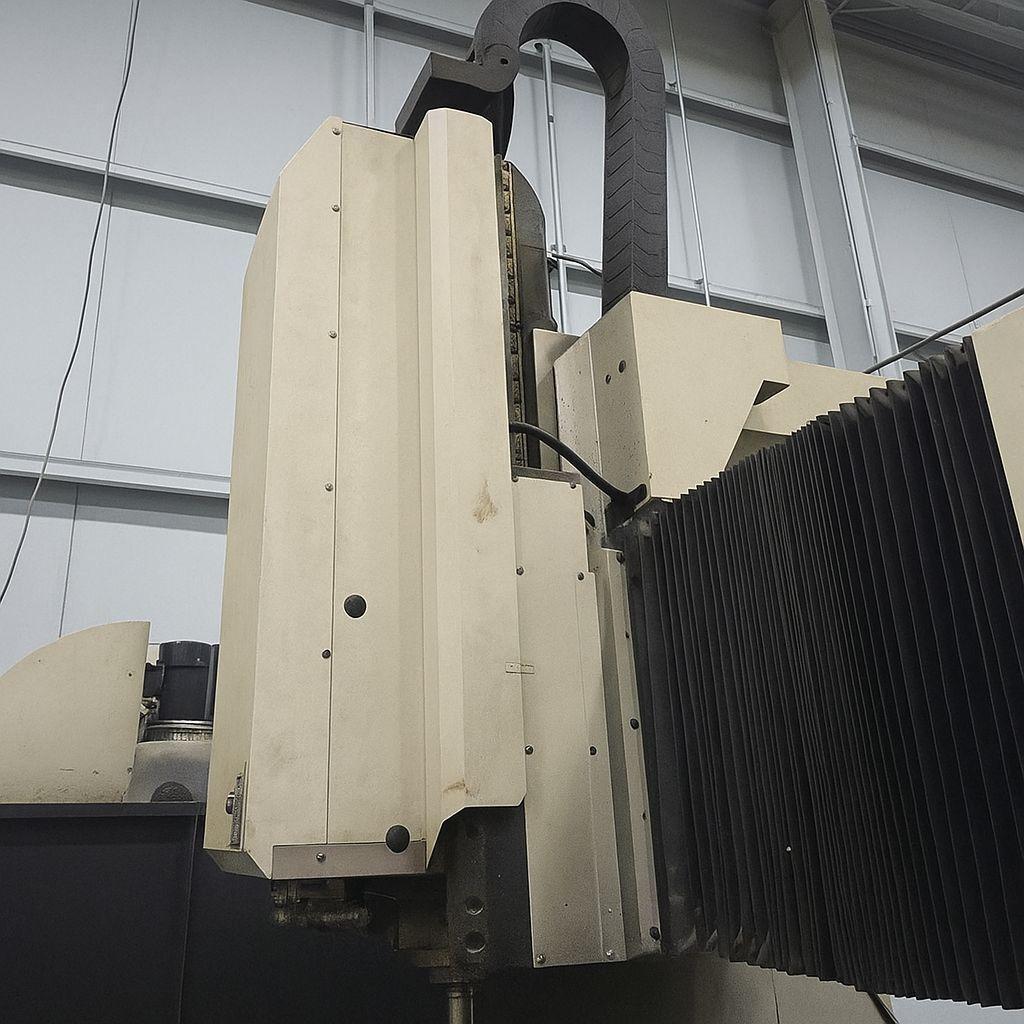

Chevalier FVM-3016DCL CNC Bridge Mill – 2015

Brand
CHEVALIER
Category
Milling Machines
Type
Bridge Mills
Model
Chevalier FVM-3016DCL
Stock #
112838
Year
2015
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

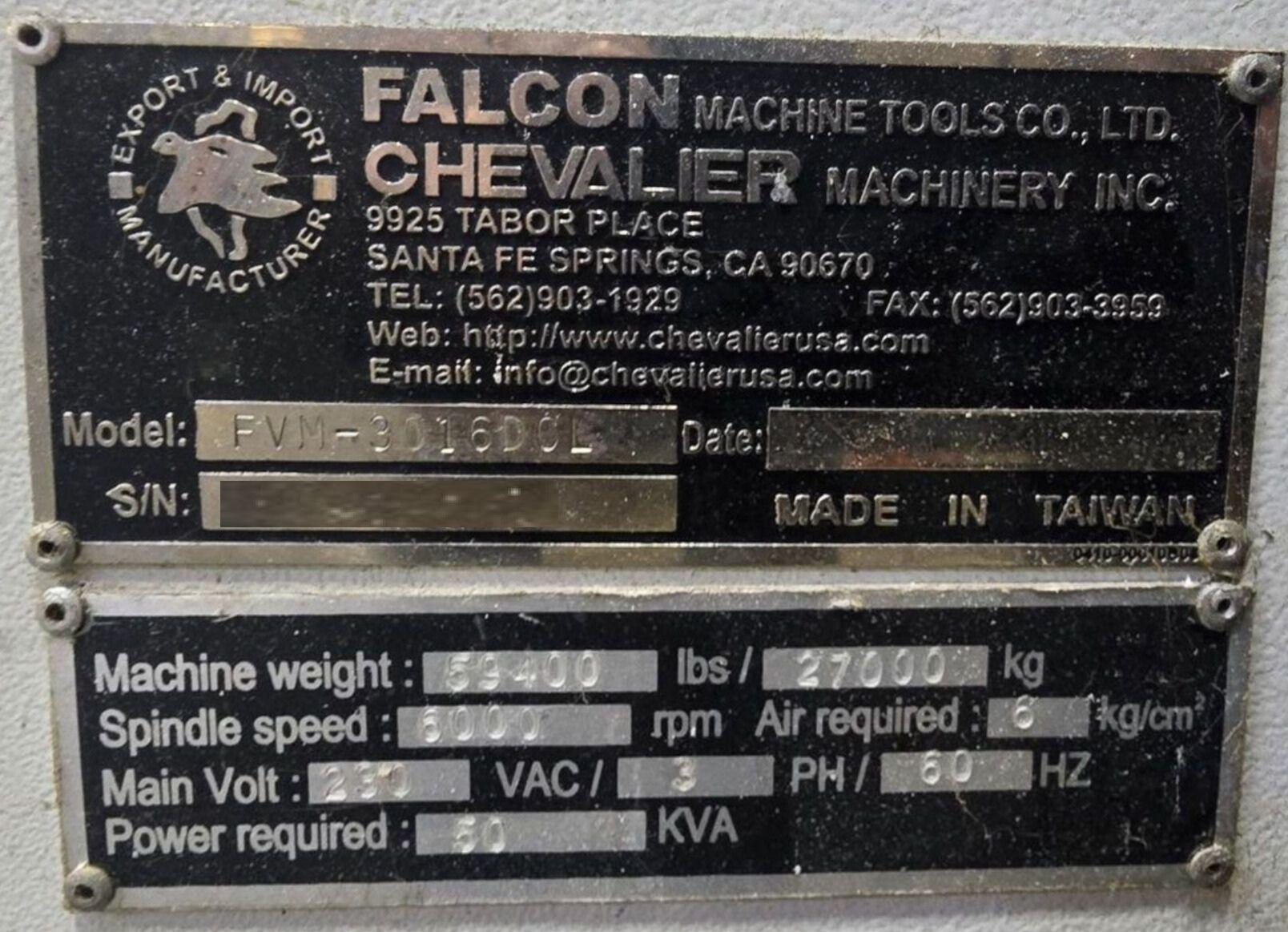

Make: Chevalier
Model: FVM3016DCL
Year: 2015 (Installed in 2018)
Condition: Used – Good
Equipped With:

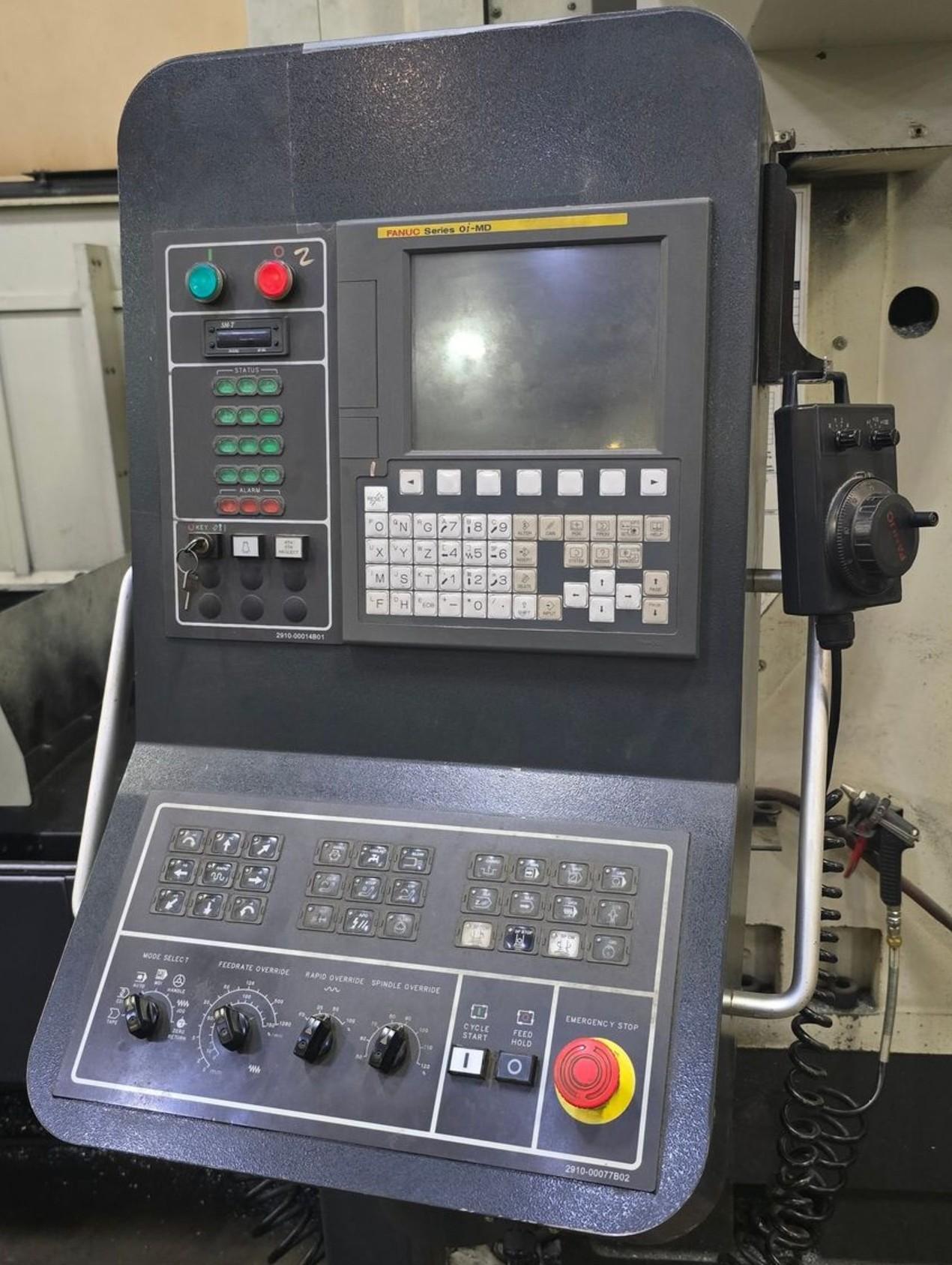

Fanuc Oi-MD CNC Control
122″ X 57″ Table

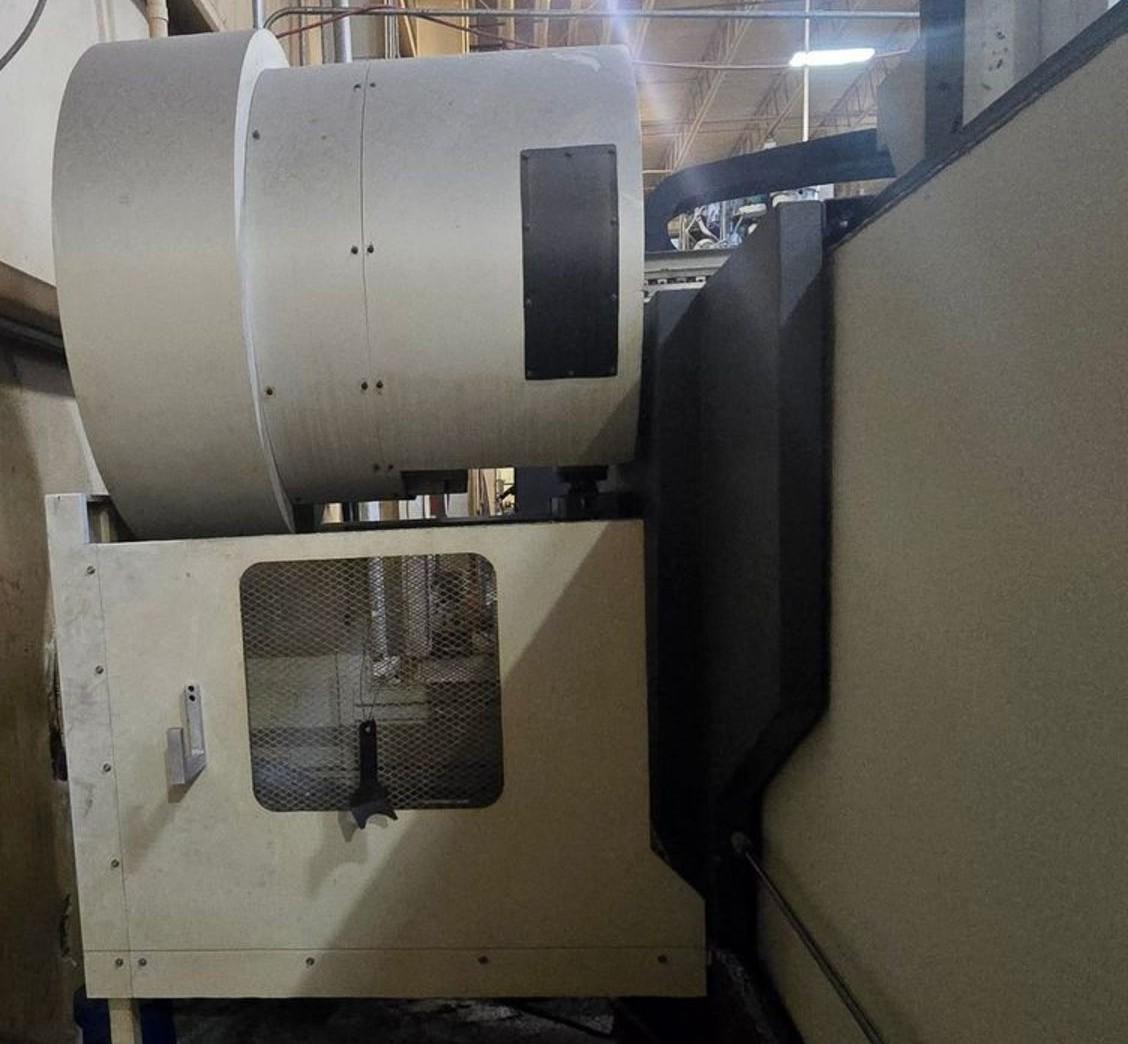

20 Station Side Mount Tool Changer

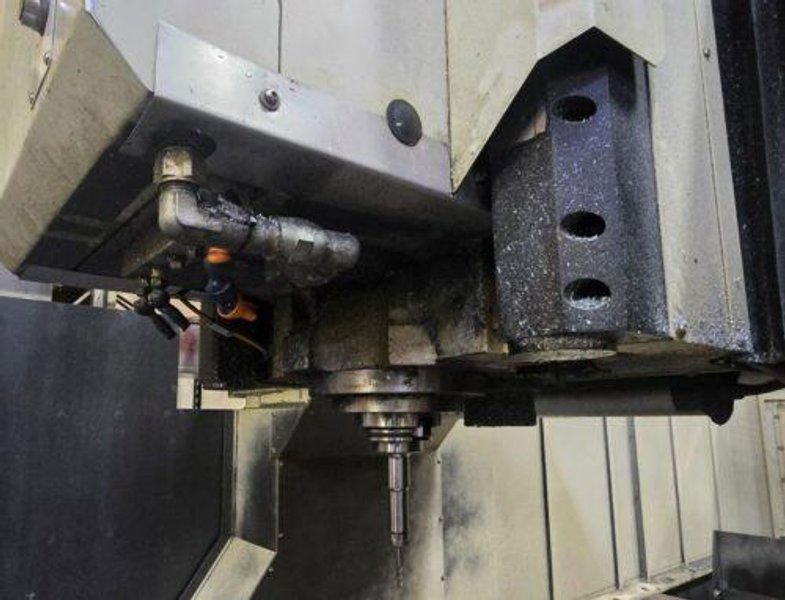

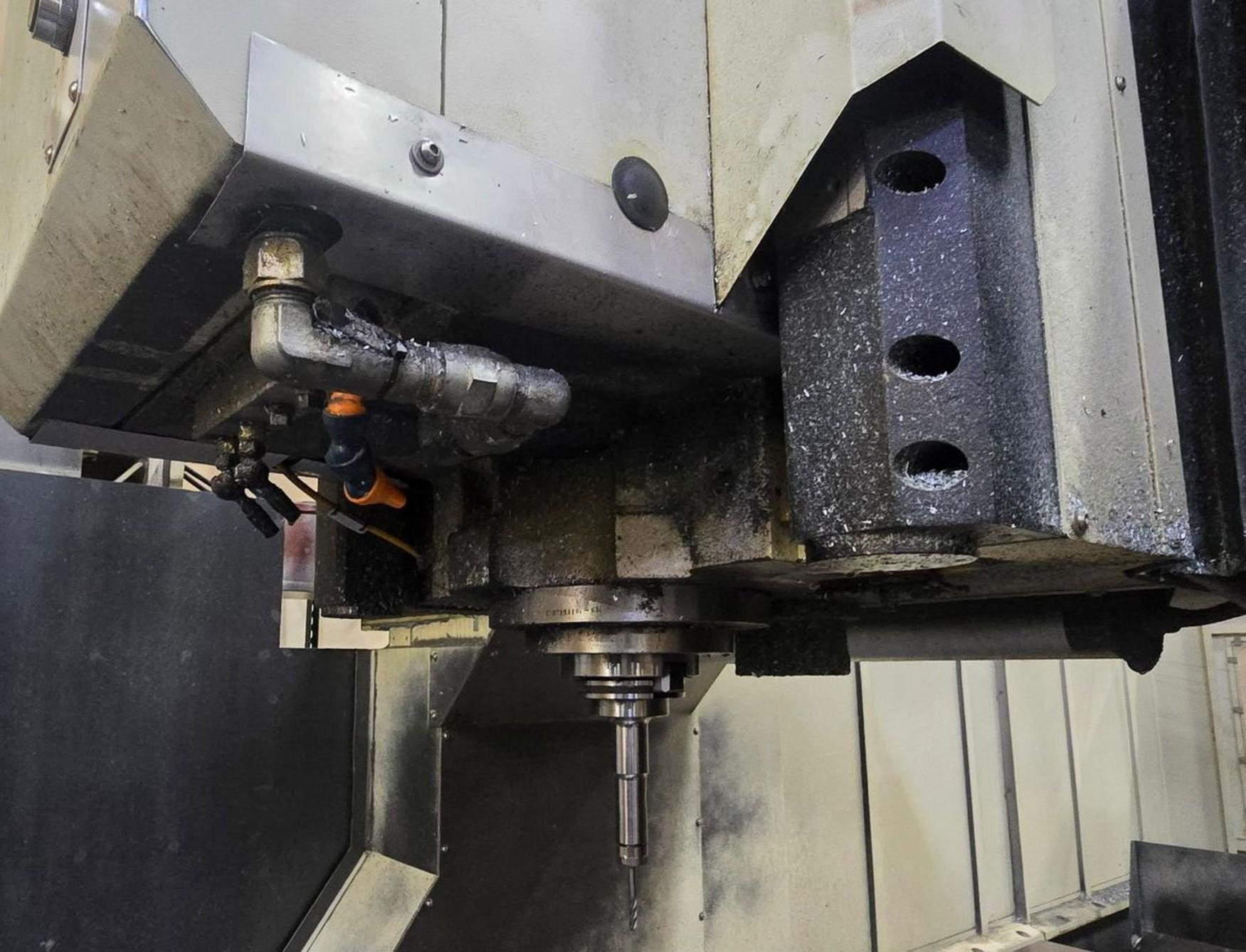

50 Taper Gear Head 6000 RPM Spindle
Powerful 30 HP high torque spindle motor
Through Spindle Coolant – Ready (Pump Needed)
PCMCIA Card Slot
Rigid Tapping
Remote Jog Control
Coolant System
Base Flush Chip Disposal with Dual Auger
Chip Conveyor

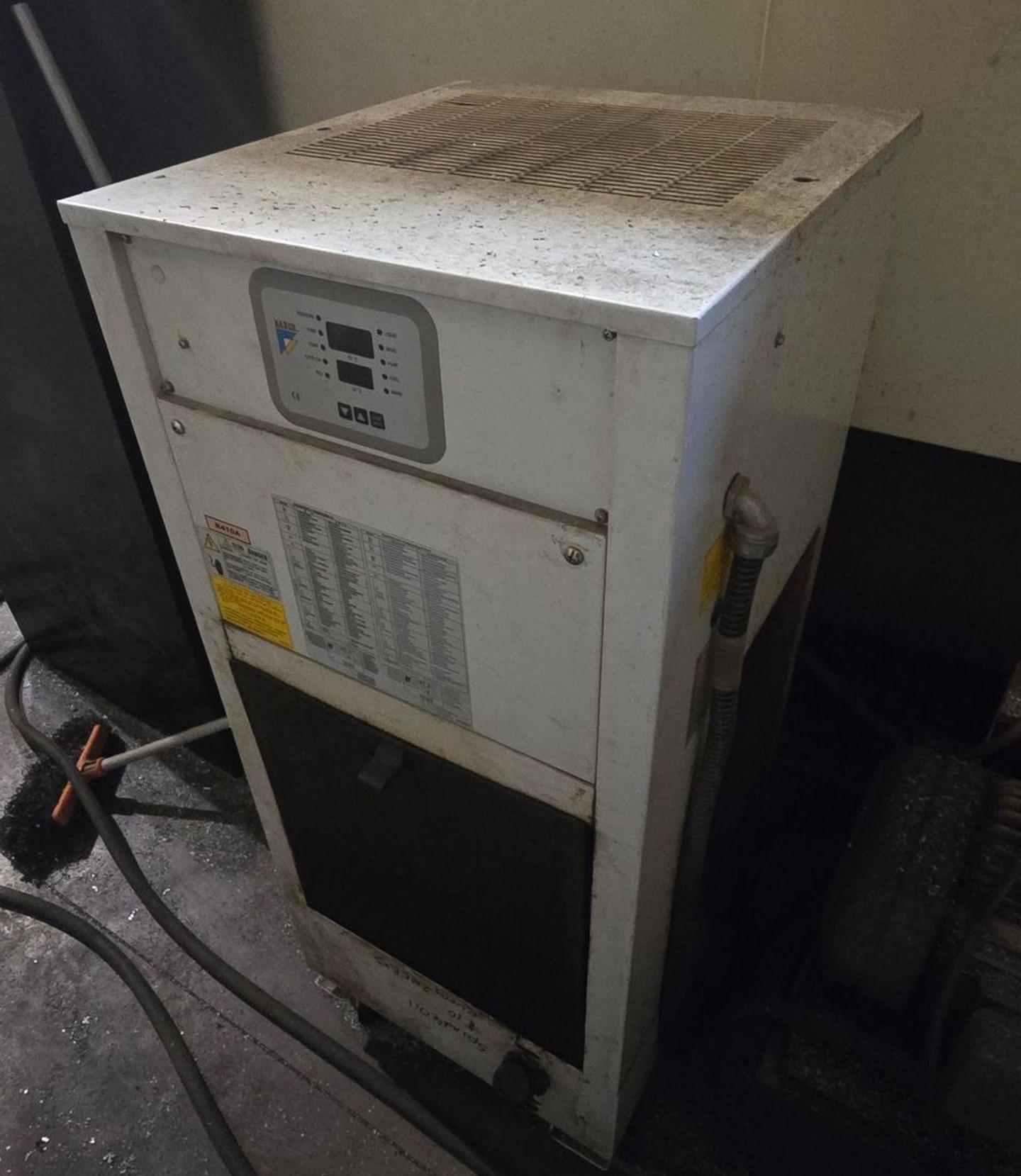

Chiller Unit
Travels:
X-Axis: 122″
Y-Axis: 59″
Z-Axis: 30.7″
Distance Between Columns: 67″
Spindle Nose to Table (Min.- Max.): 7.87″- 34.64″
Rapid Feedrate X, Y &  Z Axis: 591 IPM
Cutting Feedrate: 276 IPM
Table:
Length: 122″
Width: 57″
T-Slot(Size X Number X Pitch): 0.86″ X 7 X 7.08″
Max Weight on Table: 14,330 lbs
Spindle:
Taper Size: CAT-50
Speed Range: 6000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
CAT-50 Taper
Capacity: 20 Tools
Max Tool Weight: 33 lbs
Max Tool Length: 11.81″
Max Tool Dia.: 4.9 – 9.05″
General:
Air Required: 100 psi 4 scfm
Power: 230v / 60 Hz / 3-Phase / 50 Kva
Overall Machine Dimensions: 391″ x 178″ x 160″ High
Weight: 59,400 lbs.
No files or videos to display
