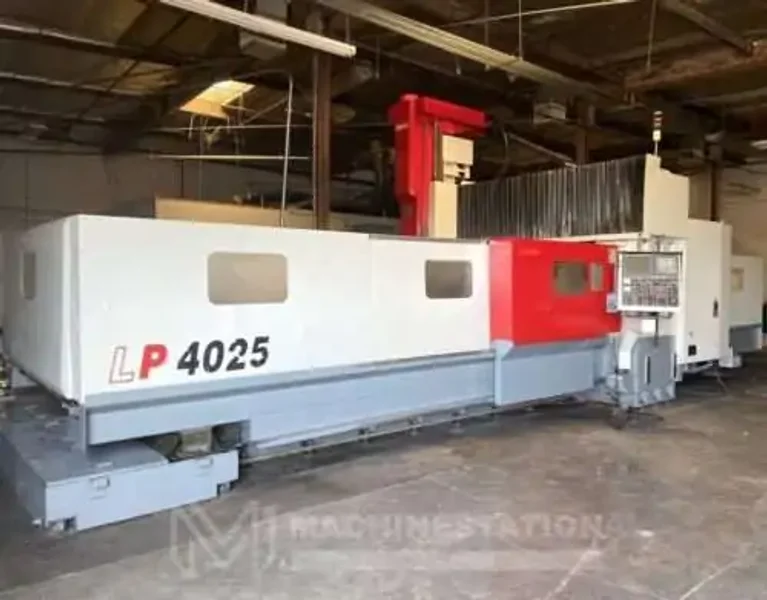

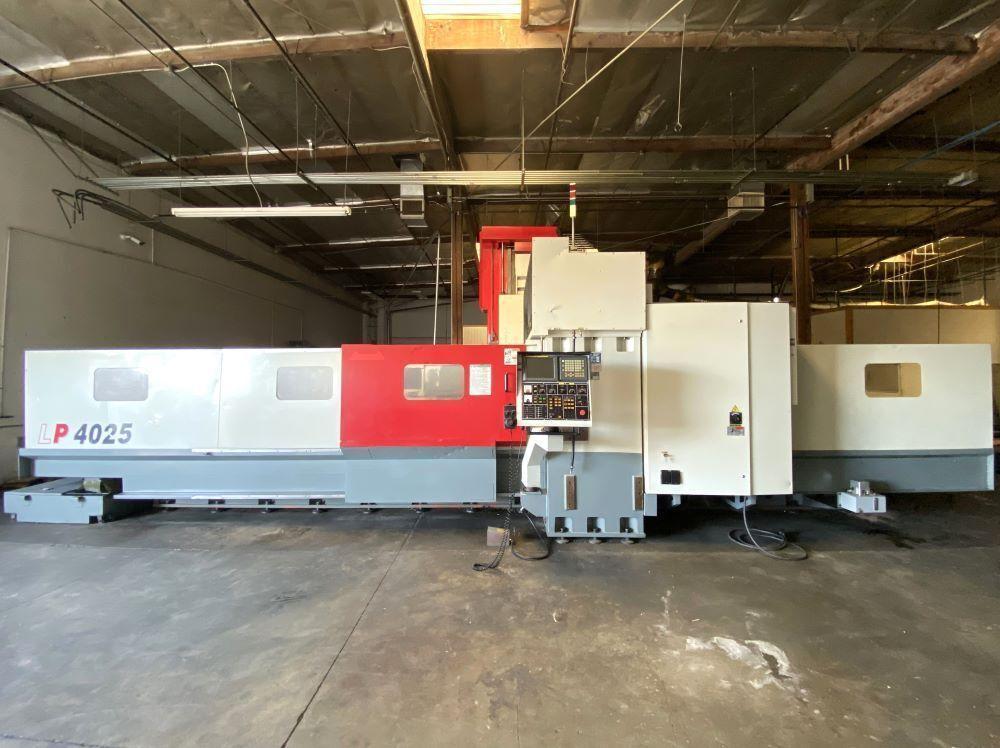

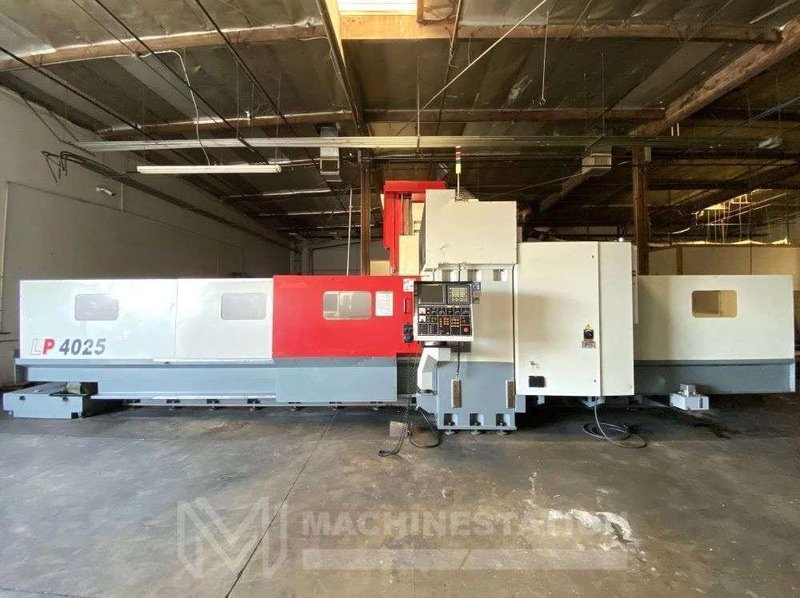

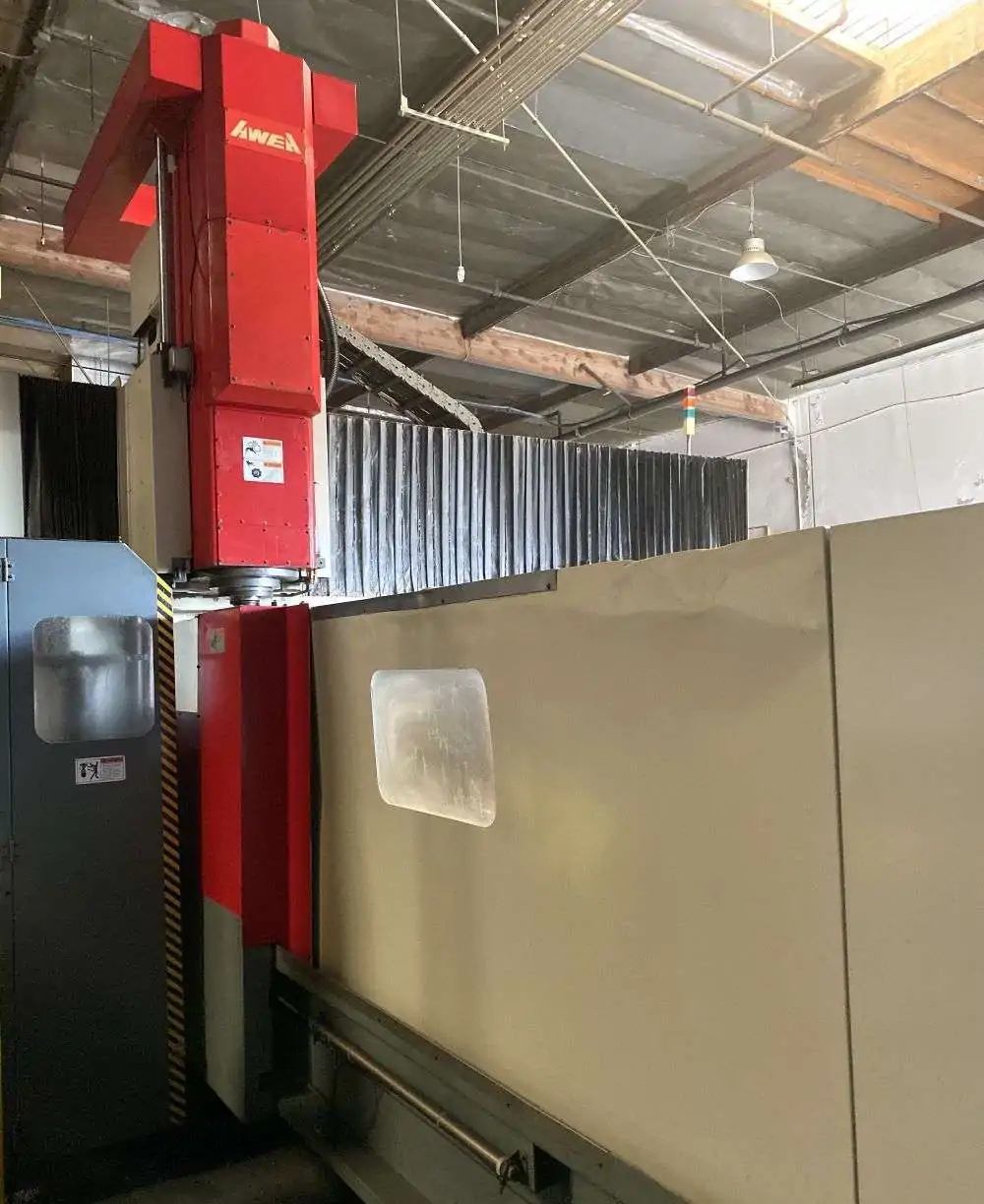

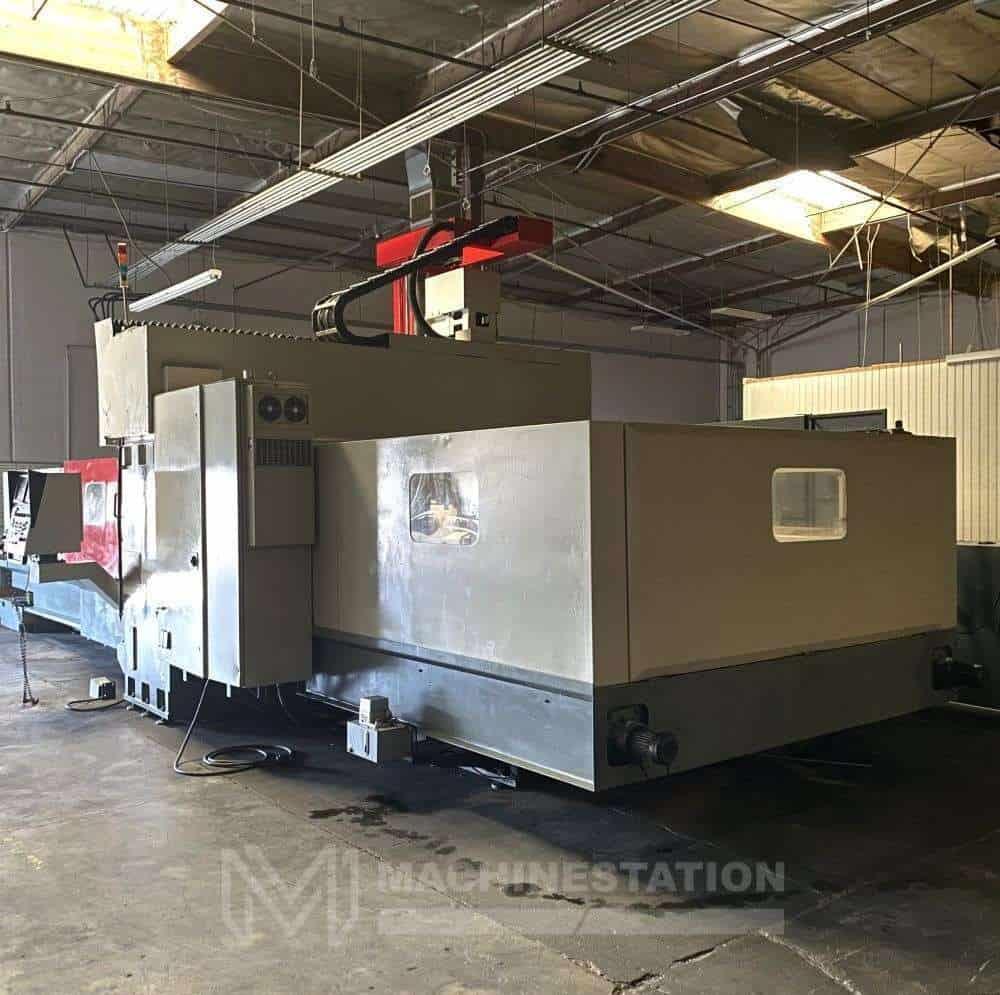

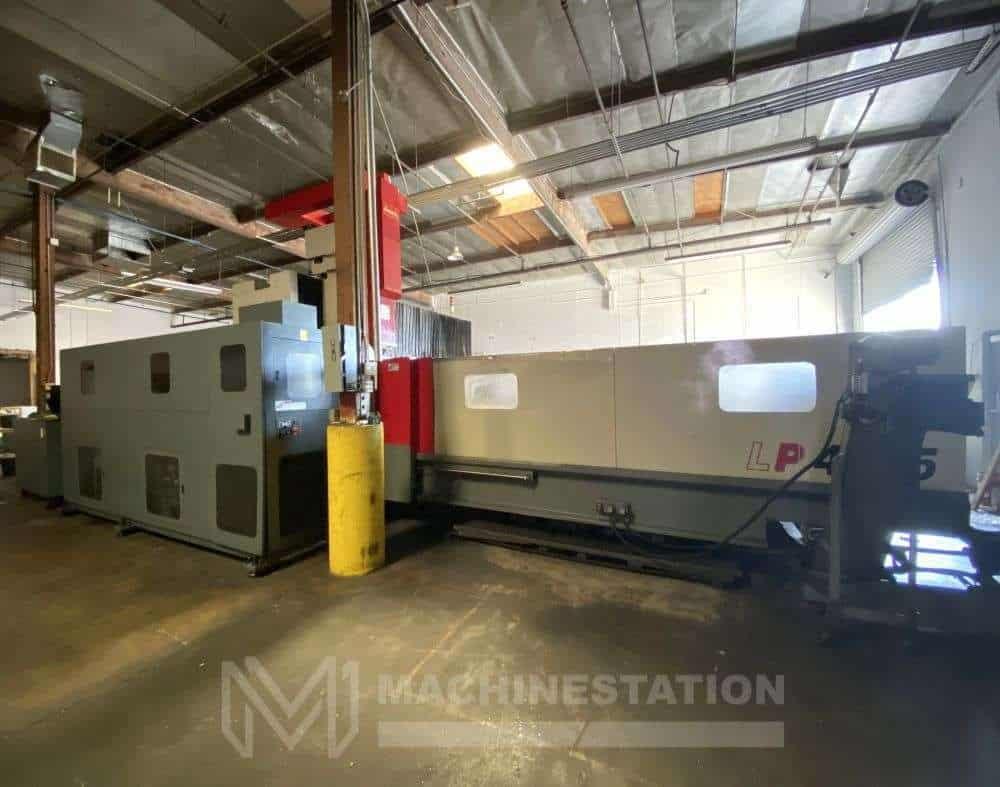

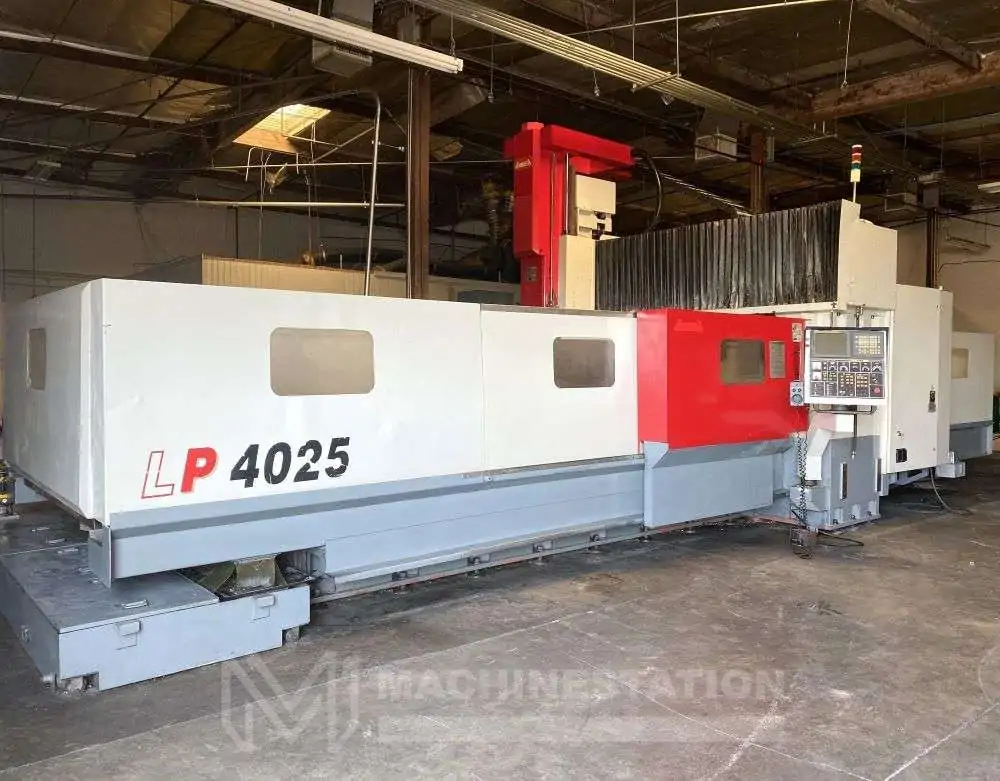

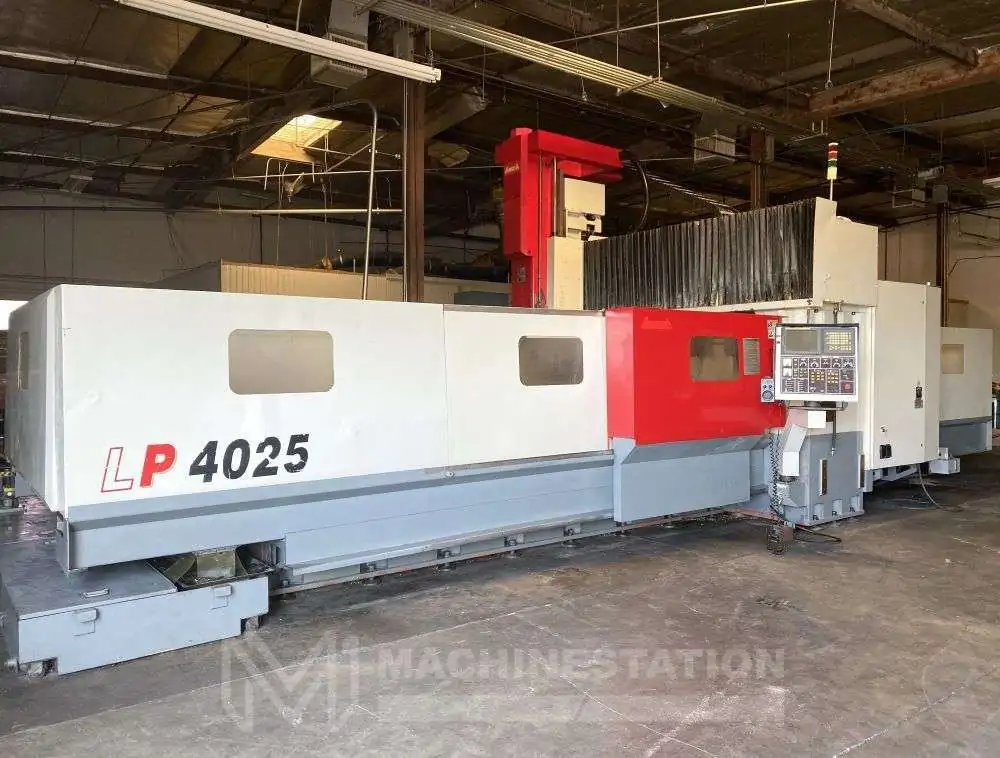

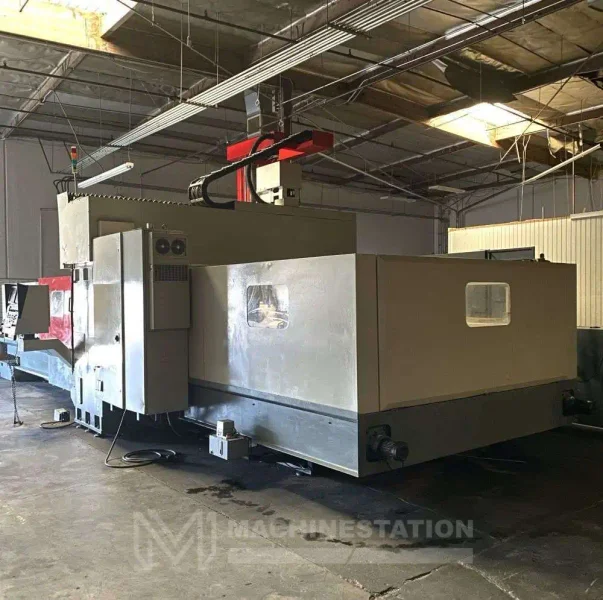

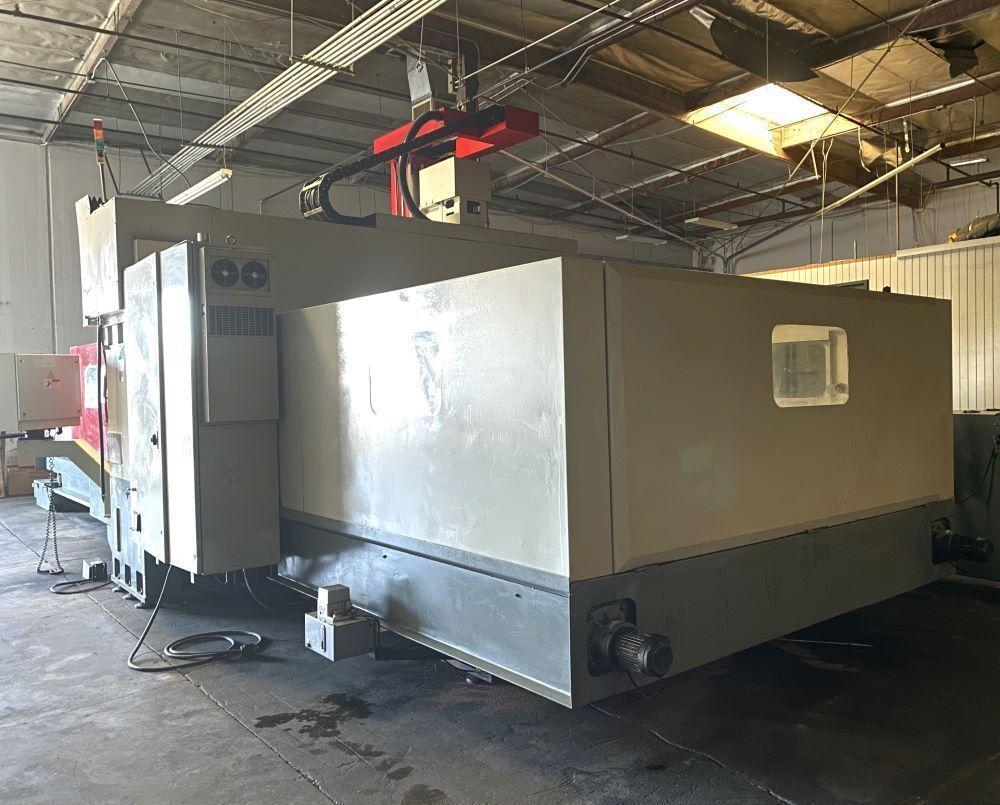

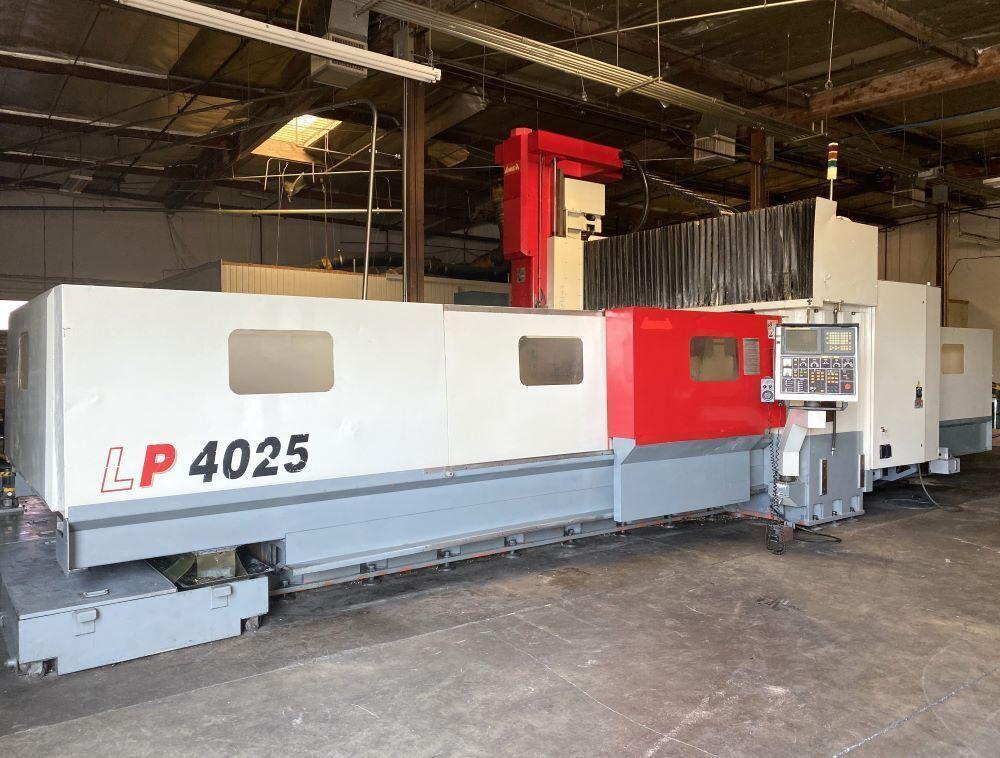

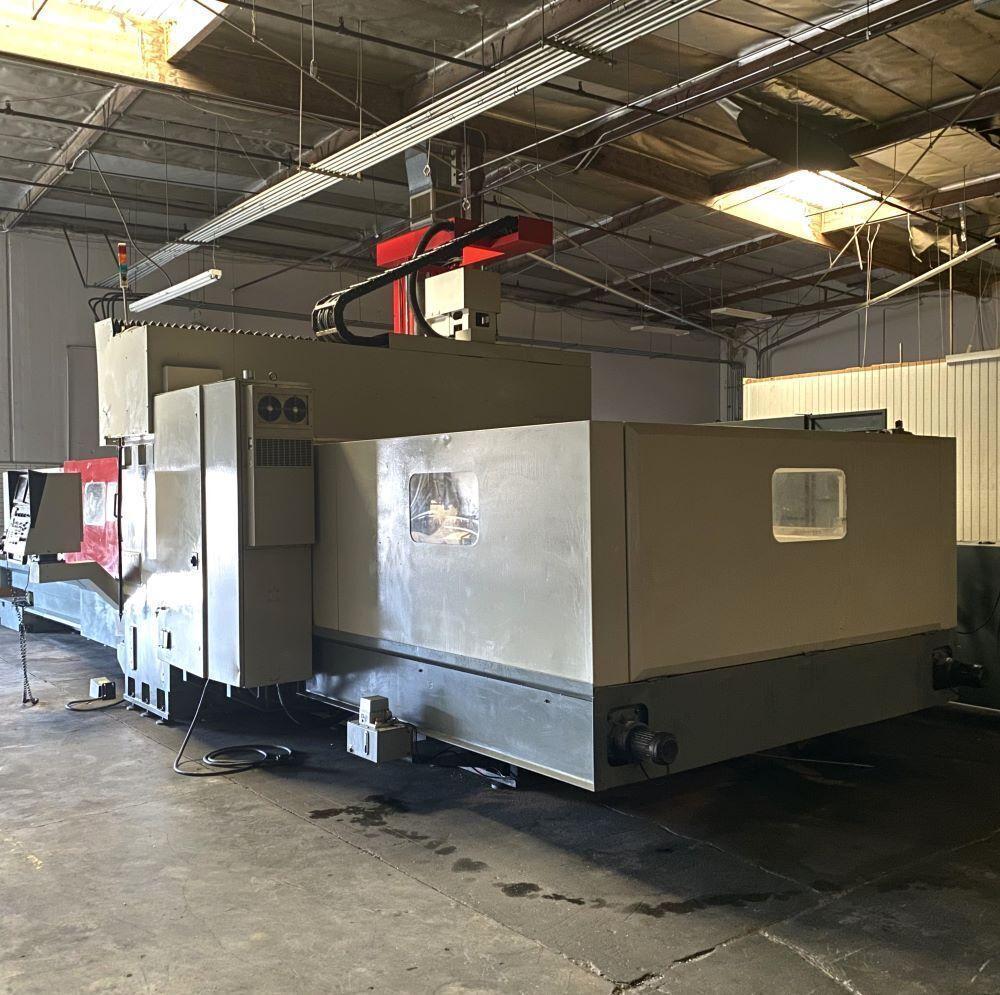

Awea LP4025 CNC Bridge Mill

Name: Awea LP4025 CNC Bridge Mill
Brand: AWEA
SKU: 111886
Availability: InStock

Brand

AWEA

Location

Not specified

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	111886
Make:	Awea
Model:	LP4025
Condition:	Used – Good

Equipped With:

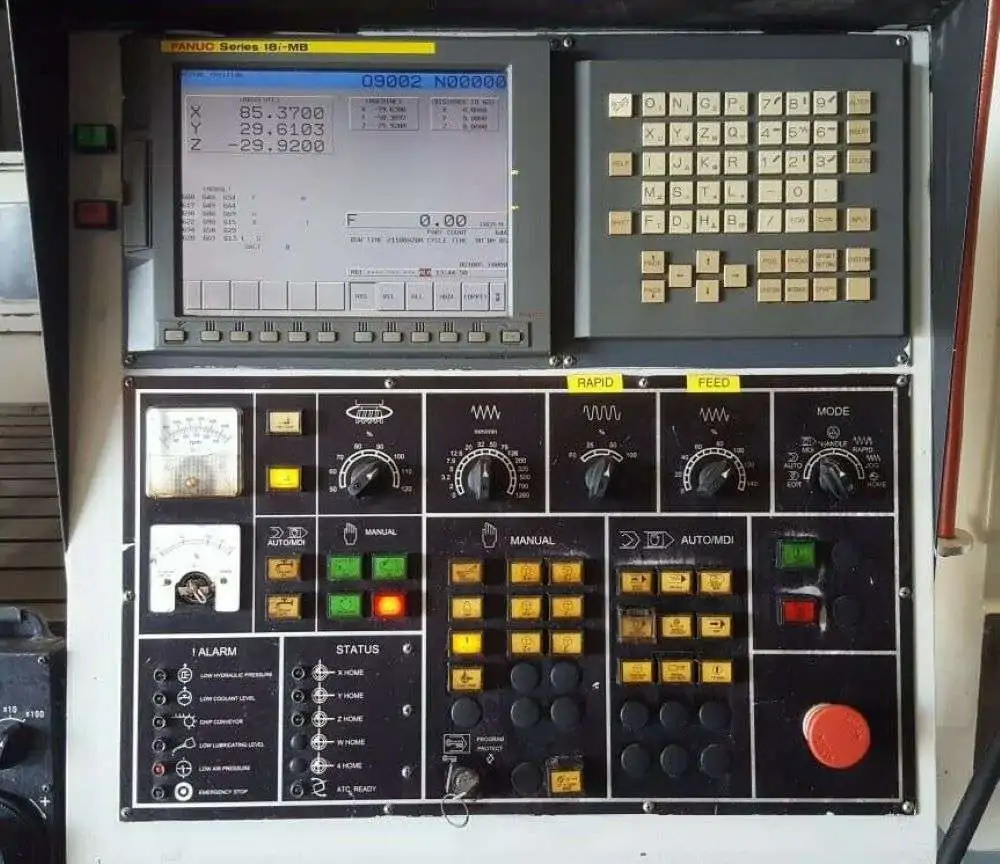

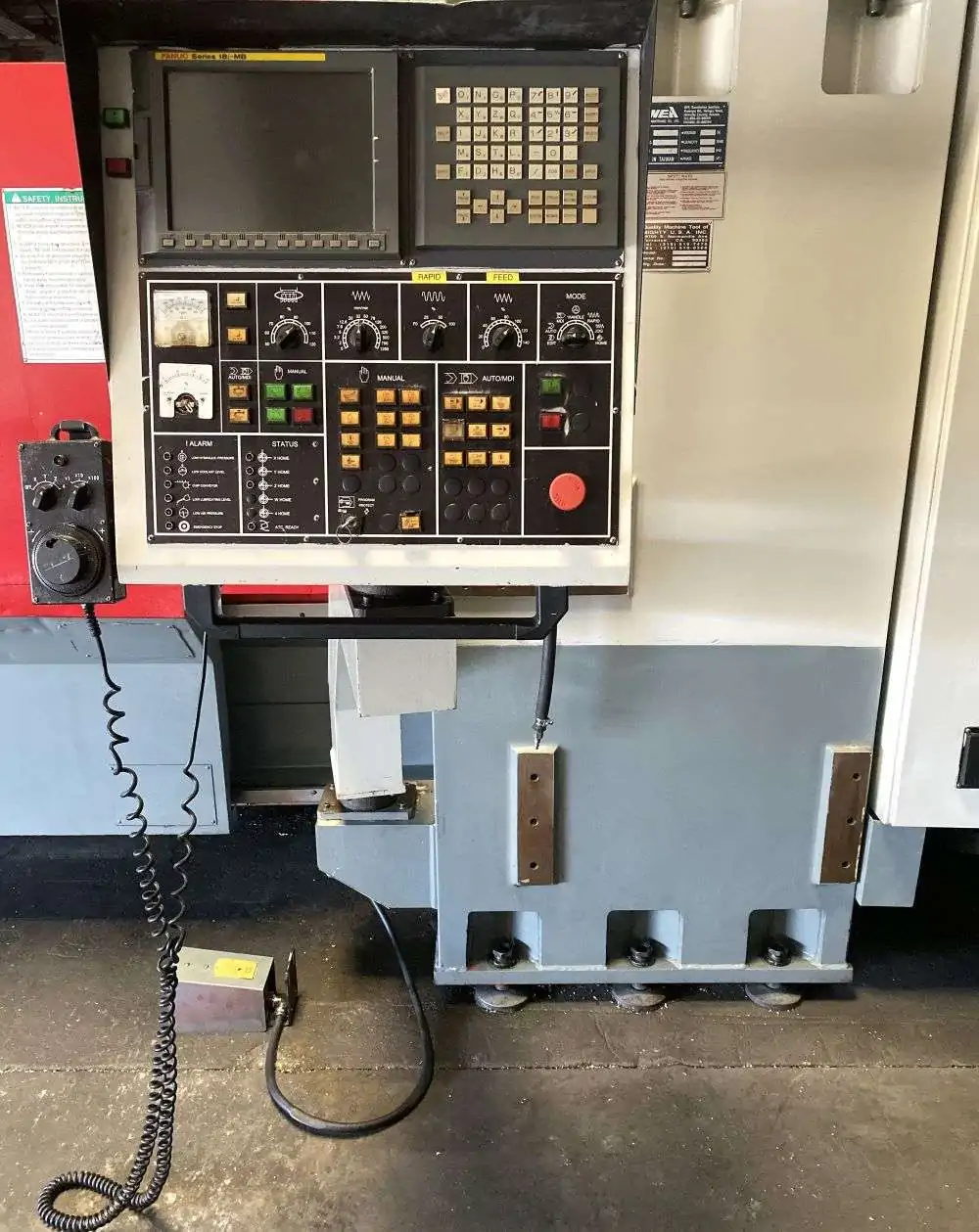

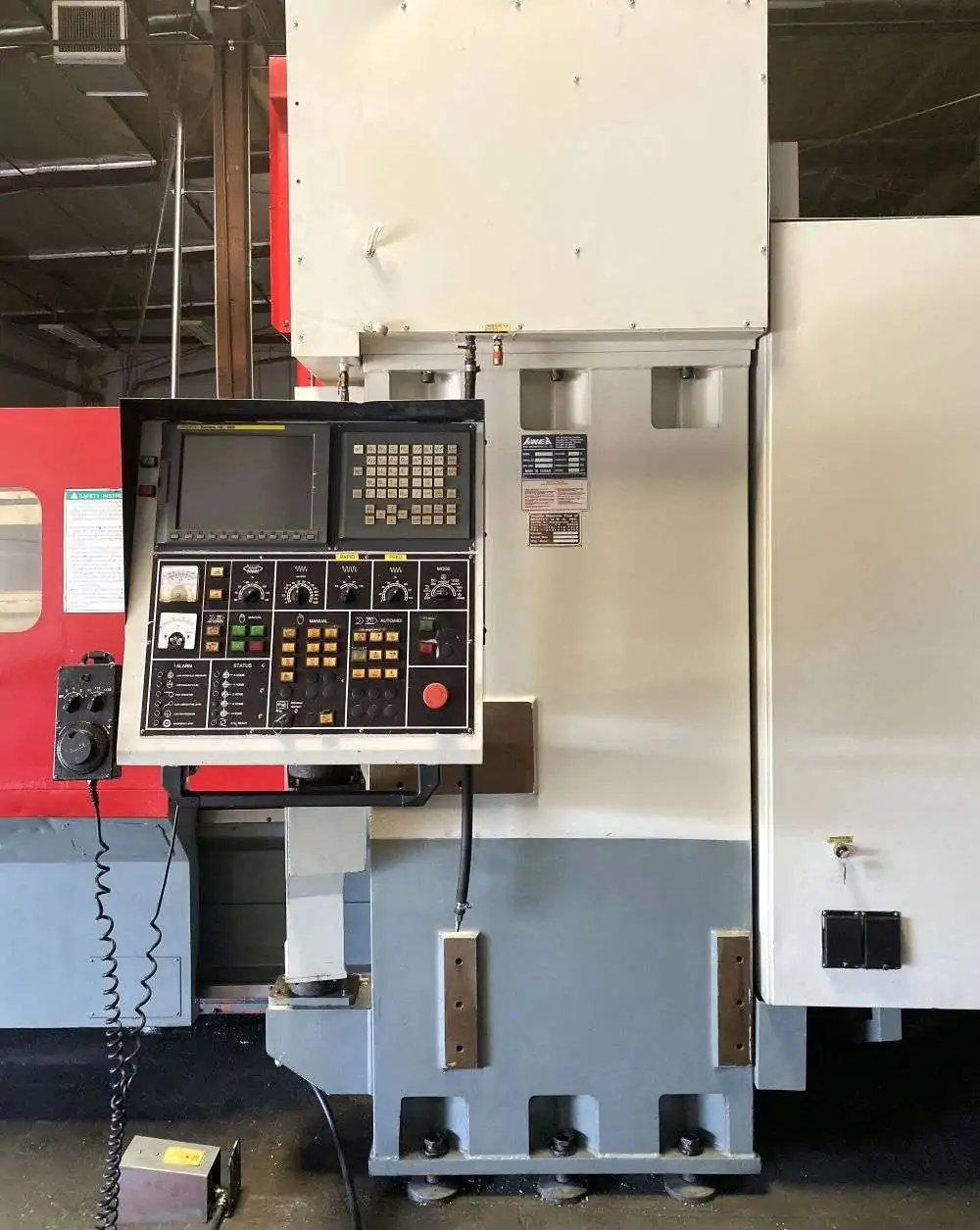

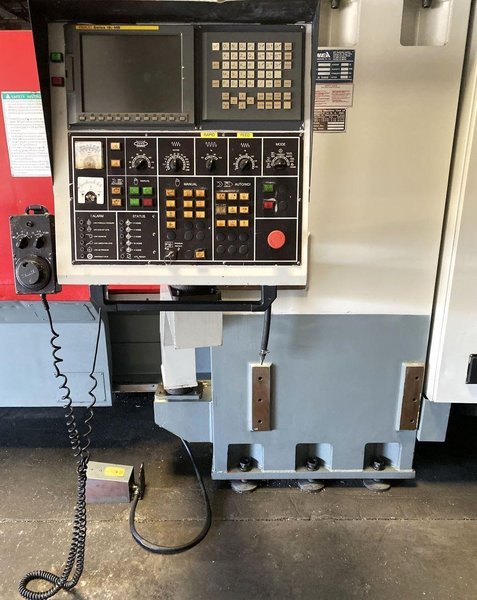

Fanuc 18iMB CNC Control
158″ X 98″ Table
40 Station Side Mount Tool Changer
50 Taper Geared Head
6000 RPM Spindle
Coolant Thru Spindle
Powerful 35 HP high torque spindle motor
PCMCIA Card Slot
RS-252 Port
Spindle Orientation
Portable manual pulse generator
Flood coolant with large separate coolant tank Base
Flush Chip Disposal with Dual Auger

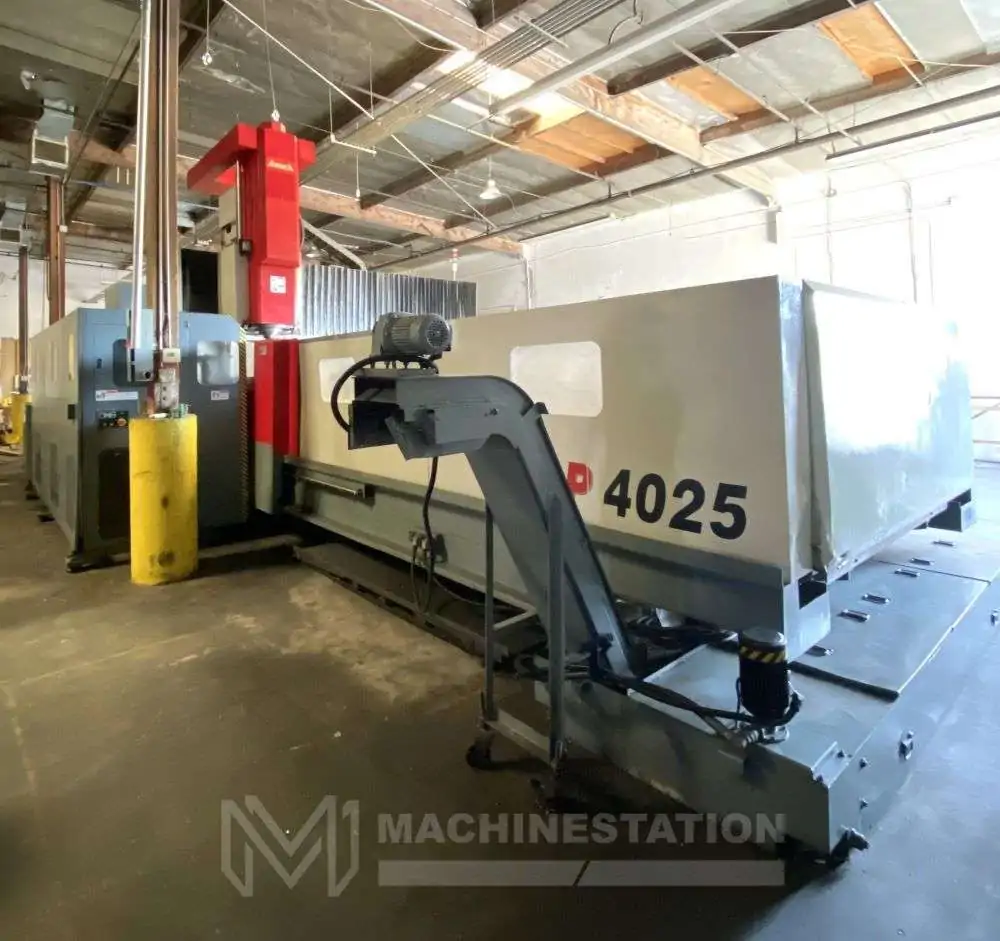

Chip Conveyor
Chiller Unit
Levelling Pads
Replacement Cost over $500,000.00
Note: Machine is dismantled and Ready to be loaded on the Truck

Travels:
X-Axis: 158.0″
Y-Axis: 98.6″
Z-Axis: 30.9″
Distance Between Columns: 106.2″
Spindle Nose to Table (Min.- Max.): 8.6″- 39.57″
Feed rates: Rapid X,Y & Z: 590 inch per minute
Cutting Feedrate: .04″ – 376″ inch per minute

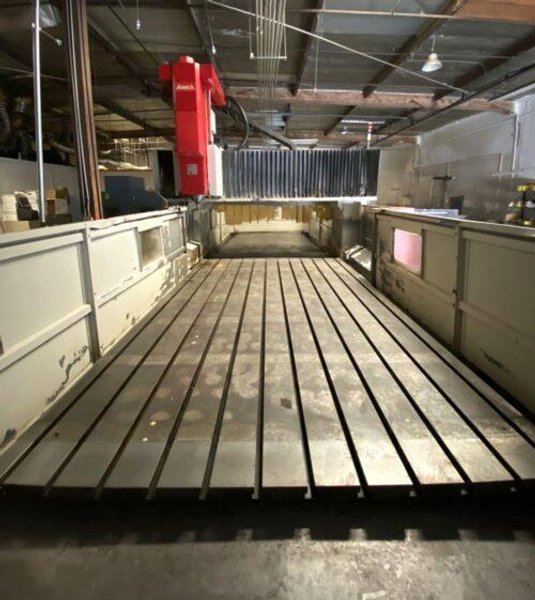

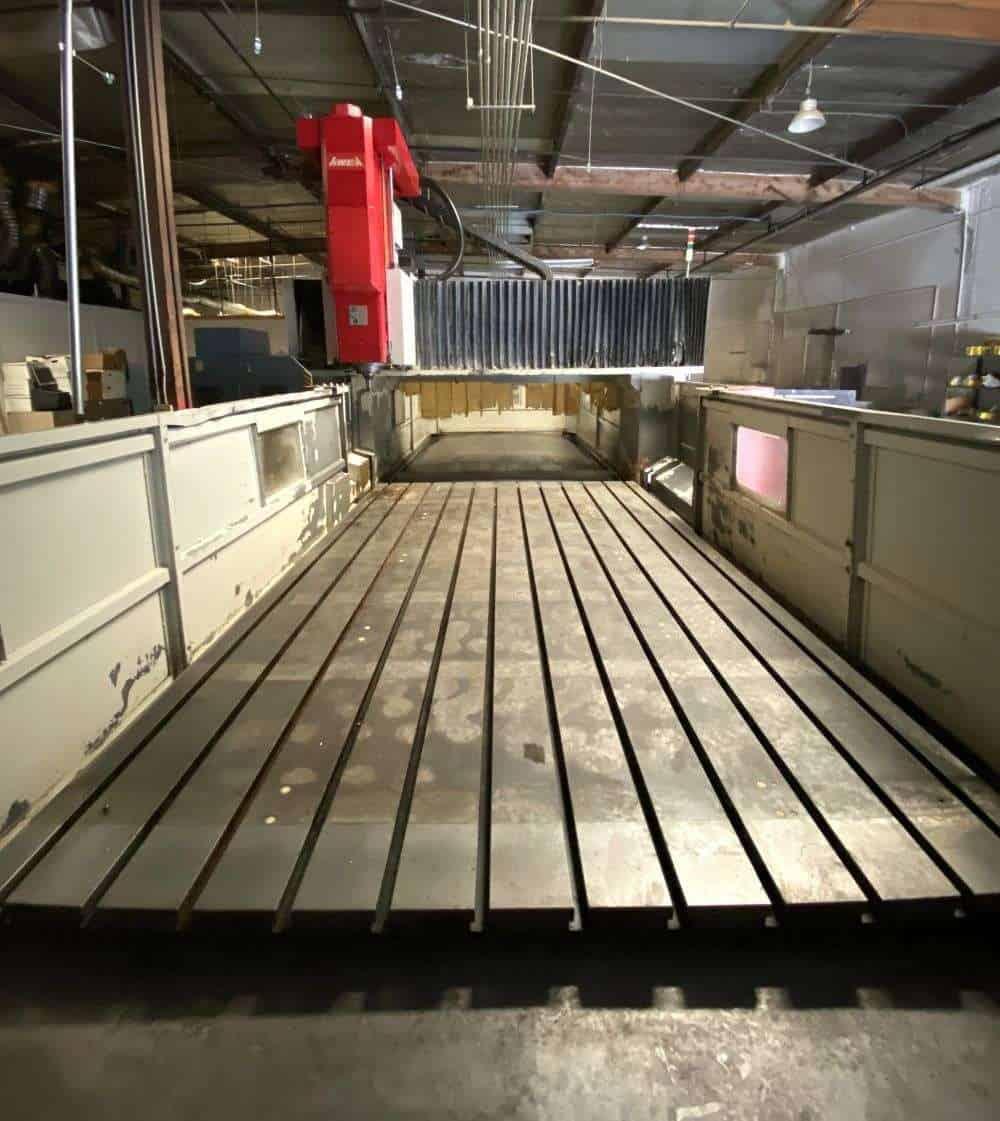

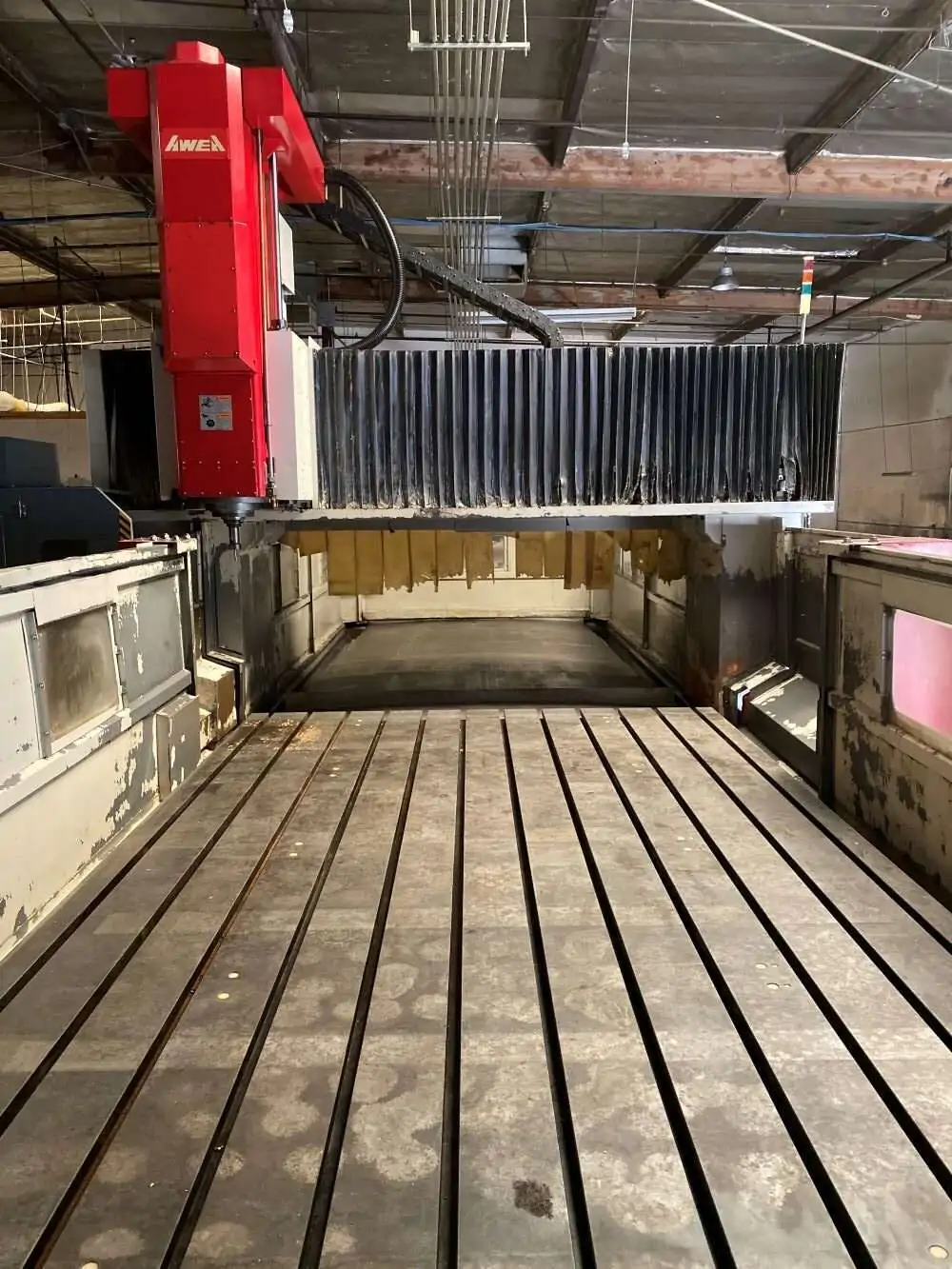

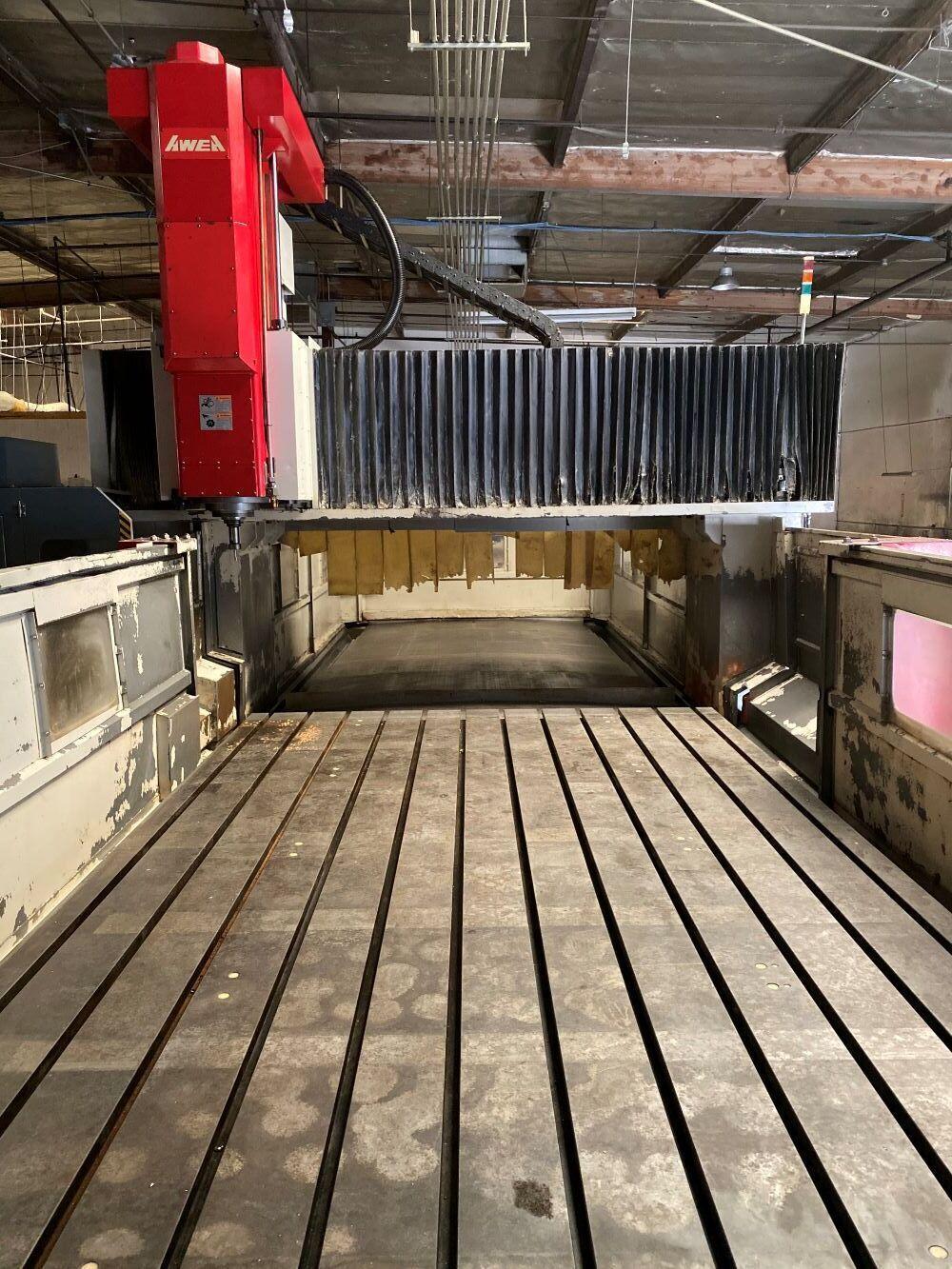

Table:
Length: 164.6″
Width: 94.4″
T-Slot: 0.87″ Wide X 20 X 7.87″
Max Weight on Table: 33,000 lbs

Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP

Automatic Arm Type Tool Changer:
50 Taper
Capacity: 40
Max Tool Weight: 43 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 5.2 – 7.7″

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 3-Phase, 70 Kva
Floor Dimensions: 34’6″ X 17’6″ x 130″ High
with Hydraulic Unit, Chip Conveyor, Chiller unit
Weight: 87,600 lbs.
