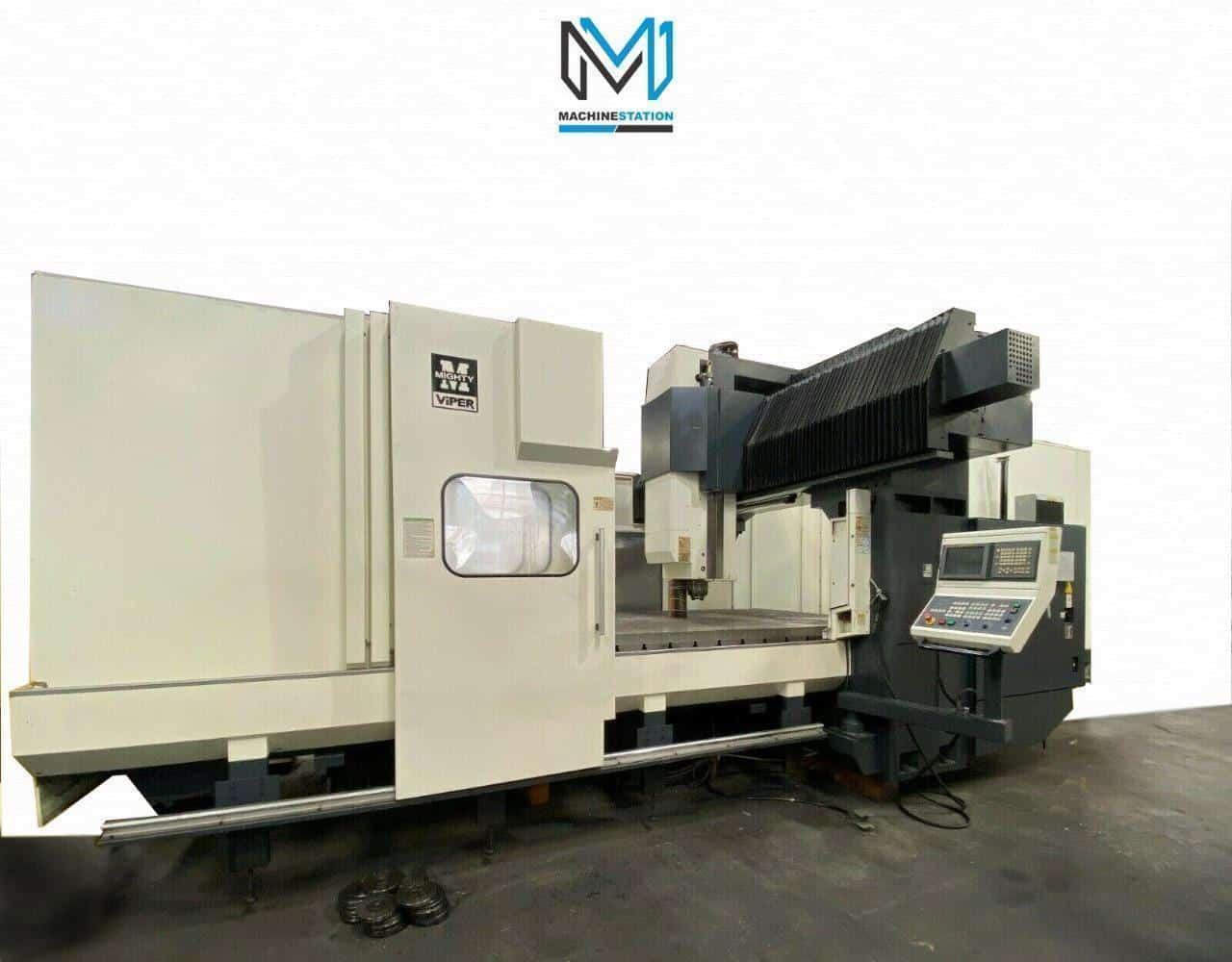

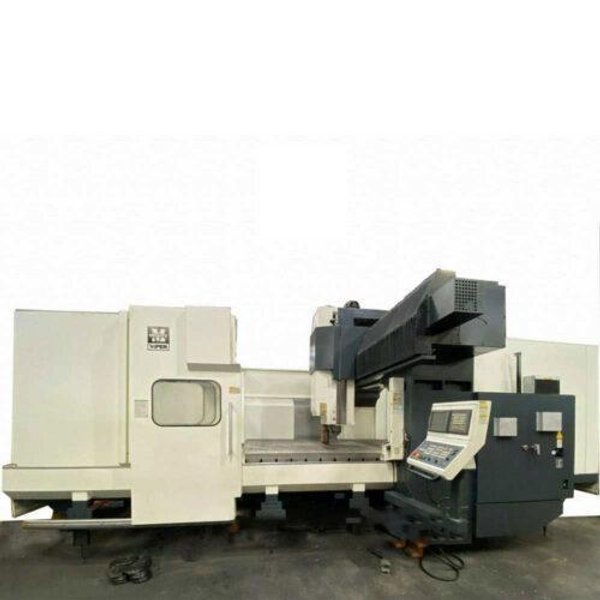

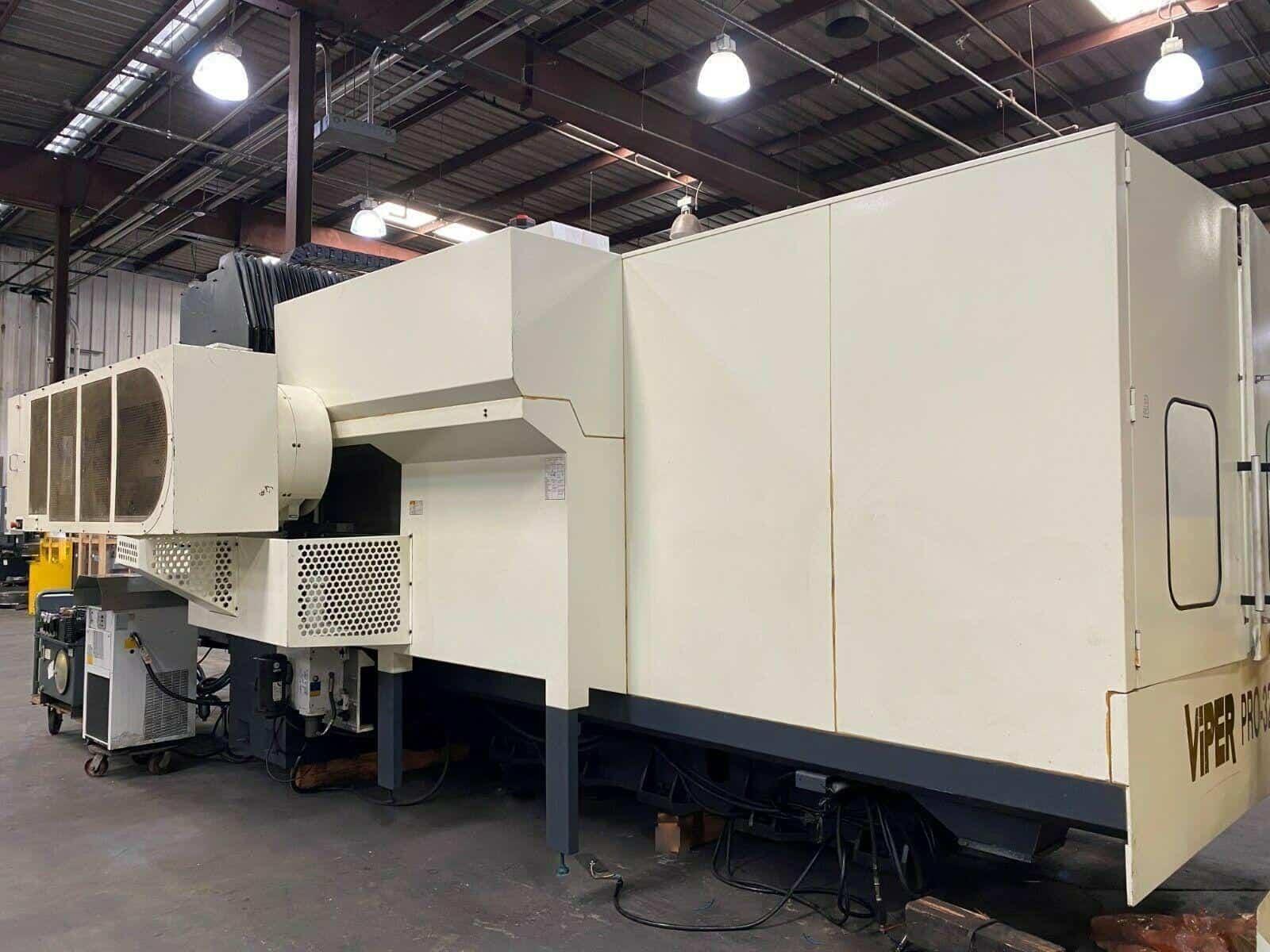

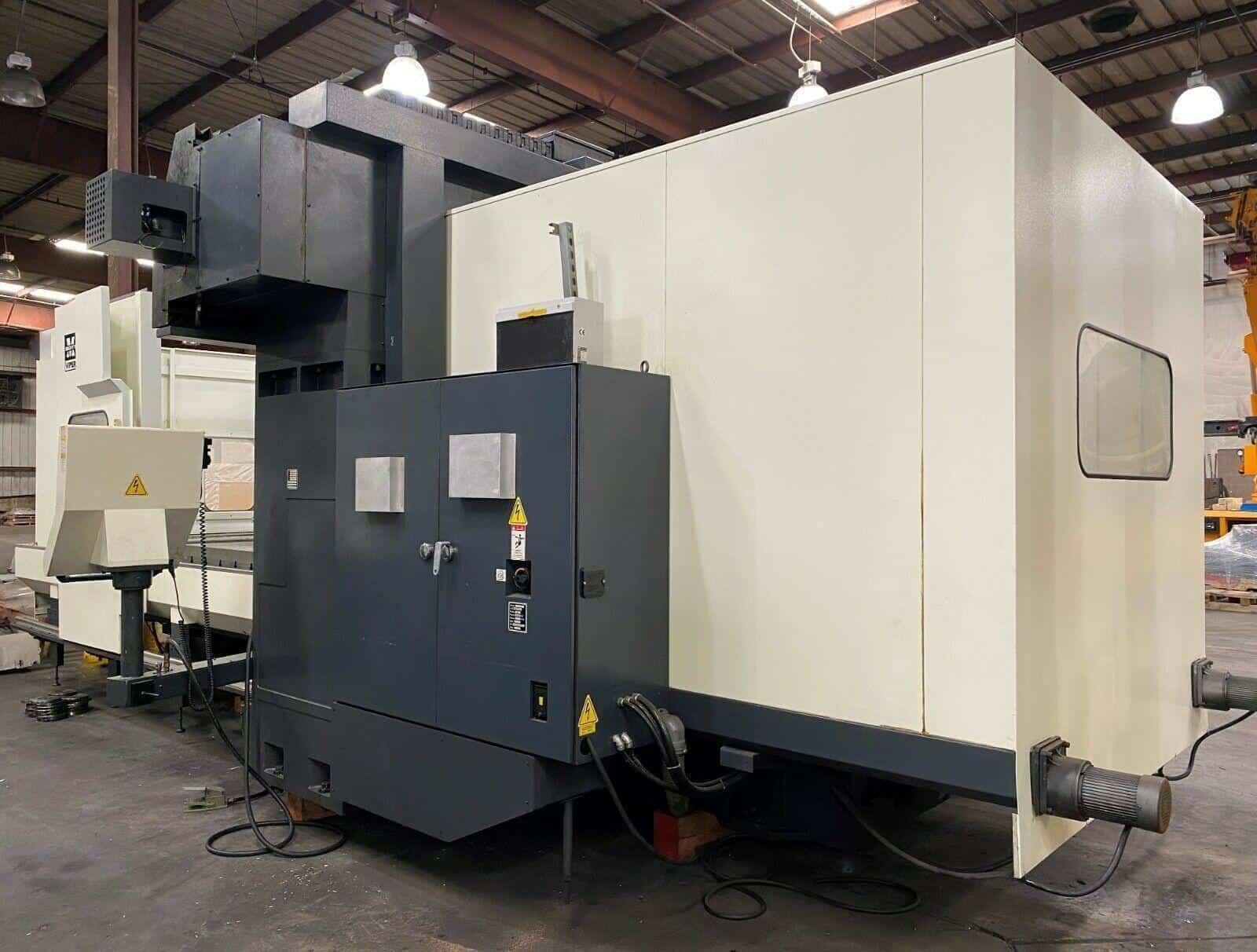

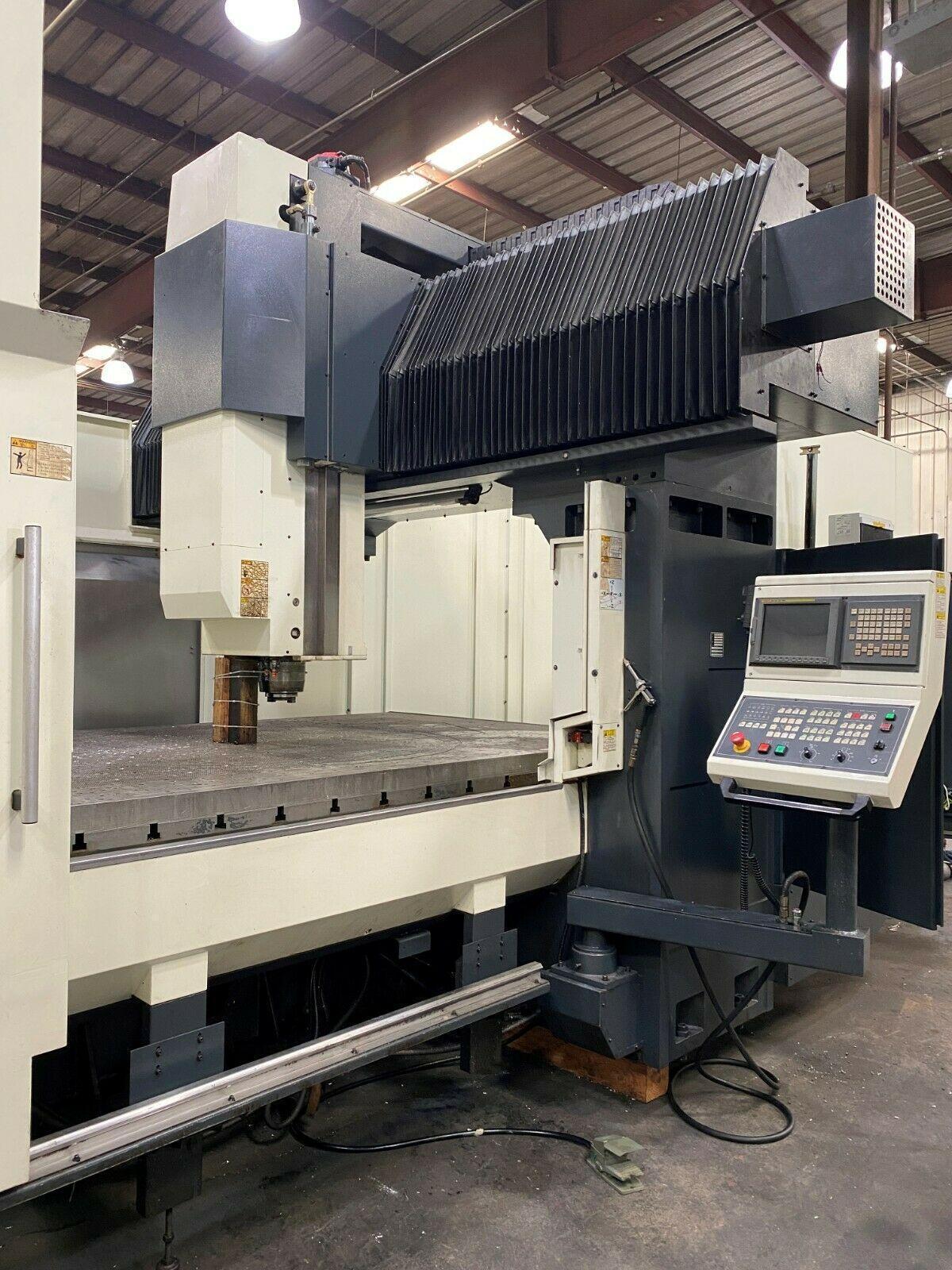

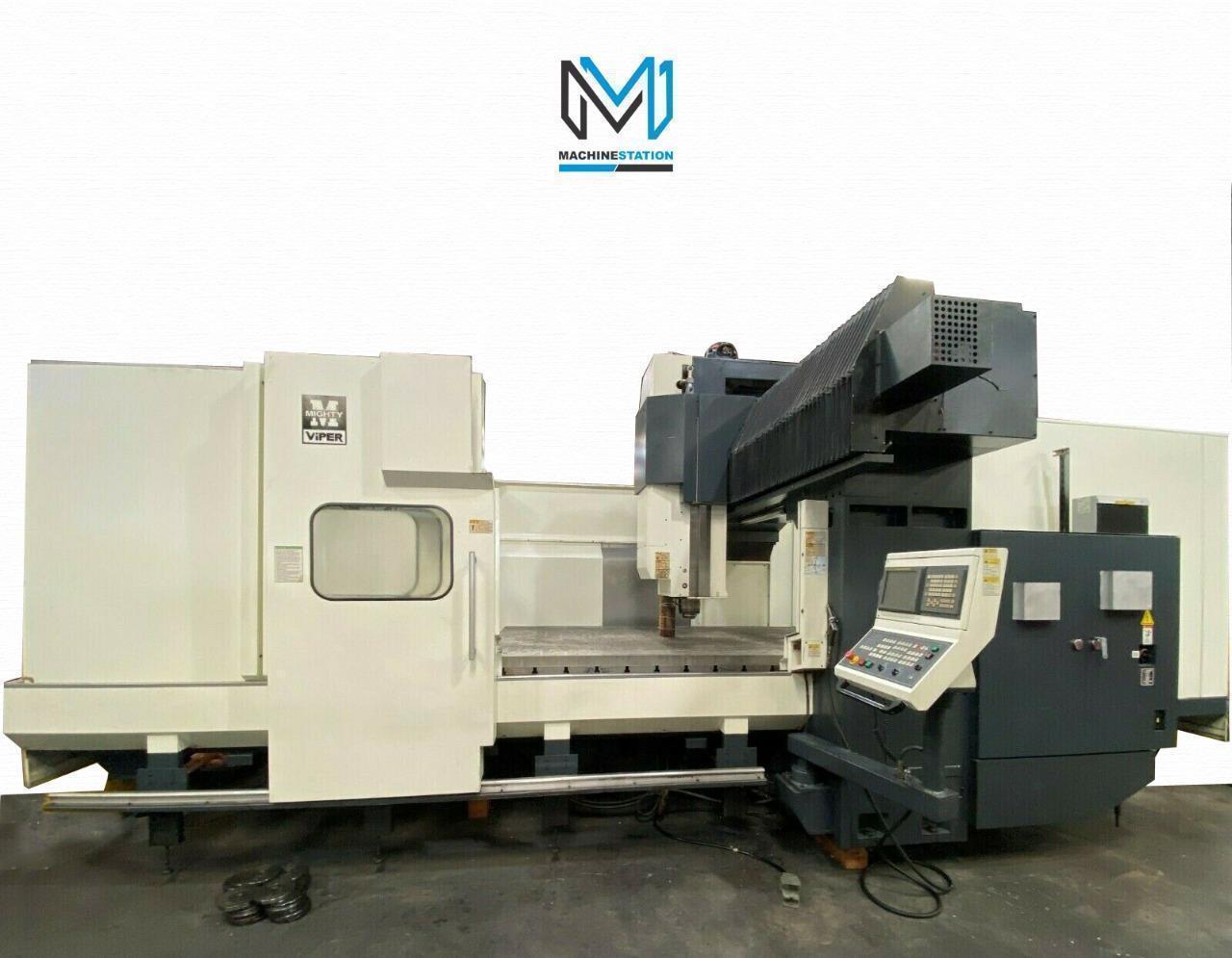

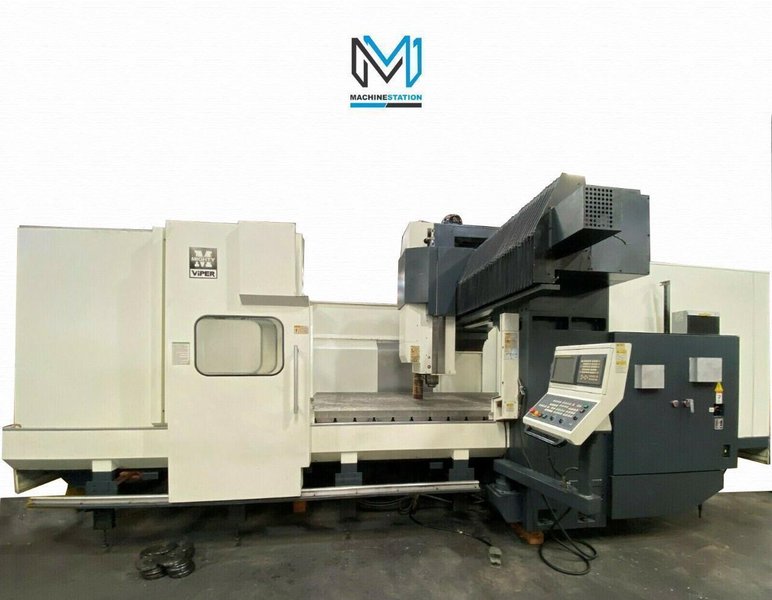

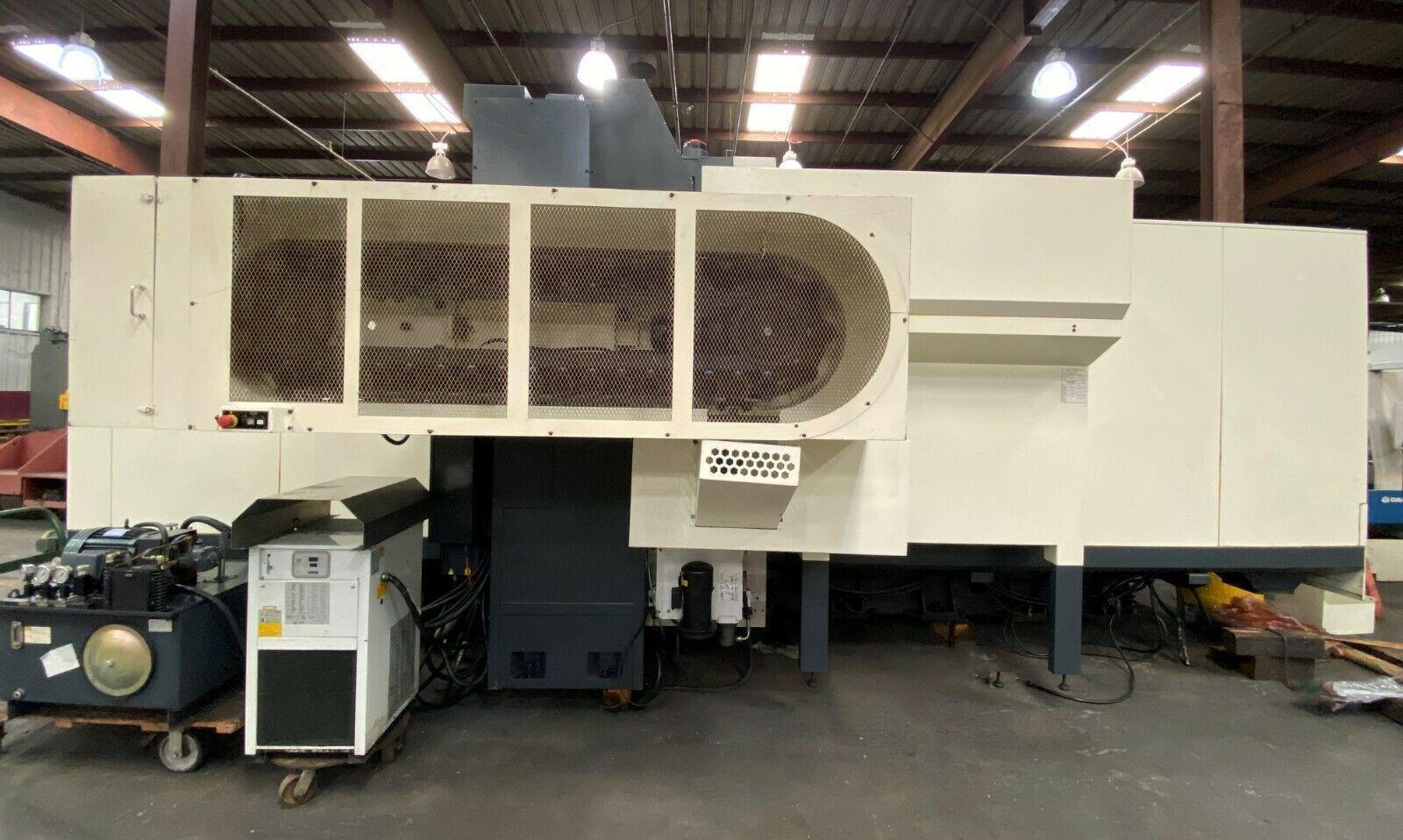

Mighty Viper Pro-3210 CNC Vertical Bridge Mill

Mighty Viper Pro-3210 CNC Vertical Bridge Mill

Name: Mighty Viper Pro-3210 CNC Vertical Bridge Mill
Brand: MIGHTY VIPER
SKU: 111844
Availability: PreOrder

Brand

MIGHTY VIPER

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	MIGHTY VIPER
Model:	PRO-3210
Year:	2008
Condition:	Used – Excellent

Equipped With:

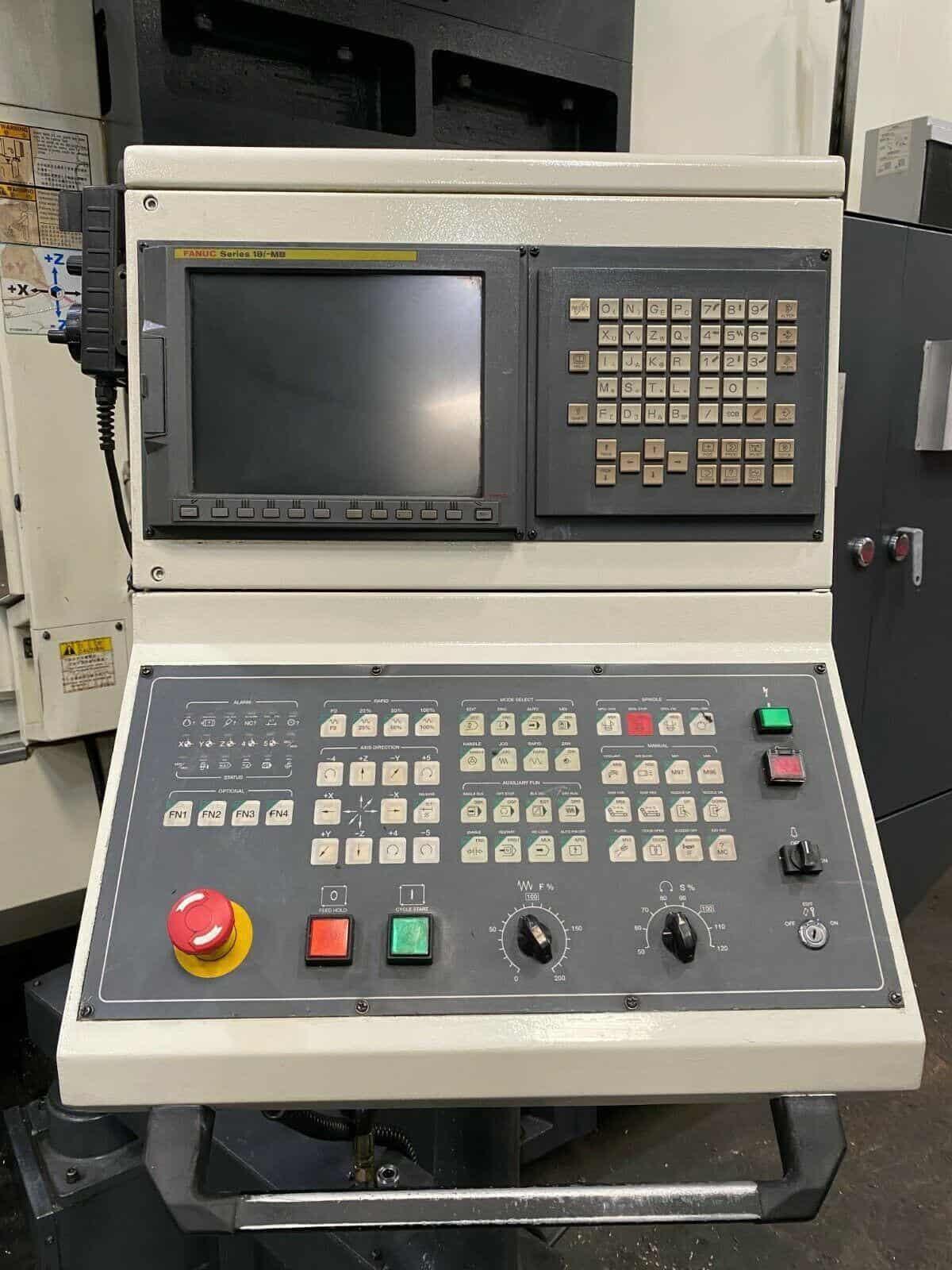

Fanuc 18iMB CNC Control

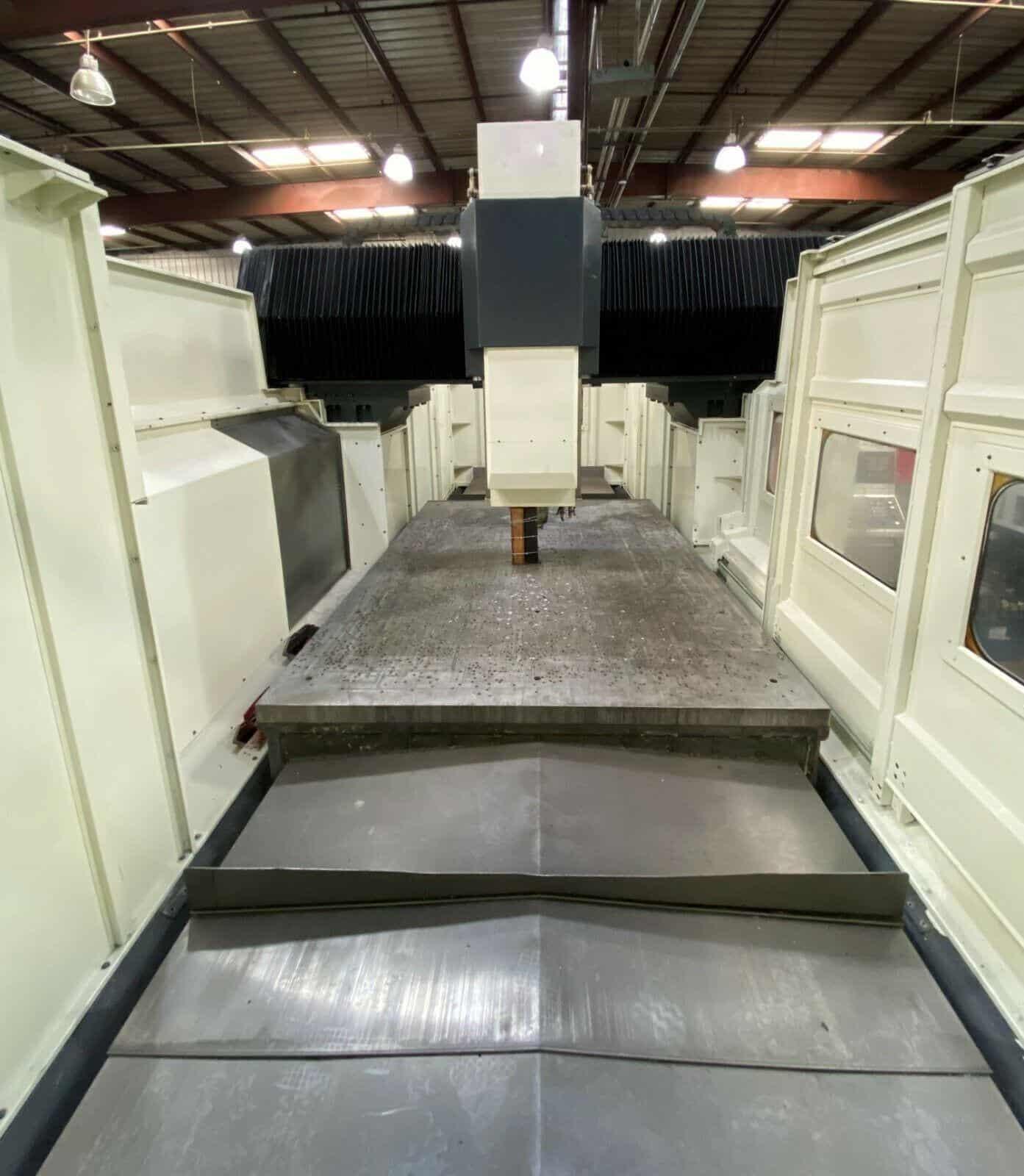

124″ X 81″ Jig Table
Coolant thru Spindle

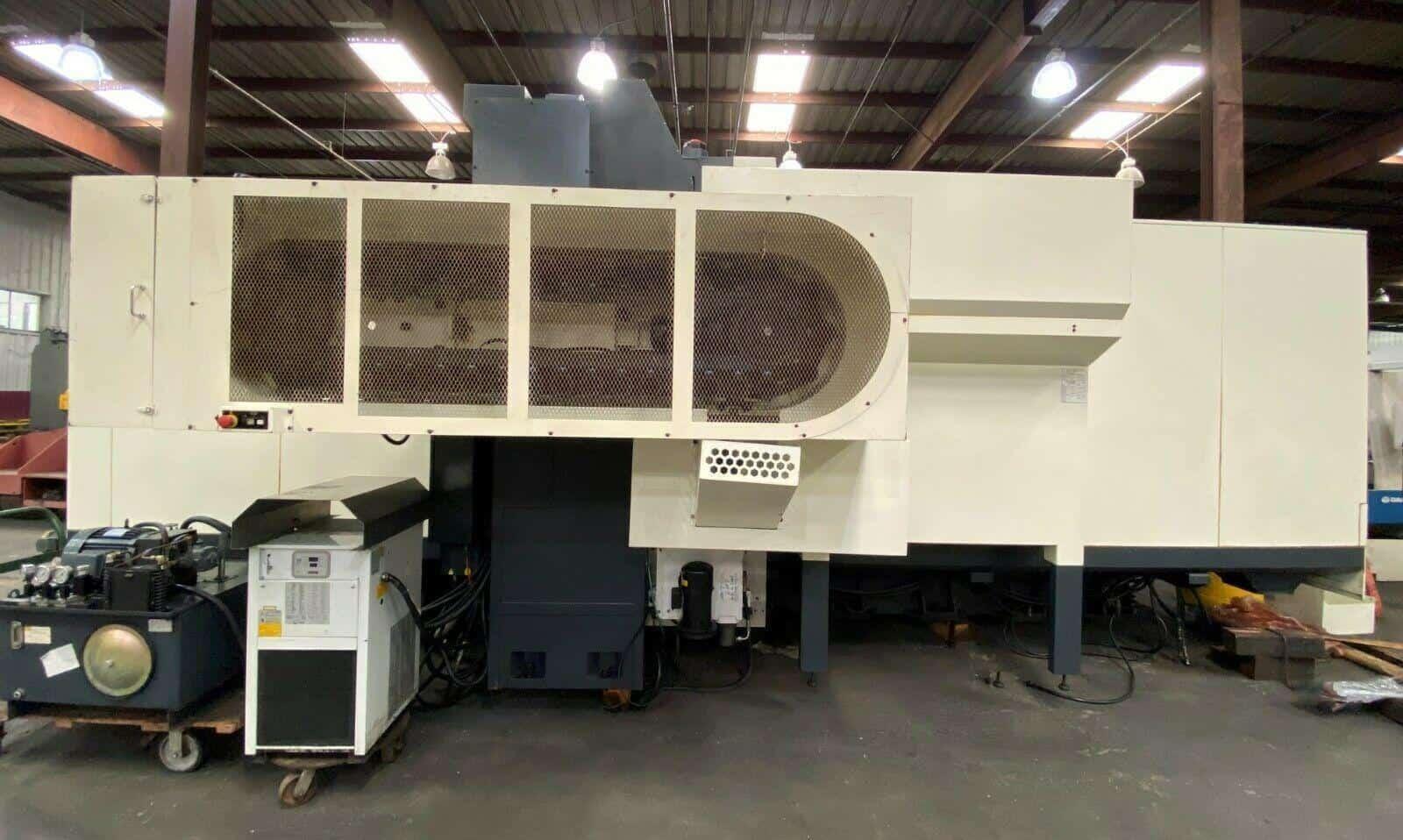

40 Station Side Mount Tool Changer
50 Taper Geared Head 6000 RPM Spindle
Powerful 35 HP high torque spindle motor
PCMCIA Card Slot
RS-252 Port
Spindle Orientation
Box Way Construction
Portable manual pulse generator
Flood coolant with large separate coolant tank
Chip Blaster
Chip Conveyor

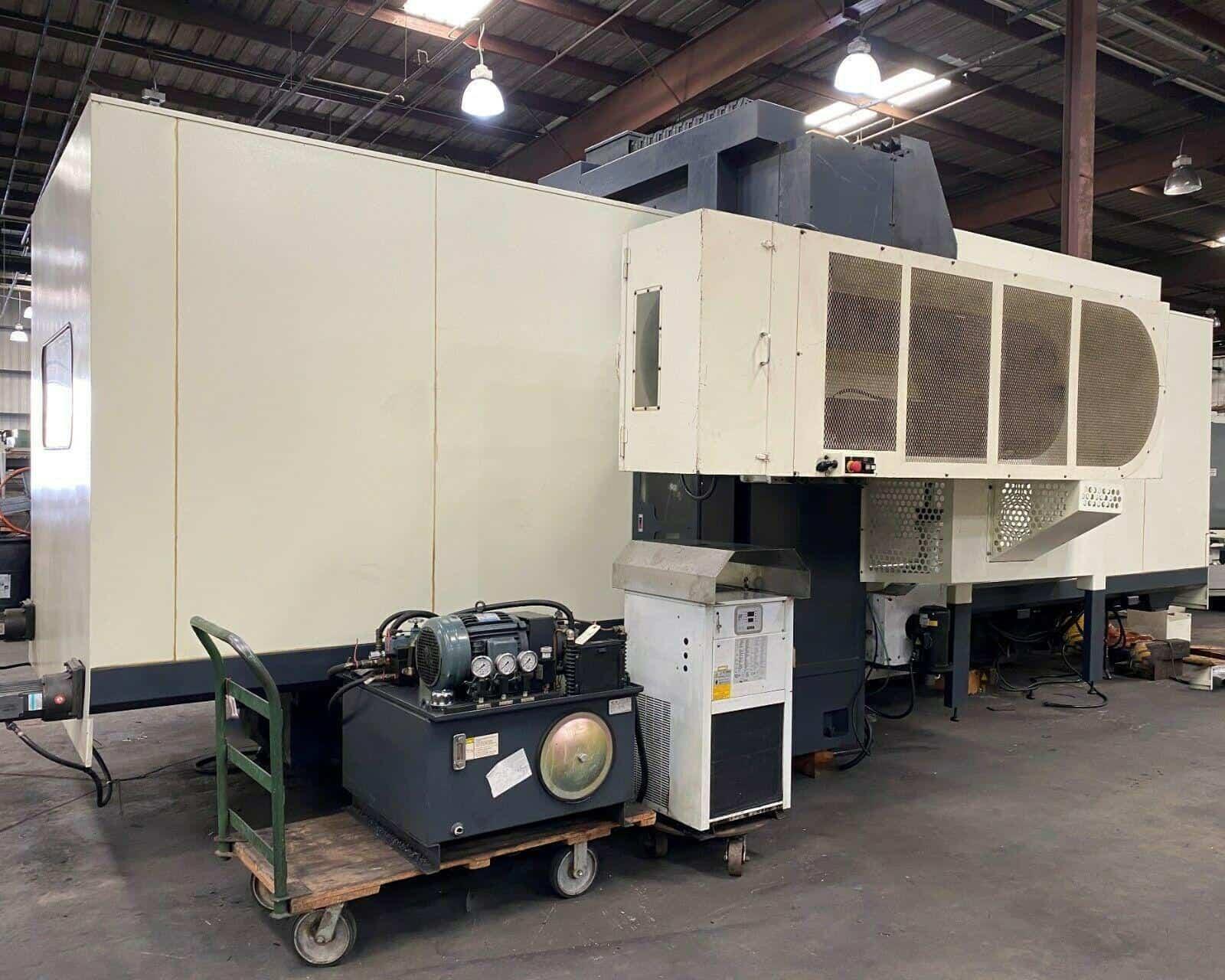

Chiller Unit
Levelling Pads
Replacement Cost over $400000.00
Mighty Viper Pro-3210 CNC Vertical Bridge Mill Specifications:

Travels:
X-Axis: 118.11″
Y-Axis: 82.68″
Z-Axis: 30.71″
Distance Between Columns: 91.0″
Spindle Nose to Table (Min.- Max.): 8.86″- 39.57″
Rapid feedrate X Y & Z: 472 inch/P.M
Cutting Feedrate: .04″ – 276″ inch/ P.M

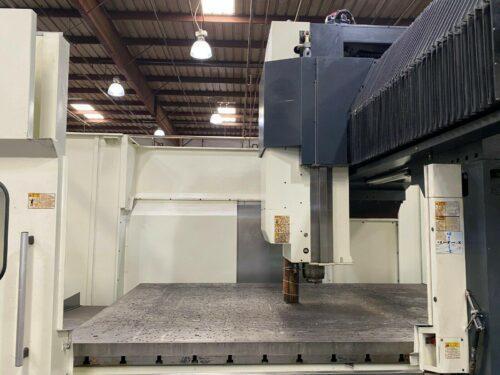

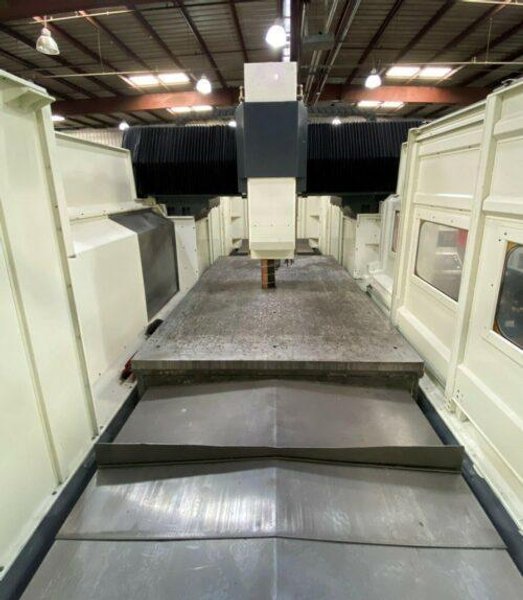

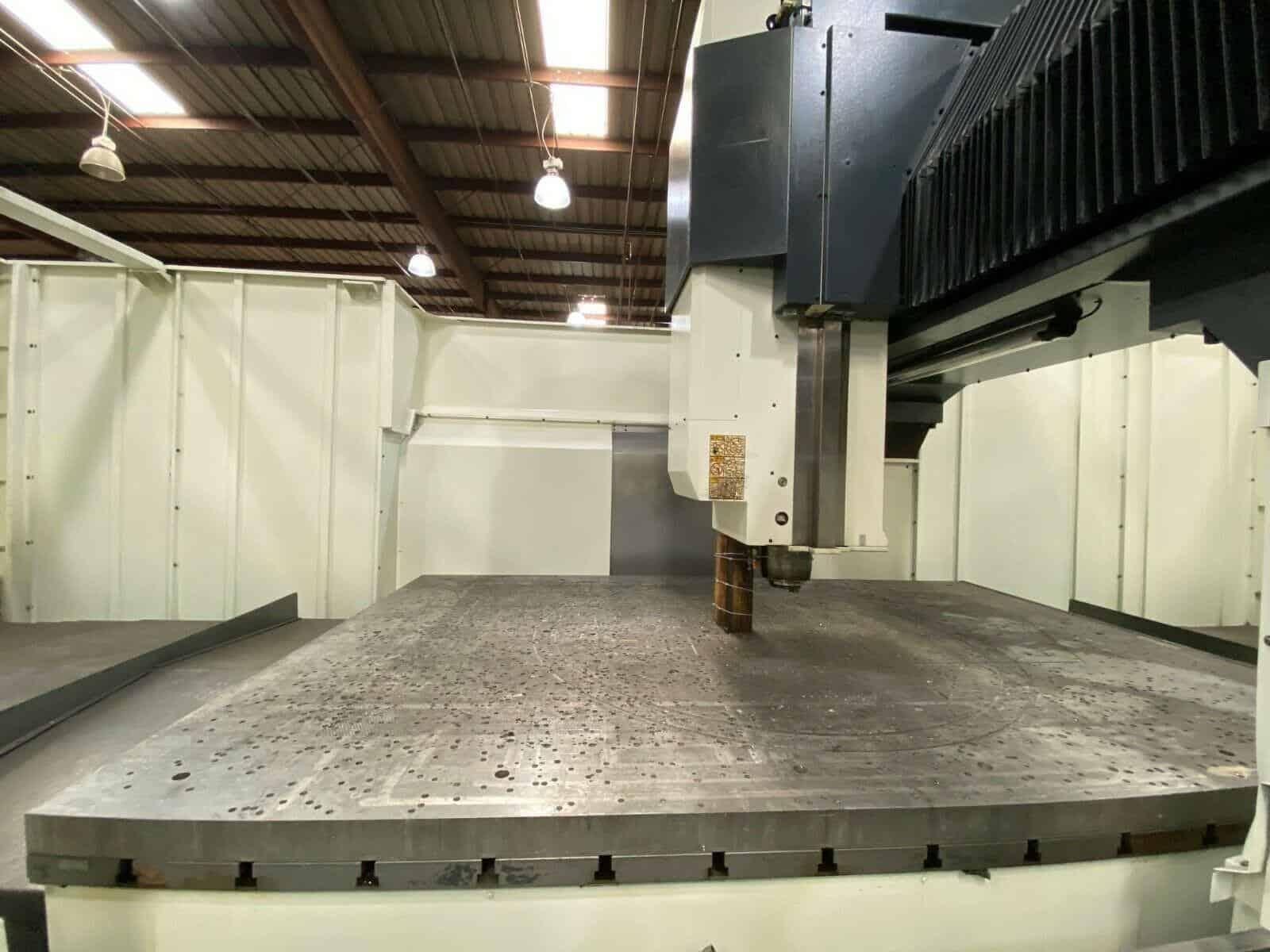

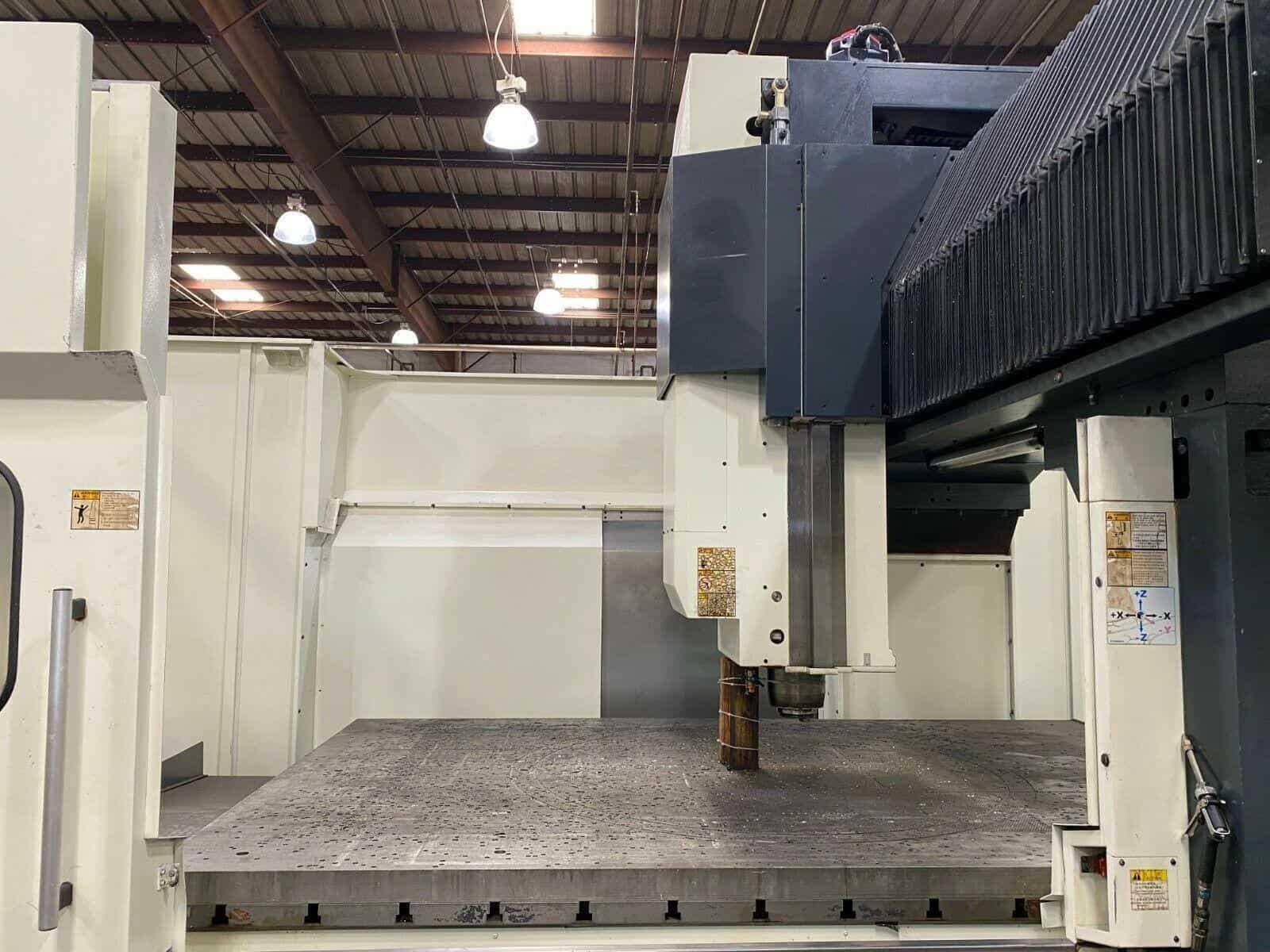

Table:
Length: 124″
Width: 81″
T-Slot: 0.87″ Wide X 20 X 7.87″
Max Weight on Table: 18000 lbs

Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP
Automatic Tool Changer:
50 Taper

Tool Changer:
Capacity: 40 Station
Max Tool Weight: 33 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 5″

General:
Air Required: 100 psi 4 scfm
Power: 205-235v / 66FLA / 3-Phase 40 Kva
Overall Shipping Dimensions: 410″ x 164″ x 130″ High Hydraulic Unit Chip Conveyor
Chiller unit Extra Weight: 60600 lbs.

“No Charges for loading at list Price”
