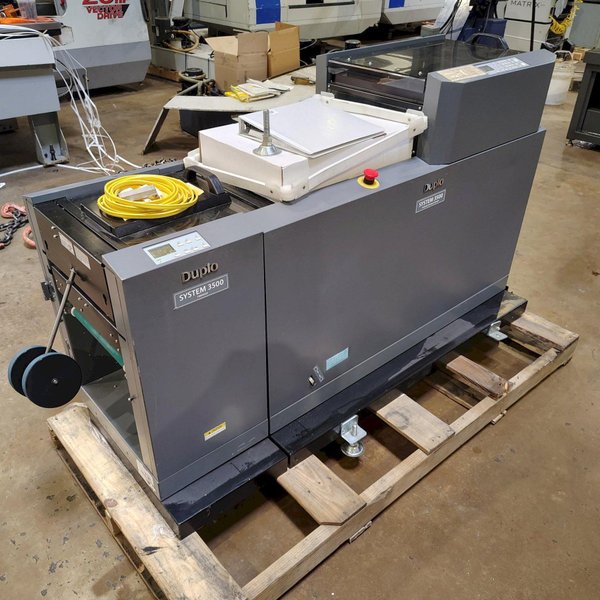

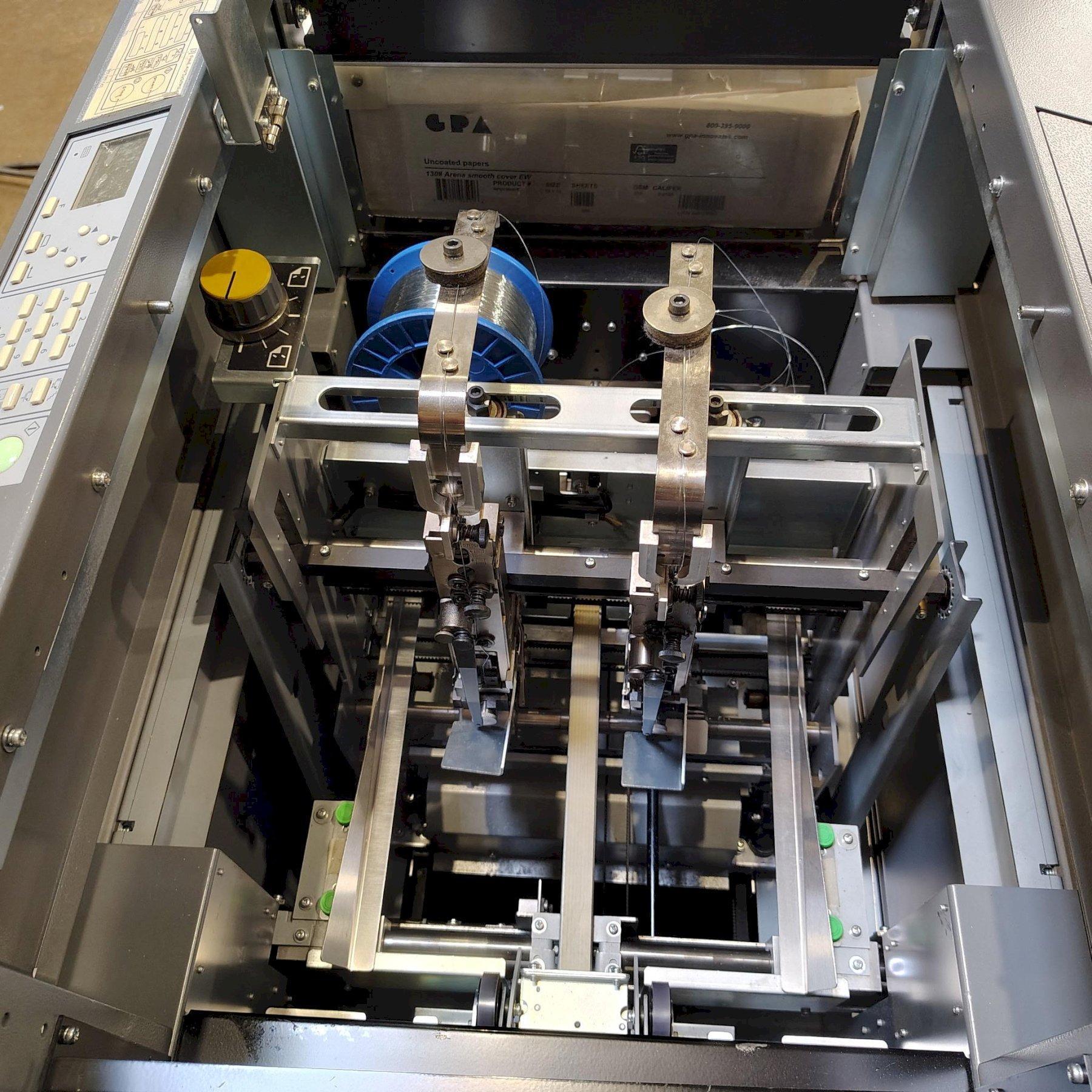

Booklet Maker
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Speed: Up to 3,000 A5 saddle‑stitched booklets per hour, and up to 9,000 collated sets per hour Sheet Range: 1–20 sheets per booklet Paper Thickness: Sheets: 110–350 gsm (coated/uncoated/UV) Paper Size Range Saddle Stitch & Fold / Fold Only: 5.82″×8.27″ to 12.6″×18.11″ (A5 to 12.6″ x 18.11″) Side/Corner Stitching: 7.17″×10.12″ to 8.5″×11.69″ Max Format: Open sheet up to 320×460 mm (12.6″×18.11″); some specs list 350×500 mm collator capacity All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Creaser & Feeder Feed Speed 50 sheets/min (letter size, 1 crease) Max Creases per Sheet 15 Paper Weight Range 110–350 gsm Sheet Size Range 140 × 150 mm to 320 × 650 mm Feed Capacity 100 mm Accuracy ±0.3 mm; 0.1 mm position increments Job Memory 30 programs stored Weight & Dimensions ~175 lb; 50″ × 25″ × 23″ Power Supply 115 V/60 Hz or 230 V/50–60 Hz All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
