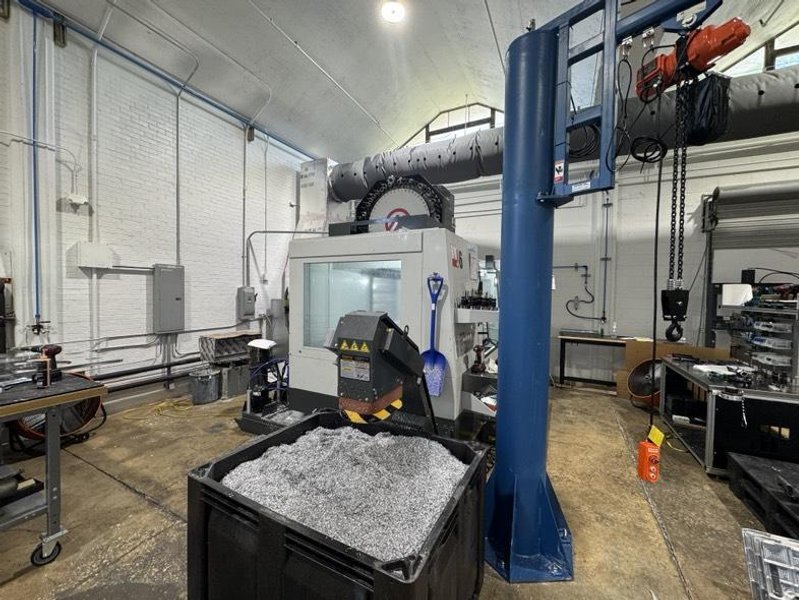

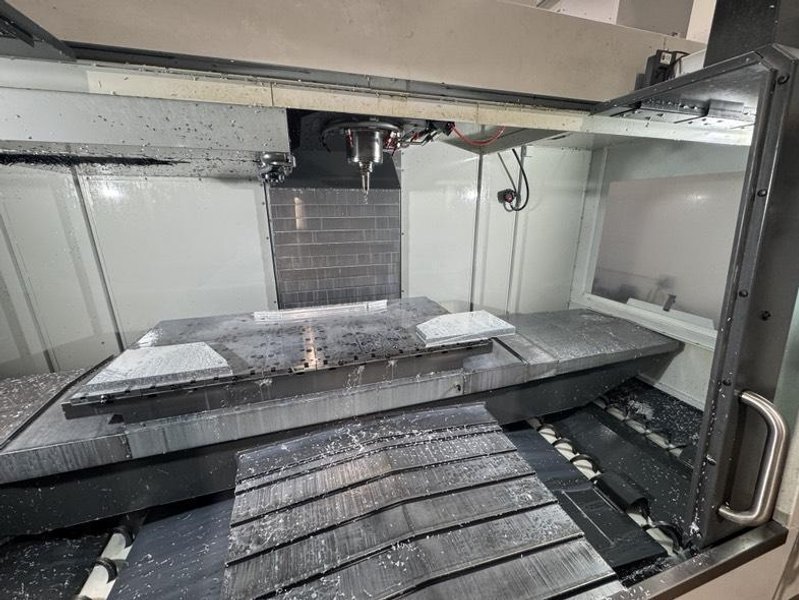

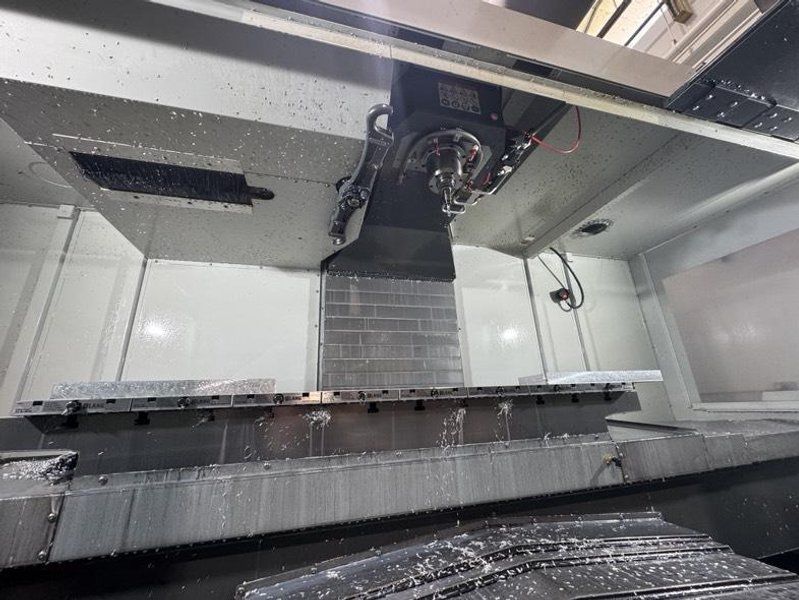

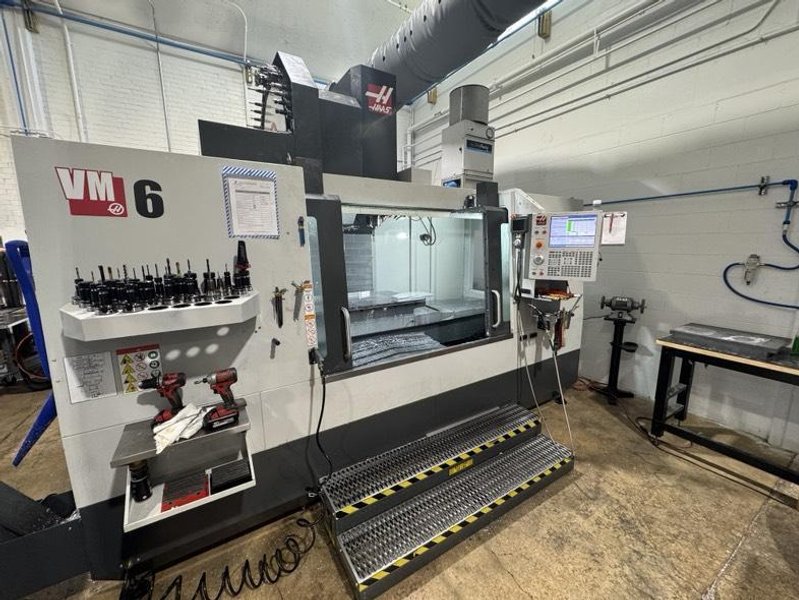

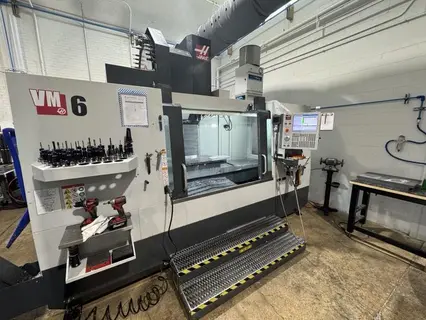

Haas VM-6 VMC, 2024 – 50 ATC, 15,000 RPM Spindle, 4th Axis Wired, Quad Auger

X-Axis Travel: 64.0″ Y-Axis Travel: 32.0″ Z-Axis Travel: 30.0″ Spindle Nose to Table: 4.0″ to 34.0″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Specs Table Size: 64.0″ × 28.0″ T-Slot Width: 0.626″–0.630″ T-Slot Center Distance: 4.92″ Max Table Load: 4000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapids (X,Y,Z): 600 ipm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Type: HSK-A63 Max Spindle Speed: 15,000 RPM Spindle Power: 30 HP Max Torque: 90 ft-lbf @ 2000 RPM Cooling: Liquid-cooled with air/oil injection Drive System: Inline direct-drive

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Changer: 50 + 1 Station

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Haas CNC Control 15,000 RPM Spindle (HSK 63) 50+1 Side Mount Tool Changer Through Spindle Coolant 4th Axis Drive and Wiring Wireless Intuitive Probing System Active Ballscrew Compensation Quad-Auger System w/Conveyor Auto Door For Mills High-Pressure Flood Coolant Through-Tool Air Blast Auxiliary Coolant Filter Automatic Air Gun Coordinate Rotation and Scaling Early Power-Failure Detection Module High-Speed Machining Lifting Provision User-Definable Macros Programmable Coolant Nozzle Large Remote Jog Handle with Touchscreen Display Rigid Tapping Safe Run Visual Part Programming System Spindle Orientation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
