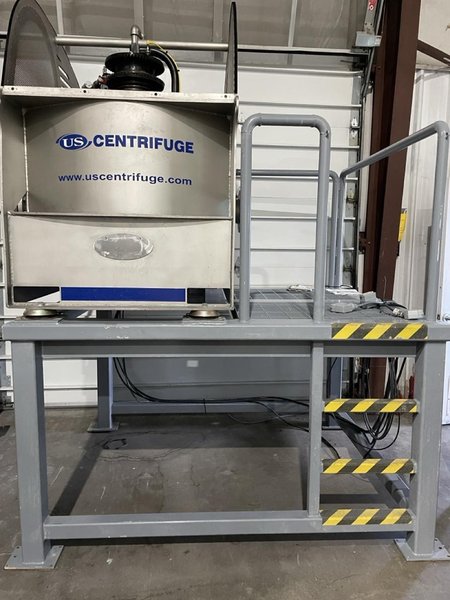

US Centrifuge Supramatic Model A460 Centrifuge
Brand
Not specified
Category
Model
A460
Stock #
428894
Year
1900
Condition
Not specified
Location
Michigan
|
– Bowl Volume: 60.0 liter
– Max. Bowl Speed: 2,850 rpm
– Bowl Diameter ID: 18.5″
– Max G-force: 1,750
– Process Capacity: 5 to 75-gpm
– Max Solids Holding Capacity: 6.0 gallons
– Maximum Clean Cycles: 6-cycles per hour
– Motor: 15 HP
– Required Inlet Pressure: 10-psi @ 40-gpm
– Liquid Inlet Fitting: 1” NPT
– Liquid Discharge Fitting: 4” NPT (L/R side)
– Liquid Discharge Pressure: Gravity Return
– Maximum Temperature: 160°F
– Standard Configuration: 6 to 9-pH
– 316L Stainless Configuration: 2 to 14-pH
– Weight (approx.): 5,500 lbs (with control panel)
– Assembled Dimensions: 56.50”(L) x 44.25”(W) x 50.00”(H)
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
